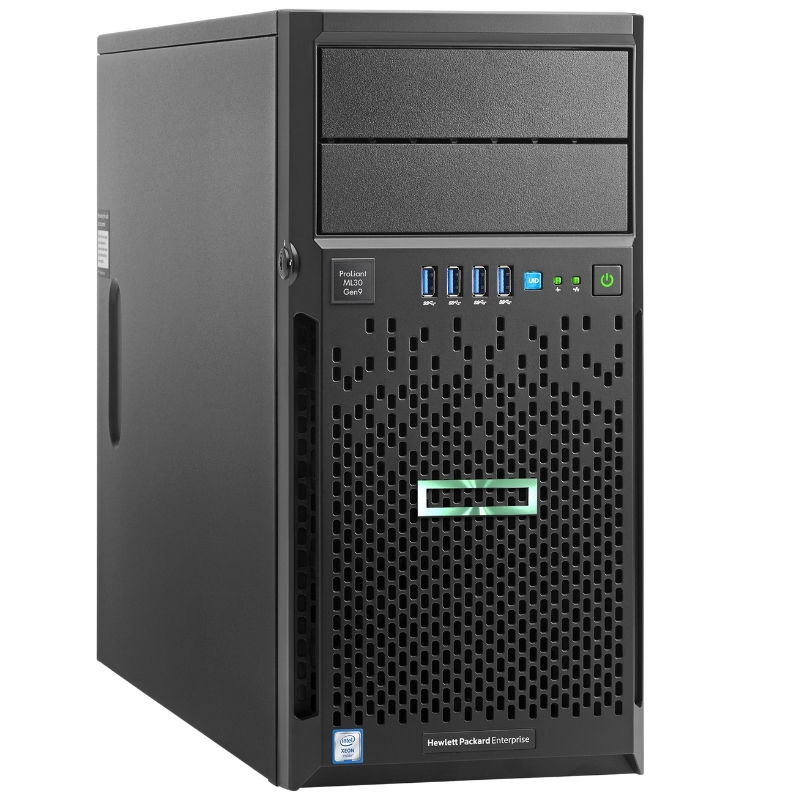

HPE Proliant ML30 Gen9 873227-001 Xeon Quad-Core 3GHz 8GB DDR4 Server

Processor

The HPE Proliant ML30 Gen9 Server comes with a powerful Xeon Quad-Core processor clocked at 3GHz. This feature is one of the key highlights of this server, providing users with exceptional performance and efficiency.

General Overview of 873227-001

• Brand: Hewlett Packard Enterprise
• Part Number: 873227-001
• Product Model: ProLiant ML30 Gen9 - 4U Tower Server (Smart Buy)

Processor & Chipset

• Processor: Intel Xeon E3-1220v6 with a base clock speed of 3.0 GHz
• Turbo Boost: Up to 3.5 GHz
• Core Count: Quad-core
• CPU Quantity: 1 (single)
• Upgrade Capability: Yes, upgradeable

Main Processor Features

• Intel Turbo Boost Technology 2
• Intel Smart Cache

Chipset Details

• Socket Type: LGA1151
• Chipset: Intel C236

Cache Memory

• Type: Smart Cache
• Size: 8 MB per processor

Memory Specifications

• Installed RAM: 8 GB
• Maximum RAM Capacity: 64 GB

Memory Technology

• Type: DDR4 SDRAM with ECC
• Effective Memory Speed: 2400 MHz
• Memory Form Factor: DIMM 288-pin
• Configuration: 1 x 8 GB (Unbuffered)

Storage Configuration

• Hard Drive: None
• Optical Drive: None

Storage Controllers

• Type: RAID Controller - PCIe x4
• Interface: SATA 6Gb/s
• Controller Model: HP Dynamic Smart Array B140i
• Channel Count: 10
• Supported RAID Levels: RAID 0, RAID 1, RAID 5, RAID 10

Display & Graphics

• Graphics Controller: Integrated Matrox G200

Networking & Communication

• Bus Type: PCI Express x2
• Ethernet Ports: 2 x Gigabit Ethernet
• Ethernet Controller: HP NC332i
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet

Remote Management

• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake On LAN (WOL), PXE Support
• Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion & Connectivity

• External 5.25" Bays: 1 (total), 1 (free)
• Hot-swap 3.5" LFF Bays: 4 (total), 4 (free)

Expansion Slots

• DIMM Slots: 4 (total), 3 (free)
• CPU Slot: 1 (total), 0 (free)
• PCIe 3.0 x16 Slot: 1 (total), 1 (free)
• PCIe 3.0 x4 Slots: 2 (total), 2 (free)
• PCIe 3.0 x8 Slot: 1 (total), 1 (free)
• MicroSD Card Slot: 1 (total), 1 (free)

Interfaces & Ports

• VGA Port: 1 (rear)
• Gigabit Ethernet Ports: 3
• USB 3.0 Ports: 6 (4 front, 2 rear)
• USB 2.0 Ports: 4 (2 rear, 2 internal)

Miscellaneous

• ACPI 2.0b
• FCC Class B Certified
• EN 61000-3-2, EN 55022, ICES-003
• EN 61000-3-3, EN 55024, CISPR 22
• FCC CFR47 Part 15, IEC 60950-1
• EN 60950-1, GB 9254, CNS 13438

Manufacturer's Program

• HPE Smart Buy

Power Specifications

• Power Supply Type: Internal
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Output: 350 Watts

Dimensions & Weight

• Width: 6.9 inches
• Depth: 18.7 inches
• Height: 14.5 inches
• Weight: 29.89 lbs

Enhanced Performance

The Xeon Quad-Core processor offers unmatched performance capabilities, allowing the HPE Proliant ML30 Gen9 Server to handle demanding workloads effortlessly. With four cores, this processor can efficiently execute multiple tasks simultaneously, resulting in improved productivity and reduced processing time.

Efficient Multitasking

With its quad-core design, the Xeon processor enables efficient multitasking. Users can run multiple applications and processes concurrently without experiencing any significant performance degradation. This feature is particularly beneficial for businesses that rely on advanced software applications or virtualization technologies that require substantial computing power.

Optimized Resource Allocation

The Xeon Quad-Core processor also comes with advanced resource allocation capabilities. It intelligently distributes processing power among different tasks, ensuring that critical applications receive the necessary resources. This optimized resource allocation enhances overall system performance and prevents bottlenecks, enabling smooth and uninterrupted operation.

Virtualization Support

For businesses utilizing virtualization technologies, the Xeon Quad-Core processor is a game-changer. It offers extensive virtualization support, allowing users to create and manage virtual machines efficiently. This capability opens up a world of possibilities for organizations seeking to consolidate their infrastructure, reduce costs, and improve scalability.

Future-Proofing

Investing in a server with a powerful processor like the Xeon Quad-Core ensures future-proofing. As technology continues to advance, software applications become more demanding. By choosing a server equipped with a robust processor, users can stay ahead of the curve and avoid the need for immediate upgrades or replacements.

Power Efficiency

Despite its high performance, the Xeon Quad-Core processor is designed to be power-efficient. It utilizes advanced power management techniques to optimize energy consumption without compromising performance. This feature is beneficial for both cost-conscious organizations looking to reduce their electricity bills and environmentally-conscious businesses aiming to lower their carbon footprint.

Reliability and Stability

The Xeon Quad-Core processor is renowned for its reliability and stability. It undergoes rigorous testing and validation processes to ensure consistent performance even under heavy workloads. This reliability guarantees minimal downtime and maximizes productivity, making it an ideal choice for businesses that cannot afford system failures or interruptions.

Memory

The HPE Proliant ML30 Gen9 Server boasts 8GB of DDR4 memory, providing users with ample resources to handle demanding applications and multitasking scenarios effectively.

Improved Performance

The 8GB DDR4 memory module significantly enhances the server's overall performance. With increased memory capacity, the server can handle more data and processes, resulting in faster response times and improved application performance. This benefit is particularly crucial for businesses running memory-intensive applications or databases that require swift data retrieval.

Efficient Multitasking

The generous amount of memory allows for efficient multitasking, enabling users to run multiple applications simultaneously without noticeable performance degradation. This capability enhances productivity by eliminating the need to close or prioritize applications constantly.

Scalability

The 8GB DDR4 memory module provides room for future scalability. Businesses that anticipate growth or increased data processing requirements can easily upgrade the server's memory capacity to accommodate the enhanced workload. This scalability ensures that the server can adapt and evolve alongside the organization's needs, avoiding costly replacements in the future.

Virtualization Support

Virtualization technologies heavily rely on sufficient memory resources. With 8GB of DDR4 memory, the HPE Proliant ML30 Gen9 Server can efficiently support multiple virtual machines, allowing businesses to maximize their virtualization investments. This capability enables organizations to consolidate their infrastructure, reduce costs, and improve resource utilization.

Reliability and Redundancy

The HPE Proliant ML30 Gen9 Server's memory features built-in reliability and redundancy mechanisms. ECC (Error-Correcting Code) memory ensures data integrity by automatically detecting and correcting single-bit memory errors. This feature is crucial for businesses that handle sensitive or critical data, as it minimizes the risk of data corruption or system instability.

Future-Proofing

The 8GB DDR4 memory module ensures future-proofing by offering ample capacity for upcoming software advancements. As applications become more demanding, having sufficient memory resources enables seamless operation without the need for immediate upgrades or replacements.

Improved Data Analysis

For businesses relying on data analysis and processing, the HPE Proliant ML30 Gen9 Server's 8GB DDR4 memory enables faster and more efficient data manipulation. With larger datasets, analysts can extract valuable insights and make informed decisions promptly. This benefit is particularly crucial in industries such as finance, research, and marketing.

Part Number

The HPE Proliant ML30 Gen9 Server features the part number 873227-001, a unique identifier that ensures accurate identification and compatibility for replacement parts, upgrades, and support.

Identifying Compatibility

The part number 873227-001 serves as a reliable identifier when sourcing replacement parts or upgrades for the server. By referencing this specific part number, users can ensure compatibility with their existing server configuration, avoiding potential compatibility issues that may arise from using incorrect components.

Simplified Support

When seeking technical support or assistance, providing the part number 873227-001 expedites the troubleshooting process. Support personnel can quickly identify the server model and configuration, facilitating effective problem diagnosis and resolution. This streamlined support experience minimizes downtime and ensures efficient server operation.

Inventory Management

For businesses managing multiple servers, accurately tracking and managing server parts and components is essential. Part number 873227-001 simplifies inventory management by providing a unique identifier for the HPE Proliant ML30 Gen9 Server. This feature allows businesses to maintain an organized inventory system, ensuring sufficient stock levels for replacements or upgrades.

Warranty Validation

The part number 873227-001 also aids in validating warranty coverage. When registering the server or submitting warranty claims, providing the correct part number ensures that the server's warranty status is accurately reflected in the manufacturer's system. This validation guarantees that users receive the full benefits of their warranty, including timely repairs or replacements when necessary.

Efficient Procurement

For businesses planning to expand their server infrastructure or procure additional units, part number 873227-001 simplifies the procurement process. By referencing this specific part number during procurement, users can ensure they receive the correct server model and configuration, avoiding potential mix-ups or delays in deployment.

Compatibility with Accessories

Part number 873227-001 also extends to compatible accessories and peripherals designed specifically for the HPE Proliant ML30 Gen9 Server. This compatibility ensures seamless integration with accessories such as storage devices, network adapters, or expansion cards, allowing users to maximize the server's capabilities without compatibility concerns.
