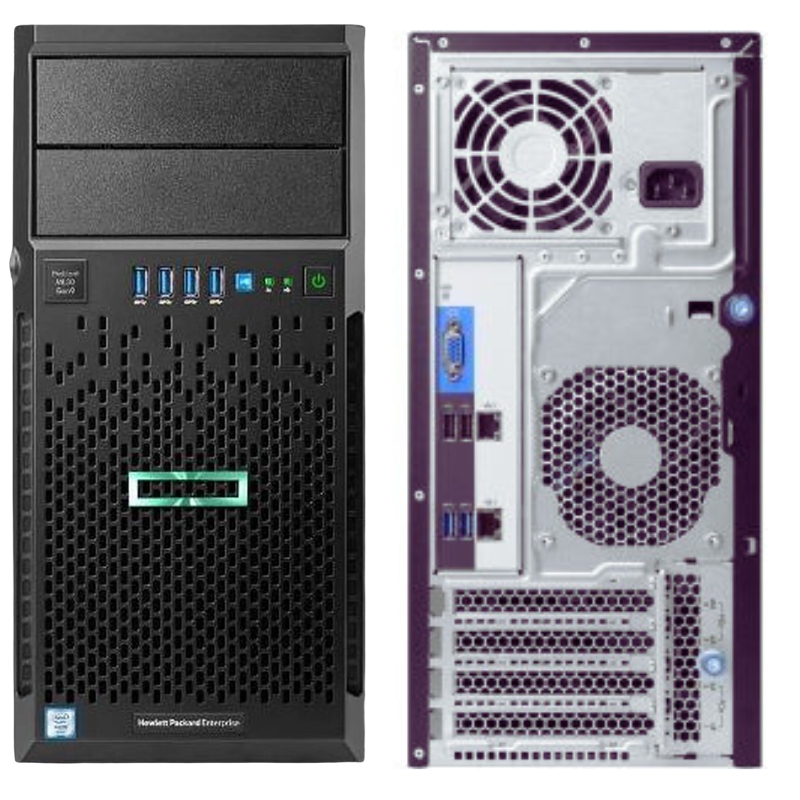

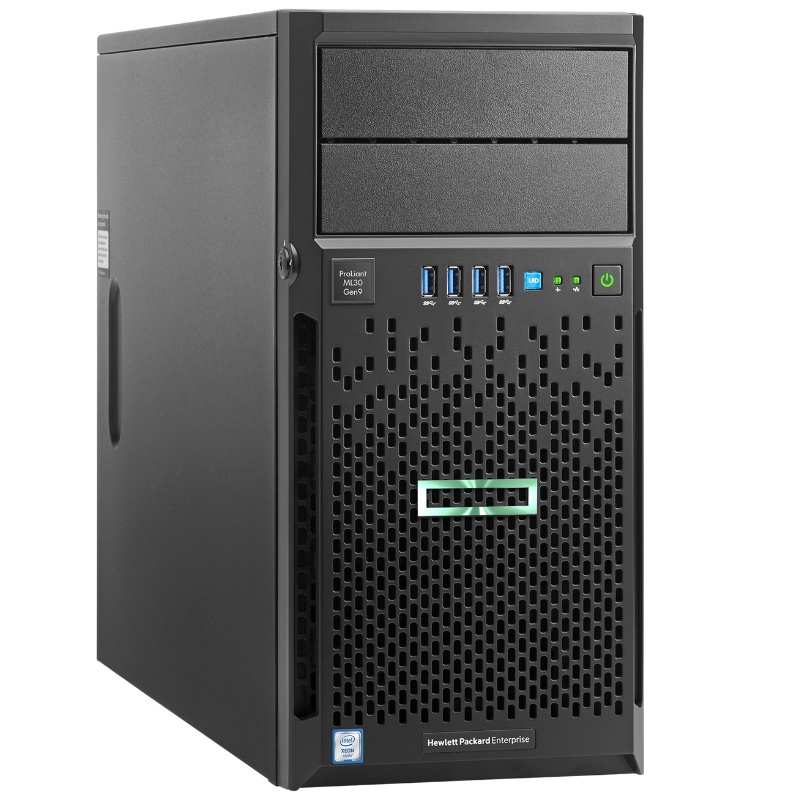

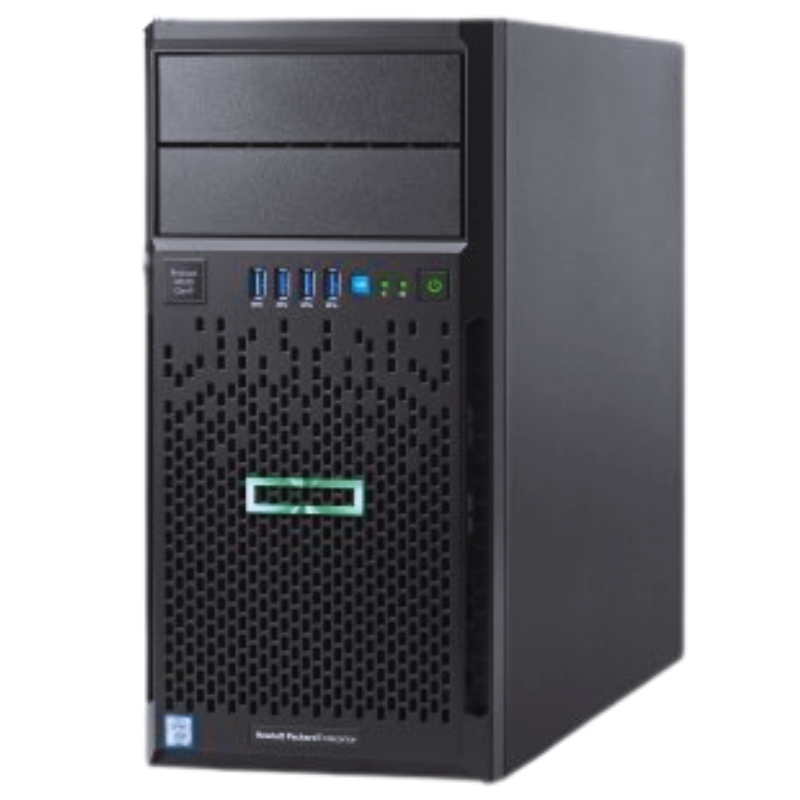

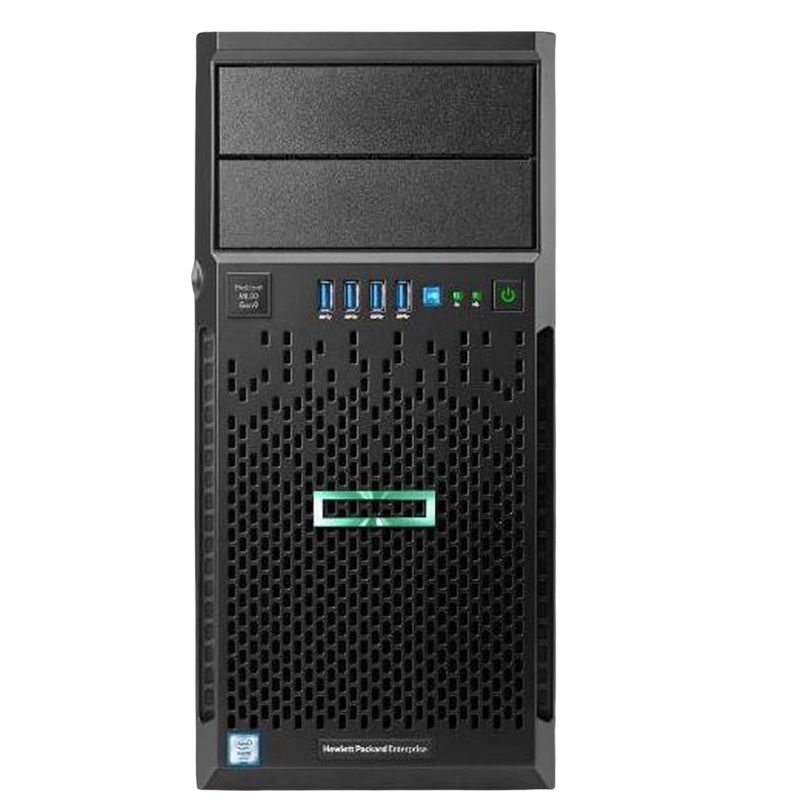

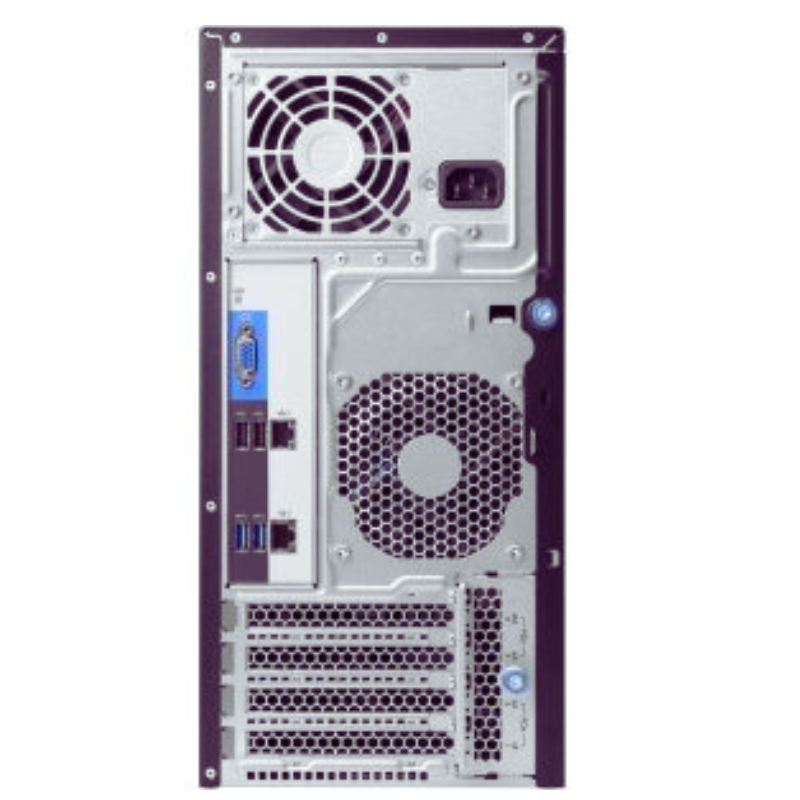

HPE 872658-001 Proliant ML30 Intel Xeon 4-Core 3 GHz 4U Tower Server.

Processor

The HPE Proliant ML30 Gen9 Base Model Tower Server comes equipped with an Intel Xeon Quad-Core E3-1220V6 processor. This powerful processor is designed to deliver exceptional performance and reliability, making it an ideal choice for businesses of all sizes.

Overview of Proliant ML30

Explore the Hewlett Packard Enterprise Proliant ML30 Gen9 4U Tower Server, an ideal solution for demanding applications requiring reliable performance and scalability. This base model integrates cutting-edge technology designed to enhance server capabilities in various environments.

Manufacturer Details

• Brand: Hewlett Packard Enterprise
• Part Number: 872658-001
• Product Name: Proliant ML30 Gen9 - 4U Tower Server (Base Model)

Processor and Chipset Specifications

• Processor: Intel Xeon E3-1220v6 with 3.0 GHz Base Clock
• Maximum Turbo Speed: 3.5 GHz
• Core Count: Quad-core
• Installed CPUs: 1
• Max CPUs Supported: 1
• Upgrade Capability: Yes
• Processor Features: Intel Turbo Boost Technology 2, Intel Smart Cache
• Socket Type: LGA1151
• Chipset: Intel C236

Cache Memory

• Type: Smart Cache
• Installed Size: 8 MB
• Cache Per Processor: 8 MB

Memory Specifications

• Installed Size: 8 GB, expandable to 64 GB
• Memory Type: DDR4 SDRAM - ECC
• Effective Memory Speed: 2400 MHz
• Form Factor: DIMM 288-pin
• Features: Unbuffered
• Current Configuration: 1 x 8 GB

Storage Capabilities

• Hard Drive: None
• Optical Drive: None

Storage Controllers

• Type: RAID Controller - PCIe x4
• Controller Interface: SATA 6 Gb/s
• Model: HP Dynamic Smart Array B140i
• Channels: 10
• RAID Levels Supported: RAID 0, RAID 1, RAID 5, RAID 10

Graphics and Display

• Graphics Controller: Integrated Matrox G200

Network and Communication

• Bus Type: PCI Express x2
• Ethernet Ports: 2 x Gigabit Ethernet
• Ethernet Controller: Broadcom BCM5720
• Protocols Supported: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: Integrated Lights-Out 4 (iLO 4)
• Features: Wake on LAN (WOL), PXE Support
• Compliance Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion and Connectivity

• Total Bays: 1 x External 5.25, 4 x Hot-swap 3.5 LFF
• Free Bays: 1 x External 5.25, 4 x Hot-swap 3.5 LFF

Expansion Slots

• Total Slots: 4 x DIMM 288-pin, 1 x CPU, 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x4, 1 x PCIe 3.0 x8, 1 x MicroSD Card (internal)
• Free Slots: 3 x DIMM 288-pin, 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x4, 1 x PCIe 3.0 x8, 1 x MicroSD Card (internal)

Interfaces and Ports

• VGA Port: 1 Rear
• LAN Ports: 2 x Gigabit Ethernet
• HP iLO LAN Port: 1
• USB Ports: 6 x USB 3.0 (4 Front, 2 Rear), 4 x USB 2.0 (2 Rear, 2 Internal)

Miscellaneous Information

• Compliance Standards: ACPI 2.0b, FCC Class B Certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, GB 9254, CNS 13438

Power Specifications

• Type: Power Supply
• Installed Quantity: 1
• Power Output: 350 Watts

Dimensions and Weight

• Width: 6.9 inches
• Depth: 18.7 inches
• Height: 14.5 inches
• Weight: 29.89 lbs

Benefits of the Intel Xeon Quad-Core E3-1220V6

1. Enhanced Performance

The Intel Xeon Quad-Core E3-1220V6 processor features four cores and eight threads, allowing it to handle demanding workloads with ease. It offers a base clock speed of 3GHz, which can be further boosted to 3.5GHz with Intel Turbo Boost Technology. This enables the server to efficiently handle resource-intensive tasks, such as data analysis, virtualization, and database management.

2. Improved Efficiency

With its advanced architecture and power-saving features, the Intel Xeon Quad-Core E3-1220V6 processor ensures optimal energy efficiency. This not only helps reduce operating costs but also contributes to a greener IT infrastructure. The processor intelligently adjusts power consumption based on workload demands, delivering the right amount of performance when needed while conserving energy during idle periods.

3. Enhanced Security

The Intel Xeon Quad-Core E3-1220V6 processor incorporates advanced security features to protect sensitive data and safeguard against cyber threats. It supports Intel Software Guard Extensions (Intel SGX), which helps isolate specific application code and data in a secure enclave, providing an additional layer of protection against unauthorized access. This is especially crucial for businesses that deal with confidential customer information or sensitive intellectual property.

4. Reliable Performance

Built on Intel's renowned Xeon platform, the E3-1220V6 processor offers exceptional reliability and durability. It is designed to handle 24/7 operations and can withstand heavy workloads without compromising performance. This makes it an excellent choice for businesses that require a dependable server solution to ensure uninterrupted operations.

Importance of the Intel Xeon Quad-Core E3-1220V6

The processor is the heart of any server, responsible for executing instructions and processing data. The Intel Xeon Quad-Core E3-1220V6 provides the necessary power and efficiency to handle demanding tasks, ensuring the smooth and efficient operation of the HPE Proliant ML30 Gen9 Base Model Tower Server.

With its enhanced performance capabilities, the E3-1220V6 processor enables businesses to handle resource-intensive workloads more effectively. Whether it's running virtual machines, managing databases, or performing complex calculations, this processor ensures that tasks are completed quickly and efficiently, resulting in improved productivity and reduced downtime.

Furthermore, the energy-efficient design of the Intel Xeon Quad-Core E3-1220V6 processor helps businesses save on electricity costs while minimizing their environmental footprint. By optimizing power consumption based on workload demands, the processor strikes an ideal balance between performance and energy efficiency, ensuring that resources are utilized effectively.

The advanced security features offered by the E3-1220V6 processor are crucial in today's threat landscape. With the increasing frequency and sophistication of cyberattacks, businesses need robust security measures to protect their valuable data. The Intel Software Guard Extensions provide an additional layer of protection, helping businesses mitigate the risk of data breaches and unauthorized access.

In summary, the Intel Xeon Quad-Core E3-1220V6 processor is a key component of the HPE Proliant ML30 Gen9 Base Model Tower Server, offering enhanced performance, improved efficiency, advanced security features, and reliable operation. Its importance cannot be overstated as it enables businesses to handle demanding workloads efficiently while ensuring data security and reducing operational costs.
