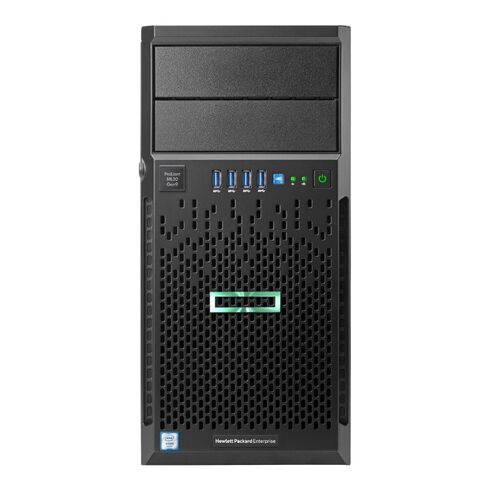

HPE Proliant ML30 Gen9 E3-1220V6 Entry Server P03704-S01

Processor

The HPE ML30 Gen9 Entry Server is equipped with an E3-1220V6 processor, which offers exceptional performance and reliability. The E3-1220V6 is part of Intel's Xeon processor family, designed to deliver powerful performance for a wide range of computing needs.

Main Information of P03704-S01

Manufacturer: Hewlett Packard Enterprise

Part Number: P03704-S01

Product Name: Proliant ML30 Gen10 - 4U Tower Server (Entry Model)

Processor & Chipset

Processor: Intel Xeon E3-1220v6 with a base clock of 3.0 GHz

Turbo Boost Frequency: Up to 3.5 GHz

Core Count: Quad-core

Number of CPUs: 1

Maximum Number of CPUs: 1

CPU Upgrade Options: Yes

Features: Intel Turbo Boost Technology 2

Chipset: Intel C236

Cache Memory

Installed Cache Size: L3 Cache - 8 MB

Cache Per Processor: 8 MB

Memory Configuration

Installed Memory: 8 GB, expandable up to 64 GB

Memory Technology: DDR4 SDRAM with ECC

Effective Memory Speed: 2400 MHz

Memory Speed: 2400 MHz

Compliance: PC4-19200

Memory Form Factor: DIMM 288-pin

Memory Slots: 4 total, 3 available

Configuration: 1 x 8 GB

Maximum Supported RAM: 64 GB (Unbuffered)

Storage Controllers

Type: RAID Controller

Interface: PCIe x4

Controller Name: HP Dynamic Smart Array B140i

Channel Quantity: 10

RAID Levels Supported: 0, 1, 5, 10

Optical Storage

Optical Drive: Not included

Graphics Controller

Graphics Processor: Matrox G200

Video Interface: VGA

Network & Communication

Bus Type: PCI Express x2

Ethernet Ports: 2 x Gigabit Ethernet

Ethernet Controller: Broadcom BCM5720

Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet

Remote Management Controller: Integrated Lights-Out 4 (iLO 4)

Features: Wake On LAN (WOL), PXE Support

Compliance Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion & Connectivity

• 1 x External 5.25" (Occupied)
• 4 x Hot-Swap 3.5" LFF (All free)

Slots

• 1 x PCIe 3.0 x16 (Full-length, Full-height) - Available
• 2 x PCIe 3.0 x4 (Full-length, Full-height, x1 Mode) - Available
• 1 x PCIe 3.0 x8 (Half-length, Full-height, x4 Mode) - Available
• 1 x Internal MicroSD Card Slot

Interfaces

• 1 x VGA (Rear)
• 3 x Gigabit Ethernet (1 x iLO, 2 x LAN)
• 6 x USB 3.0 (4 Front, 2 Rear)
• 4 x USB 2.0 (2 Rear, 2 Internal)

Miscellaneous

Standards: ACPI 2.0b, FCC Class B Certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, GB 9254, CNS 13438, K22, K24

Power Description

Power Supply: 350 Watt

Nominal Voltage: AC 120/230 V (50/60 Hz)

Dimensions & Weight

Width: 6.9 inches

Depth: 18.7 inches

Height: 14.5 inches

Weight: 29.89 lbs

Enhanced Performance

The E3-1220V6 processor features four cores and eight threads, allowing for efficient multitasking and faster processing speeds. With a base clock speed of 3.0 GHz and a maximum turbo frequency of 3.5 GHz, it can handle demanding workloads with ease. This enhanced performance ensures that users can run resource-intensive applications and processes without experiencing any lag or slowdown.

Improved Energy Efficiency

One of the key benefits of the E3-1220V6 processor is its energy efficiency. It has a low thermal design power (TDP) of 72W, which means it consumes less power while delivering high-performance computing. This not only helps reduce energy costs but also contributes to a greener and more sustainable computing environment.

Advanced Security Features

Security is a top priority for businesses, and the E3-1220V6 processor offers advanced security features to protect sensitive data and prevent unauthorized access. It supports Intel's Trusted Execution Technology (TXT), which provides hardware-based security capabilities, including measured boot and trusted execution environments. Additionally, it features Intel's Software Guard Extensions (SGX), which enables the creation of secure enclaves to protect specific application code and data.

Trusted Execution Technology (TXT)

TXT provides a hardware-based root of trust that helps protect against various types of attacks, including BIOS attacks, firmware attacks, and hypervisor attacks. It ensures that the server's boot process is secure and that the system remains trusted throughout its operation. This feature is particularly important for businesses that handle sensitive customer data or operate in regulated industries where data security is critical.

Software Guard Extensions (SGX)

SGX allows developers to create secure enclaves within the processor's memory, where sensitive data and code can be executed in a protected environment. This ensures that even if the server is compromised, the data inside the secure enclave remains encrypted and inaccessible to unauthorized users. SGX is especially beneficial for applications that deal with sensitive financial information, healthcare records, or intellectual property, as it provides an additional layer of protection against data breaches.

Enhanced Virtualization Capabilities

The E3-1220V6 processor also offers enhanced virtualization capabilities, making it an excellent choice for businesses that rely on virtualized environments. It supports Intel's Virtualization Technology (VT-x), which enables efficient utilization of server resources by allowing multiple virtual machines to run simultaneously on a single physical server. This improves overall system performance and reduces hardware costs by consolidating multiple servers into one.

Reliable Performance for Small Businesses

The E3-1220V6 processor is an ideal choice for small businesses that require reliable performance without breaking the bank. Its robust capabilities ensure the smooth operation of essential business applications, such as email servers, file and print servers, and small databases. With the E3-1220V6 processor, small businesses can experience enterprise-level performance and productivity at a fraction of the cost.

Memory

The HPE ML30 Gen9 Entry Server comes with 8GB of memory, providing ample capacity for multitasking and data-intensive applications. The generous memory capacity ensures that users can run multiple applications simultaneously without experiencing any performance issues.

Improved Multitasking

With 8GB of memory, the server can handle concurrent tasks smoothly and efficiently. This is particularly beneficial for businesses that rely on running multiple applications simultaneously, such as hosting websites, running virtual machines, or performing data analytics. The increased memory capacity allows for seamless multitasking, ensuring that users can switch between applications without any noticeable delays or slowdowns.

Optimal Performance for Data-Intensive Applications

Data-intensive applications, such as databases or content management systems, require a significant amount of memory to store and process large amounts of data. With 8GB of memory, the HPE ML30 Gen9 Entry Server can easily handle the demands of these applications, providing optimal performance and responsiveness. Users can expect faster data access and retrieval, resulting in improved productivity and efficiency.

Scalability and Future-Proofing

The 8GB memory capacity of the server is also scalable, allowing for future expansion as business needs grow. Businesses can start with 8GB and easily upgrade to higher memory capacities as their requirements increase. This scalability ensures that the server can adapt to changing workloads and provides a cost-effective solution that eliminates the need for frequent hardware upgrades.

Expandable Memory Slots

The HPE ML30 Gen9 Entry Server features four memory slots, which can accommodate up to 64GB of DDR4 memory. This expandability allows businesses to add more memory modules as needed, providing flexibility and scalability. Whether it's expanding to accommodate growing data sets or improving application performance, the server's memory capacity can be easily upgraded without replacing the entire system.

DDR4 Memory Technology

The server's memory utilizes DDR4 technology, which offers several advantages over its predecessor, DDR3. DDR4 provides faster data transfer rates, higher bandwidth, and lower power consumption. These benefits translate into improved overall system performance and energy efficiency. The use of DDR4 memory ensures that the HPE ML30 Gen9 Entry Server delivers optimal performance while minimizing power consumption.

Cost-Effective Solution for Small Businesses

The 8GB memory capacity of the HPE ML30 Gen9 Entry Server makes it an ideal choice for small businesses that require a cost-effective solution without compromising performance. It strikes a balance between affordability and functionality, allowing businesses to meet their computing needs without exceeding their budget. The server's memory capacity provides sufficient resources for running essential business applications, making it a reliable and efficient choice for small business owners.

Enhanced Reliability and Redundancy

The server's 8GB memory capacity also contributes to its overall reliability and redundancy. With ample memory, the server can handle unexpected surges in workload or spikes in data access without experiencing performance degradation. This ensures uninterrupted operation and minimizes the risk of downtime, which is crucial for businesses that rely heavily on their servers to deliver critical services or support mission-critical applications.
