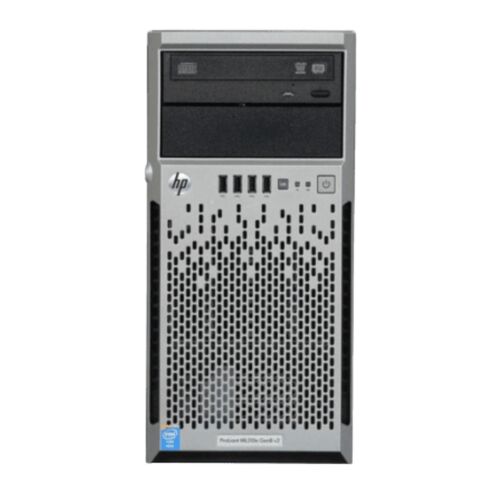

HPE Proliant ML310e G8 Xeon Tower Server 712329-001

Memory

Enhanced Performance

The HPE ML310e G8 Tower Server is equipped with 4GB DDR3 SDRAM, which plays a crucial role in enhancing the overall performance of the server. With this ample amount of memory, users can experience faster data processing and improved multitasking capabilities. The DDR3 SDRAM technology ensures that data is transferred at a high speed, enabling smooth and efficient operations.

General Information

• Manufacturer: Hewlett Packard Enterprise
• Manufacturer Part Number: 712329-001
• Product Name: Proliant ML310e G8 V2 - 4U Micro Tower Server (Base Model)

Processor & Chipset

• Processor Type: Intel Xeon E3-1220-v3, 3.1 GHz
• Max Turbo Speed: 3.5 GHz
• Number of Cores: Quad-core
• Installed Quantity: 1
• Max Supported Quantity: 1
• 64-bit Processing: Yes
• Chipset Type: Intel C222

Cache Memory

• Cache Memory Size: 8 MB L3 Cache
• Cache Per Processor: 8 MB

Memory

• Installed Memory Size: 4 GB (upgradable to 32 GB)
• Memory Technology: DDR3 SDRAM - ECC
• Effective Memory Speed: 1600 MHz
• Memory Speed Rating: 1600 MHz
• Memory Specification Compliance: PC3-12800
• Form Factor: DIMM 240-pin
• Memory Slots: 4 total (3 available)
• Memory Configuration: 1 x 4 GB

Storage & Optical Storage

• Hard Drive: No HDD included
• Optical Drive Type: DVD-RW / DVD-Writer - SATA

Storage Controller

• Type: 1 x SATA - Integrated - PCIe 2.0
• Controller Interface: SATA 6 Gb/s
• Storage Controller Name: HP Dynamic Smart Array B120i
• Channel Quantity: 6
• RAID Levels Supported: RAID 0, RAID 1, RAID 10

Display & Graphics Controllers

• Graphics Controller Type: Integrated
• Graphics Processor: Matrox G200
• Video Interfaces: VGA

Network & Communication

• Network Type: Integrated
• Bus Interface Type: PCI Express x2
• Ethernet Ports: 2 x Gigabit Ethernet
• Ethernet Controller: HP NC332i
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake on LAN (WoL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion & Connectivity

Expansion Bays

• Total Bays: 2 (1 free)
• External 5.25-inch Bays: 1 (1 free)
• Hot-Swap 3.5-inch LFF Bays: 4 (4 free)

Expansion Slots

• Total Slots: 1 CPU, 4 DIMM 240-pin
• PCIe Slots:
  • 1 x PCIe 2.0 x4 (Half-length, Full-height, x1 Mode)
  • 1 x PCIe 2.0 x8 (Full-length, Full-height, x1 Mode)
  • 1 x PCIe 3.0 x8 (Full-length, Full-height)
  • 1 x PCIe 3.0 x16 (Full-length, Full-height, x8 Mode)

Interfaces & Ports

• Serial Port: 1
• VGA Port: 1
• LAN Ports: 2 x Gigabit Ethernet
• HP iLO Port: 1
• USB Ports:
  • 5 x USB 2.0 (4 front, 1 internal)
  • 2 x USB 3.0

Miscellaneous

• Features: Administrator Password, Power-on Password
• Compliant Standards: ACPI 2.0b, FCC Class B Certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, BSMI CNS 13438

Power Device

• Device Type: Power Supply
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 350 Watt
• Efficiency: 85%

Dimensions & Weight

• Width: 6.9 inches
• Depth: 18.7 inches
• Height: 14.5 inches
• Weight: 25.3 lbs

Efficient Data Processing

The 4GB DDR3 SDRAM enables the server to handle large volumes of data seamlessly. Whether you are running resource-intensive applications or handling complex workloads, this memory capacity ensures that the server can process information efficiently without any lag. This capability is especially important for businesses that rely on their servers to handle critical tasks and require quick response times.

Increased Multitasking

Multitasking is an essential aspect of any server, as it allows users to run multiple applications simultaneously. The 4GB DDR3 SDRAM in the HPE ML310e G8 Tower Server supports efficient multitasking by providing sufficient memory to handle various tasks simultaneously. This means that users can run multiple virtual machines, databases, or applications without experiencing any significant slowdowns or performance issues.

Seamless Upgrades

Another benefit of the 4GB DDR3 SDRAM is its expandability. As business needs evolve and data requirements increase, it is important to have a server that can accommodate these changes. The HPE ML310e G8 Tower Server allows users to easily upgrade their memory capacity by adding additional modules. This flexibility ensures that the server can grow with the business and adapt to future demands without the need for a complete hardware overhaul.

Improved Reliability

Reliability is a critical factor for any server, as downtime can result in significant financial losses and disruptions to business operations. The 4GB DDR3 SDRAM in the HPE ML310e G8 Tower Server is known for its stability and reliability. It is designed to handle continuous operations without compromising performance or data integrity. This ensures that users can rely on the server to deliver consistent and uninterrupted service.

Cost-Effective Solution

The 4GB DDR3 SDRAM in the HPE ML310e G8 Tower Server offers a cost-effective solution for businesses that require reliable and efficient computing power. With this memory capacity, users can enjoy enhanced performance without the need for excessive investment in high-end memory modules. This makes the server an ideal choice for small to medium-sized businesses that need to optimize their IT infrastructure within a limited budget.

Controller

Advanced Data Protection

The HPE ML310e G8 Tower Server features a Smart Array controller, which provides advanced data protection capabilities. This controller is designed to optimize storage performance and ensure the integrity of critical data. By utilizing RAID technology, the Smart Array controller offers various levels of redundancy and fault tolerance, minimizing the risk of data loss or corruption.

Redundancy and Fault Tolerance

The Smart Array controller enables users to configure RAID levels such as RAID 0, RAID 1, RAID 5, and RAID 10. These configurations distribute data across multiple drives, ensuring that even if one drive fails, the data remains accessible and operational. This redundancy and fault tolerance capability minimizes the risk of data loss and provides peace of mind to businesses that rely on their servers for storing critical information.

Enhanced Performance

In addition to data protection, the Smart Array controller also enhances storage performance. It optimizes data access by intelligently distributing data across multiple drives, improving read and write speeds. This results in faster data processing and reduced latency, allowing users to access and retrieve information quickly. Whether you are running database applications or performing data-intensive tasks, the Smart Array controller ensures that storage performance is not a bottleneck.

Simplified Management

The Smart Array controller comes with intuitive management tools that simplify the configuration and monitoring of the storage subsystem. It provides a user-friendly interface that allows users to easily set up RAID configurations, monitor drive health, and receive notifications in case of any issues. This simplified management capability saves time and effort, enabling IT administrators to focus on other critical tasks without worrying about the storage infrastructure.

Scalability and Flexibility

The Smart Array controller offers scalability and flexibility to accommodate changing business needs. It supports hot-swappable drives, allowing users to add or replace drives without shutting down the server. This capability makes it easier to expand storage capacity or upgrade to higher-capacity drives as the storage requirements grow. The flexibility of the Smart Array controller ensures that the server can adapt to evolving storage demands without disruption.

Improved Data Availability

For businesses that cannot afford downtime, the Smart Array controller provides features like online capacity expansion and online RAID level migration. These features allow users to add more drives or change RAID levels on the fly, without interrupting data availability. This ensures that critical applications and services remain accessible even during storage reconfiguration, minimizing any potential impact on business operations.

Ethernet

High-Speed Connectivity

The HPE ML310e G8 Tower Server is equipped with an Ethernet controller that offers high-speed connectivity options. Whether you need to connect to a local network or utilize cloud services, this feature ensures that data can be transferred quickly and efficiently.

Faster Data Transfer Rates

The Ethernet controller in the HPE ML310e G8 Tower Server supports Gigabit Ethernet, which provides data transfer rates of up to 1,000 megabits per second. This high-speed connectivity allows for faster file transfers, improved access to network resources, and seamless collaboration between multiple users. It is particularly beneficial for businesses that rely on real-time data sharing or need to transfer large files regularly.

Reliable Network Performance

The Ethernet controller ensures reliable network performance by minimizing packet loss and reducing latency. It utilizes advanced technologies such as flow control and error correction to optimize data transmission, resulting in consistent and stable network connectivity. This reliability is crucial for businesses that heavily depend on network resources for their day-to-day operations, ensuring uninterrupted access to critical applications and services.

Support for Virtualization

Virtualization has become a standard practice in modern IT environments, allowing businesses to maximize resource utilization and improve scalability. The Ethernet controller in the HPE ML310e G8 Tower Server provides support for virtualization technologies such as VMware and Hyper-V. This enables users to create virtual networks and efficiently manage virtual machines, enhancing flexibility and simplifying network administration.

Secure Network Communications

Security is a top concern for any business when it comes to network communications. The Ethernet controller in the HPE ML310e G8 Tower Server incorporates advanced security features such as VLAN tagging and Secure Sockets Layer (SSL) encryption. These features ensure that data transmitted over the network remains secure and protected from unauthorized access or interception. With these security measures in place, businesses can confidently connect to their networks and exchange sensitive information without compromising confidentiality.

Scalability and Future-Proofing

The Ethernet controller offers scalability and future-proofing by supporting various networking standards and protocols. It is designed to accommodate the evolving needs of businesses, allowing them to take advantage of emerging technologies and network advancements without replacing the entire server infrastructure. This scalability ensures that the HPE ML310e G8 Tower Server can adapt to changing networking requirements, providing a long-term investment for businesses.
