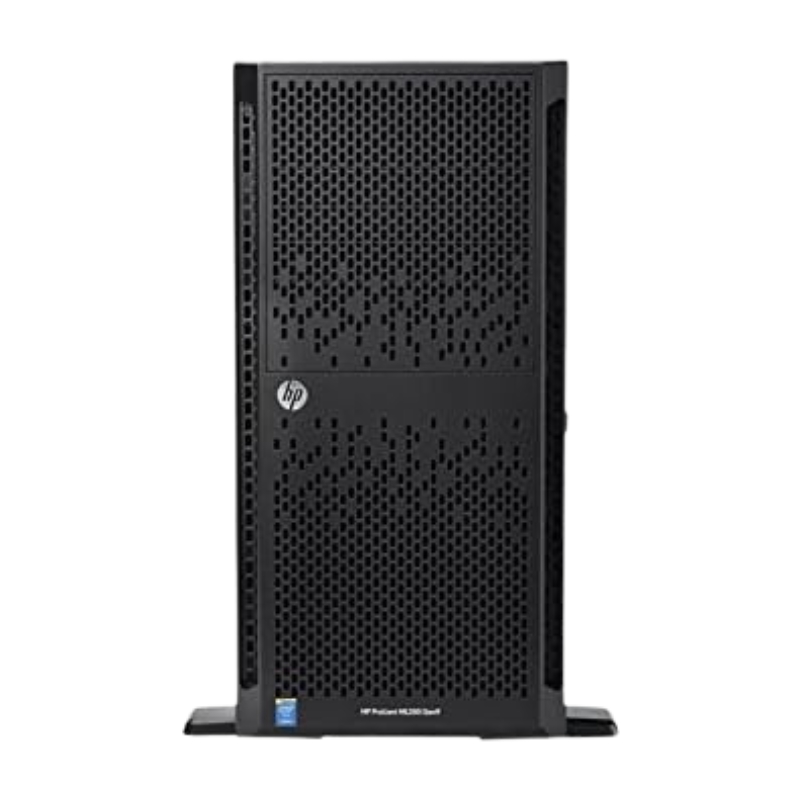

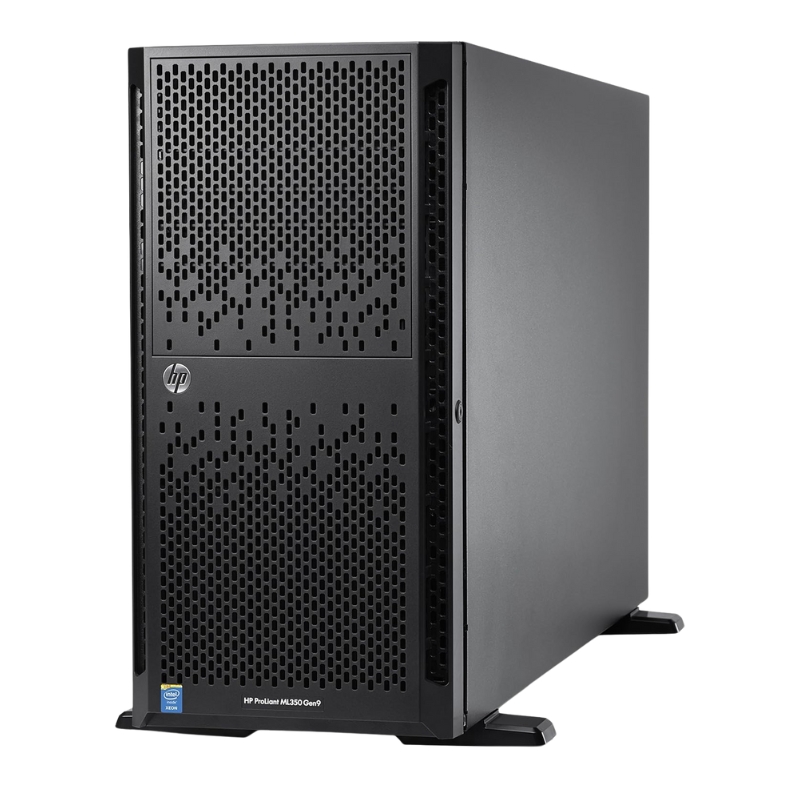

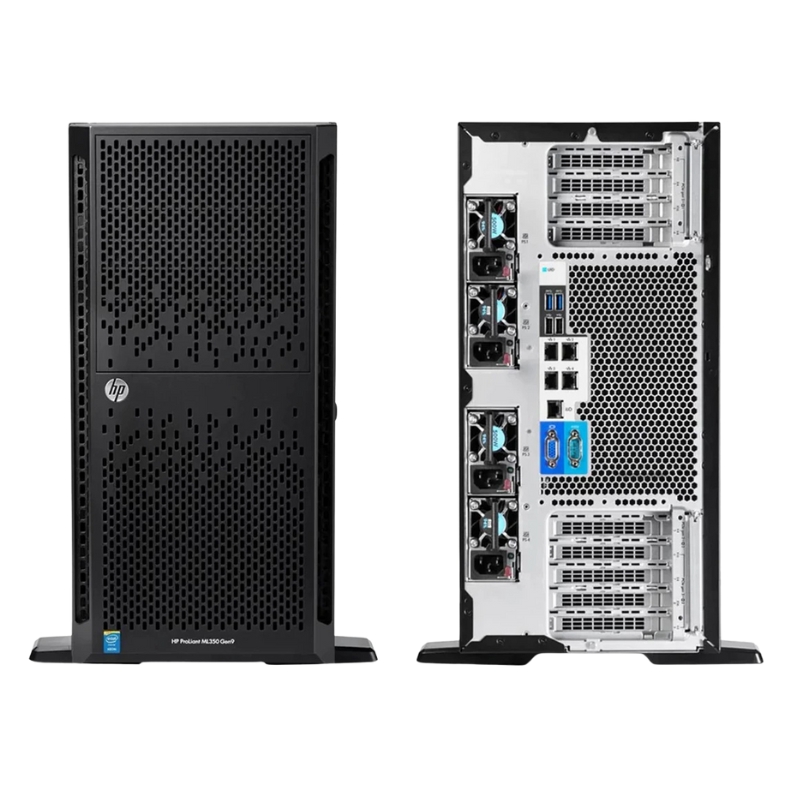

HPE Proliant ML350 G9 E5-2650V3 2P 32G 8SFF Server 765822-001.

Processor

The HPE Proliant Ml350 G9 Performance Tower Server is powered by the impressive 2x Intel Xeon 10-Core E5-2650v3/ 2.3GHz processor. This processor offers exceptional performance and reliability, making it a top choice for businesses and individuals looking for a powerful server solution.

Main Information of Proliant ML350

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 765822-001
• Product Name: Proliant ML350 G9 - 5U Tower Server

Processor & Chipset

• Processor Type: Intel Xeon E5-2650v3
• Base Clock Speed: 2.3 GHz
• Turbo Boost Speed: Up to 3 GHz
• QuickPath Interconnect (QPI): 9.60 GT/s
• Number of Cores: 10
• 64-bit Architecture: Supported
• Compatible Socket: FCLGA2011-3
• Installed Processors: 2
• Maximum Supported Processors: 2
• Chipset: Intel C610 Series

Cache Memory

• Cache Type: Smart Cache
• Installed Cache Size: 50 MB
• Cache Per Processor: 25 MB

RAM

• Installed RAM: 32 GB
• Maximum Supported RAM: 384 GB
• Memory Type: DDR4 SDRAM - Advanced ECC
• Effective Memory Speed: 2133 MHz
• Memory Speed Rating: 2133 MHz
• Compliance: PC4-17000
• Form Factor: DIMM 288-pin
• Total Memory Slots: 24
• Available Slots: 22
• Memory Features: Registered, Online Spare, Quad Channel Architecture, HP SmartMemory
• Memory Supported: PC4-17000 - Up to 768 GB (Load-reduced), PC4-17000 - Up to 384 GB (Registered)

Storage

• Hard Drive: Not Included
• Optical Drive: Not Included

Storage Controllers

• Controller Name: Smart Array P440ar
• Buffer Size: 2 GB
• Supported Disk Drives: 12 GB/s SAS / 6 GB/s SATA
• SAS Port Link Rate: 12 GB/s per physical link
• PCIe Link Rate: PCI Express 3.0 x8
• Maximum Physical Drives: 26
• Maximum Logical Drives: 64
• RAID Support: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM

Display & Graphics

• Graphics Processor: Matrox G200
• Video Interfaces: VGA
• Type: Integrated

Network & Communication

• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331i
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocol: IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 4 (iLO 4)
• Features: Wake-on-LAN (WoL), PXE Support
• Compliance Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion & Connectivity

• External 5.25 Slim Line: 1 (total), 1 (free)
• Hot-swap 2.5 SFF: 8 (total), 8 (free)

Expansion Slots

• DIMM 288-pin: 24 (total), 22 (free)
• CPU: 2 (total), 0 (free)
• PCIe 3.0 x8 (Full-length, Full-height, x4 Mode): 4 (total), 4 (free)
• PCIe 3.0 x16 (Full-length, Full-height): 3 (total), 3 (free)
• PCIe 2.0 x8 (Half-length, Full-height, x4 Mode): 1 (total), 1 (free)
• PCIe 3.0 x16 (Full-length, Full-height, x8 Mode): 1 (total), 1 (free)
• MicroSD Card (Internal): 1 (total), 1 (free)

Interfaces & Ports

• VGA: 1
• Serial: 1
• LAN (Gigabit Ethernet): 4
• HP iLO: 1
• USB 3.0: 2
• USB 2.0: 4 (2 Front, 2 Rear)

Miscellaneous

• Password Protection: Administrator, Power-on, Serial Port I/O Control, Setup
• BIOS: UEFI

Compliance Standards

• ACPI 2.0b
• FCC Class A Certified
• EN 61000-3-2
• EN55022
• ICES-003
• EN 61000-3-3
• EN55024
• CISPR 22
• FCC CFR47 Part 15
• IEC 60950-1

Memory

The HPE Proliant Ml350 G9 Performance Tower Server is equipped with DDR4 SDRAM memory, providing excellent performance and reliability for demanding workloads.

Benefits of DDR4 SDRAM Memory

Increased Speed and Bandwidth

DDR4 SDRAM memory offers higher data transfer rates compared to its predecessors, allowing for faster access to data and improved overall system performance. This increased speed is particularly beneficial for memory-intensive applications and virtualization environments.

Higher Capacity

DDR4 SDRAM memory modules have higher capacity options than previous generations, allowing for greater memory expansion and accommodating larger datasets. This is crucial for businesses that deal with large amounts of data or require extensive virtual machine deployment.

Energy Efficiency

DDR4 SDRAM memory modules operate at lower voltage levels compared to previous generations, resulting in reduced power consumption. This not only helps in lowering energy costs but also contributes to a greener and more sustainable IT infrastructure.

Improved Reliability

DDR4 SDRAM memory incorporates advanced error-correcting code (ECC) technology, which detects and corrects errors in real time. This helps in maintaining data integrity and system stability, reducing the risk of data corruption or system crashes.

Compatibility

DDR4 SDRAM memory is backward compatible with DDR3 modules, making it easier to upgrade existing systems without the need for a complete overhaul. This allows businesses to leverage the benefits of DDR4 technology while still utilizing their existing infrastructure.

Storage

The HPE Proliant Ml350 G9 Performance Tower Server features the Smart Array P440ar with 2GB FBWC, providing efficient and reliable storage capabilities.

Benefits of Smart Array P440ar with 2GB FBWC

Enhanced Performance

The Smart Array P440ar controller offers advanced RAID functionality, allowing for improved data performance and protection. With support for RAID levels 0, 1, 5, 6, 10, 50, and 60, it ensures data redundancy and high availability, preventing data loss in case of drive failures.

Increased Storage Capacity

The Smart Array P440ar supports a large number of SAS and SATA drives, providing ample storage capacity for businesses with growing data needs. It allows for easy scalability by adding additional drives or expanding existing arrays without disrupting operations.

Data Protection

The 2GB Flash-Backed Write Cache (FBWC) module enhances data protection by temporarily storing write operations in case of power loss or system failure. This ensures that data is not lost or corrupted during unexpected events and can be recovered once the system is back online.

Easy Management and Monitoring

The Smart Array P440ar features a user-friendly management interface that allows administrators to easily configure and monitor the storage subsystem. It provides detailed information on storage health, performance metrics, and drive status, enabling proactive maintenance and troubleshooting.

Flexible Connectivity Options

The Smart Array P440ar offers flexible connectivity options with support for both SAS and SATA drives, allowing businesses to choose the most suitable storage configuration based on their specific requirements. This flexibility enables cost-effective storage solutions without compromising performance or reliability.

Networking

The HPE Proliant Ml350 G9 Performance Tower Server is equipped with a 1GB 4-Port 331i Adapter, providing reliable and high-performance networking capabilities.

Benefits of 1GB 4-Port 331i Adapter

High-Speed Connectivity

The 1GB 4-Port 331i Adapter offers high-speed networking capabilities, allowing for fast and reliable data transfer between the server and other devices on the network. This is particularly important for businesses that rely on network-intensive applications or require rapid data access.

Increased Bandwidth

With four dedicated ports, the 1GB 4-Port 331i Adapter provides increased bandwidth for simultaneous data transfer. This allows for improved network performance and reduced congestion, ensuring smooth communication between the server and other network devices.

Enhanced Network Security

The 1GB 4-Port 331i Adapter includes advanced security features, such as VLAN support and TCP/IP offloading, which help protect the server and network from potential threats. These features ensure secure data transmission and prevent unauthorized access to sensitive information.

Flexible Configuration Options

The 1GB 4-Port 331i Adapter supports various networking protocols and can be easily configured to meet specific business requirements. Whether it's creating separate virtual LANs or implementing Quality of Service (QoS) policies, the adapter offers flexibility in network setup and management.

Reliable Performance

The 1GB 4-Port 331i Adapter is designed to deliver reliable and consistent performance, even under heavy network loads. Its robust architecture and advanced features ensure uninterrupted network connectivity, minimizing downtime and maximizing productivity.

Power Supply

The HPE Proliant Ml350 G9 Performance Tower Server is equipped with 2x 800w FS RPS (Flexible Slot Redundant Power Supply), providing reliable and efficient power delivery.

Benefits of 2x 800w FS RPS

Redundancy and High Availability

The dual 800w FS RPS units provide redundant power supply, ensuring continuous operation even in the event of a power supply failure. This redundant design eliminates single points of failure and minimizes the risk of downtime, offering high availability for critical applications and data.

Efficient Power Management

The 800w FS RPS units are designed for energy efficiency, delivering the required power while minimizing energy consumption. This helps in reducing electricity costs and contributes to a more sustainable IT infrastructure.

Hot-Swap Capabilities

The FS RPS units support hot-swappable functionality, allowing for easy replacement or maintenance without shutting down the server. This feature eliminates the need for downtime during power supply replacement, ensuring continuous operation and system availability.

Intelligent Power Monitoring

The FS RPS units include intelligent power monitoring features that provide real-time information on power consumption and load distribution. Administrators can monitor power usage trends, identify potential issues, and optimize power allocation to ensure efficient utilization of resources.

Compatibility and Scalability

The 800w FS RPS units are compatible with other HPE Proliant servers, allowing for easy integration and scalability across the infrastructure. As your business grows, you can easily add more servers or upgrade existing ones without worrying about power supply compatibility.

Form Factor

The HPE Proliant Ml350 G9 Performance Tower Server features a 5U tower form factor, offering several benefits in terms of space efficiency and expandability.

Benefits of 5U Tower Form Factor

Space Efficiency

The tower form factor allows for vertical placement of the server, making it suitable for environments with limited floor space. The compact design helps save valuable office space while still providing powerful server capabilities.

Easy Installation and Maintenance

The tower form factor simplifies server installation and maintenance processes. The server's components are easily accessible, making it convenient for administrators to perform upgrades or replace faulty parts without any hassle.

Expandability and Scalability

The 5U tower form factor provides ample room for expansion and scalability. It allows for the installation of additional storage drives, expansion cards, or other peripherals, ensuring that the server can grow with your business needs.

Aesthetic Appeal

Tower servers are designed to blend well with office environments, offering a sleek and professional appearance. The HPE Proliant Ml350 G9 Performance Tower Server's modern design adds a touch of sophistication to any workspace.

Versatility

The tower form factor offers versatility in terms of deployment options. It can be placed on a desktop, rack-mounted, or placed on a shelf depending on the specific requirements of the environment. This flexibility allows businesses to adapt the server to their unique needs.

In conclusion, the HPE Proliant Ml350 G9 Performance Tower Server offers a powerful and efficient solution for businesses and individuals in need of a reliable server. With its impressive dual Intel Xeon processors, DDR4 SDRAM memory, Smart Array storage, high-performance networking capabilities, redundant power supply, and space-efficient tower form factor, this server is well-equipped to handle demanding workloads and provide exceptional performance. Whether it's for virtualization, database management, or resource-intensive applications, the HPE Proliant Ml350 G9 Performance Tower Server delivers the performance and reliability that users expect from a top-tier server solution.
