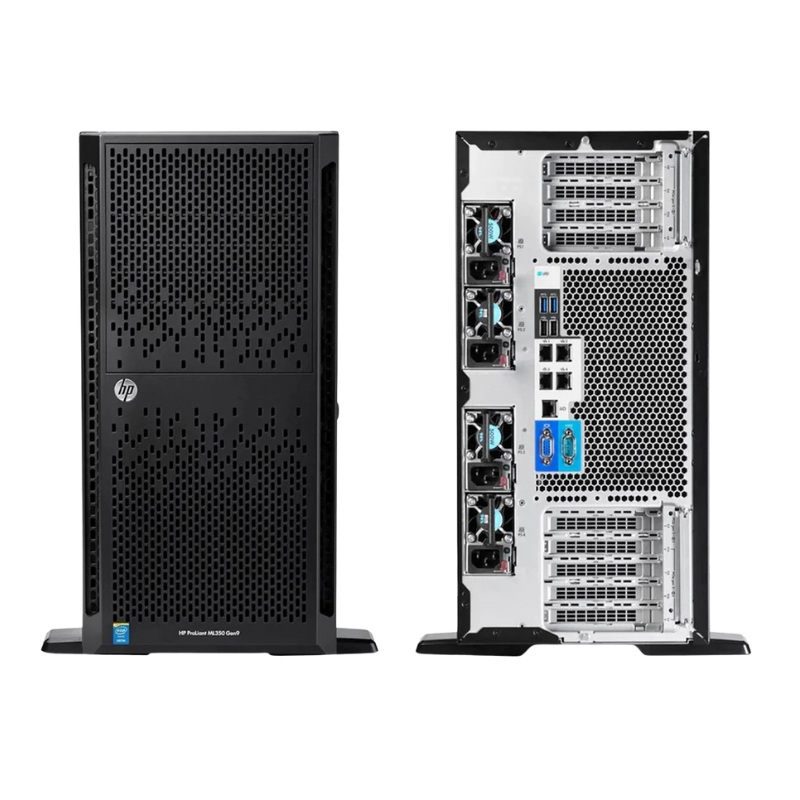

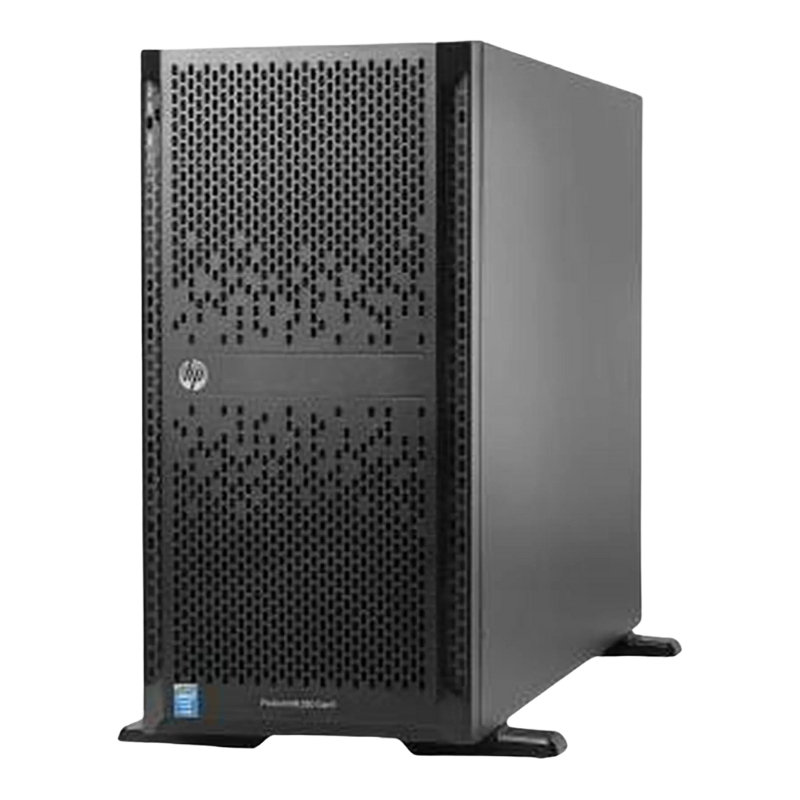

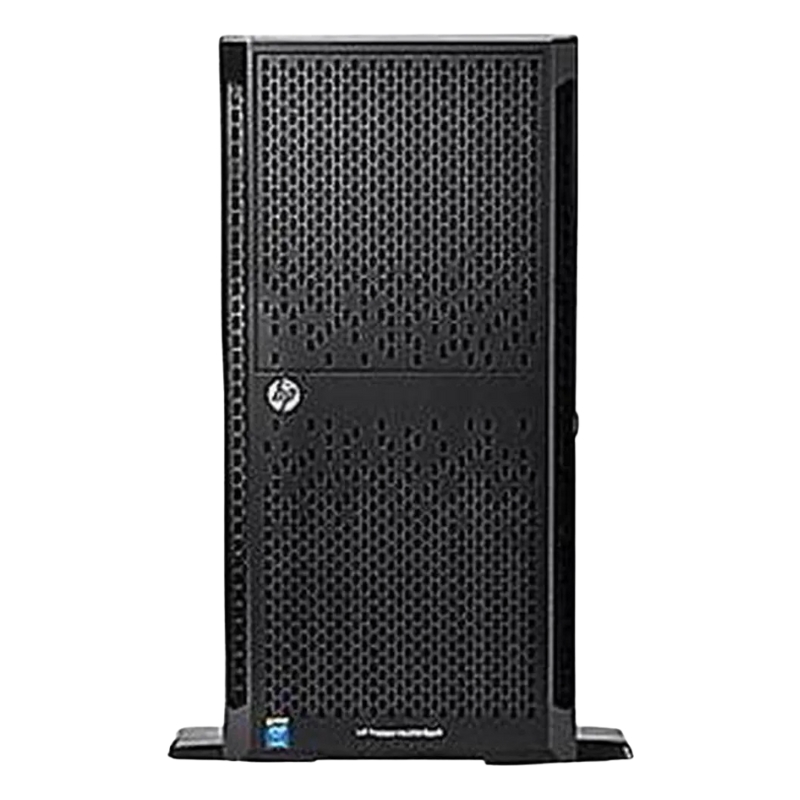

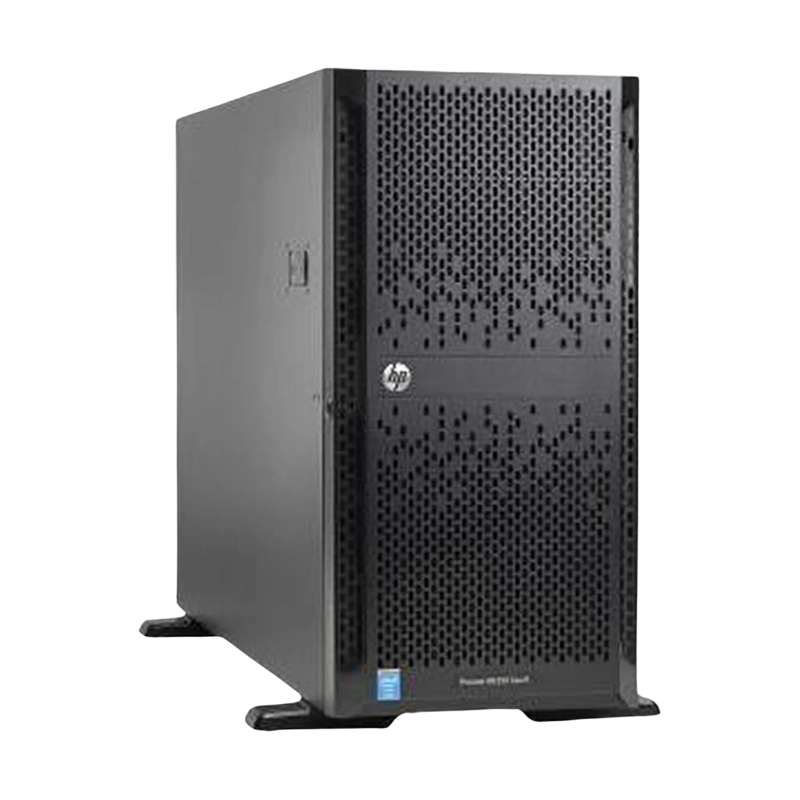

HPE 835263-001 Proliant ML350 Gen9 1P Intel Xeon E5-2620V4 Tower Server

Processor

The HPE Proliant Ml350 Gen9 Base Model Tower Server comes equipped with an Intel Xeon 8-Core E5-2620V4 processor. This powerful processor is designed to handle demanding workloads and deliver exceptional performance. With its eight cores and high clock speed, it provides the processing power needed to run multiple applications simultaneously, ensuring smooth and efficient operation.

General Details

Manufacturer Information

• Manufacturer: Hewlett Packard Enterprise
• Manufacturer Part Number: 835263-001

Product Overview

• Product Name: Proliant ML350 Gen9 - 5U Tower Server (Base Model)

Processor & Chipset Specifications

Processor Details

• Processor Type: Intel Xeon E5-2620v4
• Base Clock Speed: 2.1 GHz
• Turbo Boost Speed: Up to 3 GHz
• QuickPath Interconnect Speed: 8 GT/s
• Cores: 8-core
• 64-bit Computing: Supported
• Socket Compatibility: FCLGA2011-3
• Installed CPU: 1
• Maximum CPUs: 2
• CPU Upgradability: Yes

Cache Memory

Cache Information

• Cache Type: Smart Cache
• Installed Cache Size: 20 MB
• Cache Per Processor: 20 MB

Memory Specifications

Installed Memory

• Installed Memory: 16 GB
• Maximum Memory: 384 GB
• Memory Technology: DDR4 SDRAM with Advanced ECC
• Memory Speed: 2400 MHz
• Form Factor: DIMM 288-pin
• Memory Features: Registered, Online Spare, Quad Channel Architecture, HP SmartMemory
• Configuration: 1 x 16 GB
• Supported RAM: 768 GB (Load-reduced), 384 GB (Registered)

Storage Capabilities

Drive Information

• Hard Drive: None Installed
• Optical Drive: None Installed

Storage Controllers

• Controller Model: Smart Array P440ar
• Buffer Size: 2 GB
• Disk Drive Support: 12 GB/s SAS / 6 GB/s SATA
• SAS Port Link Rate: 12 GB/s per Physical Link
• PCIe Link Rate: PCI Express 3.0 x8
• Physical Drives: Up to 26
• Logical Drives Supported: Up to 64
• RAID Support: RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM

Display & Graphics

Graphics Controller

• Integrated Graphics Controller: Matrox G200

Network & Communication Features

Networking Components

• Ethernet Controller: HP Ethernet 1GB 4-port 331i Adapter
• Network Processor: Broadcom BCM5719 Chipset
• Ethernet Ports: 4 x Gigabit Ethernet
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: Integrated Lights-Out 4 (iLO 4)
• Remote Management Ports: RJ-45 (Two)
• Features: Wake On LAN (WOL), PXE Support
• Compliance Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion & Connectivity Options

Expansion Bays

• External 5.25" Slim Line Bay: 1 (free)
• Hot-Swap 2.5" SFF Bays: 8 (free)

Expansion Slots

• DIMM Slots: 24 (1 occupied)
• CPU Slots: 2 (1 occupied)
• PCIe 3.0 x8 Slots: 4 (free)
• PCIe 3.0 x16 Slots: 3 (free)
• PCIe 2.0 x8 Slot: 1 (free)
• PCIe 3.0 x16 Slot: 1 (free)
• MicroSD Card Slot: 1 (free)

Interfaces & Ports

• VGA Port: 1
• Serial Port: 1
• Gigabit Ethernet Ports: 4
• HP iLO Port: 1
• USB 3.0 Ports: 3 (2 Rear, 1 Internal)
• USB 2.0 Ports: 5 (2 Front, 2 Rear, 1 Internal)

Additional Information

Included Accessories

• Case Fans: 3

Compliance Standards

• ACPI 2.0b
• FCC Class A Certified
• EN 61000-3-2, EN 55022
• ICES-003, EN 61000-3-3
• EN 55024, CISPR 22
• FCC CFR47 Part 15
• IEC 60950-1, EN 60950-1
• WEEE, GB 9254
• ASHRAE, CNS 13438

Power Specifications

Power Supply Details

• Device Type: Hot-Plug Power Supply
• Power Redundancy: Optional
• Redundancy Scheme: 1+1 (with Optional Power Supply)
• Installed Power Supply: 1
• Maximum Supported Power Supplies: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 500 Watts
• 80 Plus Certification: 80 Plus Platinum

Dimensions & Weight

• Width: 8.6 inches
• Depth: 30.3 inches
• Height: 18.3 inches
• Weight: 66.14 lbs

Enhanced Performance

The Intel Xeon 8-Core E5-2620V4 processor offers enhanced performance compared to previous generations. Its eight cores allow for efficient parallel processing, enabling faster execution of tasks and improved overall performance. This is particularly beneficial for businesses that rely on intensive computing tasks, such as data analysis, virtualization, and database management.

Improved Multitasking

With the ability to handle multiple threads simultaneously, the Intel Xeon 8-Core E5-2620V4 processor excels at multitasking. It can efficiently allocate resources to different applications, ensuring smooth operation even when running resource-intensive software. This is especially useful for businesses that require simultaneous processing of various tasks or need to support a large number of users accessing the server.

Optimized Virtualization

Virtualization has become a crucial component of modern IT infrastructure. The Intel Xeon 8-Core E5-2620V4 processor is specifically designed to enhance virtualization performance. It supports advanced virtualization technologies like Intel Virtualization Technology (VT-x) and Intel Virtualization Technology for Directed I/O (VT-d), which improve the efficiency and security of virtualized environments. This allows businesses to consolidate their hardware resources, reduce costs, and simplify server management.

Processor Speed

The HPE Proliant Ml350 Gen9 Base Model Tower Server features a processor speed of 2.1GHz. This speed, combined with the powerful Intel Xeon 8-Core E5-2620V4 processor, ensures fast and responsive performance for demanding workloads.

Quick Task Execution

The 2.1GHz processor speed enables quick execution of tasks, allowing users to complete their work efficiently. Whether it's running complex calculations or processing large datasets, the high clock speed ensures that operations are carried out swiftly, minimizing wait times and maximizing productivity.

Reduced Latency

Latency can significantly impact the user experience, especially in applications that require real-time processing or quick response times. The 2.1GHz processor speed helps reduce latency, ensuring smooth and responsive performance even for latency-sensitive tasks. This is crucial for businesses operating in time-critical industries or relying on real-time data analysis.

Improved System Responsiveness

The processor speed directly affects the overall responsiveness of the server. A faster processor translates to quicker system response, allowing users to access and interact with their applications without delays. This is particularly important in situations where multiple users are accessing the server simultaneously, as it ensures a smooth and seamless experience for all users.

Memory

The HPE Proliant Ml350 Gen9 Base Model Tower Server is equipped with 16GB DDR4 SDRAM memory. This ample memory capacity provides several benefits for users, including improved performance, multitasking capabilities, and scalability.

Enhanced Performance

The 16GB DDR4 SDRAM memory enhances the overall performance of the server by providing a larger workspace for data processing. With more memory available, the server can store and access frequently used data more quickly, resulting in faster response times and improved application performance.

Efficient Multitasking

Multitasking is a critical requirement for modern servers, especially in busy business environments. The 16GB DDR4 SDRAM memory allows the server to handle multiple applications simultaneously without compromising performance. This enables businesses to run various software applications, databases, and virtual machines concurrently, increasing productivity and efficiency.

Scalability and Future-Proofing

The 16GB DDR4 SDRAM memory provides ample room for growth and future-proofing. As businesses expand and their workloads increase, additional memory modules can be added to accommodate the growing demands. This scalability ensures that the server can adapt to changing requirements without the need for a complete hardware upgrade, saving both time and money.

Storage Controller

The HPE Proliant Ml350 Gen9 Base Model Tower Server is equipped with a P440ar Storage Controller with 2GB FBWC (Flash-Backed Write Cache). This storage controller offers numerous benefits in terms of performance, data protection, and flexibility.

Enhanced Performance

The P440ar Storage Controller significantly enhances storage performance by leveraging the power of RAID (Redundant Array of Independent Disks) technology. With support for various RAID levels, including RAID 0, 1, 5, 6, 10, 50, and 60, the storage controller improves read and write speeds while ensuring data redundancy and integrity.

Data Protection

Data protection is a critical consideration for any business. The P440ar Storage Controller's Flash-Backed Write Cache (FBWC) provides an added layer of protection by storing write operations temporarily in flash memory. In the event of a power outage or system failure, the cached data is written to disk, minimizing the risk of data loss or corruption.

Flexible Storage Configuration

The P440ar Storage Controller offers flexible storage configuration options to meet the unique needs of different businesses. It supports a wide range of storage devices, including SAS (Serial Attached SCSI) and SATA (Serial ATA) drives, enabling businesses to choose the most suitable storage solution for their specific requirements. This flexibility allows for easy scalability and customization as storage needs evolve over time.

Network Adapter

The HPE Proliant Ml350 Gen9 Base Model Tower Server features a 1GB 4-PORT 331I Adapter as its network adapter. This high-performance network adapter provides reliable and fast connectivity for seamless data transfer and efficient communication.

Reliable Connectivity

The 1GB 4-PORT 331I Adapter ensures reliable connectivity by offering multiple ports for network connections. This redundancy not only provides backup options in case of port failure but also allows for load balancing across multiple connections. This ensures uninterrupted network connectivity, minimizing downtime and ensuring smooth operation.

Fast Data Transfer

The network adapter's 1GB speed enables fast data transfer between the server and connected devices. Whether it's transferring large files, streaming media, or accessing cloud-based services, the high-speed network adapter ensures quick and efficient data transfer, improving overall productivity.

Efficient Communication

Efficient communication is crucial for businesses, particularly those that rely on real-time collaboration or remote access. The 1GB 4-PORT 331I Adapter enables fast and seamless communication between users, whether they are accessing the server locally or remotely. This ensures smooth collaboration and allows for efficient remote management of the server.

Drive Bays

The HPE Proliant Ml350 Gen9 Base Model Tower Server features 8SFF (Small Form Factor) drive bays. These drive bays provide flexible storage options and allow businesses to configure their server to meet their specific storage requirements.

Flexible Storage Capacity

The 8SFF drive bays offer flexibility in terms of storage capacity. Businesses can choose between different drive sizes and configurations to create a storage solution that best suits their needs. Whether it's high-capacity hard drives for data-intensive applications or solid-state drives for faster performance, the 8SFF drive bays accommodate a wide range of storage options.

Easy Maintenance and Expansion

The 8SFF drive bays make maintenance and expansion of storage drives straightforward. With hot-swappable drive bays, businesses can replace or add drives without shutting down the server, ensuring minimal disruption to operations. This allows for easy maintenance and upgrades, enabling businesses to adapt their storage capacity as needed.

Improved Data Accessibility

The 8SFF drive bays enable better data accessibility by organizing storage drives in a compact form factor. This allows for efficient use of space within the server, maximizing storage density without sacrificing accessibility. With quick and easy access to data, businesses can retrieve and store information more efficiently, enhancing overall productivity.

Power Supply

The HPE Proliant Ml350 Gen9 Base Model Tower Server is equipped with a 1X 500W FS RPS (Flexible Slot Redundant Power Supply). This power supply unit offers reliability, efficiency, and scalability to meet the power requirements of the server.

Reliable Power Delivery

The 1X 500W FS RPS ensures reliable power delivery to the server components, minimizing the risk of power-related issues or downtime. Its redundant design provides backup power in case of a primary power supply failure, ensuring uninterrupted operation and protecting critical business data.

Energy Efficiency

Energy efficiency is a crucial consideration for businesses aiming to reduce their carbon footprint and lower operating costs. The 1X 500W FS RPS is designed with energy efficiency in mind, delivering power to the server components with minimal energy wastage. This not only helps businesses save on electricity bills but also contributes to a greener and more sustainable IT infrastructure.

Scalability and Future-Proofing

The 1X 500W FS RPS offers scalability to accommodate future expansion or increased power demands. With its flexible slot design, businesses can add additional power supplies as needed, ensuring that the server can support growing workloads without the need for a complete hardware overhaul. This scalability helps businesses future-proof their infrastructure and optimize their investment.

Form Factor

The HPE Proliant Ml350 Gen9 Base Model Tower Server features a 5U form factor. This form factor offers several benefits in terms of expandability, cooling efficiency, and ease of maintenance.

Expandability

The 5U form factor provides ample space for expansion and scalability. With its larger size compared to rack servers, businesses have more room to add additional components or upgrade existing ones. This flexibility allows for easy customization and adaptation of the server to meet changing business needs.

Efficient Cooling

Cooling is a critical aspect of server performance and reliability. The 5U form factor allows for efficient airflow within the server chassis, ensuring optimal cooling of the internal components. This helps prevent overheating and ensures stable operation even under heavy workloads, prolonging the lifespan of the server and minimizing the risk of hardware failures.

Easy Maintenance

The larger form factor of the HPE Proliant Ml350 Gen9 Base Model Tower Server simplifies maintenance tasks. With more space to maneuver, technicians can easily access and replace components, making hardware maintenance or upgrades quicker and more straightforward. This ease of maintenance translates to reduced downtime and improved overall server availability.
