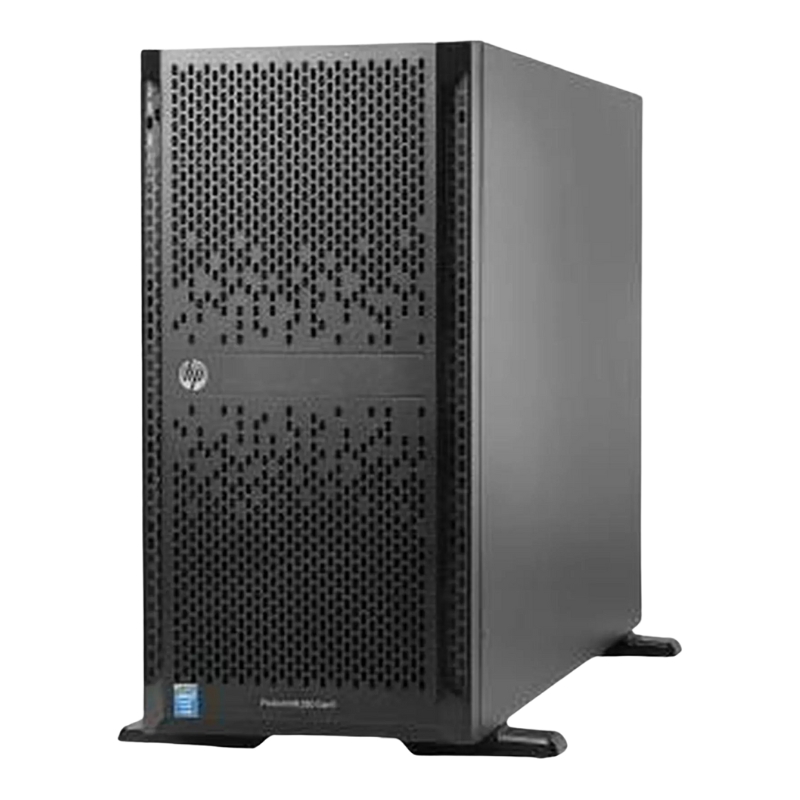

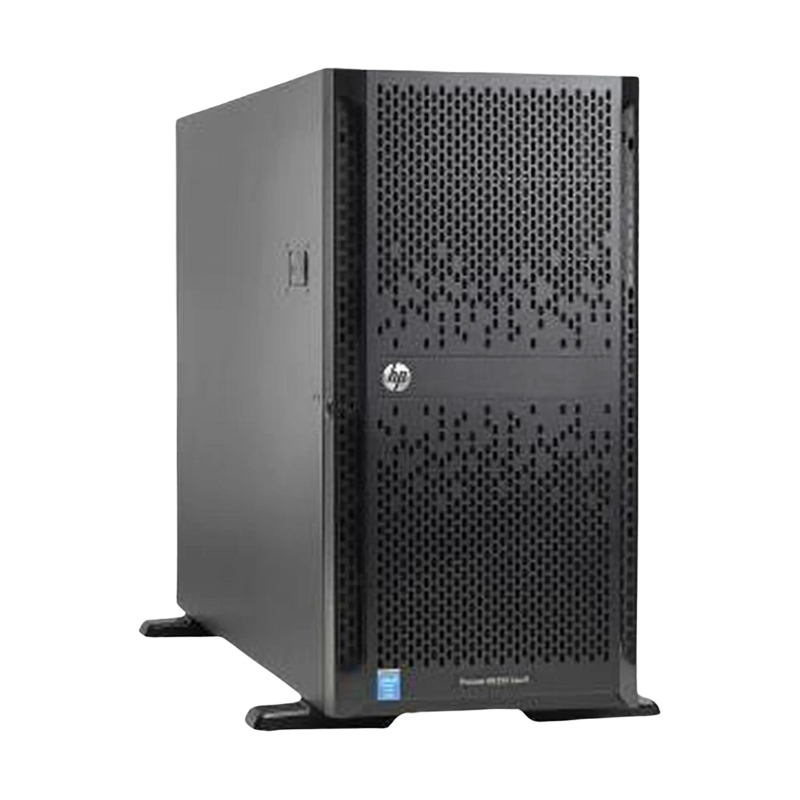

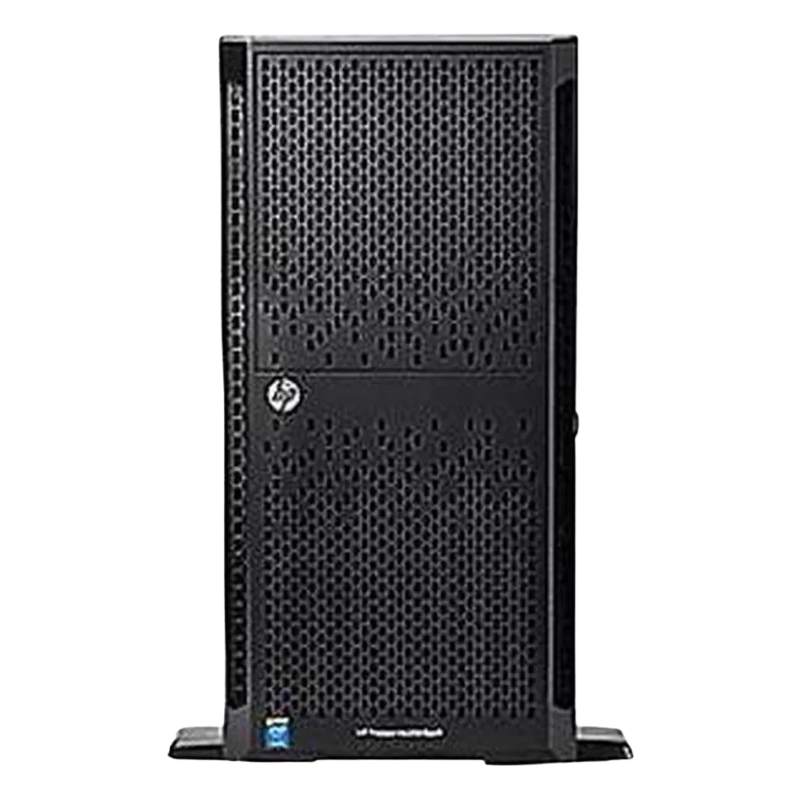

HPE Proliant ML350 Gen9 E5-2620V4 8-Core Server 835851-S01

Processor: Intel Xeon 8-Core E5-2620V4/ 2.1GHz

The HPE Proliant ML350 Gen9 Server is equipped with a powerful Intel Xeon 8-Core E5-2620V4 processor, running at a speed of 2.1GHz. This processor is designed to deliver exceptional performance, efficiency, and scalability, making it an ideal choice for businesses and organizations of all sizes.

Manufacturer Details

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 835851-S01
• Product Name: Proliant ML350 Gen9 - 5U Tower Server (Smart Buy Model)

Processor & Chipset Specifications

• Processor Type: Intel Xeon E5-2620v4, 2.1 GHz
• Max Turbo Speed: 3.0 GHz
• QuickPath Interconnect: 8 GT/s
• Number of Cores: 8-core
• 64-bit Computing: Supported
• Compatible Processor Socket: FCLGA2011-3
• Installed Quantity: 1
• Max Supported Quantity: 2
• CPU Upgradability: Yes

Cache Memory Details

• Cache Memory Type: Smart Cache
• Installed Size: 20 MB
• Cache Per Processor: 20 MB

Memory Specifications

• Installed Size: 8 GB, expandable up to 768 GB
• Technology: DDR4 SDRAM - Advanced ECC
• Memory Speed: 2133 MHz
• Compliance: PC4-17000
• Form Factor: DIMM 288-pin
• Features: Registered, Online Spare Memory, Quad Channel Architecture, HP SmartMemory
• Configuration: 1 x 8 GB
• RAM Supported: PC4-17000 - 1.5 TB (Load-reduced), PC4-17000 - 768 GB (Registered)

Storage Configuration

• Hard Drive: Not included
• Optical Drive: DVD-ROM - SATA

Storage Controllers

• Controller Name: Smart Array P440ar
• Buffer Size: 2 GB
• Disk Drive Compatibility: 12 Gb/s SAS, 6 Gb/s SATA
• SAS Port Link Rate: 12 Gb/s per physical link
• PCIe Link Rate: PCI Express 3.0 x8
• Physical Drives Supported: Up to 26 drives
• Logical Drives Supported: Up to 64
• RAID Support: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM

Display & Graphics

• Graphics Controller Type: Integrated Matrox G200

Networking & Communication

• Ethernet Controller: HP Ethernet 1Gb 4-port 331i Adapter
• Network Processor: Broadcom BCM5719 Chipset
• Ethernet Ports: 4 x Gigabit Ethernet
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocol: Integrated Lights-Out 4
• Remote Management Controller: RJ-45 (2 ports)
• Features: Wake on LAN (WoL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion & Connectivity

• Expansion Bays: 1 external 5.25" slim line (occupied), 8 hot-swap 2.5" SFF (all free)
• Expansion Slots:
  • 24 DIMM 288-pin slots (1 occupied)
  • 2 CPU slots (1 occupied)
  • 4 PCIe 3.0 x8 (full-length, full-height, X4 mode)
  • 3 PCIe 3.0 x16 (full-length, full-height)
  • 1 PCIe 2.0 x8 (half-length, full-height, X4 mode)
  • 1 PCIe 3.0 x16 (full-length, full-height, X8 mode)
  • 1 internal MicroSD card slot

Interfaces & Ports

• 1 VGA port
• 1 Serial port
• 4 LAN ports (Gigabit Ethernet)
• 1 HP iLO port
• 3 USB 3.0 ports (2 rear, 1 internal)
• 5 USB 2.0 ports (2 front, 2 rear, 1 internal)

Power Description

• Device Type: Hot-plug Power Supply
• Power Redundancy: Optional (1+1 with additional power supply)
• Installed Quantity: 1
• Max Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 500 Watts
• 80 Plus Certification: 80 Plus Platinum

Dimensions & Weight

• Width: 8.6 inches
• Depth: 30.3 inches
• Height: 18.3 inches
• Weight: 66.14 lbs

Enhanced Performance

The Intel Xeon 8-Core E5-2620V4 processor offers outstanding performance capabilities, enabling the server to handle demanding workloads with ease. With its eight cores and advanced architecture, this processor can efficiently process multiple tasks simultaneously, ensuring smooth and seamless operation even during peak usage periods.

Multithreading Capabilities

One of the key benefits of the Intel Xeon 8-Core E5-2620V4 processor is its support for multithreading. This technology allows each core to handle two threads simultaneously, effectively doubling the number of available virtual cores. As a result, the server can handle more tasks concurrently, improving overall productivity and reducing processing times.

Turbo Boost Technology

The processor also incorporates Intel Turbo Boost Technology, which dynamically adjusts the clock speed based on workload demands. This means that when there is a need for increased processing power, the processor can automatically overclock itself to deliver higher performance. Conversely, during periods of lower demand, the clock speed can be scaled down to conserve energy and reduce power consumption.

Efficiency and Scalability

In addition to its exceptional performance capabilities, the Intel Xeon 8-Core E5-2620V4 processor is designed with efficiency and scalability in mind.

Energy Efficiency

With increasing concerns about energy consumption and environmental impact, energy efficiency has become a crucial consideration for businesses. The Intel Xeon 8-Core E5-2620V4 processor is built using advanced manufacturing processes and features power-saving technologies, allowing it to deliver high performance while minimizing energy consumption. This not only helps to reduce operational costs but also contributes to a greener and more sustainable IT infrastructure.

Scalability

The HPE Proliant ML350 Gen9 Server with the Intel Xeon 8-Core E5-2620V4 processor offers excellent scalability options. As business needs evolve and grow, the server can be easily upgraded by adding additional processors or increasing the number of cores. This scalability ensures that the server can adapt to changing demands without the need for a complete system overhaul, providing a cost-effective solution for businesses looking to future-proof their IT infrastructure.

Virtualization Support

Virtualization has become an essential component of modern IT environments, enabling businesses to maximize resource utilization and streamline operations. The Intel Xeon 8-Core E5-2620V4 processor is designed to support virtualization technologies, such as VMware or Hyper-V, allowing businesses to create and manage virtual machines efficiently. This capability enhances flexibility, simplifies IT management, and enables cost-effective consolidation of workloads.

Memory: 8GB DDR4 SDRAM

The HPE Proliant ML350 Gen9 Server comes equipped with 8GB of DDR4 SDRAM, offering a reliable and high-performance memory solution for demanding workloads.

Improved Performance

The use of DDR4 SDRAM brings significant performance improvements compared to its predecessor, DDR3. With higher data transfer rates and increased bandwidth, DDR4 memory enables faster access to data and improved application responsiveness. This translates into enhanced overall server performance, allowing businesses to run resource-intensive applications smoothly and efficiently.

Increased Capacity

The 8GB DDR4 SDRAM module provides ample memory capacity to handle a wide range of workloads. From running multiple virtual machines to handling complex database operations, this memory configuration offers the necessary headroom for demanding applications. With sufficient memory capacity, businesses can avoid bottlenecks and ensure optimal performance even under heavy usage scenarios.

Reliability and Data Integrity

Data integrity is paramount in any server environment, and the HPE Proliant ML350 Gen9 Server's 8GB DDR4 SDRAM memory is designed to provide exceptional reliability and error correction capabilities. The use of advanced error-correcting code (ECC) technology helps to detect and correct single-bit memory errors, preventing potential data corruption and ensuring the accuracy and integrity of critical business data.

Scalability and Future-Proofing

The 8GB DDR4 SDRAM module in the HPE Proliant ML350 Gen9 Server offers scalability options, allowing for easy expansion and future-proofing.

Expandable Memory Slots

The server is equipped with multiple memory slots, providing the flexibility to add more memory modules as business needs grow. This expandability allows businesses to start with a smaller memory configuration and gradually increase capacity as their requirements evolve. It ensures that the server can scale along with the organization's demands without requiring a complete hardware replacement.

Compatibility with Higher-Capacity Modules

In addition to its expandable memory slots, the HPE Proliant ML350 Gen9 Server supports higher-capacity DDR4 SDRAM modules. This means that as memory technology advances and larger-capacity modules become available, businesses can easily upgrade their server's memory without any compatibility issues. This future-proof feature ensures that the server remains up-to-date and capable of meeting growing demands for memory-intensive applications.

Adapter: 8SFF

The HPE Proliant ML350 Gen9 Server features an 8SFF (Small Form Factor) adapter, providing a highly efficient storage solution for businesses.

Optimized Storage Space

The 8SFF adapter allows for the installation of up to eight small form factor drives, maximizing storage capacity within a compact footprint. This is particularly beneficial for businesses with limited physical space or those looking to optimize their server infrastructure without sacrificing storage capabilities. With the 8SFF adapter, businesses can store a significant amount of data in a small form factor, enabling efficient data management and reducing overall hardware footprint.

Hot-Swappable Drives

The HPE Proliant ML350 Gen9 Server's 8SFF adapter supports hot-swappable drives, providing added convenience and flexibility in storage management. Hot-swappable drives allow for easy replacement or addition of drives without interrupting server operation or causing downtime. This feature enhances system reliability and availability, ensuring uninterrupted access to critical business data.

RAID Configuration Support

The 8SFF adapter is compatible with various RAID (Redundant Array of Independent Disks) configurations, enabling businesses to implement data redundancy and improve data protection. RAID technology combines multiple drives into an array, distributing data across the drives for enhanced performance and fault tolerance. With the 8SFF adapter's RAID support, businesses can configure their storage system to meet their specific needs, whether it's for improved performance, data redundancy, or a combination of both.

Scalability and Flexibility

The 8SFF adapter in the HPE Proliant ML350 Gen9 Server offers scalability and flexibility options to accommodate evolving storage requirements.

Expansion Capabilities

Businesses can expand their storage capacity by adding additional 8SFF adapters to the server. This scalability allows for easy storage expansion as data volumes increase over time, ensuring that the server can keep up with growing demands without compromising performance or efficiency. With the ability to add more adapters, businesses can effectively scale their storage infrastructure while minimizing costs and simplifying management.

Support for SSD Technology

The 8SFF adapter supports Solid State Drives (SSDs), which offer significant performance advantages over traditional hard disk drives (HDDs). SSDs are faster, more reliable, and consume less power than HDDs, making them an ideal choice for businesses looking to enhance their storage performance. With the 8SFF adapter's support for SSD technology, businesses can leverage the benefits of these high-performance drives to accelerate data access and improve overall system responsiveness.

Part Number: 835851-S01

The HPE Proliant ML350 Gen9 Server is identified by its unique part number: 835851-S01. This part number serves as a reference point for businesses and IT professionals when ordering or identifying specific server configurations.

Accurate Configuration Identification

With a wide range of server models and configurations available, having a unique part number like 835851-S01 ensures accurate identification of the specific server variant required. This eliminates any ambiguity or confusion when placing orders or referring to specific server configurations within an organization.

Simplified Maintenance and Upgrades

The part number also simplifies maintenance and upgrades by providing a clear reference for replacement parts or compatible components. When a specific part needs to be replaced or upgraded, IT professionals can easily identify the correct component based on the server's part number. This streamlines the process and minimizes the risk of compatibility issues, ensuring smooth and efficient maintenance operations.

Warranty and Support

The part number is often linked to warranty and support services provided by the manufacturer. By referencing the part number, businesses can ensure they receive the appropriate level of support and warranty coverage for their specific server model. This helps to protect their investment and provides peace of mind in case of any hardware-related issues.

Future Compatibility

The part number also plays a role in ensuring future compatibility and scalability. As new server models and configurations are introduced, having a unique part number allows for easy identification of compatibility with existing infrastructure. This ensures that businesses can seamlessly integrate new server models into their existing IT environment without any compatibility concerns.

Documentation and Knowledge Base

The part number serves as a valuable reference point when accessing documentation or knowledge base articles related to the HPE Proliant ML350 Gen9 Server. IT professionals can use the part number as a search term to find relevant resources, such as user manuals, technical specifications, or troubleshooting guides. This makes it easier to find the information needed for server setup, configuration, or troubleshooting purposes.

In conclusion, the HPE Proliant ML350 Gen9 Server with its Intel Xeon 8-Core E5-2620V4 processor, 8GB DDR4 SDRAM memory, 8SFF adapter, and unique part number 835851-S01 offers a powerful and efficient solution for businesses in need of high-performance computing capabilities. Whether it's for demanding workloads, efficient data storage, or scalability and future-proofing, this server delivers exceptional performance, reliability, and flexibility.
