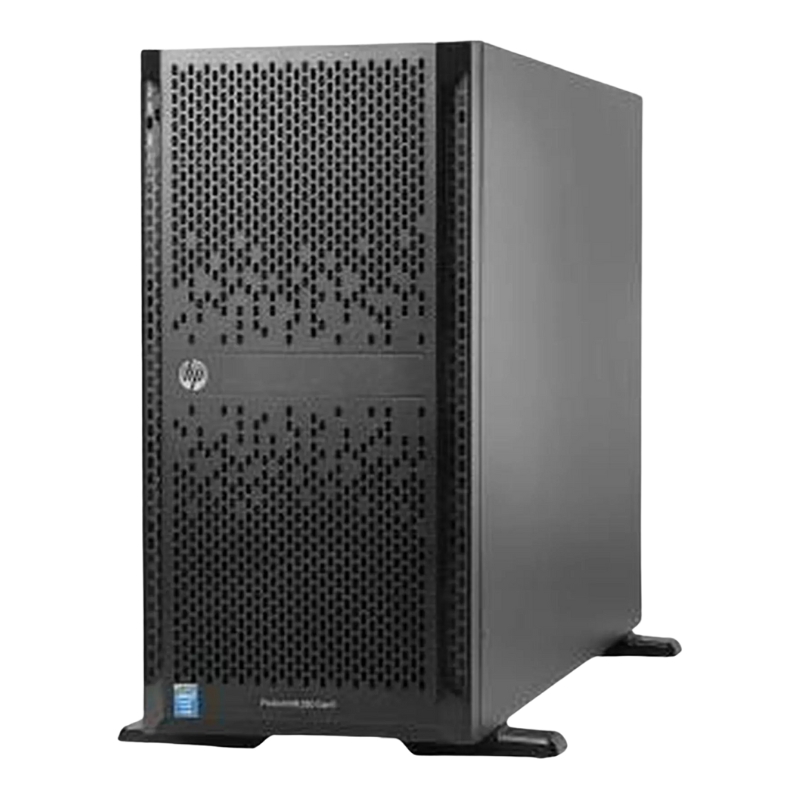

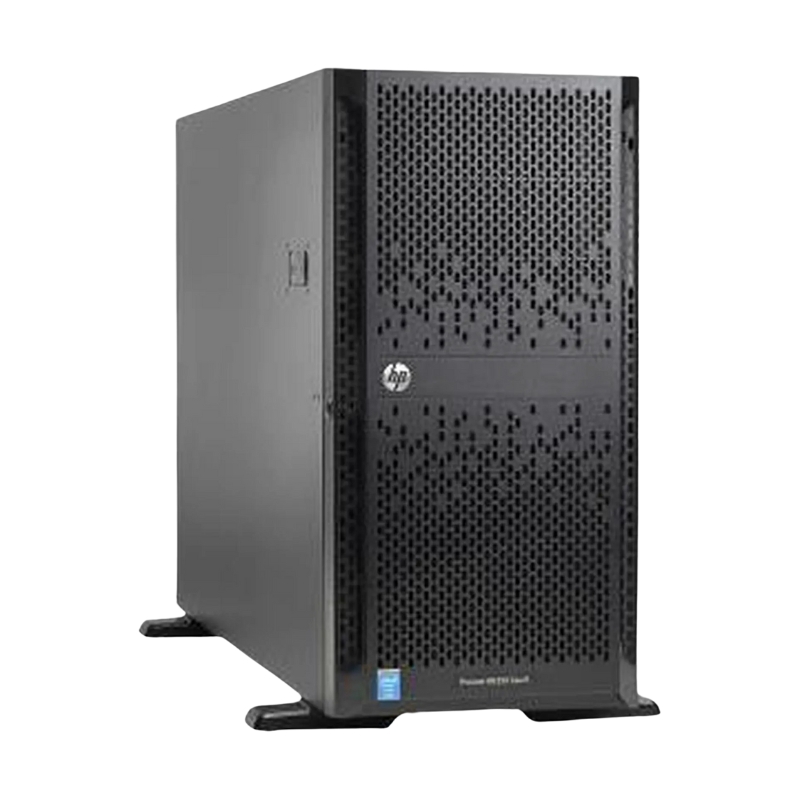

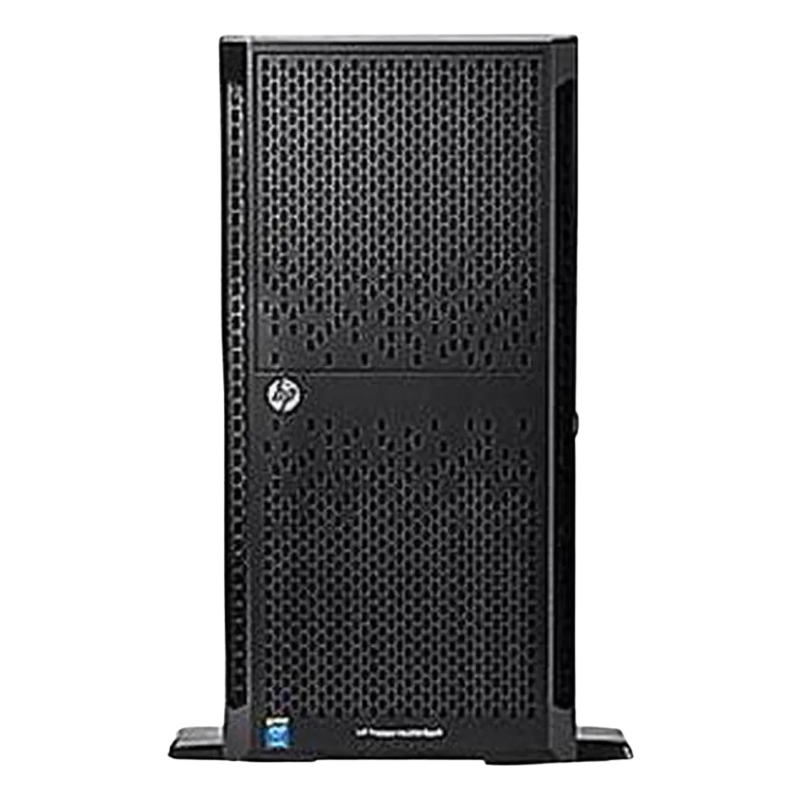

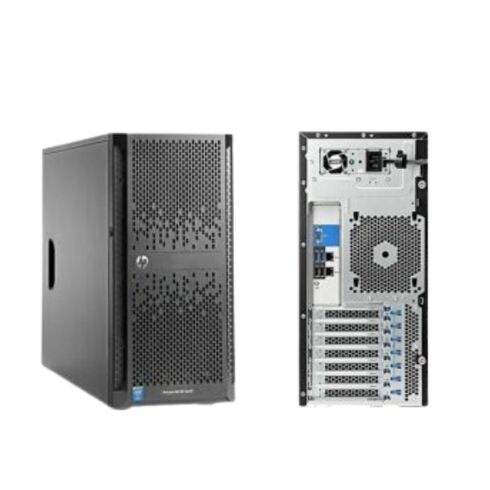

HPE Proliant ML350 Gen9 Xeon 8 Core Server 835262-001

Processor

The HPE ML350 Gen9 Server is equipped with a powerful Xeon 8 Core 1.7GHz processor making it an exceptional choice for businesses and organizations that demand high-performance computing capabilities. This processor is specifically designed to handle complex tasks and heavy workloads efficiently, ensuring smooth and reliable operation.

General Specifications

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 835262-001
• Product Website: Hewlett Packard Enterprise
• Model Name: Proliant ML350 Gen9 - 5U Tower Server

Processor & Chipset

• Processor Type: Intel Xeon E5-2609v4, 1.7 GHz
• QuickPath Interconnect: 8 GT/s
• Core Count: 8-core
• 64-bit Computing: Yes
• Processor Socket: FCLGA2011-3
• Installed CPUs: 1
• Maximum CPUs: 2
• CPU Upgradeability: Upgradable

Cache Memory

• Cache Type: Smart Cache
• Installed Cache Size: 20 MB
• Cache Per Processor: 20 MB

Memory Specifications

• Installed Memory: 8 GB (expandable up to 384 GB)
• Memory Technology: DDR4 SDRAM with Advanced ECC
• Memory Speed: 1866 MHz
• Memory Form Factor: DIMM 288-pin
• Memory Configuration: 1 x 8 GB
• Supported RAM Types: PC4-17000 (Load-reduced and Registered)

Storage Configuration

• Hard Drive: None
• Optical Drive: None

Storage Controllers

• Controller Type: RAID Plug-in Card (PCI Express 3.0 x8)
• Interface Type: SATA-600
• Controller Name: HP Dynamic Smart Array B140i
• RAID Levels: RAID 0, RAID 1, RAID 5, RAID 10

Display & Graphics

• Graphics Controller: Integrated Matrox G200

Network & Communication

• Ethernet Controller: HP Ethernet 1Gb 4-Port 331i Adapter
• Network Processor: Broadcom BCM5719 Chipset
• Ethernet Ports: 4 x Gigabit Ethernet
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocol: Integrated Lights-Out 4
• Remote Management Controllers: 2 x RJ-45
• Additional Features: Wake on LAN (WoL), PXE Support

Expansion & Connectivity

Expansion Bays

• Total Bays: 1 x External 5.25" Slim Line
• Hot-Swap Bays: 8 x 3.5" LFF

Expansion Slots

• Total Slots: 24 DIMM 288-pin, 2 CPU, 4 PCIe 3.0 x8 (Full-length, Full-height), 3 PCIe 3.0 x16 (Full-length, Full-height), 1 PCIe 2.0 x8 (Half-length, Full-height), 1 PCIe 3.0 x16 (Full-length, Full-height), 1 MicroSD Card (internal)

Interfaces & Ports

• VGA Port: 1
• Serial Port: 1
• LAN Ports: 4 x Gigabit Ethernet
• HP iLO Port: 1
• USB Ports: 3 x USB 3.0 (2 Rear, 1 Internal), 5 x USB 2.0 (2 Front, 2 Rear, 1 Internal)

Miscellaneous

Included Accessories

• 3 x System Fans

Compliance Standards

• ACPI 2.0b, FCC Class A Certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, ASHRAE, CNS 13438

Power Description

• Device Type: Hot-Plug Power Supply
• Power Redundancy: Optional (1+1 with optional power supply)
• Installed Power Supply: 1
• Maximum Supported Power Supplies: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 500 Watt
• 80 Plus Certification: 80 Plus Platinum

Dimensions & Weight

• Width: 8.6 inches
• Depth: 30.3 inches
• Height: 18.3 inches
• Weight: 66.14 lbs

General Overview of HPE Proliant ML350

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 835262-001
• Product: Proliant ML350 Gen9 - 5U Tower Server (Entry Model)

Processor & Chipset Details

• Processor Type: Intel Xeon E5-2609v4, 1.7 GHz
• QuickPath Interconnect: 8 GT/s
• Core Count: 8 cores
• 64-bit Computing: Supported
• Compatible Socket: FCLGA2011-3
• Installed CPUs: 1
• Maximum CPUs Supported: 2
• CPU Upgradability: Yes

Cache Memory Specifications

• Type: Smart Cache
• Size: 20 MB per processor

Memory Configuration

• Installed Memory: 8 GB, expandable to 384 GB
• Technology: DDR4 SDRAM with Advanced ECC
• Memory Speed: 1866 MHz
• Form Factor: DIMM 288-pin
• Features: Registered, Online Spare, Quad Channel Architecture, HP SmartMemory
• Configuration Example: 1 x 8 GB
• Supported RAM Types: PC4-17000 (Load-Reduced up to 768 GB), PC4-17000 (Registered up to 384 GB)

Storage Options

• Hard Drive: Not included
• Optical Drive: Not included

Storage Controllers

• Controller Type: 1 x RAID - Plug-in Card - PCI Express 3.0 x8
• Interface Type: SATA-600
• Controller Name: HP Dynamic Smart Array B140i
• Supported RAID Levels: 0, 1, 5, 10

Graphics & Display

• Graphics Controller: Integrated Matrox G200

Networking & Communication

• Ethernet Controller: HP Ethernet 1GB 4-port 331i Adapter
• Network Processor: Broadcom BCM5719 Chipset
• Ethernet Ports: 4 x Gigabit Ethernet
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocol: Integrated Lights-Out 4 (iLO 4)
• Remote Management Controller Ports: 2 x RJ-45
• Features: Wake On LAN (WOL), PXE Support

Expansion & Connectivity

Expansion Bays

• Total Bays: 9
• Available Bays: 1 x External 5.25 Slim Line, 8 x Hot-swap 3.5 LFF

Expansion Slots

• Total Slots: 34
• DIMM Slots: 24 x DIMM 288-pin (23 available)
• CPU Slots: 2 (1 available)
• PCIe 3.0 x8 Slots: 4 (4 available)
• PCIe 3.0 x16 Slots: 3 (3 available)
• PCIe 2.0 x8 Slot: 1 (1 available)
• PCIe 3.0 x16 Slot (X8 Mode): 1 (1 available)
• MicroSD Card Slot (Internal): 1 (1 available)

Interfaces & Ports

• Video Output: 1 x VGA
• Serial Ports: 1
• LAN Ports: 4 x Gigabit Ethernet
• HP iLO Port: 1
• USB Ports:
  • 3 x USB 3.0 (2 Rear, 1 Internal)
  • 5 x USB 2.0 (2 Front, 2 Rear, 1 Internal)

Additional Information

Included Accessories

• 3 x System Fans

Compliance Standards

• ACPI 2.0b
• FCC Class A Certified
• EN 61000-3-2
• EN55022
• ICES-003
• EN 61000-3-3
• EN55024
• CISPR 22
• FCC CFR47 Part 15
• IEC 60950-1
• EN 60950-1
• WEEE
• GB 9254
• ASHRAE
• CNS 13438

Power Specifications

• Power Supply Type: Hot-plug
• Redundancy: Optional (1+1 with optional power supply)
• Installed Power Supply: 1
• Maximum Power Supplies Supported: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Output: 500 Watt
• 80 Plus Certification: 80 Plus Platinum

Physical Dimensions

• Width: 8.6 inches
• Depth: 30.3 inches
• Height: 18.3 inches
• Weight: 66.14 lbs

Enhanced Performance

The Xeon 8 Core 1.7GHz processor offers enhanced performance compared to its predecessors. With its eight cores, it can handle multiple threads simultaneously, enabling faster processing speeds and improved overall system performance. This is particularly beneficial for resource-intensive applications such as virtualization, database management, and data analysis.

Increased Productivity

By utilizing the power of eight cores, the HPE ML350 Gen9 Server with Xeon 8 Core 1.7GHz processor enables users to complete tasks more quickly and efficiently. This increased productivity translates into reduced waiting times and improved workflow, allowing businesses to accomplish more in less time.

Smooth Multitasking

The Xeon 8 Core 1.7GHz processor excels in multitasking scenarios, effortlessly handling multiple applications and processes simultaneously. This capability is especially useful in environments where several users access the server concurrently or when running demanding applications that require significant computational resources.

Optimized Virtualization

Virtualization has become a cornerstone of modern IT infrastructures, allowing businesses to consolidate their hardware and maximize resource utilization. The Xeon 8 Core 1.7GHz processor provides excellent support for virtualization technologies such as VMware and Hyper-V, delivering superior performance and efficient utilization of server resources.

Reduced Downtime

With its powerful processing capabilities, the HPE ML350 Gen9 Server equipped with the Xeon 8 Core 1.7GHz processor ensures minimal downtime. The server can handle sudden spikes in resource demand without sacrificing performance or stability, allowing businesses to maintain uninterrupted operations and avoid costly disruptions.

Future-Proofing

Investing in a server with a high-performance processor like the Xeon 8 Core 1.7GHz ensures future-proofing for businesses. As technology advances and software becomes more resource-intensive, having a powerful processor becomes increasingly important. The HPE ML350 Gen9 Server's Xeon processor provides the necessary headroom for future growth and scalability.

RAM

The HPE ML350 Gen9 Server is equipped with 8GB DDR4 RAM, providing ample memory capacity to handle demanding workloads and applications efficiently. This high-performance RAM module offers numerous benefits for users, enhancing overall system performance and ensuring smooth operation.

Improved Responsiveness

The 8GB DDR4 RAM module significantly improves system responsiveness, allowing applications to load faster and respond quickly to user input. This increased responsiveness translates into a smoother user experience, reducing frustration caused by lag or delays.

Efficient Multitasking

With 8GB of DDR4 RAM, the HPE ML350 Gen9 Server can handle multiple applications and processes simultaneously without experiencing performance degradation. This capability is particularly useful in environments where users require access to multiple applications simultaneously or when running resource-intensive tasks concurrently.

Enhanced Virtualization Performance

Virtualization relies heavily on memory resources to allocate virtual machines and their associated workloads. The 8GB DDR4 RAM module in the HPE ML350 Gen9 Server ensures efficient utilization of virtualization technologies such as VMware or Hyper-V, allowing businesses to maximize their virtual machine density and improve overall server performance.

Reduced Memory Bottlenecks

Insufficient memory can lead to memory bottlenecks, where the server's performance is limited by the amount of available RAM. With 8GB of DDR4 RAM, the HPE ML350 Gen9 Server minimizes the risk of memory bottlenecks, ensuring that the system can handle demanding workloads without sacrificing performance.

Scalability and Future Expansion

The 8GB DDR4 RAM module provides ample memory for current workloads but also allows for future scalability and expansion. As businesses grow and their requirements increase, additional RAM modules can be easily added to the server, accommodating the changing needs of the organization.

Reliability and Data Integrity

DDR4 RAM offers improved error detection and correction capabilities compared to its predecessors. This ensures data integrity and reduces the risk of data corruption or loss due to memory-related errors. The HPE ML350 Gen9 Server's 8GB DDR4 RAM module provides a reliable and stable memory solution for critical workloads and applications.

Part Number

The HPE ML350 Gen9 Server's part number is 835262-001. This unique identifier plays a crucial role in identifying and sourcing the specific server model, making it an essential feature for users and IT professionals.

Accurate Identification

The part number allows for accurate identification of the HPE ML350 Gen9 Server model, ensuring that users acquire the correct hardware for their specific requirements. This is particularly important when ordering replacement parts or expanding the server's capacity, as using an incorrect part number can lead to compatibility issues and potential system downtime.

Seamless Maintenance and Support

The part number also aids in seamless maintenance and support for the HPE ML350 Gen9 Server. When reporting issues or seeking technical assistance, providing the correct part number allows support teams to identify the exact server model and provide targeted guidance or replacement parts promptly.

Compatibility Assurance

The part number serves as a compatibility assurance, ensuring that all components and accessories designed for the HPE ML350 Gen9 Server are compatible with the specific model identified by the part number. This helps users avoid purchasing incompatible hardware and ensures that all components work seamlessly together for optimal performance.

Streamlined Inventory Management

For businesses and organizations managing large-scale server deployments, the part number simplifies inventory management processes. It enables IT departments to easily track and identify servers within their infrastructure, ensuring accurate stock levels, and facilitating efficient asset management.

Future Expansion Planning

The part number also aids in future expansion planning for businesses. By identifying the specific model using the part number, IT professionals can assess the server's capacity and determine if further expansion is possible or required. This information is crucial for budgeting purposes and ensures that businesses can scale their infrastructure effectively.

Warranty Validation

The part number is essential for warranty validation purposes. When registering the HPE ML350 Gen9 Server for warranty coverage, users are typically required to provide the part number as proof of ownership. This ensures that any potential warranty claims or service requests can be processed smoothly and efficiently.
