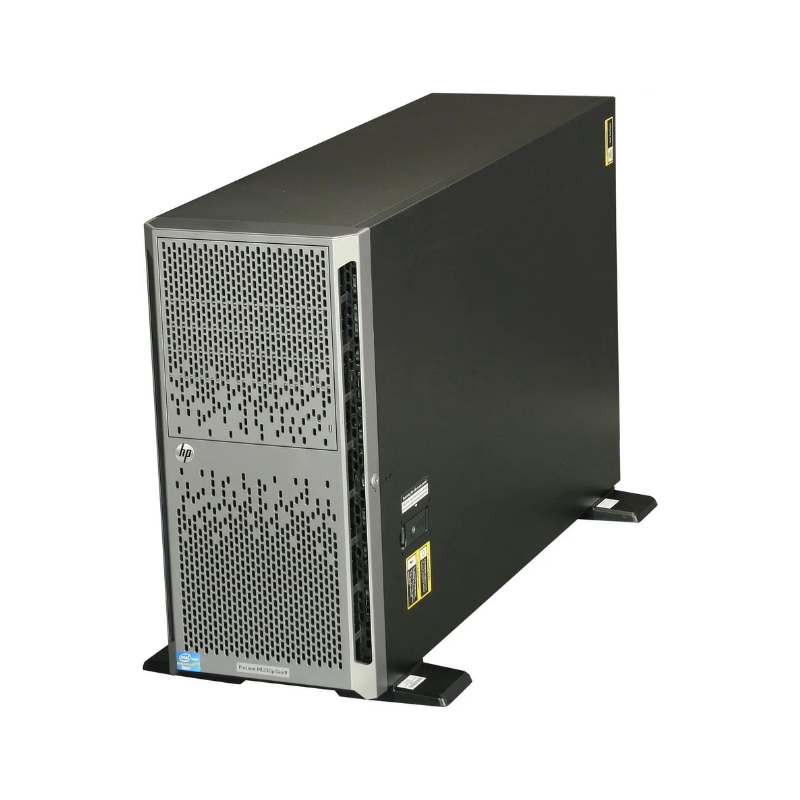

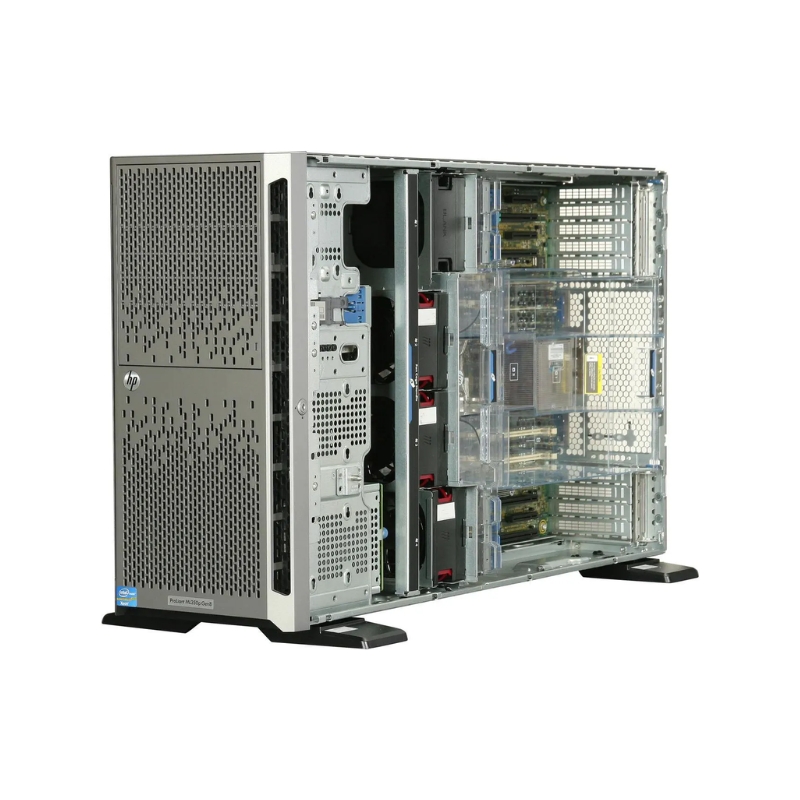

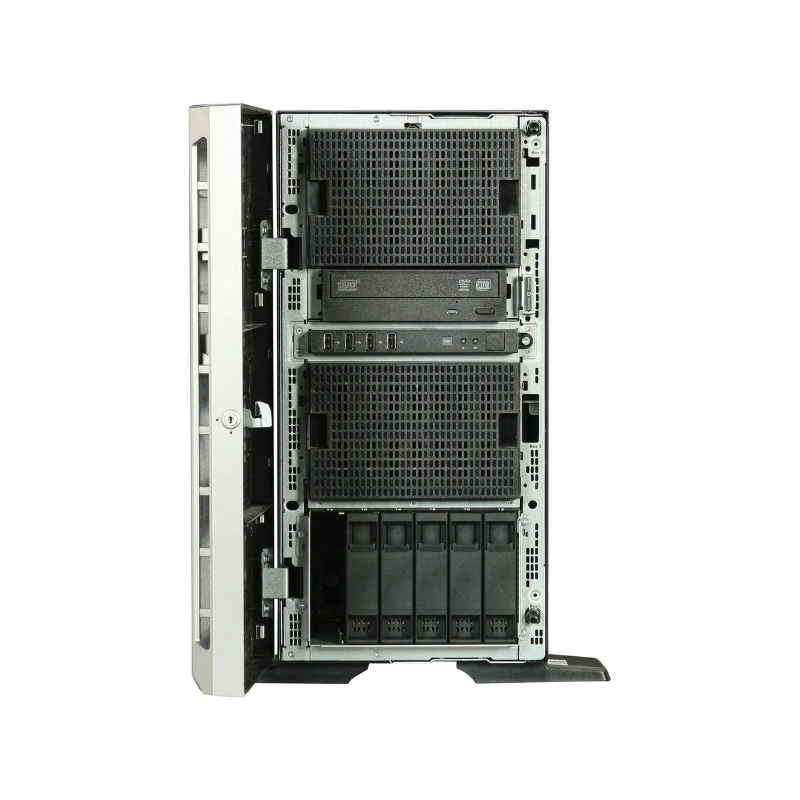

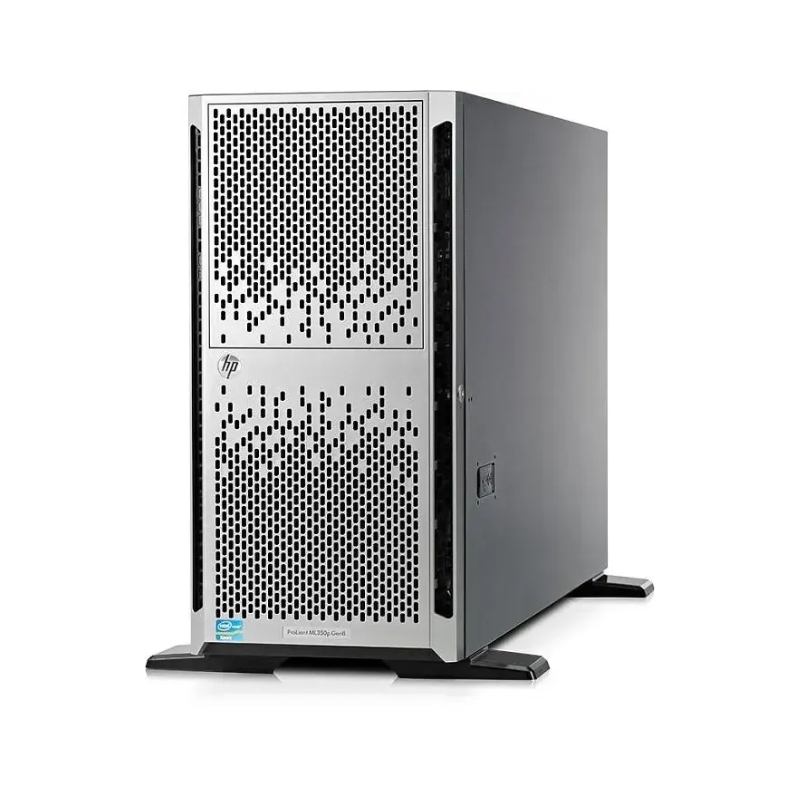

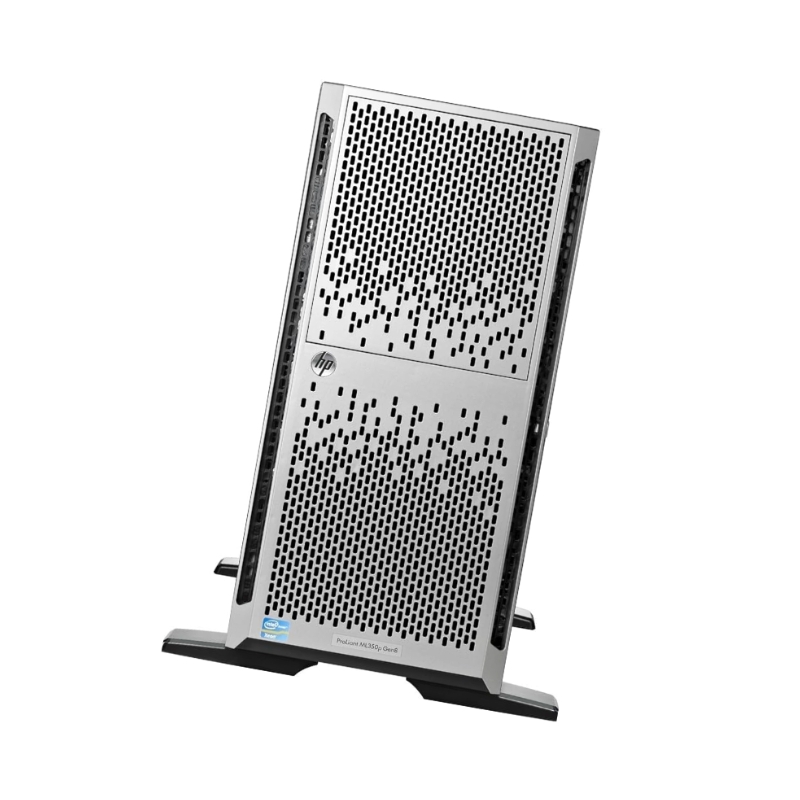

HPE Proliant ML350P 16GB SDRAM 2x750w PS 5u Rack Server 646678-001.

Processor

The HPE ML350p G8 Performance Rack Server is equipped with a powerful 2x Xeon Hexa-Core E5-2640 processor, running at a speed of 2.5GHz. This processor is designed to deliver exceptional performance and efficiency, making it an ideal choice for businesses and organizations that require high computing power.

Overview of 646678-001

Discover the Proliant ML350p Gen8, a robust 2-way rack-mountable server engineered by Hewlett Packard Enterprise. Ideal for high-performance environments, this server offers remarkable scalability and reliability.

Manufacturer Details

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 646678-001
• Product Name: Proliant ML350p Gen8
• Model: Performance Model

Processor & Chipset

Processor Specifications

• Type: Intel Xeon E5-2640
• Base Speed: 2.5 GHz
• Turbo Boost Speed: 3.0 GHz
• Cores: 6-core
• Quantity Installed: 2
• Maximum Supported: 2
• 64-bit Computing: Yes
• Chipset: Intel C600
• Main Features: Hyper-Threading, Intel QuickPath Interconnect, Intel Turbo Boost Technology 2

Cache Memory

• Type: L3 Cache
• Installed Size: 30 MB
• Per Processor: 15 MB

Memory

RAM Specifications

• Installed Capacity: 16 GB / 384 GB (maximum)
• Type: DDR3 SDRAM
• Effective Memory Speed: 1333 MHz
• Rated Speed: 1333 MHz
• Compliance: PC3L-10600R
• Form Factor: DIMM 240-pin
• Slots Available: 24 (total) / 20 (empty)
• Features: Registered, Quad Channel Memory Architecture, HP SmartMemory
• Supported RAM Configurations: PC3-12800 - 384 GB Registered, PC3-10600 - 128 GB Unbuffered, Advanced ECC

Storage & Optical Drives

Hard Drive & Optical Storage

• Hard Drive: None
• Optical Drive Type: DVD-RW / DVD-Writer - SATA

Storage Controller

• Type: RAID - Integrated - PCIe 3.0 x8
• Interface: SATA 6 Gb/s / SAS 6 Gb/s
• Name: Smart Array P420i with 2 GB FBWC
• Channel Quantity: 8
• RAID Levels: RAID 0, 1, 5, 6, 10, 50, 60
• Buffer Size: 2 GB

Display & Graphics

Graphics Controller

• Type: Integrated
• Processor: Matrox G200
• Video Interfaces: VGA

Networking & Communication

Network Interfaces

• Type: Integrated
• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331i
• Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake On LAN (WoL), PXE Support
• Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion & Connectivity

Expansion Bays

• Total: 11
• Free: 2
• External 5.25-inch: 3 (total) / 2 (free)
• Hot-swap 2.5-inch SFF: 8 (total) / 8 (free)

Expansion Slots

• Total: 30
• Free: 28
• DIMM 240-pin: 24 (total) / 20 (free)
• CPU: 2 (total) / 0 (free)
• PCIe 3.0 x16: 1 (total) / 1 (free)
• PCIe 3.0 x8: 4 (total) / 4 (free)
• PCIe 2.0 x8: 1 (total) / 1 (free)
• PCIe 3.0 x16 (Full-length, Full-height): 3 (total) / 3 (free)
• SD Card (internal): 1 (total) / 1 (free)

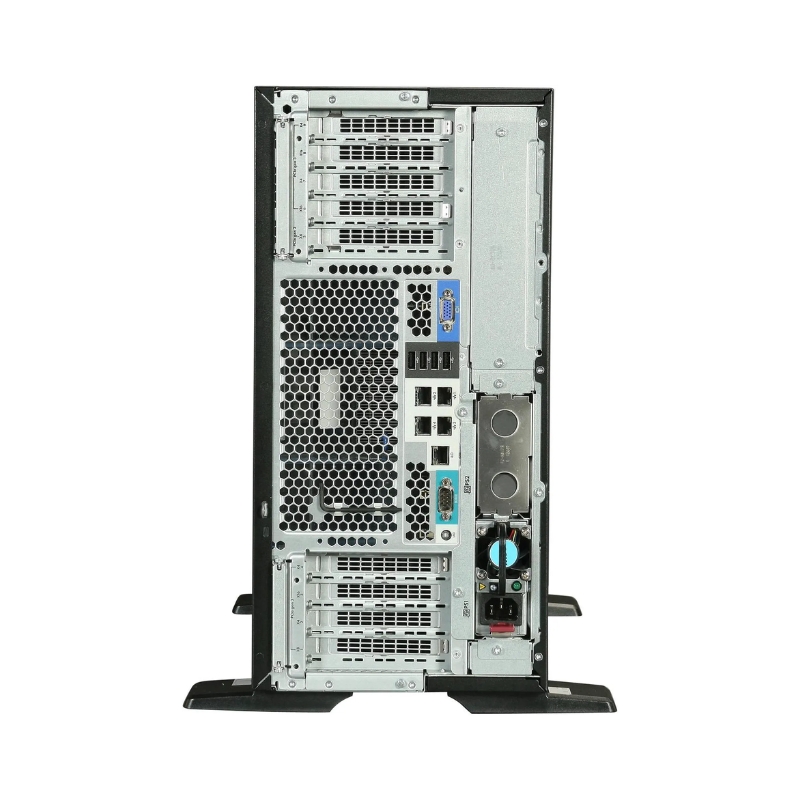

Interfaces & Ports

• Serial Port: 1
• VGA Port: 1
• LAN Ports (Gigabit Ethernet): 4
• HP iLO Port: 1
• USB 2.0 Ports: 8 (4 front, 4 rear)

Miscellaneous

Security Features

• Administrator Password: Yes
• System Password: Yes
• Power-on Password: Yes
• Serial Port I/O Control: Yes

Compliance Standards

• ACPI 2.0b, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22
• IEC 60950-1, EN 60950-1, BSMI CNS 13438, FCC CFR47 Part 15 B

Power Supply

Specifications

• Type: Hot-plug Power Supply
• Redundancy: Yes
• Redundancy Scheme: 1+1
• Installed Quantity: 2
• Max Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Output: 750 Watts
• 80 Plus Certification:

  Benefits of the 2x Xeon Hexa-Core E5-2640 Processor

  The 2x Xeon Hexa-Core E5-2640 processor offers several benefits that are crucial for users:

  1. Increased Processing Power

  With six cores per processor and a total of twelve cores in the system, the HPE ML350p G8 Performance Rack Server can handle demanding workloads and process multiple tasks simultaneously. This increased processing power enables businesses to run resource-intensive applications smoothly without experiencing any slowdowns.

  2. Enhanced Efficiency

  The processor is built on Intel's advanced architecture that ensures efficient power consumption while delivering exceptional performance. This energy-efficient design helps to reduce power consumption, resulting in lower electricity bills and reduced environmental impact.

  3. Improved Performance for Virtualization

  The 2x Xeon Hexa-Core E5-2640 processor is optimized for virtualization workloads. With its high core count and advanced virtualization technologies, such as Intel Virtualization Technology (VT-x), businesses can create multiple virtual machines and consolidate their infrastructure effectively. This allows for better resource utilization and cost savings.

  4. Faster Data Processing

  The processor's high clock speed of 2.5GHz ensures fast data processing and execution of instructions. This enables businesses to run data-intensive applications, such as databases and analytics, with improved efficiency and reduced latency.

  Importance of the 2x Xeon Hexa-Core E5-2640 Processor

  The processor is a critical component of any server as it determines the server's overall performance and capabilities. The 2x Xeon Hexa-Core E5-2640 processor offers the following importance to users:

  1. Reliable and Stable Performance

  The processor's design and architecture ensure reliable and stable performance, even under heavy workloads. This reliability is crucial for businesses that require uninterrupted operation and cannot afford any downtime.

  2. Scalability

  The 2x Xeon Hexa-Core E5-2640 processor supports Intel Hyper-Threading Technology, which allows each core to handle two threads simultaneously. This feature enhances the server's scalability, enabling it to handle increased workloads and grow alongside the business's needs.

  3. Future-Proofing

  Investing in a server with a powerful processor like the 2x Xeon Hexa-Core E5-2640 ensures future-proofing for businesses. As technology advances and software becomes more demanding, the server will be able to handle new applications without requiring an immediate upgrade.

  4. Compatibility

  The HPE ML350p G8 Performance Rack Server is designed to work seamlessly with the 2x Xeon Hexa-Core E5-2640 processor, ensuring compatibility and optimal performance. This compatibility reduces the risk of compatibility issues and ensures a smooth integration into existing IT infrastructure.

  Memory

  The HPE ML350p G8 Performance Rack Server features 16GB DDR3 SDRAM memory, providing ample capacity for efficient multitasking and data processing. The memory plays a crucial role in determining the server's performance and responsiveness, making it an essential feature for businesses and organizations.

  Benefits of 16GB DDR3 SDRAM Memory

  The 16GB DDR3 SDRAM memory offers several benefits that are vital for users:

  1. Improved Multitasking

  The large memory capacity allows the server to handle multiple tasks simultaneously without experiencing any performance degradation. Businesses can run resource-intensive applications, such as virtual machines and databases, alongside other applications, ensuring smooth operation and improved productivity.

  2. Faster Data Access

  The DDR3 SDRAM memory provides faster data access speeds compared to older memory technologies. This results in reduced latency and improved overall system performance. Data-intensive applications that require quick access to large datasets will benefit greatly from this enhanced data access speed.

  3. Enhanced System Responsiveness

  The ample memory capacity ensures that frequently accessed data and instructions are stored in memory, reducing the need for accessing slower storage devices. This leads to improved system responsiveness, allowing users to perform tasks more quickly and efficiently.

  4. Scalability

  The 16GB memory capacity can be expanded further, allowing businesses to scale up their server's memory as their needs grow. This scalability ensures that the server can handle increased workloads and accommodate future requirements without the need for a complete hardware replacement.

  Importance of 16GB DDR3 SDRAM Memory

  The memory is a critical component of any server as it directly impacts the system's performance and ability to handle multiple tasks simultaneously. The 16GB DDR3 SDRAM memory offers the following importance to users:

  1. Optimal Application Performance

  The large memory capacity ensures that applications can access the required data quickly, resulting in optimal performance. This is particularly important for businesses that rely on data-intensive applications, such as analytics or scientific simulations, as it enables faster and more accurate results.

  2. Reduced Memory Bottlenecks

  The 16GB DDR3 SDRAM memory capacity reduces the risk of memory bottlenecks, where the system becomes overwhelmed by the amount of data it needs to process. This leads to improved stability and a lower chance of crashes or performance degradation.

  3. Better Virtualization Performance

  Virtualization technologies, such as VMware or Hyper-V, rely heavily on memory resources. The 16GB DDR3 SDRAM memory allows businesses to create and manage virtual machines more efficiently, resulting in better performance and resource utilization.

  4. Future-Proofing

  Investing in a server with ample memory capacity like the 16GB DDR3 SDRAM ensures future-proofing for businesses. As applications become more memory-intensive, having enough memory will prevent performance bottlenecks and provide headroom for future growth.

  Storage

  The HPE ML350p G8 Performance Rack Server is equipped with P420i with 2GB BBWC storage, offering high-performance storage capabilities for businesses and organizations that require reliable and efficient data storage solutions.

  Benefits of P420i with 2GB BBWC Storage

  The P420i with 2GB BBWC storage provides several benefits that are essential for users:

  1. Fast Data Access

  The P420i storage controller offers high-performance data access speeds, allowing businesses to quickly retrieve and store critical data. This is crucial for applications that require real-time access to large datasets, such as databases or high-resolution media files.

  2. Enhanced Data Protection

  The 2GB Battery-Backed Write Cache (BBWC) provides an additional layer of data protection by ensuring that data is safely stored in the event of a power outage or system failure. This helps to prevent data loss and ensures the integrity of critical business information.

  3. Improved Storage Efficiency

  The P420i storage controller supports various RAID levels, including RAID 0, 1, 5, 6, 10, and 50. These RAID configurations allow businesses to improve storage efficiency, increase data redundancy, and enhance overall system performance.

  4. Scalability

  The P420i storage controller supports both SAS and SATA drives, providing businesses with flexibility in choosing the storage solution that best fits their needs. Additionally, the server's storage capacity can be easily expanded by adding additional drives or utilizing external storage systems.

  Importance of P420i with 2GB BBWC Storage

  The storage solution is a critical component of any server as it determines the system's ability to store and retrieve data efficiently. The P420i with 2GB BBWC storage offers the following importance to users:

  1. Reliable Data Storage

  The P420i storage controller ensures reliable data storage by providing advanced features such as data redundancy and battery-backed write cache. This reliability is crucial for businesses that rely on critical data for their daily operations.

  2. High Availability

  The 2GB BBWC enables uninterrupted operation even in the event of a power failure or system crash. This high availability ensures that businesses can access their data at all times, reducing downtime and minimizing the impact on productivity.

  3. Improved I/O Performance

  The P420i storage controller's advanced caching algorithms and high-performance data access capabilities result in improved I/O performance. This is particularly important for applications that require fast data retrieval and processing, such as online transaction processing or data analytics.

  4. Data Security

  With support for RAID configurations, the P420i storage controller enhances data security by providing data redundancy and protection against drive failures. This ensures that businesses can recover their data quickly and minimize the risk of data loss.

  Networking

  The HPE ML350p G8 Performance Rack Server is equipped with 4x Gigabit Ethernet ports, offering high-speed networking capabilities for businesses and organizations that require reliable and efficient network connectivity.

  Benefits of 4x Gigabit Ethernet Networking

  The 4x Gigabit Ethernet ports provide several benefits that are vital for users:

  1. High Network Bandwidth

  The Gigabit Ethernet ports offer a maximum bandwidth of 1 Gbps, allowing businesses to transfer large files and access network resources quickly. This high network bandwidth is essential for applications that require real-time collaboration or frequent data transfers.

  2. Reliable Network Connectivity

  The 4x Gigabit Ethernet ports provide redundancy and failover capabilities, ensuring uninterrupted network connectivity even in the event of a port or cable failure. This reliability is crucial for businesses that rely on constant network access for their operations.

  3. Improved Network Performance

  The Gigabit Ethernet ports support advanced features such as jumbo frames and VLAN tagging, which enhance network performance and efficiency. These features allow businesses to optimize their network infrastructure and prioritize critical network traffic.

  4. Scalability

  The 4x Gigabit Ethernet ports provide businesses with the flexibility to expand their network infrastructure as their needs grow. Additional switches or network devices can be easily connected to the server, allowing for seamless scalability and increased network capacity.

  Importance of 4x Gigabit Ethernet Networking

  Networking capabilities are crucial for any server as they determine the system's ability to communicate and access network resources efficiently. The 4x Gigabit Ethernet ports offer the following importance to users:

  1. Fast and Reliable Data Transfer

  The high network bandwidth ensures fast and reliable data transfer between the server and other network devices. This is particularly important for businesses that rely on real-time data access or need to transfer large files quickly, such as media production or scientific research.

  2. Seamless Collaboration

  The Gigabit Ethernet ports enable seamless collaboration by providing fast and stable network connectivity. This allows employees to work together on projects, share files, and communicate without experiencing any network-related delays or disruptions.

  3. Improved Virtualization Performance

  Virtualized environments heavily rely on network connectivity for communication between virtual machines and the physical server. The 4x Gigabit Ethernet ports ensure optimal performance for virtualized workloads, resulting in improved resource utilization and overall system efficiency.

  4. Future-Proofing

  Investing in a server with multiple Gigabit Ethernet ports like the HPE ML350p G8 ensures future-proofing for businesses. As network requirements increase with the adoption of new technologies, having multiple high-speed ports will allow businesses to accommodate future growth without a complete infrastructure overhaul.

  Power Supply

  The HPE ML350p G8 Performance Rack Server is equipped with 2x 750W PS power supplies, providing reliable and efficient power delivery for businesses and organizations that require a stable and uninterrupted power source.

  Benefits of 2x 750W PS Power Supply

  The 2x 750W PS power supplies offer several benefits that are essential for users:

  1. Redundancy and High Availability

  The dual power supply configuration provides redundancy and ensures high availability by eliminating single points of failure. In the event of a power supply failure, the server can continue to operate using the remaining power supply, minimizing downtime and reducing the risk of data loss.

  2. Efficient Power Delivery

  The 750W power supplies are designed to deliver power efficiently, reducing energy waste and lowering electricity bills. This is achieved through advanced power management features, such as high-efficiency conversion and intelligent fan control, which optimize power consumption based on system requirements.

  3. Scalability

  The 2x 750W PS power supplies provide scalability by allowing businesses to add additional power supplies as their needs grow. This scalability ensures that the server can handle increased power demands without straining the existing power infrastructure.

  4. Enhanced System Stability

  The dual power supply configuration ensures system stability by evenly distributing the power load between the two supplies. This reduces the strain on individual components and helps to prevent overheating or electrical damage, ensuring reliable operation even under heavy workloads.

  Importance of 2x 750W PS Power Supply

  The power supply is a critical component of any server as it determines the system's ability to receive and distribute power efficiently. The 2x 750W PS power supplies offer the following importance to users:

  1. Reliable and Stable Power Source

  The dual power supply configuration ensures a reliable and stable power source for the server. This reliability is crucial for businesses that require uninterrupted operation and cannot afford any downtime due to power-related issues.

  2. Energy Efficiency

  The 750W power supplies are designed to deliver power efficiently, resulting in lower energy consumption and reduced operating costs. This energy efficiency not only benefits businesses financially but also contributes to a greener and more sustainable IT infrastructure.

  3. High Availability

  The dual power supply configuration enhances system availability by providing redundancy. In the event of a power supply failure, the server can continue to operate using the remaining power supply, ensuring uninterrupted operation and minimizing the impact on business operations.

  4. Future-Proofing

  Investing in a server with dual power supplies like the HPE ML350p G8 ensures future-proofing for businesses. As power requirements increase with the addition of new hardware or increased workloads, having redundant power supplies will prevent power-related bottlenecks and provide headroom for future growth.

  Form Factor

  The HPE ML350p G8 Performance Rack Server features a 5U form factor, providing businesses and organizations with a compact yet expandable solution for their computing needs. The form factor plays a crucial role in determining the server's physical dimensions and compatibility with existing IT infrastructure.

  Benefits of 5U Form Factor

  The 5U form factor offers several benefits that are critical for users:

  1. Compact Design

  The 5U form factor allows businesses to maximize their rack space utilization by accommodating multiple servers within a limited physical footprint. This is particularly important for businesses that have limited data center space but require high computing power.

  2. Expandability
