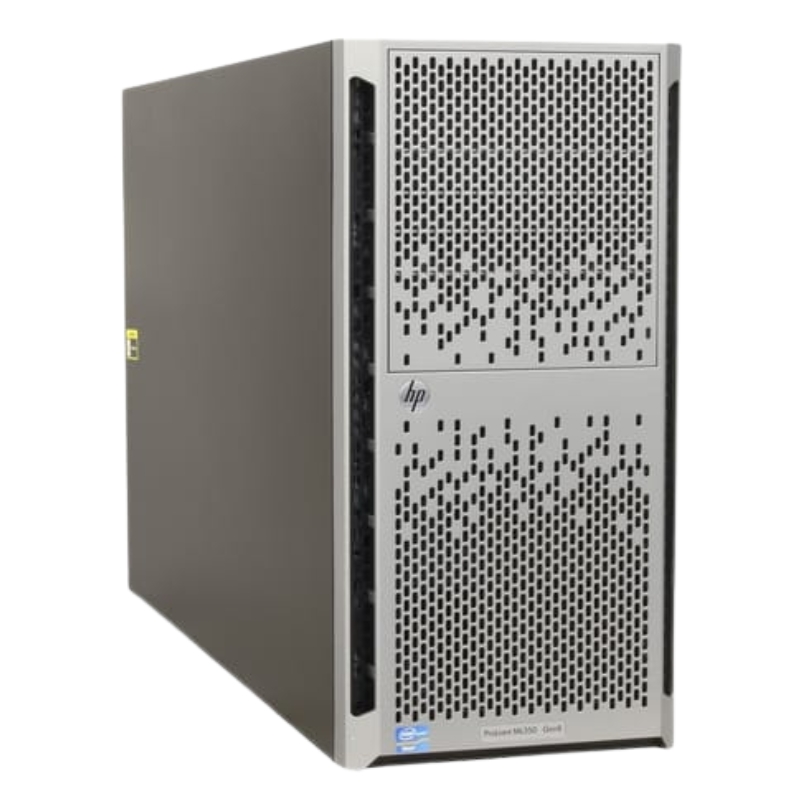

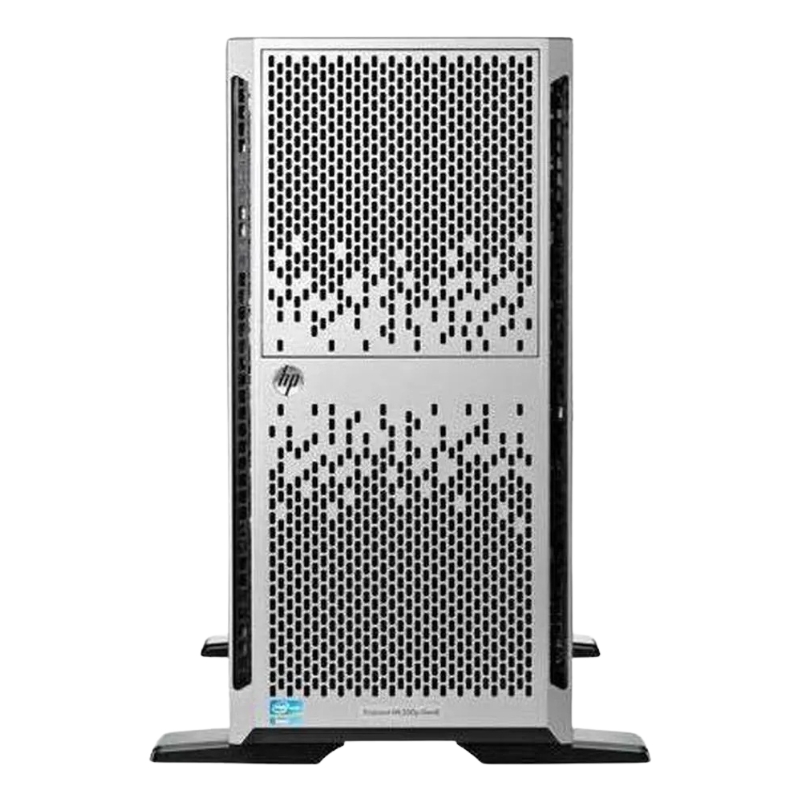

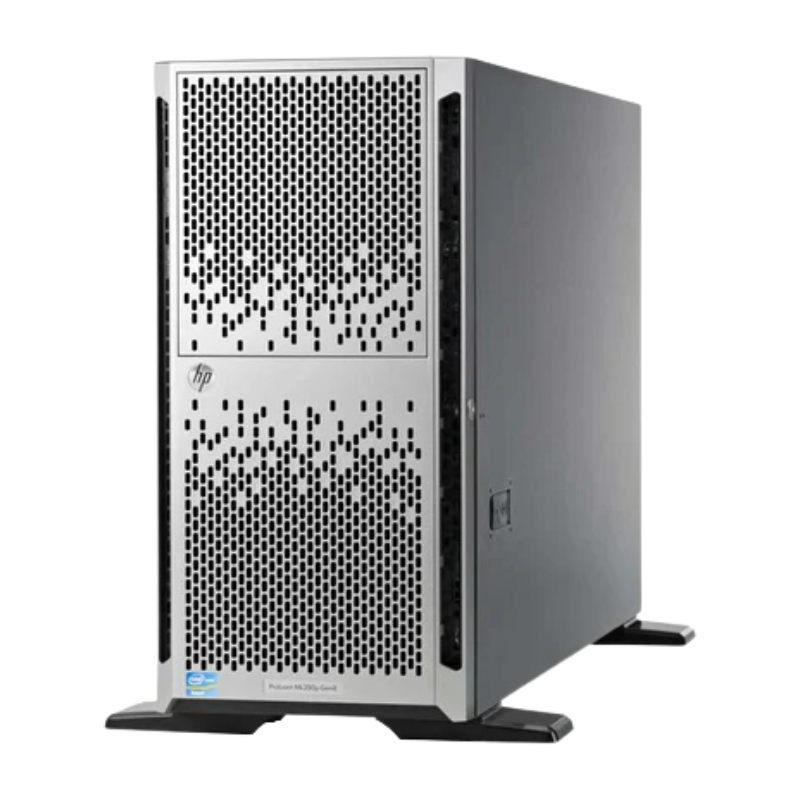

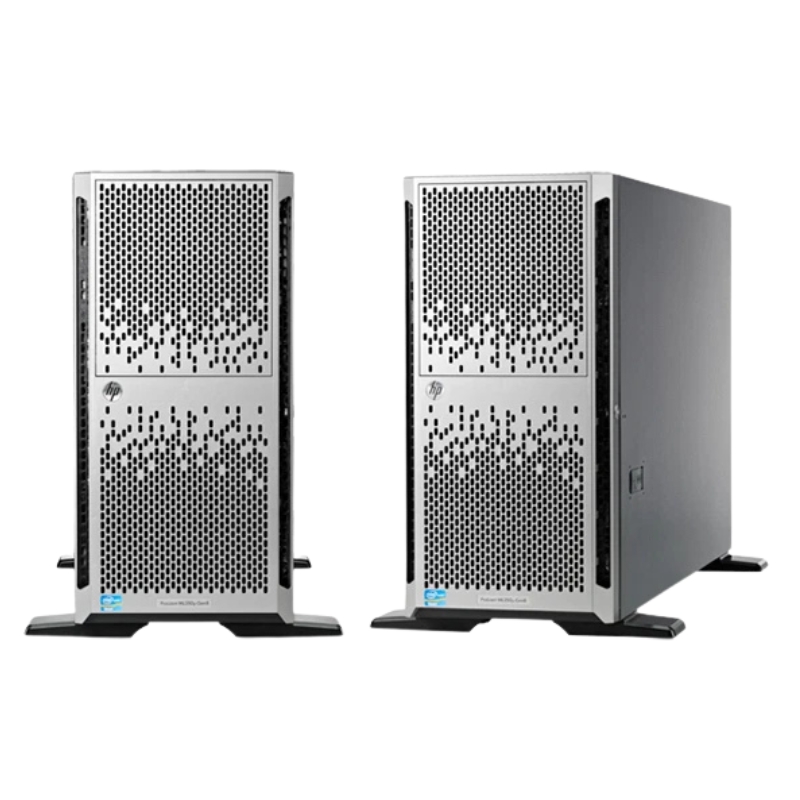

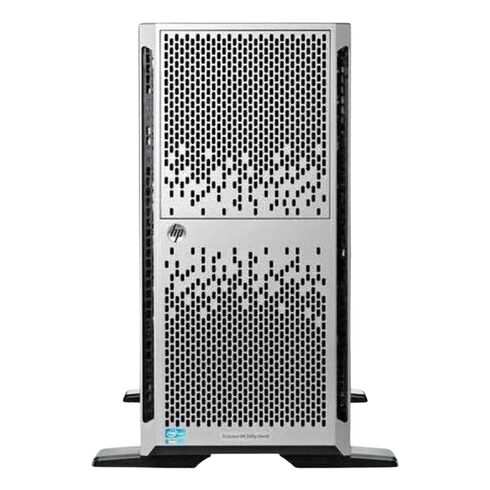

HPE Proliant Ml350p G8 Sbuy 736984-S01 Xeon E5 2620 V2 2.1GHz 8GB RAM

Processor

The HPE ML350p G8 Server is equipped with a powerful 1x Xeon 6 Core E5 2620 V2 2.1GHz processor. This processor packs a punch with its impressive performance and capabilities, making it an essential feature for any user seeking optimal server performance.

General Information

• Manufacturer: HPE
• Part Number: 736984-S01
• Product Name: Proliant ML350p G8 5U-Tower Server (S-Buy)

Processor & Chipset

Processor Details

• Type: Intel Xeon E5-2620 V2 / 2.1GHz
• Compatible Slots: LGA2011 Socket
• Technology: Hexa-core (6-core), 64-bit Computing
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Upgradability: Yes

Processor Features

• Hyper-threading Technology
• Intel QuickPath Interconnect
• Intel Turbo Boost Technology 2

Chipset Model

Intel C600

Cache Memory

• Type: L3 Cache
• Installed Size: 15 MB
• Cache per Processor: 15 MB

Memory Specifications

Installed Memory

• Size: 8 GB / Up to 768 GB
• Type: DDR3 SDRAM
• Speed: 1600 MHz
• Compliance: PC3-12800
• Form Factor: DIMM 240-pin
• Total Memory Slots: 24

Memory Features

• Registered, Online Spare Memory
• Quad Channel Memory Architecture
• HP SmartMemory

Supported RAM Configurations

• PC3-12800 - 384 GB - Registered
• PC3-10600 - 128 GB - Unbuffered, Advanced ECC
• PC3-10600 - 768 GB - Load-reduced

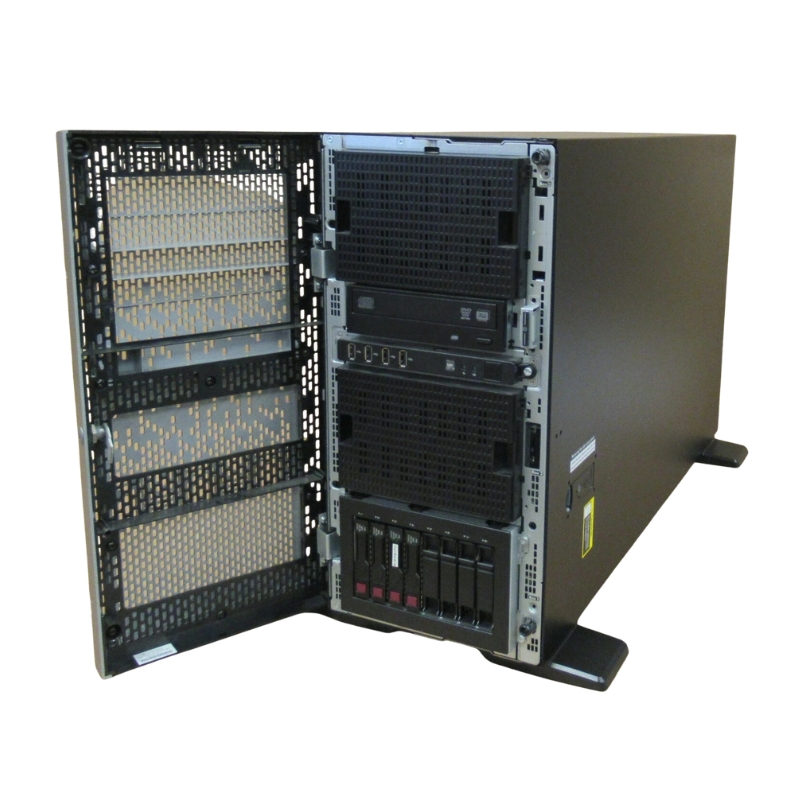

Storage Options

Internal Storage

• Hard Drive: None by Default
• Internal Bays: 6 LFF SAS/SATA HDD Bays
• Optical Drive Bay: DVD-ROM - SATA

Storage Controllers

• Type: RAID - Plug-in Card - PCI Express 3.0 x8
• Controller Interface: SATA 3Gb/s / SAS 6Gb/s
• Controller Name: Smart Array P420i with 512MB FBWC
• RAID Levels: RAID 0, RAID 1, RAID 10
• Buffer Size: 512 MB

Display & Graphics

• Graphics Type: Integrated
• Controller Model: Matrox G200

Networking & Communication

Network Interfaces

• Type: Integrated
• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331i
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet

Remote Management

• Protocol: IPMI 2.0, SMASH CLP
• Controller: Integrated Lights-Out 4
• Features: Wake On LAN (WOL), PXE Support
• Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion & Connectivity

Expansion Bays

• Total Bays: 3 (Front Accessible - 5.25in Slim Line), 8 (Hot-swap - 2.5in SFF)

Expansion Slots

• Memory Slots: 24 (total) / 23 (free) x DIMM 240-pin
• Processor Slots: 2 (total) / 1 (free)
• PCI Express 3.0 x16: 1 (total) / 1 (free) - Full-length, Full-height (x8 Mode)
• PCI Express 3.0 x8: 4 (total) / 3 (free) - Full-length, Full-height (x4 Mode)
• PCI Express 2.0 x8: 1 (total) / 1 (free) - Half-length, Full-height (x4 Mode)
• PCIe 3.0 x16: 3 (total) / 3 (free) - Full-length, Full-height

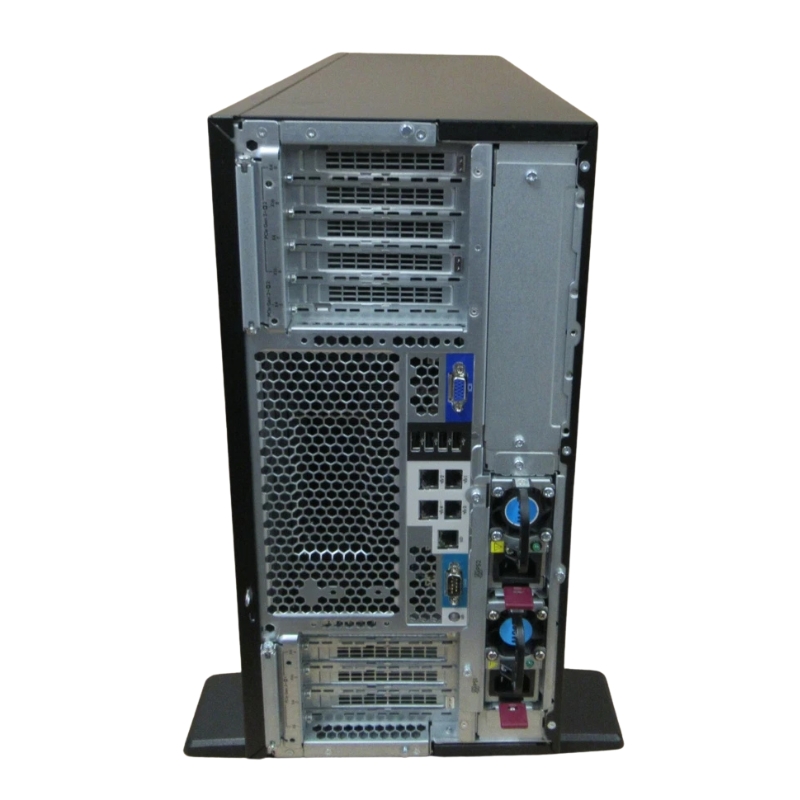

Interfaces & Ports

• Serial Port: 1 x RS-232 - 9 Pin D-sub (DB-9)
• Video Port: 1 x VGA - 15 Pin HD D-sub (HD-15)
• USB Ports: 9 x USB - 4 Pin Type A (4 Front, 4 Rear, 1 Internal)
• Network Ports: 4 x Ethernet - RJ-45
• Management Port: 1 x HP iLO - RJ-45

Power Specifications

• Type: Hot Plug Power Supply
• Redundancy: Yes, 1+1 Scheme
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Voltage Required: AC 120/220 V
• Power Provided: 460 Watt
• 80 Plus Certification: 80 Plus Platinum

Dimensions & Weight

• Width: 8.6 in
• Depth: 29.1 in
• Height: 18.2 in
• Weight: 70.3 lbs

Enhanced Performance

The 1x Xeon 6 Core E5 2620 V2 2.1GHz processor is designed to deliver enhanced performance, ensuring that your server can handle demanding workloads with ease. With six cores and twelve threads, this processor allows for efficient multitasking and faster execution of tasks. Whether you're running resource-intensive applications or handling complex computations, this processor can handle it all.

Improved Productivity

By incorporating the 1x Xeon 6 Core E5 2620 V2 2.1GHz processor into the HPE ML350p G8 Server, users can experience improved productivity. The increased processing power enables quicker response times and reduced latency, resulting in a smoother workflow. This means that tasks can be completed faster, allowing for increased productivity and efficiency in your business operations.

Scalability

One of the key benefits of the HPE ML350p G8 Server's processor is its scalability. With the ability to support up to two processors, users have the option to upgrade and expand their server's processing power as their needs grow. This scalability ensures that your server can adapt to changing demands and remain capable of handling future workloads without the need for significant hardware replacements.

Energy Efficiency

In addition to its impressive performance capabilities, the 1x Xeon 6 Core E5 2620 V2 2.1GHz processor is also designed with energy efficiency in mind. This processor utilizes advanced power management technologies, optimizing power consumption and reducing energy costs. With its energy-efficient design, the processor contributes to a greener and more sustainable IT infrastructure.

Reliability and Stability

The 1x Xeon 6 Core E5 2620 V2 2.1GHz processor is renowned for its reliability and stability. Built with high-quality components and rigorous testing, this processor ensures uninterrupted server operation even under heavy workloads. Its stability guarantees minimal downtime and maximum uptime, allowing businesses to maintain smooth operations without disruptions.

Memory

The HPE ML350p G8 Server features 8GB DDR3 RAM, providing users with ample memory capacity to support their computing needs. The memory is a crucial component of any server, as it directly impacts performance, responsiveness, and multitasking capabilities.

Improved Performance

The 8GB DDR3 RAM of the HPE ML350p G8 Server plays a vital role in delivering improved performance. With a larger memory capacity, the server can store and access more data simultaneously, reducing the need for frequent data retrieval from storage devices. This results in faster data processing and improved overall performance, allowing users to handle complex tasks efficiently.

Enhanced Multitasking

The generous memory capacity provided by the 8GB DDR3 RAM enables effective multitasking capabilities. Servers with limited memory often struggle to handle multiple tasks concurrently, leading to decreased productivity and increased response times. However, with the ample memory capacity of the HPE ML350p G8 Server, users can seamlessly run multiple applications simultaneously without experiencing performance bottlenecks.

Future-Proofing

Memory requirements in the IT industry continue to grow rapidly, driven by increasingly demanding applications and workloads. The 8GB DDR3 RAM offers scalability options for users who anticipate their memory needs to increase in the future. The server can be easily upgraded by adding more memory modules, ensuring that it remains capable of meeting evolving demands.

Data Integrity and Reliability

The 8GB DDR3 RAM of the HPE ML350p G8 Server incorporates error-correcting code (ECC) technology. ECC memory detects and corrects single-bit errors, preventing potential data corruption. This enhances data integrity and reliability, making it an essential feature for businesses that handle critical and sensitive information.

Efficient Virtualization

Virtualization has become a fundamental aspect of modern IT infrastructure, enabling businesses to maximize server resources and achieve cost savings. The 8GB DDR3 RAM allows for efficient virtualization by providing sufficient memory capacity to support multiple virtual machines. This ensures smooth operation of virtualized environments, minimizing performance degradation and ensuring optimal resource utilization.

Storage

The HPE ML350p G8 Server offers 8SFF SAS SATA HDD bays, providing ample storage capacity for users' data and applications. Storage is a critical aspect of any server, as it determines the amount of data that can be stored, accessed, and processed.

High Storage Capacity

The 8SFF SAS SATA HDD bays of the HPE ML350p G8 Server offer high storage capacity, allowing users to store large amounts of data. Whether it's documents, media files, databases, or virtual machines, this ample storage ensures that users have enough space to accommodate their growing data needs.

Flexibility and Scalability

The HPE ML350p G8 Server's storage configuration provides flexibility and scalability options for users. The server supports various SAS and SATA hard drives, allowing users to choose the storage solution that best suits their requirements. Additionally, the server's storage capacity can be easily expanded by adding more hard drives, ensuring that it can adapt to growing storage demands.

Data Redundancy and Protection

Data redundancy and protection are crucial for businesses that rely on their servers to store critical information. The 8SFF SAS SATA HDD bays support RAID configurations, enabling users to implement redundant data storage. RAID (Redundant Array of Independent Disks) distributes data across multiple drives, ensuring that data remains accessible even if one or more drives fail. This safeguards against data loss and minimizes the risk of downtime due to hardware failures.

Improved Data Access Speed

The HPE ML350p G8 Server's storage configuration is designed to deliver improved data access speed. By utilizing SAS and SATA interfaces, users can benefit from faster data transfer rates. This results in reduced latency and quicker data retrieval, enhancing overall server performance and user experience.

Optical Drive

The HPE ML350p G8 Server is equipped with a DVD ROM optical drive, providing users with the ability to read and access optical media. While optical drives may seem outdated in today's technology landscape, they still offer significant benefits for certain use cases.

Media Compatibility

The DVD ROM optical drive of the HPE ML350p G8 Server ensures compatibility with a wide range of optical media formats. Users can easily access and retrieve data from CDs and DVDs, making it ideal for software installations, system recovery, or accessing legacy data stored on optical media.

Easy Installation and Upgrades

The presence of an optical drive simplifies the installation process for software or system updates that are distributed on CDs or DVDs. Users can easily insert the disc into the drive, follow the installation wizard, and complete the process without the need for additional hardware or complicated procedures. This convenience saves time and effort while ensuring that the server remains up to date with the latest software.

Data Backup and Archiving

Optical media, such as DVDs, offer a reliable and cost-effective solution for data backup and archiving purposes. The DVD ROM optical drive allows users to create backup copies of critical data or archive important files onto writeable DVDs. These discs provide long-term storage options, ensuring that essential data is preserved and accessible even in the event of hardware failures or data loss incidents.

Legacy Support

While cloud storage and USB drives have become the preferred methods of data transfer and storage, there are still instances where legacy systems or applications rely on optical media for compatibility. The DVD ROM optical drive allows users to access and utilize software or data that is only available on CDs or DVDs, ensuring compatibility with older systems or workflows.

Cost-Effective Solution

The DVD ROM optical drive provides a cost-effective solution for users who occasionally require access to optical media. Rather than investing in external optical drives or relying on other devices for occasional use, having an integrated DVD ROM drive eliminates the need for additional expenses. This makes the HPE ML350p G8 Server a cost-efficient choice for users who rely on optical media on an infrequent basis.

RAID Controller

The HPE ML350p G8 Server is equipped with a Smart Array RAID controller, offering advanced data management and protection capabilities. The RAID controller is an integral part of any server's storage subsystem, ensuring data integrity, performance optimization, and fault tolerance.

Data Protection

The Smart Array RAID controller of the HPE ML350p G8 Server provides essential data protection features. By implementing RAID technology, the controller distributes data across multiple drives, creating redundancy and safeguarding against hardware failures. In the event of a drive failure, the RAID controller can automatically rebuild the data using the redundant information, ensuring that critical data remains accessible and intact.

Improved Performance

In addition to data protection, the Smart Array RAID controller enhances overall storage performance. By implementing RAID levels such as RAID 0, RAID 1, or RAID 5, users can benefit from improved read and write speeds. The controller intelligently distributes data across multiple drives, enabling parallel access and reducing latency. This results in faster data transfer rates and improved storage performance for the server.

Storage Scalability

The Smart Array RAID controller allows for seamless storage scalability. Users can easily expand their storage capacity by adding more drives to the RAID array. The controller supports various RAID levels, enabling users to choose the configuration that best suits their needs. This scalability ensures that the server can adapt to changing storage demands without compromising performance or data protection.

Management and Monitoring

The Smart Array RAID controller provides advanced management and monitoring capabilities. Users can access a user-friendly interface to configure and manage their RAID arrays, monitor drive health, and receive real-time notifications of any potential issues. This proactive approach allows users to address problems promptly, minimize downtime, and ensure the integrity of their data.

Data Striping and Mirroring

The Smart Array RAID controller supports advanced data striping and mirroring techniques. Striping distributes data across multiple drives, improving performance by enabling parallel access to data blocks. Mirroring creates a redundant copy of data on separate drives, ensuring fault tolerance and minimizing the risk of data loss. These techniques provide enhanced reliability, performance, and accessibility for critical data stored on the server.

In conclusion, the HPE ML350p G8 Server's Processor, Memory, Storage, Optical Drive, and RAID Controller features are all crucial components that contribute to its overall performance, reliability, and versatility. The 1x Xeon 6 Core E5 2620 V2 2.1GHz processor offers enhanced performance, improved productivity, scalability, energy efficiency, and stability. The 8GB DDR3 RAM provides improved performance, enhanced multitasking, future-proofing, data integrity, and efficient virtualization. The 8SFF SAS SATA HDD bays offer high storage capacity, flexibility, scalability, data redundancy and protection, and improved data access speed. The DVD ROM optical drive ensures media compatibility, easy installation and upgrades, data backup and archiving capabilities, legacy support, and cost-effectiveness. Lastly, the Smart Array RAID controller provides data protection, improved performance, storage scalability, management and monitoring features, and advanced data striping and mirroring techniques. With these features combined, the HPE ML350p G8 Server becomes a reliable and powerful solution for businesses seeking robust server capabilities.
