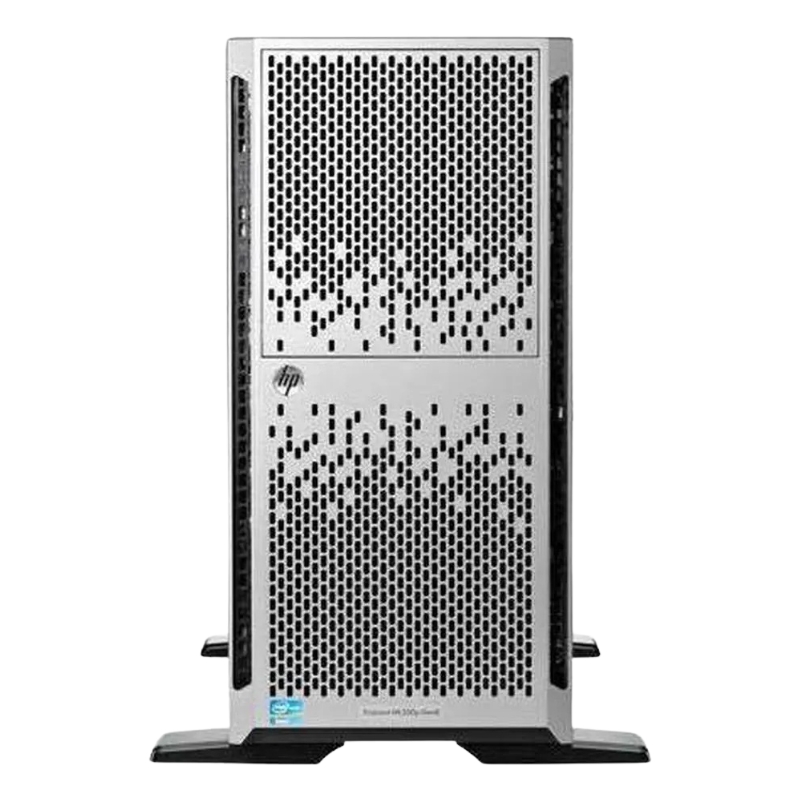

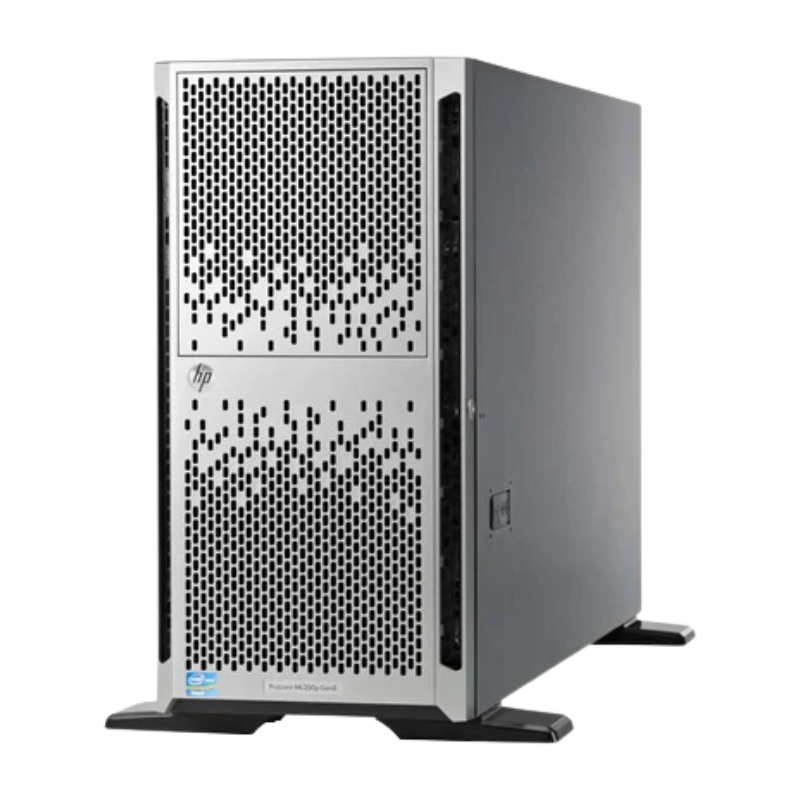

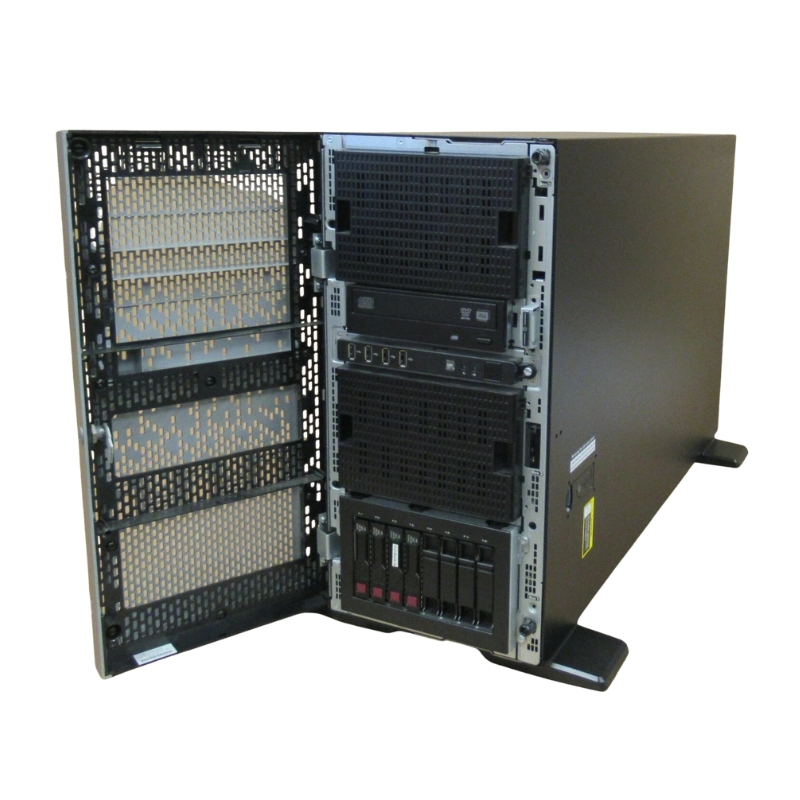

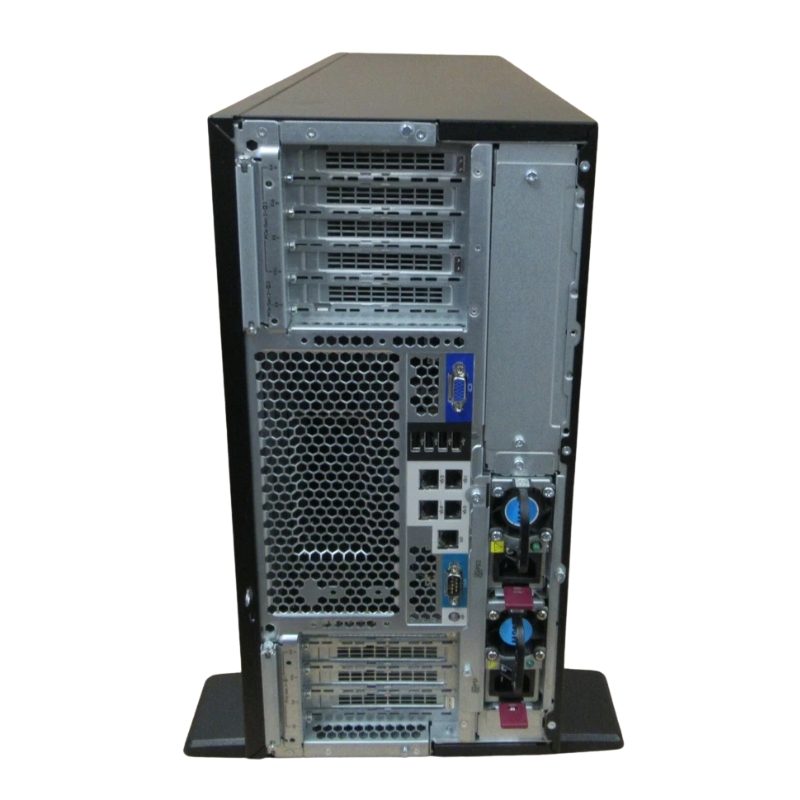

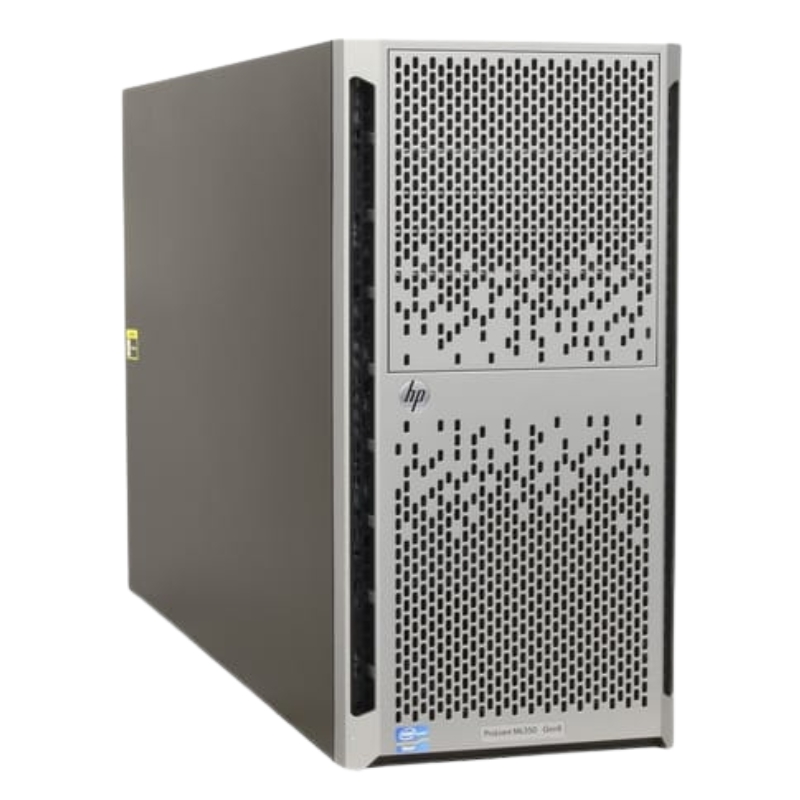

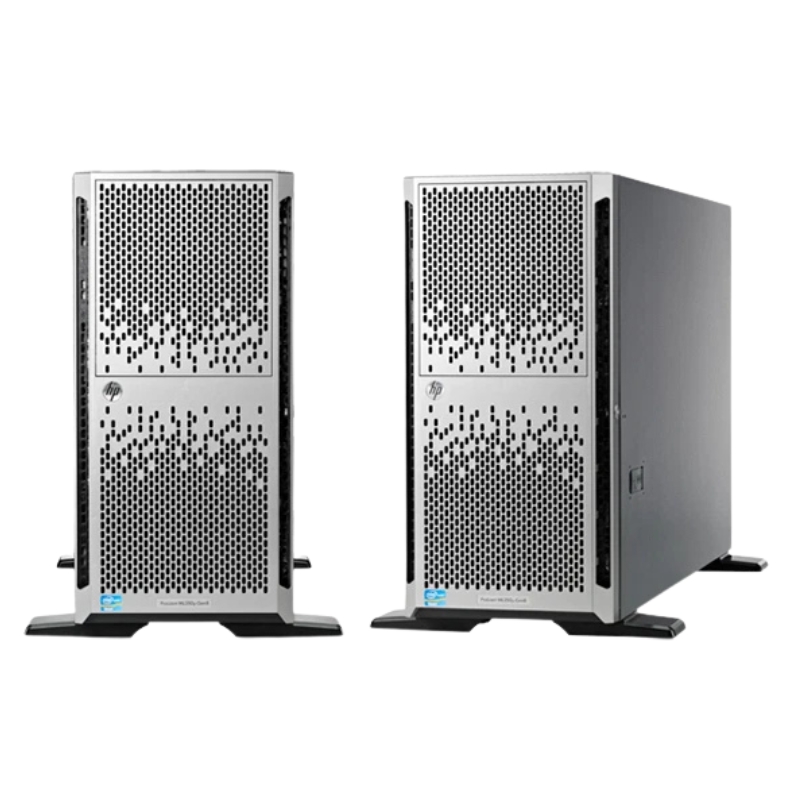

HPE Proliant ML350p Gen8 2.0GHz Xeon 16GB DDR3 Server 736967-001

Processor

The HPE ML350p Gen8 Server boasts a powerful Xeon 2.0GHz processor, which is a key feature that sets it apart from other servers in its class. This processor is designed to deliver exceptional performance and reliability, making it an ideal choice for businesses that require high computing power.

General Specifications

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 736967-001
• Product Name: Proliant ML350p Gen8 - Performance Model

Processor and Chipset

• Processor Type: Dual Xeon E5-2640v2 (2.0 GHz)
• Max Turbo Speed: 2.5 GHz
• Core Count: 8 cores
• 64-bit Computing: Supported
• Chipset: Intel C600
• Installed Processors: 2
• Maximum Supported Processors: 2
• Upgrade Capability: Yes

Cache Memory

• Cache Type: L3 Cache
• Installed Size: 40 MB
• Cache Per Processor: 20 MB

Memory Specifications

• Installed Memory: 16 GB, expandable up to 384 GB
• Memory Technology: DDR3 SDRAM
• Form Factor: DIMM 240-pin
• Total Memory Slots: 24
• Available Slots: 22
• Configuration: 2 x 8 GB
• Supported RAM Types: PC3-12800 (384 GB Registered), PC3-10600 (128 GB Unbuffered)
• Advanced Features: HP SmartMemory, Quad Channel Memory Architecture

Storage and Optical Drives

• Hard Drive: Not included
• Optical Drive: DVD-RW/DVD-Writer (SATA)

Storage Controller

• Controller Type: RAID Plug-in Card (PCIe 3.0 x8)
• Interface Type: SATA 3 Gb/s, SAS 6 Gb/s
• Controller Name: Smart Array P420i
• RAID Levels Supported: 0, 1, 5, 10, 50
• Buffer Size: 2 GB

Graphics and Display

• Graphics Controller: Integrated
• Graphics Processor: Matrox G200
• Video Interfaces: VGA

Networking and Communication

• Networking: Integrated
• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331i
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake On LAN (WOL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion and Connectivity

• External Bays: 3 x 5.25-inch (total), 2 available
• Hot-swap Bays: 8 x 3.5-inch LFF (total and available)
• DIMM Slots: 24 (total), 22 available
• CPU Slots: 2 (total), 0 available
• PCIe Slots:
  • 1 x PCIe 3.0 x16 (Full-length, Full-height, X8 Mode)
  • 4 x PCIe 3.0 x8 (Full-length, Full-height, X4 Mode)
  • 1 x PCIe 2.0 x8 (Half-length, Full-height, X4 Mode)
  • 3 x PCIe 3.0 x16 (Full-length, Full-height)

Interfaces and Ports

• Serial Port: 1
• VGA Port: 1
• LAN Ports: 4 x Gigabit Ethernet
• HP iLO Port: 1
• USB Ports: 8 x USB 2.0 (4 front, 4 rear)

Miscellaneous Features

• Security Features: Administrator Password, Power-on Password, Serial Port I/O Control
• Power Supply: Hot-plug, Redundant (1+1)
• Installed Power Supplies: 2
• Max Supported Power Supplies: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 750 Watts
• 80 Plus Certification: 80 Plus Platinum

Compliance and Standards

• ACPI 2.0
• FCC Class A Certified
• EN 61000-3-2
• EN55022
• ICES-003
• EN 61000-3-3
• EN55024
• CISPR 22
• FCC CFR47 Part 15
• IEC 60950-1
• EN 60950-1
• WEEE
• GB 9254
• ASHRAE
• CNS 13438

Dimensions and Weight

• Width: 8.6 inches
• Depth: 29.1 inches
• Height: 18.2 inches
• Weight: 70.33 lbs

Enhanced Performance

With its Xeon 2.0GHz processor, the HPE ML350p Gen8 Server offers enhanced performance that can handle demanding workloads with ease. Whether you need to run resource-intensive applications or perform complex calculations, this processor ensures smooth and efficient operation, enabling your business to run at its full potential.

Increased Productivity

The powerful Xeon 2.0GHz processor of the HPE ML350p Gen8 Server enables faster data processing, resulting in increased productivity for your business. Tasks that would typically take longer on a less capable server can now be completed in a fraction of the time, allowing your employees to focus on other critical tasks.

Improved Scalability

Scalability is another notable benefit of the Xeon 2.0GHz processor. It provides the necessary power and performance to support future growth and expansion. As your business evolves and demands increase, this processor ensures that your server can handle the additional workload without any compromises in performance.

Reliability and Stability

The Xeon 2.0GHz processor is known for its reliability and stability, which are crucial factors for any server. By choosing the HPE ML350p Gen8 Server with this processor, you can have peace of mind knowing that your server will consistently deliver optimal performance, minimizing downtime and ensuring smooth operation.

Virtualization Capabilities

If your business utilizes virtualization technology, the Xeon 2.0GHz processor is an excellent choice. It offers advanced virtualization capabilities, allowing you to run multiple virtual machines simultaneously without sacrificing performance. This feature is especially beneficial for businesses that rely on virtualization to optimize their IT infrastructure and reduce costs.

Energy Efficiency

In addition to its exceptional performance, the Xeon 2.0GHz processor is designed with energy efficiency in mind. It incorporates power-saving technologies that help reduce energy consumption without compromising performance. This not only reduces your business's carbon footprint but also translates into cost savings on energy bills.

Memory

The HPE ML350p Gen8 Server comes equipped with 16GB DDR3 memory, which plays a crucial role in its overall performance and reliability. The generous amount of memory ensures that your server can handle resource-intensive tasks efficiently, providing a seamless computing experience.

Improved Multitasking

With 16GB DDR3 memory, the HPE ML350p Gen8 Server allows for improved multitasking capabilities. Your business can run multiple applications simultaneously without experiencing slowdowns or performance issues. This enables your employees to be more productive and efficient, as they can seamlessly switch between different tasks without any delays.

Optimal Performance

The ample amount of memory provided by the 16GB DDR3 ensures optimal server performance. It allows for faster data access and manipulation, resulting in quicker response times and improved overall system efficiency. This is particularly important for businesses that rely on real-time data processing or handle large volumes of data.

Future-Proofing

The 16GB DDR3 memory offers room for future growth and expansion. As your business evolves and its computing needs increase, this generous memory capacity ensures that your server can handle the additional workload without any performance bottlenecks. This future-proofing capability saves you from investing in additional hardware upgrades in the near term.

Reliability and Data Integrity

Memory plays a critical role in ensuring data integrity and reliability. The 16GB DDR3 memory of the HPE ML350p Gen8 Server is designed to provide error correction capabilities, minimizing the risk of data corruption or loss. This feature is particularly important for businesses that handle sensitive or mission-critical data, as it helps maintain the integrity and accuracy of stored information.

Virtualization Support

Virtualization technology relies heavily on memory capacity. The 16GB DDR3 memory of the HPE ML350p Gen8 Server allows for efficient virtual machine management, ensuring smooth operation and optimal performance of virtualized environments. This is especially beneficial for businesses that leverage virtualization to maximize their IT infrastructure utilization and flexibility.

Improved System Responsiveness

The generous memory capacity provided by the 16GB DDR3 enhances system responsiveness, reducing latency and improving overall user experience. Applications load faster, and data retrieval becomes more efficient, resulting in a seamless computing experience for your employees. This improved system responsiveness translates into increased productivity and efficiency within your business.

Part Number

The part number of the HPE ML350p Gen8 Server is 736967-001, and it holds significance for both users and IT professionals. This unique identifier helps in identifying and procuring the correct server model, spare parts, and support services, ensuring smooth operation and maintenance.

Accurate Identification

The part number 736967-001 allows for accurate identification of the HPE ML350p Gen8 Server model. In a complex IT environment with multiple server models, having a unique part number simplifies inventory management, procurement processes, and maintenance tasks. This ensures that you can easily identify and locate the specific server model you require, saving time and effort.

Compatible Spare Parts

The part number is crucial when sourcing compatible spare parts for the HPE ML350p Gen8 Server. By using the correct part number, you can ensure that the replacement components or upgrades are compatible with your server model. This compatibility ensures seamless integration and reduces the risk of compatibility issues that could cause downtime or performance problems.

Efficient Support Services

The part number is essential for accessing efficient support services from HPE or authorized service providers. When seeking technical assistance or warranty support, providing the part number ensures that the support team can accurately identify your server model and offer appropriate solutions. This helps expedite the resolution process, minimizing any potential disruption to your business operations.

Documentation and Resources

The part number plays a crucial role in accessing relevant documentation and resources for the HPE ML350p Gen8 Server. Whether you are looking for user manuals, technical specifications, firmware updates, or software downloads, having the correct part number ensures that you can readily locate the specific resources applicable to your server model. This streamlines troubleshooting and maintenance tasks.

Easy Ordering and Procurement

The part number simplifies the ordering and procurement process for the HPE ML350p Gen8 Server. By providing the correct part number to your supplier or reseller, you can ensure that you receive the exact server model you require, along with any additional components or accessories. This helps prevent any confusion or errors in the ordering process, ensuring that you receive the right equipment on time.

Product Differentiation

The part number also serves as a means of product differentiation within the HPE server lineup. With various server models available, each identified by a unique part number, users can easily distinguish between different server configurations and specifications. This allows businesses to select the specific server model that best suits their requirements, ensuring they get the right features and capabilities for their needs.

In conclusion, the HPE ML350p Gen8 Server's Xeon 2.0GHz processor, 16GB DDR3 memory, and part number 736967-001 are essential features that contribute to its exceptional performance, reliability, and ease of use. These features enable businesses to handle demanding workloads, improve productivity, ensure data integrity, and simplify server identification and maintenance. Whether you need a server for resource-intensive applications or virtualization environments, the HPE ML350p Gen8 Server with its powerful processor and ample memory is a reliable choice.
