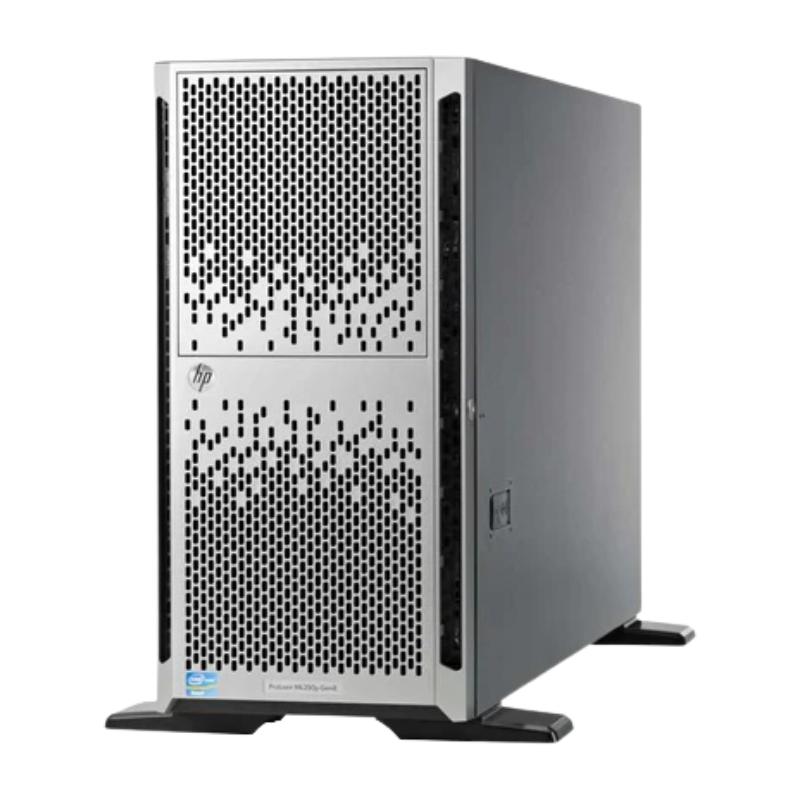

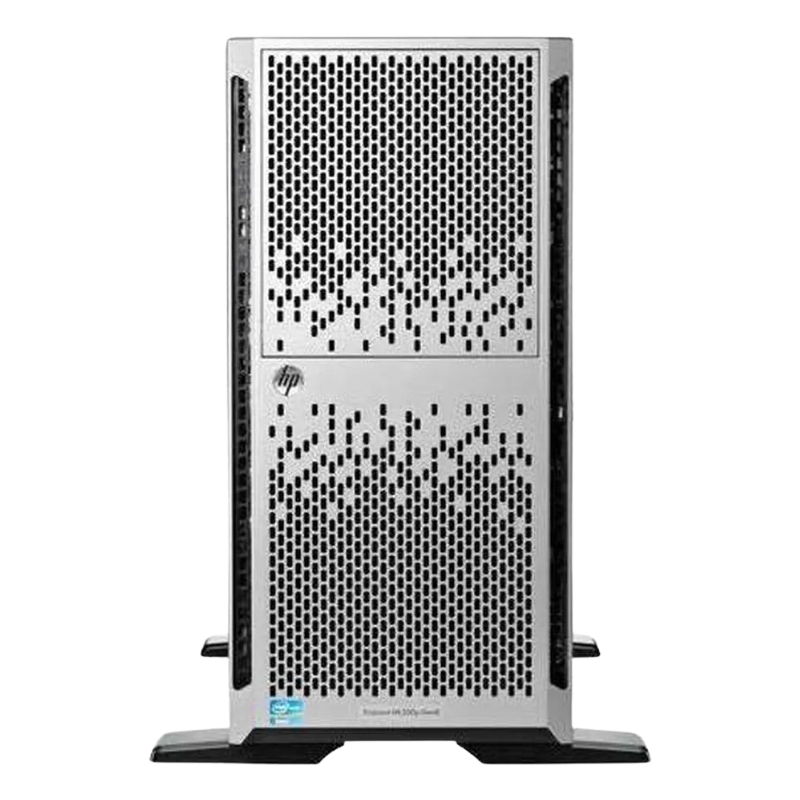

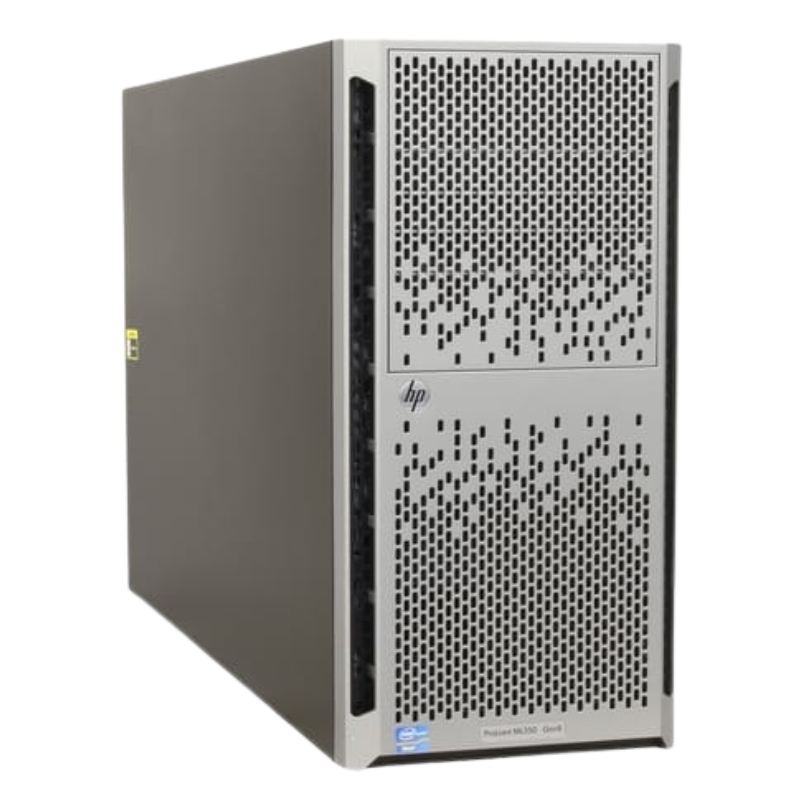

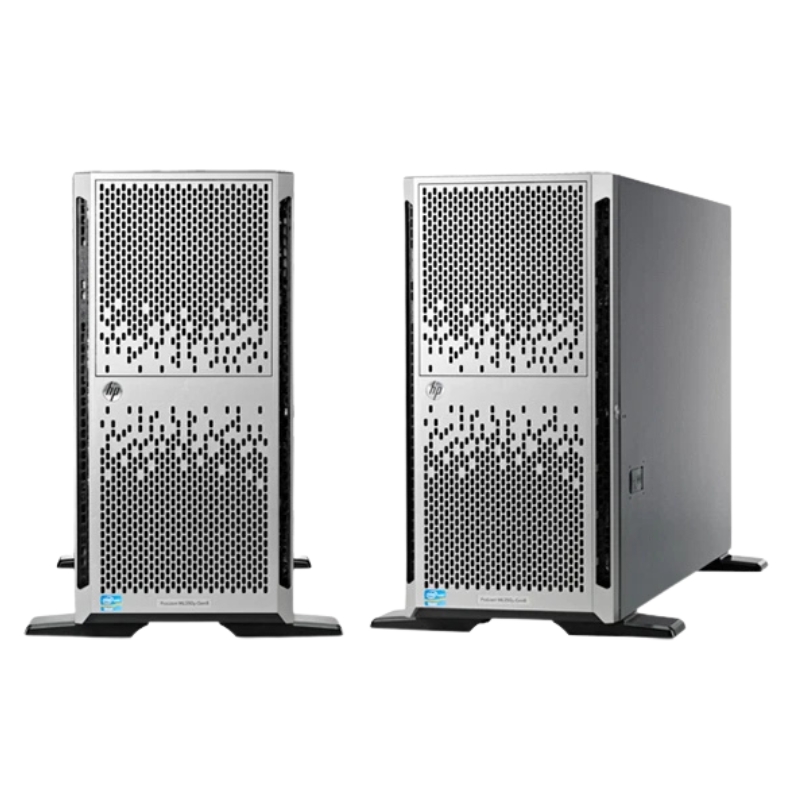

HPE Proliant ML350p Gen8 Xeon 2.6GHz 8 Core 16GB DDR3 Server - 736968-001

Processor: Xeon 2.6GHz 8 Core

The HPE ML350p Gen8 Server is equipped with a powerful Xeon 2.6GHz 8 Core processor, making it an ideal choice for businesses that require superior computing performance. With its impressive processing power, this server can handle demanding workloads and run resource-intensive applications with ease. Let's explore the benefits and importance of this feature in more detail.

Manufacturer Information

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 736968-001
• Product Name: Proliant ML350p Gen8 - 2-Way 5U Tower Server (Performance Model)

Processor and Chipset Specifications

Processor Details

• Processor Type: Dual Intel Xeon E5-2650v2 / 2.6 GHz (8-core)
• Max Turbo Frequency: 3.4 GHz
• Core Count: 8 Cores
• 64-bit Computing: Supported
• Installed CPUs: 2
• Maximum Supported CPUs: 2
• Upgradability: Yes
• Chipset: Intel C600 Series

Cache Memory

• Type: L3 Cache
• Installed Size: 40 MB
• Cache Per Processor: 20 MB

Memory Specifications

Installed and Maximum Memory

• Installed Size: 16 GB, expandable to 384 GB
• Memory Technology: DDR3 SDRAM
• Effective Memory Speed: 1866 MHz
• Memory Speed Rating: 1866 MHz
• Memory Compliance: PC3-14900

Configuration and Features

• Form Factor: DIMM 240-pin
• Slots: 24 (total), 22 (available)
• Features: Registered, Quad Channel, Low-voltage, HP SmartMemory
• Supported RAM Configurations:
  • PC3-14900 - 384 GB (Low Voltage, Registered)
  • PC3-14900 - 128 GB (Unbuffered, Advanced ECC)
  • PC3-14900 - 768 GB (Low Voltage, Load-reduced)

Storage and Optical Media

Hard Drive and Optical Storage

• Hard Drive: Not included
• Optical Storage: DVD-ROM, SATA

Storage Controller

• Type: RAID - Plug-in Card - PCIe 3.0 x8
• Controller Interface: SATA 3Gb/s / SAS 6Gb/s
• Controller Name: Smart Array P420i with 2GB FBWC
• RAID Levels Supported: RAID 0, RAID 1, RAID 10
• Buffer Size: 2 GB

Graphics and Display

Graphics Processor

• Graphics Processor: Matrox G200
• Video Interfaces: VGA
• Type: Integrated

Networking and Communication

Network Interfaces

• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331i
• Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake On LAN (WOL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion and Connectivity

Expansion Bays

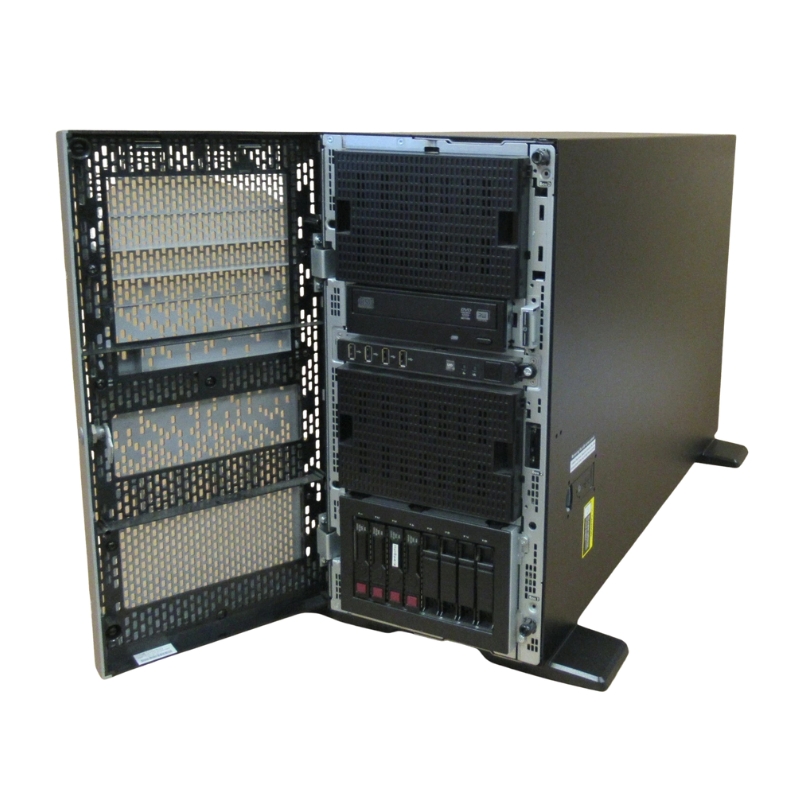

• Front Accessible Bays: 3 (total), 2 (available), 5.25-inch x 1/2H
• Hot-swap Bays: 8 (total), 8 (available), 2.5-inch SFF

Expansion Slots

• DIMM Slots: 24 (total), 22 (available)
• CPU Slots: 2 (total), 0 (available)
• PCIe 3.0 x16 Slots: 1 (total), 1 (available, full-length, full-height, x8 Mode)
• PCIe 3.0 x8 Slots: 4 (total), 4 (available, full-length, full-height, x4 Mode)
• PCIe 2.0 x8 Slots: 1 (total), 1 (available, half-length, full-height, x4 Mode)
• PCIe 3.0 x16 Slots: 3 (total), 3 (available, full-length, full-height)
• SD Card Slot: 1 (total), 1 (available, internal)

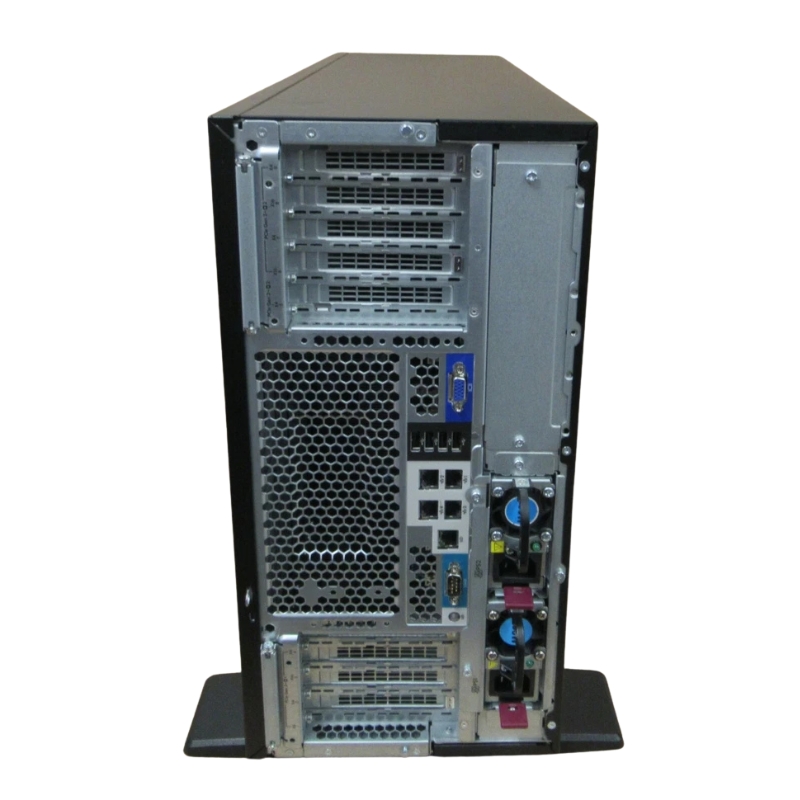

Interfaces and Ports

• Serial Port: 1
• VGA Port: 1
• LAN Ports: 4 x Gigabit Ethernet
• HP iLO Port: 1
• USB Ports: 8 x USB 2.0 (4 front, 4 rear)

Miscellaneous Information

Security and Compliance

• Features: Administrator Password, Power-on Password, Serial Port I/O Control
• Standards Compliance: ACPI 2.0b, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, IEC 60950-1, EN 60950-1, BSMI CNS 13438, FCC CFR47 Part 15 B

Power Supply

• Type: Hot-plug Power Supply
• Redundancy: Optional, 1+1 Scheme with Optional Power Supply
• Installed Quantity: 2
• Maximum Supported Quantity: 2
• Voltage Required: AC 120/230 V (50/60 Hz)
• Power Provided: 750 Watts
• 80 Plus Certification: 80 Plus Gold

Dimensions and Weight

• Width: 8.6 inches
• Depth: 29.1 inches
• Height: 18.2 inches
• Weight: 70.33 lbsEnhanced Performance

  The Xeon 2.6GHz 8 Core processor is designed to deliver exceptional performance, allowing users to experience faster and more efficient computing. The eight cores provide ample processing power to tackle complex tasks and multitasking operations simultaneously. This enhanced performance translates into improved productivity and reduced processing times, enabling businesses to complete tasks more quickly.

  Scalability and Flexibility

  The ML350p Gen8 Server's Xeon processor offers scalability and flexibility, allowing businesses to adapt and grow as their needs evolve. With its eight cores, the server can handle increased workloads and support multiple virtual machines, making it an excellent choice for virtualization environments. This scalability ensures that the server can keep up with the demands of a growing business without compromising on performance.

  Efficient Virtualization

  Virtualization is a critical aspect of modern IT infrastructure, enabling businesses to maximize their resources and consolidate multiple servers into a single machine. The Xeon 2.6GHz 8 Core processor is optimized for virtualization, providing the necessary power to run multiple virtual machines simultaneously without sacrificing performance. This efficiency allows businesses to save on hardware costs while maintaining optimal performance levels.

  Improved Energy Efficiency

  Energy efficiency is a key consideration for businesses aiming to reduce their carbon footprint and lower operational costs. The Xeon processor's advanced architecture incorporates various power-saving technologies, such as Intel Turbo Boost and Enhanced Intel SpeedStep, which dynamically adjust the processor's frequency and power consumption based on workload requirements. This intelligent power management ensures that the server operates efficiently while minimizing energy consumption.

  Reliability and Stability

  The Xeon 2.6GHz 8 Core processor is renowned for its reliability and stability, ensuring uninterrupted service for mission-critical applications. With its robust design and advanced error correction capabilities, the processor can handle intense workloads without compromising system stability. This reliability is crucial for businesses that cannot afford downtime or disruptions to their operations.

  Support for Advanced Technologies

  The Xeon processor's architecture supports various advanced technologies, including Intel Virtualization Technology, Intel Hyper-Threading Technology, and Intel QuickPath Interconnect. These features enhance the server's performance, security, and manageability, providing businesses with a future-proof solution that can meet their evolving needs.

  Virtualization Technology:

  Intel Virtualization Technology enables efficient resource utilization by allowing multiple virtual machines to run on a single physical server. This technology enhances the server's flexibility and scalability, enabling businesses to maximize their IT infrastructure investments.

  Hyper-Threading Technology:

  Intel Hyper-Threading Technology enables each physical core to run multiple threads simultaneously, effectively doubling the number of virtual cores. This feature improves overall system responsiveness and performance, especially in multi-threaded applications.

  QuickPath Interconnect:

  The QuickPath Interconnect technology provides high-speed communication channels between the processor cores and other components, such as memory and I/O devices. This technology reduces latency and enhances data transfer rates, resulting in improved overall system performance.

  Overall, the Xeon 2.6GHz 8 Core processor in the HPE ML350p Gen8 Server offers exceptional performance, scalability, and efficiency. Whether it's running resource-intensive applications or supporting virtualization environments, this processor delivers the power and reliability that businesses need to stay competitive in today's fast-paced digital landscape.

  Memory: 16GB DDR3

  The HPE ML350p Gen8 Server features 16GB of DDR3 memory, providing businesses with a robust and reliable memory solution. This generous memory capacity offers numerous benefits and plays a crucial role in the server's overall performance. Let's delve into the advantages and importance of this feature.

  Enhanced System Responsiveness

  With 16GB of DDR3 memory, the ML350p Gen8 Server can handle data-intensive tasks and applications with ease. The ample memory capacity ensures that the server can store and access large amounts of data quickly, resulting in enhanced system responsiveness. Users can experience faster application load times, reduced latency, and smoother multitasking capabilities, leading to improved productivity and efficiency.

  Optimized Virtualization Performance

  Virtualization environments rely heavily on system memory to store and manage virtual machines. The 16GB DDR3 memory in the ML350p Gen8 Server allows businesses to create multiple virtual machines without compromising performance. This optimized virtualization performance enables businesses to consolidate their IT infrastructure, saving on hardware costs while ensuring reliable and efficient computing.

  Efficient Data Processing

  The ML350p Gen8 Server's DDR3 memory operates at high speeds, allowing for efficient data processing and transfer rates. This high-speed memory architecture ensures that data-intensive applications can access information quickly, resulting in faster computations and reduced processing times. Businesses can benefit from improved data analysis, database operations, and overall system performance.

  Reliability and Error Correction

  DDR3 memory technology incorporates advanced error correction mechanisms that enhance the server's reliability and stability. These error correction capabilities detect and correct single-bit errors in real-time, minimizing potential system crashes and data corruption. The ML350p Gen8 Server's 16GB DDR3 memory ensures that businesses can rely on their server for uninterrupted service, even when faced with occasional memory errors.

  Expandability and Future-Proofing

  The 16GB DDR3 memory capacity of the ML350p Gen8 Server provides businesses with room for growth and expansion. If needed, the server's memory capacity can be easily increased by adding more memory modules, allowing businesses to adapt to changing requirements without replacing the entire server. This expandability ensures that the server remains relevant and capable of handling future workloads.

  Lower Power Consumption

  DDR3 memory is designed to operate at lower voltages compared to its predecessors, resulting in reduced power consumption. The ML350p Gen8 Server's 16GB DDR3 memory modules consume less energy, contributing to overall energy efficiency and cost savings. This lower power consumption aligns with businesses' sustainability goals and helps reduce operational expenses.

  Improved Multitasking

  With 16GB of memory, the ML350p Gen8 Server can efficiently handle multiple tasks simultaneously. This capability is particularly beneficial for businesses that require their servers to support numerous users or run multiple applications concurrently. The server's ample memory capacity eliminates performance bottlenecks, ensuring smooth multitasking and minimizing delays.

  Compatibility and Performance Optimization

  DDR3 memory modules are widely supported by most modern servers, ensuring compatibility across various hardware configurations. The ML350p Gen8 Server's 16GB DDR3 memory is optimized for its specific architecture, guaranteeing optimal performance and reliability. Users can have peace of mind knowing that their server is equipped with industry-standard memory technology that meets their performance requirements.

  Overall, the 16GB DDR3 memory in the HPE ML350p Gen8 Server offers enhanced system responsiveness, optimized virtualization performance, efficient data processing, reliability, expandability, and lower power consumption. This feature empowers businesses to handle demanding workloads and ensures smooth and reliable server operations.

  Part Number: 736968-001

  The HPE ML350p Gen8 Server's part number, 736968-001, plays a vital role in identifying and procuring the correct server model and components. This unique identifier offers several benefits and importance for users. Let's explore these in more detail.

  Accurate Ordering and Inventory Management

  The part number, 736968-001, allows businesses to accurately order the ML350p Gen8 Server and its associated components. By providing this specific part number to suppliers or resellers, businesses can ensure that they receive the exact server model they require. This accuracy eliminates the risk of ordering the wrong server configuration and streamlines the procurement process.

  Easy Maintenance and Support

  Having the correct part number simplifies maintenance and support activities for the ML350p Gen8 Server. When troubleshooting or seeking technical assistance, users can provide the part number to support teams, enabling them to quickly identify the server model and diagnose any issues accurately. This ease of identification expedites the resolution process, minimizing downtime and maximizing productivity.

  Compatibility Assurance

  The part number, 736968-001, is unique to the ML350p Gen8 Server model, ensuring compatibility with specific components, accessories, and software updates. When expanding or upgrading their server infrastructure, businesses can refer to the part number to ensure that new components are compatible with their existing server configuration. This compatibility assurance eliminates potential compatibility issues and ensures a smooth integration process.

  Warranty Validation

  The part number is also essential for warranty validation purposes. By providing the correct part number during warranty claims or service requests, users can quickly verify the server's warranty status. This validation ensures that businesses receive the appropriate warranty support and coverage, protecting their investment and minimizing potential repair costs.

  Documentation and Resources

  The part number serves as a reference point for accessing documentation and resources specific to the ML350p Gen8 Server. User manuals, technical specifications, firmware updates, and driver downloads are often organized based on part numbers. This organization allows users to easily locate and access relevant information, ensuring they have the necessary resources for server management and optimization.

  Future Expansion and Scalability

  Understanding the part number is crucial for businesses planning future expansion or scalability. By knowing the server's specific part number, businesses can identify compatible components or models for future expansion, ensuring seamless integration and maximizing compatibility. This foresight enables businesses to adapt their server infrastructure as their needs evolve without facing compatibility constraints.

  Identifying Genuine Products

  The part number is also a valuable tool for identifying genuine HPE products. Counterfeit or unauthorized products can pose significant risks to server performance, reliability, and security. By verifying that the part number matches the official HPE codes, businesses can ensure they are purchasing genuine products from authorized sources, providing peace of mind and safeguarding their investment.

  Efficient Replacement of Components

  In the event of component failure or upgrade requirements, knowing the part number simplifies the replacement process. By referring to the part number, businesses can quickly source the exact replacement component without confusion or delays. This efficiency reduces downtime and ensures business continuity by swiftly returning the server to full operational status.

  In summary, the ML350p Gen8 Server's part number, 736968-001, offers accurate ordering and inventory management, easy maintenance and support, compatibility assurance, warranty validation, access to documentation and resources, future expansion planning, genuine product identification, and efficient component replacement. Understanding and utilizing the part number is essential for businesses seeking optimal server performance, reliability, and scalability.
