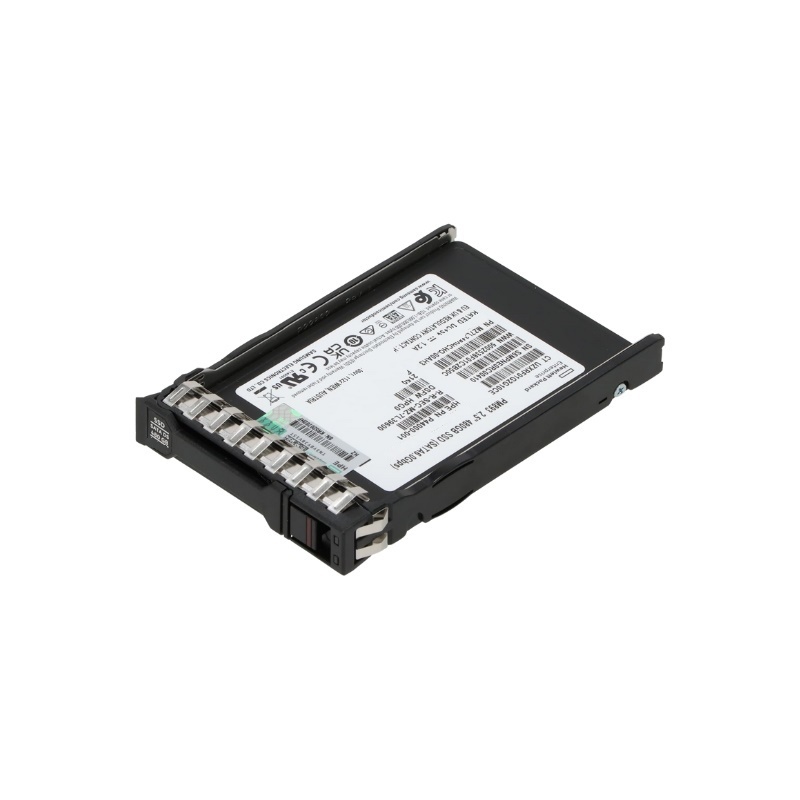

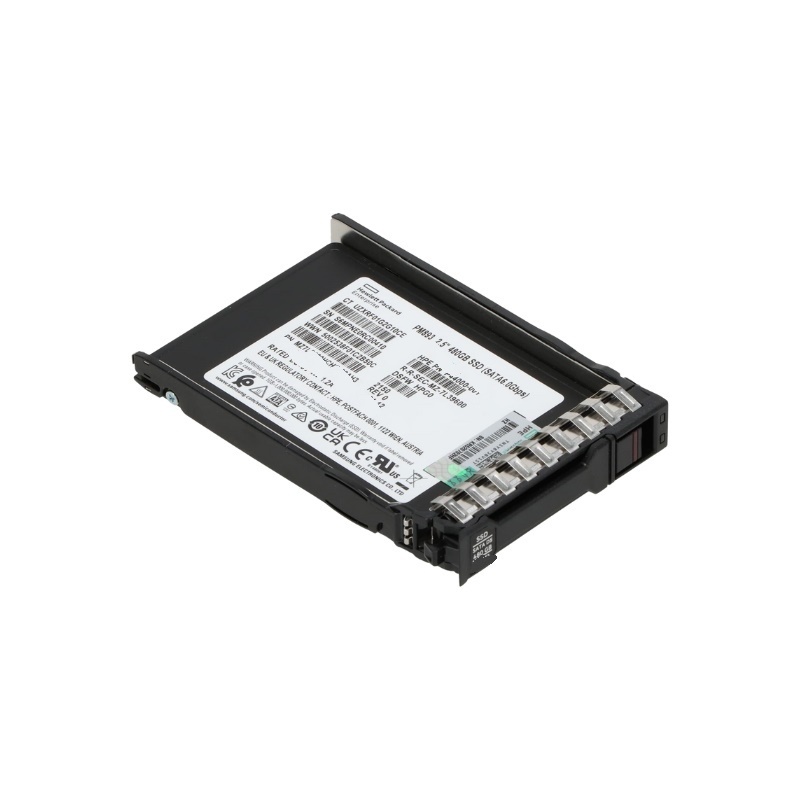

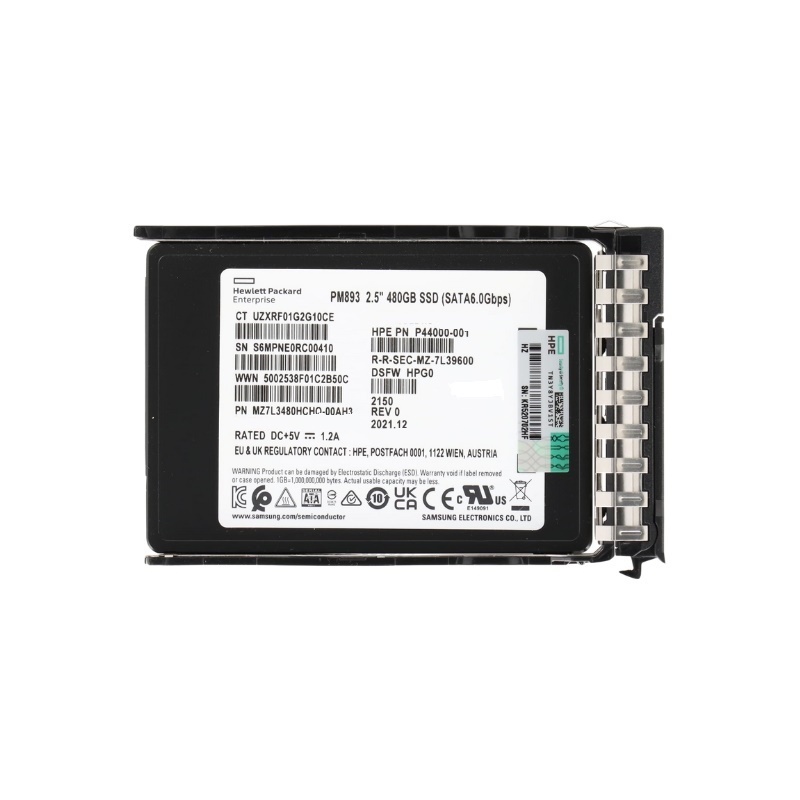

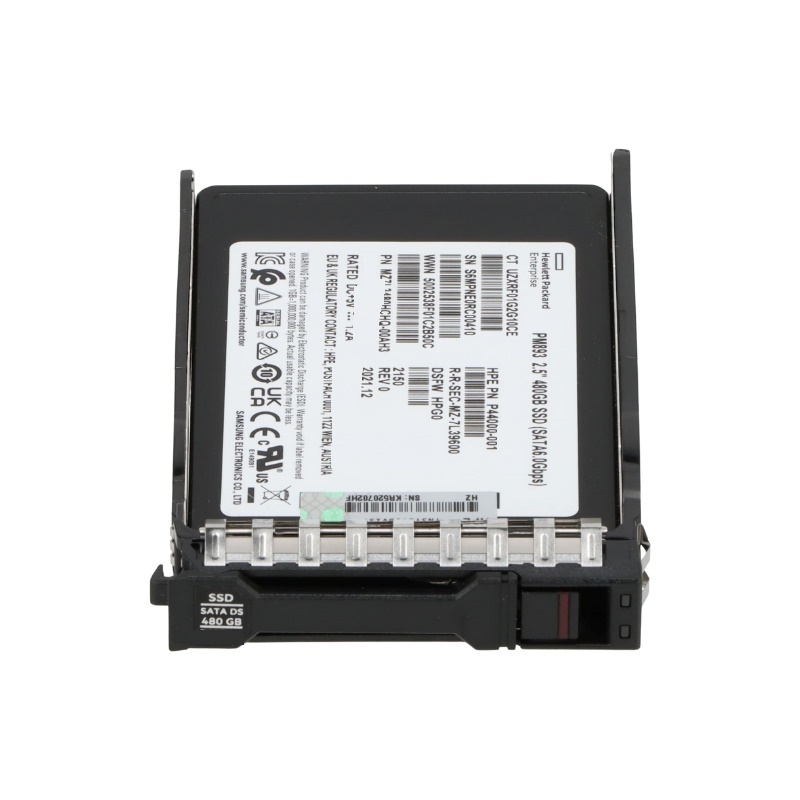

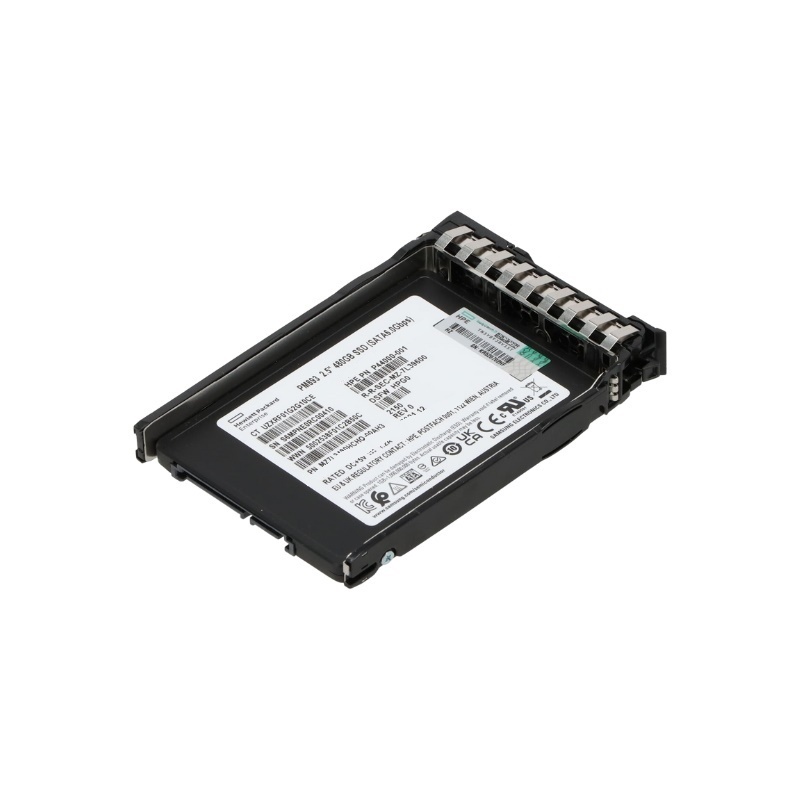

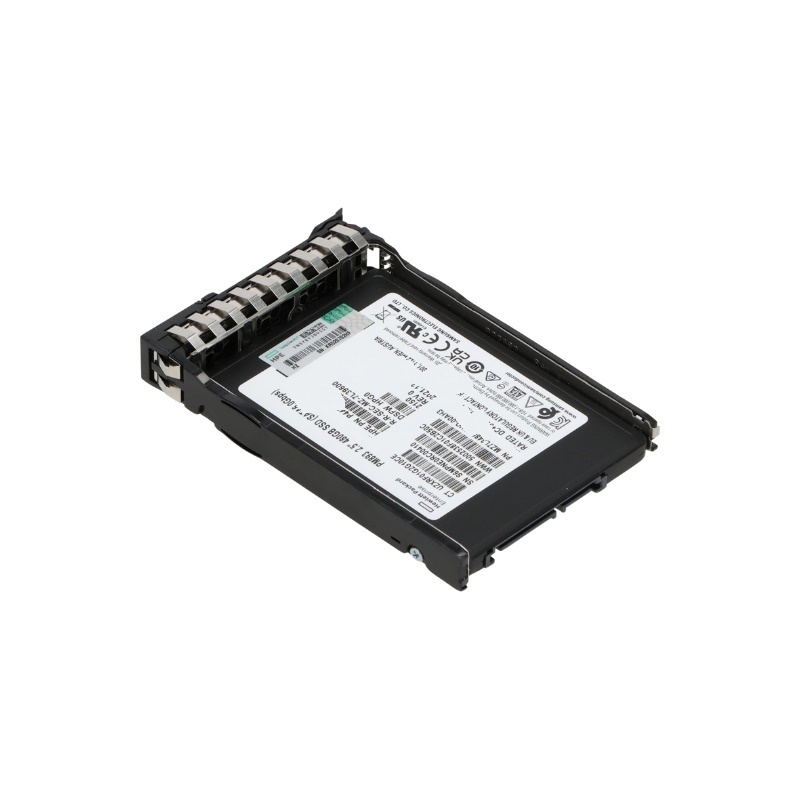

HPE VK000480GWTHA 480GB SFF SATA-6GBPS SC TLC Read Intensive SSD

Product Overview of HPE VK000480GWTHA

General Information

• Brand: HPE
• Model Number: VK000480GWTHA
• Option Part Number: P06194-B21
• Spare Part Number: P06571-001
• Assembly Number: P04954-001

Device Overview

• Type: Solid State Drive - Hot-Swap
• Storage Capacity: 480GB
• Form Factor: 2.5 inch SFF
• Interface: SATA 6Gbps
• NAND Flash Technology: Triple-level cell (TLC)
• Plug Type: Hot Pluggable
• Connectivity: Single
• Carrier Type: Smart Carrier (SC)
• Workload: Read Intensive
• Included: HPE SmartDrive Carrier (SC)
• Firmware: Digitally Signed Firmware (DS)
• Supported Platforms: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
• Height: 7.00 mm (0.30 inch)

Performance Metrics

Endurance and Speed

• 30 Days Writes (TB): 430
• Endurance DWPD: 0.50
• Drive Transfer Rate: 6 GBps (external)

Throughput Rates

• Maximum Sequential Reads Throughput: 530 MiB/s
• Maximum Sequential Writes Throughput: 300 MiB/s

Latency and IOPS

• Random Read Average Latency: 120 µSec (4KiB, Q1)
• Random Write Average Latency: 65 µSec (4KiB, Q1)
• Random Read IOPS: 65,000 (4KiB, Q=16)
• Random Write IOPS: 15,000 (4KiB, Q=16)
• Max Random Read IOPS: 65,500 (4KiB, Q32)
• Max Random Write IOPS: 15,400 (4KiB, Q1)

Expansion and Connectivity

• Interface Ports: 1 x SATA 6 Gb/s
• Compatible Bay: 2.5" SFF

Power Usage

• Idle Power Consumption: 0.78 Watt
• Random Read Power: 1.61 Watt
• Random Write Power: 1.61 Watt
• Sequential Read Power: 1.68 Watt
• Sequential Write Power: 1.90 Watt
• Random Read/Write Power: 1.61 Watt
• Maximum Power Consumption: 2.00 Watt

Environmental Conditions

• Minimum Operating Temperature: 32 °F
• Maximum Operating Temperature: 140 °F

Dimensions and Weight

• Height: 5.00 inch (12.70 cm)
• Width: 7.00 inch (17.78 cm)
• Depth: 9.00 inch (22.86 cm)
• Weight: 1.10 lbs (0.50 kg)

Compatibility Details

Supported Systems

HPE Apollo Series

• Apollo 4200 Gen9 for Google (2.5 inch)

HPE ProLiant DL Series

• DL20 Gen10
• DL20 Gen10 Entry
• DL20 Gen10 Performance
• DL20 Gen10 solution
• DL325 Gen10
• DL325 Gen10 Base
• DL325 Gen10 Entry
• DL325 Gen10 Performance
• DL325 Gen10 Plus
• DL325 Gen10 SMB Solution
• DL325 Gen10 Solution
• DL360 Gen10 Low
• DL360 Gen10 Network Choice
• DL360 Gen10 SMB
• DL360 Gen10 SMB Network Choice
• DL360 Gen10 Solution
• DL380 Gen10 All Flash Server for Datera
• DL380 Gen10 Entry SMB
• DL380 Gen10 for Cohesity DataPlatform
• DL380 Gen10 Hybrid Server for Datera
• DL380 Gen10 Network Choice
• DL380 Gen10 Network Choice for CTERA
• DL380 Gen10 Network Choice for SAP HANA Compute Block
• DL380 Gen10 Server for CTERA
• DL380 Gen10 SMB
• DL380 Gen10 SMB Networking Choice
• DL380 Gen10 Solution
• DL385 Gen10
• DL385 Gen10 Base
• DL385 Gen10 Entry
• DL385 Gen10 High-Performance
• DL385 Gen10 Performance
• DL385 Gen10 Plus
• DL385 Gen10 Plus Entry
• DL385 Gen10 SMB
• DL385 Gen10 Solution
• DL388 Gen10
• DL580 Gen10
• DL580 Gen10 Base
• DL580 Gen10 Entry
• DL580 Gen10 Performance
• DL580 Gen9 SAP HANA Scale-out Base Configuration
• DL580 Gen9 SAP HANA Scale-up Base Configuration

HPE ProLiant ML Series

• ML30 Gen10
• ML30 Gen10 Entry
• ML30 Gen10 Performance
• ML30 Gen10 Solution
• ML30 Gen9 Entry
• ML30 Gen9 Solution
• ML350 Gen10
• ML350 Gen10 Base
• ML350 Gen10 Entry
• ML350 Gen10 High Performance
• ML350 Gen10 Performance
• ML350 Gen10 SMB
• ML350 Gen10 Solution
• ML350 Gen10 Special Server
• ML350 Gen10 Sub-Entry
• HPE Synergy 480 Gen10 Compute Module
• 480 Gen10 w/o Drives Compute Module
Capacity

The HPE VK000480GWTHA SFF SATA-6GBPS is equipped with a remarkable 480GB storage capacity, making it an ideal choice for individuals and businesses that require ample space to store their data. With this impressive capacity, users can easily store a wide range of files, including documents, images, videos, and more.

Benefits of 480GB Capacity

The 480GB capacity of the HPE VK000480GWTHA SFF SATA-6GBPS offers several benefits to users:

1. Ample Space for Data Storage

With 480GB of storage, users can store a significant amount of data without worrying about running out of space. Whether you are a professional who deals with large files or an individual who loves to capture high-resolution photos and videos, this capacity ensures that you have enough room for all your data.

2. Enhanced Performance

A larger storage capacity allows the HPE VK000480GWTHA SFF SATA-6GBPS to perform at its best. With more space available, the drive can handle data more efficiently, resulting in improved read and write speeds. This means faster access to your files and smoother overall performance.

3. Simplified Organization

Having a substantial amount of storage space enables users to organize their files effectively. With 480GB, you can create separate folders for different types of data, making it easier to locate and retrieve specific files when needed. This level of organization enhances productivity and saves valuable time.

Importance of 480GB Capacity

The importance of the 480GB capacity cannot be overstated, especially in today's digital age where data is constantly being generated and shared. Here are a few reasons why this capacity is crucial:

1. Future-Proofing

As technology advances and file sizes continue to grow, it is essential to invest in a storage solution that can accommodate these changes. With 480GB, you future-proof your storage needs, ensuring that you won't outgrow your storage capacity anytime soon.

2. Versatility

Whether you are a professional in need of a reliable storage solution or an individual looking for a drive that can handle various file types, the 480GB capacity offers the versatility to meet these needs. It provides enough space for both work-related files and personal data, making it an ideal choice for users with diverse storage requirements.

3. Cost-Effective

Investing in a drive with a capacity that matches your storage needs can save you money in the long run. With 480GB, you have ample space without overspending on unnecessary storage. This capacity strikes a balance between affordability and functionality, making it a cost-effective choice.

Technology

The HPE VK000480GWTHA SFF SATA-6GBPS utilizes the innovative Triple-Level Cell (TLC) technology, which provides significant advantages over traditional storage technologies.

Benefits of TLC Technology

TLC technology offers several benefits to users:

1. Increased Storage Density

TLC technology allows for higher storage density compared to older technologies. This means that more data can be stored in the same physical space, leading to smaller form factors and more compact devices. The HPE VK000480GWTHA SFF SATA-6GBPS takes advantage of this technology to provide a high-capacity solution in a small form factor.

2. Enhanced Performance

TLC technology offers improved performance over previous storage technologies. With its ability to store three bits of data per cell, the HPE VK000480GWTHA SFF SATA-6GBPS can read and write data more efficiently, resulting in faster access to files and better overall performance.

3. Cost-Effective Solution

TLC technology provides a cost-effective solution for users who require high-capacity storage at a reasonable price. By maximizing the storage density and efficiency, this technology allows manufacturers to offer drives with larger capacities at more affordable price points.

Importance of TLC Technology

The importance of TLC technology lies in its ability to meet the increasing demands for storage capacity and performance. Here are a few reasons why TLC technology is important:

1. Reliable Performance

TLC technology ensures reliable performance, allowing users to access their data quickly and seamlessly. Whether you are transferring large files or running resource-intensive applications, the HPE VK000480GWTHA SFF SATA-6GBPS with TLC technology delivers consistent and reliable performance.

2. Efficient Data Management

TLC technology enables efficient data management by optimizing the storage space and improving read and write speeds. With this technology, users can efficiently store and retrieve their data, resulting in improved productivity and reduced time spent on data management tasks.

3. Future-Proofing

As data continues to grow exponentially, TLC technology ensures that your storage solution can keep up with the increasing demands. By investing in a drive with TLC technology, you future-proof your storage needs and ensure compatibility with future technologies and applications.

Intended Use

The HPE VK000480GWTHA SFF SATA-6GBPS is designed for read-intensive applications, making it an ideal choice for users who require fast and reliable access to their data.

Benefits of Read-Intensive Design

The read-intensive design of the HPE VK000480GWTHA SFF SATA-6GBPS offers several benefits:

1. Improved Read Performance

Read-intensive drives are optimized for fast data retrieval. Whether you are accessing large files or running applications that require frequent data access, the HPE VK000480GWTHA SFF SATA-6GBPS delivers impressive read performance, ensuring that you can access your data quickly and efficiently.

2. Enhanced Endurance

Read-intensive drives are designed to handle a high volume of read operations, resulting in enhanced endurance. This means that the HPE VK000480GWTHA SFF SATA-6GBPS can withstand continuous read activities without compromising its performance or lifespan.

3. Cost-Effective Solution

Read-intensive drives offer a cost-effective solution for users who primarily focus on data retrieval rather than extensive write operations. By optimizing the drive for read-intensive applications, manufacturers can offer drives at more affordable price points, making them an attractive choice for budget-conscious users.

Importance of Read-Intensive Design

The read-intensive design of the HPE VK000480GWTHA SFF SATA-6GBPS is important for users who require fast and reliable access to their data. Here's why:

1. Efficient Data Retrieval

Read-intensive drives ensure efficient data retrieval, allowing users to access their data without delays or interruptions. This is particularly valuable for users who work with large datasets or frequently access files for analysis or processing.

2. Extended Lifespan

Read-intensive drives are designed to handle a high volume of read operations, resulting in an extended lifespan compared to drives optimized for write-intensive applications. By choosing a read-intensive drive like the HPE VK000480GWTHA SFF SATA-6GBPS, users can enjoy a longer-lasting storage solution.

3. Tailored Performance

The read-intensive design of the HPE VK000480GWTHA SFF SATA-6GBPS ensures that the drive performs optimally for its intended use. By focusing on read performance, this drive delivers the speed and reliability required for applications that heavily rely on data retrieval.
