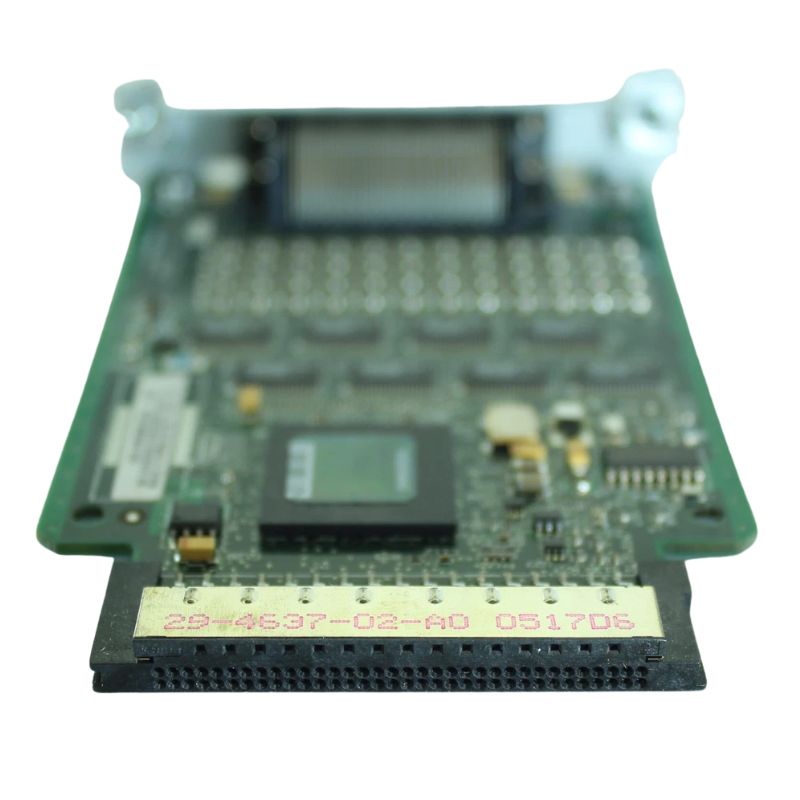

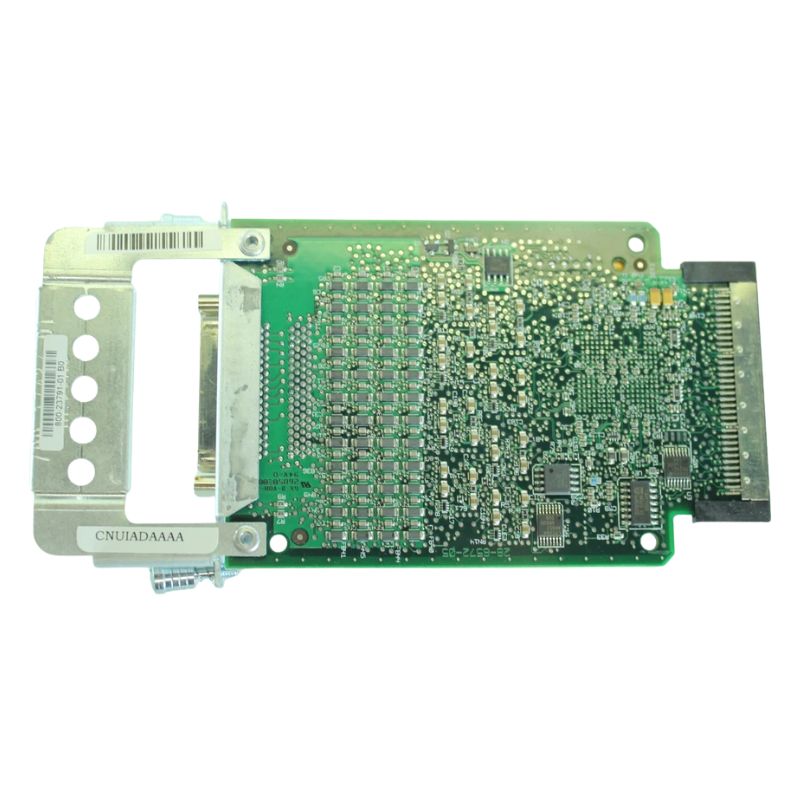

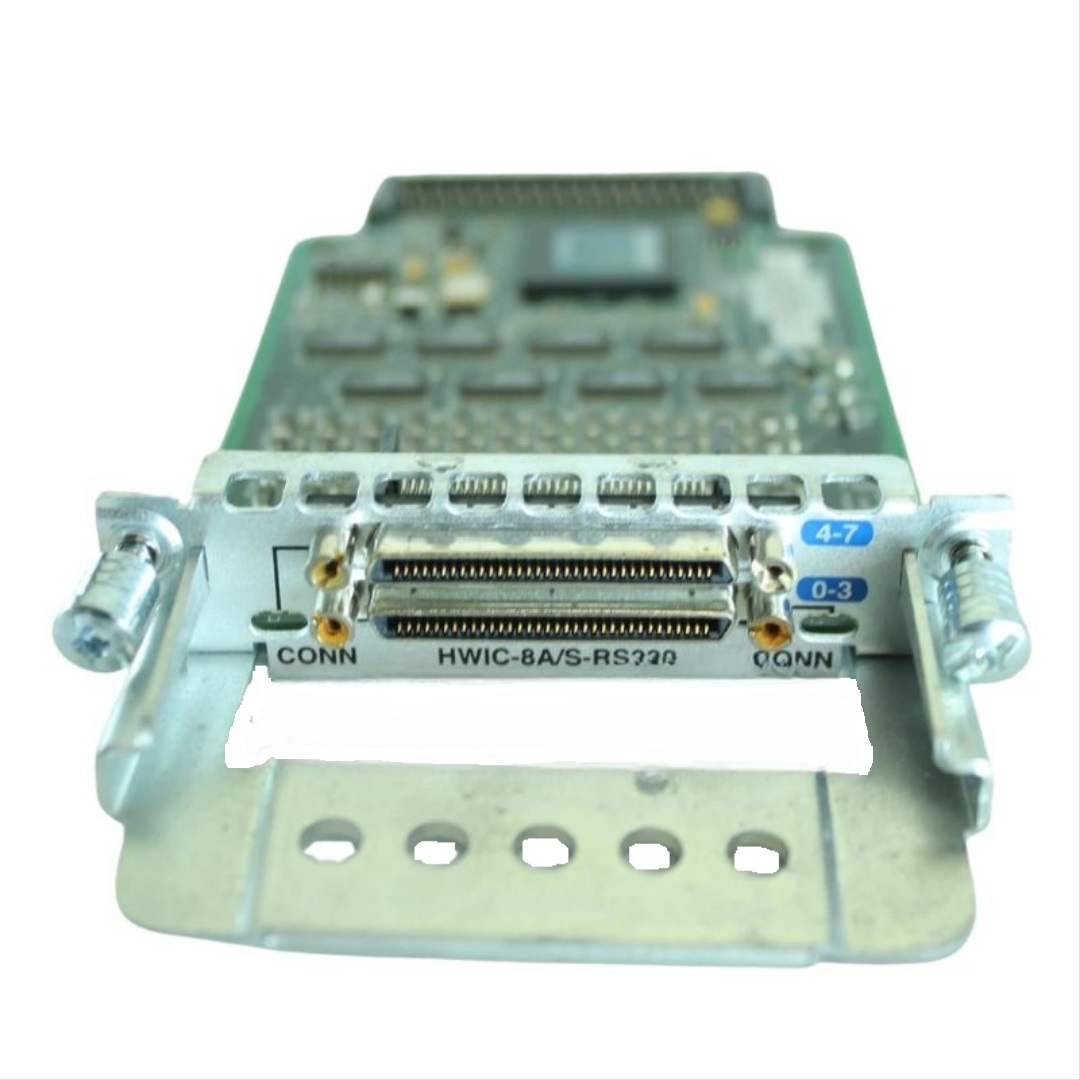

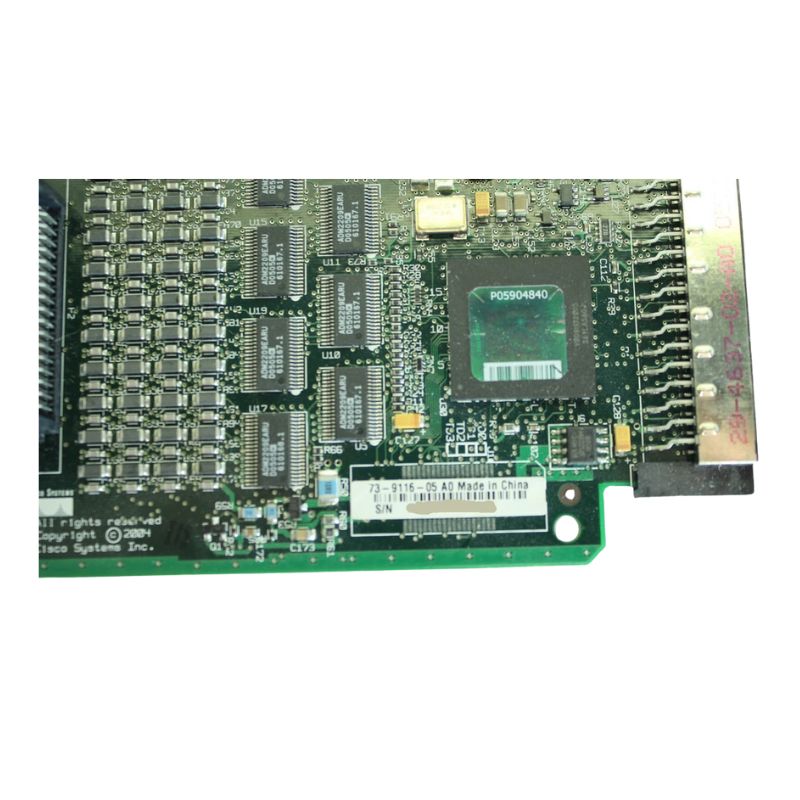

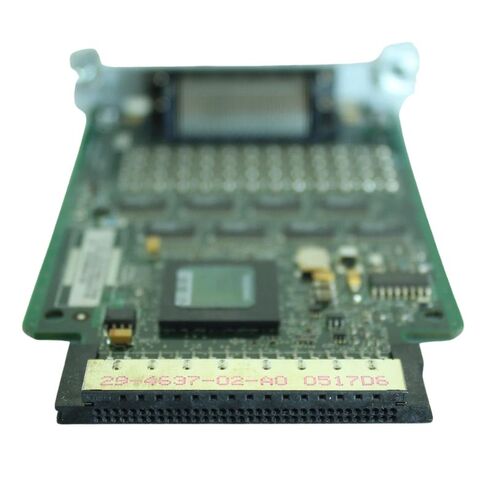

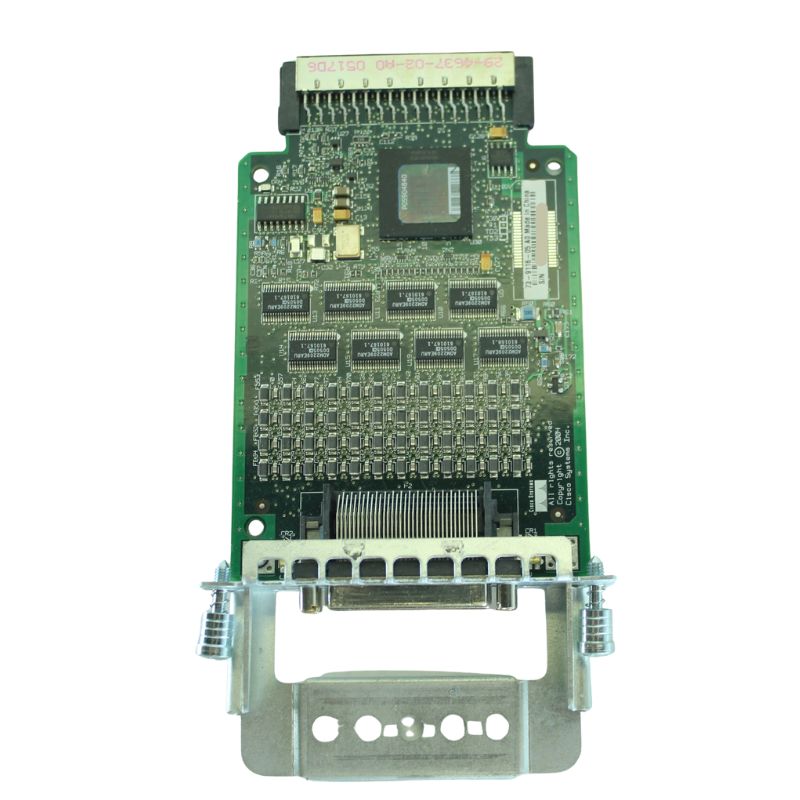

HWIC-8A/S-232= Cisco 8 Ports WAN Interface Card

General Information on Cisco HWIC-8A/S-232=

The Cisco HWIC-8A/S-232= is a robust WAN Interface Card (WIC) designed to enhance connectivity and expand your network capabilities.

Manufacturer Details

• Brand: Cisco
• Model: HWIC-8A/S-232=
• Product Type: WAN Interface Card (WIC) Expansion Module

Technical Specifications

Application & Usage

• Intended for Wide Area Network (WAN) applications
• Form Factor: Plug-in module for easy installation

Interface and Connectivity

• Interface Type: HWIC
• Number of Ports: 8
• Technology: Wired connectivity
• Data Link Protocol: RS-232
• Data Transfer Speed: 256 KBPS
• Network Protocol: TCP/IP

Port Details

• Connector Types: 2 x High-density connectors
• Port Configuration: 8 x Asynchronous/Synchronous Serial Ports

Expansion & Connectivity

Interfaces

• Serial Interfaces: 8 x Asynchronous/Synchronous
• Compatible Slots: 1 x HWIC Slot

Management & Protocols

• Technology: Wired
• Protocol: RS-232 Data Link Protocol
• Speed: 256 Kbps
• Transport Protocol: TCP/IP

Additional Information

• Spare Module with two high-density 4-port connectors
• Supports Serial Protocol: EIA-232
• Features Network Clock Synchronization
• Lead Manipulation Capabilities

Compatibility

• Compatible with various Cisco models including:
  • Cisco 1801, 1802, 1803
  • Cisco 1811W, 1812W
  • Cisco 1841, 1921, 1941
  • Cisco 2801, 2811, 2821, 2851
  • Cisco 2911, 2921, 2951
  • Cisco 3825, 3845, 3925, 3925E
  • Cisco 3945, 3945E
• Available Bundles: Security Bundle, Voice Bundle, WAN Optimization Bundle, and others

Environmental Conditions

• Minimum Operating Temperature: 32°F
• Maximum Operating Temperature: 104°F
• Humidity Range: 10 – 90% (non-condensing)

Ports

The Cisco HWIC-8A/S-232 WAN Interface Card is a powerful networking solution that offers an impressive feature set, with one of its standout features being its eight ports. These ports provide users with a multitude of benefits, making this card an essential tool for businesses and individuals alike.

Increased Connectivity

With eight ports, the Cisco HWIC-8A/S-232 WAN Interface Card allows for increased connectivity options. This is particularly important for businesses that require multiple connections to various devices or networks. Whether it's connecting to multiple routers, switches, or other networking equipment, the eight ports on this card provide ample flexibility and scalability. This allows businesses to expand their networks without the need for additional hardware investments.

Efficient Network Management

Having eight ports on a single card simplifies network management tasks. Instead of managing multiple cards or devices, users can consolidate their connections onto one card, reducing complexity and streamlining network management processes. This not only saves time but also improves overall efficiency and reduces the risk of errors or misconfigurations that can occur when dealing with multiple devices.

Cost Savings

The cost savings associated with the Cisco HWIC-8A/S-232 WAN Interface Card's eight ports are significant. By consolidating multiple connections onto a single card, businesses can reduce the need for additional hardware, such as switch modules or interface cards. This reduces both upfront costs and ongoing maintenance expenses. Additionally, by optimizing network management processes and reducing complexity, businesses can save on operational costs associated with network administration.

Scalability

Scalability is crucial for businesses experiencing growth or anticipating future expansion. With its eight ports, the Cisco HWIC-8A/S-232 WAN Interface Card offers the scalability needed to accommodate increasing network demands. As businesses grow and require additional connections, they can easily add more devices or expand their network without the need to invest in new cards or equipment. This scalability ensures that the card can grow with the business, providing a cost-effective and future-proof solution.

Improved Performance

The eight ports on the Cisco HWIC-8A/S-232 WAN Interface Card contribute to improved network performance. With multiple ports available, businesses can distribute network traffic across different connections, reducing congestion and optimizing data transfer rates. This results in faster and more reliable network performance, ensuring smooth operations and minimizing downtime.

Redundancy and High Availability

Redundancy is crucial for businesses that require uninterrupted network connectivity. The eight ports on this card offer redundancy options that enhance network availability. By configuring redundant connections across multiple ports, businesses can ensure continuous network operation even if one or more connections fail. This redundancy feature provides peace of mind, particularly for mission-critical applications or businesses that rely heavily on their networks for daily operations.

In conclusion, the Cisco HWIC-8A/S-232 WAN Interface Card's eight ports offer a wide range of benefits for users. From increased connectivity options to improved network management, cost savings, scalability, improved performance, and redundancy, these ports make this card an essential tool for businesses of all sizes. With its impressive feature set and emphasis on connectivity, this card is a valuable investment that ensures reliable and efficient networking capabilities.
