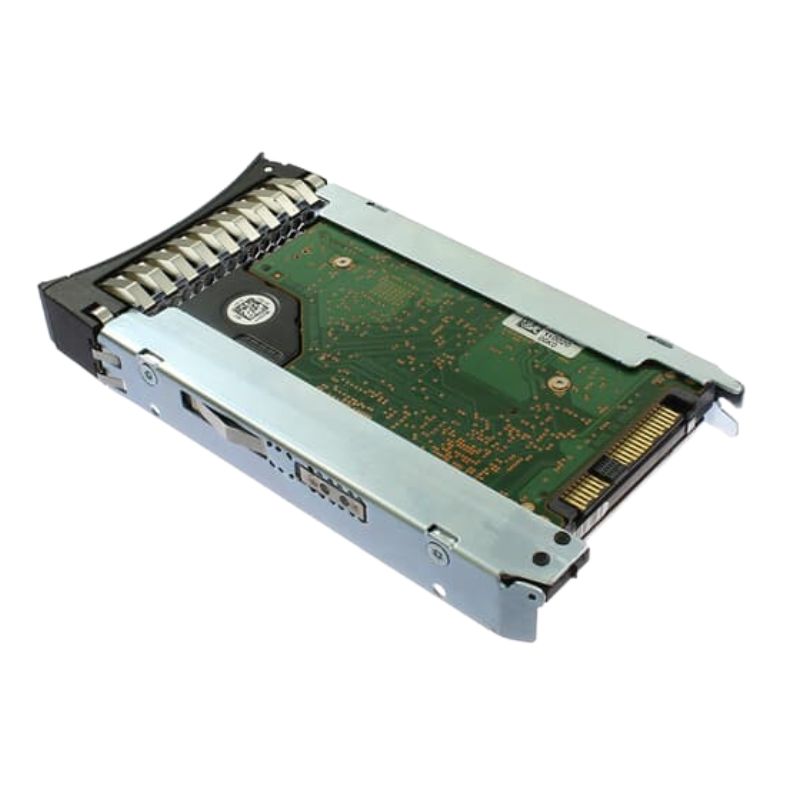

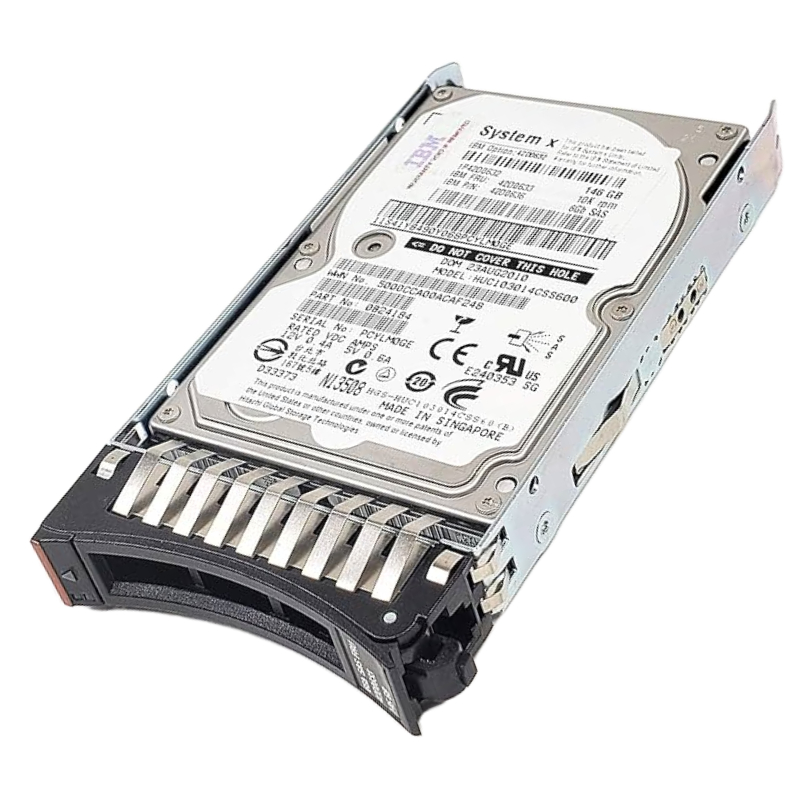

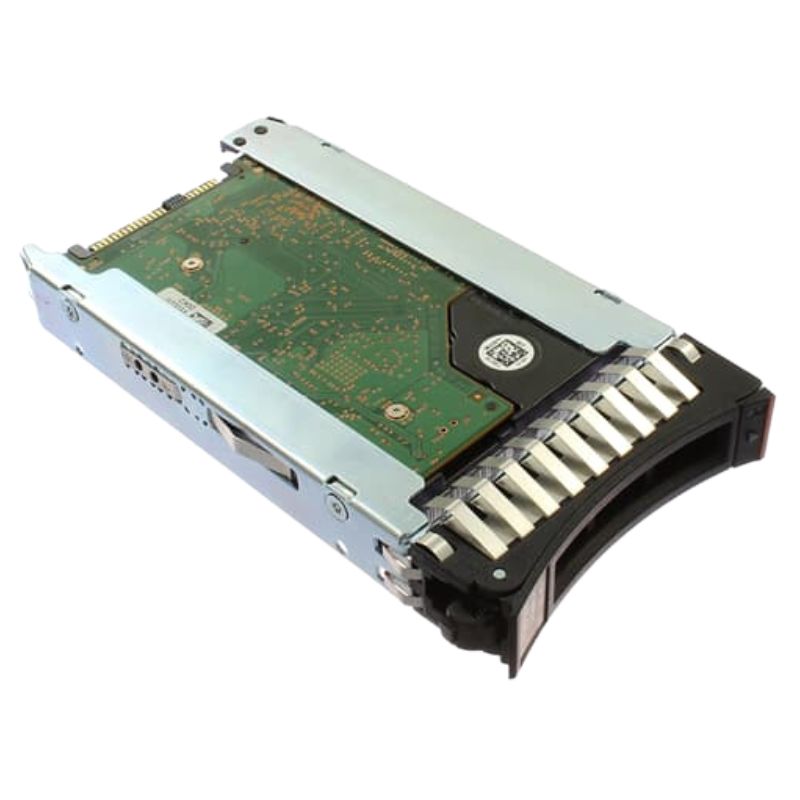

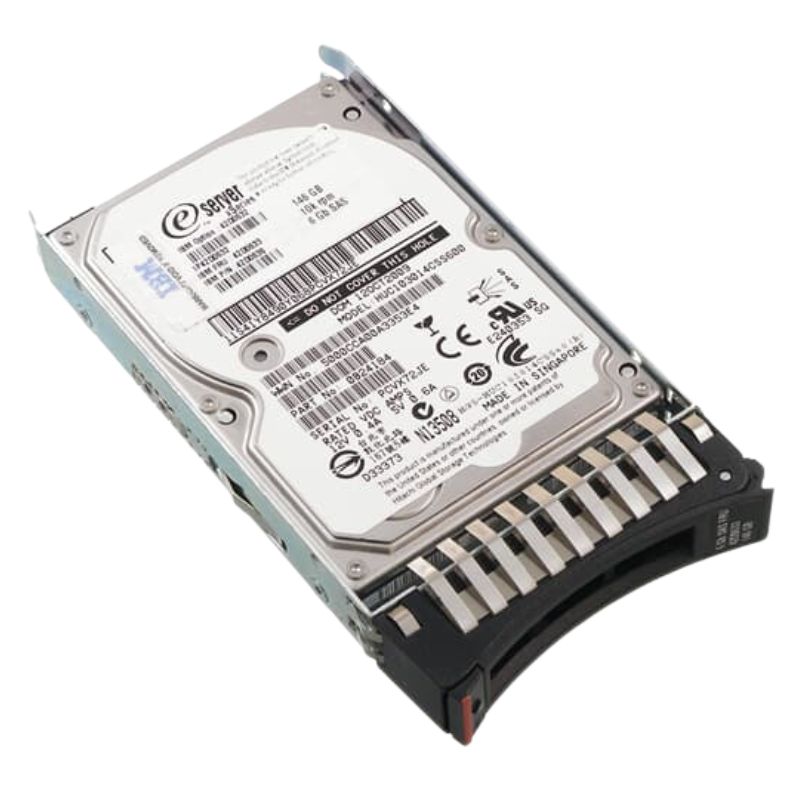

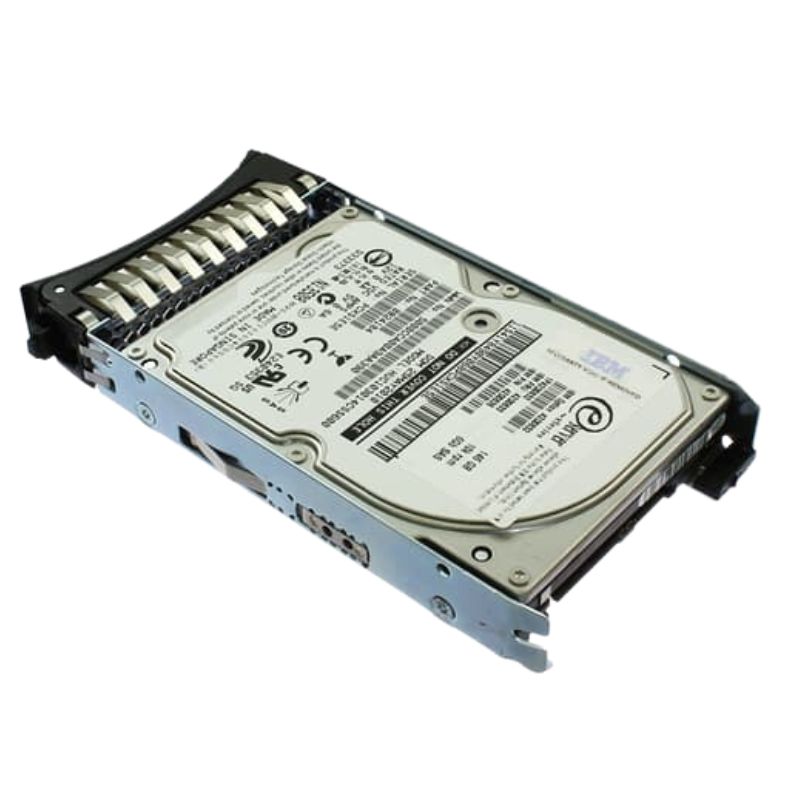

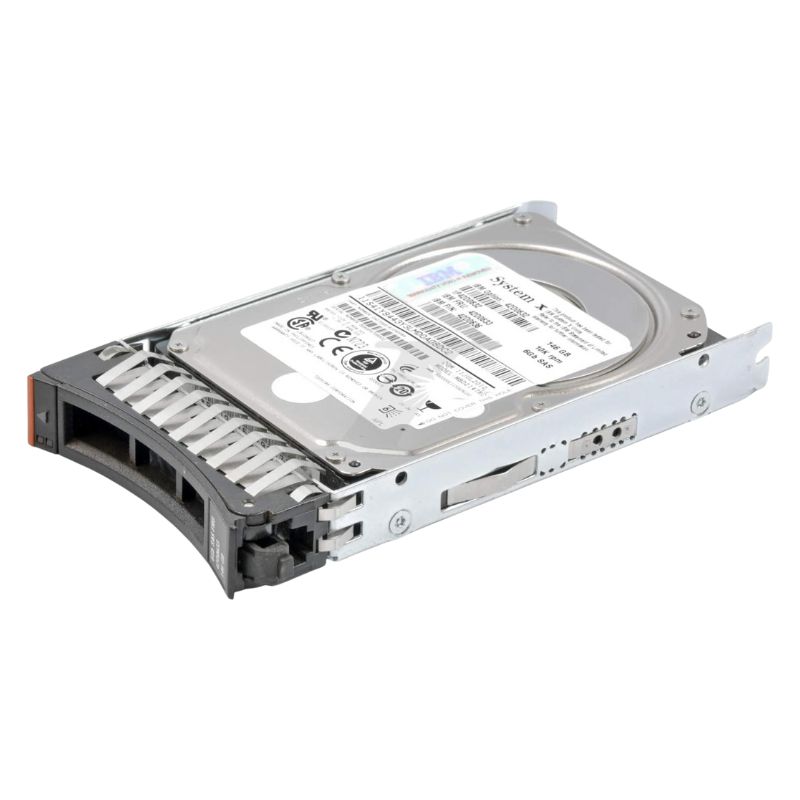

42D0632 IBM 146GB 10K RPM SAS 6GBPS Slim HS Hard Drive with Tray

IBM 42D0632 146GB 10K RPM SAS 6GBPS Slim Hard Drive

The IBM 42D0632 is a high-performance enterprise-grade internal hard drive engineered for demanding server environments. Designed with a compact 2.5-inch slim form factor, this storage device delivers exceptional speed, reliability, and compatibility for IBM System x servers. With a 10,000 RPM spindle speed and SAS 6Gbps interface, it is optimized for fast data processing, low latency operations, and mission-critical workloads.

General Specifications

• Manufacturer: IBM
• Part Number: 42D0632
• Device Type: Enterprise Hard Disk Drive

Technical Specifications

• Storage Capacity: 146GB
• Spindle Speed: 10,000 RPM
• Internal Data Transfer Rate: 992 Mbit/s
• External Data Transfer Rate: 600Mbps
• Average Seek Time: 4ms
• Average Latency: 3ms

Interface and Connectivity Features

• Interface Type: SAS (Serial Attached SCSI 2)
• Interface Speed: 6Gbps
• Hot Swap Support: Yes
• Drive Type: Internal Enterprise HDD

Physical Design and Build Quality

• Height: 0.6 inches
• Width: 2.8 inches
• Depth: 4 inches
• Weight: Approximately 8oz

System Compatibility and Supported Servers

• IBM System x3850 X5 / x3950 X5
• IBM System x3690 X5 (7147)
• IBM System x3650 M3 (7945)
• IBM System x3630 M3 (7377)
• IBM System x3550 M3 (7944)
• IBM System x3200 M3 (7327, 7328)
• IBM System x3250 M3 (4251, 4252)
• IBM System x3400 M3 (7378, 7379)
• IBM System x3500 M3 (7380)

Use Cases and Applications

• Database servers and transaction processing systems
• Virtualization platforms and cloud infrastructure
• Enterprise storage arrays
• Email and web hosting servers
• High-performance computing environments

Performance Advantages of IBM 42D0632

• High-speed 10K RPM performance for faster data access
• Reliable SAS 6Gbps enterprise interface
• Hot-swap support for uninterrupted operations
• Compact 2.5-inch slim design for dense server setups
• Low latency and fast seek times for improved efficiency

IBM 42D0632 146GB 10K RPM SAS 6GBPS Slim HS Hard Drive

The IBM 42D0632 146GB 10K RPM SAS 6GBPS Slim HS Hard Drive with Tray belongs to a highly specialized class of enterprise-grade storage solutions designed for mission-critical server environments. This category represents high-performance mechanical hard disk drives engineered for reliability, sustained throughput, and compatibility with enterprise rack-mounted systems. Built for data centers, virtualization infrastructures, and demanding workloads, this storage device category is optimized for stability, consistent read/write operations, and long-term operational endurance in 24/7 computing environments where downtime is not acceptable.

The slim hot-swap (HS) design enhances operational efficiency by allowing drive replacement without powering down servers, making it a crucial component in enterprise maintenance strategies. The SAS 6Gbps interface ensures robust communication between server controllers and storage media, enabling high-speed data transfer rates that outperform traditional consumer-grade SATA drives in both reliability and command queuing efficiency.

Enterprise SAS Hard Drive Architecture and Engineering Design

The architecture of the IBM 42D0632 SAS hard drive is rooted in enterprise mechanical engineering principles. It uses precision-balanced platters spinning at 10,000 RPM, allowing rapid access to stored data while minimizing latency. The internal actuator assembly is designed for high-frequency read/write cycles, which is essential in transactional database environments and virtualization clusters where simultaneous data requests are constant.

The enclosure and tray system are designed for compatibility with IBM server chassis systems, ensuring proper airflow alignment, vibration reduction, and thermal stability. This structural engineering helps maintain performance consistency even under sustained heavy workloads.

Hot-Swap Slim Form Factor Engineering

The slim hot-swap form factor is a defining characteristic of this category. It allows administrators to replace or upgrade drives without interrupting system operations. This capability is essential for enterprise environments that require continuous uptime. The tray-mounted system ensures secure installation within server bays while maintaining alignment with SAS backplanes.

The mechanical design reduces insertion friction and ensures stable connector engagement, which is critical in environments with frequent maintenance cycles or RAID array expansions. The slim profile also improves airflow within dense server configurations, helping maintain optimal operating temperatures.

Technical Specifications and Performance Characteristics

The 146GB capacity is optimized for performance-driven enterprise workloads rather than high-capacity archival storage. This category is particularly suitable for operating systems, application hosting, caching layers, and high-speed transactional databases. The moderate capacity combined with high RPM ensures faster seek times and lower latency per operation compared to larger, slower drives.

10K RPM Spindle Speed Performance

The 10,000 RPM rotational speed is a critical performance factor in this category. Higher spindle speed reduces the time required for the read/write heads to access data sectors, significantly improving input/output operations per second (IOPS). This makes the IBM 42D0632 particularly suitable for environments requiring fast data retrieval and real-time processing capabilities.

Latency Reduction and Data Access Efficiency

Faster rotational speed directly contributes to reduced latency in enterprise workloads. This means quicker response times for applications such as virtualization hosts, email servers, and enterprise resource planning systems. The mechanical precision of the drive ensures predictable performance under continuous load conditions.

SAS 6Gbps Interface Technology

The Serial Attached SCSI (SAS) 6Gbps interface is designed for enterprise-level communication between storage devices and server controllers. Unlike consumer interfaces, SAS supports full-duplex communication, allowing simultaneous read and write operations. This enhances throughput efficiency in multi-user environments where concurrent access is frequent.

Command Queuing and Data Integrity

SAS technology incorporates advanced command queuing mechanisms that prioritize and optimize data flow. This ensures that high-priority requests are executed efficiently while maintaining system stability. Additionally, SAS protocols include stronger error detection and correction capabilities compared to standard SATA implementations.

Compatibility with IBM Server Infrastructure

The IBM 42D0632 hard drive is designed for seamless integration with IBM System x servers and other compatible enterprise hardware platforms. Its firmware and hardware architecture are aligned with IBM storage controller systems, ensuring optimal communication and performance tuning.

This compatibility reduces configuration complexity and ensures that enterprise administrators can deploy storage arrays with predictable behavior and standardized performance metrics across server clusters.

RAID Array Implementation Support

This category is widely used in RAID configurations, including RAID 0, RAID 1, RAID 5, and RAID 10 setups. The drive’s consistency in read/write operations makes it suitable for redundancy-focused and performance-focused storage architectures. RAID controllers leverage the drive’s predictable latency and throughput characteristics to optimize data distribution and fault tolerance.

Enterprise Reliability and Durability Engineering

The IBM 42D0632 is built for continuous 24/7 operation in demanding enterprise environments. Its internal components are engineered to withstand prolonged usage cycles, frequent read/write operations, and sustained thermal exposure. This makes it suitable for data centers that require uninterrupted service availability.

Thermal and Vibration Resistance

Enterprise environments often involve dense server racks where thermal buildup and vibration can affect performance. This hard drive category includes enhanced shock absorption mechanisms and vibration-resistant design elements that stabilize platter rotation and head positioning under challenging conditions.

Heat Management Efficiency

Effective heat dissipation is critical in maintaining drive longevity. The slim HS design contributes to improved airflow within server chassis, reducing thermal stress and ensuring consistent performance even under peak load conditions.

Performance Optimization in Enterprise Workloads

The IBM 42D0632 is well-suited for database environments that require frequent read and write operations. Its high RPM and SAS interface allow for efficient handling of structured query workloads, transaction logs, and indexing systems. This results in faster query response times and improved application performance.

Virtualization and Cloud Infrastructure Support

In virtualized environments, multiple virtual machines rely on shared storage resources. This hard drive category ensures balanced I/O distribution, preventing bottlenecks and maintaining consistent performance across virtual instances. Its reliability makes it a preferred choice in private cloud infrastructure deployments.

Enterprise Application Hosting

Applications such as ERP systems, CRM platforms, and enterprise analytics tools benefit from the predictable performance profile of this drive category. Its ability to handle sustained workloads without degradation ensures stable application availability and responsiveness.

Comparison with Standard SATA Hard Drives

Compared to standard SATA drives, the IBM 42D0632 SAS hard drive delivers significantly higher reliability and performance consistency. SAS interfaces support dual-port connectivity, allowing redundancy in data paths, while SATA typically operates with a single connection channel.

Additionally, error recovery mechanisms in SAS drives are more advanced, making them more suitable for enterprise-grade applications where data integrity is critical.

Data Integrity and Security Features

The drive incorporates advanced error correction algorithms that ensure data integrity during high-volume transactions. These mechanisms reduce the risk of data corruption and maintain consistency across storage arrays.

Secure Data Handling in Server Environments

While primarily a mechanical storage device, the IBM 42D0632 supports secure integration into encrypted storage systems and enterprise security frameworks. This ensures that sensitive data remains protected within controlled server infrastructures.

Operational Efficiency in High-Density Server Environments

In modern data centers where rack density continues to increase, storage devices must balance performance, heat management, and space optimization. The slim HS design of this SAS drive category allows for efficient utilization of server chassis space while maintaining high performance standards.

The combination of mechanical precision, SAS interface speed, and enterprise-grade durability makes this category a foundational component in scalable IT infrastructures, supporting both legacy systems and modern hybrid deployments.
