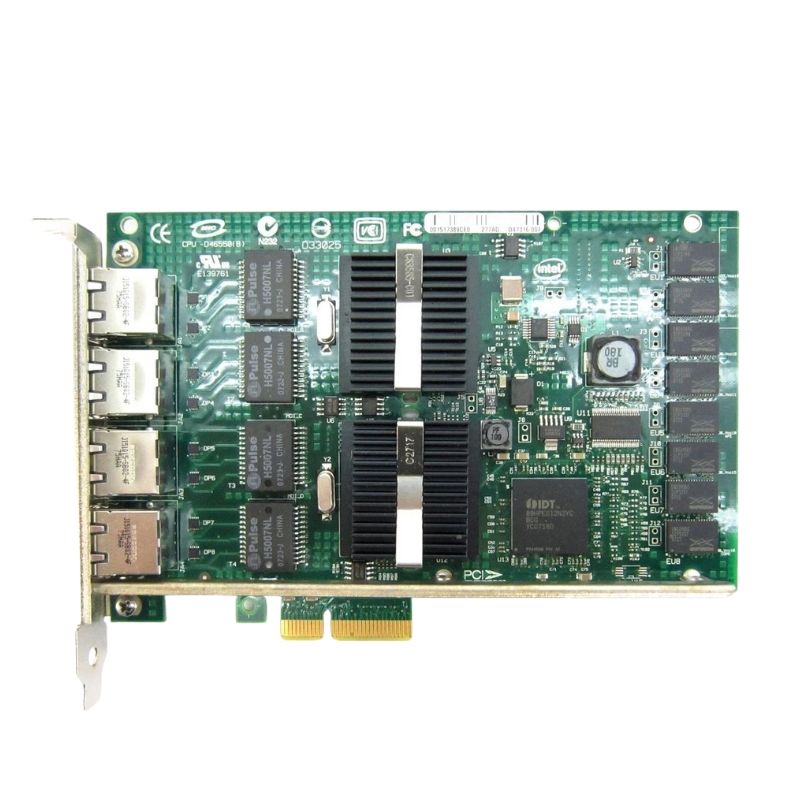

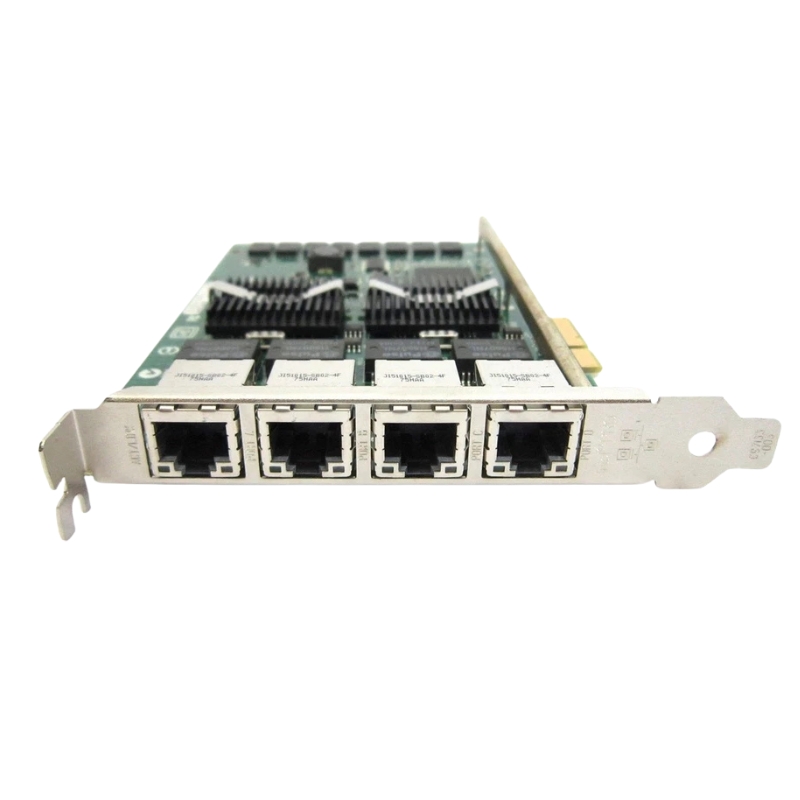

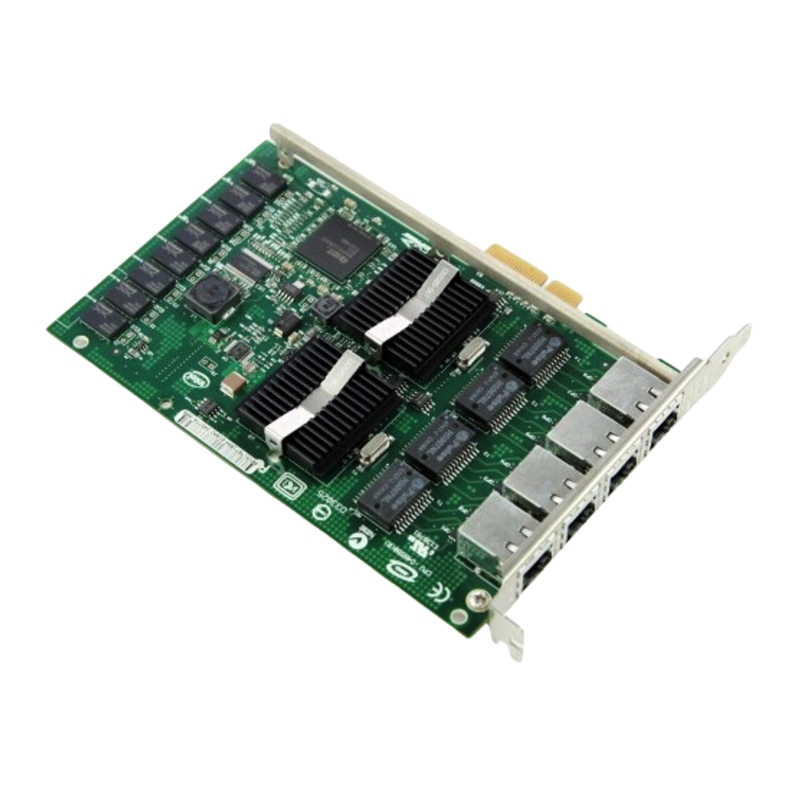

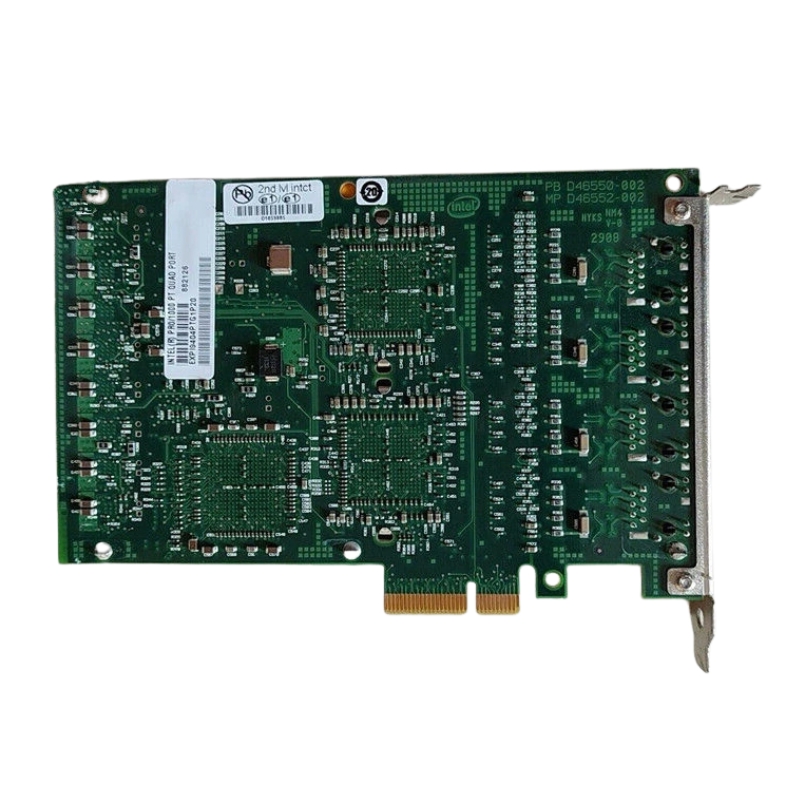

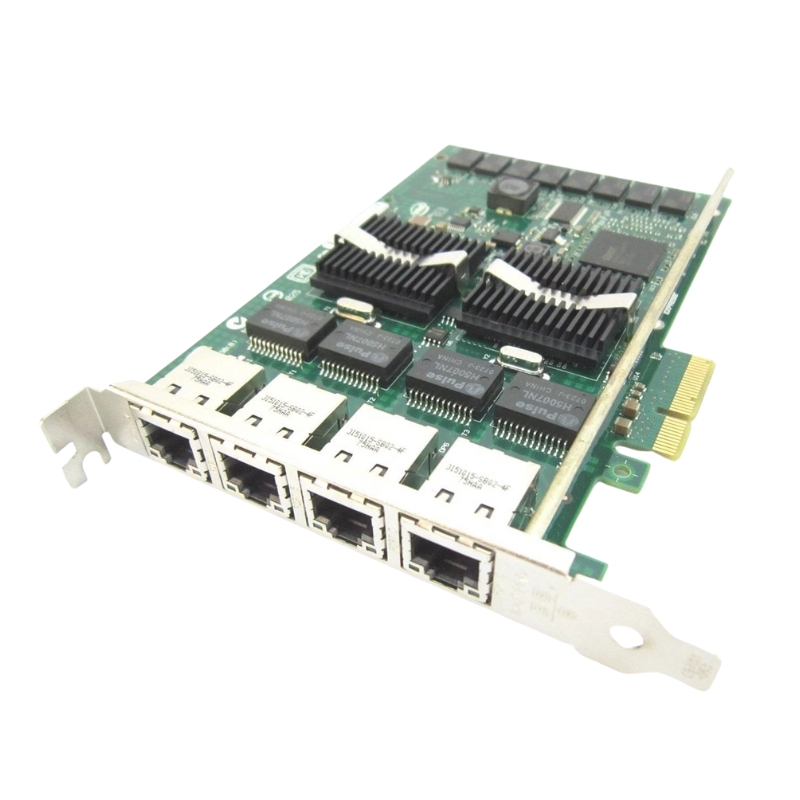

Intel Pro/1000 PT Quad Port PCI-E Server Adapter EXPI9404PTBLK

Technical Specifications of RJ-45 Quad Port PCI-E

Device Details

• Type: Network Adapter with 4 Ports
• Form Factor: Plug-in Card
• Interface Type: PCI Express X4
• PCI Revision: PCIe 1.0a
• Bus Voltage: 3.3 V

Networking Capabilities

• Connection Technology: Wired
• Cabling Options: Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Data Transfer Speed: 1 Gbps
• Network Protocols: TCP/IP, UDP/IP
• Remote Management: SNMP, DMI 2.0
• Status Indicators: Link Activity, Port Transmission Speed

Advanced Features

• Flow Control
• Full Duplex Operation
• Fault Tolerance
• ACPI Support
• Auto-Negotiation
• Load Balancing
• Wake On LAN (WOL)
• Intel I/O Acceleration Technology (I/OAT)

Compliance Standards

• IEEE 802.3u
• IEEE 802.3z
• IEEE 802.1q
• IEEE 802.3ab
• IEEE 802.1p
• IEEE 802.3x
• IEEE 802.3ad (LACP)
• WFM 2.0

Processor and Memory

• Processor: 2 x Intel 82571GB

Expansion and Connectivity

• Interfaces: 4 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
• Compatible Slots: 1 x PCI Express X4

Interface: PCI-E

Introduction

The Intel EXPI9404PTBLK Server Adapter is equipped with a PCI-E interface, which stands for Peripheral Component Interconnect Express. This interface is a high-speed serial expansion bus standard that is designed to replace the older PCI and PCI-X standards. The PCI-E interface offers numerous benefits and improvements over its predecessors, making it an essential feature for users looking for enhanced performance and reliability in their server adapters.

Benefits of PCI-E Interface

1. Increased Bandwidth

One of the primary advantages of the PCI-E interface is its significantly increased bandwidth compared to traditional PCI and PCI-X interfaces. The PCI-E technology allows for faster data transfer rates, enabling servers to handle larger volumes of data with ease. This increased bandwidth is crucial for high-performance applications that require fast and efficient data processing, such as data centers, cloud computing, and multimedia streaming.

2. Scalability

Another key benefit of the PCI-E interface is its scalability. Unlike earlier standards, where the number of available slots was limited, PCI-E offers improved scalability by allowing multiple lanes to be used simultaneously. Each lane provides additional bandwidth, allowing users to add more devices or expand their server's capabilities without sacrificing performance. This scalability is particularly important in enterprise environments where servers need to accommodate growing workloads or new technologies.

3. Lower Latency

PCI-E also offers lower latency compared to previous interfaces, ensuring faster response times for data transfers. This reduced latency is critical in real-time applications that demand immediate processing, such as online gaming or financial transactions. By minimizing delays and improving overall system responsiveness, the PCI-E interface enhances user experiences and ensures smooth operation in demanding scenarios.

4. Improved Reliability

The PCI-E interface incorporates advanced error detection and correction mechanisms, enhancing the reliability of data transmission. These error correction capabilities detect and fix errors in real-time, reducing the risk of data corruption or loss. Improved reliability is especially crucial in critical applications where data integrity is paramount, such as enterprise databases or mission-critical systems.

Importance of PCI-E Interface for Users

1. Future-Proofing

Investing in a server adapter with a PCI-E interface ensures compatibility with the latest and upcoming technologies. As technology advances, older interfaces may become obsolete, limiting the ability to upgrade or integrate new components seamlessly. By choosing a PCI-E interface, users can future-proof their servers and avoid potential compatibility issues down the line. This long-term compatibility provides peace of mind and helps protect investments in server infrastructure.

2. Enhanced Performance

The increased bandwidth and lower latency of the PCI-E interface directly translate into improved performance for server applications. With faster data transfer rates, servers can handle more simultaneous connections, process data-intensive tasks more efficiently, and deliver superior performance overall. This enhanced performance is particularly beneficial for resource-intensive applications like virtualization, big data analysis, or high-traffic web servers.

3. Flexibility and Expandability

The scalability of the PCI-E interface allows users to expand their server's capabilities as their needs evolve. With multiple lanes available, additional devices can be added without sacrificing performance. This flexibility enables users to adapt their server infrastructure to changing requirements, ensuring that their systems can keep up with growing workloads or new technologies. The ability to expand and customize server setups easily is a significant advantage for businesses aiming for agility and scalability.

4. Increased Reliability and Data Integrity

For mission-critical applications, data integrity is of utmost importance. The advanced error detection and correction mechanisms offered by the PCI-E interface ensure the reliable transmission of data, minimizing the risk of errors, corruption, or loss. This increased reliability is crucial in industries where downtime or data loss can have severe consequences, such as finance, healthcare, or e-commerce. By choosing a server adapter with a PCI-E interface, users can ensure that their data remains intact and their systems operate reliably.

Ports: 4

Introduction

The Intel EXPI9404PTBLK Server Adapter comes equipped with four ports, making it an ideal choice for users requiring multiple network connections. These ports offer numerous benefits and advantages for users who need to connect their servers to multiple networks simultaneously or enhance network redundancy and load balancing.

Benefits of 4 Ports

1. Increased Network Flexibility

Having four ports on a server adapter provides users with increased network flexibility. Each port can be connected to a separate network or VLAN (Virtual Local Area Network), allowing servers to handle diverse network traffic simultaneously. This flexibility is particularly valuable in environments where there is a need to segregate traffic or isolate specific applications for security or performance reasons.

2. Network Redundancy

The presence of multiple ports enables network redundancy, ensuring uninterrupted connectivity in case of port failure or network disruption. By connecting each port to a different switch or router, users can create redundant paths for data transmission. In the event of a hardware failure or network issue, traffic can be automatically rerouted through alternative paths, minimizing downtime and maintaining continuous access to critical resources.

3. Load Balancing

The four ports on the Intel EXPI9404PTBLK Server Adapter offer load balancing capabilities, distributing network traffic across multiple connections. This load balancing optimizes network performance by preventing congestion on individual ports and evenly distributing the workload. By utilizing multiple ports, servers can handle higher volumes of network traffic, ensuring smooth and efficient data transmission.

4. Enhanced Network Performance

With four ports available, the Intel EXPI9404PTBLK Server Adapter delivers enhanced network performance. The multiple ports enable parallel processing of network tasks, increasing overall throughput and reducing latency. This improved performance is crucial for applications that require high-speed and reliable network connections, such as data centers, server clusters, or high-traffic web servers.

Importance of 4 Ports for Users

1. Redundancy and High Availability

Network downtime can be costly for businesses, resulting in lost productivity, revenue, and customer dissatisfaction. Having four ports on a server adapter ensures network redundancy and high availability by providing backup connections. In case of hardware failure or network issues, traffic can seamlessly switch to alternate paths, minimizing disruptions and ensuring uninterrupted access to critical resources. This redundancy is particularly important in industries where continuous network connectivity is essential, such as finance, e-commerce, or healthcare.

2. Scalability and Future Growth

The presence of four ports offers scalability and future growth potential for users. As organizations expand their operations or network requirements evolve, additional connections may be needed. With four ports already available, users can easily scale their server infrastructure without the need for additional hardware investments or significant changes to the existing setup. This scalability ensures that servers can accommodate growing workloads and support new technologies seamlessly.

3. Network Segmentation and Isolation

The four ports on the Intel EXPI9404PTBLK Server Adapter allow for efficient network segmentation and isolation. Each port can be dedicated to a specific network or VLAN, enabling better control over network traffic and ensuring security and performance optimization. This segmentation is particularly beneficial in environments where there is a need to separate different types of traffic or isolate critical applications for compliance or performance reasons.

4. Improved Network Performance

The presence of four ports directly contributes to improved network performance. By distributing network traffic across multiple connections, load balancing optimizes the utilization of available bandwidth and prevents bottlenecks. This even distribution of workload enhances overall network performance, ensuring faster data transmission, reduced latency, and improved user experiences. The improved network performance is crucial in scenarios that require high-speed and reliable network connections, such as content delivery networks (CDNs), virtualization environments, or multimedia streaming.

Connector: RJ-45

Introduction

The Intel EXPI9404PTBLK Server Adapter features an RJ-45 connector, which is the standard interface for Ethernet connections. The RJ-45 connector is widely used in networking equipment and provides a reliable and versatile means of connecting servers to local area networks (LANs) or other Ethernet-based networks. This connector offers several benefits and advantages for users seeking a stable and widely compatible networking solution.

Benefits of RJ-45 Connector

1. Industry Standard

The RJ-45 connector is an industry-standard that ensures compatibility and interoperability among various networking devices. It is the most commonly used connector for Ethernet-based networks, making it universally recognized and supported by a wide range of networking equipment manufacturers. The widespread adoption of the RJ-45 connector guarantees seamless integration with existing network infrastructures and simplifies the setup process for users.

2. Versatility

The RJ-45 connector offers versatility by supporting various Ethernet standards, including 10BASE-T, 100BASE-TX, and 1000BASE-T. This flexibility allows the Intel EXPI9404PTBLK Server Adapter to connect to different network types, ranging from legacy 10Mbps networks to modern Gigabit Ethernet networks. The ability to support multiple Ethernet standards ensures that the server adapter can be used in diverse network environments without requiring additional adapters or converters.

3. Reliable Connection

The RJ-45 connector provides a secure and reliable connection between the server adapter and the network infrastructure. Its design includes locking tabs that firmly secure the connector in place, preventing accidental disconnections due to cable movements or vibrations. The robust connection offered by the RJ-45 connector ensures uninterrupted network connectivity and eliminates the risk of signal loss or data corruption.

4. Cost-Effective Solution

The RJ-45 connector is a cost-effective solution for networking needs. Its widespread availability and compatibility contribute to competitive pricing, making it an affordable choice for users seeking reliable network connectivity. The cost-effectiveness of the RJ-45 connector allows businesses to deploy multiple server adapters without incurring significant expenses, enabling them to scale their network infrastructure efficiently.

Importance of RJ-45 Connector for Users

1. Compatibility and Interoperability

The RJ-45 connector's industry-standard design ensures compatibility and interoperability with a wide range of networking equipment. This compatibility eliminates the need for additional adapters or converters, simplifying the setup process and reducing potential compatibility issues. Users can confidently connect their Intel EXPI9404PTBLK Server Adapter to existing network infrastructures without worrying about compatibility or integration challenges.

2. Seamless Integration with Existing Networks

The widespread adoption of the RJ-45 connector means that it seamlessly integrates with existing networks, regardless of their Ethernet standards. This integration allows users to upgrade their server adapters without requiring significant changes or modifications to their network infrastructure. The ability to upgrade or replace server adapters effortlessly saves time, effort, and costs associated with network upgrades or expansions.

3. Reliability and Data Integrity

The secure and reliable connection provided by the RJ-45 connector ensures uninterrupted network connectivity and data integrity. The locking tabs on the connector prevent accidental disconnections, guaranteeing stable connections even in demanding environments. This reliability is essential for applications that require continuous network access, such as real-time data processing, video conferencing, or cloud-based services. Users can rely on the RJ-45 connector to maintain stable connections and prevent data loss or interruptions.

4. Cost Efficiency

The cost-effectiveness of the RJ-45 connector makes it an attractive choice for businesses aiming to maximize their networking investments. The availability of affordable networking equipment that supports the RJ-45 connector allows organizations to deploy server adapters without incurring significant expenses. This cost efficiency enables businesses to scale their network infrastructure without straining their budgets, making it a practical choice for small to large enterprises alike.

In conclusion, the Intel EXPI9404PTBLK Server Adapter's PCI-E interface, four ports, and RJ-45 connector offer significant benefits and advantages for users seeking enhanced performance, scalability, reliability, and versatility in their server networking solutions. The PCI-E interface provides increased bandwidth, scalability, lower latency, and improved reliability, ensuring optimal performance and future-proofing capabilities. The four ports offer network flexibility, redundancy, load balancing, and enhanced performance, enabling users to handle diverse network traffic seamlessly. Lastly, the RJ-45 connector ensures compatibility, versatility, reliable connections, and cost-effective networking solutions. Together, these features make the Intel EXPI9404PTBLK Server Adapter a compelling choice for users looking to optimize their server networking capabilities.
