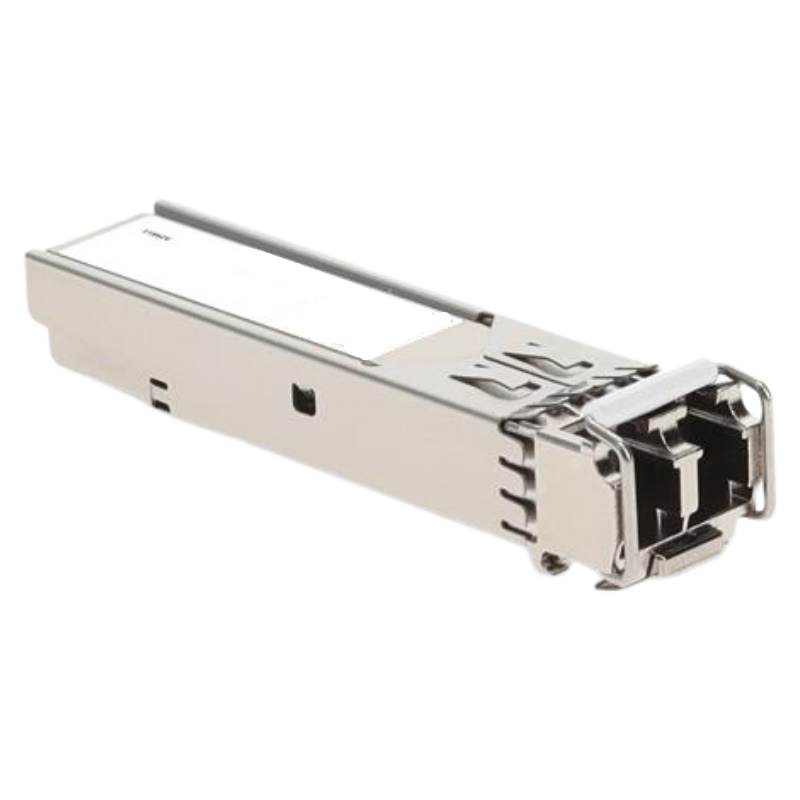

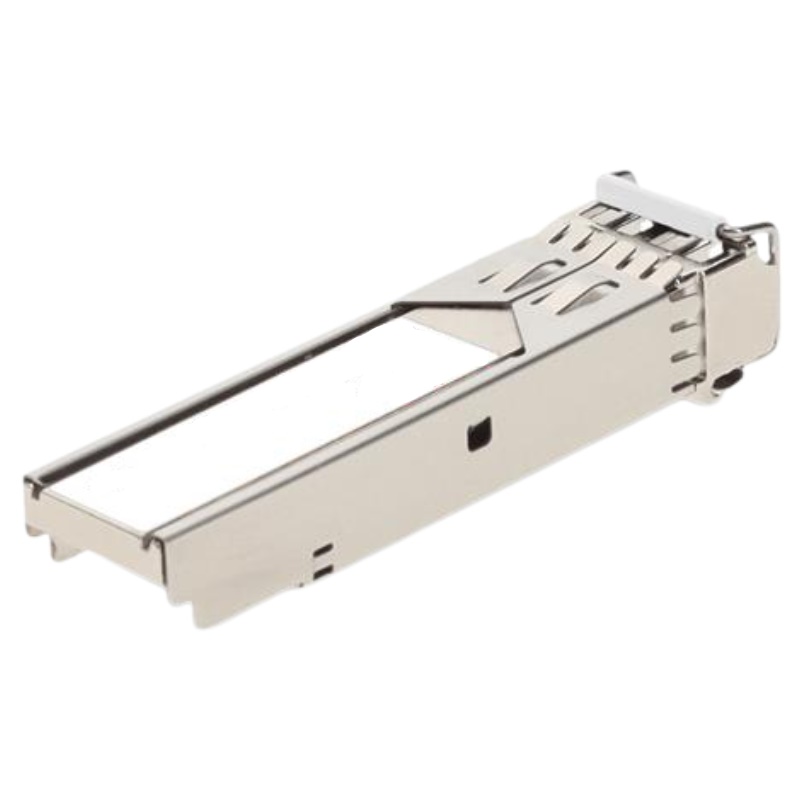

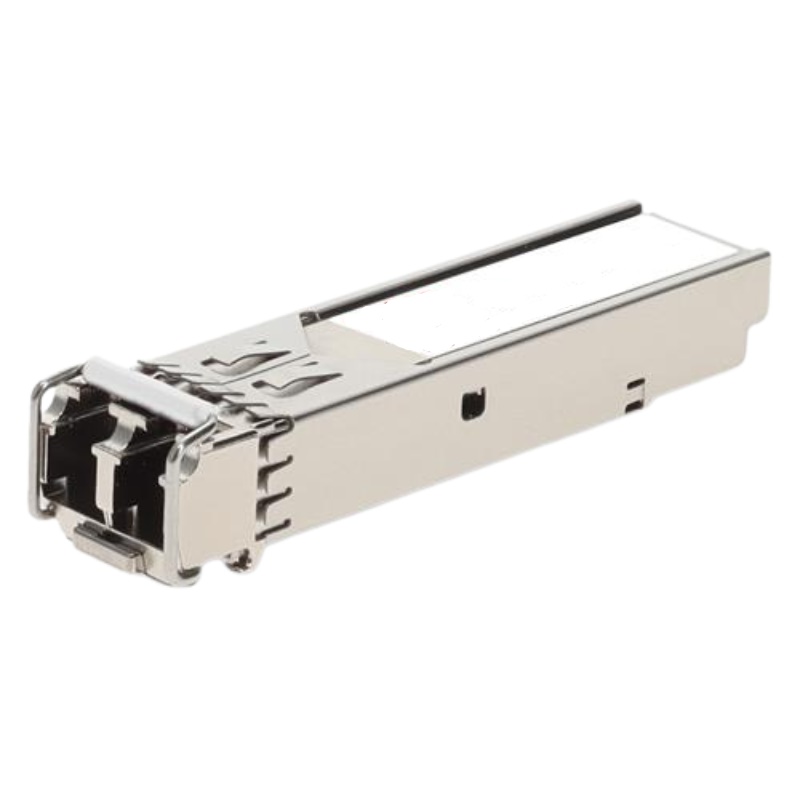

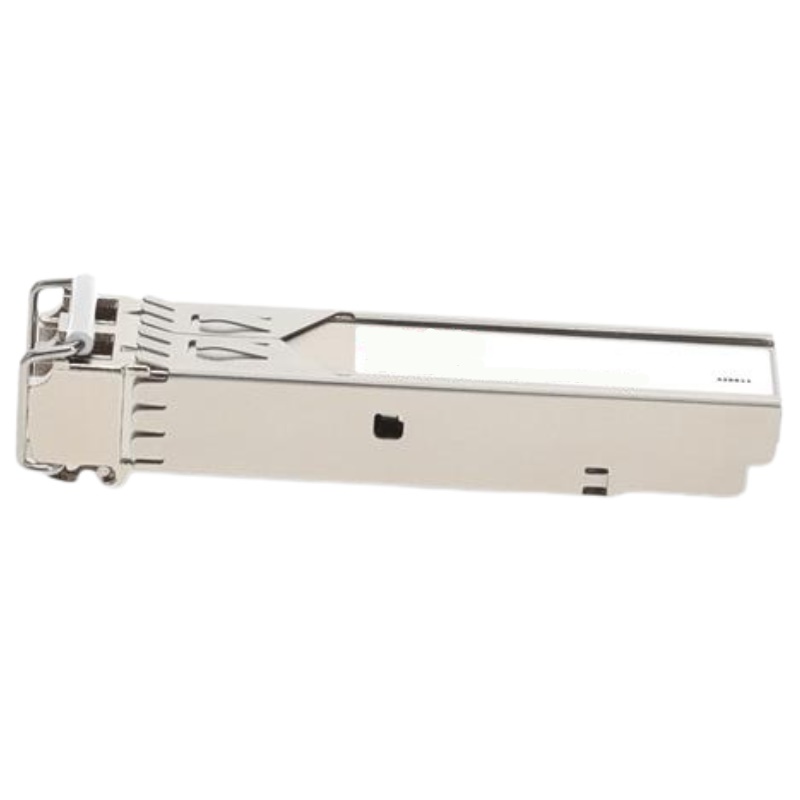

EX-SFP-10GE-ZR Juniper SFP+ 10G Optical LC SMF Transceiver

Overview of the Juniper Transceiver

The 10G SFP+ ZR optical transceiver category represents one of the most advanced long-reach fiber connectivity solutions used in modern enterprise, telecom, and data center networking environments. The EX-SFP-10GE-ZR Juniper SFP+ 10G Optical LC SMF Transceiver is designed to deliver ultra-high performance 10 Gigabit Ethernet transmission over single-mode fiber (SMF), enabling reliable connectivity over extended distances that can reach metropolitan or campus-scale networks.

General Details

• Manufacturer: Juniper Networks
• Model Number: EX-SFP-10GE-ZR
• Series: EX Series
• Product Type: Optical Transceiver
• Transceiver Type: SFP+ (Small Form-factor Pluggable Plus)

Technical Features and Specifications

• Hot-Pluggable: Designed for easy installation without needing to power down the system
• Wavelength: 1550nm
• Maximum Transmission Distance: Up to 80 kilometers (km) over optical fiber
• Optical Component: EML (Electro-absorption Modulated Laser) operating at 1550nm
• DDM Support: Yes, enabling monitoring of performance and diagnostics
• Primary Usage: Data networking and optical networks, especially in high-speed applications
• Network Deployment: Optimized for use in long-range data transmission
• Interface: 1 x LC Duplex 10GBase-ZR Network
• Media Type: Optical fiber, ideal for high-speed connections
• Fiber Type: 9/125 µm single-mode fiber
• Ethernet Technology: 10 Gigabit Ethernet (10GbE)
• Networking Standard: 10GBase-ZR

Compatibility

• Juniper Switch Lines: Native support on EX Series (e.g., EX4200, EX4300, EX4600).
• Juniper Router Lines: Native support on MX Series and QFX Series switches.
• MSA Compliant Systems: Third-party equivalent versions work in open Multi-Source Agreement (MSA) slots.
• Other Vendor Compatibility: Third-party versions can be explicitly coded for Cisco, Arista, or HP systems.

The Juniper SFP+ 10G Optical LC SMF Transceiver

As part of the SFP+ (Small Form-factor Pluggable Plus) ecosystem, this module is optimized for 10GbE links, particularly in environments requiring long-distance optical reach using LC duplex connectors. The ZR designation typically indicates "Ze Router" or "extended reach," commonly supporting distances up to approximately 80 km over OS2 single-mode fiber, depending on link conditions, optical budget, and dispersion characteristics.

Key Features of 10G SFP+ ZR Optical Transceivers

The EX-SFP-10GE-ZR category is defined by a set of advanced optical and electrical characteristics that make it suitable for demanding network environments. These features are engineered to maintain signal integrity over long distances while minimizing packet loss and latency. The module is hot-swappable, allowing seamless integration into compatible Juniper networking hardware without disrupting live traffic.

High-Speed 10 Gigabit Ethernet Transmission

The module supports full-duplex 10Gbps Ethernet transmission, making it ideal for backbone connections, inter-switch links, and aggregation layer deployments. It ensures consistent throughput across high-bandwidth applications such as cloud computing, virtualization clusters, ISP backbones, and enterprise data centers.

Extended Reach Optical Capability

One of the defining characteristics of the ZR variant is its long-reach capability. Using advanced laser modulation and amplification techniques, this transceiver can transmit data over distances up to 80 km on high-quality single-mode fiber. This makes it particularly suitable for metro-area networks and campus interconnects where traditional SR or LR optics are insufficient.

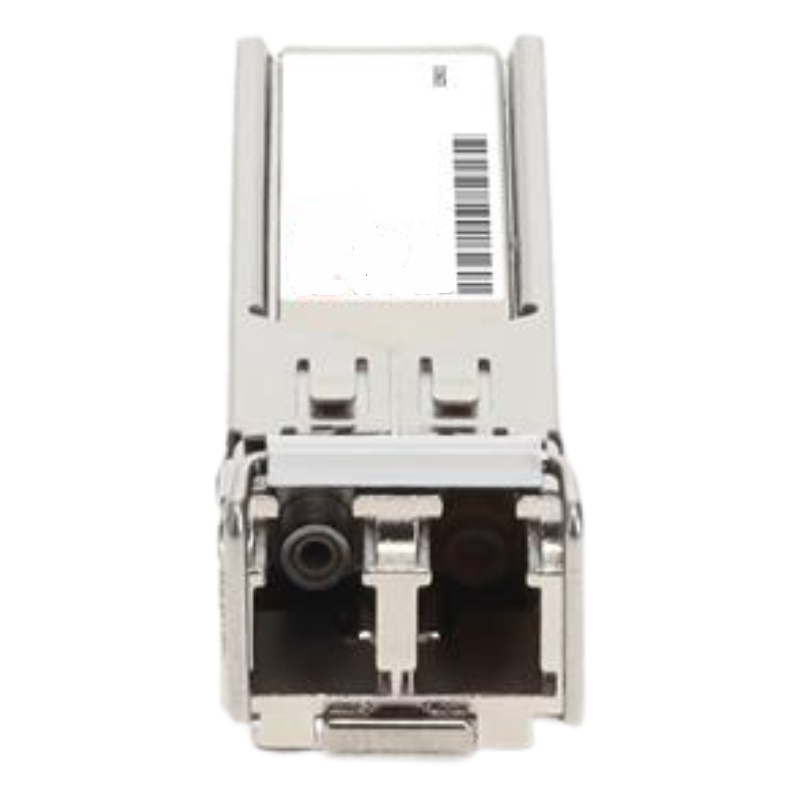

LC Duplex Connector Interface

The module utilizes LC duplex connectors, which are widely adopted in modern optical networking due to their compact size and high precision alignment. This ensures minimal insertion loss and stable optical performance. LC connectors also enable high-density port configurations in networking equipment.

Hot-Pluggable SFP+ Design

The SFP+ form factor allows for hot-swappable installation, meaning network administrators can insert or remove the module without powering down the system. This feature is critical in mission-critical environments where uptime is a priority.

Technical Architecture and Optical Design

The EX-SFP-10GE-ZR transceiver is built around high-performance optical components that ensure signal integrity over long distances. It generally incorporates a 1550nm cooled EML (Electro-Absorption Modulated Laser) or DFB laser transmitter paired with a high-sensitivity APD (Avalanche Photodiode) receiver. This combination allows for superior optical budget performance, which is essential for extended reach applications.

The optical link budget is significantly higher compared to SR and LR modules, enabling transmission over tens of kilometers without requiring intermediate signal regeneration. Chromatic dispersion compensation is also an important consideration in ZR optics, especially when deployed over dense wavelength environments or older fiber infrastructure.

The module is engineered to maintain low bit error rates (BER), ensuring data integrity even under challenging environmental or signal attenuation conditions. This makes it suitable for carrier-grade deployments and backbone interconnects where reliability is non-negotiable.

Compatibility with Juniper Networking Platforms

The EX-SFP-10GE-ZR module is designed for seamless interoperability with a wide range of Juniper switches, routers, and aggregation devices. These include platforms in the EX Series, MX Series, and other carrier-grade routing systems. Compatibility ensures that the module can be recognized natively by Junos OS, enabling automatic configuration, diagnostics, and performance monitoring. This reduces configuration complexity and ensures consistent operational behavior across deployments.

Applications and Use Cases of 10G ZR SFP+ Modules

The EX-SFP-10GE-ZR category is widely used across industries requiring long-distance, high-bandwidth connectivity. Its versatility makes it suitable for multiple networking scenarios where both speed and reach are essential.

Metro Ethernet Networks

Service providers deploy ZR modules to interconnect metro aggregation sites over distances that exceed the limitations of standard optical modules. These deployments support residential broadband, enterprise connectivity, and mobile backhaul traffic.

Enterprise Campus Connectivity

Large enterprises with multiple buildings across a wide geographic campus use 10G ZR optics to establish high-speed inter-building links. This ensures centralized data access and unified network architecture.

Data Center Interconnect (DCI)

Data centers often require synchronization and data replication across geographically separated facilities. The EX-SFP-10GE-ZR enables high-speed DCI solutions with minimal latency and high reliability.

ISP Backbone Infrastructure

Internet service providers rely on ZR optics for backbone routing between regional hubs. The long-reach capability reduces the need for intermediate repeaters, simplifying infrastructure and reducing operational costs.

Optical Performance Characteristics

The performance of the EX-SFP-10GE-ZR module is defined by a combination of optical power output, receiver sensitivity, wavelength stability, and dispersion tolerance. Operating typically at a 1550nm wavelength window, the module ensures optimal performance over long-distance single-mode fiber.

Transmitter power levels are carefully controlled to avoid saturation while ensuring sufficient signal strength at the receiving end. Similarly, the APD receiver is optimized for high sensitivity, enabling it to detect weak optical signals after long-distance transmission.

Another important performance aspect is thermal stability. The module is engineered to operate within a wide temperature range, making it suitable for both controlled data center environments and harsher telecom outdoor enclosures.

Single-Mode Fiber (SMF) and LC Interface Advantages

Single-mode fiber is the backbone medium for ZR optical transmission. Its narrow core diameter allows light to travel in a single propagation mode, significantly reducing modal dispersion and enabling long-distance transmission with minimal signal degradation. The EX-SFP-10GE-ZR leverages this property to achieve extended reach performance.

LC duplex connectors further enhance signal integrity by providing a compact, high-precision interface. Their push-pull design ensures secure connections even in high-density patch panel environments, making them ideal for scalable network infrastructure.

Interoperability and Standards Compliance

The EX-SFP-10GE-ZR module adheres to IEEE 802.3ae standards for 10 Gigabit Ethernet over optical fiber. This ensures compatibility not only within Juniper ecosystems but also across multi-vendor environments, provided that optical parameters align.

Interoperability is particularly important in heterogeneous network environments where devices from multiple manufacturers coexist. The standardized SFP+ interface ensures that modules can be deployed flexibly while maintaining consistent performance.

Advantages of ZR-Class 10G SFP+ Modules

ZR-class optical modules offer several advantages over short-reach and long-reach counterparts. The most significant benefit is extended transmission distance without the need for signal regeneration. This reduces infrastructure complexity and operational cost.

Another advantage is reduced equipment footprint. By eliminating the need for intermediate optical amplifiers in many scenarios, network architects can design simpler, more efficient topologies. Additionally, the high reliability of ZR modules ensures minimal downtime and stable long-term performance.

The EX-SFP-10GE-ZR also contributes to network scalability. As bandwidth demands increase, organizations can expand their optical infrastructure without redesigning the entire backbone.

Comparison with Other SFP+ Optical Modules

Within the SFP+ ecosystem, several optical variants exist, including SR (short reach), LR (long reach), and ZR (extended reach). Each serves a specific use case based on transmission distance and optical budget requirements.

SR modules typically operate over multimode fiber for distances up to 300 meters, making them suitable for intra-data center connectivity. LR modules extend this range to approximately 10 km over single-mode fiber. In contrast, the EX-SFP-10GE-ZR significantly extends this capability up to 80 km, positioning it as the preferred choice for metro and long-haul applications.

While ZR modules consume more power and generate more heat compared to SR and LR variants, they provide unmatched reach and flexibility for backbone network design.

Network Design and Optical Budget Planning

Designing a network with EX-SFP-10GE-ZR modules requires careful optical budget planning. Engineers must account for fiber attenuation, connector losses, splice losses, and environmental variations. The high optical budget of ZR modules provides flexibility, but proper planning ensures optimal performance.

Dispersion management is also a critical factor, especially over long distances. Chromatic dispersion can distort signals, so high-quality fiber and proper wavelength management are essential for maintaining signal integrity.

Reliability

The EX-SFP-10GE-ZR module is designed for long-term reliability with minimal maintenance requirements. However, routine monitoring using DOM tools helps ensure optimal performance. Parameters such as laser bias current and optical power levels can indicate early signs of degradation.

Fiber cleanliness is one of the most important maintenance considerations. Even microscopic dust particles can significantly impact signal quality, making regular inspection and cleaning essential.

In enterprise and telecom environments, proactive monitoring systems are often integrated with Junos OS to provide real-time alerts for optical anomalies.

Environmental and Power Efficiency Considerations

Despite its extended reach capabilities, the EX-SFP-10GE-ZR module is engineered with energy efficiency in mind. It balances high optical output with controlled power consumption, making it suitable for large-scale deployments where power efficiency is critical.

Thermal design ensures stable operation even in high-density switch environments where multiple optical modules operate simultaneously. This helps maintain consistent network performance without overheating or signal degradation.

Scalability in Modern Network Architectures

Modern networks demand scalability, and the EX-SFP-10GE-ZR supports this requirement by enabling long-distance, high-speed interconnects without complex infrastructure changes. As organizations expand their operations across multiple geographic locations, ZR optics provide a flexible foundation for scalable network growth. Whether used in enterprise WAN expansion or carrier backbone systems, these modules support evolving bandwidth requirements while maintaining compatibility with existing SFP+ infrastructure.
