KPM51VUG1T60 Kioxia 1.6TB SSD SAS 12GBPS Mix Use

Compatibility

• Dell PowerEdge R630
• Dell PowerEdge R730
• Dell PowerEdge R730xd
• Dell PowerEdge R430
• Dell PowerEdge T430
• Dell PowerEdge T640
• Dell PowerEdge T440
• Dell PowerEdge T330
• Dell PowerEdge R230
• Dell PowerEdge R330
• Dell PowerEdge T630

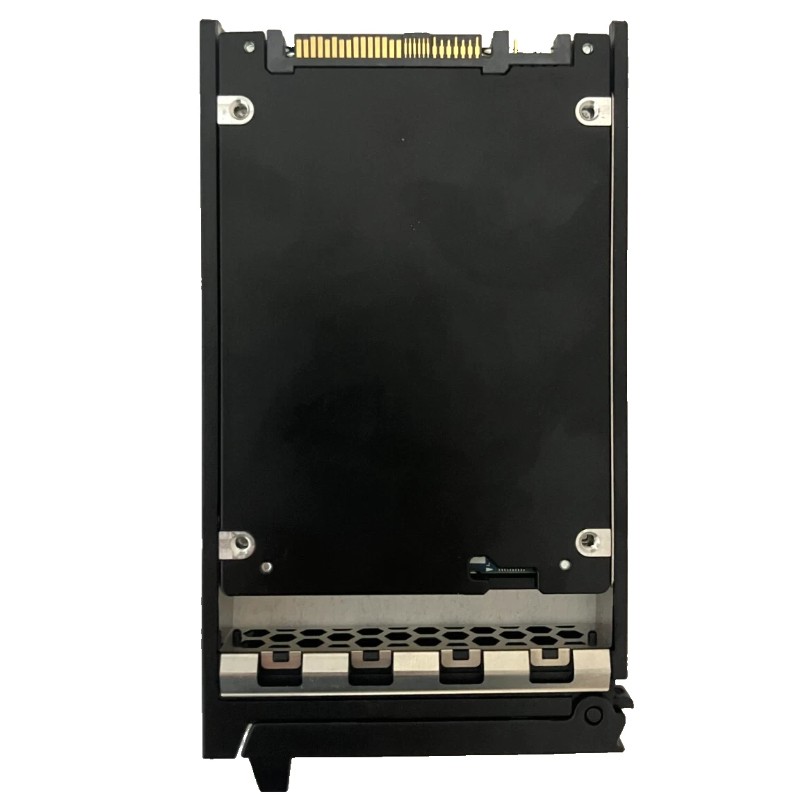

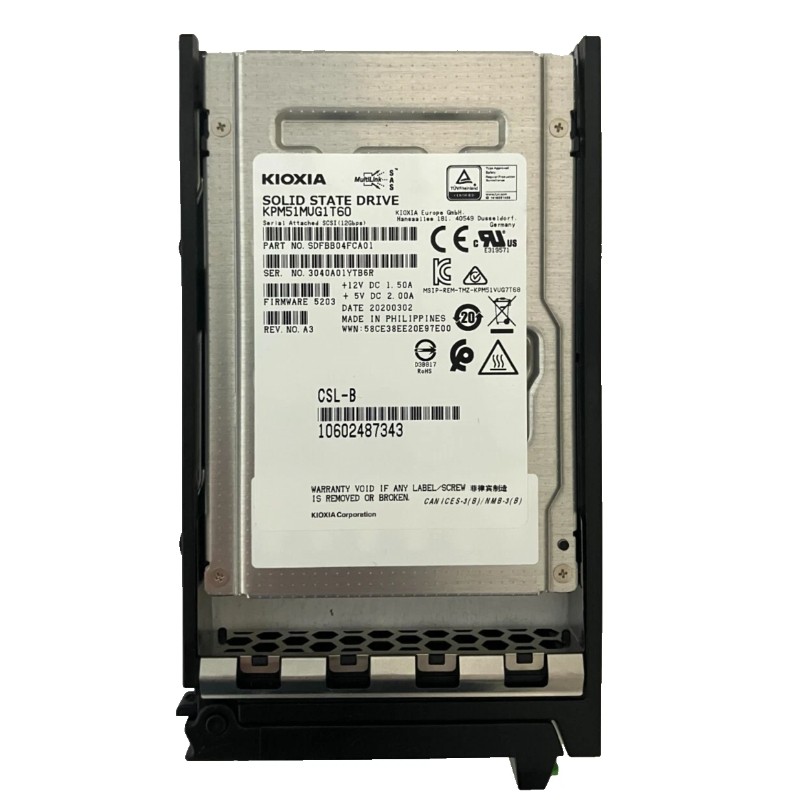

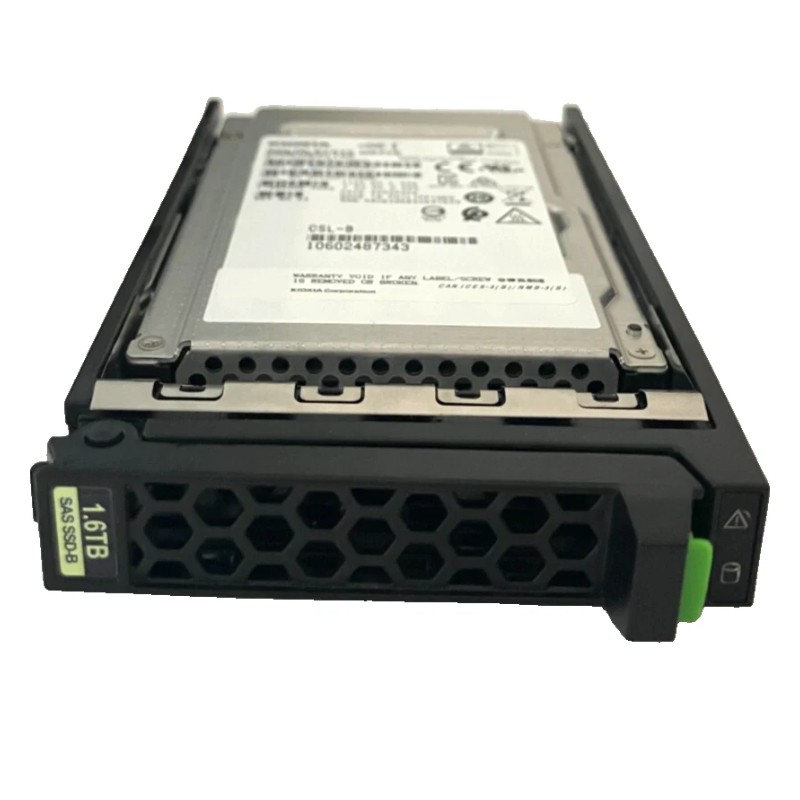

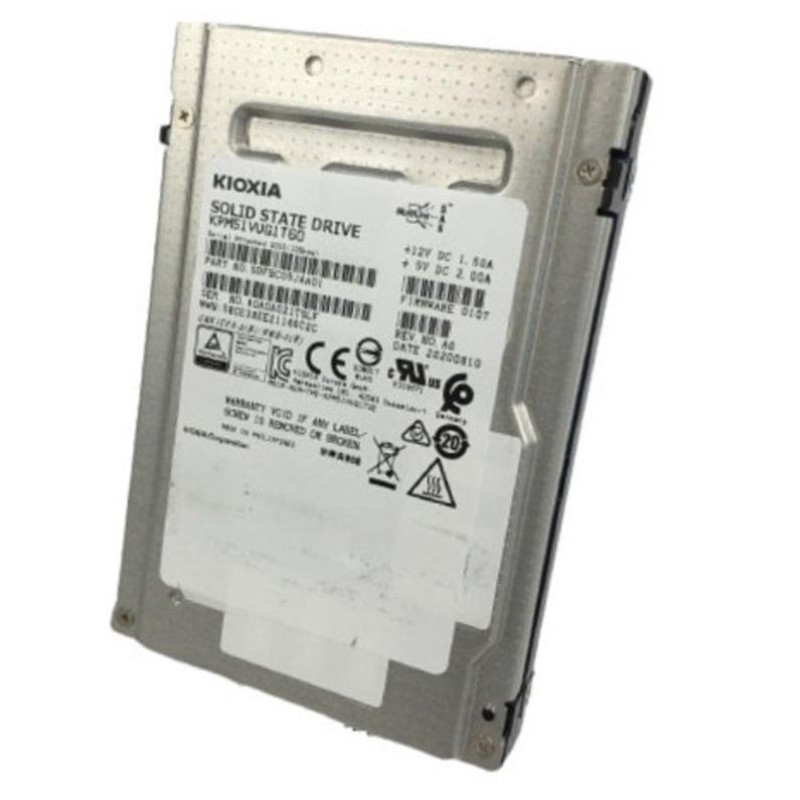

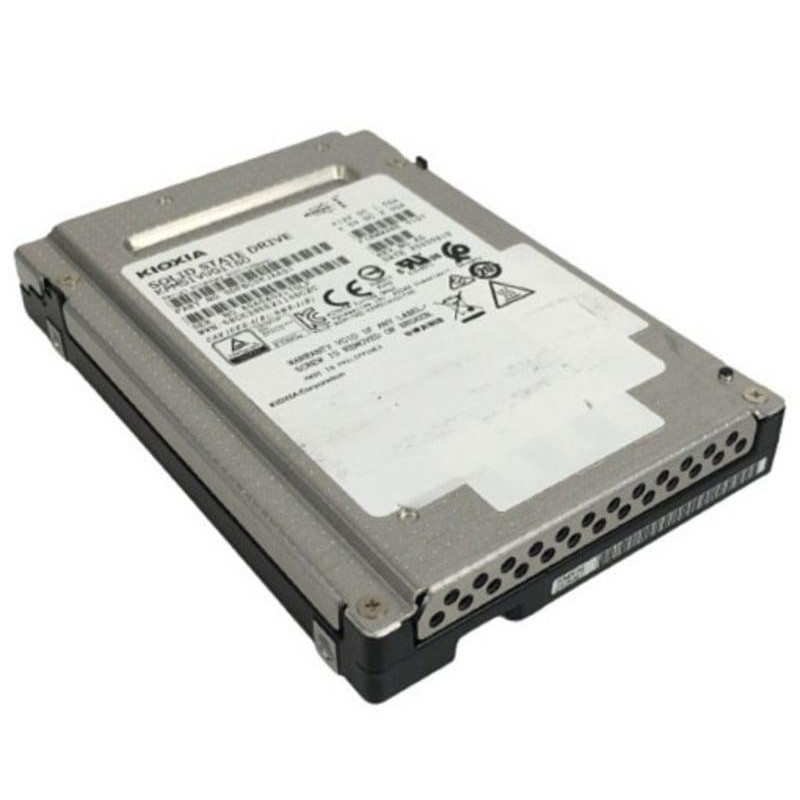

Kioxia KPM51VUG1T60 1.6TB SAS 12GBPS SSD Overview

Interface and Form Factor

The drive communicates over a 12.0 Gbit/s SAS interface, which supports single-port or dual-port configurations and MultiLink SAS implementations in many enterprise controllers. The 2.5-inch, 15 mm z-height form factor makes it compatible with a wide variety of rackmount servers and storage enclosures that accept enterprise 2.5-inch drives. The SAS 12Gb/s physical link ensures greater link bandwidth than legacy 6Gbps SAS parts while still providing the reliability and enterprise management features expected in large deployments. This interface and form factor combination simplifies upgrades from previous-generation SAS SSDs and makes the drive usable in mixed vendor environments.

Flash Type and Endurance Class

Internally the KPM51VUG1T60 uses KIOXIA’s 3D TLC (triple-level cell) BiCS FLASH memory, which strikes a cost-performance balance for mixed use workloads. TLC generally provides higher capacity per die than MLC and lower cost per gigabyte, but the PM5 product family’s controller, firmware optimizations and enterprise-level features mitigate TLC's endurance limitations so drives can still meet demanding mixed read/write service profiles. KIOXIA positions the PM5 family for mixed-use workloads—applications that contain a blend of random reads, random writes, sequential transfers and streaming activity—making this SSD suitable for database front ends, virtual machine storage, web services, and media streaming where both capacity and durability are important.

Endurance and Data Protection

Kioxia rates PM5 family devices for enterprise endurance levels appropriate to mixed-use operation. The product line includes power loss protection (PLP) and data path protection to preserve data integrity in the event of sudden power interruptions, and the drives are offered in both self-encrypting (SED) and non-SED variants to meet security and data sanitization requirements. Drive Writes Per Day (DWPD) and Total Bytes Written (TBW) figures vary by capacity and model—KIOXIA’s documentation provides the certified endurance class per SKU—so system architects should match endurance ratings to expected workload intensity, especially for write-heavy databases or log-intensive systems.

Controller, Firmware and Enterprise Feature Set

The controller and firmware are the invisible engines that convert 3D TLC flash into a predictable enterprise storage device. KIOXIA’s PM5 family firmware implements enterprise-class features such as T10-compliant commands, Multi-Stream Write (MSW) support, robust error correction algorithms, background media management, and advanced wear leveling. Together these features reduce write amplification, extend flash lifespan, and ensure consistent performance across the drive's usable life. Hardware-assisted protections guard against partial writes and ensure metadata integrity, critical for storage arrays and clustered filesystems where a single corrupted block can cascade. The KPM51VUG1T60 benefits from this stack, making it suitable for online transaction processing (OLTP), virtualization, and mixed workloads where consistent behavior under load is mandatory.

Power Loss Protection and Data Path Protection

Enterprise SSDs must assume that power interruptions will occur; PM5 drives are equipped with mechanisms to protect in-flight data and ensure the internal mapping tables remain consistent after an unexpected power event. Power-loss protection circuitry buffers volatile data long enough for it to be committed to nonvolatile media. Data path protection prevents inadvertent corruption of user data and metadata during write operations. These protections are particularly valuable in asynchronous write-back caching or battery-backed RAID controller scenarios where data may reside temporarily in nonpersistent buffers. By reducing the risk of silent data corruption, these features improve system-level reliability and reduce the need for expensive recovery operations.

Sanitation Options

For regulated industries and organizations with strict data lifecycle policies, the KPM51 series is available with self-encrypting drive options (SED). SED variants support standard enterprise encryption workflows, enabling secure key management and rapid decommissioning through crypto-erase or sanitize instant erase commands. Such features reduce the logistical burden of physical drive destruction and help ensure compliance with data retention and destruction policies. When deploying in multi-tenant or cloud settings, using drives with hardware encryption simplifies tenant isolation and disposal processes.

Compatibility

Compatibility with enterprise host bus adapters (HBAs), RAID controllers, server vendors and operating systems is a primary concern for storage administrators. The SAS 12Gb/s interface used by the KPM51VUG1T60 is widely supported by modern enterprise HBAs and controllers from major vendors, and dual-port variants offer redundancy and multipath operation for high-availability systems. When integrating the drive into existing arrays or servers, it is advisable to review firmware interoperability lists from both the server vendor and the drive manufacturer to ensure optimal behavior; this is especially true in tightly certified ecosystems such as OEM-branded servers. Many resellers and server part dealers list the drive as compatible with HPE, Dell EMC and other server OEMs, and refurbished/recertified variants are sometimes available for rapid procurement.

Environments and Hyper converged Infrastructure

Virtual machine density and the random I/O profile of hyper converged systems make mixed-use SSDs an efficient choice. The KPM51VUG1T60’s blend of endurance and capacity supports boot volumes, OS images, and VM disk images with steady latency and throughput. In clustered hypervisors where many small random I/Os compete for resources, the enterprise firmware’s QoS optimizations and low tail latency help keep individual VM performance predictable and fair. For organizations incrementally upgrading spinning media, these SAS SSDs enable immediate improvements in VM responsiveness without wholesale architecture changes.

Databases, Caching and Mixed Application Servers

Online databases that combine read-heavy transactional queries with periodic write bursts—such as caching layers, user profile services, or mixed OLTP/OLAP workloads—benefit from mixed-use SSDs. The KPM51VUG1T60 can sustain mixed read/write patterns without rapid degradation of performance or endurance, providing a cost-effective alternative to higher-end write-optimized SSDs when pure write throughput is not the dominant requirement. The drive is an attractive option for database log volumes, search indices, and read-cache layers that demand consistent IOPS with reasonable write endurance.

Content Delivery, Media Streaming and Edge Storage

For content delivery and streaming services where large sequential reads and cached media assets are frequent, the KPM51VUG1T60 supplies a high capacity within a compact form factor while maintaining enterprise reliability. Edge compute nodes and CDN caches that must balance capacity with the need for rapid retrieval will find the drive’s performance profile appropriate. The drive’s SAS link, enterprise features and form factor make it simple to integrate into edge servers and appliance-style hardware.

Procurement, Pricing and Refurbished Options

New vs Refurbished Market Dynamics

The PM5 family, including the KPM51VUG1T60, is commonly available both as new OEM/retail stock and as refurbished or recertified units from channel vendors. Refurbished drives can offer substantial cost savings for nonproduction or capacity expansion projects, however procurement teams should verify drive firmware versions, SMART health, remaining TBW and warranty terms before purchase. OEM warranties and reseller recertification policies differ, so organizations that require strict traceability and support contracts may prefer new units despite the higher upfront price. Many marketplaces list the KPM51VUG1T60 as a known SKU, and price parity between vendors can vary substantially based on warranty and condition.

Right-Sizing Capacity and Endurance for Total Cost of Ownership

When specifying SSDs for large deployments, total cost of ownership (TCO) is the primary decision driver. It is important to balance gigabytes, endurance (DWPD/TBW), performance, and warranty coverage against the workload’s expected write amplification and duty cycle. Choosing a slightly higher capacity drive can reduce write amplification and extend drive life; similarly, matching the drive’s endurance class to the write profile prevents premature replacements and service interruptions. Procurement decisions should weigh the KPM51VUG1T60’s capacity and enterprise feature set against alternatives in the PM5 family or competing SAS enterprise lines to identify the best lifecycle cost for the intended service.

Health, SMART and Predictive Replacement

Implement health monitoring and SMART data collection via your monitoring and management platform. SMART attributes, drive temperature, reported media errors and TBW counters provide early indicators of drive wear or impending failure. Coupling these telemetry streams with proactive replacement policies reduces unplanned downtime. Many storage management solutions can automate drive replacement workflows when SMART thresholds are exceeded, enabling administrators to preserve storage array redundancy while swapping drives proactively.

RAID, Redundancy and Multipath Considerations

Even enterprise SSDs should operate behind RAID or multipath redundancy in critical systems. Dual-port SAS models and multi-path configurations help ensure data access continuity in case of controller or path failures. When configuring RAID, pay attention to rebuild times, background verification workloads, and rebuild priority settings; SSD rebuilds behave differently from HDD rebuilds, and mixed vendor drive pools can exhibit performance anomalies during rebuild windows. Use vendor-recommended RAID settings and test rebuild scenarios in a controlled environment to understand the impact on active workloads.

Environmental and Operational Best Practices

Maintain drives within manufacturer-specified temperature and vibration limits and ensure adequate airflow in front of the drive bays. Excessive heat accelerates NAND wear and can trigger thermal throttling, reducing sustained throughput. Schedule heavy background tasks such as secure erase or long garbage-collection jobs during low usage windows to avoid impacting service levels. Drive monitoring combined with infrastructure practices—such as ensuring redundant cooling, avoiding mixed generation power rails in a chassis, and isolating noisy I/O jobs—maximizes lifetime and predictable performance.

Common Issues and Immediate Checks

If a newly installed KPM51VUG1T60 exhibits errors or unexpected behavior, start with basic checks: confirm SAS cable and port integrity, ensure multipath configuration is correct, review firmware level compatibility, and examine SMART logs for media or controller errors. Intermittent errors may indicate cabling issues or host controller incompatibilities rather than drive failure. If the drive is part of an OEM server, consult the server vendor’s HCL and the drive manufacturer’s interoperability notes before replacing hardware.

Higher Endurance or Higher

The KPM51VUG1T60 fits a middle ground: more durable and better-managed than consumer or entry-level SSDs but more cost-efficient than top-end, write-optimized enterprise SSDs designed for sustained heavy write workloads (e.g., drives built on eMLC or with higher DWPD ratings). For environments that demand maximum write endurance under continuous heavy writes—such as logging appliances or write-intensive analytics—higher endurance parts may be required. Conversely, for primarily read-heavy caches or archival use, higher capacity but lower endurance SSDs may be more economical. Choosing the KPM51VUG1T60 is appropriate when the workload is mixed and predictable performance with enterprise protection is essential.

Vendor and SKU Alternatives within KIOXIA’s PM Family

The PM5 family and related KIOXIA series include a range of capacities and endurance classes; selecting a different PM5 SKU may provide improved DWPD or more capacity per chassis slot. Review the PM5 product brief and capacity table to choose a drive that matches required TBW, warranty duration, and throughput profile. Upgrading to a higher capacity SKU in the PM5 family often improves endurance in practice by lowering percent utilization of program/erase cycles for the same data volume.

Test Under Representative Load

Prior to large scale rollouts, run representative benchmarks that mimic production behavior: mixed read/write profiles, multi-tenant queue depths, and background task schedules. Synthetic one-shot benchmarks can be misleading; focus on long-running mixed workloads that surface sustained throughput and tail latency characteristics. Validate rebuild behavior in RAID or erasure coding environments and observe thermal behavior in the actual chassis to avoid surprises after deployment.

Useful Next Steps for Buyers

Evaluate workload profiles to estimate TBW and DWPD needs, confirm server/array firmware compatibility, collect SMART and telemetry policies to enable proactive management, and determine whether new or refurbished drives fit budget and support expectations. If immediate large capacity and enterprise reliability are required, the KPM51VUG1T60 is a mature PM5-family option with broad channel availability. For final specification confirmation, always consult the manufacturer’s product brief and the reseller’s condition and warranty statements prior to purchase
