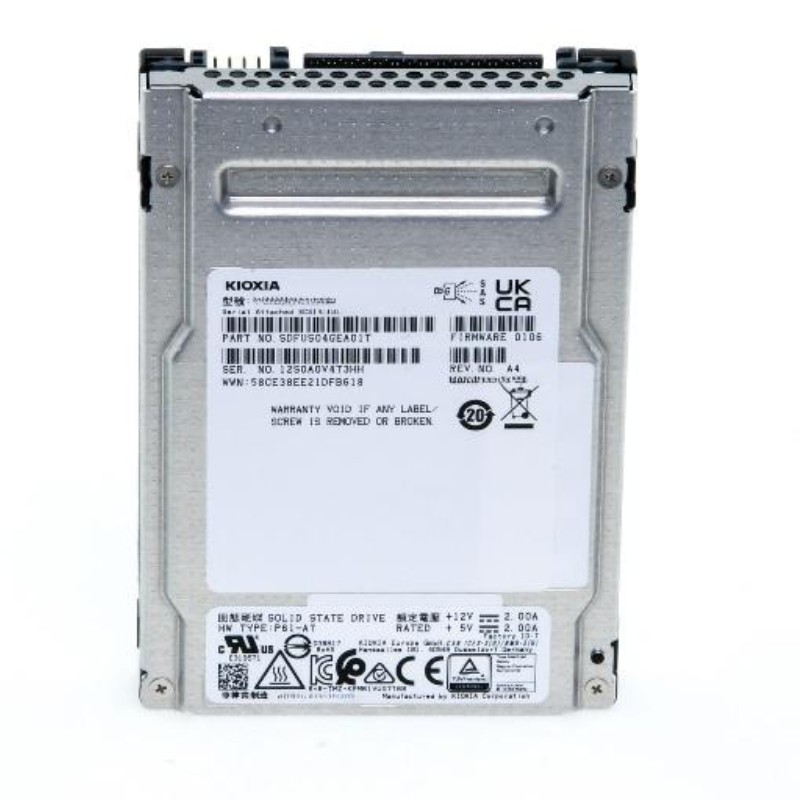

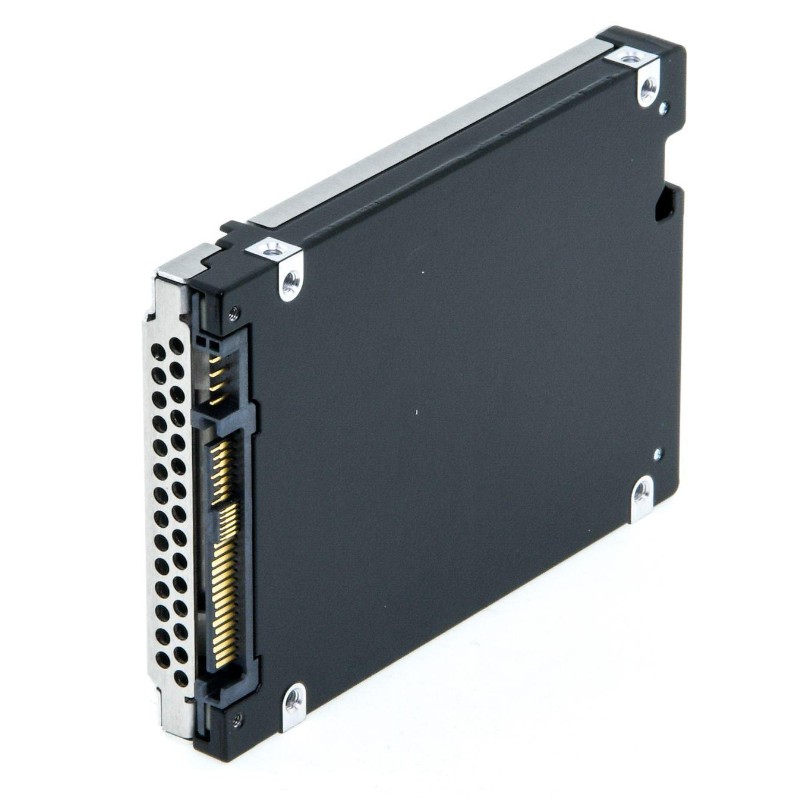

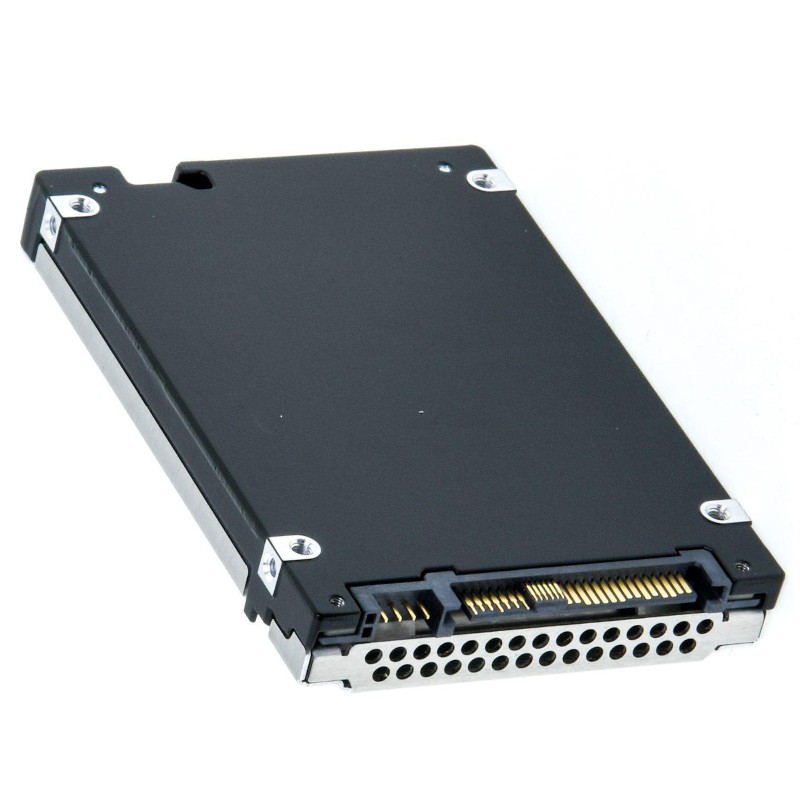

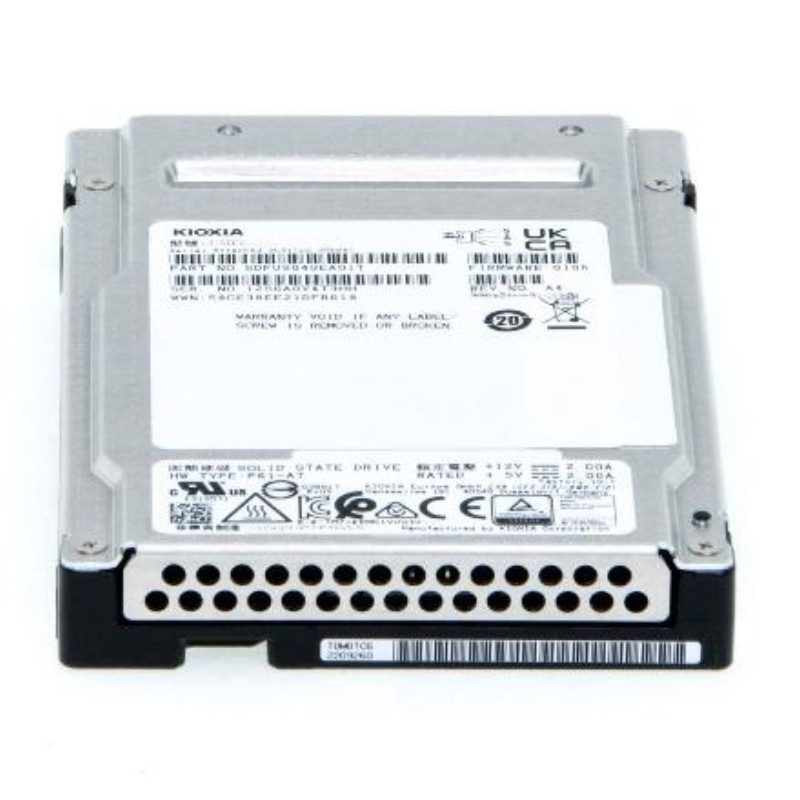

SDFGR56DAB01T Kioxia 960GB SAS 12GBPS 2.5inch TLC Mixed Use BICS Flash RM6 Solid State Drive

Kioxia RM6 SDFGR56DAB01T 960GB SAS SSD – Technical Breakdown

General Information

• Brand: Kioxia
• Model Number: SDFGR56DAB01T
• Device : Internal Solid-State Drive

Technical Specifications

• Capacity: 960GB
• Flash Architecture: TLC BiCS Flash
• Drive Format: 2.5-inch
• Connection Type: SAS 12Gb/s

Performance Metrics

Data Transfer Speeds

• Sequential Read Rate: Up to 840 MB/s
• Sequential Write Rate: Up to 710 MB/s

Random Access Performance

• 128KB Random Read: 160K IOPS
• 128KB Random Write: 50K IOPS

Connectivity and Expansion

• Interface Port: 1 x SAS 12Gb/s
• Compatible Drive Bay: 2.5-inch slot

Kioxia SDFGR56DAB01T 960GB SSD Overview

The Kioxia SDFGR56DAB01T 960GB SAS 12GBPS 2.5inch TLC Mixed Use BICS Flash RM6 Solid State Drive is engineered to meet the demanding storage requirements of modern enterprise environments. This drive combines high-speed SAS 12GBPS connectivity with durable TLC NAND flash memory to deliver superior performance for mixed workloads. Designed for data centers, server farms, and high-performance computing systems, this SSD ensures reliable data storage with enhanced endurance and consistency.

Advanced SAS 12GBPS Interface

The 12GBPS SAS interface of the Kioxia SDFGR56DAB01T enables rapid data transfer and low latency, essential for high-demand applications. SAS technology ensures enterprise-grade reliability and supports full-duplex communication for simultaneous read and write operations. Compared to SATA drives, SAS 12GBPS delivers higher throughput and better error correction, providing a more robust storage solution for mission-critical workloads.

Enterprise-Grade Performance

This SSD is optimized for mixed-use environments, offering balanced performance across read-intensive and write-intensive operations. The drive leverages Kioxia's advanced controller and firmware algorithms to maintain high IOPS and low latency even under sustained workloads. It is suitable for database applications, virtualization, and cloud computing infrastructures where consistent performance is crucial for operational efficiency.

High Endurance and Reliability

The Kioxia SDFGR56DAB01T uses TLC BICS Flash RM6 NAND, which provides a balance between cost-effectiveness and long-term endurance. The drive is rated for a substantial drive writes per day (DWPD) and features power-loss protection to safeguard data integrity. These features make it ideal for continuous operation in enterprise servers, storage arrays, and backup systems.

Durability Features

Engineered for intensive usage, this SSD incorporates robust error correction codes (ECC), wear leveling, and bad block management. These technologies extend the lifespan of the drive and maintain performance consistency throughout its service life. Additionally, Kioxia's firmware ensures minimal performance degradation over time, making it a reliable choice for high-availability data centers.

2.5-Inch Form Factor and Compatibility

The 2.5-inch form factor of the SDFGR56DAB01T makes it compatible with a wide range of server chassis, storage enclosures, and blade servers. Its compact size allows for high-density storage configurations, enabling data centers to maximize capacity without sacrificing performance. This form factor also facilitates easy upgrades and replacements, reducing maintenance downtime and operational costs.

Thermal and Power Management

Kioxia SDFGR56DAB01T features advanced thermal monitoring and power management technologies. The drive dynamically adjusts its power consumption based on workload demands, which improves energy efficiency and reduces heat generation. This is critical for data centers where thermal management directly impacts operational costs and system reliability.

Optimized for Database and Virtualization

The drive excels in environments with high I/O demands, such as OLTP databases, virtual machines, and cloud workloads. By providing consistent low-latency access and high IOPS, it minimizes bottlenecks and improves application responsiveness. These characteristics make it an ideal choice for organizations seeking to enhance server performance and storage efficiency.

Data Integrity and Security Features

Ensuring data integrity is critical in enterprise environments. The SDFGR56DAB01T incorporates end-to-end data protection mechanisms, including advanced ECC and secure erase capabilities. These features prevent data corruption and maintain compliance with enterprise storage standards. Organizations can trust this SSD for safeguarding sensitive information in mission-critical systems.

Reliable Data Protection

The drive supports various enterprise data protection protocols, including T10 DIF and power-loss protection. These features safeguard against unexpected outages and ensure that data remains consistent and recoverable. By maintaining high reliability and integrity, the SSD contributes to uninterrupted business operations and disaster recovery readiness.

Durable TLC NAND Flash

The BICS Flash RM6 TLC NAND offers a combination of performance, reliability, and endurance. Kioxia’s proprietary controller manages data placement and wear leveling to maximize NAND lifespan. This technology ensures that the drive sustains high performance even during continuous heavy workloads, making it a dependable choice for enterprise deployments.

Long-Term Reliability

The drive's technical specifications, including high mean time between failures (MTBF) and consistent DWPD ratings, ensure long-term operational reliability. Organizations can deploy these SSDs with confidence, knowing that they meet enterprise-grade standards for durability and uptime. This contributes to reduced maintenance costs and improved system availability.

Virtualization and Cloud Computing

In virtualized environments, multiple virtual machines generate a mix of read and write operations. This SSD handles these mixed I/O patterns efficiently, ensuring minimal latency and consistent performance. Cloud service providers can leverage these drives to improve user experience and maintain high service-level agreements.
