Mellanox MCX653105A-ECAT ConnectX-6 1-Ports VPI QSFP56 PCIe 4.0x16 Adapter

Product Overview

Mellanox MCX653105A-ECAT Details

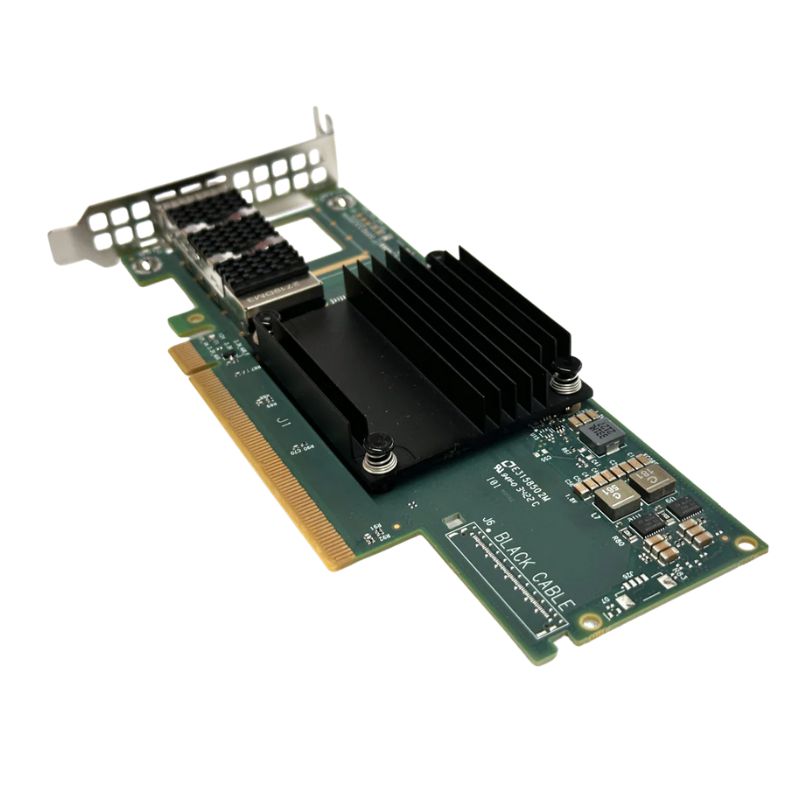

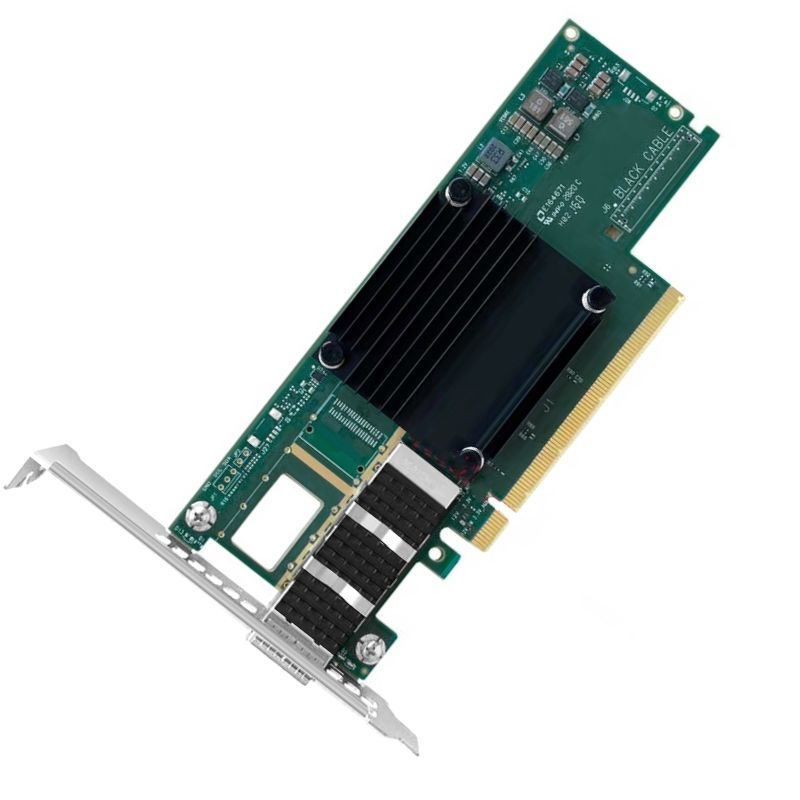

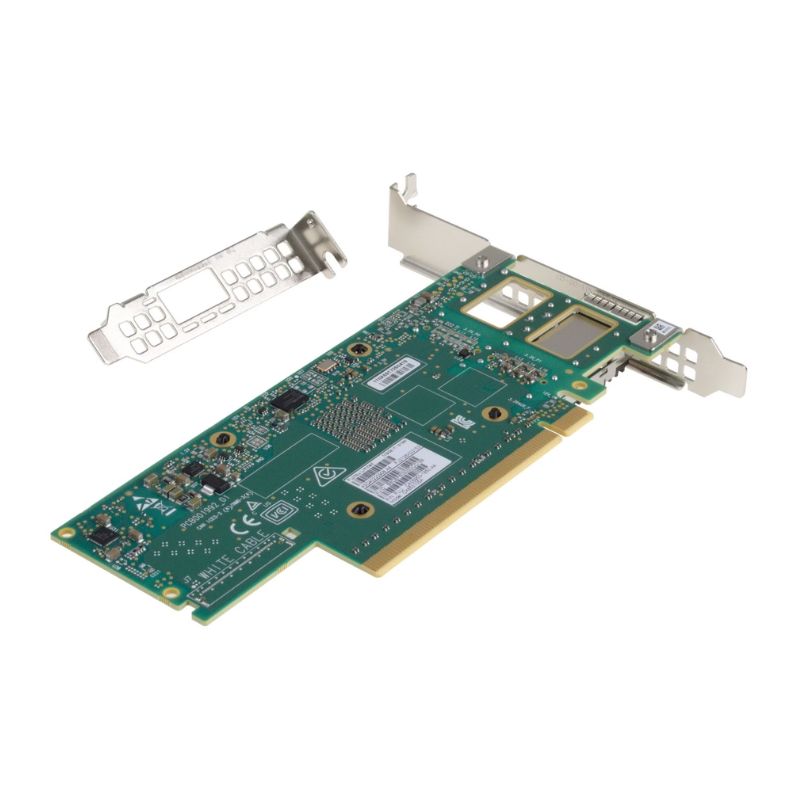

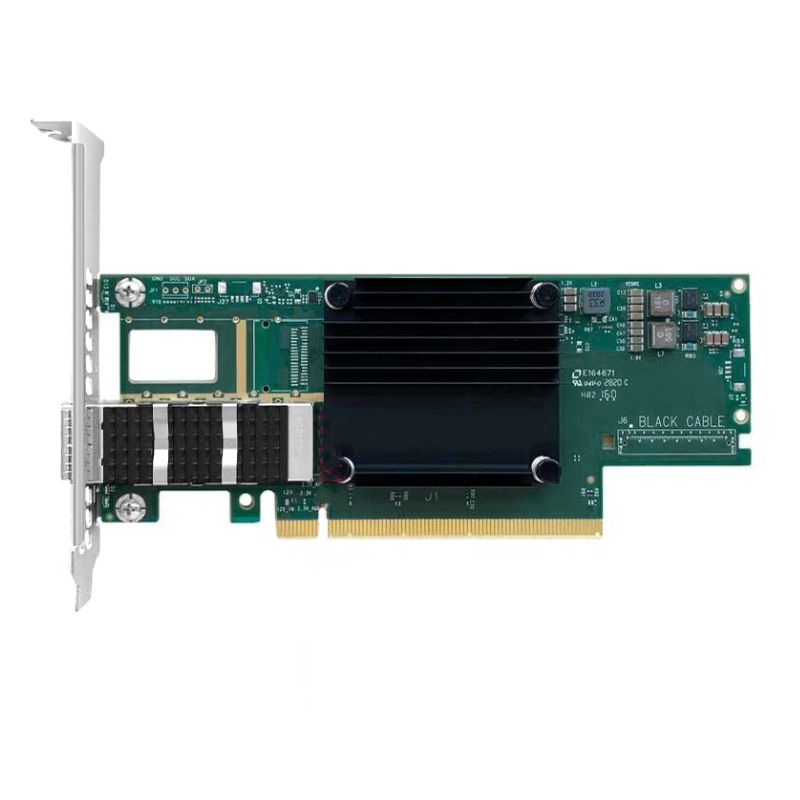

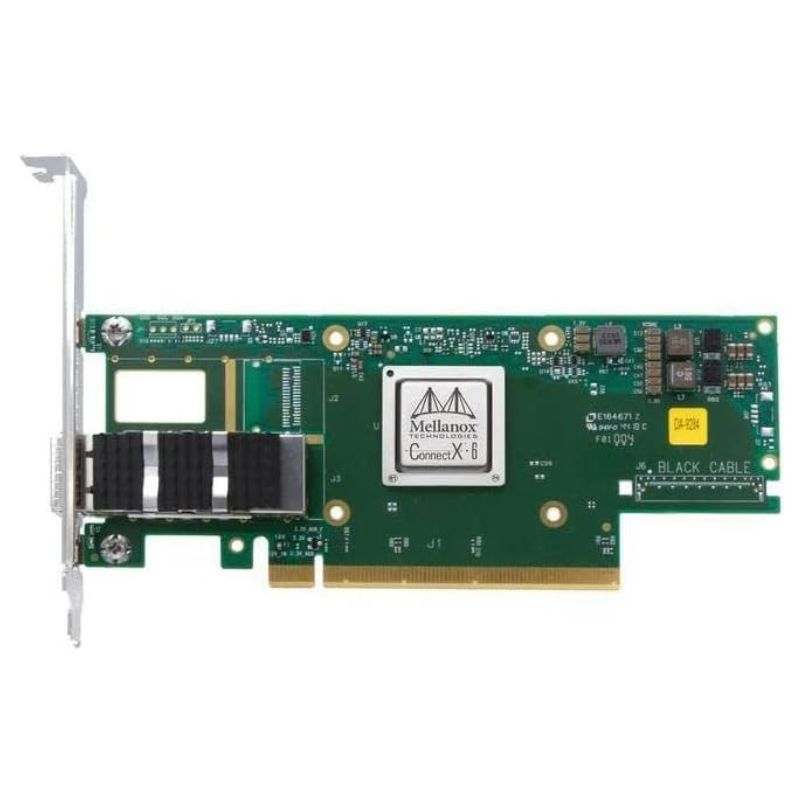

The Mellanox MCX653105A-ECAT is a high-performance ConnectX-6 adapter card designed for seamless connectivity in both Infiniband and Ethernet environments, offering exceptional speed and reliability. This single-port QSFP56 card operates at an impressive 100 Gb/s, making it ideal for demanding networking applications.

Key Specifications

General Information

• Manufacturer: Mellanox
• Part Number: MCX653105A-ECAT
• Device Type: Network Devices
• Sub-Type: Network Adapters

Physical Dimensions

• Size: 6.6 inches x 2.71 inches (167.65mm x 68.90mm)
• Connector Type: Single QSFP56 for Infiniband and Ethernet (supports both copper and optical connections)

Protocol Support

Infiniband Protocols

The adapter card supports the following Infiniband protocols:

• IBTA v1.4
• Auto-negotiation options: 1x/2x/4x SDR (2.5 Gb/s per lane)
• DDR (5 Gb/s per lane)
• QDR (10 Gb/s per lane)
• FDR10 (10.3125 Gb/s per lane)
• FDR (14.0625 Gb/s per lane)
• EDR (25 Gb/s per lane)
• HDR100 (2 lanes at 50 Gb/s per lane)

Ethernet Protocols

This device supports a variety of Ethernet protocols, including:

• 100GBASE-CR4, 100GBASE-CR2
• 100GBASE-KR4, 100GBASE-SR4
• 50GBASE-R2, 50GBASE-R4
• 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4
• 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2
• 25GBASE-R, 20GBASE-KR2
• 10GBASE-LR, 10GBASE-ER
• 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR
• SGMII, 1000BASE-CX, 1000BASE-KX
• 10GBASE-SR

Performance Metrics

Data Rates

• Infiniband: SDR, DDR, QDR, FDR, EDR, HDR100
• Ethernet: 10, 25, 40, 50, 100 Gb/s
• PCI Express Gen 3/4: SerDes 8.0 GT/s / 16 GT/s, X16 lanes (backward compatible with 2.0 and 1.1)

Power Requirements

• Voltage: 3.3 AUX
• Maximum Current: 100 mA
• Typical Power Consumption: Passive cables: 15.6 W
• Maximum Power: Refer to ConnectX-6 VPI power specifications (requires NVOnline login credentials)
• Power Available Through QSFP56 Port: 5 W

Airflow and Temperature

• Passive Cables:
  • 300 LFM / 55°C (from heatsink to port)
  • 200 LFM / 35°C (from port to heatsink)
• NVIDIA Active Cables:
  • 300 LFM / 55°C (from heatsink to port)
  • 200 LFM / 35°C (from port to heatsink)

Environmental Specifications

Temperature Range

• Operational: 0°C to 55°C
• Non-Operational: -40°C to 70°C

Humidity Levels

• Operational: 10% to 85% Relative Humidity
• Non-Operational: 10% to 90% Relative Humidity

Altitude Considerations

Operational Altitude: 3050 m

Ports

The Mellanox ConnectX-6 Network Adapter is equipped with 1 port, making it an excellent choice for users who require reliable and high-performance networking capabilities. This single port allows for seamless connectivity and efficient data transfer between devices, ensuring smooth and uninterrupted operations.

Enhanced Connectivity

With 1 port, the Mellanox ConnectX-6 Network Adapter offers enhanced connectivity options for users. Whether you need to connect to a server, storage device, or other network equipment, this adapter provides a reliable and versatile solution. The single port design ensures that you can easily establish connections without the need for additional hardware or complex configurations.

Flexible Deployment

The presence of 1 port in the Mellanox ConnectX-6 Network Adapter enables flexible deployment options. Whether you are setting up a small-scale network or a large enterprise-level infrastructure, this adapter can adapt to your specific requirements. The single port design allows for easy integration into existing systems without the need for extensive modifications.

Increased Efficiency

The 1 port feature of the Mellanox ConnectX-6 Network Adapter contributes to increased efficiency in data transfer and communication processes. By providing a dedicated connection, it eliminates bottlenecks and ensures that data can flow smoothly between devices. This results in faster response times, reduced latency, and improved overall system performance.

Furthermore, the 1 port feature ensures that each connection receives dedicated resources, preventing congestion and ensuring consistent network performance. This is particularly beneficial in high-demand environments where multiple devices require simultaneous data transfers.

Interface

The Mellanox ConnectX-6 Network Adapter is equipped with a QSFP56 interface, offering users numerous benefits in terms of speed, compatibility, and scalability. The QSFP56 interface sets it apart from other adapters on the market, making it an ideal choice for users requiring advanced networking capabilities.

High-Speed Connectivity

The QSFP56 interface of the Mellanox ConnectX-6 Network Adapter enables high-speed connectivity between devices. With data transfer rates of up to 200 Gbps, this interface ensures rapid transmission of large volumes of data, making it suitable for bandwidth-intensive applications. Whether you are dealing with big data analytics, cloud computing, or high-performance computing, the high-speed connectivity provided by the QSFP56 interface will significantly enhance your workflow.

Compatibility

The QSFP56 interface is designed to be compatible with a wide range of networking equipment and protocols. This ensures that the Mellanox ConnectX-6 Network Adapter can seamlessly integrate into existing network infrastructures without compatibility issues. Whether you are using Ethernet, InfiniBand, or other protocols, this adapter's QSFP56 interface will provide reliable and efficient connectivity.

Scalability

The QSFP56 interface enables scalability, allowing you to expand your network infrastructure effortlessly. With this interface, you can easily add more devices or upgrade existing components without having to replace the entire infrastructure. This scalability ensures future-proofing, allowing your network to grow alongside your organization's needs.

Moreover, the QSFP56 interface supports both copper and optical cables, providing versatility in deployment options. Whether you prefer traditional copper cables or require the longer distances and higher bandwidths offered by optical cables, this interface can accommodate your specific requirements.

PCIe Version

The Mellanox ConnectX-6 Network Adapter features PCIe Version 4.0x16, offering users enhanced performance and bandwidth capabilities. The PCIe Version 4.0x16 ensures that this adapter can support demanding applications and deliver exceptional network performance.

Increased Bandwidth

The PCIe Version 4.0x16 provides a significant boost in bandwidth compared to previous generations. With a 16-lane configuration and the enhanced capabilities of PCIe 4.0, this adapter can handle large volumes of data with ease. This increased bandwidth is particularly beneficial for data-intensive applications, such as high-definition video streaming, virtualization, and data analytics.

Improved Performance

The PCIe Version 4.0x16 significantly improves the overall performance of the Mellanox ConnectX-6 Network Adapter. By leveraging the increased bandwidth, it ensures faster data transfer rates and reduced latency, resulting in improved system responsiveness and application performance. This is especially crucial in environments where real-time data processing and low-latency communication are essential.

Future-Proofing

By incorporating the PCIe Version 4.0x16, the Mellanox ConnectX-6 Network Adapter offers future-proofing capabilities. As technology continues to advance, PCIe 4.0 provides headroom for future upgrades and advancements, ensuring that your network infrastructure remains up-to-date and capable of meeting evolving demands.

Additionally, the PCIe Version 4.0x16 is backward compatible with previous PCIe versions, allowing for seamless integration into existing systems. This ensures compatibility with older motherboards and expansion slots, providing flexibility in deployment options.

Part Number

The Mellanox ConnectX-6 Network Adapter has a unique part number, MCX653105A-ECAT, which serves as an identifier for this specific model. The part number holds importance for users in terms of product identification, compatibility assurance, and support.

Product Identification

The part number, MCX653105A-ECAT, allows users to easily identify the Mellanox ConnectX-6 Network Adapter amidst a wide range of networking products available in the market. By referring to this specific part number, users can ensure they are selecting the correct adapter that meets their requirements and specifications.

Compatibility Assurance

The part number also serves as a compatibility assurance for users. By referring to the MCX653105A-ECAT part number, users can verify that the adapter is compatible with their existing network infrastructure, operating systems, and software. This ensures a seamless integration process without any compatibility issues, saving time and effort during deployment.

Support and Documentation

The part number is essential when seeking support or referring to documentation related to the Mellanox ConnectX-6 Network Adapter. By providing the part number, users can easily access technical support, firmware updates, and product documentation specific to their adapter model. This ensures that users have the necessary resources to troubleshoot issues, optimize performance, and stay up-to-date with the latest enhancements for their adapter.

In conclusion, the Mellanox ConnectX-6 Network Adapter with its 1 port offers enhanced connectivity, flexibility, and increased efficiency. The QSFP56 interface provides high-speed connectivity, compatibility, and scalability. The PCIe Version 4.0x16 ensures increased bandwidth, improved performance, and future-proofing capabilities. The unique part number, MCX653105A-ECAT, allows for easy product identification, compatibility assurance, and access to support and documentation. These features collectively make the Mellanox ConnectX-6 Network Adapter a reliable and high-performance choice for users seeking advanced networking capabilities.
