Meraki MR46E-HW Cloud-Managed Wi-Fi 6 AP

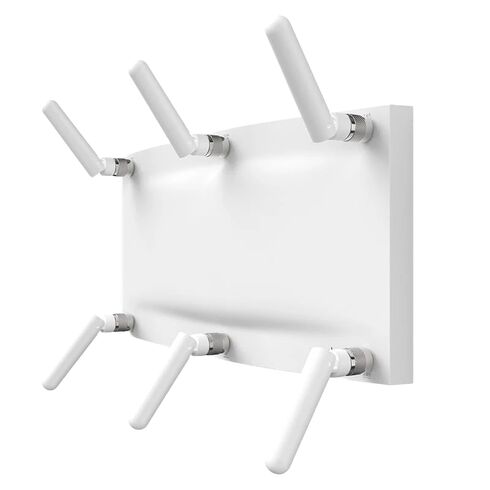

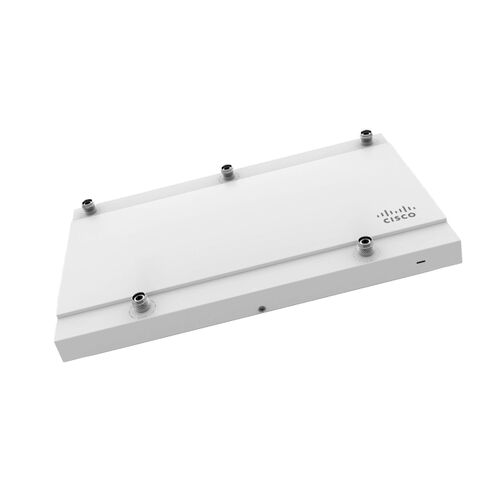

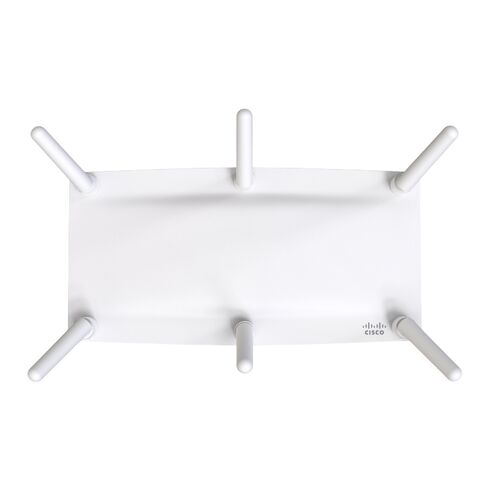

Meraki MR46E-HW Wireless Access Point

General Information

• Manufacturer: Meraki
• Model Number: MR46E-HW
• Type: Wireless Access Point

Device Type and Form Factor

• Form Factor: External
• Connectivity Technology: Wireless

Technical Features

• Line Coding Format: 1024 QAM, Orthogonal Frequency Division Multiple Access (OFDMA)
• Data Link Protocol: IEEE 802.11b, 802.11a, 802.11g, 802.11n, 802.11ac Wave 2, 802.11ax
• Spread Spectrum Method: OFDMA
• Network/Transport Protocol: IPSec
• Cloud-Managed: Yes
• Frequency Bands: 2.4 GHz and 5 GHz
• Status Indicators: Power, Boot State, Status

Advanced Features

• Firewall Protection: Yes
• VPN Support: Yes
• Firmware Upgradable: Yes
• Wireless Intrusion Detection System (WIDS): Yes
• Wi-Fi Multimedia (WMM) Support: Yes
• Quality of Service (QoS): Yes
• Maximum Ratio Combining (MRC): Yes
• Wireless Intrusion Prevention System (WIPS): Yes
• DiffServ Code Point (DSCP) Support: Yes
• Multi-User MIMO (MU-MIMO) Technology: Yes
• Bluetooth Low Energy Beaconing: Yes
• Unscheduled Automatic Power Save Delivery (U-APSD): Yes
• Single-User MIMO (SU-MIMO) Technology: Yes
• Opportunistic Key Caching (OKC): Yes
• 4×4:4 MU-MIMO Technology: Yes
• Packet Aggregation: Yes
• Security Slot: Kensington Security Lock Compatible
• Target Wait Time (TWT): Yes

Encryption and Authentication

• Encryption Algorithms: AES, TLS, TTLS, TKIP, WPA, WPA2-PSK, WPA2-Enterprise, WEP, EAP-SIM, WPA3-Enterprise, WPA3-Personal, WPA3-Enhanced Open
• Authentication Methods: MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-SIM

Compliance and Standards

• Compliant Standards: IEEE 802.1Q, IEEE 802.1P, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1X, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11r, IEEE 802.11u, IEEE 802.11ac Wave 2, IEEE 802.11ax

Antenna and Connectivity

• Antenna Type: External
• Interfaces: 1 x 1/2.5GBase-T (PoE+) – RJ-45

Features

Cloud-Managed

The Meraki MR46E-HW Wireless Access Point offers a revolutionary cloud-managed solution that simplifies network management and provides unparalleled visibility and control. With cloud management, users can easily deploy, configure, and manage their wireless networks from a centralized dashboard accessible anywhere, anytime. This feature eliminates the need for on-site controllers and enables businesses to scale their networks effortlessly.

Benefits of Cloud-Managed

1. Simplified Network Management

The cloud-managed feature of the Meraki MR46E-HW Wireless Access Point simplifies network management by providing a single pane of glass to monitor and control the entire wireless infrastructure. Users can easily configure network policies, troubleshoot issues, and perform firmware updates remotely, saving time and effort.

2. Enhanced Visibility and Control

With cloud management, administrators gain real-time visibility into their networks, allowing them to monitor performance metrics, track user behavior, and identify potential bottlenecks or security threats. This level of visibility enables proactive network management and quick resolution of issues, leading to improved network performance and user experience.

3. Scalability and Flexibility

Cloud-managed networks are highly scalable and flexible, making them ideal for businesses of all sizes. The Meraki MR46E-HW Wireless Access Point allows organizations to easily add or remove access points as their needs change without any additional hardware or complex configurations. This flexibility ensures that the network can grow with the business without incurring significant costs or disruptions.

4. Centralized Network Security

By leveraging cloud management, administrators can enforce consistent security policies across their wireless networks effortlessly. They can implement granular access controls, monitor and block suspicious activities, and receive alerts for potential security breaches. This centralized approach to network security ensures that all access points are protected, minimizing the risk of unauthorized access or data breaches.

Wi-Fi 6

The Meraki MR46E-HW Wireless Access Point features the latest Wi-Fi 6 technology, delivering faster speeds, increased capacity, and improved performance compared to previous generations. Wi-Fi 6, also known as 802.11ax, is designed to meet the growing demands of today's bandwidth-intensive applications and devices.

Benefits of Wi-Fi 6

1. Faster Speeds

With Wi-Fi 6, users can experience significantly faster speeds compared to older Wi-Fi standards. This is achieved through technologies like Orthogonal Frequency Division Multiple Access (OFDMA) and multi-user MIMO (MU-MIMO), which enable the access point to simultaneously serve multiple devices with higher efficiency. Whether it's streaming high-definition videos or transferring large files, Wi-Fi 6 ensures a seamless and lag-free experience.

2. Increased Capacity

Wi-Fi 6 introduces a new feature called Target Wake Time (TWT), which allows devices to schedule their communication with the access point, reducing power consumption and improving overall network capacity. This feature is particularly beneficial in dense environments with numerous connected devices, such as office buildings or stadiums, where it ensures fair and efficient distribution of network resources.

3. Improved Performance in Crowded Areas

One of the key advantages of Wi-Fi 6 is its ability to handle high-density environments with ease. By utilizing technologies like OFDMA and MU-MIMO, the Meraki MR46E-HW Wireless Access Point can deliver a consistent and reliable connection even in crowded areas where multiple devices are competing for bandwidth. This ensures that users can enjoy uninterrupted connectivity and optimal performance, regardless of the number of devices connected to the network.

4. Future-Proofing

Investing in Wi-Fi 6 technology ensures that your network is future-proofed for the next generation of devices and applications. As more devices become Wi-Fi 6 compatible, having an access point that supports this standard guarantees seamless compatibility and optimal performance. By adopting Wi-Fi 6 early, businesses can stay ahead of the curve and provide their users with the best possible wireless experience.

In conclusion, the cloud-managed and Wi-Fi 6 features of the Meraki MR46E-HW Wireless Access Point offer numerous benefits and are crucial for businesses looking to optimize their wireless networks. The cloud management feature simplifies network management, enhances visibility and control, enables scalability, and ensures centralized network security. On the other hand, Wi-Fi 6 provides faster speeds, increased capacity, improved performance in crowded areas, and future-proofing capabilities. By leveraging these features, businesses can create a robust and reliable wireless infrastructure that meets the demands of today's digital world.
