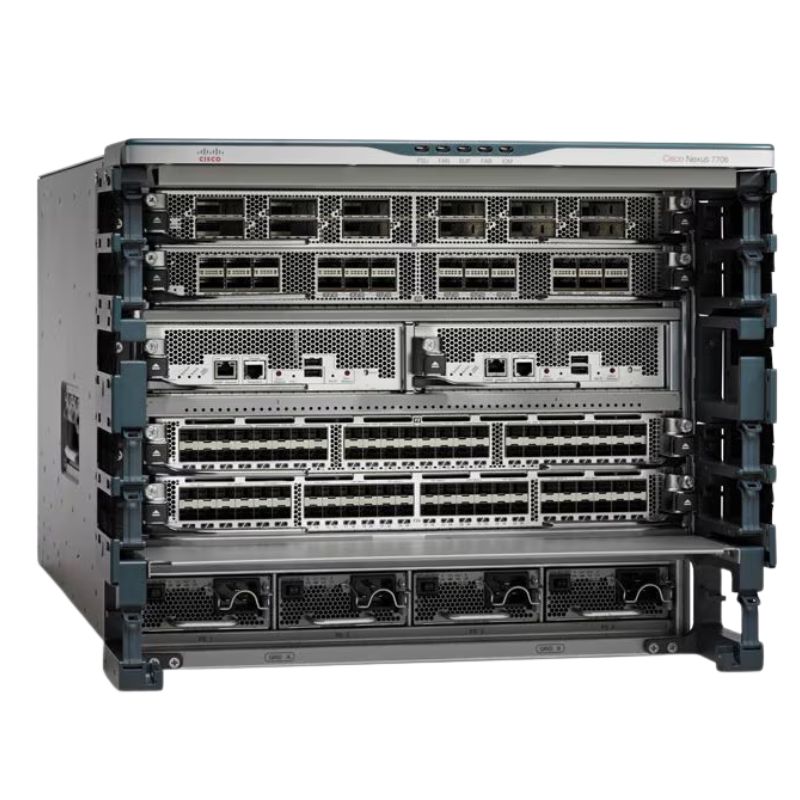

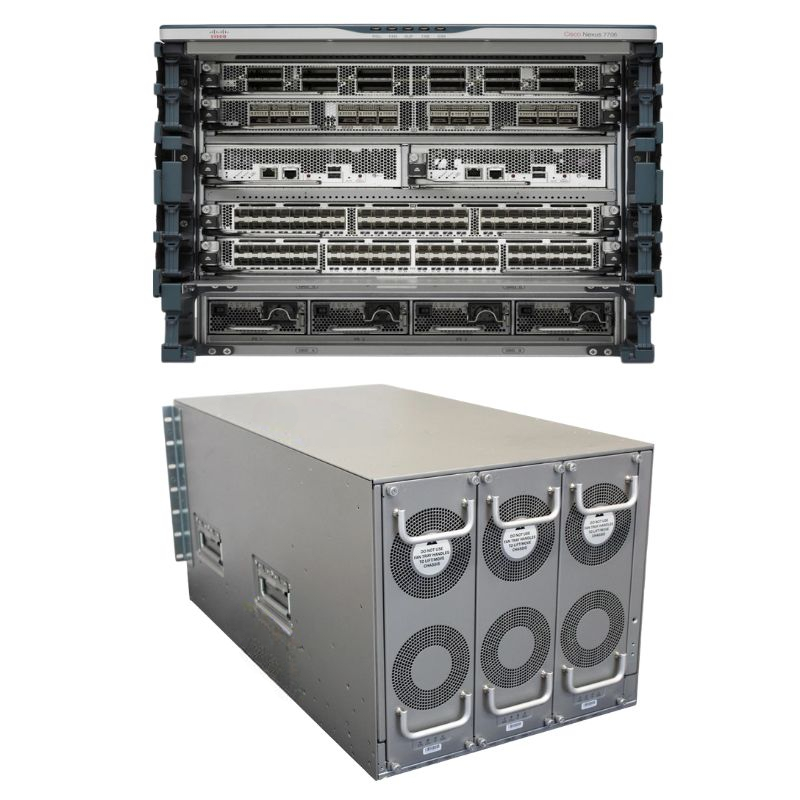

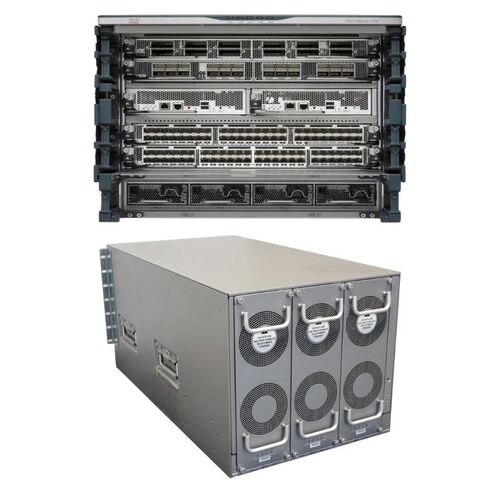

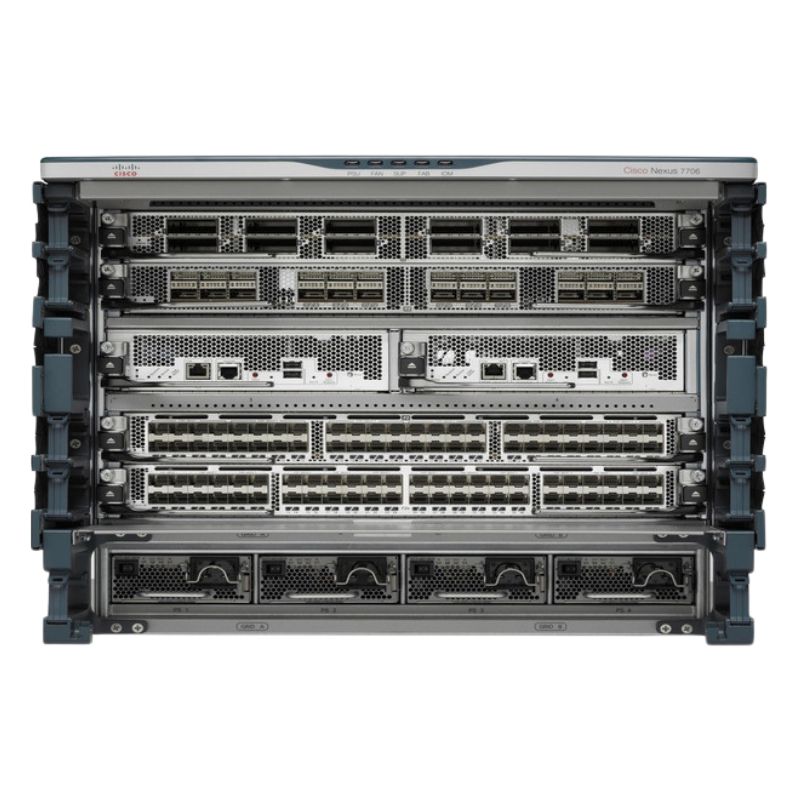

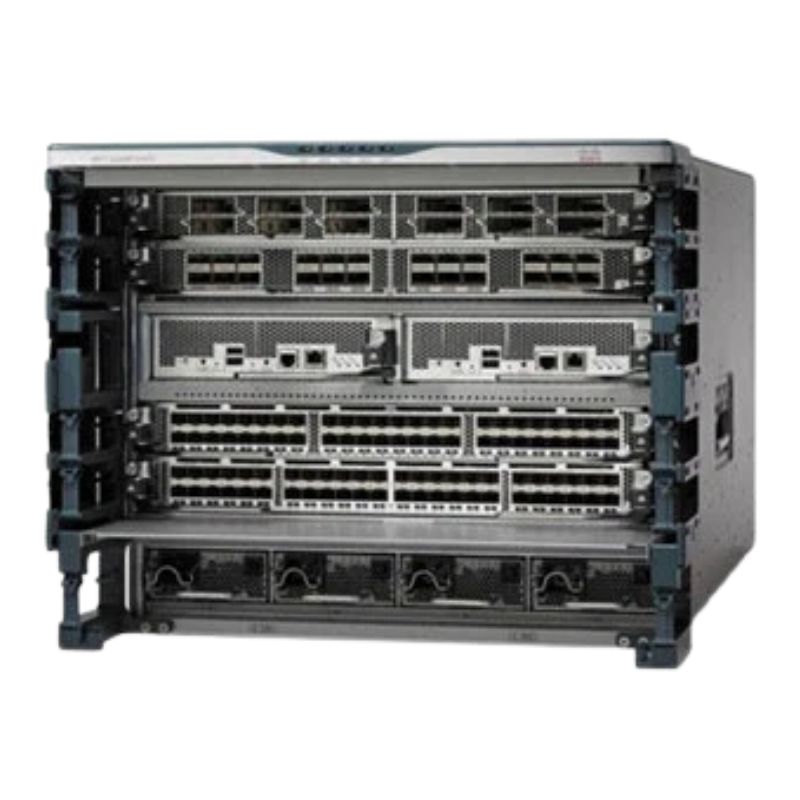

N77-C7706-B23S2E Cisco Nexus 7706 Switch Chassis

Cisco N77-C7706-B23S2E Nexus 7706 Switch Chassis Overview

The Cisco N77-C7706-B23S2E is a high-performance Nexus 7706 switch chassis designed for scalable and reliable network infrastructure. This switch chassis is engineered to meet the demands of enterprise and data center environments, offering robust performance and advanced networking features.

Manufacturer and Product Details

• Manufacturer: Cisco
• Part Number/SKU: N77-C7706-B23S2E
• Product Type: Network Switch
• Sub-Type: Chassis

Technical Specifications

Product Line and Series

• Product Line: Nexus
• Series: 7000
• Model: 7706

Type and Performance

• Chassis Type: Switch Chassis
• Ethernet Technology: 100 Gigabit Ethernet
• Network Standard: 1000Base-X

Expansion Capabilities

• Total Expansion Slots: 6
• Slot Type: Switch Fabric

Networking and Management Features

• Supported Layer: Layer 2
• Manageable: Yes, fully manageable for network optimization

Power and Reliability

• Power Source: Standard Power Supply
• Redundant Power Supply: Supported for enhanced reliability

Key Advantages of Cisco N77-C7706-B23S2E

• High-performance switch chassis suitable for enterprise-grade networks.
• Flexible expansion with multiple switch fabric slots.
• Supports advanced Layer 2 network management and monitoring.
• Redundant power supply ensures uninterrupted operation.
• Optimized for 100 Gigabit Ethernet and 1000Base-X network technology.

Cisco Nexus 7700 Series Modular Switch Chassis

The Cisco N77-C7706-B23S2E Nexus 7706 Switch Chassis belongs to the high-performance Cisco Nexus 7700 Series, a family of modular data center core and aggregation switches designed to support large-scale enterprise, service provider, and cloud environments. This category of modular switch chassis is engineered to deliver extreme scalability, continuous system operation, and predictable performance for mission-critical network infrastructures. The Nexus 7706 chassis form factor provides a balanced combination of slot density, power efficiency, and physical footprint, making it suitable for medium to large data centers that require robust Layer 2 and Layer 3 switching capabilities with advanced programmability and automation.

Within the Nexus 7700 family, the 7706 chassis occupies a strategic position by offering six front-facing slots that can be populated with a wide range of line cards and fabric modules. This modularity allows organizations to tailor network architectures to specific bandwidth, port density, and feature requirements while maintaining investment protection as technologies evolve. The Cisco N77-C7706-B23S2E variant is commonly deployed as a core switch, aggregation switch, or high-capacity spine in leaf-spine topologies, supporting modern workloads such as virtualization, containerized applications, big data analytics, and AI-driven services.

Chassis Architecture and Modular Design

The Cisco Nexus 7706 switch chassis category is built around a fully modular architecture that separates the control plane, data plane, and fabric plane. This separation enhances system resilience and allows independent scaling of forwarding capacity and control intelligence. The chassis supports redundant supervisor modules, fabric modules, power supplies, and cooling units, ensuring that no single point of failure can disrupt network operations.

The six-slot chassis design supports multiple combinations of line cards and fabric modules, enabling flexible configurations optimized for either port density or throughput. The internal midplane is engineered for high-speed connectivity between line cards and fabric modules, supporting non-blocking switching performance across all ports. This design ensures consistent low-latency forwarding even under heavy traffic loads, which is essential for latency-sensitive applications such as real-time analytics and high-frequency trading systems.

High-Speed Backplane and Fabric Capacity

At the core of the Nexus 7706 chassis category is a high-capacity switching fabric capable of supporting terabit-scale throughput. The backplane is designed to accommodate multiple generations of fabric modules, allowing customers to upgrade fabric capacity without replacing the entire chassis. This approach significantly extends the operational lifespan of the switch and reduces total cost of ownership over time.

The switching fabric architecture ensures predictable performance by providing dedicated bandwidth between every line card and the fabric modules. This results in a non-blocking architecture where all ports can operate at line rate simultaneously. For data center environments handling east-west traffic patterns, this capability is critical to maintaining application performance and avoiding bottlenecks.

Line Card Flexibility and Port Density Options

The Cisco Nexus 7706 switch chassis category supports a broad portfolio of line cards, including options for 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet, and 100 Gigabit Ethernet connectivity. This versatility allows organizations to deploy mixed-speed environments within a single chassis, accommodating legacy systems while enabling seamless migration to higher-speed interfaces.

Line cards are available in both fixed and breakout port configurations, supporting a wide range of transceiver types and cabling options. This flexibility simplifies network design and enables efficient use of rack space and cabling infrastructure. High-density line cards are particularly valuable in data centers where space optimization and power efficiency are top priorities.

Support for Advanced Ethernet Standards

The Nexus 7706 chassis category is designed to support advanced Ethernet standards and features required for modern data center networks. This includes support for jumbo frames, lossless Ethernet, and congestion management mechanisms that are essential for storage traffic and converged networks. The ability to handle diverse traffic types within a single switching platform simplifies network architecture and reduces operational complexity.

By supporting multiple generations of Ethernet technology, the Cisco Nexus 7706 category enables organizations to future-proof their network investments. As application bandwidth requirements continue to grow, the chassis can be upgraded with newer line cards to meet evolving demands without disrupting existing services.

Supervisor Modules and Control Plane Capabilities

The supervisor modules used in the Cisco Nexus 7706 switch chassis category provide the intelligence that governs system operation, management, and control plane functions. These modules are responsible for running Cisco NX-OS software, managing routing protocols, handling system monitoring, and coordinating communication between line cards and fabric modules.

Redundant supervisor modules can be installed to ensure high availability and stateful failover. In the event of a supervisor failure, the standby module can take over control plane responsibilities with minimal disruption, preserving forwarding state and maintaining network stability. This capability is essential for environments where downtime is unacceptable.

NX-OS Software Integration

The Nexus 7706 chassis category runs Cisco NX-OS, a data center–optimized operating system designed for scalability, resilience, and automation. NX-OS provides a rich set of Layer 2 and Layer 3 features, including advanced routing protocols, multicast support, and policy-based forwarding. The modular architecture of NX-OS aligns with the hardware modularity of the chassis, enabling efficient resource utilization and rapid feature deployment.

Automation and programmability are key aspects of NX-OS, with support for APIs, scripting, and integration with orchestration platforms. This allows network operators to implement DevOps-style workflows, reduce manual configuration errors, and accelerate service provisioning across large-scale environments.

High Availability and Redundancy Features

High availability is a defining characteristic of the Cisco Nexus 7706 switch chassis category. Every critical component within the chassis is designed with redundancy in mind, including supervisors, fabric modules, power supplies, and cooling systems. This ensures continuous operation even during hardware maintenance or unexpected component failures.

The chassis supports online insertion and removal of most components, allowing upgrades and replacements to be performed without taking the system offline. This capability is particularly valuable in 24/7 data center environments where maintenance windows are limited and service continuity is paramount.

Power Supply and Cooling Architecture

The power subsystem of the Nexus 7706 chassis category is engineered for efficiency and scalability. Multiple high-capacity power supplies can be installed to provide sufficient power for fully populated configurations while maintaining redundancy. The system supports various power supply ratings to accommodate different deployment scenarios and power availability constraints.

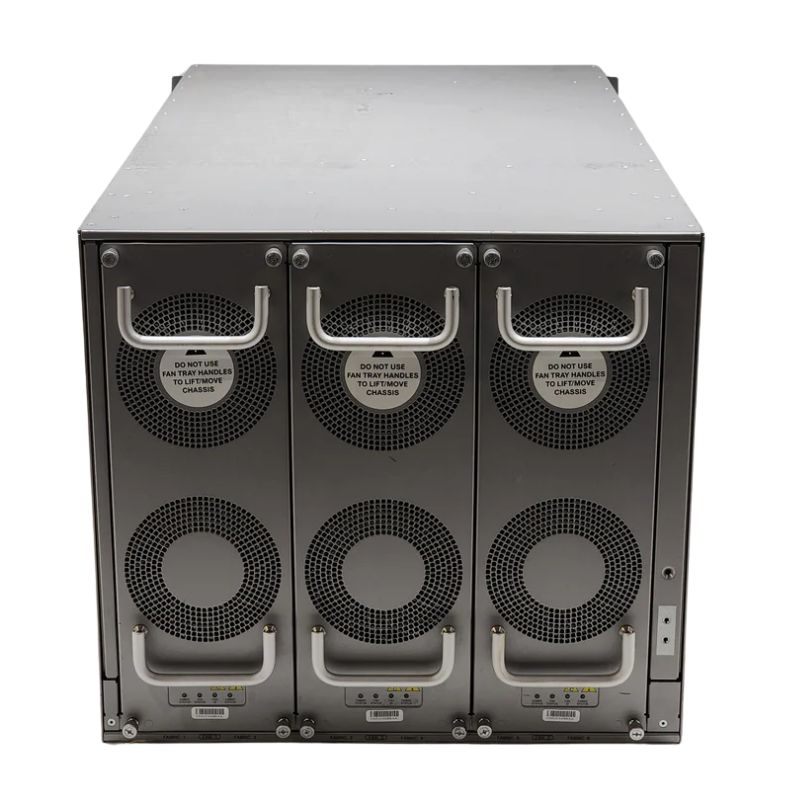

Cooling is managed through a combination of high-efficiency fans and intelligent airflow design. The chassis supports front-to-back airflow, which aligns with standard data center cooling practices and simplifies rack integration. Advanced thermal monitoring ensures that the system operates within safe temperature ranges, protecting hardware components and extending their lifespan.

Scalability for Enterprise and Service Provider Networks

The Cisco Nexus 7706 switch chassis category is designed to scale with the growing demands of enterprise and service provider networks. Its modular nature allows incremental expansion of port density and throughput as requirements evolve. This scalability makes the 7706 chassis suitable for both current deployments and future growth scenarios.

In service provider environments, the chassis can be used to aggregate traffic from multiple access networks, support large routing tables, and handle high volumes of multicast and unicast traffic. For enterprise data centers, it provides a robust foundation for core and aggregation layers, supporting virtualization, private cloud, and hybrid cloud architectures.

Support for Virtualization and Cloud Workloads

The Nexus 7706 category is optimized for environments with high levels of virtualization and dynamic workloads. Features such as virtual device contexts, virtual routing and forwarding instances, and network segmentation enable efficient multi-tenant designs. These capabilities are essential for cloud service providers and enterprises operating shared infrastructure.

By integrating seamlessly with virtualization platforms and cloud management tools, the Cisco Nexus 7706 chassis helps organizations achieve greater agility and operational efficiency. Network resources can be allocated dynamically to meet application demands, improving overall utilization and performance.

Security and Network Segmentation Capabilities

Security is a critical consideration in modern data center networks, and the Cisco Nexus 7706 switch chassis category incorporates a wide range of features to protect data and infrastructure. Hardware-based access control lists, secure routing protocols, and control plane protection mechanisms help defend against unauthorized access and network attacks.

Network segmentation capabilities allow administrators to isolate traffic between different applications, tenants, or business units. This reduces the risk of lateral movement in the event of a security breach and supports compliance with regulatory requirements.

Integration with Data Center Security Architectures

The Nexus 7706 category can be integrated with broader data center security solutions, including firewalls, intrusion detection systems, and analytics platforms. This integration enables centralized visibility and policy enforcement across the network, enhancing overall security posture.

By leveraging both hardware and software-based security mechanisms, the Cisco Nexus 7706 switch chassis provides a comprehensive approach to data center network protection without compromising performance.

Operational Efficiency and Lifecycle Value

From an operational perspective, the Cisco Nexus 7706 switch chassis category is designed to reduce complexity and improve manageability. Centralized management interfaces, comprehensive monitoring tools, and automation support simplify day-to-day operations and troubleshooting.

The long lifecycle and backward compatibility of the Nexus 7700 Series ensure that investments in the 7706 chassis continue to deliver value over time. Organizations can adopt new technologies incrementally, aligning network upgrades with business priorities and budget cycles.

Total Cost of Ownership Considerations

While the Nexus 7706 chassis represents a high-end modular switching platform, its design helps optimize total cost of ownership by minimizing downtime, reducing the need for frequent hardware replacements, and enabling efficient use of power and cooling resources. The ability to scale within the same chassis reduces capital expenditures associated with deploying additional switches as network demands grow.

For organizations seeking a reliable, scalable, and future-ready data center switching platform, the Cisco N77-C7706-B23S2E Nexus 7706 Switch Chassis category stands out as a proven solution that combines performance, resilience, and operational flexibility.
