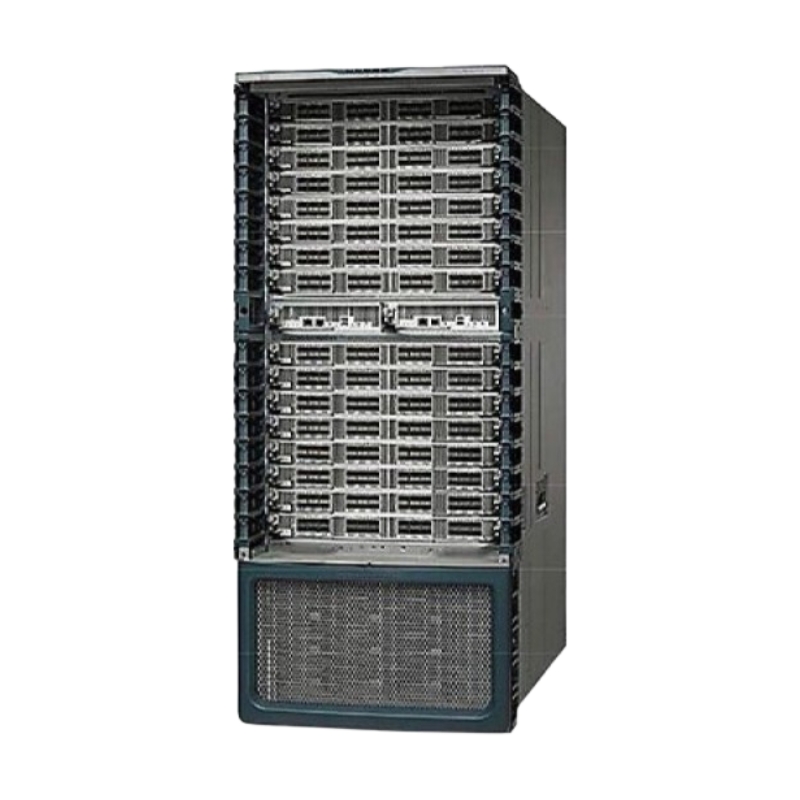

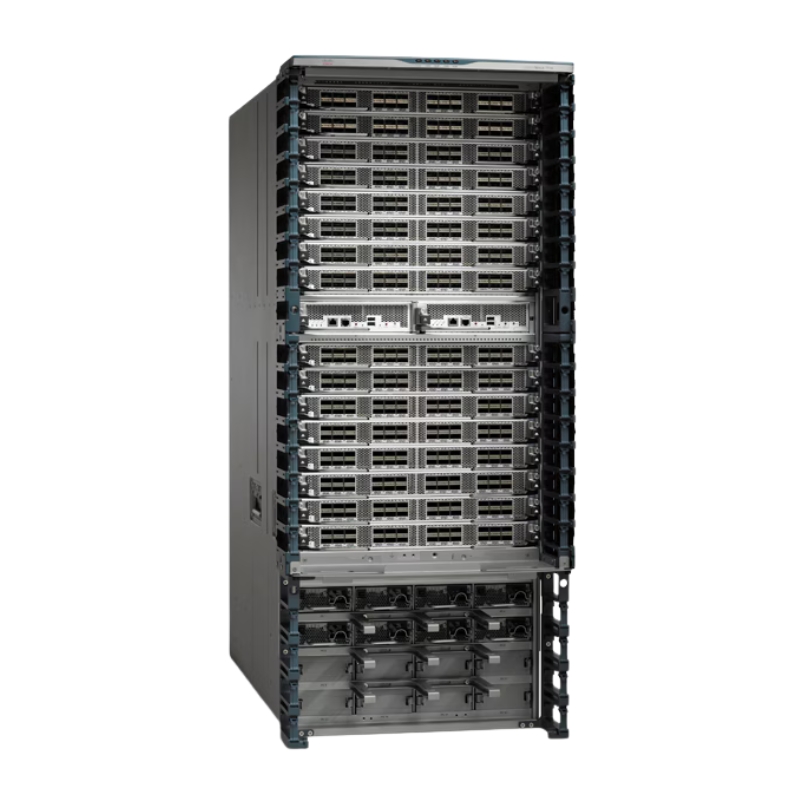

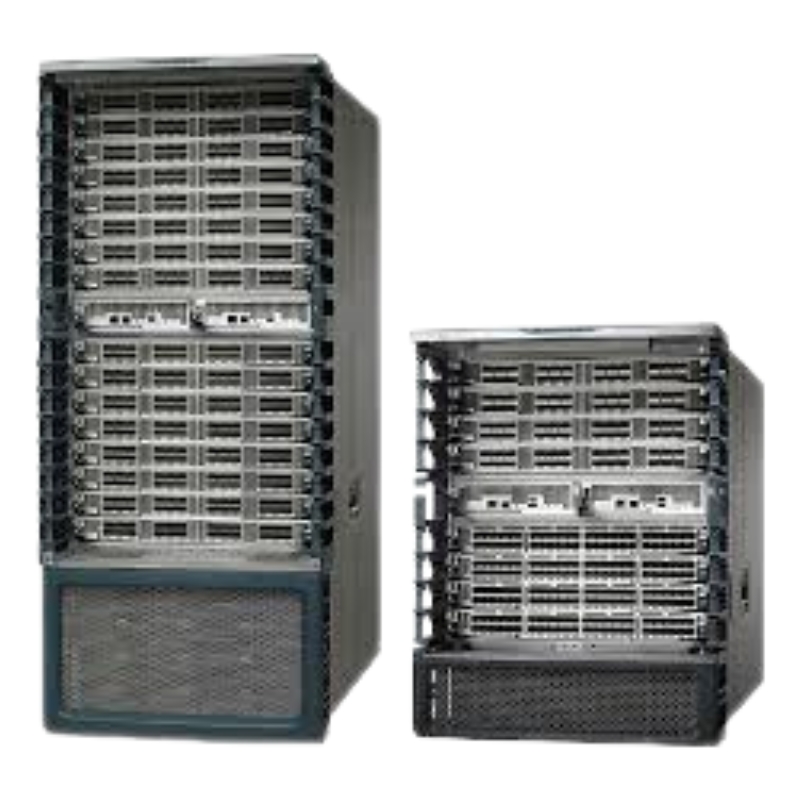

N7K-C7018-FD-MB Cisco Front Door Kit

Cisco N7K-C7018-FD-MB Front Door Kit Overview

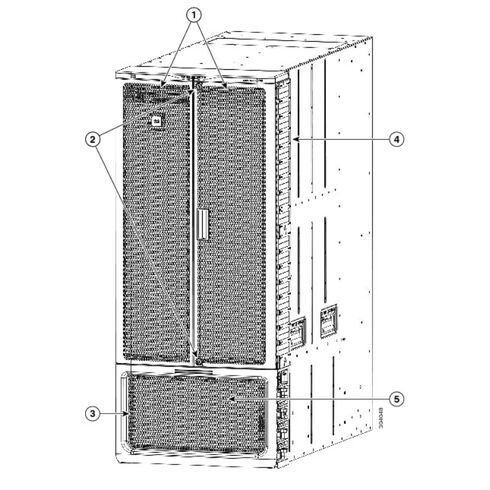

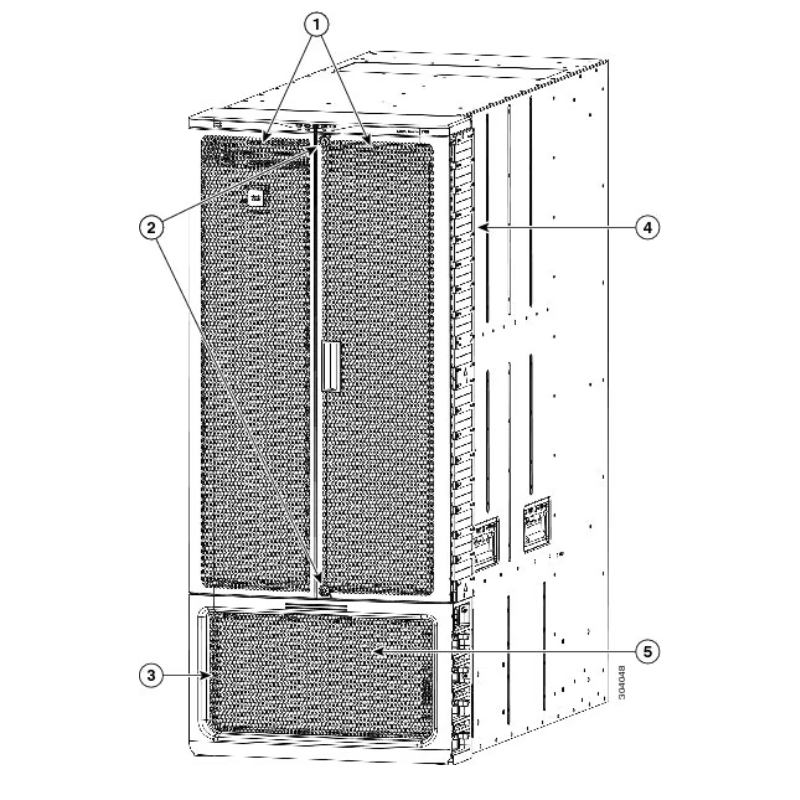

The Cisco N7K-C7018-FD-MB Front Door Kit is a specialized accessory designed for the Cisco Nexus 7018 chassis. This component enhances the physical protection, airflow management, and professional appearance of the system. As part of the Cisco Nexus 7000 Series, the front door kit plays a crucial role in maintaining operational efficiency and ensuring compliance with data center standards. Its robust construction and compatibility with multiple chassis revisions make it an essential accessory for enterprises seeking reliability and durability.

Material and Build Quality

The Cisco N7K-C7018-FD-MB Front Door Kit is manufactured using high-grade metal, ensuring long-term durability and resistance to wear. The gray finish provides a professional look that aligns with modern data center aesthetics. The design emphasizes rigidity and stability, allowing the door to withstand frequent usage without compromising its structural integrity.

Dimensions and Specifications

The front door kit is engineered to match the dimensions of the Cisco Nexus 7018 chassis. With a height of approximately 84.3 inches and a width of 17.5 inches, it seamlessly integrates into the rack-mounted environment. The passive cooling design ensures that airflow is maintained without requiring additional power, supporting the overall efficiency of the chassis.

Enhanced Security

One of the primary functions of the Cisco N7K-C7018-FD-MB Front Door Kit is to provide physical security. By covering the front of the chassis, it prevents unauthorized access to critical components such as line cards, supervisor modules, and fabric modules. This added layer of protection is vital in environments where multiple personnel have access to the data center.

Airflow Management

The front door kit is designed to optimize airflow across the chassis. By guiding air through the intended paths, it helps maintain proper cooling efficiency. This ensures that the internal components operate within safe temperature ranges, reducing the risk of overheating and extending the lifespan of the hardware.

Professional Appearance

Beyond functionality, the Cisco N7K-C7018-FD-MB Front Door Kit enhances the visual appeal of the chassis. Its sleek design provides a polished look that aligns with enterprise-grade infrastructure. This professional appearance is particularly important in customer-facing data centers where aesthetics contribute to the perception of reliability and organization.

Supported Chassis

The Cisco N7K-C7018-FD-MB Front Door Kit is fully compatible with the Cisco Nexus 7018 chassis. It supports all revisions of the chassis that utilize the original Cisco front door assembly. This ensures seamless integration regardless of the specific configuration of the system.

Supervisor and Module Compatibility

The front door kit is compatible with systems using Supervisor 1, Supervisor 2, and Supervisor 2E. It does not interfere with the installation or operation of line cards, fabric modules, fan trays, or power supplies, as it functions solely as a chassis accessory. This broad compatibility makes it a versatile solution for diverse system configurations.

Non-Compatible Models

While the Cisco N7K-C7018-FD-MB Front Door Kit is designed for the Nexus 7018 chassis, it is not compatible with other models such as the Cisco Nexus 7004, Nexus 7009, or Nexus 7010. Additionally, it does not support the Cisco Nexus 7700 Series chassis. This distinction ensures that users select the correct accessory for their specific system.

Rack-Mounted Integration

The Cisco N7K-C7018-FD-MB Front Door Kit is designed for rack-mounted installation. It attaches securely to the front of the chassis, providing stability and ease of use. The installation process is straightforward, requiring minimal tools and effort, which reduces downtime during setup.

Screw-Mounted Options

Depending on the chassis revision, the front door kit can be installed using either a tool-less mechanism or simple screw-mounted installation. This flexibility ensures that users can adapt the installation process to their specific environment. The inclusion of mounting hardware further simplifies the setup.

Maintenance and Care

Maintaining the Cisco N7K-C7018-FD-MB Front Door Kit involves periodic cleaning to ensure optimal airflow. The metal construction allows for easy cleaning without risk of damage. Regular inspection ensures that the door remains securely attached and continues to provide the intended protection and airflow management.

Cooling Optimization

The passive cooling design of the Cisco N7K-C7018-FD-MB Front Door Kit ensures that airflow is directed appropriately across the chassis. This design eliminates the need for additional power consumption, contributing to energy efficiency. By maintaining proper airflow, the kit supports the overall cooling strategy of the data center.

Reliability and Longevity

The robust construction and compatibility of the front door kit contribute to the long-term reliability of the Cisco Nexus 7018 chassis. By protecting critical components and maintaining airflow, the kit reduces the risk of hardware failure. This reliability translates into reduced maintenance costs and improved system uptime.

RoHS Compliance

The Cisco N7K-C7018-FD-MB Front Door Kit is RoHS compliant, ensuring that it meets international standards for environmental safety. This compliance reflects Cisco’s commitment to sustainability and responsible manufacturing practices. Enterprises can deploy the kit with confidence, knowing that it aligns with global regulations.

Data Center Standards

The front door kit is designed to meet the rigorous standards of modern data centers. Its construction, compatibility, and functionality align with industry requirements for security, airflow management, and professional appearance. This adherence to standards ensures that the kit integrates seamlessly into enterprise environments.

Enterprise Data Centers

In large-scale enterprise data centers, the Cisco N7K-C7018-FD-MB Front Door Kit provides essential protection and airflow management. Its compatibility with diverse configurations makes it suitable for complex environments where reliability and efficiency are paramount.

Telecommunications Infrastructure

Telecommunications providers rely on the Cisco Nexus 7018 chassis for high-performance networking. The front door kit enhances the security and cooling efficiency of these systems, supporting uninterrupted service delivery. Its robust design ensures that it can withstand the demands of telecommunications environments.

Cloud Service Providers

Cloud service providers require infrastructure that is both reliable and visually professional. The Cisco N7K-C7018-FD-MB Front Door Kit meets these requirements by protecting critical components, optimizing airflow, and enhancing the appearance of the chassis. This makes it a valuable accessory for cloud environments.
