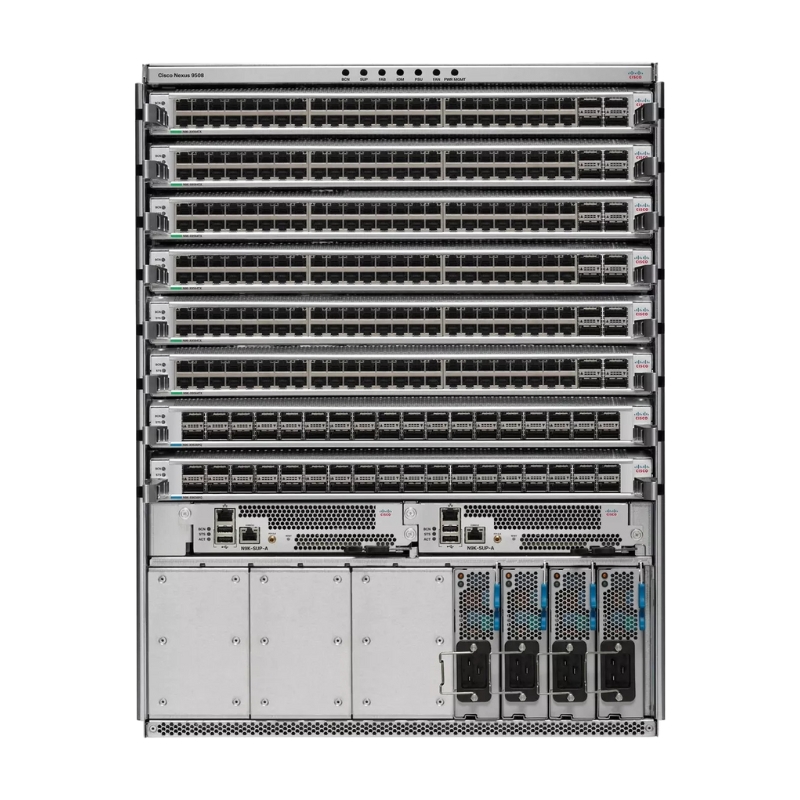

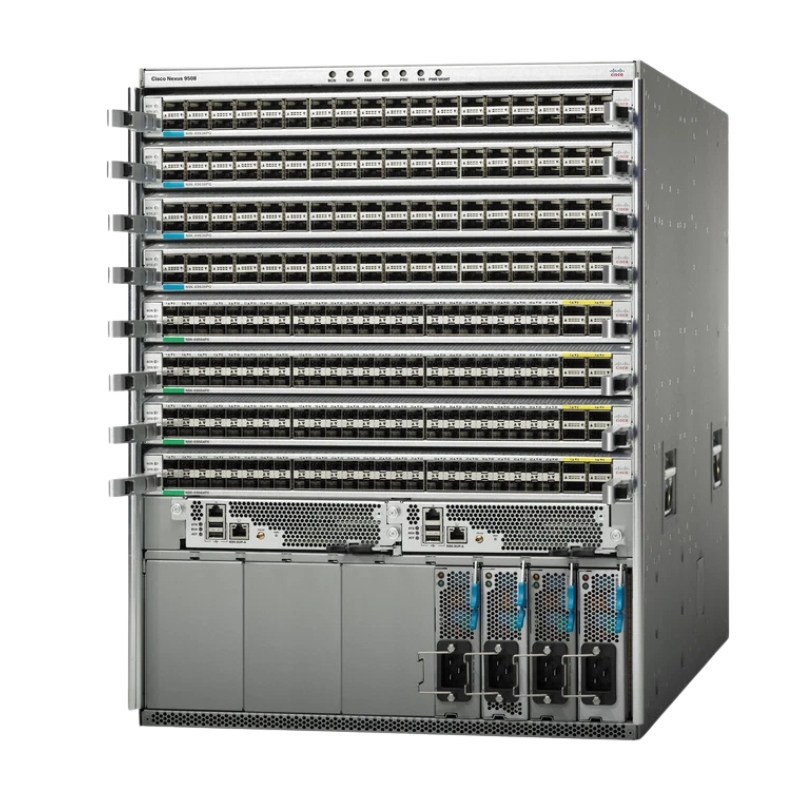

N9K-C9508 Cisco Nexus 9508 Chassis Fabric Switch

Number Of Ports

The Cisco N9K-C9508 Chassis Fabric Switch is equipped with an impressive number of ports, offering users up to 2304 ports. This feature provides businesses and organizations with exceptional scalability and flexibility for their networking needs. Whether you are a small business looking to expand or a large enterprise managing a complex network infrastructure, the abundance of ports ensures that you have enough connectivity options to support your operations.

Overview of Cisco Nexus 9508 Chassis

• Manufacturer: Cisco Systems, Inc.
• Manufacturer Part Number: N9K-C9508
• Brand: Cisco

Product Details of Chassis

• Product Line: Nexus
• Series: 9000
• Model: 9508
• Designation: Nexus 9508 Chassis with 8 Linecard Slots
• Type: Layer 3 Switch

Connectivity and Expansion

• Token Ring Port: Not Available
• LRE Port: Not Available
• Uplink Port: Not Available
• Bypass: Not Supported
• Modular Design: No
• Management Port: Present
• USB Ports: Available

Expansion Capabilities

• Total Expansion Slots: 16
• Types of Expansion Slots: Supervisor Engine, Switch Fabric
• Line Card

Network Features and Protocols

• Layer Supported: Layer 3
• Manageable: Yes

Protocols and Management

• VLAN Management: Supported
• RMON: Yes
• SNMP Versions: v1, v2, v3
• Syslog: Yes
• Telnet: Supported

Power Specifications

• PoE (RJ-45) Ports: Not Available
• Input Voltage Options: 110 V AC, 220 V AC
• Power Source: Power Supply
• Redundant Power Supply: Supported

Scalability

One of the key benefits of the N9K-C9508's vast number of ports is its scalability. With up to 2304 ports available, users can easily accommodate the growing demands of their network infrastructure. As businesses expand and add more devices, having a switch with a sufficient number of ports allows for seamless integration without the need for additional hardware investments. This scalability ensures that your network can keep up with your organization's growth and evolving requirements.

Flexibility

The flexibility provided by the large number of ports on the N9K-C9508 is invaluable for organizations with diverse networking needs. Different devices and applications require different types of connections, and having a switch with numerous ports allows for various connectivity options. Whether you need to connect servers, storage devices, or user endpoints, the ample number of ports ensures that you can easily accommodate different network requirements.

Reduced Network Congestion

Another advantage of having a substantial number of ports is the reduced risk of network congestion. With more ports available, network traffic can be distributed more evenly across the switch, preventing bottlenecks and ensuring smooth data transmission. This is particularly important in environments where high data volumes are exchanged continuously, such as data centers or organizations that heavily rely on real-time communication and data transfer.

Improved Network Performance

The abundance of ports on the N9K-C9508 contributes to improved network performance. With more ports available, you can create separate VLANs and subnets, effectively segmenting your network. This segmentation helps optimize network traffic, improve security, and enhance overall performance. By separating devices and applications into different VLANs, you can prioritize critical traffic, isolate potential security threats, and manage bandwidth allocation more efficiently.

Enhanced Network Security

Having a large number of ports allows for better network security implementation. You can designate specific ports for secure connections, such as VPN tunnels or connections to trusted devices while isolating untrusted devices or segments on separate ports. This segregation helps minimize the risk of unauthorized access or data breaches. Additionally, the N9K-C9508's advanced security features, combined with its extensive port availability, provide administrators with greater control over their network security policies.

Improved Network Management

Managing a network with numerous devices can be challenging without the appropriate tools. The N9K-C9508's extensive port availability simplifies network management by enabling administrators to assign specific ports to different departments or devices. This organization makes it easier to troubleshoot connectivity issues, monitor traffic patterns, and apply necessary configurations. With clear port assignments, administrators can streamline network management tasks and ensure optimal network performance.

Future-Proofing

Investing in a switch with a large number of ports like the N9K-C9508 ensures future-proofing your network infrastructure. As technology continues to advance and businesses rely on more connected devices, having sufficient port availability becomes crucial. By choosing a switch with an abundance of ports now, you can avoid costly upgrades or replacements in the future when your network demands increase.

Overall, the N9K-C9508's up to 2304 ports deliver exceptional scalability, flexibility, reduced congestion, improved performance, enhanced security, simplified management, and future-proofing capabilities for your network infrastructure.

Power Supply

The power supply feature of the Cisco N9K-C9508 Chassis Fabric Switch is designed to provide reliable and uninterrupted power to ensure the smooth operation of your network infrastructure. With redundant power supplies, this switch offers enhanced resilience and safeguards against power failures, minimizing downtime and maximizing productivity.

Redundancy

One of the primary benefits of having redundant power supplies is increased reliability. The N9K-C9508 is equipped with multiple power supplies, allowing for automatic failover in the event of a power supply failure. This redundancy ensures that your network remains operational even if one power supply malfunctions. By eliminating single points of failure, you can minimize downtime and maintain uninterrupted network connectivity.

Business Continuity

The redundant power supply feature plays a vital role in ensuring business continuity. Power outages can disrupt operations and result in significant financial losses. By investing in a switch with redundant power supplies, such as the N9K-C9508, you can mitigate the risks associated with power failures. The automatic failover capability of the redundant power supplies ensures that your network remains up and running, allowing your organization to continue its critical operations without interruption.

Increased Uptime

Uptime is a crucial factor for businesses that rely heavily on their network infrastructure. Downtime can disrupt workflows, hinder productivity, and damage customer trust. With redundant power supplies, the N9K-C9508 helps maximize uptime by reducing the impact of power-related issues. In the event of a power supply failure, the switch seamlessly switches to the backup power supply, minimizing downtime and ensuring that your network remains operational.

Uninterrupted Data Transmission

Uninterrupted data transmission is essential for organizations that handle real-time applications or time-sensitive data. The redundant power supplies in the N9K-C9508 provide uninterrupted power to critical network components, such as switches, routers, and servers. This continuous power supply ensures that data transmission remains uninterrupted, allowing for seamless communication, data transfer, and collaboration.

Protection Against Power Surges

Power surges can cause significant damage to network equipment and disrupt operations. The redundant power supplies in the N9K-C9508 offer protection against power surges by regulating the incoming power and providing a stable power source to connected devices. This protection helps extend the lifespan of your network equipment and reduces the risk of costly repairs or replacements.

Ease of Maintenance

The redundant power supplies in the N9K-C9508 also simplify maintenance tasks. When one power supply needs maintenance or replacement, you can perform the necessary tasks without interrupting network operations. The remaining power supply continues to provide power to the switch, ensuring continuous operation during maintenance activities. This feature minimizes downtime and allows for efficient maintenance scheduling.

In conclusion, the redundant power supplies of the Cisco N9K-C9508 Chassis Fabric Switch offer increased reliability, business continuity, improved uptime, uninterrupted data transmission, protection against power surges, and ease of maintenance. By investing in a switch with redundant power supplies, you can ensure the smooth operation of your network infrastructure and minimize downtime.

Switching Capacity

The switching capacity of a network switch is a critical factor that determines its ability to handle network traffic efficiently. The Cisco N9K-C9508 Chassis Fabric Switch boasts an impressive switching capacity of up to 38.4 Tbps, enabling high-performance networking and seamless data transmission.

Fast and Efficient Data Transfer

With a switching capacity of up to 38.4 Tbps, the N9K-C9508 can handle large volumes of data traffic without bottlenecks or congestion. This high-speed data transfer capability ensures that your network can accommodate the demands of bandwidth-intensive applications, such as video streaming, data backups, and cloud services. The switch's ability to handle massive data flows efficiently helps maintain optimal network performance and user experience.

Scalability

Scalability is a crucial aspect of network infrastructure, especially for growing businesses. The N9K-C9508's impressive switching capacity allows for seamless scalability as your network requirements expand. With the ability to handle high data volumes, the switch can accommodate additional devices and users without sacrificing performance. This scalability ensures that your network can grow alongside your organization's needs without requiring significant hardware upgrades or replacements.

Support for Virtualization

Virtualization has become increasingly prevalent in modern network environments. By consolidating multiple physical devices into virtual machines, businesses can optimize resource utilization and simplify management. The high switching capacity of the N9K-C9508 enables efficient support for virtualization technologies, such as VMware or Cisco's own Nexus 1000V. This support allows businesses to maximize the benefits of virtualization by ensuring smooth communication between virtual machines and efficient resource allocation.

Improved Network Efficiency

The N9K-C9508's high switching capacity contributes to improved network efficiency. With the ability to handle large amounts of data traffic simultaneously, the switch minimizes latency and ensures fast communication between devices. This efficiency translates into improved user experience, reduced response times, and increased productivity. Whether it's transferring large files or accessing cloud-based applications, the high switching capacity ensures smooth and uninterrupted data flow.

Future-Proofing

Investing in a switch with a high switching capacity like the N9K-C9508 is a future-proofing strategy for your network infrastructure. As technology advances and network requirements continue to grow, having a switch that can handle increasing data volumes becomes crucial. By choosing a switch with a high switching capacity, you can avoid the need for costly upgrades or replacements in the future when your network demands exceed the capabilities of your current infrastructure.

Support for Advanced Features

The N9K-C9508's high switching capacity enables support for advanced network features and technologies. This switch is designed to handle complex networking tasks, such as software-defined networking (SDN), network virtualization, or high-density 40G and 100G Ethernet deployments. The ability to support these advanced features ensures that your network infrastructure remains up-to-date and capable of meeting evolving business needs.

In summary, the Cisco N9K-C9508 Chassis Fabric Switch's switching capacity of up to 38.4 Tbps delivers fast and efficient data transfer, scalability, support for virtualization, improved network efficiency, future-proofing capabilities, and support for advanced features. By investing in a switch with high switching capacity, you can optimize your network performance and ensure seamless data transmission.

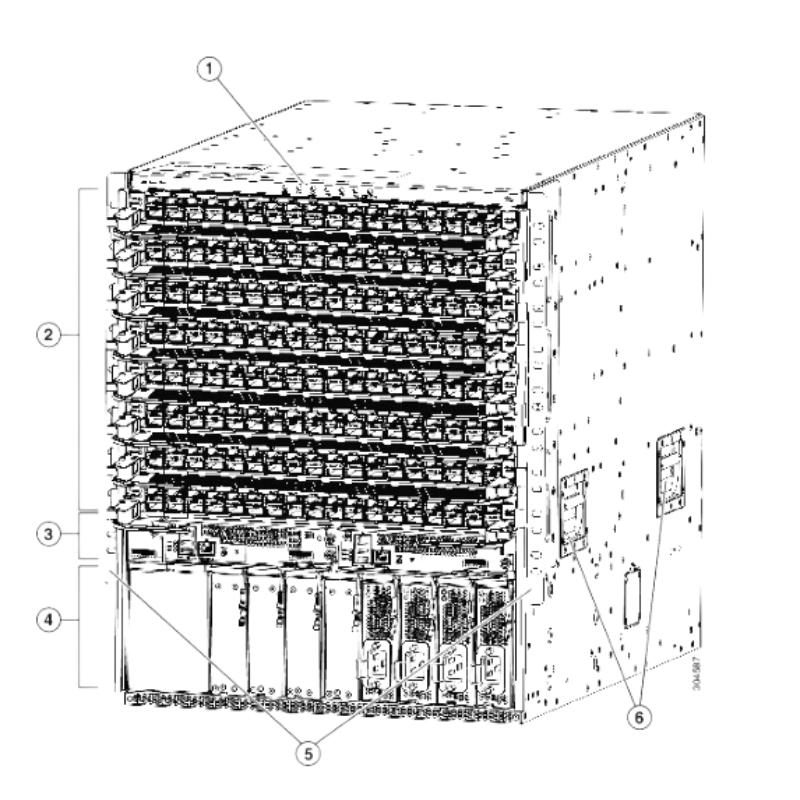

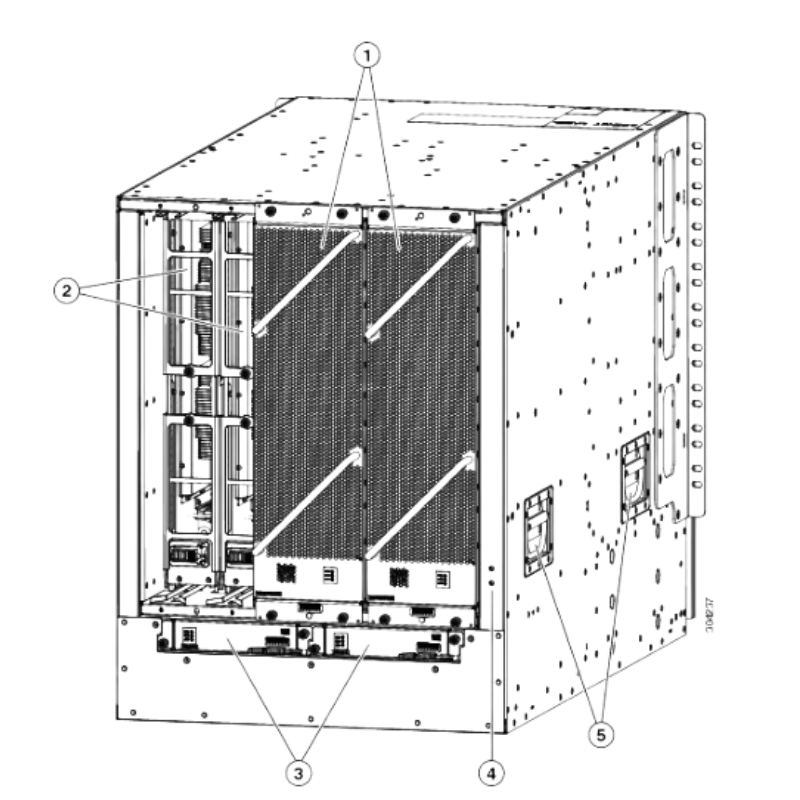

Form Factor

The form factor of a network switch refers to its physical characteristics and design. The Cisco N9K-C9508 Chassis Fabric Switch features an 8-slot chassis, providing users with a compact yet highly capable networking solution.

Space Efficiency

The 8-slot form factor of the N9K-C9508 offers space efficiency without sacrificing performance. This compact design allows businesses to optimize their rack space utilization by accommodating multiple line cards and modules in a single chassis. Whether you have limited rack space or require a scalable solution for your data center, the 8-slot form factor ensures that you can maximize your hardware density while maintaining high performance.

Modularity

The modular design of the N9K-C9508's 8-slot chassis provides flexibility and scalability for your network infrastructure. The switch allows you to install various line cards and modules based on your specific requirements, such as different port densities, interface types, or advanced feature sets. This modularity enables you to customize your switch to meet your unique networking needs, accommodating current and future demands without the need for a complete hardware replacement.

Hot-Swappable Components

The 8-slot chassis of the N9K-C9508 incorporates hot-swappable components, enhancing ease of maintenance and minimizing downtime. Hot-swappable line cards and power supplies allow for component replacement while the switch remains operational. This feature eliminates the need to power down the entire switch or disrupt network connectivity during maintenance activities. The hot-swappable design simplifies hardware upgrades or repairs, improving overall network availability and reducing maintenance costs.

Flexibility in Expansion

The 8-slot form factor of the N9K-C9508 provides flexibility in expanding your network infrastructure. As your organization grows or your networking needs evolve, the switch's modular design allows for seamless expansion by adding additional line cards or modules. This scalability ensures that your network can keep pace with changing demands without requiring significant hardware investments or disruptions in network operations.

High Availability

The 8-slot chassis design also contributes to high availability in your network infrastructure. The N9K-C9508 supports redundant power supplies and fans, protecting against single points of failure. In the event of a component failure, such as a power supply or fan, the redundant counterparts take over automatically, maintaining uninterrupted network operation. The high availability provided by the 8-slot form factor helps minimize downtime and ensures continuous connectivity.

Simplified Cable Management

Cable management is a crucial aspect of maintaining a neat and organized network infrastructure. The 8-slot form factor of the N9K-C9508 simplifies cable management by consolidating multiple line cards and modules into a single chassis. This design reduces cable clutter and makes it easier to manage and trace network connections. Simplified cable management not only improves aesthetics but also facilitates troubleshooting, maintenance, and future expansions.

In conclusion, the 8-slot form factor of the Cisco N9K-C9508 Chassis Fabric Switch offers space efficiency, modularity, hot-swappable components, flexibility in expansion, high availability, and simplified cable management. With this form factor, you can optimize your rack space utilization, customize your switch according to your specific needs, simplify maintenance activities, ensure continuous connectivity, and enhance overall network management.

Management Interface

The management interface of a network switch is crucial for administrators to monitor and configure the device. The Cisco N9K-C9508 Chassis Fabric Switch features 1 RJ-45 management interface, providing a reliable and user-friendly means of managing your network infrastructure.

Convenient Network Management

The RJ-45 management interface of the N9K-C9508 offers a convenient method for administrators to manage their network infrastructure. Administrators can connect their laptops or workstations directly to the switch using an Ethernet cable, providing instant access to the switch's management features and configuration settings. This direct connection eliminates the need for additional equipment or complex setups, simplifying network management tasks.

Out-of-Band Management

The RJ-45 management interface also serves as an out-of-band management channel for the switch. Out-of-band management allows administrators to remotely access and control the switch even if the primary network is down or experiencing issues. This redundancy ensures that administrators can always manage and troubleshoot the switch independently of the network's operational status. The out-of-band management capability provides an additional layer of control and enhances overall network resilience.

User-Friendly Interface

The RJ-45 management interface offers a user-friendly experience for administrators. The switch's management features can be accessed through a web-based graphical user interface (GUI) or a command-line interface (CLI). Both interfaces provide intuitive navigation and configuration options, allowing administrators to quickly and efficiently manage and monitor the switch. The user-friendly interface simplifies network management tasks, reduces the learning curve for administrators, and enhances overall productivity.

Remote Monitoring and Configuration

The RJ-45 management interface enables remote monitoring and configuration of the N9K-C9508. Administrators can access the switch's management features from any location with network connectivity, allowing for efficient remote troubleshooting, configuration adjustments, and performance monitoring. Remote management capabilities save time and resources by eliminating the need for on-site visits, especially in large-scale network deployments or geographically distributed environments.

Integration with Network Management Systems

The N9K-C9508's management interface facilitates integration with network management systems (NMS). Administrators can leverage SNMP (Simple Network Management Protocol) or other management protocols to collect real-time data, monitor network performance, receive alerts, and generate reports. This integration enables centralized network monitoring and streamlines network management processes by consolidating information from multiple switches into a single management system.

Secure Management

Security is a critical aspect of network management. The N9K-C9508's management interface supports secure access protocols, such as SSH (Secure Shell) and HTTPS (Hypertext Transfer Protocol Secure). These protocols encrypt communications between administrators and the switch, ensuring the confidentiality and integrity of sensitive configuration information. Secure management capabilities protect against unauthorized access, safeguard critical network settings, and mitigate potential security risks.

In summary, the 1 RJ-45 management interface of the Cisco N9K-C9508 Chassis Fabric Switch offers convenient network management, out-of-band management capabilities, a user-friendly interface, remote monitoring and configuration, integration with network management systems, and secure management. With this management interface, administrators can efficiently manage their network infrastructure, ensure continuous control and monitoring, and enhance overall network security.
