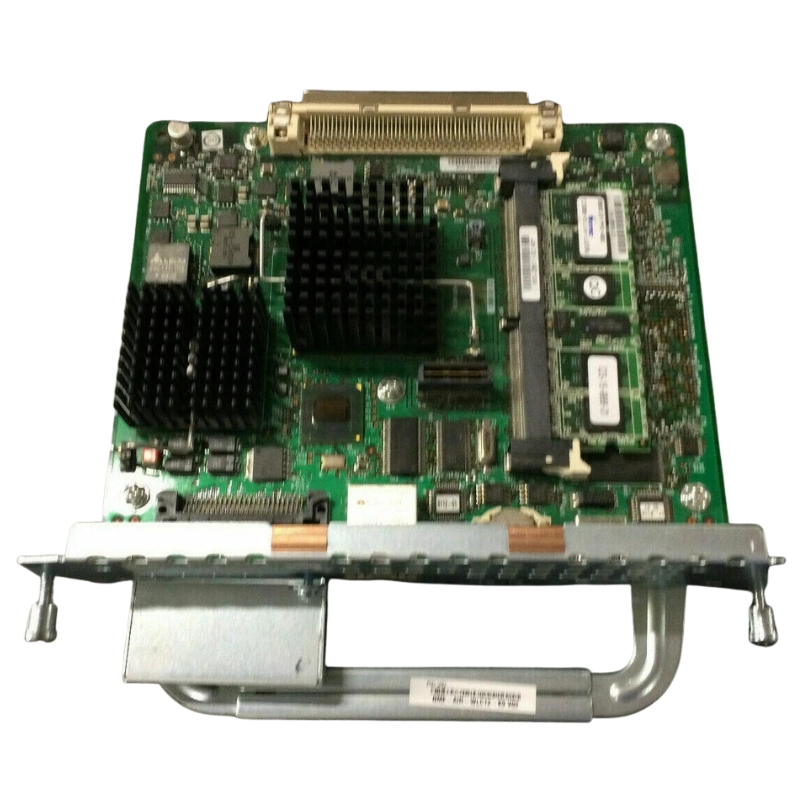

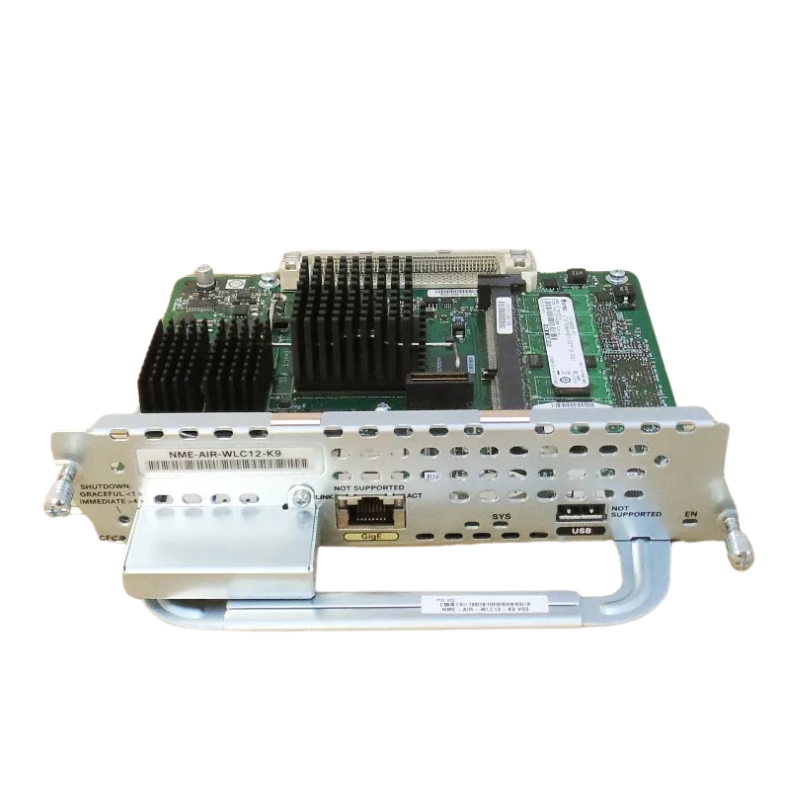

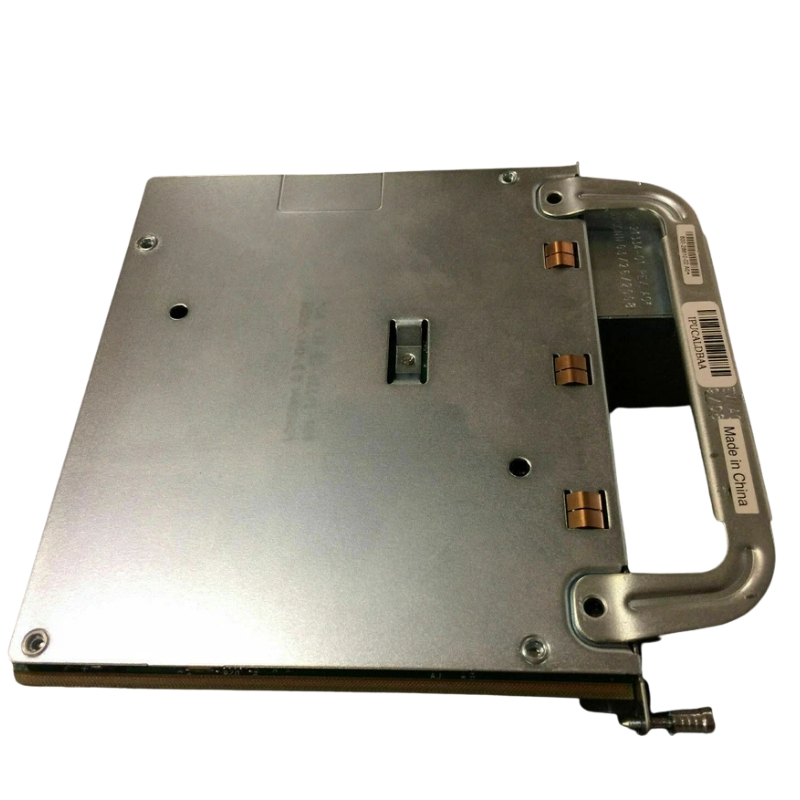

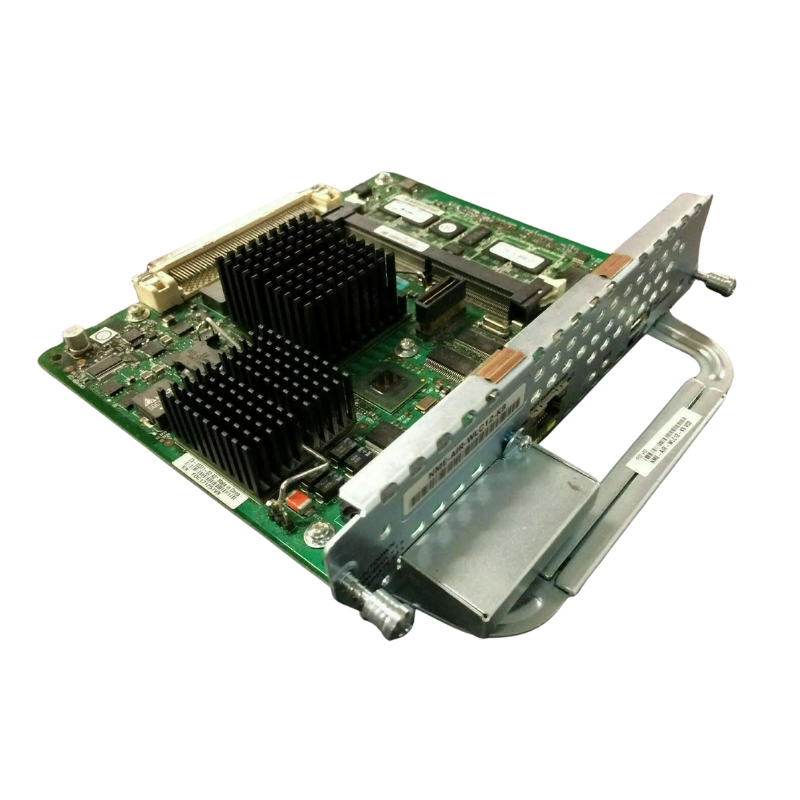

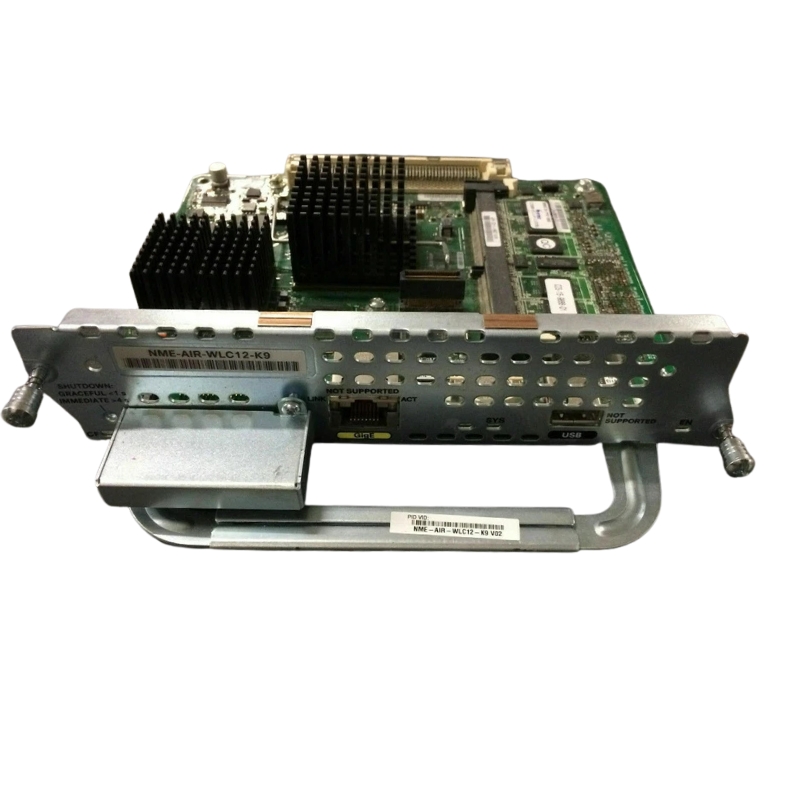

NME-AIR-WLC12-K9= Cisco WLAN Controller Network Module

Cisco NME-AIR-WLC12-K9= WLAN Controller Module

The Cisco NME-AIR-WLC12-K9= is a high-performance wireless LAN controller network module designed to deliver centralized WLAN management, enhanced security, and seamless integration with Cisco Integrated Services Routers. This module supports up to 12 Cisco Lightweight Access Points, making it ideal for enterprise and branch office deployments.

General Information

• Manufacturer: Cisco
• Part Number: NME-AIR-WLC12-K9=
• Device Type: WLAN Controller Network Module

Technical Specifications

• Wireless Controller Capacity: Supports up to 12 Cisco Lightweight Access Points
• Deployment: Integrated WLAN Controller Module
• Module Type: Internal Enhanced Network Module design
• Memory: 256 MB DRAM
• Hard Disk: Diskless architecture
• Ethernet Interface: 1 × 10/100/1000 Gigabit
• Management: Web GUI, CLI, and SNMP
• Power consumption: ~30 W
• LED indicators: Power/System, Enable, Link, Activity, CompactFlash Status
• Temperature: 0°C to 40°C
• Humidity: 10% to 95%

Software & Compliance

• Requires Cisco IOS Release 12.4(15)T or later
• Compatible with Cisco Wireless Control System (WCS)
• Regulatory compliance: CE, FCC, UL 60950-1, EN 60950, RoHS

Compatibility

Supported Cisco Routers

• Cisco 2800 Series ISR
• Cisco 3800 Series ISR

Cisco Lightweight Access Points

• Cisco Aironet 1000 Series
• Cisco Aironet 1130AG Series
• Cisco Aironet 1200 Series Lightweight APs

Compatible Cisco Wireless

• Cisco Wireless Control System
• Cisco 2700 Wireless Location Appliance
• Cisco 2106 Wireless LAN Controller
• Cisco 4400 Series Wireless LAN Controllers
• Cisco Catalyst 6500 Wireless Services Module

Overview NME-AIR-WLC12-K9= WLAN Network Module

The Cisco NME-AIR-WLC12-K9= WLAN Controller Network Module represents a highly integrated solution designed to provide centralized wireless LAN management capabilities within Cisco Integrated Services Routers, and it delivers a seamless approach to wireless connectivity by supporting up to twelve Cisco lightweight access points, thereby enabling enterprises to extend their wireless infrastructure with efficiency, scalability, and robust security features that align with modern networking demands.

Internal Enhanced Network Module Integration

This module is engineered as an internal enhanced network module that fits directly into Cisco ISR platforms, and its architecture eliminates the need for external controllers by embedding wireless management functionality within the router chassis, which reduces complexity while ensuring that deployment remains streamlined and cost-effective for organizations seeking to unify wired and wireless networks under a single management domain.

Hardware Performance

Equipped with 256 MB DRAM and a diskless design, the Cisco NME-AIR-WLC12-K9= focuses on reliability and efficiency, and its single 10/100/1000 Gigabit Ethernet interface provides high-speed connectivity for data transmission, while LED indicators such as power, system, enable, link, activity, and compact flash status offer real-time monitoring of operational states, ensuring administrators can quickly assess module health and performance without requiring complex diagnostic procedures.

Centralized WLAN Control

The module delivers centralized WLAN management that allows administrators to configure, monitor, and optimize multiple access points from a single interface, and this centralized approach reduces administrative overhead while ensuring consistent policy enforcement across the wireless infrastructure, thereby enhancing both operational efficiency and user experience.

RF Rogue AP Detection

Advanced RF management features enable dynamic adjustment of radio frequencies to minimize interference and optimize coverage, while rogue access point detection provides proactive security by identifying unauthorized devices attempting to connect to the network, which ensures that enterprises maintain a secure wireless environment resistant to intrusion and unauthorized access.

Layer 3 Fast Secure Roaming

With support for Layer 3 fast secure roaming, the module ensures that mobile users can move seamlessly across subnets without experiencing disruptions in connectivity, and this capability is particularly critical for environments such as healthcare, education, and enterprise campuses where uninterrupted wireless access is essential for productivity and mission-critical applications.

Advanced Encryption Standards

The Cisco NME-AIR-WLC12-K9= incorporates WPA, WPA2, IEEE 802.1X authentication, AES encryption, and TKIP encryption, and these robust security protocols safeguard wireless communications against unauthorized access and data breaches, thereby ensuring compliance with industry standards and regulatory requirements while protecting sensitive enterprise information.

Authentication and Policy Enforcement

Through IEEE 802.1X authentication, the module enforces identity-based access control, which allows enterprises to implement granular policies that restrict network access to authorized users and devices, and this level of control enhances overall network security posture by preventing unauthorized usage and ensuring that only trusted endpoints participate in the wireless ecosystem.

QoS for Business-Critical Applications

Quality of Service capabilities embedded within the module prioritize traffic for latency-sensitive applications such as voice and video, ensuring that business-critical communications maintain high performance even in congested network environments, and this prioritization enhances user experience by reducing jitter, packet loss, and latency across wireless connections.

VLAN Segmentation and Traffic

Support for VLAN segmentation allows enterprises to logically separate traffic streams, thereby improving security and performance by isolating different departments, applications, or user groups within the wireless infrastructure, and this segmentation ensures that sensitive data remains protected while optimizing bandwidth utilization across diverse organizational needs.

Supported Cisco Router Series

The Cisco NME-AIR-WLC12-K9= is compatible with Cisco 2800 Series Integrated Services Routers and Cisco 3800 Series Integrated Services Routers, and this compatibility ensures that enterprises leveraging these ISR platforms can seamlessly integrate wireless management capabilities without requiring additional hardware investments, thereby maximizing return on infrastructure investment.

Supported Cisco Lightweight Access Points

The module supports Cisco Aironet 1000 Series, Cisco Aironet 1130AG Series, and Cisco Aironet 1200 Series lightweight access points, and this broad compatibility enables organizations to deploy a diverse range of access points tailored to specific coverage and performance requirements, thereby ensuring flexibility in designing wireless networks that meet unique operational demands.

Integration with Cisco Wireless

Compatibility with Cisco Wireless Control System, Cisco 2700 Wireless Location Appliance, Cisco 2106 Wireless LAN Controller, Cisco 4400 Series Wireless LAN Controllers, and Cisco Catalyst 6500 Wireless Services Module ensures that enterprises can integrate the NME-AIR-WLC12-K9= into existing management ecosystems, thereby enhancing visibility, control, and scalability across the entire wireless infrastructure.

Temperature and Humidity Tolerance

Operating within a temperature range of 0°C to 40°C and storage tolerance from -25°C to 70°C, the module is designed to withstand diverse environmental conditions, while its operating humidity tolerance of 10% to 95% non-condensing ensures reliable performance across varying climates and deployment scenarios, thereby making it suitable for global enterprise environments.

Consumption and Efficiency

With an approximate power consumption of 30 W, the module balances performance with energy efficiency, ensuring that enterprises can deploy wireless management capabilities without incurring excessive power costs, and this efficiency aligns with sustainability initiatives while maintaining high operational reliability.

Operating System Requirements

The Cisco NME-AIR-WLC12-K9= requires Cisco IOS Release 12.4 T or later, ensuring compatibility with modern router operating systems, and this requirement guarantees that enterprises deploying the module benefit from the latest features, security patches, and performance enhancements provided by Cisco IOS software.

Interfaces and Tools

Administrators can manage the module through Web GUI, CLI, and SNMP interfaces, thereby providing flexibility in management approaches that cater to diverse administrative preferences and skill sets, and integration with Cisco Wireless Control System further enhances centralized management capabilities by offering advanced monitoring, reporting, and configuration tools.

Industry Standards and Certifications

The module complies with CE, FCC, UL 60950-1, EN 60950, and RoHS standards, ensuring that it meets international regulatory requirements for safety, electromagnetic compatibility, and environmental sustainability, and these certifications provide enterprises with confidence that the module adheres to stringent quality and compliance benchmarks.

Scalability for Growing Networks

By supporting up to twelve lightweight access points, the Cisco NME-AIR-WLC12-K9= provides scalability for enterprises seeking to expand their wireless infrastructure incrementally, and this scalability ensures that organizations can adapt to evolving connectivity demands without requiring disruptive hardware replacements or complex reconfigurations.

Enhanced Security and Compliance

With advanced encryption, authentication, and rogue AP detection, the module enhances enterprise security posture while ensuring compliance with industry regulations, and this combination of features makes it particularly suitable for sectors such as finance, healthcare, and government where data protection and regulatory adherence are paramount.

User Experience

Through QoS prioritization, VLAN segmentation, and fast secure roaming, the module optimizes user experience by delivering reliable, high-performance wireless connectivity across diverse applications, and this optimization ensures that employees, students, and customers benefit from seamless access to digital resources without interruptions or performance degradation.
