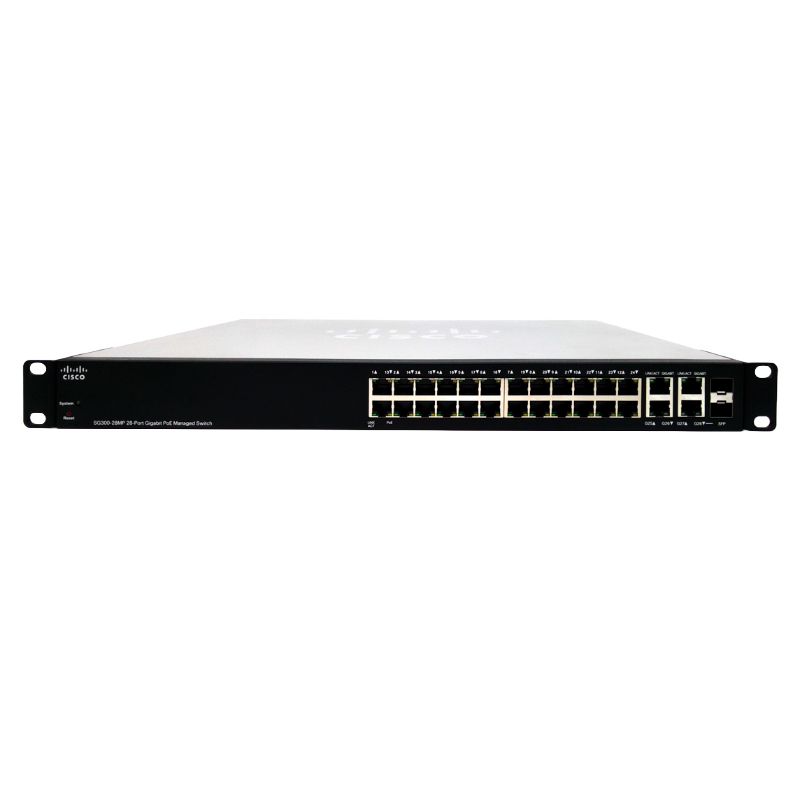

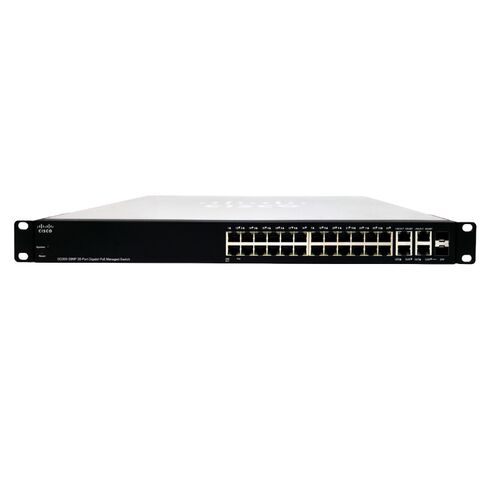

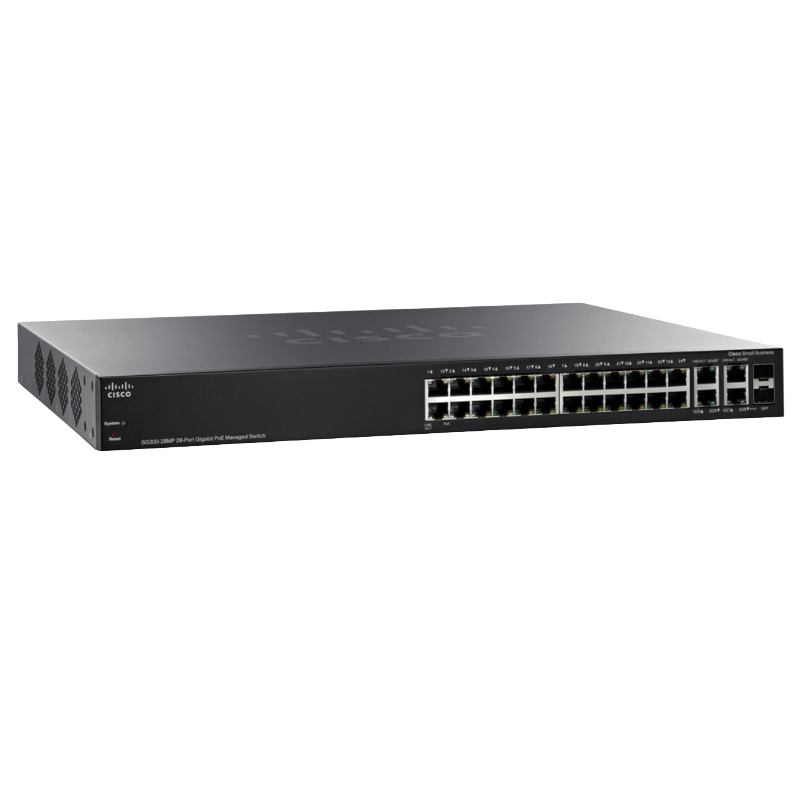

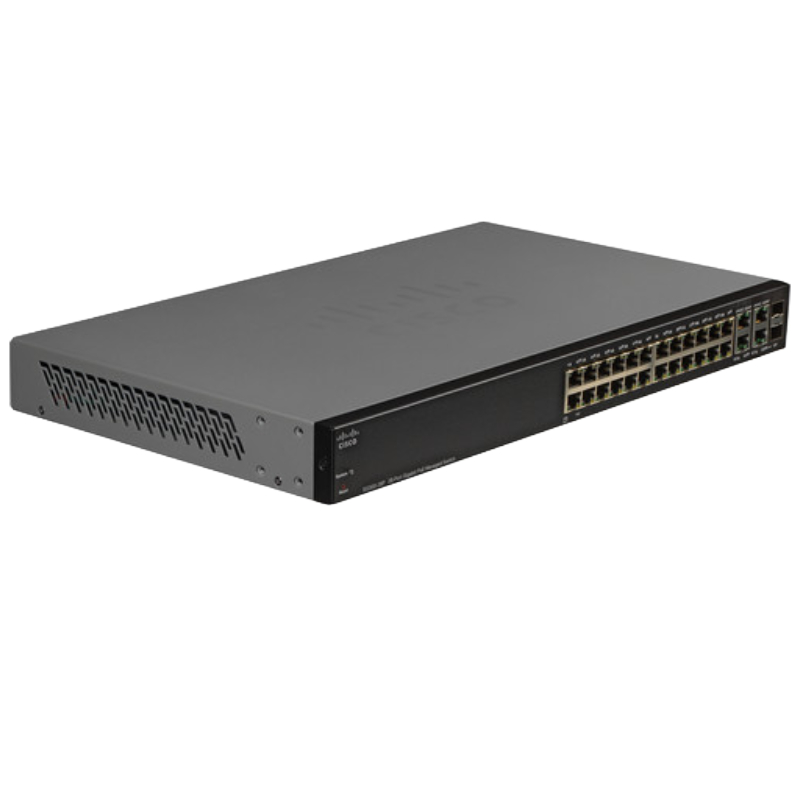

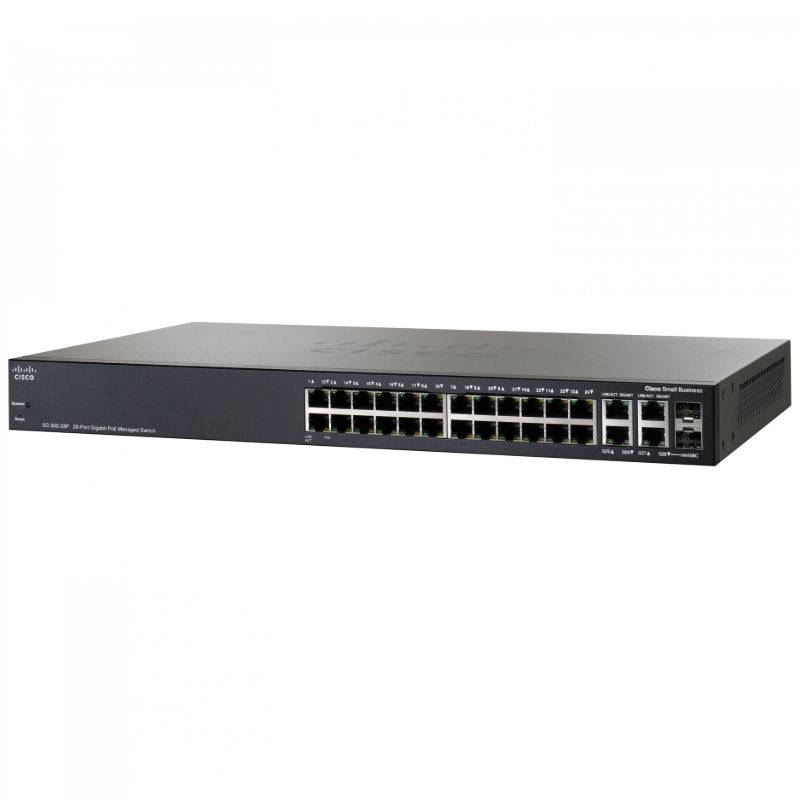

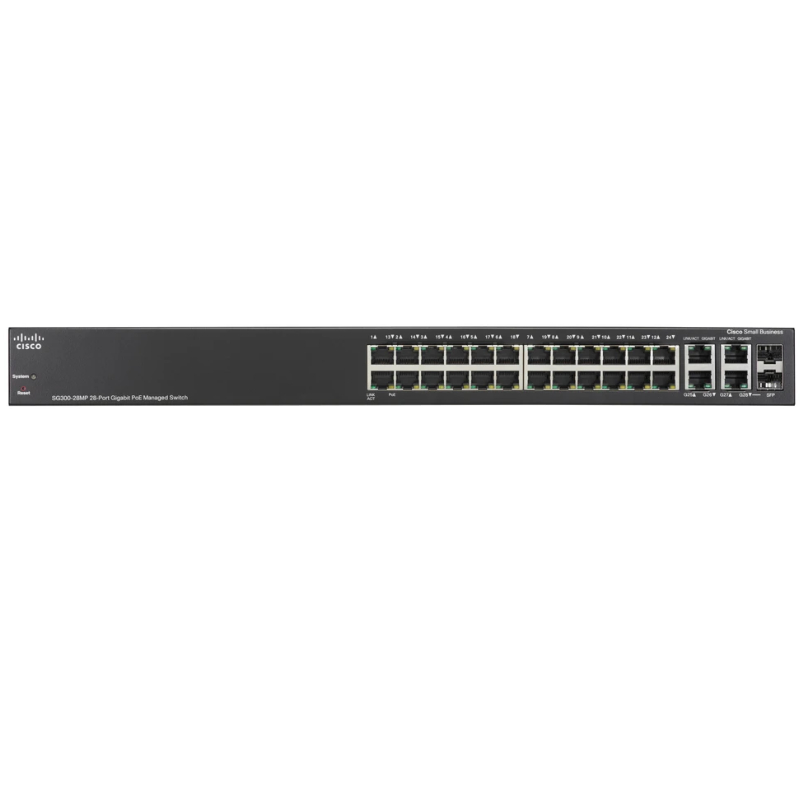

SG300-28MP-K9 Cisco Small Business 300 Series 28 Ports Layer 3 Managed Switch

Overview of the Cisco SG300-28MP-K9 Switch

General Product Information

• Brand: Cisco
• Model Number: SG300-28MP-K9
• Series: 300 Series
• Type: Layer 3 Managed Switch

Port and Interface Specifications

• Total Ports: 28
• Management Port: Yes
• PoE+ Ports: 28 (RJ-45)
• Token Ring Ports: None
• LRE Ports: None
• Bypass Ports: None

Performance and Media Support

• Supported Media Type: Twisted Pair
• Cable Standard: Category 5
• Ethernet Technology: Gigabit Ethernet
• Network Technology: 10/100/1000Base-T
• Mean Time Between Failures (MTBF): 138,676.92 Hours

Expansion Capabilities

• Expansion Slots: 2
• Slot Type: SFP
• Shared SFP Slot: Yes
• Number of SFP Slots: 2

Memory Specifications

• Standard Memory: 128 MB
• Flash Memory: 16 MB

Power and Electrical Details

• PoE (RJ-45) Port: Yes
• Input Voltage: 110 V / 220 V
• Power Source: Power Supply

Additional Information

• Cables Included: 1 x Serial Cable
• Rack Mounting Kit: Included
• Compliance Standards: UL 60950, FCC Part 15 A, CSA 22.2

Product Features

• High performance with 28 PoE+ ports for powering devices
• Gigabit Ethernet support for fast network speeds
• Layer 3 switch capabilities for advanced routing
• Comprehensive memory and expansion options for flexibility
• Rack mountable with included mounting kit

Network Benefits

• Robust performance suitable for various networking environments
• Scalable expansion with multiple SFP slots
• Enhanced power efficiency with PoE support
• Long MTBF ensuring reliability and durability

Ports

The Cisco SG300-28MP-K9 Layer 3 Managed Switch is equipped with an impressive 28 ports, making it an ideal choice for businesses of all sizes. These ports offer a wide range of benefits and play a crucial role in enhancing the network infrastructure. In this section, we will explore the importance of the 28 ports feature and the advantages it brings to users.

Increased Connectivity

Having 28 ports on a managed switch significantly increases the connectivity options available to users. Each port serves as a point of connection for various devices such as computers, printers, servers, and other networking equipment. With a greater number of ports, users can connect more devices directly to the switch without the need for additional networking hardware.

Flexibility and Scalability

The 28 ports on the Cisco SG300-28MP-K9 provide exceptional flexibility and scalability. This means that as your business grows and requires additional network connections, you can easily expand your network infrastructure by utilizing the available ports. The switch allows you to connect new devices or expand existing networks without any disruption or performance degradation.

Improved Network Performance

One of the key benefits of having 28 ports on a managed switch is improved network performance. Each port acts as an independent connection point, ensuring that data flows smoothly and efficiently between devices. With more ports available, the switch can handle a higher volume of traffic, reducing bottlenecks and enhancing overall network speed and performance.

VLAN Support

Virtual Local Area Network (VLAN) support is another advantage offered by the 28 ports on the Cisco SG300-28MP-K9. VLANs allow you to segment your network into separate virtual networks, creating isolated groups of devices for enhanced security and improved network management. With 28 ports, you have greater flexibility in creating and managing VLANs, ensuring that your network is secure and optimized for your specific requirements.

Power over Ethernet (PoE) Capabilities

In addition to the sheer number of ports, the Cisco SG300-28MP-K9 also features Power over Ethernet (PoE) capabilities. This means that some of the ports on the switch can provide power to connected devices, such as IP phones, wireless access points, and surveillance cameras, eliminating the need for separate power sources. With 28 PoE-enabled ports, you have the ability to power a significant number of devices directly from the switch, simplifying installation and reducing cable clutter.

Cost and Energy Efficiency

The PoE capabilities of the 28 ports not only simplify installation but also contribute to cost and energy efficiency. By eliminating the need for individual power adapters for each device, you can reduce both upfront costs and ongoing electricity consumption. This not only saves money but also promotes a more environmentally friendly approach to network infrastructure.

Centralized Power Management

With 28 PoE-enabled ports, the Cisco SG300-28MP-K9 allows for centralized power management. You can easily monitor and control the power usage of connected devices through the switch's intuitive interface. This level of control ensures efficient power allocation, prevents power wastage, and enables easy troubleshooting in case of any power-related issues.

Enhanced Flexibility with PoE+

The Cisco SG300-28MP-K9 goes beyond standard PoE capabilities by offering PoE+. This enhanced version provides higher power output per port (up to 30W), allowing you to connect power-hungry devices such as pan-tilt-zoom cameras or video conferencing systems. With 28 PoE+ ports available, you have greater flexibility in deploying a diverse range of devices without compromising on power requirements.

Future-Proofing Your Network

Investing in a switch with 28 ports, including PoE+ capabilities, ensures future-proofing of your network infrastructure. As technology continues to evolve, the demand for network connectivity and power requirements will only increase. By having ample ports and robust power capabilities, you can seamlessly integrate new devices and technologies into your network without the need for additional infrastructure upgrades.

In conclusion, the Cisco SG300-28MP-K9 Layer 3 Managed Switch's 28 ports feature is a significant advantage for users. The increased connectivity, flexibility, improved network performance, VLAN support, and PoE capabilities provide numerous benefits for businesses seeking a reliable and scalable network solution. With this switch, you can optimize your network infrastructure, simplify installation, reduce costs, and future-proof your network for the evolving technological landscape.
