SPA-1XOC12-ATM-V2 Cisco 1-Port OC12c/STM4c ATM Shared Port Adapter

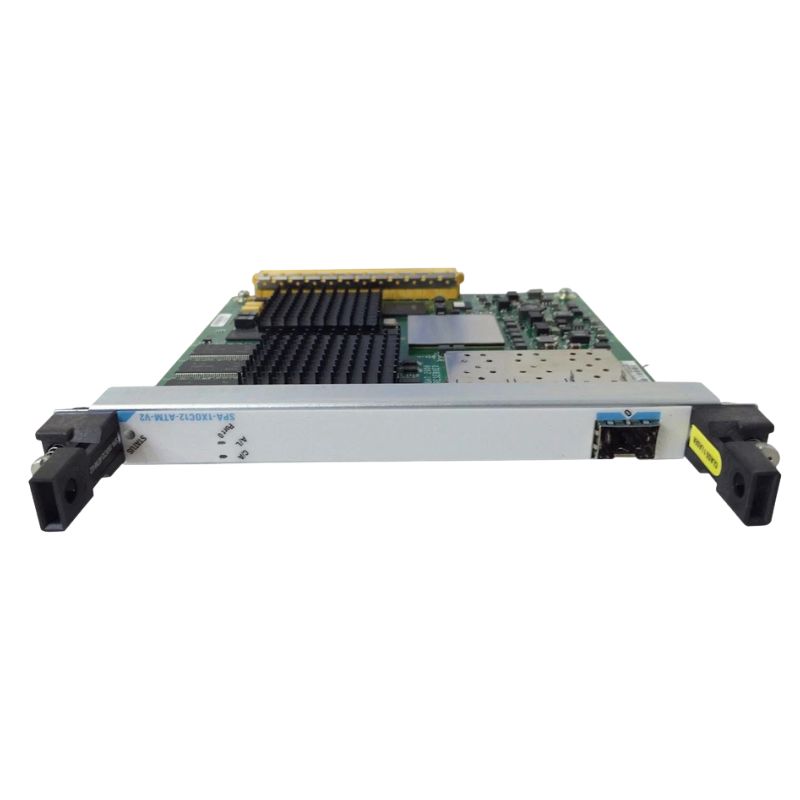

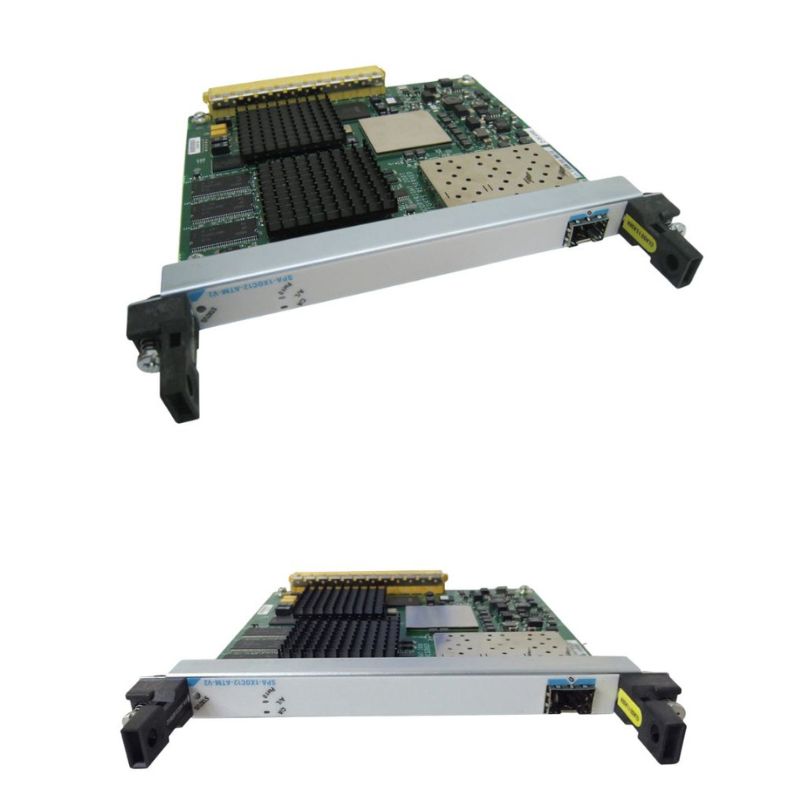

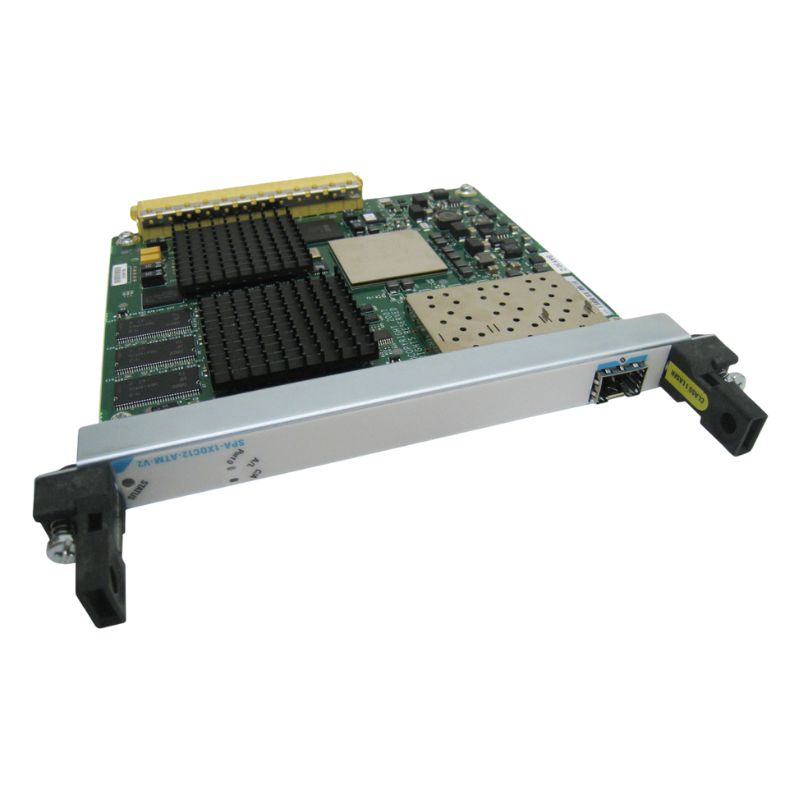

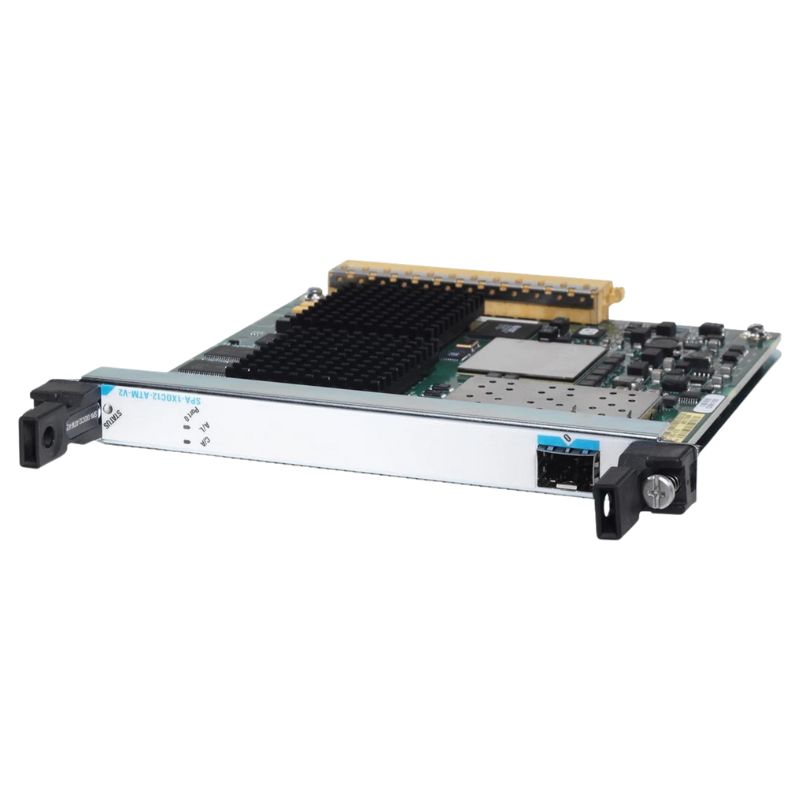

Cisco SPA-1XOC12-ATM-V2 1-Port ATM Shared Port Adapter

The Cisco SPA-1XOC12-ATM-V2 is a high-performance shared port adapter designed for carrier-grade networking environments requiring reliable ATM connectivity. Engineered by Cisco, this module delivers efficient optical transport capabilities with OC-12c/STM-4c support, making it ideal for service providers and enterprise backbone infrastructures that demand stable, high-speed data transmission and advanced traffic management.

Product Information

• Manufacturer: Cisco
• Part Number: SPA-1XOC12-ATM-V2
• Product Type: Shared Port Adapter (SPA)
• Network Interface: ATM OC-12c / STM-4c
• Maximum Data Rate: 622.08 Mbps

Performance Advantages

• High-capacity ATM data transfer up to 622.08 Mbps
• Reliable synchronous optical transport (SONET/SDH)
• Optimized for carrier backbone networks
• Stable performance for long-distance communication

Expansion Slot Configuration

• 1 x SFP-based expansion slot
• Modular design for flexible deployment
• Hot-swappable compatibility (platform dependent)

Supported Management Protocols

• SNMP (Simple Network Management Protocol)
• IEEE 802.1p Quality of Service (QoS)

Key Functional Benefits

• Supports legacy and carrier ATM environments
• Ensures synchronized optical transmission
• Enables efficient traffic segmentation
• Reduces latency in WAN communication

Physical Specifications

• Height: 0.8 inches
• Width: 6.8 inches
• Depth: 7.3 inches
• Approximate Weight: 15.20 oz

Cisco SPA-1XOC12-ATM-V2 1-Port Adapter Overview

The Cisco SPA-1XOC12-ATM-V2 1-Port OC12c/STM4c ATM Shared Port Adapter represents a high-performance optical networking module engineered for carrier-class WAN aggregation, metropolitan area network (MAN) connectivity, and legacy ATM infrastructure integration. Designed within the Cisco Shared Port Adapter (SPA) architecture, this module enables scalable, modular expansion for compatible Cisco routing platforms, supporting OC12c (Optical Carrier level 12 concatenated) and STM-4c (Synchronous Transport Module level 4 concatenated) standards used widely in traditional telecom transport systems.

As part of the advanced service provider networking portfolio from this SPA module delivers robust ATM cell relay capabilities, high-density bandwidth handling, and flexible service integration for enterprises and telecom operators managing hybrid legacy and modern IP/MPLS environments.

Core Architectural Design and Engineering Principles

Shared Port Adapter (SPA) Modular Framework

The SPA-1XOC12-ATM-V2 operates within Cisco’s SPA interface architecture, which separates physical interface modules from the routing and switching hardware. This modular design allows network operators to scale interfaces independently from chassis upgrades, improving lifecycle cost efficiency and deployment flexibility.

The SPA framework is optimized for carrier-grade resilience, supporting hot-swappable installation, redundant routing configurations, and dynamic service provisioning without disrupting active traffic flows.

OC12c/STM4c Optical Transport Compatibility

The module supports OC12c (622 Mbps) and STM-4c (622 Mbps) optical transport standards, ensuring interoperability across North American SONET and international SDH networks. This dual-standard compatibility allows service providers to maintain consistent service delivery across geographically distributed infrastructures.

OC12c/STM4c operation enables efficient ATM cell encapsulation, making the module ideal for high-capacity backbone aggregation and metro-ring topologies where deterministic latency and traffic prioritization are essential.

ATM Cell Relay Processing Engine

At its core, the adapter is engineered for Asynchronous Transfer Mode (ATM) cell switching, supporting fixed-length 53-byte cell segmentation and reassembly. This ensures predictable QoS performance across voice, video, and data traffic streams.

The hardware-based ATM engine reduces CPU overhead on the host router by offloading segmentation and traffic scheduling, enabling improved system throughput and reduced latency under heavy loads.

Functional Capabilities and Network Services

High-Density WAN Aggregation

The SPA-1XOC12-ATM-V2 is designed to consolidate multiple lower-speed ATM circuits into a single high-capacity optical link. This aggregation capability is essential for telecom providers transitioning from legacy TDM-based networks to packet-based IP infrastructure while maintaining ATM service continuity.

Quality of Service (QoS) Enforcement

Advanced QoS mechanisms allow prioritization of real-time traffic such as voice-over-ATM (VoATM), video conferencing, and mission-critical enterprise data flows. Traffic shaping, policing, and congestion avoidance mechanisms are implemented directly in hardware for deterministic performance.

Scalability in Carrier Networks

The module integrates seamlessly into scalable service provider architectures, allowing incremental expansion of OC12/STM4 capacity. This makes it suitable for regional carriers, Tier 2 ISPs, and enterprise WAN backbones requiring predictable growth paths.

Legacy Integration with Modern IP Networks

One of the key advantages of this SPA module is its ability to bridge legacy ATM infrastructures with modern IP/MPLS networks. This enables operators to preserve investments in ATM-based services while gradually migrating to packet-switched architectures.

High-Speed Optical Transceiver Integration

The SPA-1XOC12-ATM-V2 utilizes advanced optical transceiver technology designed for 622 Mbps transmission rates. It supports single-mode fiber deployments optimized for long-distance transmission across metro and regional networks.

Signal Integrity and Error Correction

Integrated forward error correction (FEC) and signal monitoring mechanisms ensure high reliability in degraded optical conditions. These features minimize packet loss and maintain stable ATM cell delivery even under marginal fiber conditions.

Compact Modular Design

The adapter follows Cisco’s standard SPA form factor, allowing it to be installed in compatible carrier-grade routers and aggregation platforms. Its compact footprint supports high-density chassis configurations without compromising airflow or thermal performance.

Hot-Swap Capability

Engineered for non-disruptive maintenance, the module supports hot-swapping, enabling network administrators to replace or upgrade interfaces without powering down the host system. This ensures maximum uptime in mission-critical environments.

Metro Ethernet Transition Environments

Service providers leveraging hybrid ATM and Ethernet infrastructures can use the SPA-1XOC12-ATM-V2 as a transitional interface, enabling gradual migration from ATM-based transport to IP/MPLS-based metro Ethernet systems.

Carrier Aggregation Nodes

The module is commonly deployed in aggregation nodes where multiple customer access circuits are consolidated into higher-capacity backbone links. This reduces complexity while improving bandwidth efficiency.

Enterprise WAN Connectivity

Global enterprises with legacy ATM WAN deployments utilize this module to maintain secure, deterministic connectivity between branch offices, data centers, and disaster recovery sites.

Financial Services Infrastructure

Banks and trading institutions often rely on ATM-based transport for predictable latency and guaranteed bandwidth. This adapter ensures continued support for such mission-critical environments.

Service Provider Migration Strategies

ATM-to-IP Evolution Pathways

The SPA-1XOC12-ATM-V2 plays a critical role in network modernization strategies, enabling operators to maintain ATM service continuity while gradually introducing MPLS and Ethernet-based transport layers.

Multi-Service Edge Deployment

In multi-service edge routers, the adapter supports simultaneous handling of voice, video, and data traffic over ATM, improving service consolidation and operational efficiency.

Bandwidth Utilization Efficiency

ATM’s fixed cell structure allows predictable bandwidth utilization and reduces jitter across transport networks. The SPA module optimizes cell scheduling to maximize throughput efficiency under variable traffic loads.

Latency and Jitter Control

The hardware-based switching engine minimizes processing delays, ensuring deterministic latency performance for real-time applications such as voice and video transport.

Traffic Prioritization Mechanisms

Priority queuing and traffic classification systems ensure high-priority ATM virtual circuits receive guaranteed bandwidth allocation under all network conditions.

Router and Aggregation Systems

The SPA-1XOC12-ATM-V2 is designed for compatibility with Cisco carrier-class routers supporting SPA interface slots. These systems enable scalable deployment across enterprise and service provider environments.

Software and IOS Integration

The module integrates with Cisco IOS and IOS XE software platforms, allowing centralized configuration, monitoring, and management through standard network operating systems.

Network Protocol Support

ATM Adaptation Layer Services

The adapter supports multiple ATM adaptation layers (AAL), enabling compatibility with voice, frame relay, and data transport services over ATM infrastructure.

Cost Optimization for Legacy Networks

By supporting ATM-based transport within modern routing platforms, the SPA-1XOC12-ATM-V2 extends the operational lifespan of existing telecom infrastructure, reducing capital expenditure for network upgrades.
