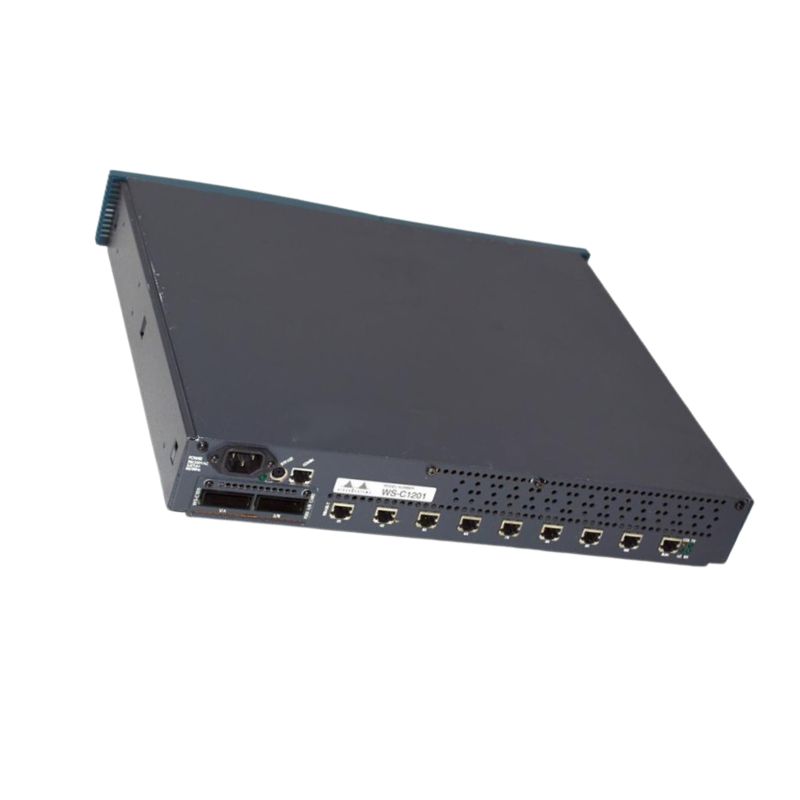

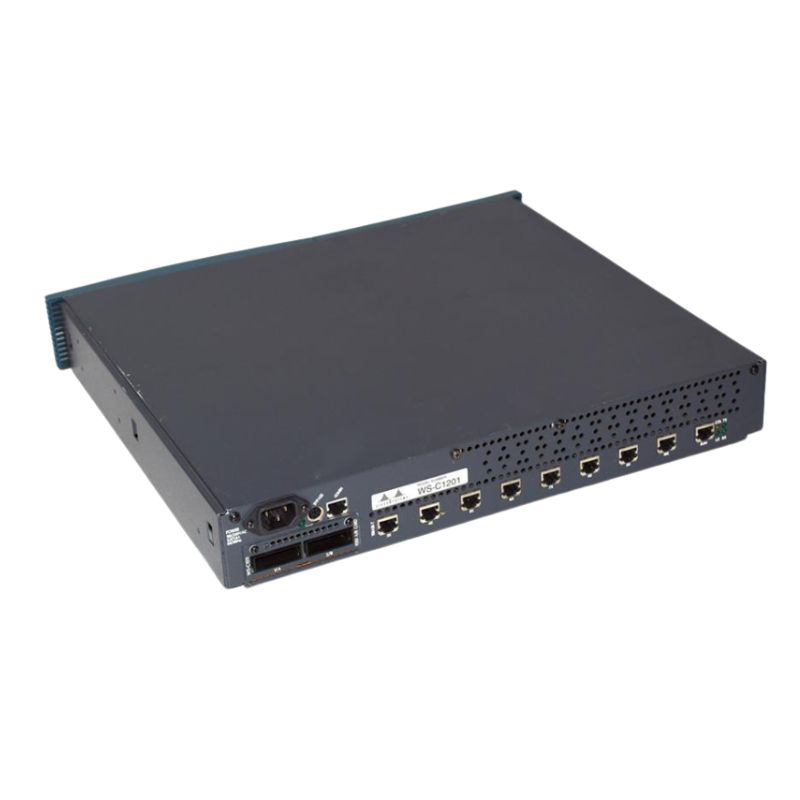

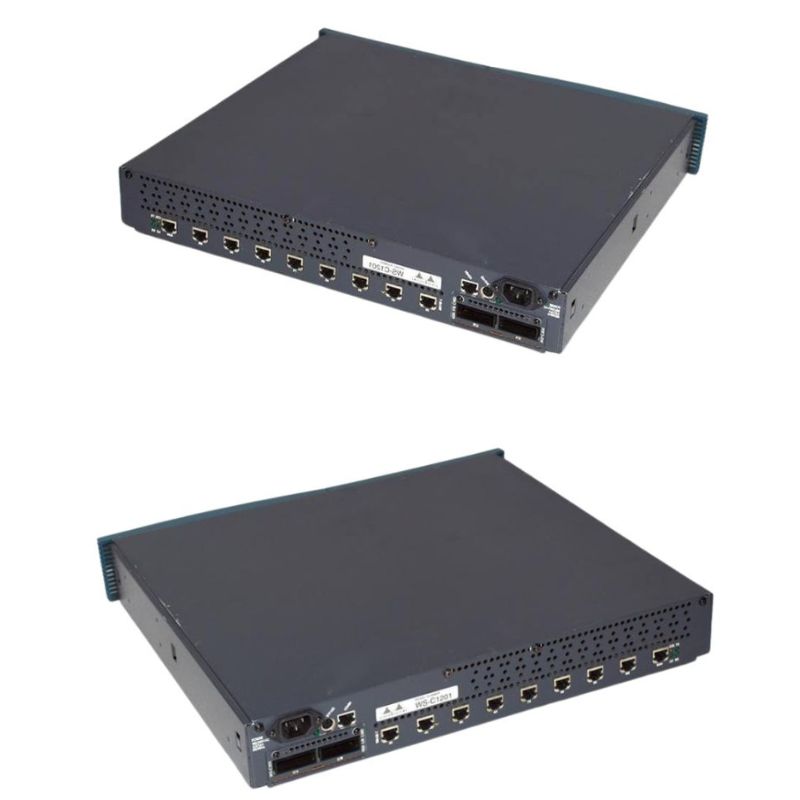

WS-C1201 Cisco Catalyst 1200 Switch 8-Ports

Key Features and Operational Benefits of the Cisco WS-C1201

The Cisco Catalyst 1200 8-port switch is more than just a simple port expander. It incorporates several intelligent features that enhance network performance and stability, even without manual management. These built-in capabilities ensure efficient data handling, promote longer hardware lifespan, and contribute to a healthier overall network environment.

Automated Intelligence for a Stable Network

Despite being an unmanaged switch, the WS-C1201 employs automatic negotiations and protocols to optimize traffic flow.

Auto-Negotiation and Auto-MDIX

Each of the eight 10/100 Mbps ports automatically negotiates the best possible connection speed (10BASE-T or 100BASE-TX) and duplex mode (half or full) with the attached device. Crucially, the integrated Auto-MDIX (Medium Dependent Interface Crossover) eliminates the need for specific straight-through or crossover cables. The switch automatically detects the cable type and adjusts accordingly, simplifying installation and reducing cabling errors.

IEEE 802.3x Flow Control

To prevent packet loss during periods of high traffic, the switch utilizes IEEE 802.3x flow control. This protocol allows a receiving port that is becoming congested to send a "pause" frame to the transmitting device, temporarily halting transmission until the buffer clears. This built-in traffic management is vital for maintaining performance when multiple devices are communicating simultaneously.

Robust Design and Cisco Reliability

Cisco's engineering principles are evident in the physical and operational design of the WS-C1201.

Fanless, Silent Operation

Designed for desktop use in quiet environments like offices or clinics, the switch uses a fanless, passive cooling design. This results in zero acoustic noise, eliminating distractions while also reducing potential points of mechanical failure.

Durable Metal Enclosure

Housed in a sturdy metal case, the switch offers better durability and heat dissipation compared to plastic alternatives. This robust construction ensures the device can withstand the rigors of daily use in varied environments.

Extended Product Lifecycle

As a Cisco product, the Catalyst 1200 benefits from the company's rigorous testing and quality control processes. This translates to a high Mean Time Between Failures (MTBF), offering exceptional long-term value and reducing total cost of ownership through reliable performance.

Technical Specifications and Performance Deep Dive

Understanding the technical capabilities of the Cisco WS-C1201 is key to determining its perfect fit within a network ecosystem. Below is a comprehensive breakdown of its architecture and performance metrics.

Port Configuration and Switching Capacity

The switch provides eight RJ-45 Ethernet ports, each capable of operating at 10 Mbps or 100 Mbps in half- or full-duplex mode.

Backplane Bandwidth

The internal switching fabric or backplane bandwidth is a critical specification. For the WS-C1201, this is engineered to support wire-speed performance on all ports simultaneously, preventing internal bottlenecks. This non-blocking architecture ensures that the switch can handle the maximum theoretical load of eight ports running at 100 Mbps full-duplex.

Calculating Aggregate Throughput

With eight 100 Mbps ports, each capable of full-duplex communication (transmitting and receiving simultaneously at 100 Mbps), the aggregate theoretical throughput is significant. Full-duplex effectively doubles the data rate per port, allowing for concurrent 100 Mbps send and receive streams.

MAC Address Table and Switching Method

The switch learns and forwards traffic efficiently using a store-and-forward switching method.

Store-and-Forward Switching

Every frame entering a port is fully received (stored) into a buffer. The switch then checks the frame for errors (using a Frame Check Sequence - FCS) and discards any corrupted frames, preventing network bandwidth from being wasted on flawed data. Only valid frames are forwarded to the destination port, enhancing network integrity.

MAC Address Table Size

The switch dynamically builds a table of MAC (Media Access Control) addresses, associating each unique address with the port on which it was learned. The WS-C1201 typically supports a table of several thousand MAC addresses, which is more than sufficient for its intended workgroup scale, allowing it to efficiently direct traffic without excessive flooding.

Ideal Use Cases and Network Applications

The Cisco WS-C1201 Catalyst 1200 8-port switch finds its niche in scenarios where simplicity, trust, and basic port expansion are paramount. It is not designed for complex, segmented, or bandwidth-intensive networks, but excels in foundational roles.

Small Office/Home Office (SOHO) Deployment

For small businesses or remote professionals, this switch is an ideal solution to connect a handful of essential devices. It allows a single broadband router port to be expanded to connect multiple workstations, a network printer, a network-attached storage (NAS) device, and a VoIP phone, creating a professional, wired network that is more stable than Wi-Fi for stationary devices.

Retail and Point-of-Sale (POS) Networks

In a retail setting, reliability is non-negotiable. The WS-C1201 can reliably connect POS terminals, inventory management systems, and receipt printers. Its plug-and-play nature means minimal IT intervention is required for setup or maintenance, and Cisco's durability ensures it can handle daily business operations.

Kiosk and Digital Signage Clusters

A group of digital signage displays or interactive kiosks in a lobby, trade show booth, or waiting area often needs a simple, wired network connection for content updates or data reporting. The Catalyst 1200 provides a dependable, isolated network segment for such clusters.

Edge Device Connectivity in Larger Networks

Even within a larger corporate network managed by IT professionals, there are edge locations where a managed switch is overkill.

Conference Room or Classroom Expansion

A conference room may have a single Ethernet drop in the wall. The WS-C1201 can be installed to provide connectivity for a projector, a videoconferencing system, and guest laptop ports, all from that single connection. Its silent operation is a key benefit in these environments.

Remote Branch or Warehouse Connectivity

For a small warehouse annex or remote branch office with a handful of users, a Cisco Catalyst 1200 offers a cost-effective way to provide connectivity with the brand reliability that corporate IT trusts, without the configuration overhead of a managed device.

Comparison and Selection Considerations

Choosing the right switch requires understanding where the unmanaged Catalyst 1200 fits relative to other options. Key decision factors include managed vs. unmanaged functionality, port speed requirements, and brand ecosystem considerations.

Unmanaged vs. Managed Switches: Choosing the Right Tier

The primary differentiator in switch categories is the level of control and features offered.

When to Choose the Unmanaged WS-C1201

Select this switch if your needs are purely for basic connectivity and port expansion. It is ideal when you have no requirement to segment the network (VLANs), prioritize traffic (QoS for VoIP or video), monitor traffic patterns (SNMP), or establish link aggregation (EtherChannel). Its value proposition is simplicity, lower cost, and Cisco reliability.

When to Consider a Managed Switch

If you need to separate traffic for security or organization (e.g., guest network, department segregation), guarantee bandwidth for critical applications, troubleshoot network issues with logs, or secure switch ports to prevent unauthorized access, a managed switch like a Cisco Catalyst 2960-L or similar is necessary. The trade-off is higher cost, configuration complexity, and ongoing management.

10/100 Mbps (Fast Ethernet) vs. Gigabit Ethernet

The WS-C1201 features Fast Ethernet (10/100 Mbps) ports, which is a crucial consideration in the modern era.

Adequacy for Standard Office Tasks

For general office productivity—email, web browsing, Microsoft Office, and even small file transfers—100 Mbps is often perfectly sufficient. Most business internet connections are well below 100 Mbps, so the switch is rarely the bottleneck for internet-bound traffic.

Limitations for Large File Transfers and NAS

The limitation becomes apparent with frequent, large internal file transfers, such as backing up to a network drive or accessing large multimedia files from a server or NAS. A 1 GB file would take a minimum of ~80 seconds to transfer at 100 Mbps, compared to ~8 seconds on a Gigabit connection. For environments regularly moving large data sets, a Gigabit unmanaged switch would be a better investment.

Integration with Existing Cisco Infrastructure

For organizations standardized on Cisco, the Catalyst 1200 offers seamless brand and operational integration.

Consistent Look and Feel

The switch shares the same aesthetic and build-quality principles as higher-end Cisco gear, providing a uniform appearance in equipment closets or under desks.

Trusted Security and Reliability

While unmanaged, it still benefits from Cisco's secure development lifecycle and rigorous hardware testing. For IT managers, deploying a Cisco switch, even an unmanaged one, carries less perceived risk than an unknown white-box brand, ensuring a consistent standard of reliability across the entire network footprint.
