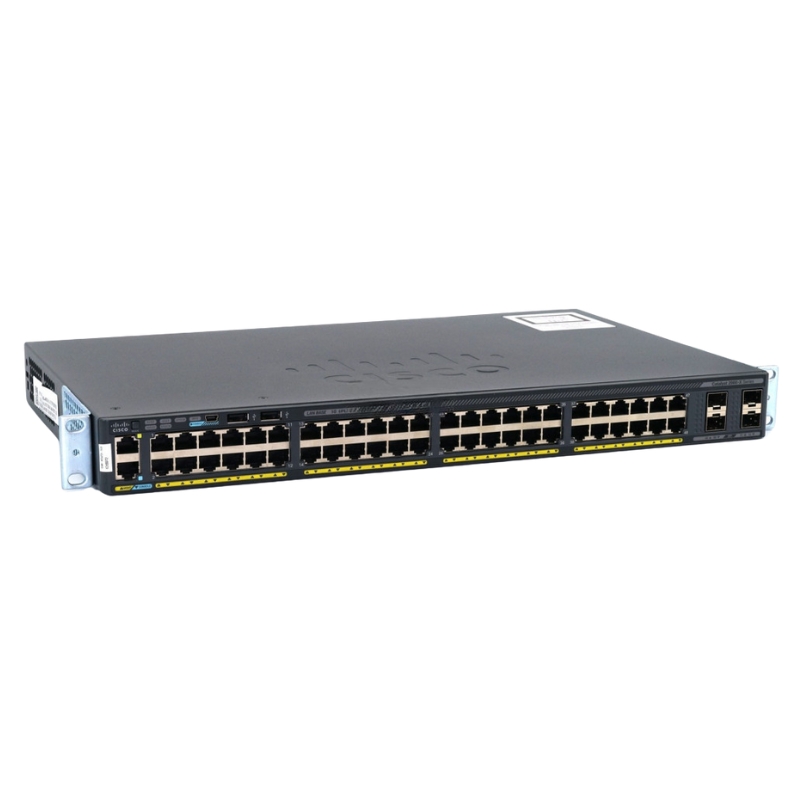

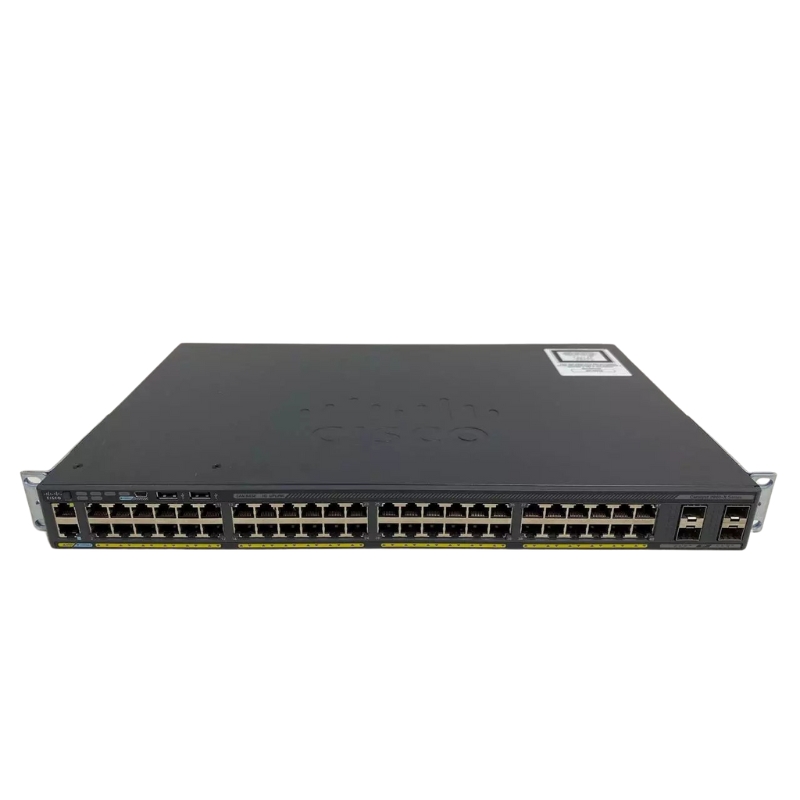

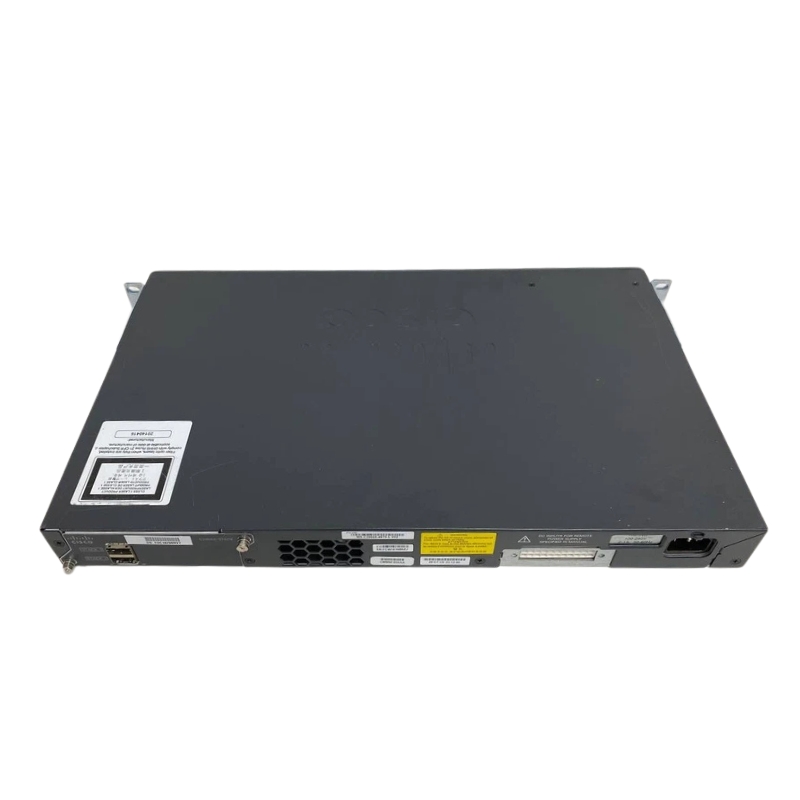

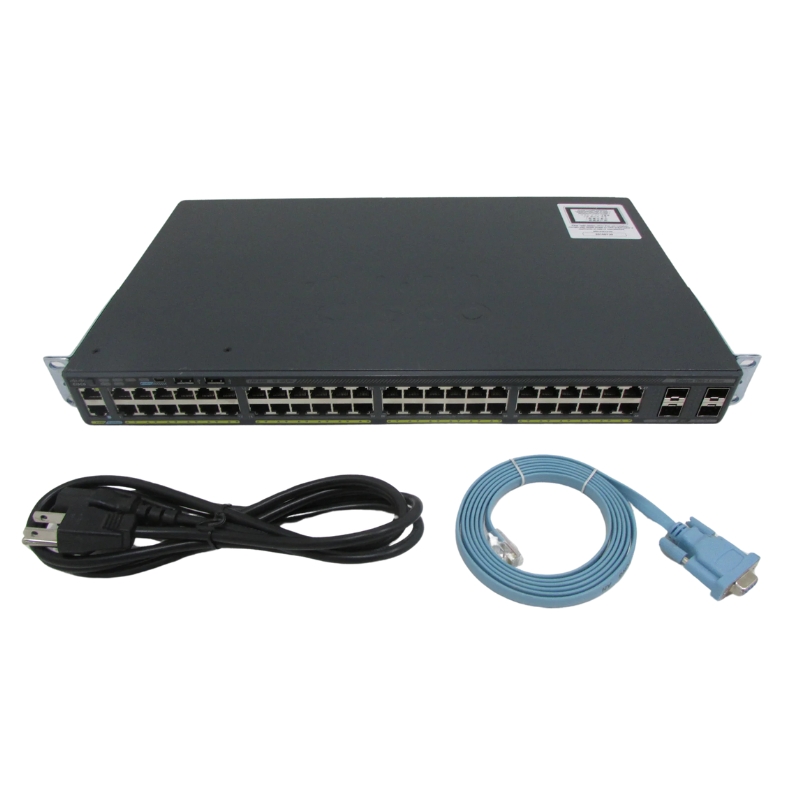

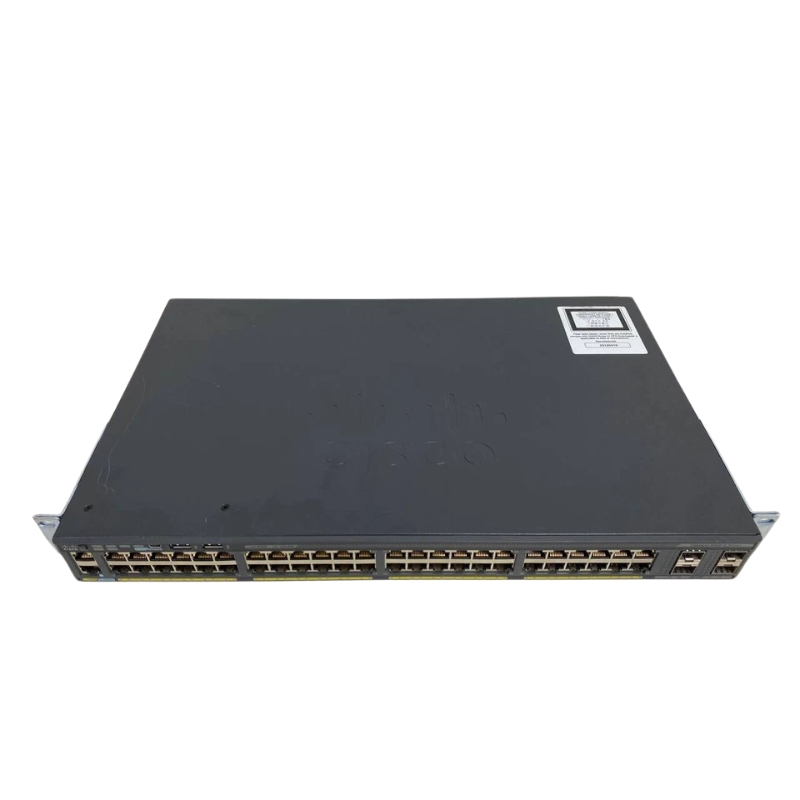

WS-C2960X-48TS-LL Cisco Catalyst 2960 Layer2 48-Port Switch

Ports

Enhanced Connectivity

The Cisco WS-C2960X-48TS-LL Layer2 Manageable switch offers an impressive 48 ports, providing enhanced connectivity options for users. Whether you are a small business, a growing enterprise, or an educational institution, having a high number of ports ensures that you can connect multiple devices simultaneously without the need for additional switches or hubs.

WS-C2960X-48TS-LL Switch Overview

Device Specifications

• Type: Managed Switch with 48 Ports
• Mounting Options: Suitable for Desktop or Rack-mountable (1U)
• Ports: 48 x 10/100/1000 Ethernet + 2 x Gigabit SFP

Performance Metrics

Switching Capacity

100 Gbps for high throughput and efficient data handling.

Forwarding Performance

Processes up to 104.2 Million packets per second (64-byte packet size).

Virtual Interfaces (VLANs)

Supports up to 64 VLANs for flexible network segmentation.

Jumbo Frame Support

Handles frames up to 9216 bytes, accommodating large data transfers.

Management and Protocols

• Protocols: SNMP v1, v2c, v3; RMON v1, v2; Telnet; HTTP; TFTP; SSH; CLI
• Remote Management: Comprehensive support for various remote management protocols.

Key Features

Layer 2 Switching Capabilities

• Supports DHCP, ARP, and Trunking
• VLAN support and Auto-uplink (Auto MDI/MDI-X)
• IPv6 compatibility

Advanced Protocol Support

• Rapid Spanning Tree Protocol (RSTP) and Multiple Spanning Tree Protocol (MSTP)
• Dynamic Trunking Protocol (DTP) and Port Aggregation Protocol (PAgP)
• Trivial File Transfer Protocol (TFTP) and Access Control List (ACL)

Additional Features

• CISCO EnergyWise Technology for power management
• Unicast Reverse Path Forwarding (URPF) for enhanced security
• Uni-directional Link Detection (UDLD) and Rapid Per-VLAN Spanning Tree Plus (PVRST+)
• IPv4 support and Shaped Round Robin (SRR) for load balancing

Networking Benefits

This switch is designed for robust networking environments, offering reliable performance, comprehensive management options, and support for advanced features. Ideal for both small and large-scale deployments, it ensures high-speed connectivity and efficient network management.

Increased Flexibility

With 48 ports, you have the flexibility to connect a wide range of devices to your network. This includes computers, printers, IP phones, access points, security cameras, and more. The abundance of ports allows you to easily expand your network as your needs grow, without the hassle of investing in additional networking equipment.

Improved Performance

Each port on the Cisco WS-C2960X-48TS-LL switch is designed to deliver high performance and reliability. The switch features Gigabit Ethernet ports that offer fast data transfer speeds, ensuring smooth and lag-free communication between devices. With 48 ports at your disposal, you can create a robust and efficient network infrastructure that supports demanding applications and heavy data traffic.

Power over Ethernet (PoE) Support

In addition to its impressive number of ports, the Cisco WS-C2960X-48TS-LL Layer2 Manageable switch also supports Power over Ethernet (PoE) technology. This feature allows you to power compatible devices directly from the switch, eliminating the need for separate power adapters or injectors.

Simplified Installation

With PoE support, you can easily deploy devices in locations where power outlets may be limited or inaccessible. This is particularly beneficial for devices such as IP phones and security cameras that require constant power supply. By utilizing the PoE feature, you can simplify the installation process and reduce clutter caused by multiple power cords.

Cost Savings

By eliminating the need for individual power adapters or injectors, the Cisco WS-C2960X-48TS-LL switch helps you save on costs. You no longer have to purchase and maintain separate power supplies for each device, resulting in significant savings over time. Additionally, PoE technology allows for efficient power management, reducing energy consumption and further lowering your operational expenses.

Layer 2 Management Capabilities

The Cisco WS-C2960X-48TS-LL Layer2 Manageable switch offers advanced layer 2 management capabilities, providing users with greater control over their network.

Secure Network Access

With the switch's layer 2 management features, you can implement secure network access controls to protect your sensitive data and resources. You can create VLANs (Virtual Local Area Networks) to isolate traffic and prevent unauthorized access. This ensures that only authorized devices and users can connect to specific network segments, enhancing the overall security of your network infrastructure.

Quality of Service (QoS) Prioritization

The QoS capabilities of the Cisco WS-C2960X-48TS-LL switch allow you to prioritize certain types of network traffic, ensuring consistent and reliable performance for critical applications. By assigning priority levels to different types of data, such as voice or video traffic, you can prevent congestion and guarantee optimal performance for essential services. This is particularly beneficial for organizations that rely heavily on real-time communication or multimedia applications.

Network Scalability

The layer 2 management capabilities of the Cisco WS-C2960X-48TS-LL switch enable network scalability, allowing you to easily expand your network as your business grows. The switch supports features such as Link Aggregation Control Protocol (LACP) and Spanning Tree Protocol (STP), which facilitate the creation of redundant links and ensure seamless network operation even in the event of link failure. These features provide enhanced network reliability and flexibility, enabling you to adapt to changing business requirements without compromising performance.

Simplified Troubleshooting

The switch's layer 2 management capabilities also simplify troubleshooting processes. With features like Port Mirroring and Remote Switch Port Analyzer (RSPAN), network administrators can monitor and analyze network traffic in real time. This allows for quick identification and resolution of potential issues, minimizing downtime and ensuring uninterrupted network operation.
