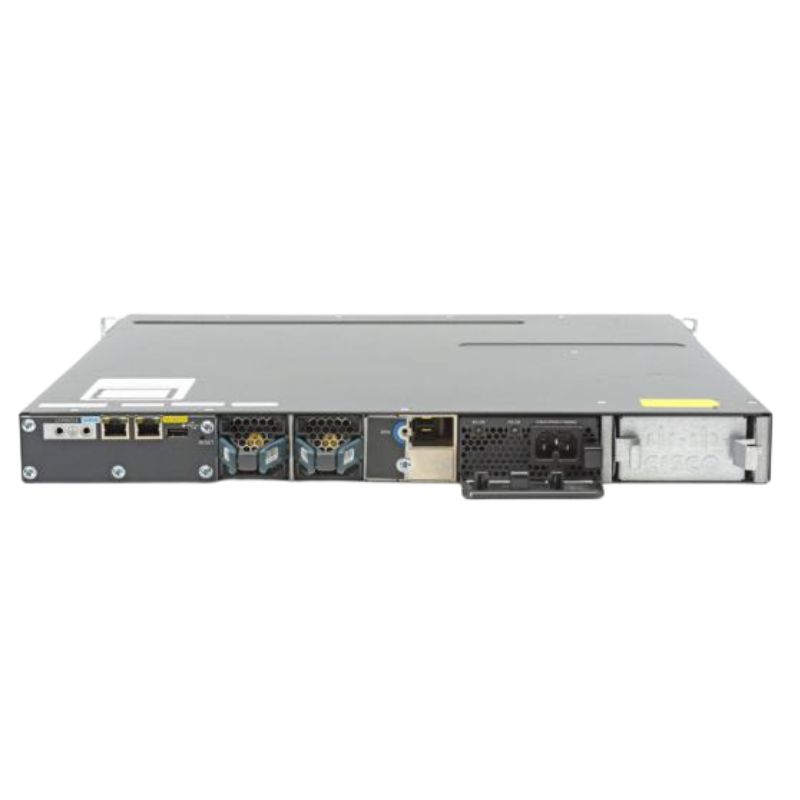

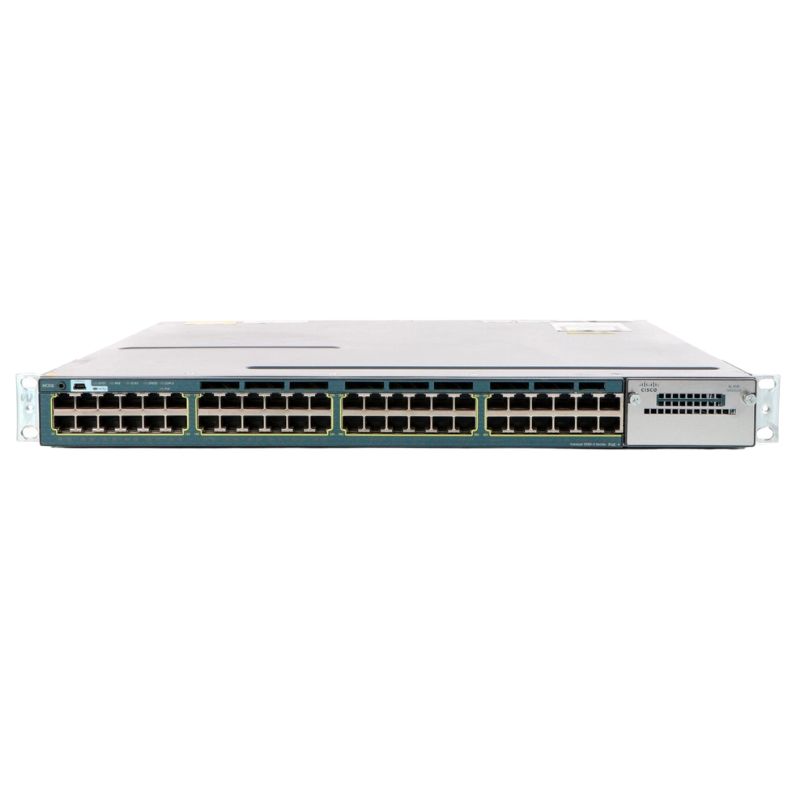

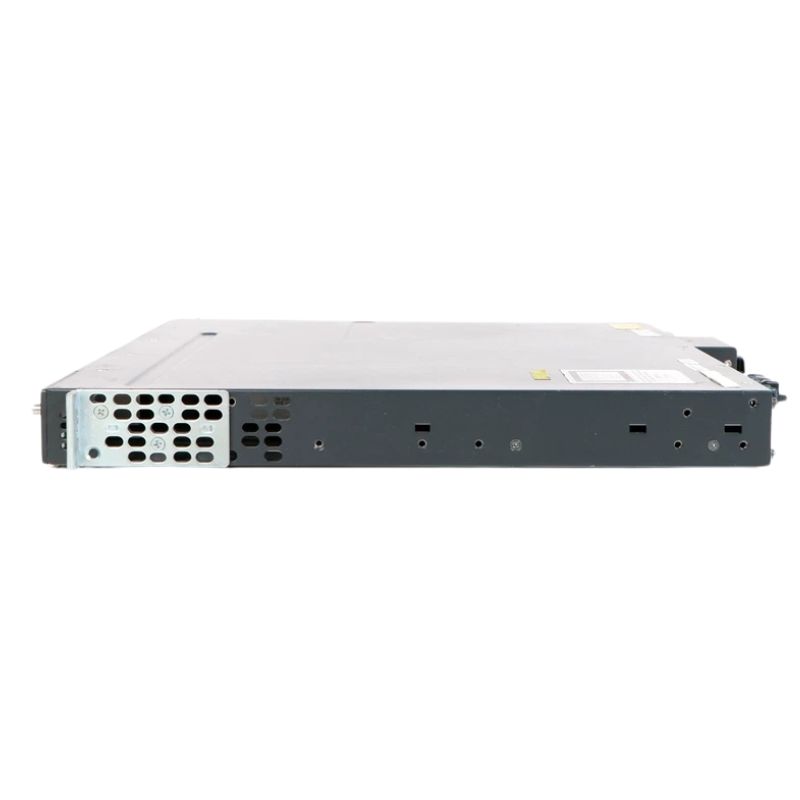

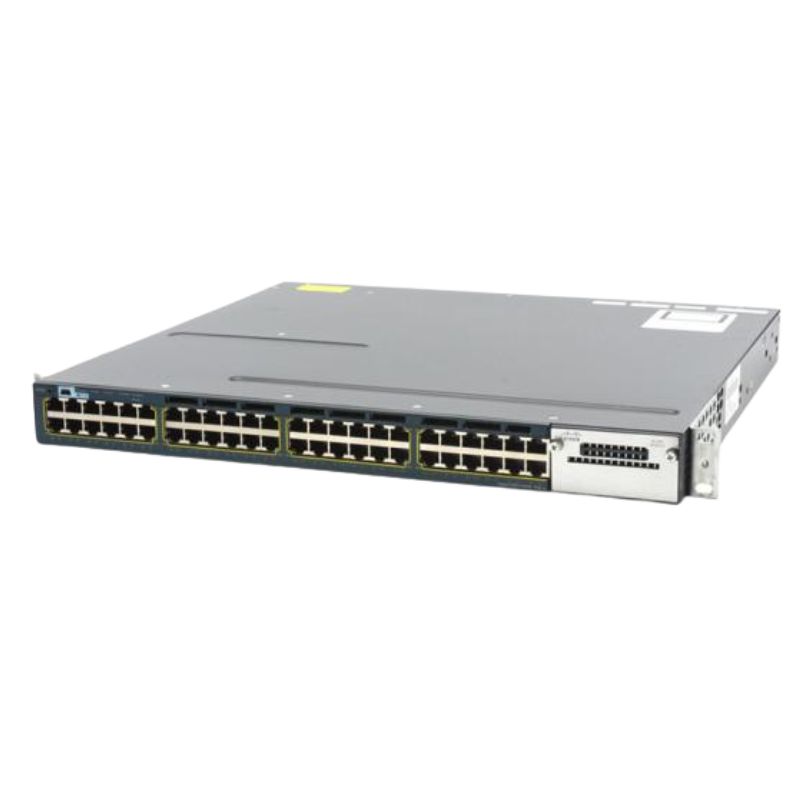

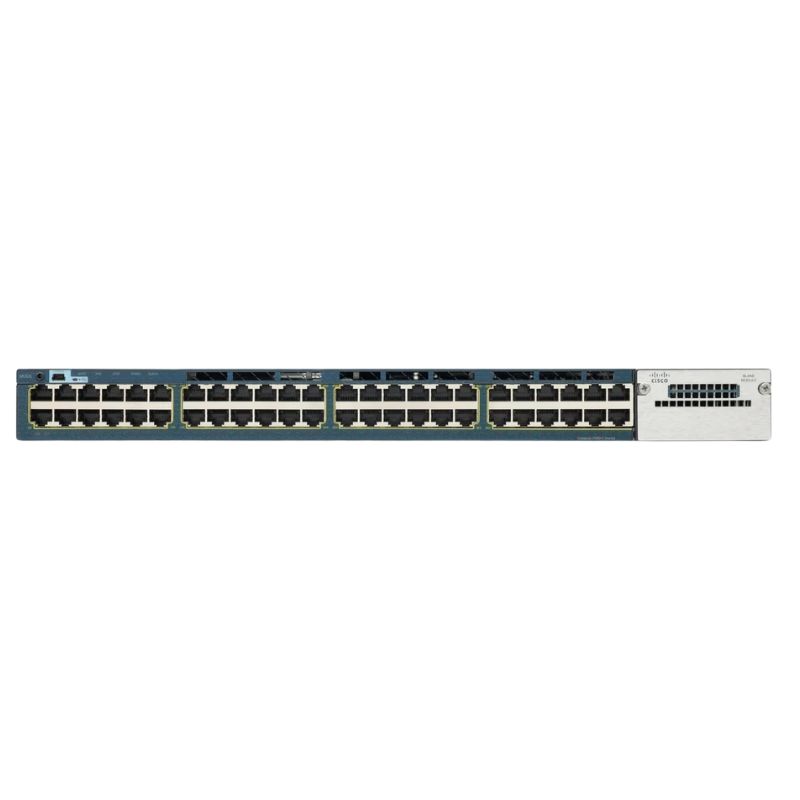

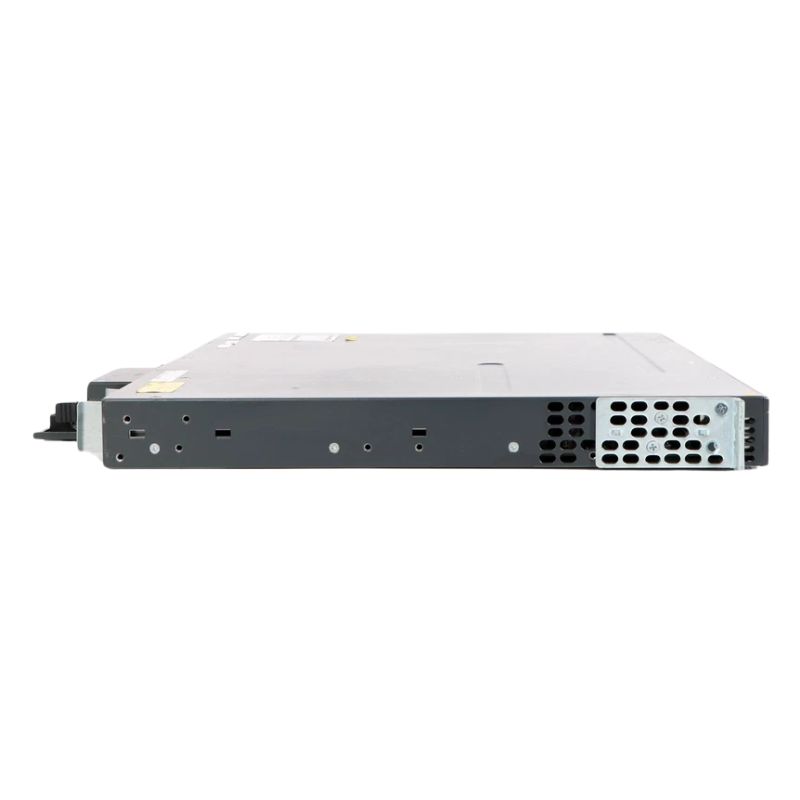

WS-C3560X-48P-L Cisco Catalyst 3560X Managed Switch 48 Ports

Overview of the Cisco WS-C3560X-48P-L Ethernet Switch

Manufacturer Details

• Brand: Cisco
• Model Number: WS-C3560X-48P-L
• Product Line: Catalyst
• Series: 3560-X

Product Specifications

Switch Type and Ports

• Type: Ethernet Switch
• Total Ports: 48 Gigabit Ethernet
• PoE Ports: 48

Performance and Technology

• Ethernet Standard: Gigabit Ethernet
• Network Standards: 10/100/1000Base-T

Expansion and Features

Expansion Slots

• Total Expansion Slots: 2

Key Features

• Hot-swappable modules
• Layer 2 Switching
• Dynamic IP Assignment & DHCP Support
• Power over Ethernet (PoE) Capabilities
• Auto-Negotiation & Auto-Uplink (MDI/MDI-X)
• VLAN and Trunking Support
• IGMP Snooping, Syslog, and Traffic Shaping
• Broadcast, Multicast, and Unicast Storm Control
• Rapid Spanning Tree Protocol (RSTP) Support
• Dynamic Trunking Protocol (DTP) and Port Aggregation Protocol (PAgP)
• Access Control List (ACL) Support
• Quality of Service (QoS) and Jumbo Frames Support
• Dynamic ARP Inspection (DAI) and MLD Snooping
• Per-VLAN Spanning Tree Plus (PVST+)
• Uni-Directional Link Detection (UDLD)
• Link Aggregation Control Protocol (LACP)
• Remote Switch Port Analyzer (RSPAN)

Environmental Specifications

• Minimum Operating Temperature: 23 °F
• Operating Humidity: 5 – 95% (non-condensing)
• Minimum Storage Temperature: -40 °F
• Maximum Storage Temperature: 158 °F

Network and Management

Layer Support

• Layer Supported: 2

Management Features

• Manageable: Yes

Memory and Power

Memory Specifications

• DRAM: 256 MB
• Flash Memory: 64 MB

Power Details

• Power Supply: Internal
• PoE Ports: Yes
• Input Voltage: 110 V AC / 220 V AC

Additional Information

Rack Mounting and Reliability

• Rack Mounting Kit: Optional
• Mean Time Between Failures (MTBF): 149,594 hours

Compliance Standards

• TUV GS
• CISPR 22 Class A
• GOST
• cUL
• NOM
• VCCI Class A ITE
• EN55022 Class A
• CB
• AS/NZS 60950-1
• AS/NZ 3548 Class A
• CCC
• RoHS
• UL 60950-1
• IEC 60950-1
• EN 60950-1
• KCC
• FCC Part 15 A
• CSA C22.2 No. 60950-1

Ports

The Cisco WS-C3560X-48P-L Managed Switch is equipped with 48 ports, making it an ideal choice for businesses that require efficient connectivity and network expansion. Whether you need to connect multiple devices, such as computers, printers, servers, or IP phones, this switch offers ample ports to accommodate your networking needs.

Enhanced Connectivity

With 48 ports, this switch enables seamless connectivity for your network infrastructure. It allows you to connect numerous devices simultaneously, ensuring smooth data transmission and efficient communication between devices within your network. Whether you are a small business with limited connectivity requirements or a large enterprise with extensive networking needs, the abundance of ports in this switch ensures that you can easily connect all your devices without any limitations.

Flexibility and Scalability

The 48 ports provided by this switch offer flexibility and scalability for your business. You can connect various devices directly to the switch without the need for additional networking equipment. This eliminates the hassle of installing multiple switches or dealing with cable clutter. Additionally, the switch allows for easy expansion and future-proofing as your business grows. You can simply connect new devices to the available ports, ensuring that your network infrastructure can accommodate the increasing demands of your organization.

Streamlined Network Management

Having 48 ports on a single switch simplifies network management and reduces complexities. Instead of managing multiple switches spread across your organization, you can consolidate all your devices onto a single switch. This centralization makes it easier to monitor and troubleshoot network issues, saving time and effort for IT administrators. Furthermore, it allows for efficient configuration and control of devices within your network, enhancing overall network performance and security.

Power Over Ethernet

One of the standout features of the Cisco WS-C3560X-48P-L Managed Switch is its Power over Ethernet (PoE) capability. With the ability to provide power to connected devices through the Ethernet cables, this feature offers numerous benefits for users.

Convenience and Cost Savings

PoE eliminates the need for separate power cables and outlets for each connected device. This simplifies installation and reduces clutter, making it an ideal solution for businesses with limited space or complex network setups. Additionally, PoE eliminates the costs associated with installing and maintaining additional power infrastructure, leading to significant cost savings in the long run.

Flexibility in Device Placement

With PoE, you are not limited by the proximity of power outlets when deciding where to place your devices. You can easily deploy devices such as IP phones, wireless access points, and IP cameras in locations that are most convenient or strategic for your business needs. This flexibility ensures optimal device placement for improved network coverage and performance.

Reliability and Redundancy

PoE provides a reliable power source for connected devices. By delivering power through Ethernet cables, it eliminates the risk of power outages affecting critical network devices. This redundancy ensures uninterrupted operation of essential equipment, such as security cameras or VoIP phones, even during power disruptions.

Management Interface

The Cisco WS-C3560X-48P-L Managed Switch offers a comprehensive range of management interfaces, including CLI, SNMP, RMON, Telnet, SSH, and Web GUI. This diverse set of interfaces enables efficient management of your network infrastructure.

Command Line Interface (CLI)

The CLI provides advanced configuration capabilities for experienced network administrators. With the CLI, you have granular control over various switch settings and can execute commands to monitor the status of your network devices. The CLI offers a powerful and flexible management interface for those who prefer a command-driven approach to network administration.

Simple Network Management Protocol (SNMP)

SNMP allows for centralized monitoring and management of network devices. It enables IT administrators to collect valuable data from switches, such as performance metrics and error logs, for proactive network troubleshooting and optimization. SNMP integration with network management systems streamlines network monitoring, ensuring smooth operations and minimizing downtime.

Remote Monitoring (RMON)

RMON functionality enhances network visibility by providing detailed information about traffic patterns, bandwidth utilization, and error statistics. By leveraging RMON, you can proactively identify and address potential bottlenecks or network issues before they impact your users. This enables you to optimize network performance and ensure a seamless user experience.

Layer

The Cisco WS-C3560X-48P-L Managed Switch operates at Layer 3 of the OSI model, providing advanced routing capabilities. This Layer 3 functionality offers several benefits for users looking to enhance their network infrastructure.

Improved Network Performance

Layer 3 switches offer faster packet forwarding and routing capabilities compared to traditional Layer 2 switches. By utilizing Layer 3 routing protocols, such as OSPF or EIGRP, the switch can make intelligent decisions on the most efficient paths for data transmission. This results in improved network performance, reduced latency, and optimized bandwidth utilization.

Network Segmentation

Layer 3 switches enable network segmentation by creating virtual LANs (VLANs) based on the IP addresses of connected devices. VLANs provide enhanced security and isolation between different departments or user groups within an organization. This allows for better control over network access and improves overall network security.

Integration with IP-Based Services

Layer 3 switches seamlessly integrate with IP-based services, such as Voice over IP (VoIP) or video conferencing systems. By supporting advanced IP routing protocols, the switch can prioritize and route traffic efficiently, ensuring optimal performance for real-time applications. This integration enhances the quality of IP-based services and improves the overall user experience.

Stackable

The Cisco WS-C3560X-48P-L Managed Switch is stackable, allowing for easy expansion and scalability of your network infrastructure.

Simplified Network Management

By stacking multiple switches together, you can manage them as a single logical unit. This simplifies network management by reducing the number of devices that need to be individually configured and monitored. Instead of managing multiple switches separately, you can apply configurations and monitor the stack as a whole, saving time and effort for IT administrators.

High Availability

Stacking provides high availability and redundancy for your network infrastructure. In the event of a switch failure, the stack can automatically reroute traffic through other switches in the stack, minimizing downtime and ensuring uninterrupted network connectivity. This resilience is crucial for businesses that require continuous operation and cannot afford network disruptions.

Scalability and Future-Proofing

Stacking allows for seamless expansion as your network grows. By simply adding additional switches to the stack, you can increase the number of available ports and improve overall network capacity. This scalability ensures that your network infrastructure can keep up with the increasing demands of your organization, providing a future-proof solution for long-term growth.
