WS-C3650-12X48UQ-S Cisco Catalyst 3650 48 Ports mGig, 4x10G Uplink, IP Base

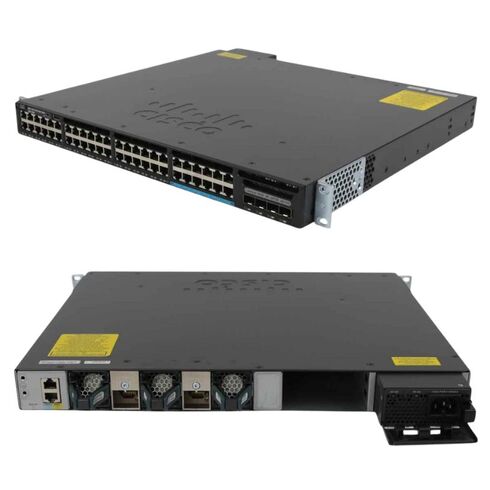

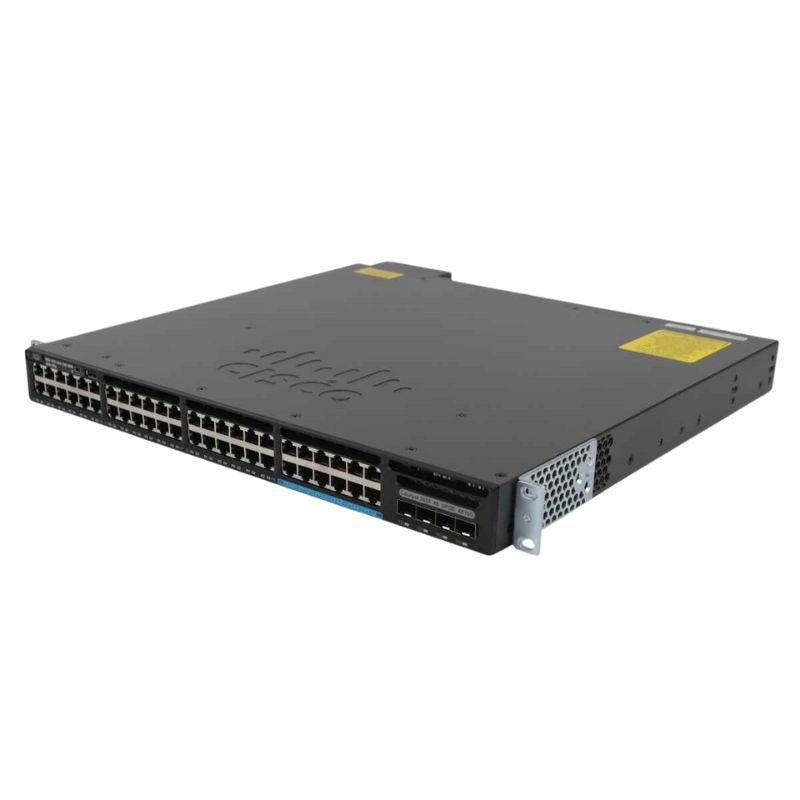

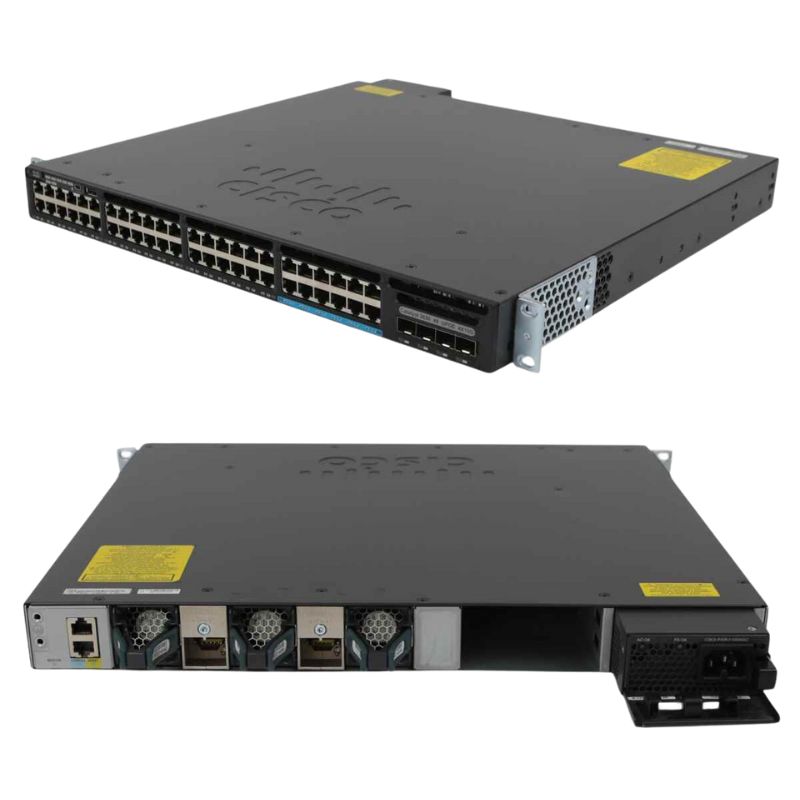

Cisco Catalyst WS-C3650-12X48UQ-S Switch

Brand and Model Information

• Manufacturer: Cisco Systems, Inc.
• Product Line: Catalyst 3650 Series
• Model: WS-C3650-12X48UQ-S
• Part Number: WS-C3650-12X48UQ-S, WS-C3650-12X48UQ-S=

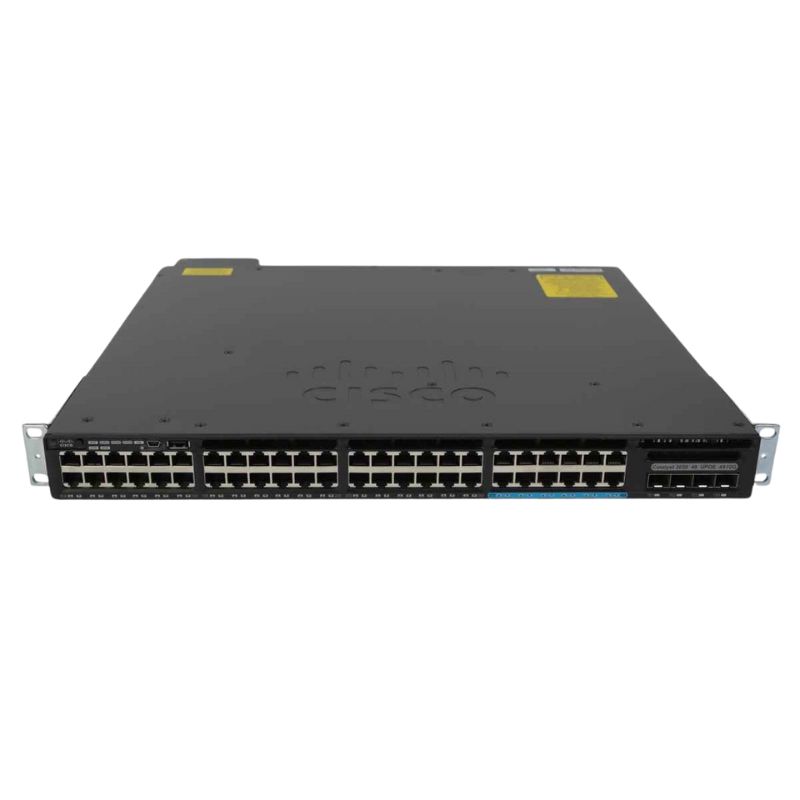

Port Configuration

Network and Uplink Ports

• 48x Ethernet Ports: 36x Gigabit Ethernet, 12x 100Mbps/1/2.5/5/10 Gigabit Ethernet with UPOE support
• 4x Uplink Ports: 10 Gigabit Ethernet SFP+ for high-speed uplinks

Management Ports

• 1x Console RJ-45
• 1x Gigabit Ethernet RJ-45
• 1x USB Type-A
• 1x Mini-USB Type A

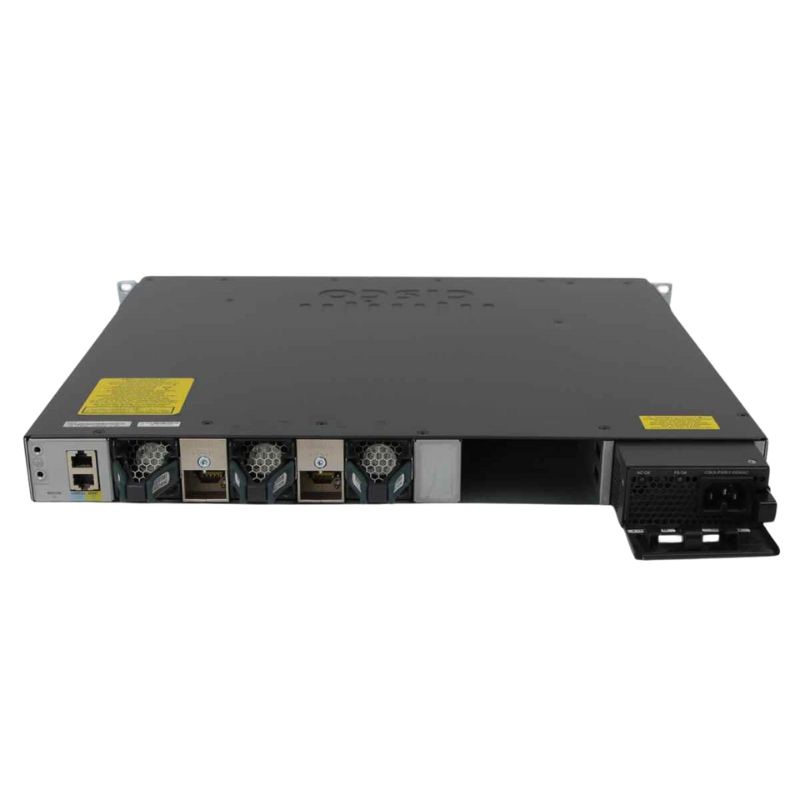

Power and PoE Capabilities

Power Supply

• Primary Power Supply: 1x PWR-C1-1100WAC, 1100W AC
• Supports dual power supplies for redundancy; additional options include PWR-C1-715WAC, PWR-C2-640WDC, and others

Power over Ethernet (PoE)

• UPOE Budget: 660W available for connected devices
• PoE+ Capable: Yes, with universal power over Ethernet

Performance and Capacity

Switching and Forwarding

• Switching Capacity: 392 Gbps
• Forwarding Rate: 291.66 Mpps (Million packets per second)

MAC Address Table

• Supports up to 32,000 MAC addresses for advanced traffic management

Stacking Capabilities

• Stacking Technology: StackWise-160, allowing seamless stacking of up to 9 switches
• 2x StackWise 160 connectors available for easy stacking (StackWise kit not included)

Stacking Cable Options

• Compatible with STACK-T2-50CM, STACK-T2-1M, and STACK-T2-3M cables

Software and Management

Operating System

• Pre-installed Software: Cisco IOS IP Base feature set for Layer 3 capabilities

Manageability

• Fully managed switch with support for virtual interfaces (SVIs)
• Total VLANs Supported: 4094
• Virtual Interfaces: 1000 SVIs supported

Wireless Integration

Wireless Support

• Supports up to 25 wireless access points per switch/stack
• Manages up to 1000 wireless clients per switch/stack
• Compatible Access Points: Cisco Aironet 3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040 series

Wireless Bandwidth

• Provides up to 40 Gbps wireless bandwidth per switch

Memory and Storage

Memory

• DRAM: 4 GB
• Flash Storage: 4 GB

Routing and Forwarding

• IPv4 Routing Table: Supports up to 24,000 IPv4 routes
• Routed ports per stack: 208 total

Physical Specifications

Dimensions and Weight

• Length: 19.13 inches
• Width: 17.50 inches
• Height: 1.73 inches (1U rack-mountable)
• Weight: 17.20 lbs

Rack Mounting

• 1-RU form factor for space-saving installation
• Rack mounts included for easy integration

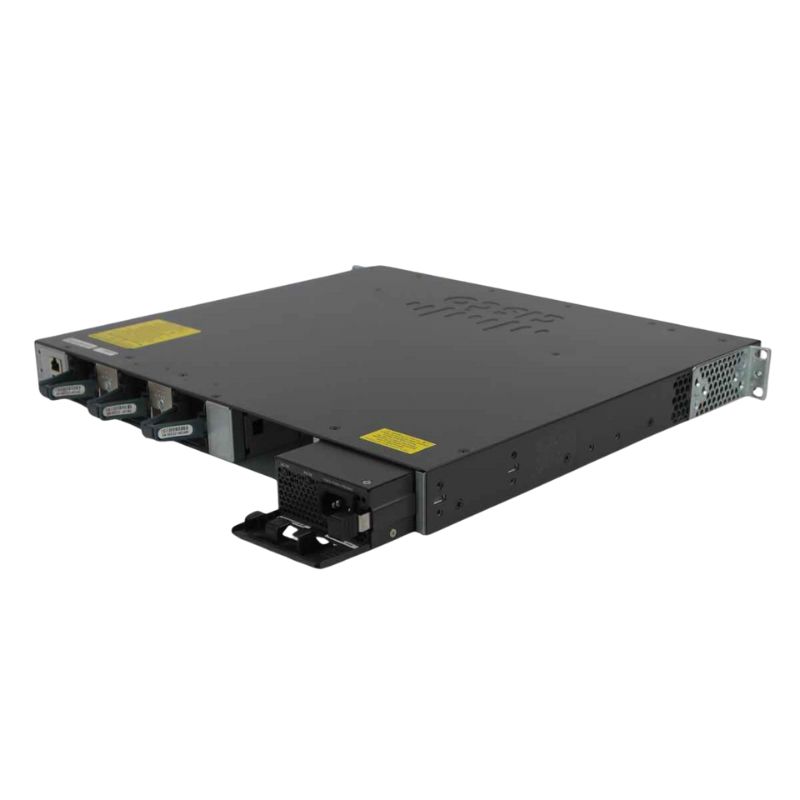

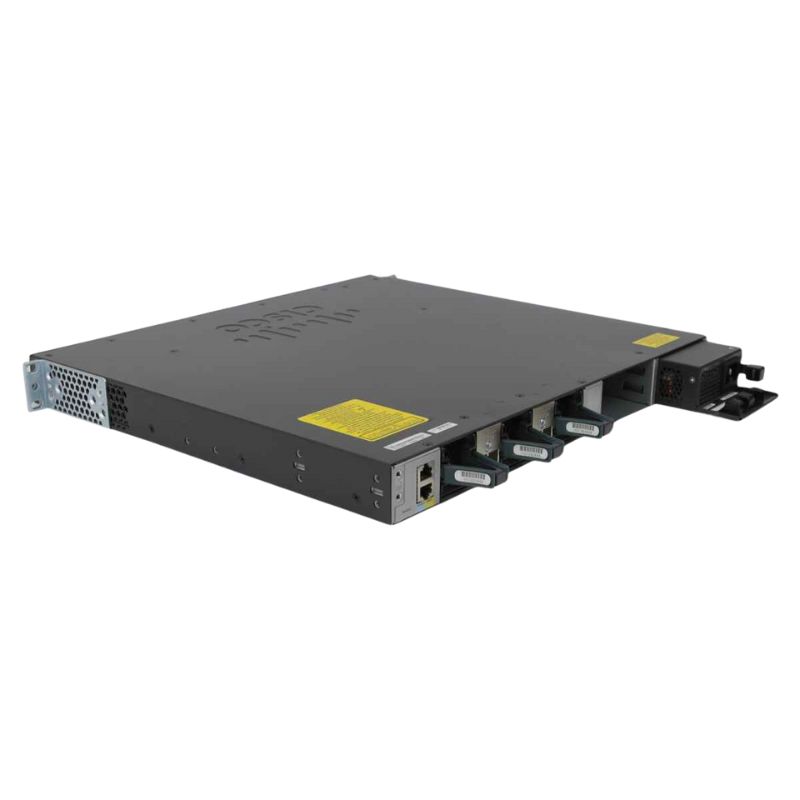

Cooling and Fan Modules

Cooling System

• Airflow Direction: Port-side intake for optimal cooling
• Fan Modules: 3x FAN-T1 modules included

Ports

The Cisco WS-C3650-12X48UQ-S Switch is equipped with an impressive 48 ports, making it an ideal choice for businesses that require a high level of connectivity. These ports allow you to connect a wide range of devices, such as computers, printers, servers, and more. With 48 ports at your disposal, you can easily expand your network and accommodate the growing number of devices in your organization.

Increased Flexibility

Having 48 ports on the Cisco WS-C3650-12X48UQ-S Switch gives you the flexibility to connect multiple devices simultaneously. This feature is particularly useful for businesses that rely heavily on technology, as it allows for efficient data transfer and communication between devices. With a larger number of ports, you can easily manage and organize your network without the need for additional switches or routers.

Improved Performance

The 48 ports on this switch are designed to deliver high-performance connectivity. Each port offers fast data transfer speeds, ensuring that your network operates smoothly and efficiently. Whether you're transferring large files, streaming multimedia content, or conducting video conferences, the Cisco WS-C3650-12X48UQ-S Switch's 48 ports ensure that your data is transmitted quickly and without interruption.

Scalability

As your business grows, so does the demand for network connectivity. The 48 ports on this switch provide scalability, allowing you to easily expand your network without compromising performance. You can add more devices to your network without the need for additional equipment, saving you time and money in the long run.

Uplink Ports

In addition to the 48 regular ports, the Cisco WS-C3650-12X48UQ-S Switch also features 4 uplink ports. These uplink ports are specifically designed to connect the switch to other switches or routers, allowing for seamless communication between different network segments. The uplink ports provide a high-speed connection that ensures fast and reliable data transfer between devices.

Enhanced Network Performance

The 4 uplink ports on the Cisco WS-C3650-12X48UQ-S Switch enhance network performance by providing a dedicated connection for inter-switch communication. This feature allows for efficient data transfer between switches, reducing latency and improving overall network speed. With the uplink ports, you can ensure that your network operates at its maximum potential, even during peak usage periods.

Redundancy and Resilience

Uplink ports also offer redundancy and resilience to your network infrastructure. By connecting multiple switches or routers through the uplink ports, you create a redundant network architecture that can withstand device failures or link disruptions. In the event of a failure, the uplink ports automatically reroute traffic through an alternate path, ensuring uninterrupted connectivity for your network.

Network Expansion

The 4 uplink ports provide the flexibility to expand your network by connecting additional switches or routers. This feature is particularly useful for businesses that require a large-scale network infrastructure or plan to expand in the future. With the uplink ports, you can easily scale your network to accommodate new devices and meet the growing demands of your organization.

Speed

The Cisco WS-C3650-12X48UQ-S Switch offers mGig speed, providing users with a significant boost in network performance. The mGig technology enables faster data transfer rates, allowing for quick and seamless communication between devices.

High-Speed Connectivity

With mGig speed, the Cisco WS-C3650-12X48UQ-S Switch ensures that your network operates at maximum efficiency. Whether you're transferring large files, streaming high-definition videos, or running bandwidth-intensive applications, the mGig speed ensures that your data is transmitted quickly and without any lag. This feature is especially beneficial for businesses that rely on fast and reliable network connectivity to carry out their daily operations.

Future-Proofing

The mGig technology future-proofs your network infrastructure by supporting the latest high-speed devices. As technology continues to advance, devices with higher data transfer capabilities are being introduced into the market. By investing in a switch with mGig speed, you can ensure that your network is ready to handle these devices without any performance bottlenecks. This feature provides a long-term solution for businesses looking to stay ahead in the ever-evolving digital landscape.

Improved User Experience

The mGig speed on the Cisco WS-C3650-12X48UQ-S Switch significantly improves the user experience by reducing latency and minimizing buffering times. Whether it's browsing the internet, accessing cloud-based applications, or downloading files, users will benefit from a faster and more responsive network connection. This enhanced user experience translates into increased productivity and satisfaction among employees, as well as improved customer experiences.

Feature

The Cisco WS-C3650-12X48UQ-S Switch comes with the IP Base feature, providing users with a comprehensive set of networking capabilities and security features. The IP Base feature is designed to meet the needs of small to medium-sized businesses, offering advanced functionality without compromising simplicity and ease of use.

Advanced Network Management

The IP Base feature on the Cisco WS-C3650-12X48UQ-S Switch allows for advanced network management capabilities. With this feature, you can easily configure and monitor your network, ensuring optimal performance and security. The IP Base feature includes features such as VLAN support, Quality of Service (QoS) management, and access control, allowing you to customize your network to meet your specific requirements.

Enhanced Security

Security is a critical aspect of any network infrastructure. The IP Base feature on the Cisco WS-C3650-12X48UQ-S Switch includes advanced security features that protect your network from unauthorized access and potential threats. These features include Secure Shell (SSH) encryption, Secure Sockets Layer (SSL) encryption, and Network Access Control (NAC), ensuring that your data remains secure and confidential.

Reliability and Stability

The IP Base feature provides reliability and stability to your network infrastructure. With features such as Virtual Router Redundancy Protocol (VRRP) and Hot Standby Router Protocol (HSRP), the Cisco WS-C3650-12X48UQ-S Switch ensures that your network remains operational even in the event of device failures or link disruptions. This feature minimizes downtime and ensures uninterrupted connectivity for your business-critical applications.

In conclusion, the Cisco WS-C3650-12X48UQ-S Switch offers 48 ports, 4 uplink ports, mGig speed, and the IP Base feature. These features provide users with increased flexibility, enhanced network performance, scalability, redundancy, high-speed connectivity, future-proofing capabilities, improved user experience, advanced network management, enhanced security, and reliability. Whether you're a small business or a growing enterprise, this switch is a reliable and powerful solution for your networking needs.
