WS-C3750V2-24TS-E Cisco Catalyst 3750V2 24 10/100 + 2 SFP Enhanced Image

Cisco Catalyst 3750V2 Series: The Definitive Stackable Switch

The Cisco WS-C3750V2-24TS-E stands as a cornerstone model within the venerable Catalyst 3750 Series, representing a significant evolution in stackable switching technology. This category encompasses advanced, enterprise-class switches designed to deliver robust performance, enhanced security, and simplified manageability for demanding business networks. As a "V2" model, this switch incorporates critical hardware improvements, including more efficient power supplies and enhanced thermal design, for greater reliability and lower operational costs. The 3750V2 series is engineered for the access layer, where user devices, IP phones, and wireless access points connect to the network, making it the critical point for enforcing policy, ensuring quality of service, and maintaining network integrity.

Targeting mid-sized organizations, enterprise branch offices, and educational campuses, these switches are built on Cisco's StackWise technology, a revolutionary innovation that allows multiple physical switches to operate as a single, logical unit. This category is defined by its unwavering focus on convergence—seamlessly integrating data, voice, and video traffic on a single, resilient, and intelligent platform. The WS-C3750V2-24TS-E, with its specific configuration of 24 10/100 Ethernet ports and two Gigabit SFP uplinks, is an ideal solution for desktop connectivity, providing ample bandwidth for users and high-speed uplink capacity for aggregation.

Hardware Architecture & Physical Specifications

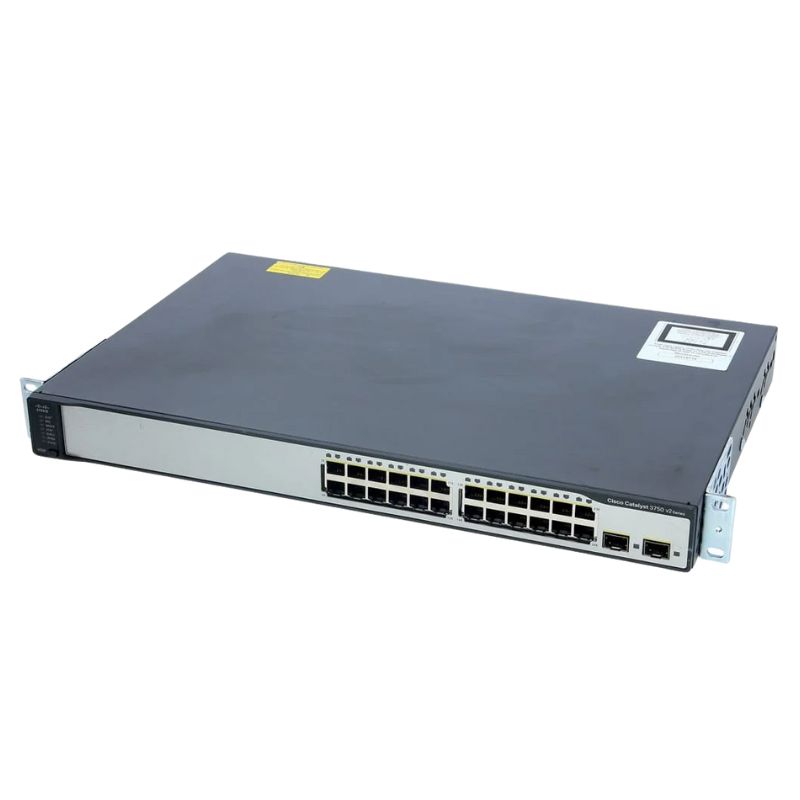

The physical design of the Cisco WS-C3750V2-24TS-E is a testament to robust, rack-optimized engineering. Understanding its hardware composition is key to planning a stable and scalable network deployment.

Port Configuration and Connectivity

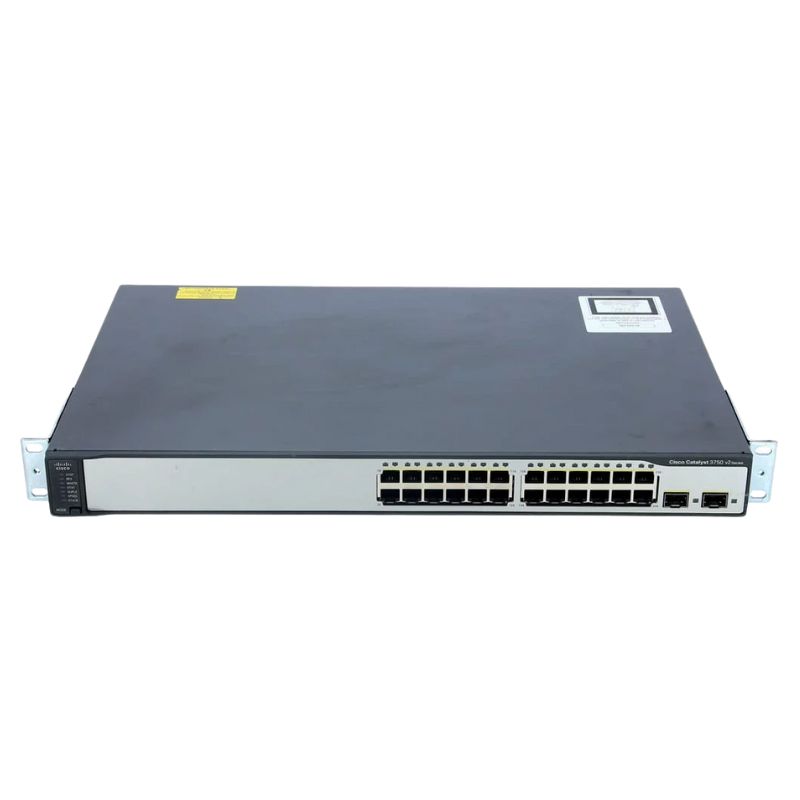

The front panel of the switch offers a carefully balanced array of connectivity options designed for access layer versatility.

10/100Base-TX Copper Ports

The 24 auto-sensing 10/100 Mbps RJ-45 ports form the workhorse connectivity for end devices. These ports support:

Auto-MDI/MDIX: Eliminates the need for crossover cables, allowing direct connection to servers, PCs, or other switches using standard straight-through cables.
IEEE 802.3af Power over Ethernet (PoE) Capability (Note: The "TS" model does NOT provide PoE. PoE models are designated as "PS"). This is a critical differentiator within the 3750V2 category.
Advanced QoS Features: Each port can classify and prioritize traffic, ensuring low latency for voice and video applications.

Gigabit Ethernet SFP Uplink Ports

The two built-in Small Form-factor Pluggable (SFP) ports are a defining feature, enabling high-speed, flexible uplinks.

Purpose: These ports are designed for uplinking to distribution or core layer switches, or for connecting to servers and storage, providing a bandwidth escape valve to prevent the 10/100 ports from becoming a bottleneck.
Flexibility: They support a wide range of Cisco SFP modules, allowing network managers to choose the appropriate media—copper (1000Base-T) for short runs or fiber (e.g., 1000Base-SX/LX, LH) for long-distance connections up to kilometers.
Resiliency: The uplinks can be configured for redundancy using protocols like EtherChannel, ensuring non-stop connectivity.

Internal Hardware Enhancements (V2 Differentiation)

The "V2" suffix signifies substantial internal improvements over the first-generation 3750 models.

Enhanced Power Supply Efficiency

The V2 series incorporates a revised, high-efficiency power supply unit (PSU). This reduces power consumption and heat generation, leading to lower electricity costs and increased component longevity, contributing to a lower total cost of ownership (TCO).

Improved Thermal Management

A redesigned airflow mechanism ensures more effective cooling of critical ASICs and components. This enhanced thermal design improves mean time between failures (MTBF), a key metric for network reliability and uptime, especially in densely populated wiring closets.

Universal AC Power Input

The switch supports a broad range of AC input voltages and frequencies, simplifying global deployment and ensuring stable operation in regions with less consistent power infrastructure.

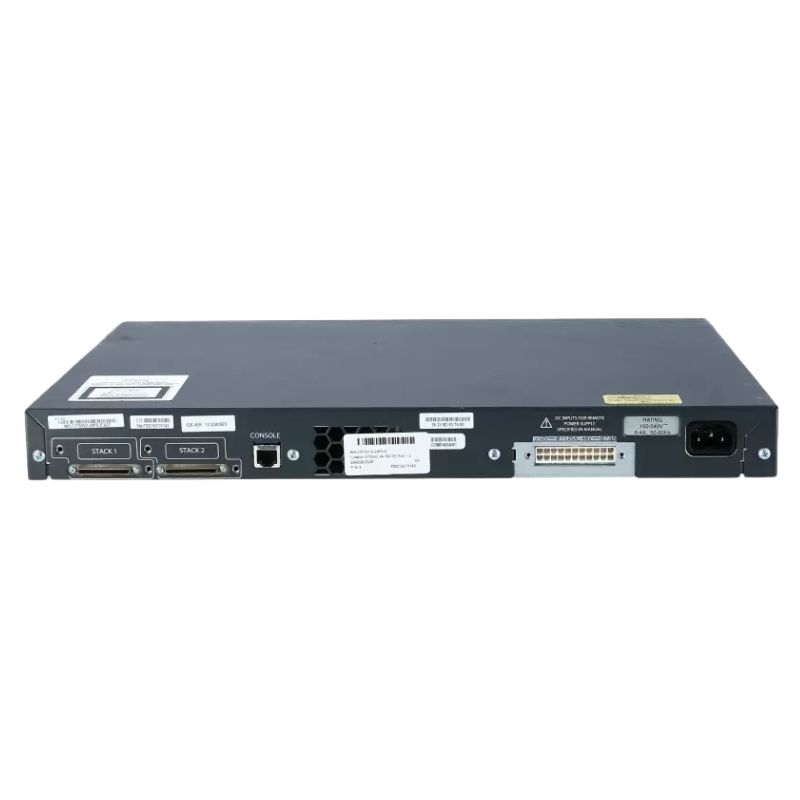

StackWise Technology: The Heart of Scalability

Perhaps the most powerful feature defining this category is Cisco's proprietary StackWise technology. It transforms the paradigm of managing multiple access switches.

Logical Single Unit Management

From an operational standpoint, the entire stack appears as one switch to the network management system. You have one IP address to manage, one configuration file, and one topology view. This drastically reduces administrative overhead compared to managing each switch individually (ISL or "island" management).

Unified Stack Ring Architecture

The stacking cables create a 32 Gbps ring (16 Gbps per direction) of shared bandwidth. This ring architecture provides inherent redundancy; if one stacking cable fails or a switch is removed, the stack automatically recalibrates and continues operating without dropping user sessions.

Benefits for Network Design

This technology delivers tangible benefits for network architects and administrators.

Simplified Scalability

Adding switch ports is as simple as connecting a new 3750V2 to the stack. The new unit automatically inherits the stack's master configuration. This allows networks to grow incrementally without complex reconfiguration.

High Availability within the Stack

The stack elects a master and a standby switch. If the master fails, the standby assumes the master role within seconds, ensuring continuous network operation. Inter-switch link aggregation (cross-stack EtherChannel) allows for uplinks distributed across multiple stack members, eliminating single points of failure.

Single Point of Management

All software updates, security policies, VLAN configurations, and QoS settings are applied once to the stack, propagating to all member switches uniformly, ensuring configuration consistency and eliminating human error.

Software Intelligence & Feature Set

Running Cisco's robust IOS (Internetwork Operating System) software, the Catalyst 3750V2 series is far more than a simple packet-forwarding device. It is an intelligent network traffic controller.

Advanced Quality of Service (QoS)

In a converged network, prioritizing voice and video over general web traffic is essential. The 3750V2 provides sophisticated QoS mechanisms.

Classification & Marking: Traffic can be classified based on port, IP address, protocol (e.g., DSCP, CoS), and then marked for consistent treatment across the network.
Policing and Shaping: Controls bandwidth consumption to prevent any single application or user from overwhelming the link.
Congestion Management: Uses multiple egress queues per port to ensure latency-sensitive packets are transmitted first.

Comprehensive Security Suite

As the entry point to the network, the access switch is the first line of defense. The 3750V2 includes a layered security approach.

Network Admission Control

Through integration with Cisco TrustSec or 802.1X, the switch can authenticate users and devices before granting network access. Unauthorized devices are quarantined.

Access Control Lists (ACLs)

Powerful security and quality of service ACLs (PACLs, RACLs, VACLs) can be applied to filter traffic at wire speed, protecting network resources from unauthorized access and attacks.

Port Security and DHCP Snooping

Prevents MAC address flooding attacks and rogue DHCP server attacks, which are common threats in layer-2 networks.

Typical Deployment Scenarios

The Cisco WS-C3750V2-24TS-E is versatile, fitting into several key roles within a hierarchical network design.

Enterprise Branch Office Backbone

In a remote or branch office, a stack of 3750V2 switches can serve as the complete LAN infrastructure. The 10/100 ports connect desktop users and printers, while the SFP uplinks connect to a WAN router. Advanced QoS ensures good voice (VoIP) quality over the WAN link, and StackWise simplifies remote management from headquarters.

Campus Building Access Layer

In a larger campus, these switches are deployed in wiring closets on each floor. They aggregate end-user connections and provide high-speed, redundant Gigabit fiber uplinks (using the SFP ports) to the building's distribution layer switches. Features like 802.1X authenticate students or staff, and PoE (if using a PS model) powers wireless access points and IP phones.

Mid-Sized Business Core

For small to mid-sized businesses, a stack of 3750V2 switches can perform triple duty as access, distribution, and even a lightweight core. The high-cross-stack switching capacity and Layer 3 routing capabilities (with the appropriate IP Services IOS image) can handle inter-VLAN routing for the entire organization in a single, easy-to-manage solution.
