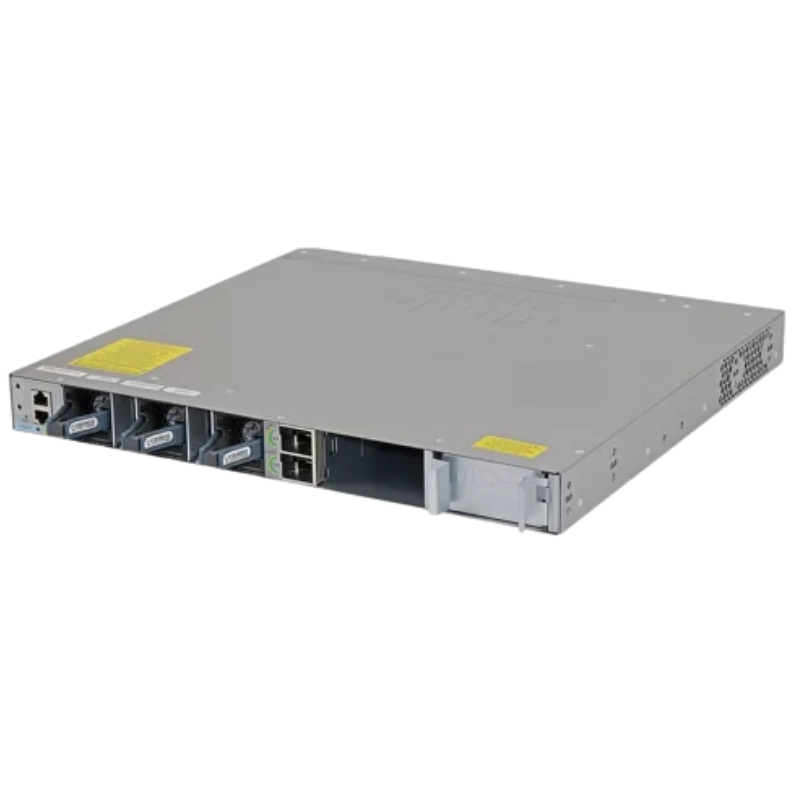

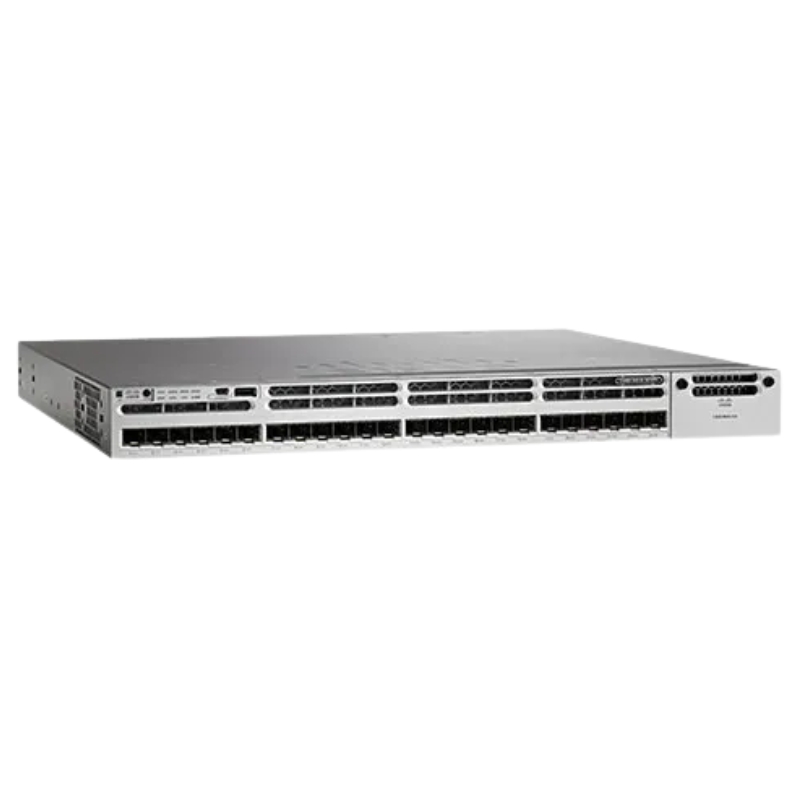

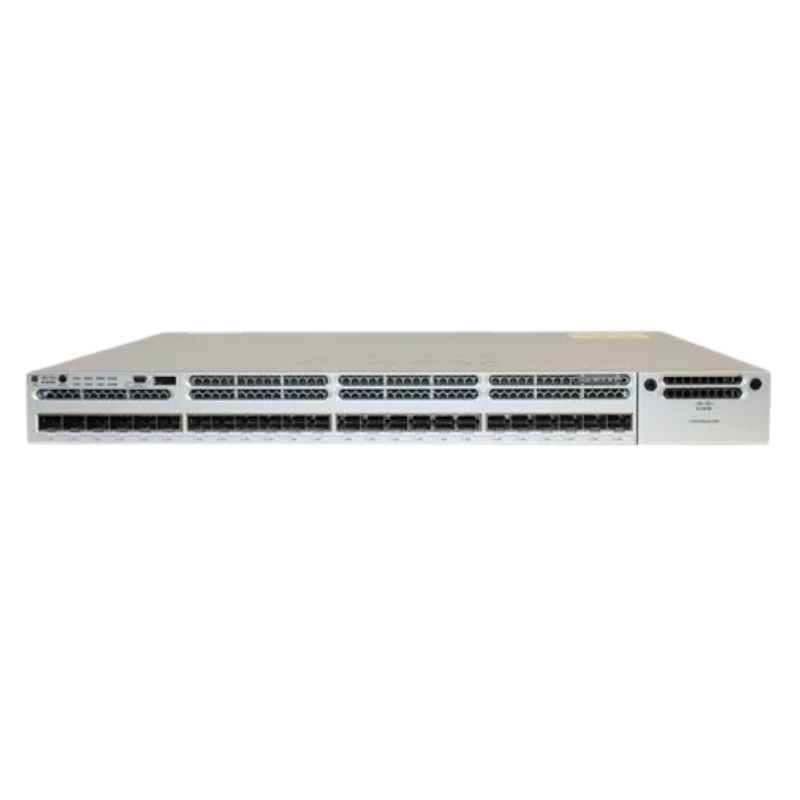

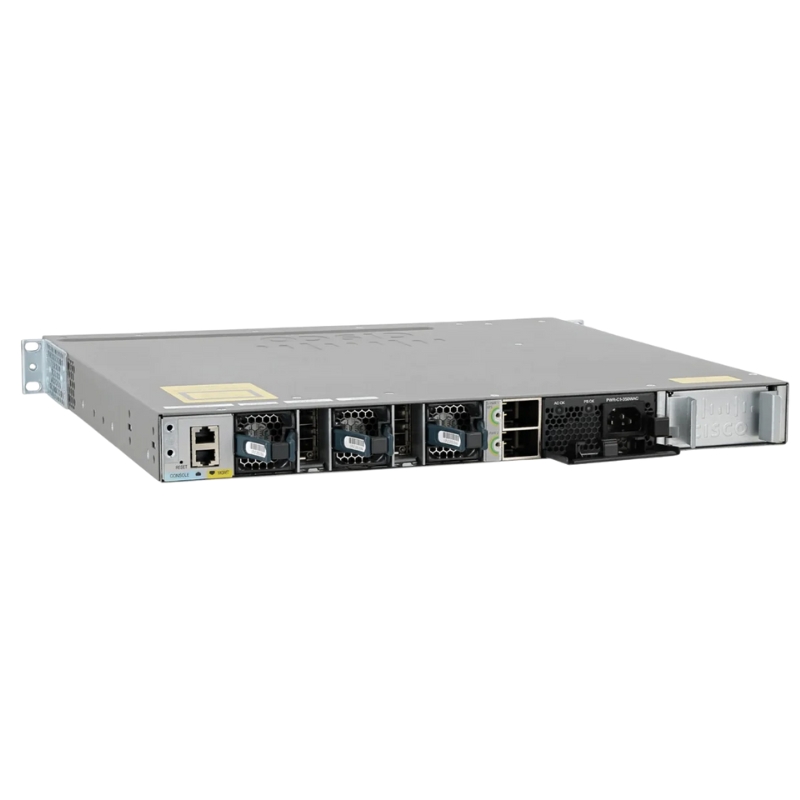

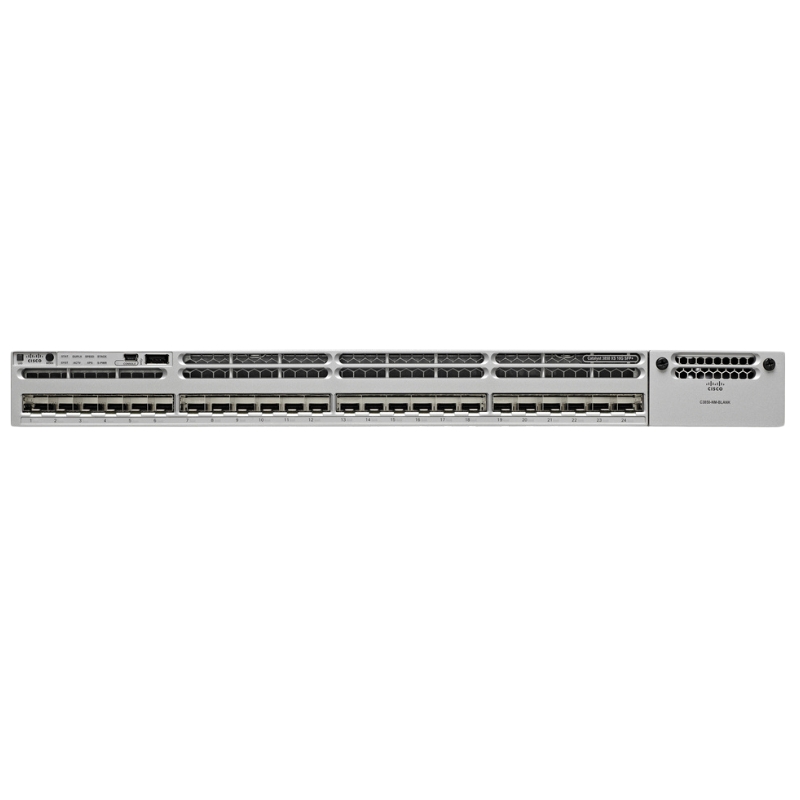

WS-C3850-24XS-E Cisco Catalyst 3850 L3 24 Ports Switch

Ports

The Cisco WS-C3850-24XS-E Manageable Switch comes equipped with 24 ports, making it an ideal choice for businesses and organizations that require a high number of network connections. These ports provide the necessary connectivity for devices such as computers, printers, servers, and other network-enabled devices.

Overview of the CISCO Catalyst Switch

• Part Number: CISCO Catalyst 3850-24XS-E
• Type: Managed Switch with 24 Ports
• Form Factor: Desktop or Rack-mountable

Device Specifications

• Switch with 24 Ports
• Layer 3 (L3) Functionality
• Stackable Design
• Enclosure: 1U, fits in Desktop or Rack-mountable setups

Interface Details

• Ports: 24 x 1G / 10G SFP+
• Additional Interfaces:
  • 1 x USB Type A
  • 1 x Mini-USB Management
  • 1 x RJ-45 Console
  • 1 x Gigabit LAN Management RJ-45
  • 2 x Network Stack Ports

Expansion and Performance

• Expansion Slots: 1 (total), 1 (available)
• Switching Capacity: 640 Gbps
• Stacking Bandwidth: 480 Gbps

Capacity Details

• IPv4 Routes: 24,000
• NetFlow Entries: 48,000
• Virtual Interfaces (VLANs): 4,000
• Switched Virtual Interfaces (SVIs): 1,000

Routing Protocols and Remote Management

Supported Routing Protocols

• OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP
• IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3
• EIGRP for IPv6, OSPFv3, PIM-SSM, Policy-based Routing (PBR)
• RIPng, MLdv2, MLD

Remote Management Protocols

• SNMP v1, SNMP v2c, SNMP v3
• RMON v1, RMON v2
• Telnet, TFTP, SSH
• CLI Access

Power and Physical Characteristics

• Power Supply: Internal
• Installed Quantity: 1
• Max Supported Quantity: 2
• Power Redundancy: Optional with 1+1 Scheme
• Power Output: 715 Watts
• Voltage Requirements: AC 120/230 V (50 - 60 Hz)

Dimensions and Weight

• Dimensions: 17.5 inches (W) x 17.7 inches (D) x 1.8 inches (H)
• Weight: 13.45 lbs

Increased Connectivity

With 24 ports, this switch offers an abundance of connectivity options for users. It allows businesses to connect multiple devices to the network simultaneously, ensuring seamless communication and data transfer between different endpoints. This is particularly beneficial for large enterprises or organizations that have numerous departments or teams that require reliable network access.

Efficient Data Transfer

The 24 ports on the Cisco WS-C3850-24XS-E switch enable fast and efficient data transfer between connected devices. Each port operates at high speeds, allowing for quick transmission of data packets. This ensures minimal latency and optimal network performance, even during peak usage periods. Users can rely on this switch to handle heavy data loads without compromising speed or performance.

Scalability

The availability of 24 ports provides scalability for future growth and expansion. As businesses expand their operations or add more devices to their network, having additional ports allows for easy integration without the need for purchasing additional switches. This scalability ensures that the switch can accommodate the evolving needs of the organization, saving both time and resources in the long run.

Layer

The Cisco WS-C3850-24XS-E Manageable Switch boasts Layer 3 functionality, which offers advanced routing capabilities. Layer 3 switches combine the features of traditional Layer 2 switches with routing capabilities typically found in routers. This makes them a versatile solution for networks that require both switching and routing functionalities.

Enhanced Network Flexibility

The Layer 3 functionality of the Cisco WS-C3850-24XS-E switch provides enhanced network flexibility. It enables the switch to make intelligent routing decisions based on factors such as IP addresses, network traffic, and Quality of Service (QoS) requirements. By incorporating Layer 3 capabilities into the switch, businesses can optimize their network architecture and improve overall network performance.

Improved Network Segmentation

Layer 3 switches allow for improved network segmentation, enabling businesses to create separate virtual networks within a single physical network infrastructure. This segmentation enhances security by isolating different departments or user groups, preventing unauthorized access to sensitive information. It also helps to reduce network congestion and improve overall network efficiency by limiting broadcasts and unnecessary traffic.

Advanced Routing Features

Layer 3 switches offer advanced routing features such as static routing, dynamic routing protocols (e.g., OSPF, BGP), and multicast routing. These features enable efficient data routing between different subnets or VLANs (Virtual Local Area Networks). By leveraging these advanced routing capabilities, businesses can optimize their network traffic flow, ensure reliable connectivity, and improve overall network performance.

In conclusion, the Cisco WS-C3850-24XS-E Manageable Switch with its 24 ports provides increased connectivity, efficient data transfer, and scalability for businesses and organizations. The Layer 3 functionality of the switch offers enhanced network flexibility, improved network segmentation, and advanced routing features. These features are crucial for businesses seeking reliable and high-performance networking solutions. Whether it's supporting a growing workforce or optimizing network traffic flow, the Cisco WS-C3850-24XS-E switch is a reliable choice that meets the demands of modern networking environments.
