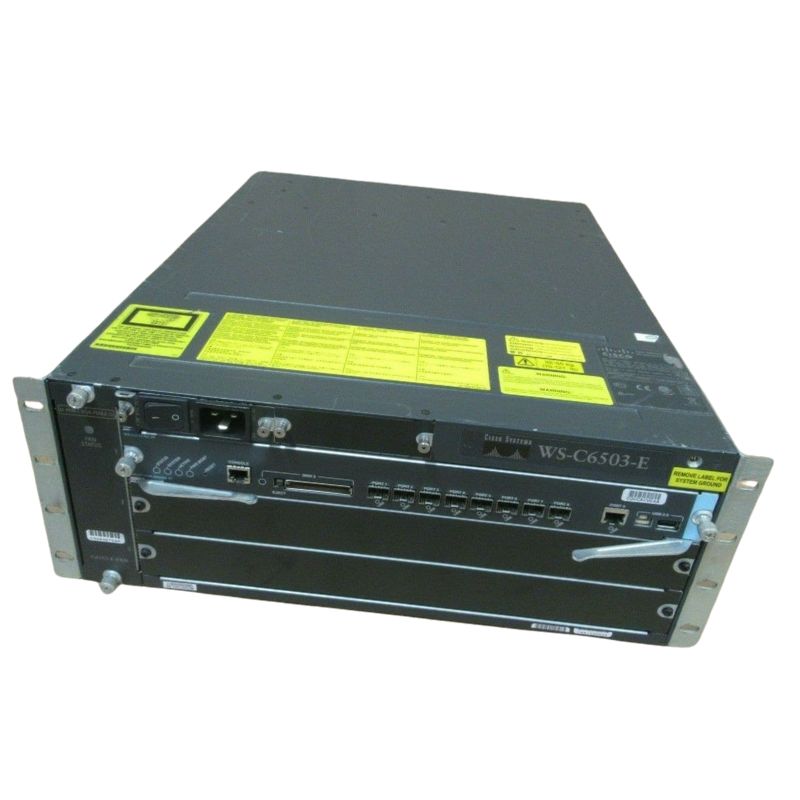

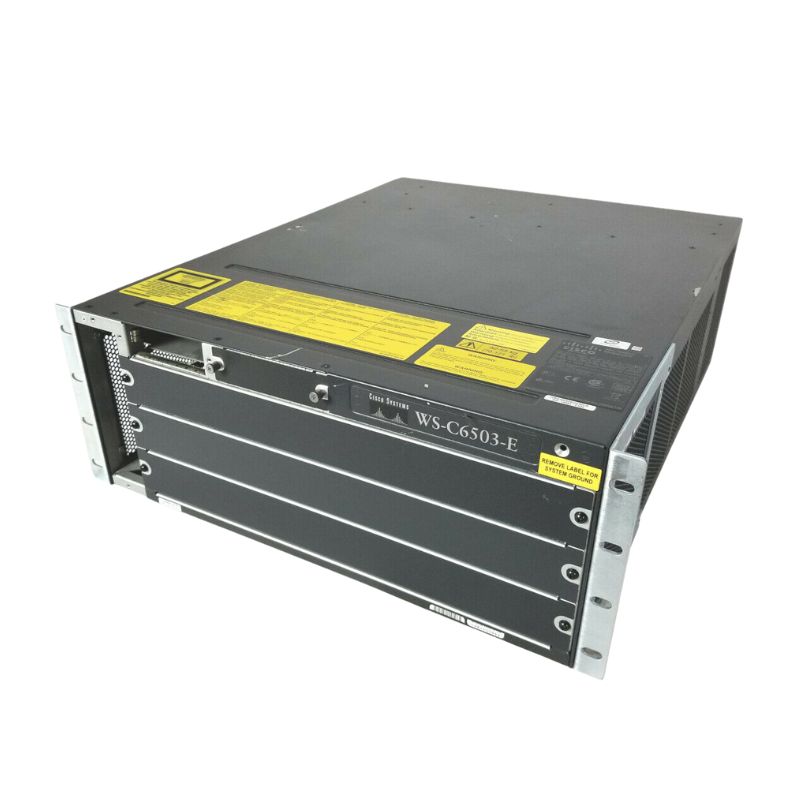

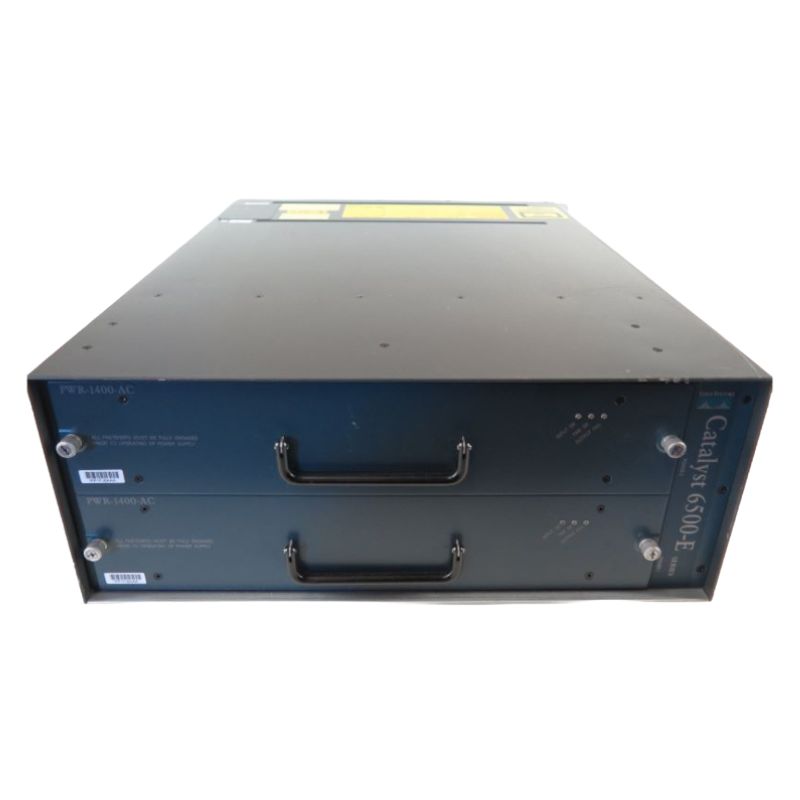

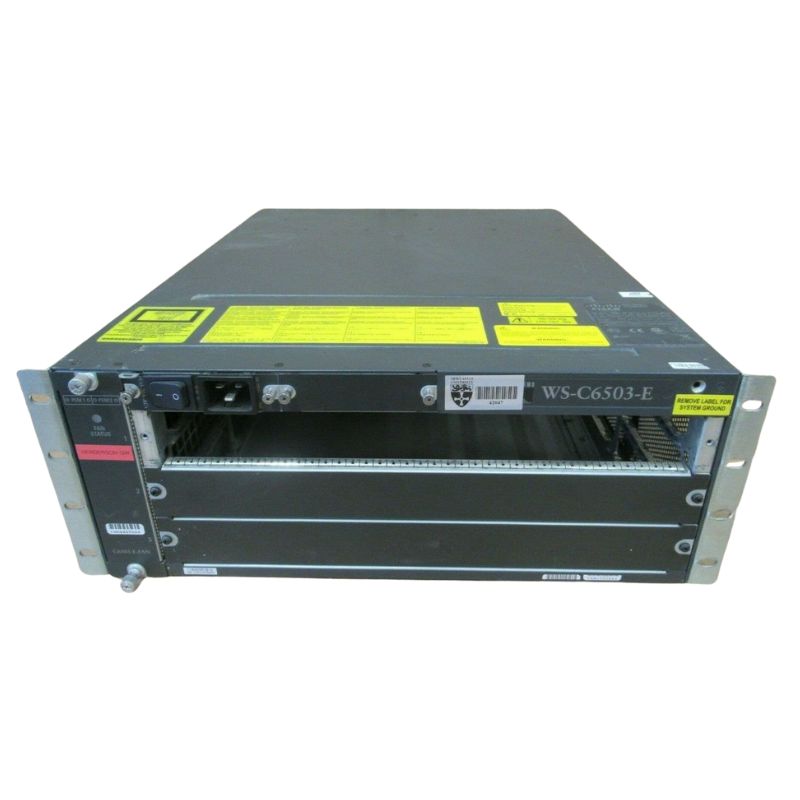

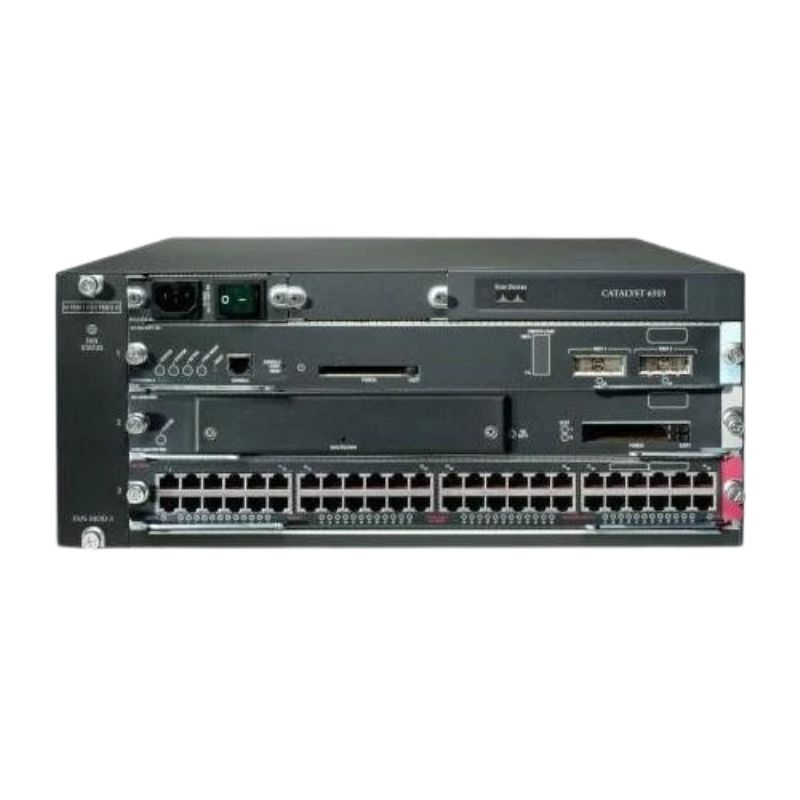

WS-C6503-E Cisco 3-slot Catalyst Switch Chassis

Cisco WS-C6503-E Enhanced Catalyst 6503 Chassis Overview

The Cisco WS-C6503-E is a robust, manageable switch chassis designed for high-performance enterprise networking. This 3-slot chassis offers exceptional flexibility, allowing organizations to expand and customize their network infrastructure with ease.

Key Product Features

• Manufacturer: Cisco
• Model/SKU: WS-C6503-E
• Product Category: Switch
• Chassis Type: Modular Switch Chassis
• Expandable Slots: 3 total slots for network modules

Technical Specifications

Product Line & Series

• Series: Catalyst 6500-E
• Product Line: Catalyst
• Device Name: Enhanced Catalyst 6503 Chassis

Network Capabilities

• Layer Support: Layer 3 routing and switching
• Quality of Service (QoS): Advanced QoS features for optimized traffic management
• Virtual LAN (VLAN): Supports VLAN segmentation for efficient network management

Management & Protocols

• Manageability: Fully manageable chassis for centralized control
• Supported Protocols:
  • Simple Network Management Protocol (SNMP)
  • Command Line Interface (CLI)
  • Simple Network Time Protocol (SNTP)
  • Telnet access
  • MIB I & II compliance

Expansion & Connectivity

Slot Configuration

• Total available expansion slots: 3
• Supports modular network modules for customized setups

Enhanced Performance

• High reliability for mission-critical network environments
• Scalable design to accommodate future growth
• Optimized for enterprise-grade Layer 3 switching

Enterprise-Class Modular Switching Architecture

The Cisco WS-C6503-E Manageable Catalyst Switch Chassis 3-slot represents a core element within the enterprise-grade modular switching category, engineered to deliver scalable, resilient, and high-performance networking for campus backbones, aggregation layers, and data-intensive enterprise environments. As part of the Catalyst 6500-E Series, this 3-slot chassis is designed to support advanced Layer 2 and Layer 3 services while maintaining flexibility through modular hardware expansion. The chassis-centric design allows organizations to tailor their switching infrastructure based on evolving network demands without replacing the entire system, making it a cost-efficient and future-ready solution for growing enterprises.

This category focuses on modular switch chassis solutions that serve as the foundation of large-scale networks. The WS-C6503-E chassis is particularly suited for deployments where space efficiency, power optimization, and performance density are critical. Its compact 3-slot form factor provides a balance between expansion capability and physical footprint, enabling deployment in wiring closets, data centers, and centralized network cores. By supporting a wide range of supervisor engines, line cards, and service modules, this chassis category ensures seamless integration with diverse networking requirements.

Chassis Design and Structural Engineering

The structural design of the Cisco WS-C6503-E chassis emphasizes durability, airflow optimization, and ease of maintenance. Built with enterprise-grade materials, the chassis provides mechanical stability required for continuous operation in mission-critical environments. The 3-slot architecture allows for flexible placement of supervisor engines and line cards, enabling administrators to configure the system according to traffic patterns and redundancy requirements.

Thermal management is a key aspect of this chassis category. The internal airflow design supports front-to-back cooling, which aligns with modern data center cooling strategies. Integrated fan trays are engineered to deliver consistent airflow across all installed modules, ensuring optimal operating temperatures even under high load conditions. This design contributes to prolonged hardware lifespan and reliable performance across extended operational cycles.

Slot Configuration and Expansion Capability

The three available slots in the WS-C6503-E chassis support a combination of supervisor engines and switching or service modules. This configuration flexibility allows the chassis to operate as a standalone aggregation switch or as part of a larger, distributed switching architecture. Enterprises can deploy high-density Ethernet line cards, advanced routing modules, or specialized service modules within the same chassis, consolidating multiple networking functions into a single platform.

This modular expansion capability defines the category’s value proposition. Organizations can scale network capacity by adding or upgrading modules rather than replacing the entire switch, reducing capital expenditure and minimizing downtime. The chassis-based approach also simplifies inventory management and long-term network planning.

Performance and Switching Capacity

Within the modular switch chassis category, performance is measured by switching fabric capacity, throughput, and latency characteristics. The Cisco WS-C6503-E is designed to support high-speed backplane connectivity, enabling efficient data transfer between modules. This architecture ensures that traffic flows seamlessly across the switch without creating bottlenecks, even as network demand increases.

The chassis supports advanced Cisco Catalyst switching technologies that enable wire-speed forwarding, high packet-per-second rates, and deterministic performance for latency-sensitive applications. This makes the platform suitable for voice, video, and real-time data applications commonly deployed in enterprise and service provider environments.

Supervisor Engine Compatibility

A defining feature of this category is compatibility with multiple supervisor engines, each offering different levels of processing power, forwarding capacity, and feature support. The WS-C6503-E chassis accommodates various supervisor engine options, allowing organizations to select the appropriate control plane performance based on their network complexity.

Supervisor engines provide the intelligence of the switch, handling routing protocols, switching decisions, and system management functions. By supporting redundant supervisor configurations, the chassis category ensures high availability and fault tolerance. In the event of a supervisor failure, the redundant unit can take over operations with minimal disruption, maintaining network continuity.

High Availability and Redundancy Features

High availability is a core requirement in enterprise networking, and the WS-C6503-E chassis category addresses this through hardware and software redundancy. Redundant power supplies, supervisor engines, and cooling components work together to eliminate single points of failure. This architecture supports nonstop operation, which is essential for organizations that rely on continuous network access.

The chassis also integrates with Cisco high-availability software features, enabling stateful failover and rapid convergence. These capabilities ensure that critical applications remain accessible during hardware maintenance or unexpected component failures.

Power and Energy Efficiency

Power management is a significant consideration in the modular switch chassis category, particularly for enterprises seeking to optimize operational costs. The Cisco WS-C6503-E supports multiple power supply options, allowing administrators to match power capacity with installed modules. This scalable power architecture prevents overprovisioning and improves overall energy efficiency.

Advanced power monitoring and management features provide visibility into power consumption at the chassis and module level. This enables organizations to plan capacity more accurately and align network infrastructure with sustainability initiatives. Efficient power distribution also supports Power over Ethernet deployments when compatible line cards are installed, enabling the chassis to power connected devices such as IP phones and access points.

Thermal Efficiency and Environmental Considerations

Thermal efficiency directly impacts system reliability and operational costs. The WS-C6503-E chassis is engineered to operate within a wide temperature range, making it suitable for diverse deployment environments. Intelligent fan speed control adjusts cooling output based on real-time temperature readings, reducing unnecessary power usage while maintaining safe operating conditions.

This category of switches is designed to comply with enterprise environmental standards, supporting efficient heat dissipation and reduced noise levels. These characteristics make the chassis suitable for both data center and office deployments.

Advanced Networking Features and Protocol Support

The modular switch chassis category represented by the Cisco WS-C6503-E is designed to support a comprehensive suite of networking features. These include advanced Layer 2 switching capabilities such as VLAN segmentation, trunking, and spanning tree enhancements, as well as robust Layer 3 routing protocols for scalable network design.

The platform supports dynamic routing protocols that enable efficient path selection and rapid convergence in complex network topologies. This makes the chassis suitable for enterprise cores and distribution layers where routing intelligence and stability are critical.

Security and Policy Enforcement

Security is an integral component of enterprise switching platforms. The WS-C6503-E chassis category supports advanced security features that enable granular traffic control and policy enforcement. These capabilities help protect the network from unauthorized access, malicious traffic, and internal threats.

By integrating access control mechanisms and traffic inspection capabilities, the chassis allows organizations to enforce security policies at the network core. This centralized approach simplifies management and enhances overall network security posture.

Quality of Service and Traffic Prioritization

Quality of Service capabilities are essential for ensuring consistent application performance in converged networks. The Cisco WS-C6503-E supports sophisticated traffic classification and prioritization mechanisms that enable administrators to allocate bandwidth based on application requirements.

This ensures that latency-sensitive applications such as voice and video receive priority treatment, while less critical traffic is managed efficiently. The ability to enforce QoS policies at the chassis level contributes to predictable network performance across the enterprise.
