CIAC-GW-OP8 Cisco Physical Access Output Module

Cisco Physical Access Output Module

The CIAC-GW-OP8 Cisco Physical Access Output Module is a versatile networking component engineered to deliver secure and efficient output control for enterprise environments. Built by Cisco, this module ensures dependable integration with physical access systems.

General Information

• Manufacturer: Cisco
• Part Number: CIAC-GW-OP8
• Device Category: Output Module

Technical Specifications

Output Channels

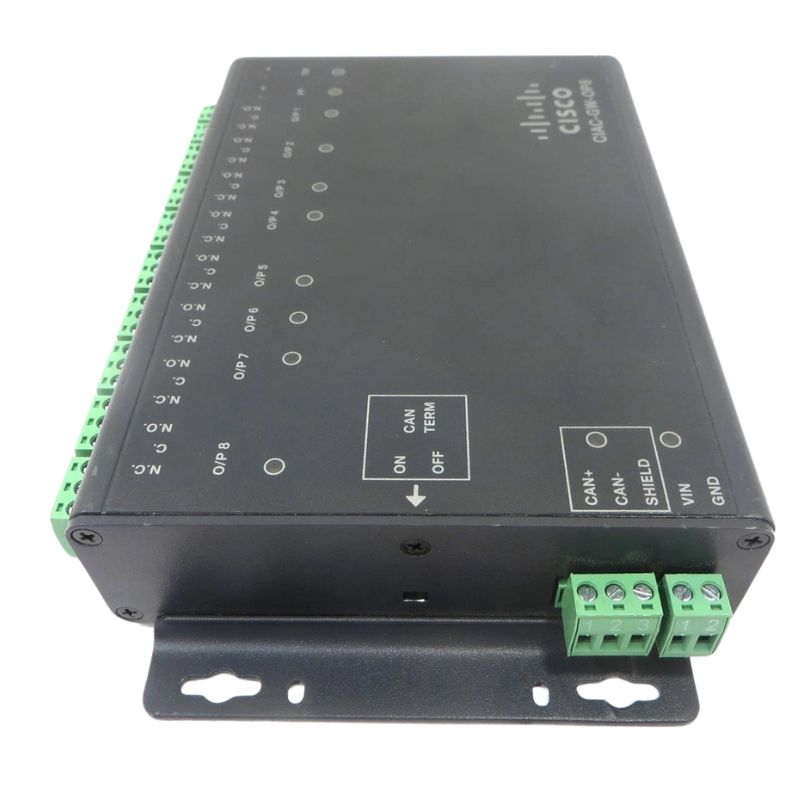

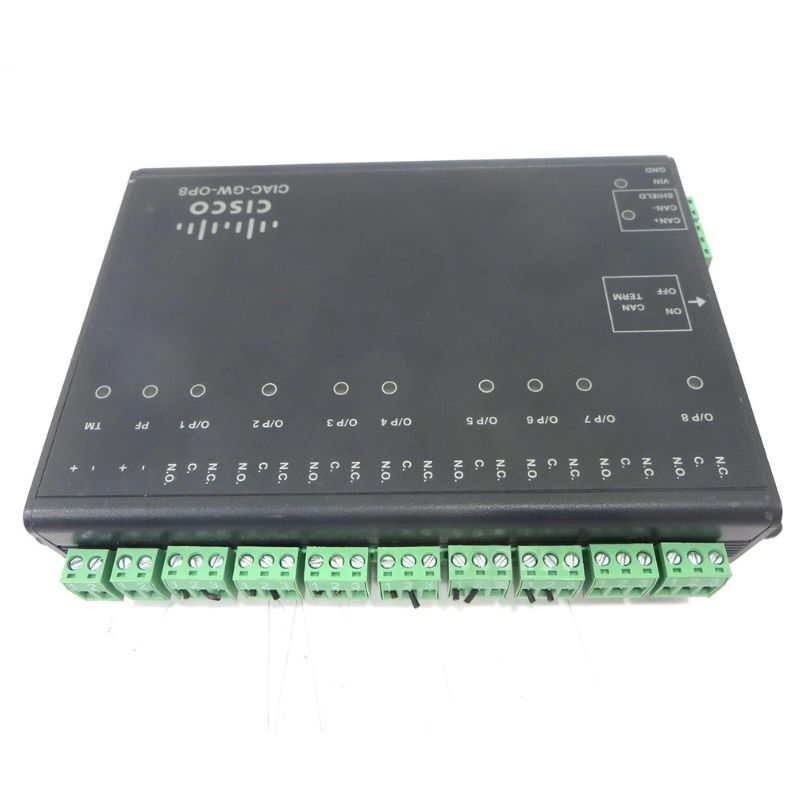

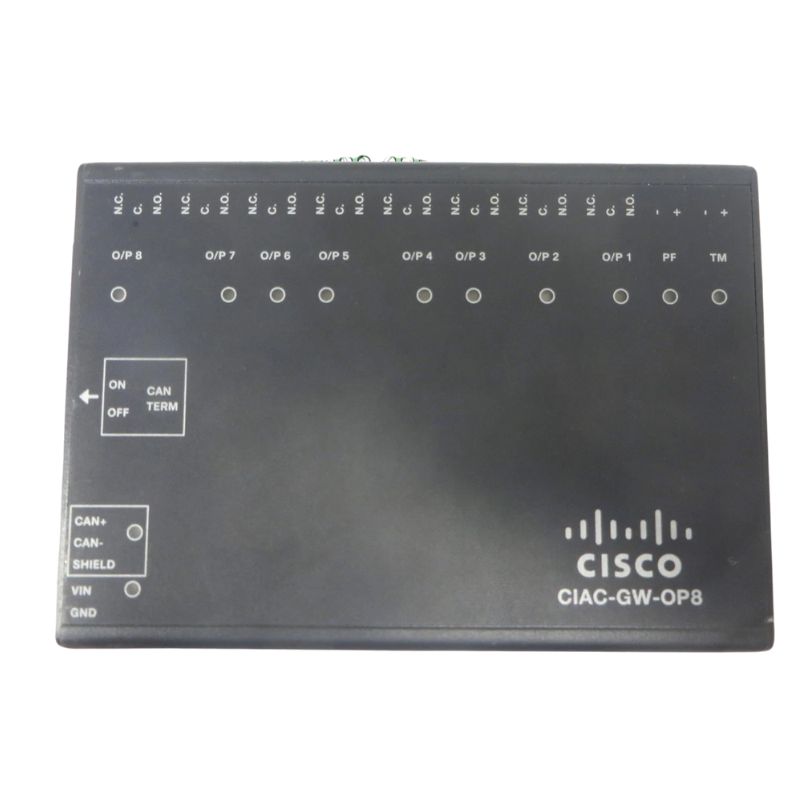

• Provides 8 Form C relay outputs for flexible control.

Relay Configuration

• Each channel can be set as Normally Open (NO) or Normally Closed (NC).

Contact Rating

• Supports 5 Amps at 30V DC.
• Handles 125V AC resistive loads efficiently.

Operating Voltage

• Compatible with 12V to 24V DC power input.

Connectivity

• Links to the Physical Access Gateway using a CAN bus system.

Physical Characteristics

Mounting Options

• Wall-mountable for space-saving installation.
• DIN rail mountable for cabinet integration.

Dimensions

• 178 × 127 × 37 mm (7 × 5 × 1.46 inches).

Weight

• 648 g (1.43 lbs).

Key Advantages

• Flexible relay configuration for diverse applications.
• Reliable contact rating for both DC and AC loads.
• Seamless CAN bus connectivity with Cisco gateways.
• Compact design with multiple mounting options.

Cisco CIAC-GW-OP8 Physical Access Output Module Overview

The Cisco CIAC-GW-OP8 Physical Access Output Module is engineered as a critical component within modern enterprise physical security and access control infrastructures. Designed to extend and enhance the capabilities of centralized security gateways, this output module plays a pivotal role in managing door control mechanisms, alarm signaling, and integrated building automation responses. Within a Cisco-based physical access control environment, the CIAC-GW-OP8 operates as a high-reliability interface device that translates logical access decisions into physical real-world actions, ensuring seamless coordination between security software intelligence and hardware execution points.

This category of output module is widely deployed in environments requiring strict access governance, including corporate campuses, government facilities, industrial plants, healthcare institutions, and data centers. The CIAC-GW-OP8 is optimized for scalable security architectures where multiple access points, doors, barriers, and alarm systems must be controlled with precision, speed, and resilience.

Role of Physical Access Output Modules in Cisco Security

Integration Within Access Control Systems

In Cisco physical security ecosystems, the CIAC-GW-OP8 functions as a bridge between access control decision engines and physical actuators. When an authentication request is processed—such as a badge scan, biometric verification, or credential validation—the access control system determines whether entry is permitted or denied. The output module then executes the corresponding action by triggering relay outputs connected to door strikes, magnetic locks, turnstiles, or alarm indicators.

This transformation from digital decision-making to physical action is essential for maintaining secure perimeter enforcement in real time. The CIAC-GW-OP8 ensures that commands are executed with minimal latency, reducing security gaps and preventing unauthorized entry attempts.

Distributed Control Architecture Advantages

Rather than relying on a centralized single-point output mechanism, Cisco’s distributed architecture allows multiple CIAC-GW-OP8 modules to be deployed across a facility. This improves system resilience, reduces wiring complexity, and enhances fault tolerance. Even if one segment of the network experiences disruption, other modules continue functioning independently, ensuring uninterrupted access control operations.

Hardware Design and Engineering Characteristics

Industrial-Grade Build Quality

The CIAC-GW-OP8 Physical Access Output Module is designed with enterprise-grade durability to withstand demanding operational environments. It is built to operate reliably under continuous load conditions, supporting mission-critical security applications where downtime is not acceptable. The internal circuitry is optimized for electrical isolation, protecting connected devices from surges and interference.

Relay Output Configuration Structure

The module typically includes multiple relay outputs that serve as programmable control points for external devices. Each output channel is capable of handling distinct control logic, allowing administrators to configure varied responses depending on access events. These outputs can be mapped to different doors, alarms, or auxiliary systems within the security infrastructure.

Signal Processing and Execution Logic

Each relay channel within the CIAC-GW-OP8 responds to control signals issued by the access control server. The internal processing logic ensures that commands are executed accurately based on predefined security policies. This includes time-based access rules, role-based permissions, and emergency override conditions.

Electrical Isolation and Safety Mechanisms

Electrical isolation is a fundamental design feature of the CIAC-GW-OP8 module. It ensures that low-voltage control circuitry remains protected from high-voltage field devices. This separation enhances system safety and reduces the risk of hardware damage caused by electrical faults or external interference.

Functional Capabilities of Cisco CIAC-GW-OP8 Output Module

Door Control and Access Enforcement

The primary function of the CIAC-GW-OP8 is to manage door access control systems. It communicates with electronic locks and door strikes to grant or deny entry based on authentication results. This ensures that only authorized individuals can access secured zones within a facility.

Alarm and Notification Triggering

Beyond door control, the module is also used to activate alarm systems in response to unauthorized access attempts or security breaches. These alarms may include sirens, visual indicators, or integration with centralized security monitoring dashboards.

Emergency Response Integration

In critical scenarios such as fire alarms or lockdown situations, the CIAC-GW-OP8 can be configured to override standard access rules and trigger emergency protocols. This enables automatic unlocking of designated exits or activation of evacuation systems.

Building Automation System Integration

The CIAC-GW-OP8 is not limited to security applications alone. It is frequently integrated into broader building management systems where it controls lighting, HVAC triggers, elevator access, and environmental sensors based on occupancy or security status.

Enterprise Deployment Scenarios and Applications

Corporate Office Security Infrastructure

In corporate environments, the CIAC-GW-OP8 is deployed to manage employee access to restricted floors, server rooms, and executive areas. It ensures that access permissions are enforced consistently across multiple entry points within the building.

Data Center Access Control Systems

Data centers require extremely strict access control policies due to the sensitivity of hosted infrastructure. The CIAC-GW-OP8 provides precise relay control for multi-layered authentication systems, ensuring that only authorized technicians can access critical hardware zones.

Healthcare Facility Security Management

Hospitals and medical facilities use physical access output modules to control entry to restricted areas such as pharmaceutical storage rooms, operating theaters, and patient data centers. The CIAC-GW-OP8 helps maintain compliance with regulatory security requirements.

Industrial and Manufacturing Plant Security

Industrial facilities deploy the module to manage access to hazardous zones, production lines, and equipment control rooms. It helps enforce safety regulations by restricting access to trained personnel only.

System Integration and Network Communication

Communication with Cisco Access Control Platforms

The CIAC-GW-OP8 integrates seamlessly with Cisco’s physical security management software, enabling centralized configuration and monitoring. Communication between the module and the control server ensures real-time synchronization of access policies and event logs.

IP-Based Security Infrastructure Compatibility

Modern deployments leverage IP-based connectivity to allow remote configuration and monitoring of output modules. This enables administrators to manage distributed security systems across multiple geographic locations from a single interface.

Latency Optimization in Command Execution

Low-latency communication between the access control system and the CIAC-GW-OP8 ensures immediate response to authentication events. This is critical in high-security environments where delays could lead to unauthorized access attempts.

Scalability in Large Enterprise Networks

The modular nature of Cisco physical access systems allows organizations to scale their security infrastructure as needed. Additional CIAC-GW-OP8 units can be added without redesigning the entire system architecture.

Security Features and Reliability Enhancements

Redundancy and Fault Tolerance Design

The CIAC-GW-OP8 is designed with redundancy considerations to ensure continuous operation even in the event of partial system failures. This is essential for environments where uninterrupted access control is required.

Secure Command Execution Protocols

All commands transmitted to the module are processed through secure communication channels to prevent unauthorized manipulation. This helps protect against potential cyber-physical security threats targeting access control systems.

Protection Against Signal Interference

The module incorporates shielding and signal conditioning mechanisms to reduce susceptibility to electromagnetic interference. This ensures stable operation in environments with heavy electrical equipment or network congestion.

Audit Logging and Event Tracking

Every action executed by the CIAC-GW-OP8 can be logged within the central security management system. This provides detailed visibility into access events, system changes, and security incidents for compliance and forensic analysis.

Performance Optimization in Enterprise Deployments

Load Distribution Across Multiple Modules

In large-scale deployments, workload distribution across multiple CIAC-GW-OP8 units ensures consistent performance and prevents system bottlenecks. This enhances responsiveness in high-traffic environments.

Event Processing Efficiency

The module is optimized for rapid event processing, ensuring that multiple simultaneous access requests are handled efficiently without degradation in performance.

Real-Time Response Synchronization

Synchronization between access control decisions and output execution ensures that physical responses occur immediately after authentication validation.
