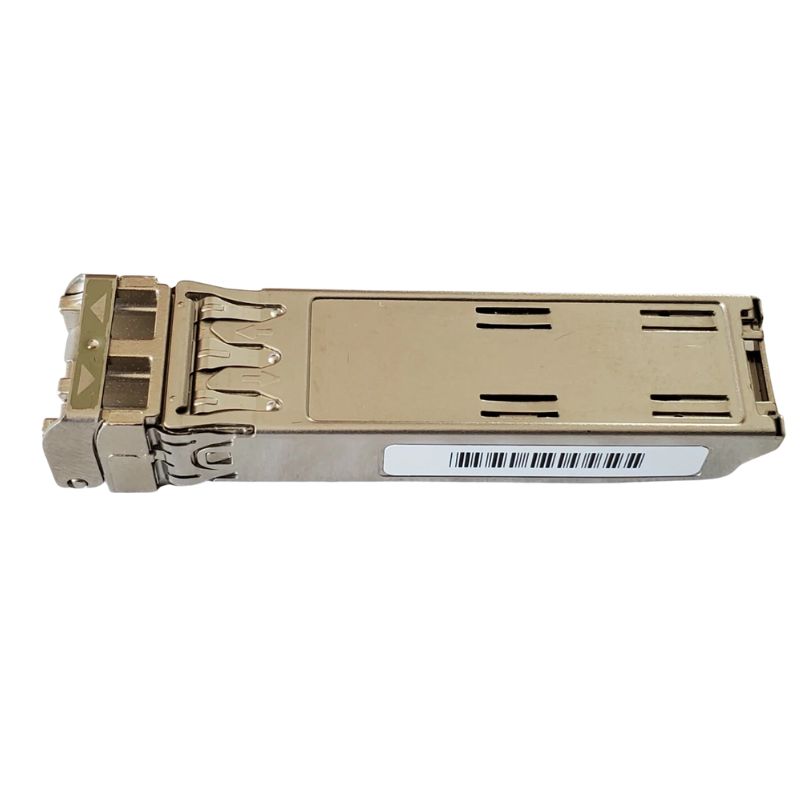

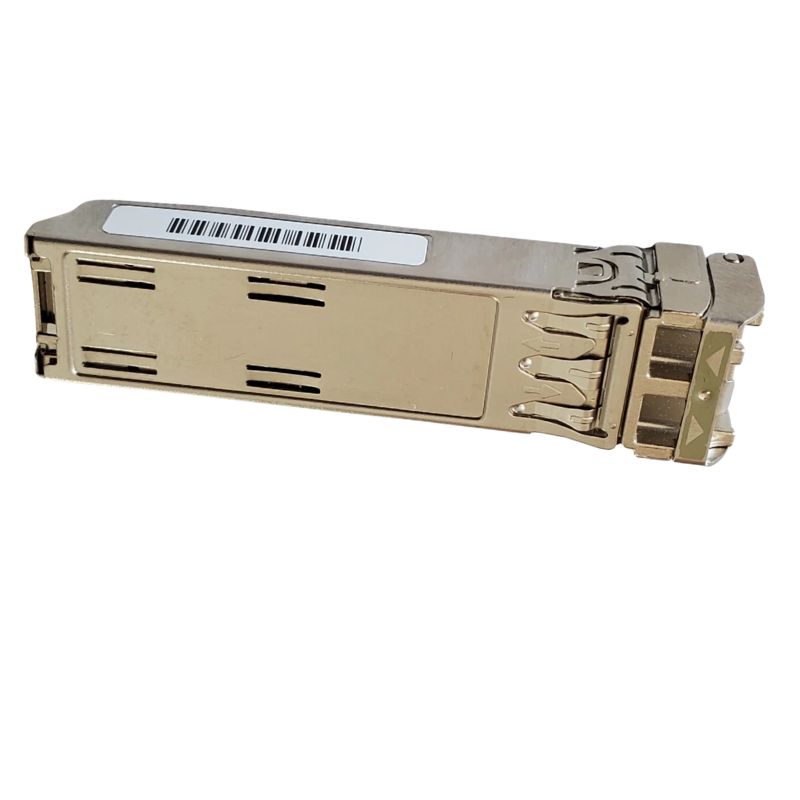

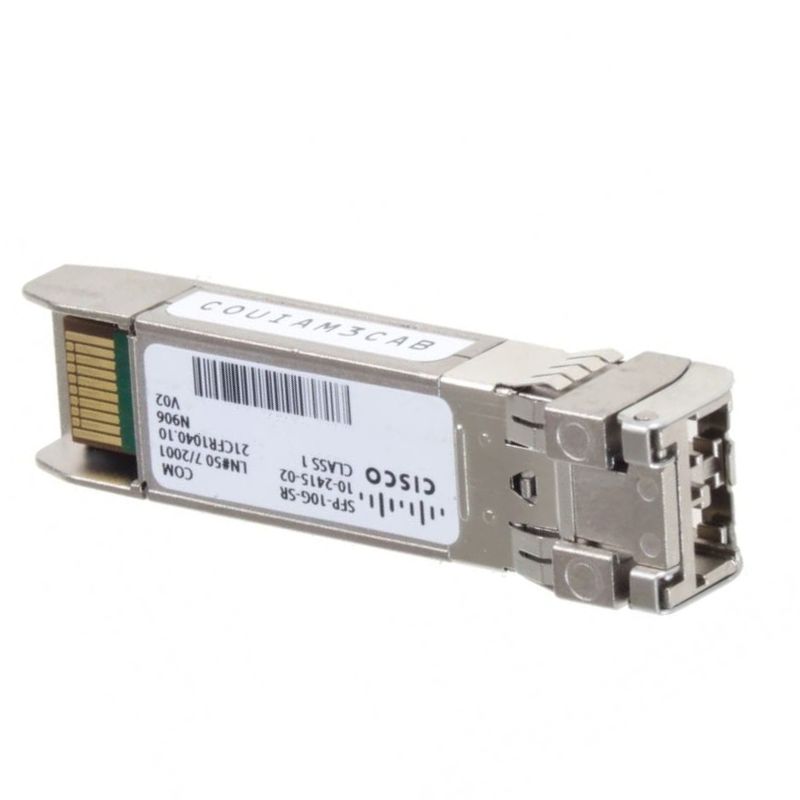

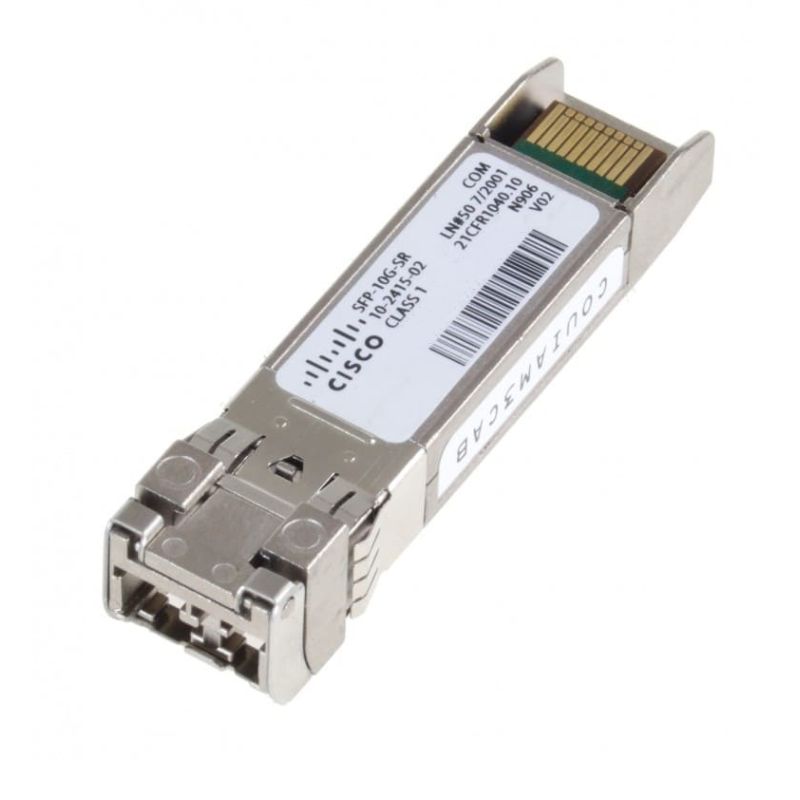

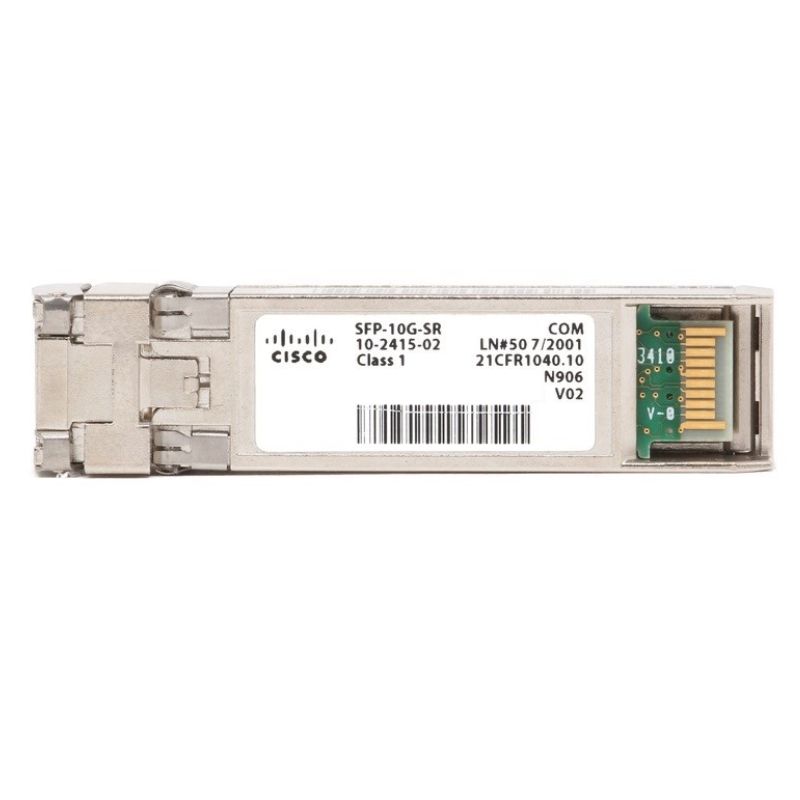

10-2415-02 Cisco 10 Gigabits Short Range LC/PC Multi-Mode SFP+ Transceiver

Core Purpose of Cisco Multi-Mode SFP Transceiver Module

The Cisco 10-2415-02 10GBASE-SR LC/PC Multi-Mode SFP+ Transceiver Module is engineered to deliver high-performance short-range 10 Gigabit Ethernet connectivity over multimode fiber. This compact SFP+ transceiver fits industry-standard SFP+ ports and supports 10 Gbps data throughput, enabling reliable, low-latency links between switches, servers, storage arrays, and network interface cards in data centers, campus networks, and high-density switching environments. Designed for compatibility with Cisco switching platforms, routers, and a wide range of third-party equipment, the module simplifies fiber connectivity while maintaining robust signal integrity and optical performance within the specified reach of multimode fiber types such as OM1, OM2, OM3, and OM4.

Key Functional Role in Modern Network Architectures

At its core, the 10-2415-02 module serves as the optical interface that translates electrical 10 Gbps signals into optical signals suitable for multimode fiber transmission. It is primarily used for short-range links inside a data center or between adjacent equipment racks where multimode fiber is the standard medium. This makes it well-suited for top-of-rack (ToR) and end-of-row (EoR) deployments, server aggregation, and storage area network (SAN) interconnects. The SFP+ form factor reduces space usage in high-port-density switches and minimizes power consumption compared to larger transceiver types, which is a notable advantage when scaling out high-density fabrics.

Technical Characteristics and Optical Performance

The Cisco 10-2415-02 10GBASE-SR transceiver is designed to operate at the 850 nm wavelength, leveraging vertical-cavity surface-emitting laser (VCSEL) technology optimized for multimode fiber. Its electrical interface conforms to SFF-8431 and SFF-8432 specifications for SFP+ modules, while the optical characteristics meet IEEE 802.3ae 10GBASE-SR standards. Typical transmit and receive optical parameters include guaranteed output power and receiver sensitivity that ensure reliable bit error ratio (BER) performance across the supported fiber reaches. The module's maximum supported distance depends on the modal bandwidth and core diameter of the multimode fiber used: shorter reaches on OM1 and OM2, and extended reaches on OM3 and OM4 fiber types. This graded capability allows network architects to choose fiber infrastructure that aligns with both budget and performance targets.

Compatibility, Interoperability, and Vendor Assurance

Cisco-branded transceivers like the 10-2415-02 are tested for interoperable operation with Cisco networking platforms. They are validated to work seamlessly with corresponding Cisco switches, routers, and line cards, reducing the risk of link flapping, incompatibility messages, or undocumented behavior during firmware upgrades. Buyers often prefer genuine Cisco optics because the modules carry Cisco's product assurance, support access, and compatibility guarantee. Nevertheless, the SFP+ standardization means that the module is electrically and optically compatible with any system that supports standard-compliant 10G SFP+ ports, though third-party compatibility may vary depending on vendor firmware checks or authentication features.

Use Cases and Deployment Scenarios

The Cisco 10-2415-02 finds utility across a spectrum of deployments where short-range, high-speed connectivity is required. In hyperscale and enterprise data centers, it is commonly used to link ToR switches with aggregation switches or to connect servers with 10G NICs. Storage networks leverage these modules for direct connections between server-hosted HBAs (Host Bus Adapters) and Fibre Channel frontends when using Ethernet-based storage protocols. In campus backbone segments, the transceiver can enable short 10G uplinks between distribution-layer switches where multimode fiber is already installed. Additionally, network test labs and equipment validation benches employ these modules because their predictable optical behavior simplifies repeatable experiment setups.

Migration and Upgrade Paths

For organizations planning incremental upgrades from 1 Gigabit to 10 Gigabit links, the 10-2415-02 provides a cost-effective bridge. Existing multimode fiber plants can often support 10GBASE-SR up to certain distances without requiring immediate fiber replacement. This enables staged upgrades — replacing transceivers and NICs while preserving optical cabling and ducting — which minimizes capital expenditure and disruption. For future-proofing, upgrading multimode cabling to higher grades (OM3/OM4) can extend the reach and tolerance of the same transceiver model while optimizing performance for subsequent higher-speed transitions, where feasible.

Planning Considerations for Upgrades

When migrating, engineers should audit fiber plant characteristics, including core count, modal bandwidth, connector polish type (LC/PC in this module's case), and physical path to confirm reach expectations. Additionally, verifying that installed patch panels and MPO/LC breakout assemblies support the required LC duplex connections and do not introduce excess insertion loss is important. A proper inventory of switch port density, power budget, and airflow allowances will prevent surprises during roll-out and ensure that the new 10G links integrate smoothly with operations and monitoring systems.

Physical Interface and Connector Details

The module employs the LC duplex connector with a physical contact (PC) polish, which is a common standard for multimode fiber patching. LC connectors provide a compact footprint, enabling high-density port layouts in switches and patch panels. The LC/PC interface has a reliably low insertion loss when mated with properly maintained connectors and is compatible with standard multimode LC patch cords. The SFP+ cage latching mechanism secures the module while enabling hot-swappable replacement, which is crucial for maintaining uptime and simplifying field maintenance tasks.

Connector Care and Maintenance

To preserve optical performance, routine inspection and cleaning of LC/PC connectors is recommended. Contaminants such as dust, oil, and skin residues can dramatically increase insertion loss and create link instability. Fiber cleaning tools and inspection microscopes reduce the risk of damage when replacing transceivers or patch cords. Additionally, fiber cable routing with attention to minimum bend radius and strain relief prevents mechanical stress that could degrade modal performance or cause intermittent faults.

Hot-Swap Procedures and Safety

The SFP+ form factor supports hot-swapping, allowing technicians to change modules without powering down the host equipment. However, hot-swapping requires adherence to sensible procedures: gracefully disable the port if possible, observe ESD precautions, and ensure the module is handled by its housings rather than by the optical face to avoid contamination. After insertion, allow the DDM and link negotiation processes to complete before relying on link availability; monitoring tools can confirm that receive and transmit power levels are within expected thresholds.

Performance Metrics and Reliability

Performance expectations for the 10-2415-02 include consistent 10 Gbps full-duplex throughput, adherence to 802.3ae timing and signaling, and robust error performance aligned with a low bit error rate objective typically required in production networks. Cisco validates these modules through conformance testing to industry standards and internal interoperability labs, ensuring that timing jitter, signal integrity, and optical budget conform to production-grade requirements. Reliability is underpinned by factory tests for optical output, receiver sensitivity, and environmental endurance across temperature variables.

Mean Time Between Failures and Warranty Considerations

Cisco and reputable resellers generally provide warranty coverage and product support for genuine modules. Mean time between failures (MTBF) metrics are often published or available through Cisco documentation and should be considered alongside warranty terms when selecting optics for mission-critical deployments. Vendors may also provide end-of-life and compatibility notices that inform replacement strategies and lifecycle planning for large-scale deployments.
