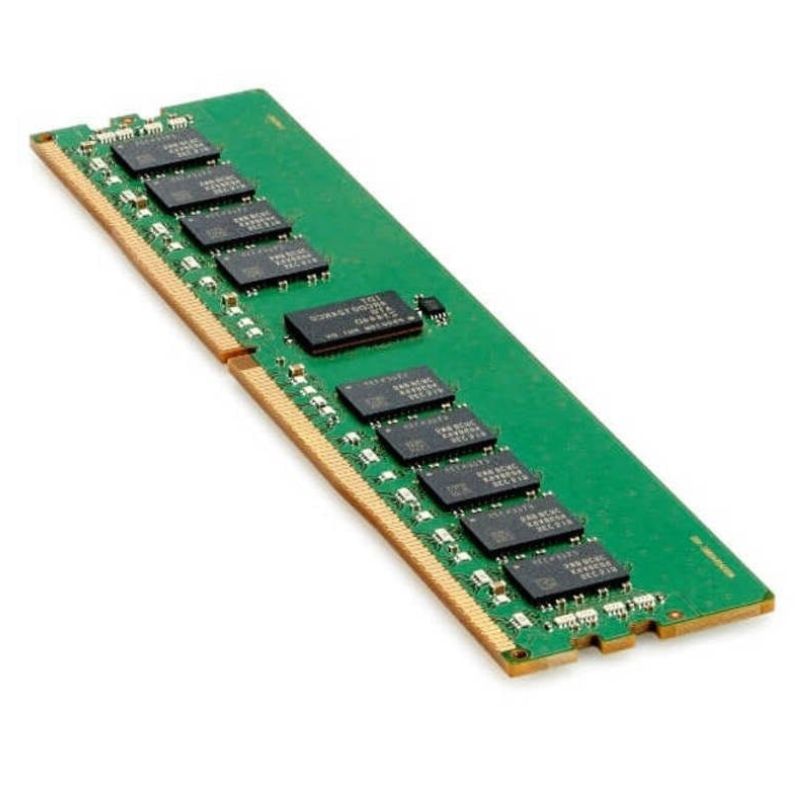

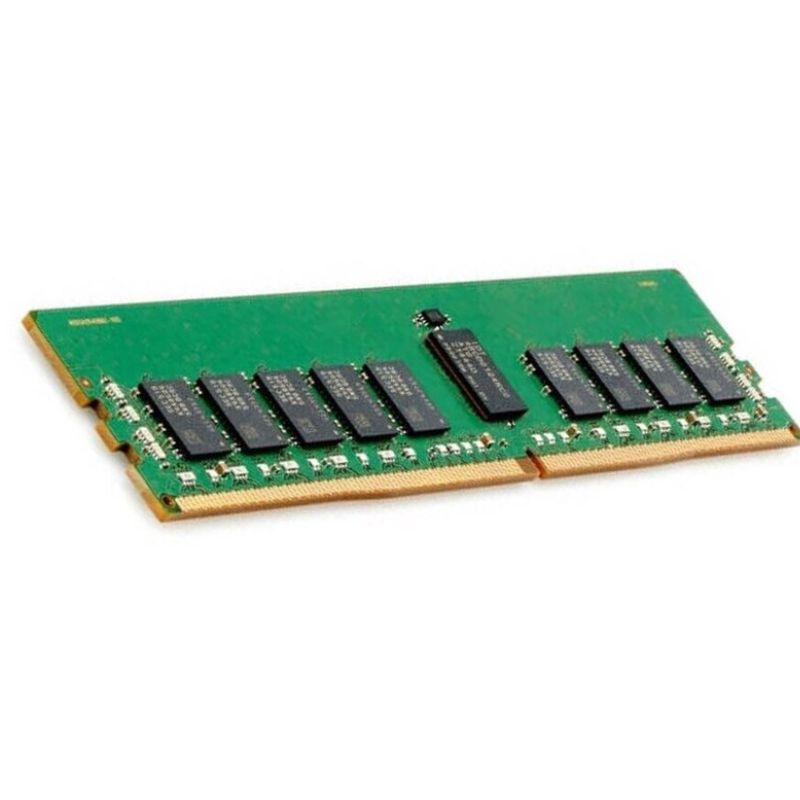

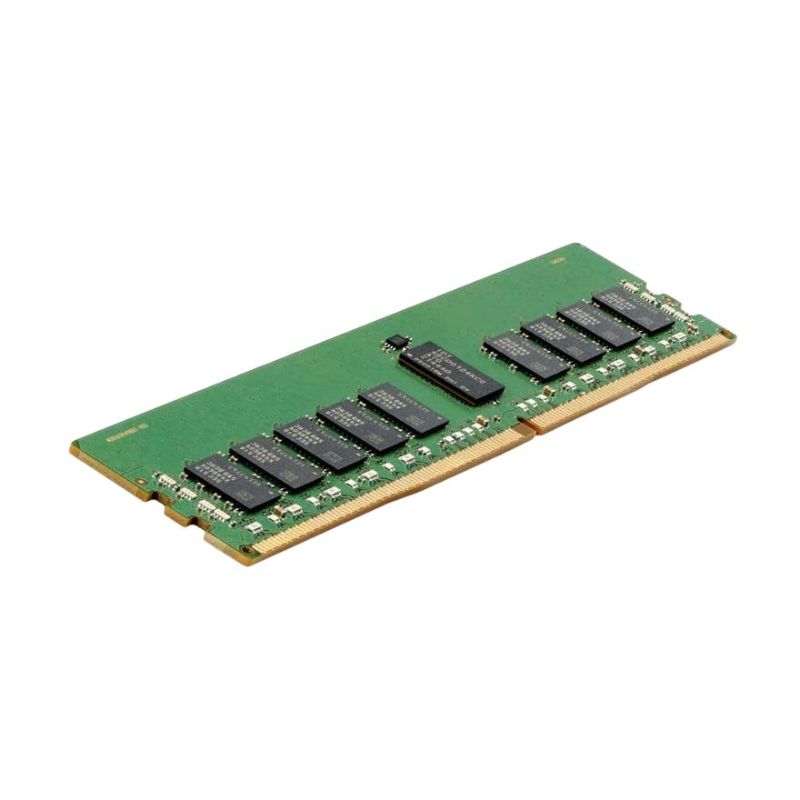

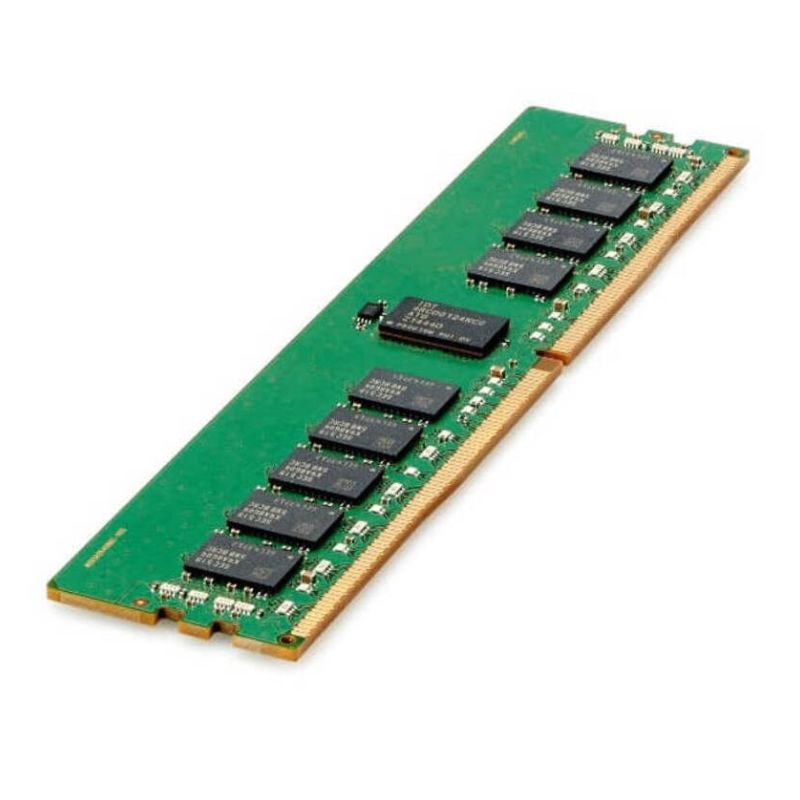

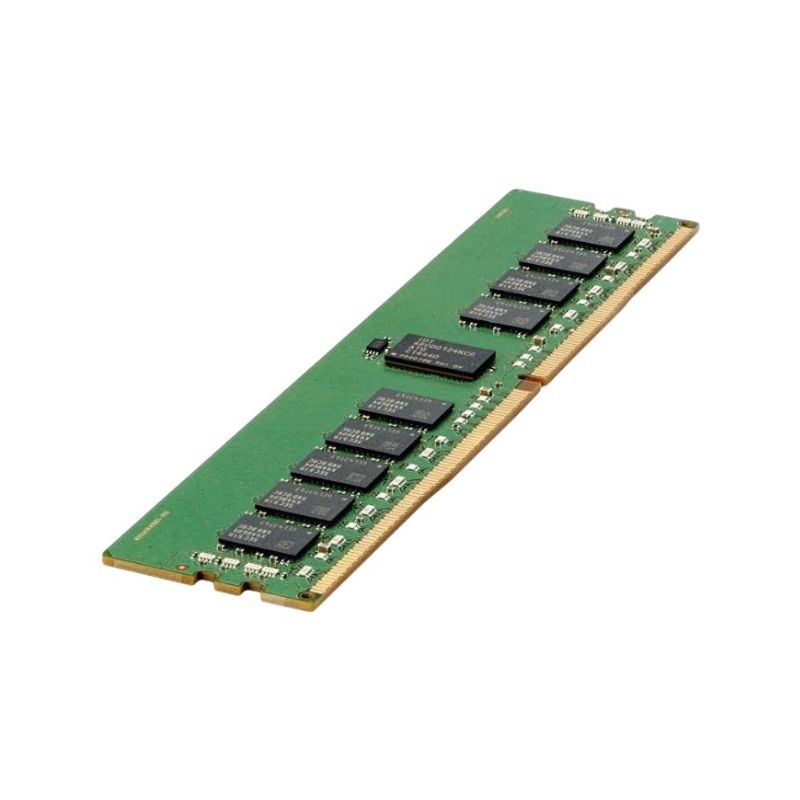

Cisco 15-109084-01 Ecc Registered 32GB DDR5 4800mt/s Pc5-38400 SDRAM 288-pin RAM Module

Cisco 15-109084-01 32GB DDR5 Memory Module Specifications

The Cisco 15-109084-01 is a high-performance 32GB DDR5 SDRAM module engineered for enterprise servers and data center deployments. Designed with precision for stability, reliability, and enhanced data throughput, this memory module ensures seamless operation in demanding computing environments.

Memory Module Technical Breakdown

• Manufacturer: Cisco
• Part Number: 15-109084-01
• Module Size: 32GB
• Memory Type: DDR5 SDRAM
• Rank: Single Rank (1Rx4)
• Bus Speed: 4800MT/s (PC5-38400)
• Voltage: 1.1V
• Error Correction: On-die ECC
• Chip Configuration: X4
• Form Factor: 288-pin DIMM

Core Features of the Cisco 32GB DDR5 Module

• Memory Capacity: 32GB per module, ideal for intensive server workloads.
• Memory Type: Advanced DDR5 SDRAM, offering superior speed and efficiency over previous generations.
• Speed Performance: Operates at 4800MT/s, corresponding to DDR5-38400/PC5-4800 for high data transfer rates.
• Error Detection: Integrated On-Die ECC (Error-Correcting Code) for enhanced data integrity and system stability.
• Form Factor: DIMM with 288 pins, compatible with enterprise-grade servers.
• Voltage: Low-power 1.1V operation for energy-efficient performance.
• Module Configuration: Single rank, X4 chip organization, registered signaling for optimized processing.

Technical Advantages of Cisco DDR5 Modules

The Cisco 15-109084-01 memory module integrates cutting-edge DDR5 technology to deliver superior server performance and reliability. Key technical benefits include:

High-Speed Data Transfer

With a bus speed of 4800MT/s, this module minimizes latency and maximizes throughput, making it perfect for memory-intensive applications such as virtualization, AI workloads, and large-scale database operations.

Enhanced Data Integrity

Equipped with On-Die ECC, the memory module actively detects and corrects single-bit errors, ensuring stable and accurate data handling in mission-critical systems.

Energy-Efficient Design

Operating at just 1.1V, the Cisco 32GB DDR5 module reduces power consumption without compromising performance, helping data centers maintain cost-effective energy usage.

Compatibility and System Integration

This memory module is designed to seamlessly integrate with a wide range of Cisco UCS servers:

• UCSC-C220-M7N
• UCSC-C220-M7N New
• UCSC-C220-M7S
• UCSC-C220-M7S New
• UCSC-C240-M7SX
• UCSC-C240-M7SX New

Ensuring reliable performance and system stability, these modules are certified for enterprise-grade applications and server architectures.

Why Choose Cisco 15-109084-01 DDR5 Memory

Optimized for Data Centers

The 32GB DDR5 module is tailored for large-scale data center operations, delivering faster memory access and improved workload handling.

Reliability and Durability

With registered signal processing and single-rank configuration, this memory module ensures consistent performance under continuous server operation, minimizing downtime and maintenance needs.

Scalable Server Memory

Its standardized 288-pin DIMM form factor allows easy upgrades and scalability for expanding server memory capacity without complex installation procedures.

High-Performance Use Cases

This Cisco DDR5 memory module is particularly suited for:

• High-density virtualization servers
• Cloud computing infrastructures
• Data analytics and AI processing environments
• Enterprise-grade storage servers

Cisco 15-109084-01 32GB DDR5 Memory Modules

The Cisco 15-109084-01 32GB DDR5 4800mt/s PC5-38400 On-die ECC Registered 1Rx4 1.1V SDRAM 288-pin memory module is an enterprise-grade RAM solution designed for high-performance Cisco servers and networking equipment. Built with the latest DDR5 technology, this module delivers faster data transfer rates, lower latency, and improved energy efficiency compared to previous DDR4 modules. Its 32GB capacity ensures robust memory support for demanding workloads and virtualization environments.

High-Speed DDR5 Architecture

DDR5 technology marks a significant advancement over DDR4, offering higher bandwidth and efficiency for modern data center applications. The Cisco 15-109084-01 module operates at 4800 megatransfers per second (MT/s), enabling rapid access to stored data and seamless execution of memory-intensive tasks. This high speed ensures optimal performance in environments running large-scale databases, cloud computing, and virtualization software.

Benefits of 4800MT/s Speed

• Enhanced Data Throughput: With 4800MT/s, the module can handle large volumes of data without bottlenecks, improving server responsiveness.
• Reduced Latency: Faster memory speeds translate into quicker data access times, which is crucial for real-time applications.
• Future-Proof Performance: Supports emerging workloads that demand higher memory bandwidth, ensuring long-term compatibility.

On-die ECC Registered Technology

Error-correcting code (ECC) memory is critical for enterprise servers and networking equipment, as it detects and corrects memory errors in real time. The Cisco 15-109084-01 uses on-die ECC combined with registered architecture, which stabilizes memory signals and improves reliability under heavy workloads. This feature reduces the risk of system crashes, data corruption, and downtime in mission-critical operations.

Advantages of ECC Registered Modules

• Data Integrity: Automatically detects and corrects single-bit errors, maintaining system stability and reliability.
• Server Stability: Registered buffers help maintain signal integrity across multiple memory modules, supporting high-capacity configurations.
• Optimized for Enterprise Workloads: Suitable for virtualization, large-scale databases, and cloud infrastructure where consistent performance is essential.

1Rx4 Module Configuration

The 1Rx4 organization refers to the module’s rank and data width. In this configuration, the memory module contains a single rank of DRAM chips, each organized in a 4-bit width layout. This setup optimizes performance for server architectures that prioritize high-density memory installations without compromising speed or reliability.

Impact on Server Performance

• High-Density Memory Support: Allows servers to maximize memory capacity in limited DIMM slots.
• Balanced Performance: Provides an ideal balance between speed and capacity, ensuring efficient workload handling.
• Compatibility: Designed specifically for Cisco systems, ensuring seamless integration and minimal configuration issues.

Low Voltage 1.1V Design

The Cisco 15-109084-01 operates at a low 1.1V voltage, reducing power consumption and heat generation compared to previous DDR4 modules. Lower voltage not only improves energy efficiency but also extends module lifespan by minimizing thermal stress on DRAM chips. This is especially important in data centers where multiple high-density modules are installed, helping to lower operational costs and maintain stable performance.

Energy Efficiency Benefits

• Reduced Operational Costs: Lower voltage leads to less power consumption across multiple servers.
• Improved Thermal Management: Generates less heat, simplifying cooling requirements and preventing thermal throttling.
• Eco-Friendly Operation: Supports sustainable IT practices by minimizing energy usage in enterprise environments.

288-Pin DIMM Form Factor

This memory module features a 288-pin dual in-line memory module (DIMM) form factor, compatible with modern server motherboards supporting DDR5 technology. The standardized pin layout ensures easy installation and hot-swap capability, allowing IT administrators to upgrade or replace modules without significant downtime.

Compatibility and Installation

• Server Integration: Works seamlessly with Cisco servers and certain certified third-party systems.
• Hot-Swap Capability: Allows memory replacement without powering down the server, minimizing service interruptions.
• Ease of Maintenance: Standardized pin design simplifies inventory management and reduces compatibility errors.

Enterprise Applications and Use Cases

The Cisco 15-109084-01 32GB DDR5 memory module is ideal for a wide range of enterprise applications. From virtualization and database management to cloud computing and AI workloads, this module ensures high availability and consistent performance. IT administrators can deploy these modules in high-density memory configurations to support mission-critical workloads that require both speed and reliability.

Virtualization and Cloud Computing

In virtualization environments, multiple virtual machines run on a single physical server, requiring substantial memory bandwidth. The 32GB DDR5 modules provide sufficient capacity to support multiple VMs, ensuring smooth performance and minimal latency.

High-Performance Databases

Database-intensive applications benefit from the high-speed DDR5 architecture, as it allows faster query processing and improved transaction throughput. The ECC registered feature guarantees data integrity, which is critical for sensitive enterprise data.

AI and Machine Learning Workloads

AI and machine learning algorithms require rapid access to large datasets. With 4800MT/s speeds and high reliability, these Cisco memory modules provide the performance and stability needed for training complex models and running inference tasks efficiently.

Subcategory: High-Capacity DDR5 Server Memory

Within the broader category of Cisco server memory, the 15-109084-01 module belongs to the high-capacity DDR5 segment. This subcategory focuses on modules that provide 32GB or more per DIMM, optimized for enterprise workloads requiring maximum memory performance. Features such as on-die ECC, registered architecture, and low voltage operation are standard in this subcategory, making them ideal for modern data centers and cloud environments.

Key Differentiators

• High Capacity: Supports demanding applications with memory-intensive requirements.
• Advanced DDR5 Technology: Faster speeds and higher efficiency compared to DDR4.
• Enterprise Reliability: On-die ECC and registered design ensure minimal errors and system downtime.

Comparison to DDR4 Memory Modules

Compared to DDR4 memory, DDR5 modules like the Cisco 15-109084-01 deliver up to twice the bandwidth and improved energy efficiency. This translates into better handling of large datasets, reduced server latency, and enhanced performance for AI, big data, and virtualization tasks. DDR5 modules also support higher density, allowing IT teams to maximize memory capacity within existing server architectures.

Scalability for Modern Data Centers

With enterprise workloads growing exponentially, scalability is a critical consideration. Cisco DDR5 memory modules allow data centers to scale memory resources efficiently, supporting more virtual machines, larger databases, and high-performance applications without compromising stability or performance. These modules are designed for multi-channel server configurations, enabling maximum throughput and optimized data flow across all memory channels.
