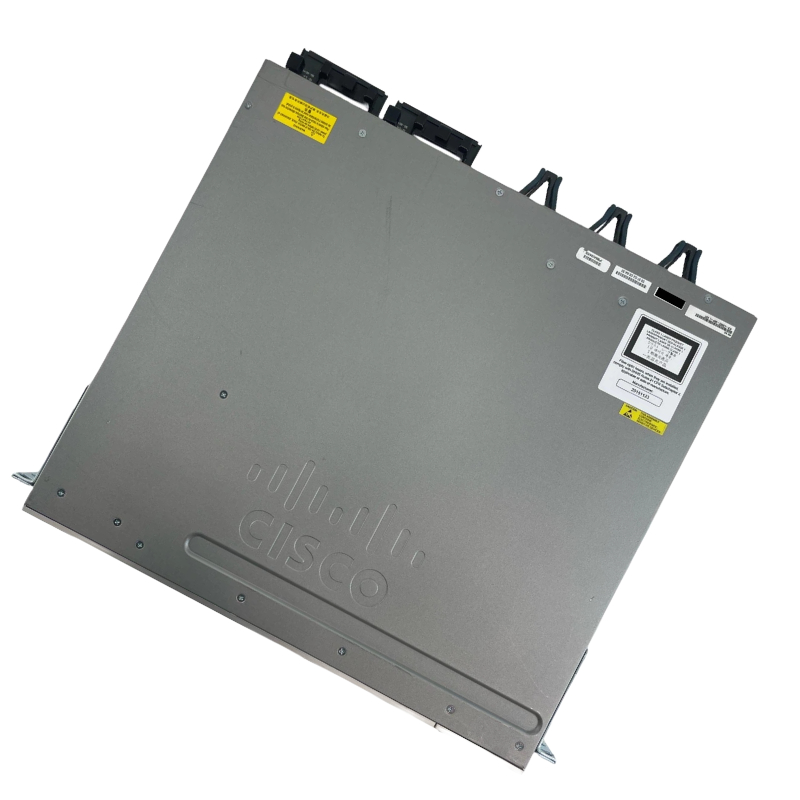

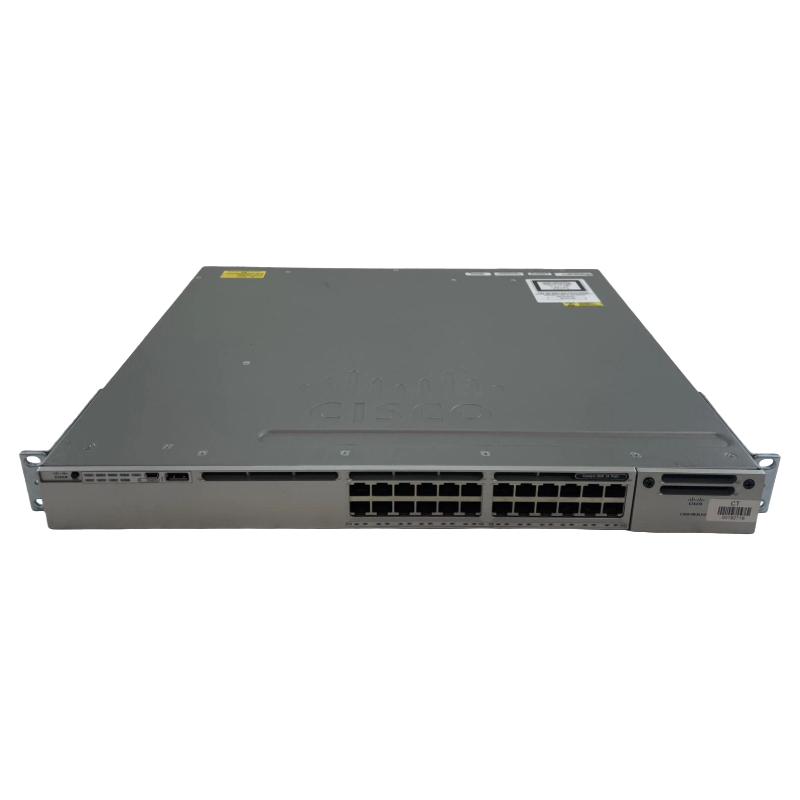

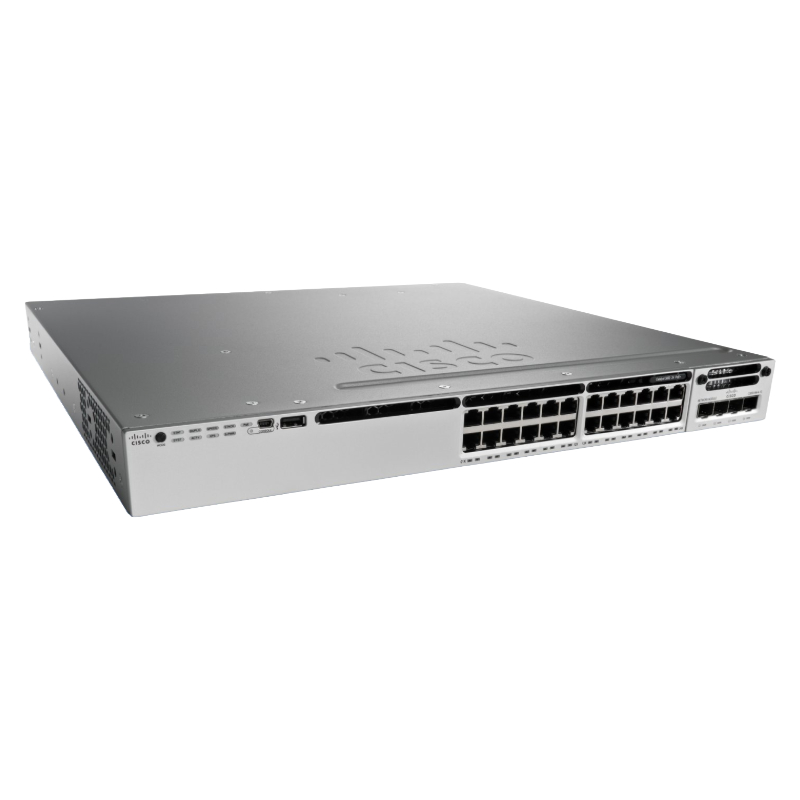

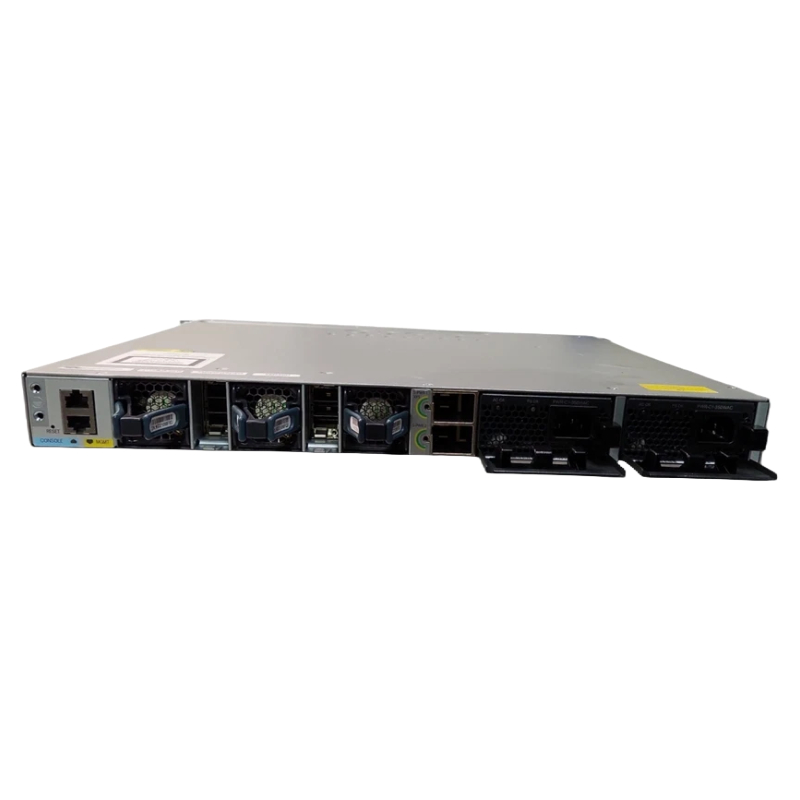

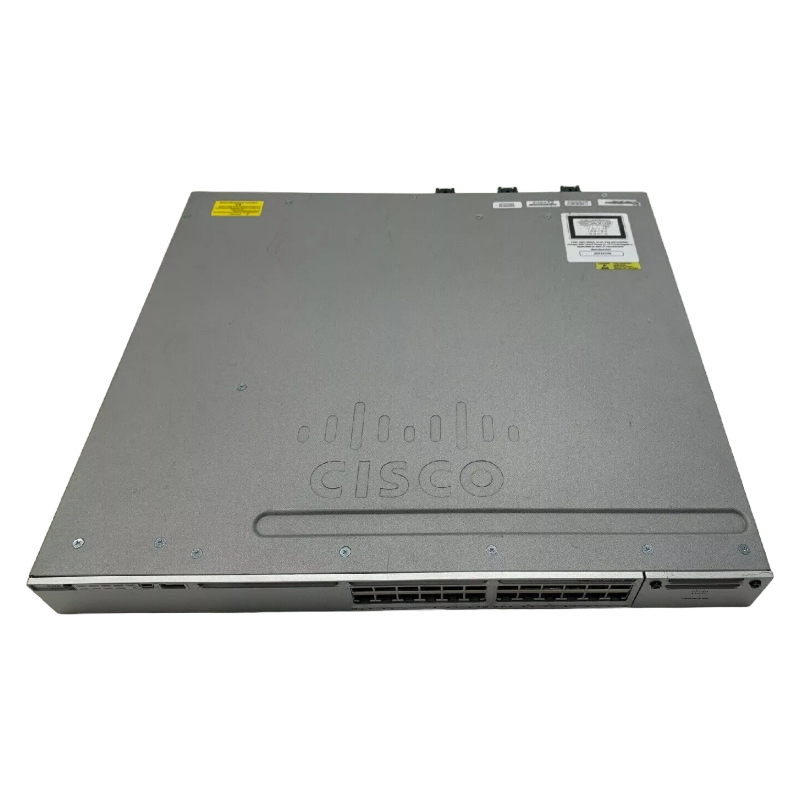

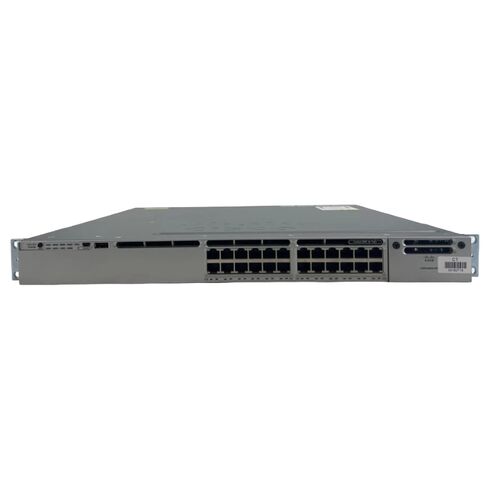

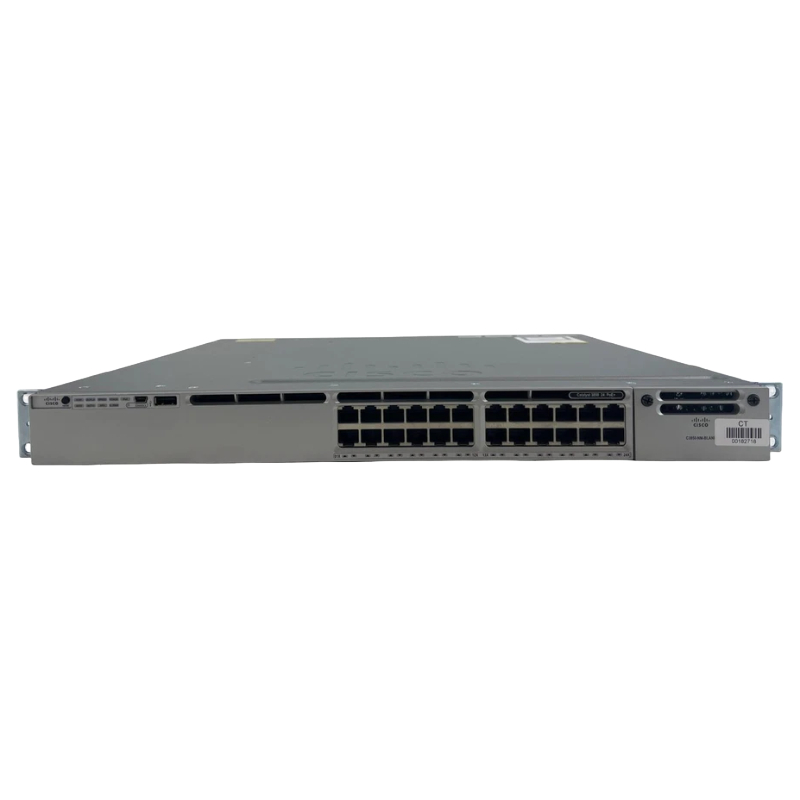

C1-WSC3850-24XUL Cisco One Catalyst 3850 24 mGig PT Upoe LAN

Product Overview

Manufacturer Details

• Brand: Cisco Systems, Inc.
• Part Number (MPN): C1-WSC3850-24XUL
• Product Line: Catalyst
• Series: 3850
• Model: WS-C3850-24XU
• Product Name: Catalyst WS-C3850-24XU Layer 3 Switch
• Product Type: Layer 3 Switch
• SKU: C1-WSC3850-24XUL

Ports & Interfaces

Port Configuration

• Network Ports: 24 x 10 Gigabit Ethernet
• Uplink Ports: None
• Modular Design: No
• Stackable: Yes

Performance Specifications

Supported Media Types

• Twisted Pair: Supported

Ethernet Technologies

• 10 Gigabit Ethernet: Supported

Network Technologies

• 10GBase-T: Supported

Network & Communication

Layer Support

Supported Layers: 3

Management Features

Manageability

Manageable: Yes

Power Specifications

Power Supply

• Power Source: Power Supply
• Redundant Power Supply: Supported

Physical Dimensions

Dimensions & Weight

• Rack Unit Compatibility: 1U
• Form Factor: Rack-mountable
• Height: 1.8 Inches
• Width: 19.2 Inches
• Depth: 17.5 Inches
• Weight: Approximately 17.60 lbs

Features

mGig Technology

The Cisco C1-WSC3850-24XUL LAN switch is equipped with mGig technology, which stands for multigigabit. This advanced feature enables the switch to support speeds of up to 5 and 10 gigabits per second (Gbps) over existing copper cabling infrastructure. With mGig, users can achieve faster network speeds without the need for costly cable upgrades.

The importance of mGig technology cannot be overstated in today's fast-paced business environment. As organizations increasingly rely on bandwidth-intensive applications and cloud services, traditional gigabit Ethernet connections may not be sufficient to handle the growing demands. By leveraging mGig technology, the Cisco C1-WSC3850-24XUL LAN switch ensures that businesses can future-proof their networks and provide a seamless user experience.

Power over Ethernet (PoE)

Another notable feature of the Cisco C1-WSC3850-24XUL LAN switch is its Power over Ethernet (PoE) capability. PoE allows the switch to deliver both data and power to connected devices through a single Ethernet cable. This eliminates the need for separate power sources and simplifies installation and maintenance.

The benefits of PoE are numerous, particularly in environments where deploying power outlets may be challenging or costly. With PoE, organizations can easily power devices such as IP phones, wireless access points, and security cameras, reducing clutter and streamlining network infrastructure. Additionally, PoE enables centralized power management, making it easier to monitor and control power usage across the network.

Universal Power Over Ethernet (UPoE)

In addition to standard PoE, the Cisco C1-WSC3850-24XUL LAN switch supports Universal Power over Ethernet (UPoE). UPoE takes PoE to the next level by providing even higher power levels, allowing for the delivery of up to 60 watts per port. This makes it suitable for powering devices with higher power requirements, such as pan-tilt-zoom (PTZ) cameras and video conferencing systems.

The importance of UPoE lies in its ability to offer increased flexibility and versatility in network deployments. With UPoE, organizations can confidently connect a wide range of devices without worrying about power limitations. This ensures that critical network components receive the necessary power, enabling seamless operation and minimizing downtime.

Ports

24 Ports

The Cisco C1-WSC3850-24XUL LAN switch features 24 ports, providing ample connectivity options for various devices in a network. These ports can support both copper and fiber connections, offering flexibility to accommodate different network infrastructure requirements.

Having 24 ports is advantageous for organizations that need to connect multiple devices simultaneously. It allows for easy expansion and scalability as the number of networked devices grows. With a sufficient number of ports, businesses can avoid bottlenecks and ensure smooth data transfer between devices.

High Port Density

In addition to the 24 ports, the Cisco C1-WSC3850-24XUL LAN switch boasts high port density. High port density means that the switch can accommodate a large number of ports in a compact form factor. This is particularly beneficial for organizations with limited rack space or those looking to optimize their network infrastructure.

Having high port density reduces the need for additional switches, simplifying network management and reducing costs. It also helps minimize cable clutter and makes cable management more efficient. With the Cisco C1-WSC3850-24XUL LAN switch's high port density, organizations can maximize their network capabilities while minimizing physical space requirements.

Flexible Port Configurations

The Cisco C1-WSC3850-24XUL LAN switch offers flexible port configurations to suit various networking needs. It supports both copper and fiber optic connections, allowing organizations to choose the most suitable option based on their requirements.

The flexibility in port configurations ensures compatibility with different network infrastructure setups. Whether it's connecting devices in close proximity using copper cables or extending the network over longer distances with fiber optics, the Cisco C1-WSC3850-24XUL LAN switch can adapt to diverse networking environments.

Easy Migration to Higher Speeds

One of the key benefits of the Cisco C1-WSC3850-24XUL LAN switch's port configuration is its ability to facilitate easy migration to higher speeds. With support for mGig technology, the switch can handle speeds of up to 5 and 10 Gbps over existing copper cabling infrastructure.

This feature is particularly valuable for organizations that anticipate future network expansion or require higher bandwidth. By investing in the Cisco C1-WSC3850-24XUL LAN switch, businesses can seamlessly transition to faster speeds without the need for costly cable upgrades or significant disruptions to their existing infrastructure.

Enhanced Network Performance

The flexible port configurations of the Cisco C1-WSC3850-24XUL LAN switch contribute to enhanced network performance. By providing a mix of copper and fiber optic options, organizations can optimize their network setup based on distance requirements, bandwidth demands, and environmental factors.

Fiber optic connections offer superior speed and reliability over longer distances, making them ideal for interconnecting different buildings or floors within an organization. On the other hand, copper connections are more cost-effective and suitable for shorter distances or deployments within a single room or office space.

With the flexibility to choose the appropriate port configuration, users can tailor their network to meet specific performance needs, resulting in faster data transfer, reduced latency, and improved overall network efficiency.

Simplified Network Management

Another advantage of the Cisco C1-WSC3850-24XUL LAN switch's port configurations is simplified network management. The switch provides a centralized hub for all connected devices, making it easier to monitor and control network traffic.

By consolidating network connections into a single device, IT administrators can simplify troubleshooting and ensure consistent network performance. Additionally, the switch's intuitive management interface allows for easy configuration of ports and network settings, streamlining the overall management process.

Overall, the Cisco C1-WSC3850-24XUL LAN switch's port configurations offer flexibility, scalability, and simplified management, empowering organizations to build robust and efficient networks that meet their unique requirements.
