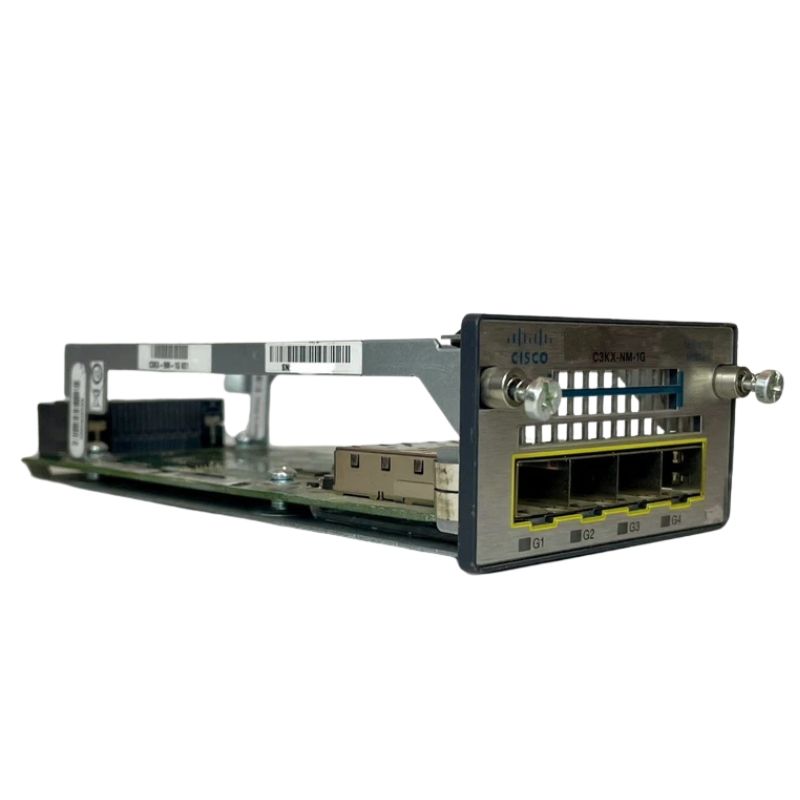

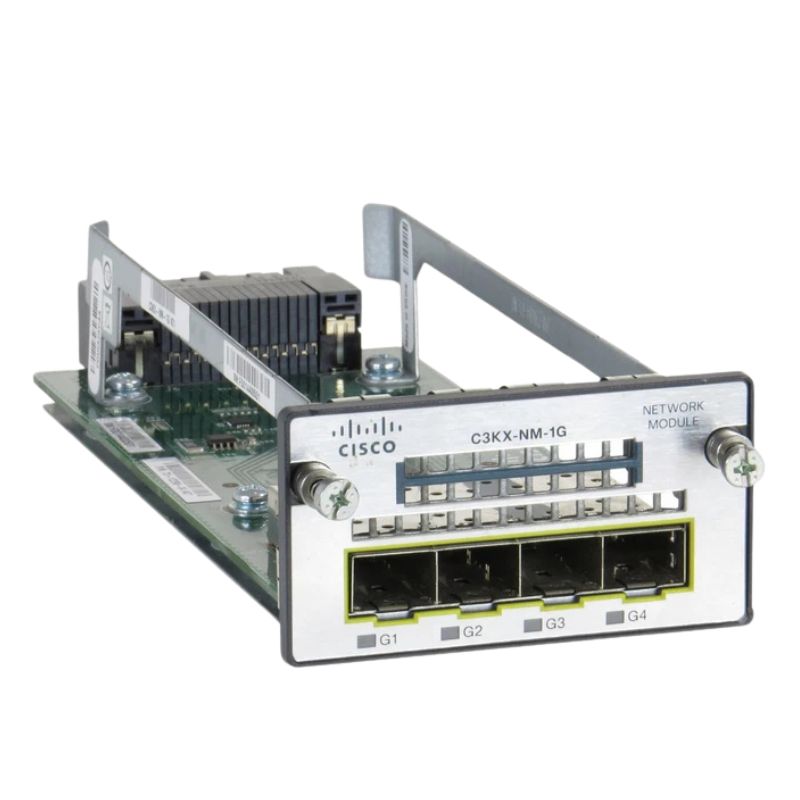

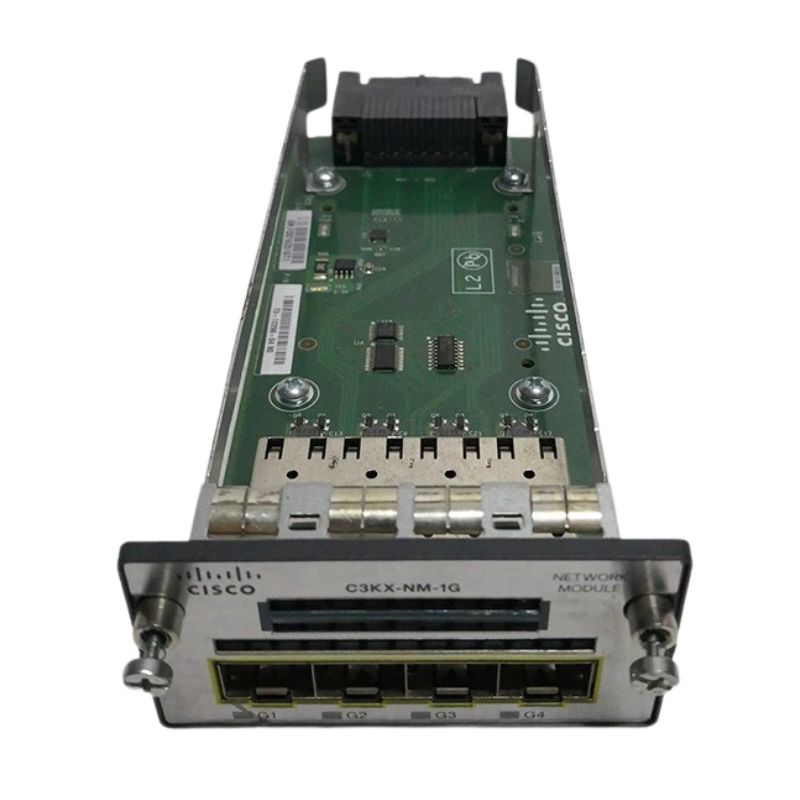

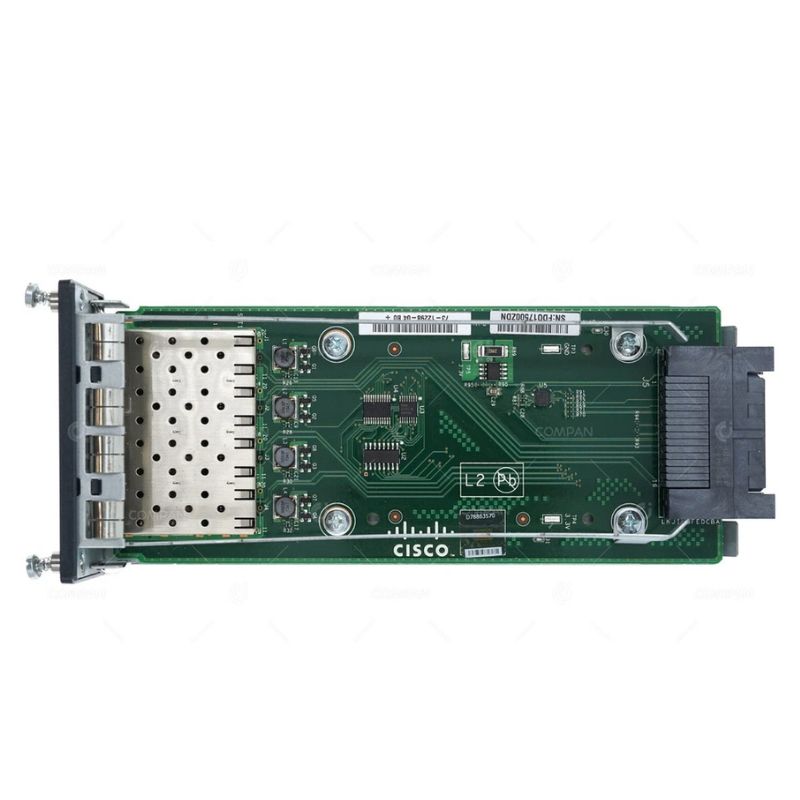

Cisco 3560-X 4-Port Gigabit Ethernet Network Module C3KX-NM-1G=

Overview of Cisco C3KX-NM-1G= Network Module

Manufacturer Details

• Brand: Cisco
• Part Number: C3KX-NM-1G=
• Product Category: Network Module

Technical Specifications

Application and Usage

• Primary Function: Data Networking
• Module Type: Network Module with 4 Ports

Interfaces and Ports

• Total Ports: 4
• Port Configuration: 1 x 1000Base-X
• Interface Details: 1 x 1000Base-X Network Interface

Performance and Media

Ethernet and Network Technology

• Ethernet Standard: Gigabit Ethernet
• Network Standard: 1000Base-X

Connectivity

• Connectivity Type: Wired
• Data Link Protocol: Gigabit Ethernet
• Status Indicators: Link/Activity

Expansion and Slots

Expansion Capabilities

• Expansion Slots: 4 total (all available) x SFP
• Compatible Slots: 1 x Expansion Slot

Environmental Conditions

Operating and Storage Conditions

• Operating Temperature Range: -5°C to 45°C (up to 5000 ft), -5°C to 40°C (up to 10000 ft)
• Storage Temperature Range: -40°C to 70°C
• Operating Humidity: 5% to 95% (non-condensing)
• Storage Humidity: 5% to 95% (non-condensing)
• Operating Altitude: 10,000 ft (3000 m)
• Storage Altitude: 15,000 ft (4750 m)

Compatibility

Supported Cisco Switches

• Cisco Catalyst 3560X-24P/L/S and 3560X-48P/L/S: 24- and 48-port PoE switches supporting IP phones and wireless access points
• Cisco Catalyst 3560X-24T/L/S and 3560X-48T/L/S: 24- and 48-port switches with RJ-45 connectors for Ethernet connectivity
• Cisco Catalyst 3750X-12S/E/S: 12-port switch with SFP uplinks for connecting network devices or fiber optic cabling
• Cisco Catalyst 3750X-24P/L/S and 3750X-48P/L/S: 24- and 48-port PoE switches
• Cisco Catalyst 3750X-24S/E/S and 3750X-48S/E/S: 24- and 48-port switches with SFP+ uplinks for higher bandwidth
• Cisco Catalyst 3750X-24T/L/S and 3750X-48T/L/S: 24- and 48-port switches with RJ-45 connectors
• Cisco Catalyst 3750X-48PF/L/S and 3750X-48P/L/S: 48-port PoE switches with high power output for demanding devices

Ports

The Cisco 3560-X Series Switches Gigabit Ethernet offers users a total of 4 ports, making it a versatile and efficient networking solution. These ports allow for the seamless connection of various devices, such as computers, servers, and printers, to the network.

Increased Connectivity

With 4 ports available, users can connect multiple devices simultaneously without the need for additional switches or hubs. This allows for efficient data transfer and communication within the network, ensuring smooth operations and minimal downtime.

Moreover, the Cisco 3560-X Series Switches Gigabit Ethernet supports Gigabit Ethernet technology, providing high-speed data transmission up to 1 gigabit per second. This ensures that users can transfer large files and data-intensive applications quickly and effortlessly.

Flexible Network Configuration

The 4 ports on the Cisco 3560-X Series Switches Gigabit Ethernet allow for flexible network configuration options. Users can easily create VLANs (Virtual Local Area Networks) to separate different departments or devices within their organization. This segmentation enhances network security and improves overall performance by reducing unnecessary network traffic.

In addition to VLANs, users can also configure link aggregation using the available ports. Link aggregation combines multiple physical connections into a single logical link, increasing overall bandwidth and providing redundancy in case of a link failure. This feature is especially useful for bandwidth-intensive applications or high-availability environments.

Efficient Network Monitoring

The Cisco 3560-X Series Switches Gigabit Ethernet offers advanced network monitoring capabilities through its 4 ports. Users can implement features such as port mirroring or SPAN (Switched Port Analyzer) to capture and analyze network traffic for troubleshooting or security purposes.

By monitoring network traffic, users can identify potential bottlenecks, detect network anomalies, or investigate security breaches. This proactive approach to network management ensures a reliable and secure network infrastructure.

Power over Ethernet (PoE) Support

Some models of the Cisco 3560-X Series Switches Gigabit Ethernet also feature Power over Ethernet (PoE) support on select ports. PoE eliminates the need for separate power cables for devices such as IP phones, wireless access points, or IP cameras.

This feature simplifies installation and reduces clutter by providing power and data connectivity over a single Ethernet cable. It also allows for centralized power management, enabling administrators to monitor and control the power consumption of connected devices.

Network Module

The Cisco 3560-X Series Switches Gigabit Ethernet is compatible with the C3KX-NM-1G= network module. This module expands the capabilities of the switch by providing additional Gigabit Ethernet ports.

Expandable Connectivity

The C3KX-NM-1G= network module offers users an additional 4 Gigabit Ethernet ports, allowing for further expansion of their network infrastructure. This is particularly beneficial for growing organizations or those with increasing connectivity needs.

With the ability to add more ports, users can easily accommodate additional devices or connect to remote locations without having to invest in a separate switch. This scalability ensures that the network can adapt to changing requirements and provides a cost-effective solution.

Flexible Deployment Options

The C3KX-NM-1G= network module can be easily installed into the Cisco 3560-X Series Switches Gigabit Ethernet, offering flexibility in deployment options. The module supports hot-swappable capabilities, allowing for easy installation or replacement without disrupting network operations.

Furthermore, the module supports different types of Gigabit Ethernet connectivity, including copper and fiber. This flexibility enables users to choose the most suitable connectivity option based on their network infrastructure or distance requirements.

Enhanced Network Performance

By adding the C3KX-NM-1G= network module, users can improve network performance and reduce bottlenecks. The additional Gigabit Ethernet ports increase the available bandwidth, ensuring faster data transfer and improved overall network speed.

This enhanced performance is particularly important for bandwidth-intensive applications, such as video streaming, VoIP (Voice over IP), or data backups. With the added capacity, users can support these applications without compromising network performance or experiencing latency issues.

High Reliability and Redundancy

The C3KX-NM-1G= network module also provides high reliability and redundancy features. It supports link aggregation, allowing users to combine multiple ports into a single logical link for increased bandwidth and failover protection.

In the event of a link failure, the switch automatically redirects traffic to the available links, ensuring uninterrupted connectivity. This redundancy feature is crucial for critical applications or environments that require high availability.

In conclusion, the Cisco 3560-X Series Switches Gigabit Ethernet with its 4 ports offers increased connectivity, flexible network configuration options, efficient network monitoring capabilities, and Power over Ethernet support. The compatibility with the C3KX-NM-1G= network module further expands the switch's capabilities by providing additional Gigabit Ethernet ports for enhanced connectivity, flexible deployment options, improved network performance, and high reliability. These features and benefits make the Cisco 3560-X Series Switches Gigabit Ethernet an ideal choice for organizations seeking a reliable and scalable networking solution.
