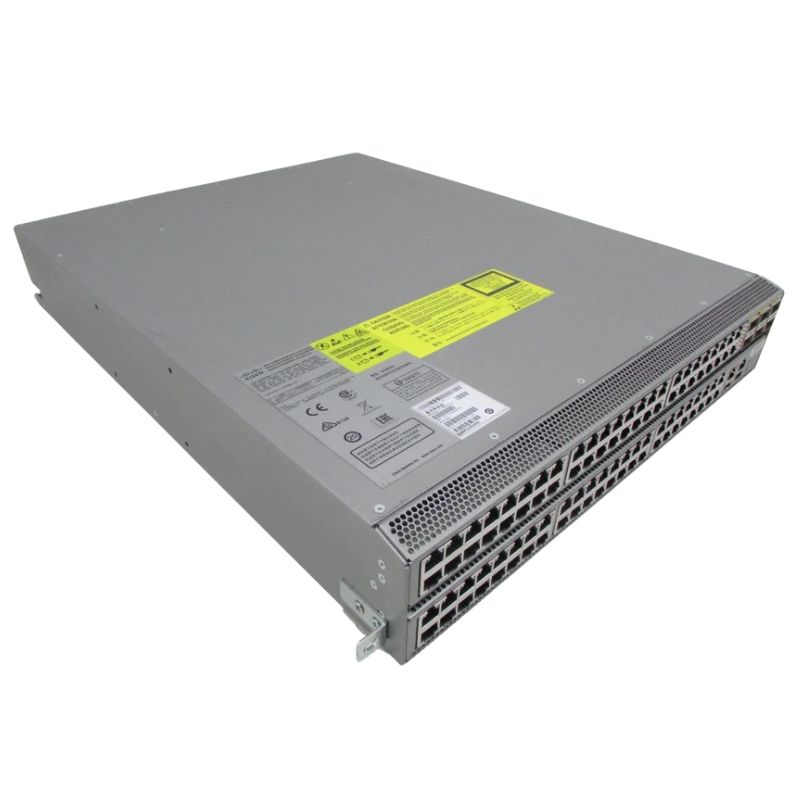

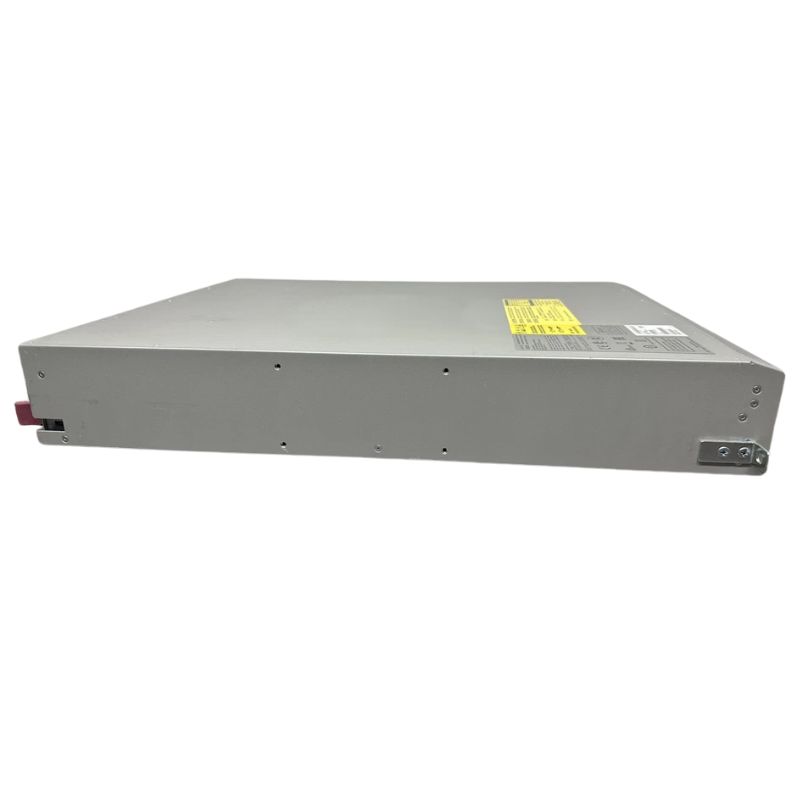

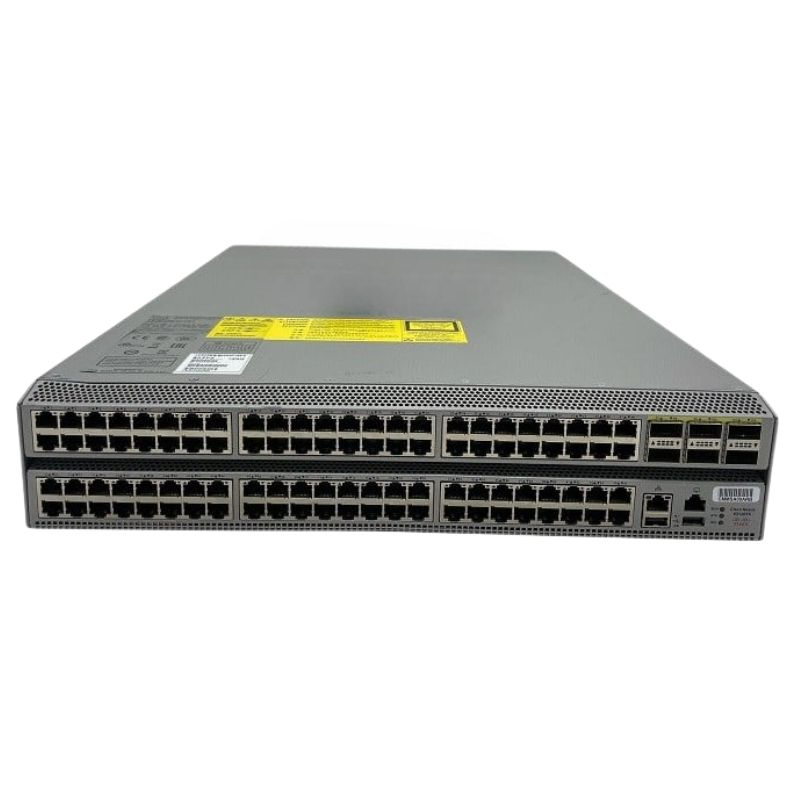

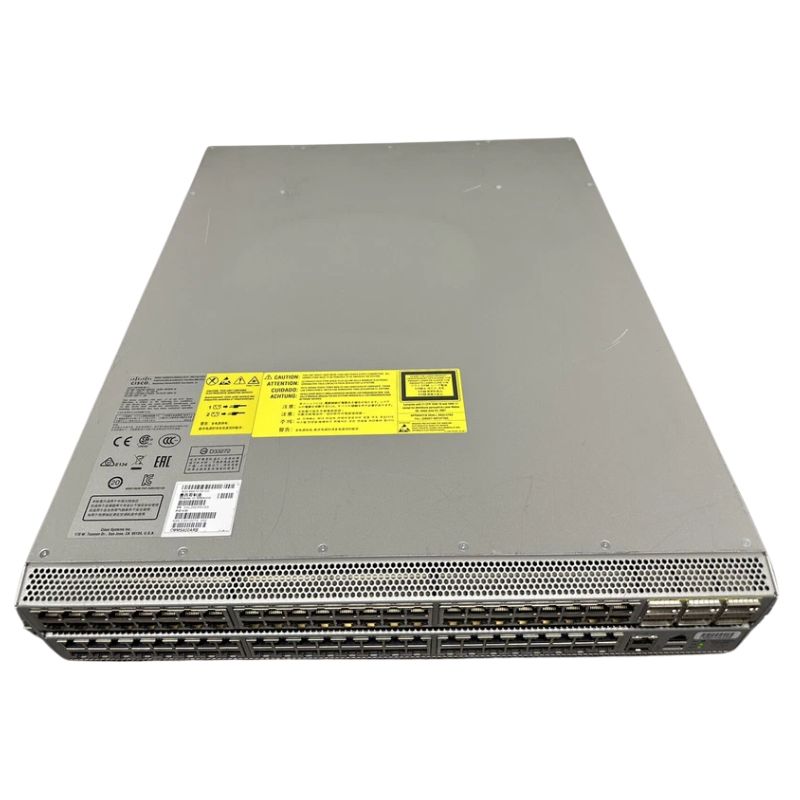

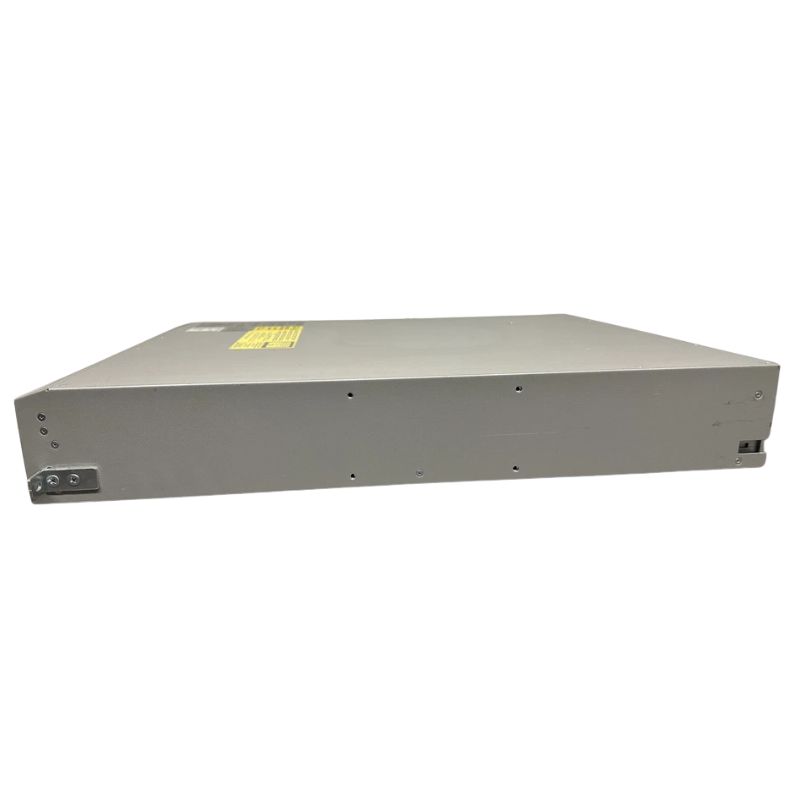

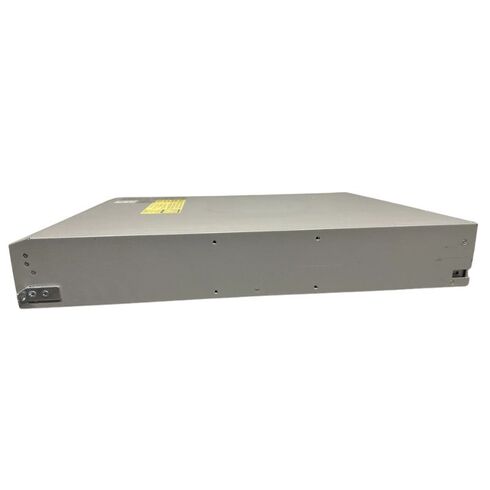

Cisco ONE Nexus 9000 Switch C1-N9KC93120TXB18Q

Product Details

General Overview

• Manufacturer: Cisco Systems, Inc.
• Part Number (SKU): C1-N9KC93120TXB18Q
• Brand: Cisco
• Device Type: Layer 3 Managed Switch with 96 Ports and 8 x QSFP-40G-SR-BD

Key Features

Design and Form Factor

• Enclosure Type: 2U Desktop or Rack-Mountable
• Port Configuration: 96 x 10GBase-T + 6 x 40 Gigabit QSFP+

Performance Specifications

• Bandwidth: 2.56 Tbps
• MAC Address Table Capacity: 96,000 entries

Capacity Metrics

• Longest Prefix Match (LPM) Entries (IPv4): 16,000
• Host Table Entries (IPv4): 88,000
• IPv4 Routes (Multicast): 32,000
• Virtual Interfaces (VLANs): 4,096
• Equal-Cost Multipath (ECMP) Ways: 64
• Multiple Spanning Tree Protocol (MSTP) Instances: 64
• Rapid Per-VLAN Spanning Tree Plus Instances: 507
• Virtual Routing and Forwarding (VRF) Entries: 1,000
• IGMP Snooping Entries: 32,000

Management and Protocols

Remote Management Capabilities

• Supported Protocols: SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2
• Authentication Methods: RADIUS, TACACS+

Advanced Features

• Enhanced Features: Flow control, modular architecture, load balancing, VLAN support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control Lists (ACL), Quality of Service (QoS), RADIUS, RDMA, LLDP, Link Aggregation Control Protocol (LACP), DiffServ Code Point (DSCP) support
• Compliance Standards: IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1p, IEEE 802.3ba

Technical Specifications

Hardware Specifications

• Processor Speed: 2.5 GHz
• RAM: 16 MB
• Flash Memory: 64 GB

Expansion and Connectivity

• Interfaces:
  • 96 x 10GBase-T RJ-45 downlink
  • 6 x 40Gbit LAN QSFP+ uplink
  • 2 x USB
  • 1 x management (Gigabit LAN) RJ-45
  • 1 x serial (RS-232) RJ-45

Power and Environmental Details

Power Supply

• Power Device: Internal hot-plug power supply
• Installed Power Supplies: 0 (installed) / 2 (max)
• Redundant Power Supply: Yes
• Certification: 80 PLUS Platinum

Environmental Compliance

• Certifications: CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, GB 4943, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, EN 61000-3-1, VCCI Class A, KN22 Class A, AS/NZS CISPR 22, EN 300386

Software Requirements

Included Software

• Software: Cisco NX-OS

Interfaces

The Cisco Nexus 9000 Switch C1-N9KC93120TXB18Q Switch is equipped with an impressive array of interfaces, including 48 x 10G/25G/40G/50G/100G ports. This feature sets it apart from other switches in its class and makes it an ideal choice for organizations with high-performance networking requirements.

Flexibility and Versatility

With its 48 x 10G/25G/40G/50G/100G interfaces, the Cisco Nexus 9000 Switch offers unparalleled flexibility and versatility. Users can easily connect a wide range of devices, from servers and storage systems to routers and switches, without the need for additional equipment or complex configurations.

This flexibility is particularly beneficial for organizations that have a diverse IT infrastructure or are planning to upgrade their network in the future. The ability to support multiple interface speeds means that the switch can adapt to changing requirements without the need for costly upgrades or replacements.

High-Speed Connectivity

The 48 x 10G/25G/40G/50G/100G interfaces on the Cisco Nexus 9000 Switch provide high-speed connectivity, enabling users to transfer large amounts of data quickly and efficiently. This is especially important for organizations that rely on real-time data processing or handle bandwidth-intensive applications.

Whether it's transferring large files, streaming high-definition video, or running virtualized environments, the switch's high-speed interfaces ensure that data flows smoothly and without any bottlenecks. Users can enjoy faster response times, improved productivity, and a seamless user experience.

Future-Proofing

Investing in a switch with 48 x 10G/25G/40G/50G/100G interfaces is a smart move for organizations looking to future-proof their network infrastructure. As technology advances and demands for higher bandwidth increase, having a switch that can support multiple interface speeds ensures that your network can keep up with evolving needs.

Additionally, the Cisco Nexus 9000 Switch's ability to handle various interface speeds allows for seamless integration with existing equipment. Whether you have legacy devices that only support lower speeds or state-of-the-art equipment that requires high-speed connectivity, this switch has you covered.

Ports

The Cisco Nexus 9000 Switch C1-N9KC93120TXB18Q Switch is equipped with 48 ports, providing users with ample connectivity options for their network devices. This feature, combined with the switch's other capabilities, makes it a reliable and efficient choice for organizations of all sizes.

Scalability and Expandability

Having 48 ports on the Cisco Nexus 9000 Switch offers scalability and expandability for growing networks. Organizations can easily connect multiple devices, such as servers, routers, and switches, without worrying about running out of ports.

This scalability is particularly important for businesses that anticipate future growth or are planning to add more network devices in the coming years. With 48 ports at their disposal, users have the flexibility to expand their network without the need for additional switches or complex configurations.

Reduced Complexity

By providing 48 ports, the Cisco Nexus 9000 Switch simplifies network deployments and reduces overall complexity. Users can consolidate their network infrastructure by connecting multiple devices to a single switch, eliminating the need for multiple switches and reducing cable clutter.

This reduction in complexity not only streamlines network management but also improves overall efficiency. With fewer devices to manage and troubleshoot, IT teams can focus on more strategic tasks and ensure smooth network operations.

Cost Savings

The 48 ports on the Cisco Nexus 9000 Switch offer cost savings for organizations. By consolidating network devices onto a single switch, businesses can reduce their hardware and maintenance costs. Additionally, the switch's scalability allows organizations to grow their network without incurring substantial expenses.

Furthermore, the Cisco Nexus 9000 Switch's energy-efficient design helps minimize power consumption, resulting in lower electricity bills. By optimizing resources and reducing operational costs, organizations can allocate their budget more effectively and invest in other critical areas of their business.

Speed

The Cisco Nexus 9000 Switch C1-N9KC93120TXB18Q Switch delivers impressive speed capabilities, supporting 10G/25G/40G/50G/100G interfaces. This feature ensures fast and reliable data transmission, enabling organizations to handle bandwidth-intensive applications and meet the demands of modern networking.

Enhanced Performance

The support for 10G/25G/40G/50G/100G interfaces on the Cisco Nexus 9000 Switch translates to enhanced performance for users. Whether you're transferring large files, conducting data backups, or running virtualized environments, the switch's high-speed capabilities ensure that tasks are completed quickly and efficiently.

This enhanced performance is crucial for organizations that rely on real-time data processing or handle mission-critical applications. With faster data transmission speeds, businesses can achieve better productivity, reduce latency, and deliver a superior user experience.

Bandwidth Optimization

The Cisco Nexus 9000 Switch's support for multiple interface speeds enables organizations to optimize their network's bandwidth usage. By utilizing high-speed interfaces for bandwidth-intensive applications and lower-speed interfaces for less-demanding tasks, businesses can ensure that critical applications receive the necessary resources without sacrificing overall network performance.

This bandwidth optimization is particularly beneficial for organizations with limited network resources or those operating in highly dynamic environments. It allows them to prioritize and allocate bandwidth effectively, ensuring that mission-critical applications always receive the necessary resources.

Future-Ready Networking

Investing in a switch with support for 10G/25G/40G/50G/100G interfaces is an excellent step towards future-proofing your network infrastructure. As technology continues to advance, the demand for higher bandwidth will only increase. Having a switch that can handle multiple interface speeds ensures that your network can adapt to future requirements without the need for costly upgrades or replacements.

Furthermore, the Cisco Nexus 9000 Switch's speed capabilities make it a perfect fit for organizations embracing emerging technologies such as cloud computing, virtualization, and Internet of Things (IoT). These technologies often rely on high-speed data transmission, and the switch's support for 10G/25G/40G/50G/100G interfaces ensures optimal performance and seamless integration.

Power

The Cisco Nexus 9000 Switch C1-N9KC93120TXB18Q Switch offers flexibility in power options with its support for AC or DC power supplies. This feature allows organizations to choose the power source that best suits their infrastructure and operational requirements, ensuring uninterrupted network operations.

Adaptability and Redundancy

The support for AC or DC power supplies on the Cisco Nexus 9000 Switch provides adaptability and redundancy in power sources. Organizations can choose the power supply option that aligns with their existing infrastructure or operational preferences.

This adaptability is essential for businesses operating in diverse environments or those with specific power requirements. Whether you're running a data center with an AC power infrastructure or an industrial facility relying on DC power, this switch can seamlessly integrate into your existing setup.

Furthermore, the option to use both AC and DC power supplies offers redundancy, ensuring uninterrupted network operations even in the event of a power source failure. This resilience is critical for organizations where network downtime can result in significant financial losses or reputational damage.

Energy Efficiency

The Cisco Nexus 9000 Switch's support for AC or DC power supplies is complemented by its energy-efficient design. The switch is built to optimize power consumption, reducing electricity costs and minimizing the organization's environmental footprint.

By leveraging energy-efficient components and advanced power management features, the switch ensures that power is used efficiently without compromising performance. This energy efficiency not only results in cost savings but also aligns with sustainability initiatives, making it an environmentally responsible choice for organizations.

Cost Savings and Reliability

The Cisco Nexus 9000 Switch's power options offer cost savings and reliability for organizations. By supporting both AC and DC power supplies, businesses can choose the option that suits their budget and infrastructure requirements, avoiding unnecessary expenses associated with modifying or upgrading their power infrastructure.

Additionally, the switch's energy-efficient design helps reduce electricity bills, resulting in long-term cost savings. The combination of cost savings and reliability makes the Cisco Nexus 9000 Switch an attractive choice for organizations looking to optimize their network infrastructure without compromising on performance or budget constraints.

Management

The Cisco Nexus 9000 Switch C1-N9KC93120TXB18Q Switch comes equipped with Cisco ONE software, providing robust management capabilities for organizations. This feature allows users to efficiently configure, monitor, and troubleshoot their network, ensuring optimal performance and seamless operations.

Centralized Management

Cisco ONE software offers centralized management capabilities, allowing users to configure and monitor multiple switches from a single interface. This centralized approach simplifies network management and reduces the complexity associated with managing individual switches separately.

With Cisco ONE software, users can streamline configuration tasks, apply consistent policies across the network, and gain a holistic view of their network's health and performance. This centralized management saves time and effort for IT teams, enabling them to focus on strategic initiatives rather than repetitive administrative tasks.

Automation and Orchestration

Cisco ONE software's automation and orchestration capabilities further enhance network management efficiency. Users can automate routine tasks, such as configuration backups, software upgrades, and policy enforcement, reducing the risk of human error and ensuring consistent network performance.

By automating these tasks, organizations can achieve greater operational efficiency, improve network reliability, and minimize downtime. Additionally, the switch's orchestration capabilities enable seamless integration with other IT systems and applications, further enhancing overall network management capabilities.

Enhanced Visibility and Troubleshooting

Cisco ONE software provides enhanced visibility into the network, allowing users to monitor traffic, detect anomalies, and troubleshoot issues effectively. The software offers comprehensive reporting and analytics features that provide valuable insights into network performance, allowing IT teams to proactively identify and address potential bottlenecks or security threats.

With Cisco ONE software's advanced troubleshooting capabilities, organizations can minimize network downtime and ensure smooth operations. The software's real-time monitoring and alerting features enable rapid identification and resolution of issues, reducing the impact on business operations and enhancing user experience.

Features

The Cisco Nexus 9000 Switch C1-N9KC93120TXB18Q Switch is packed with features that deliver high performance, scalability, reliability, and advanced security. These features make it a standout choice for organizations looking to build a robust and future-proof network infrastructure.

High Performance

The Cisco Nexus 9000 Switch delivers exceptional performance, thanks to its powerful hardware and advanced software capabilities. With high-speed interfaces and support for multiple interface speeds, the switch ensures fast data transmission and low latency, enabling organizations to handle bandwidth-intensive applications seamlessly.

Additionally, the switch's advanced hardware architecture and optimized software algorithms maximize packet forwarding capacity and minimize latency. This high-performance capability is crucial for organizations that rely on real-time data processing, such as financial institutions, research facilities, or media companies.

Scalability

Scalability is a key feature of the Cisco Nexus 9000 Switch, allowing organizations to expand their network infrastructure as their needs grow. The switch's modular design and support for various interface speeds enable seamless integration with existing equipment and easy addition of new devices.

This scalability is particularly important for businesses that anticipate future growth or have dynamic networking requirements. With the Cisco Nexus 9000 Switch, organizations can scale their network infrastructure without significant disruptions or the need for costly hardware upgrades.

Reliability and Redundancy

The Cisco Nexus 9000 Switch is built to deliver high reliability and redundancy to ensure uninterrupted network operations. The switch's robust hardware components and redundant power supply options minimize the risk of hardware failures and power outages.

Furthermore, the switch's advanced software capabilities, including rapid failover mechanisms and intelligent load balancing, enhance network resilience and ensure continuous service availability. By leveraging these reliability features, organizations can minimize network downtime and maintain business continuity.

Advanced Security

The Cisco Nexus 9000 Switch prioritizes security, offering advanced features to protect organizations' valuable data and sensitive information. The switch incorporates industry-leading security mechanisms to defend against external threats and internal vulnerabilities.

These security features include access control lists (ACLs), role-based access control (RBAC), secure management protocols, and encryption technologies. These measures ensure that unauthorized access is prevented, data confidentiality is maintained, and network traffic remains secure.

Compliance and Regulatory Requirements

The Cisco Nexus 9000 Switch's advanced security features help organizations meet compliance and regulatory requirements. By implementing robust security measures, businesses can demonstrate adherence to industry standards and protect sensitive customer data.

Additionally, the switch's security capabilities enable organizations to build a secure foundation for their network infrastructure, ensuring the confidentiality, integrity, and availability of critical business information. This compliance and security posture enhance customer trust and protect the organization's reputation.

Future-Proofing

Investing in a switch with high performance, scalability, reliability, and advanced security features is a smart move for organizations looking to future-proof their network infrastructure. As technology evolves and cyber threats become more sophisticated, having a switch that can adapt and withstand these challenges is crucial.

The Cisco Nexus 9000 Switch's feature set positions it as a future-ready solution. Its high performance ensures that it can handle emerging technologies and bandwidth-intensive applications. The switch's scalability enables seamless expansion to accommodate growing network demands. Its reliability and advanced security features safeguard the network against potential threats.

By investing in a future-proof switch like the Cisco Nexus 9000, organizations can build a network infrastructure that can adapt to their evolving needs and provide a solid foundation for their digital transformation journey.
