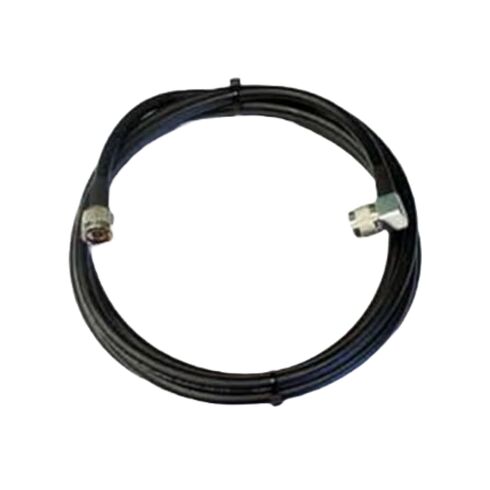

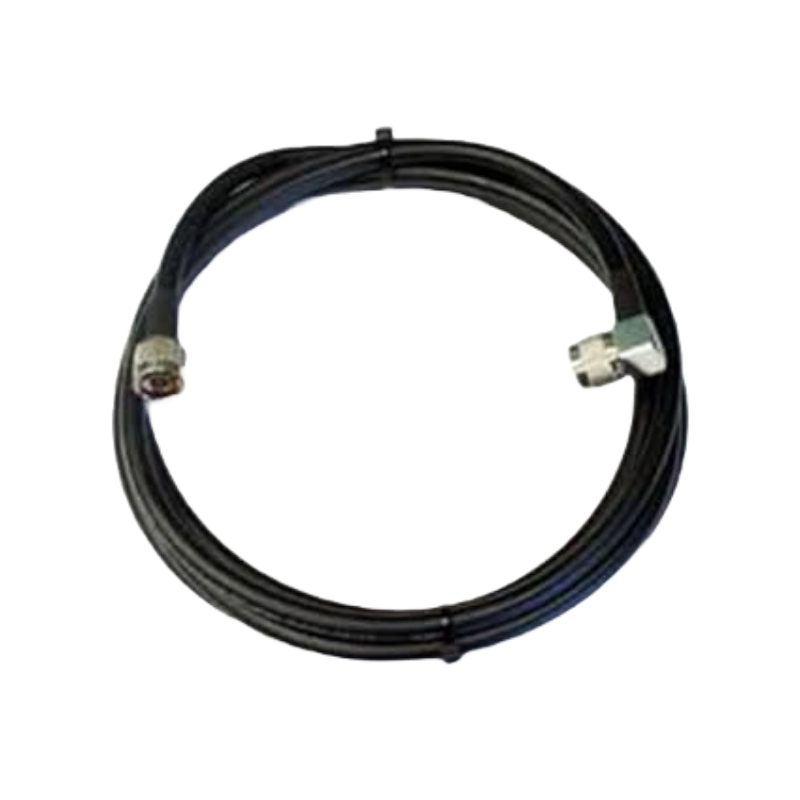

AIR-CAB005LL-R Cisco Low Loss RF N-Series Connector Cable

Key Features of Cisco AIR-CAB005LL-R

• Low Loss Performance: The cable is engineered to minimize signal loss, offering enhanced performance in wireless networks and RF applications.
• High Durability: Constructed with robust materials that offer long-term reliability in both indoor and outdoor environments.
• Versatile Connectivity: Equipped with N-series connectors, the cable provides easy compatibility with various networking devices, antennas, and radio systems.
• High Frequency Range: Supports a broad range of frequencies, making it suitable for a variety of RF applications, from Wi-Fi to LTE.
• Optimal Signal Integrity: Designed to preserve signal integrity over long distances, ensuring high-quality performance even in complex networking setups.

Applications of Cisco AIR-CAB005LL-R Cable

The Cisco AIR-CAB005LL-R Low Loss RF N-Series Connector Cable can be used in a wide range of applications. Its low-loss characteristics make it particularly well-suited for environments where maintaining high-quality signals is critical. Some of the most common applications include:

• Wireless Networking: Perfect for connecting Cisco wireless access points (APs) to antennas, ensuring optimal signal strength for coverage in large areas.
• Telecommunication Systems: Used in telecom equipment to maintain stable signal transmission in cellular networks and other communication systems.
• Broadcasting: Often employed in RF signal transmission for television and radio broadcasting, ensuring clear and strong signal delivery to transmitters.
• Satellite Communication: Utilized in satellite communication systems where high-performance signal quality is crucial for reliable data transmission.

Cisco AIR-CAB005LL-R Low Loss RF N-Series Connector Cable

When selecting a cable for your RF applications, there are several reasons why the Cisco AIR-CAB005LL-R Low Loss RF N-Series Connector Cable stands out:

1. Exceptional Signal Quality

The primary advantage of using this cable is its ability to minimize signal loss. Its advanced materials and construction ensure that your RF equipment can perform at its peak, even in challenging environments. The cable’s low attenuation characteristics prevent signal degradation over long distances, maintaining the integrity of your data transmission.

2. Durability and Flexibility

The Cisco AIR-CAB005LL-R is built to withstand harsh conditions. Whether deployed in outdoor environments exposed to the elements or in indoor settings subject to physical wear, the cable provides the durability necessary for long-lasting performance. Additionally, it is flexible enough to make installation easier without sacrificing performance or reliability.

3. Wide Compatibility

With N-series connectors, the Cisco AIR-CAB005LL-R cable can be easily connected to a wide variety of devices, antennas, and systems. Its versatility ensures that it can be used in both new and existing setups, providing compatibility with various RF equipment from Cisco and other manufacturers.

4. Enhanced Network Efficiency

In high-demand environments, efficient network operation is key to ensuring smooth communication. The low-loss nature of the Cisco AIR-CAB005LL-R cable contributes to overall network efficiency, reducing the need for additional equipment to compensate for signal loss and improving overall system performance.

Understanding N-Series Connectors

The N-series connector is a widely used interface for RF signal transmission, particularly in telecom and networking environments. These connectors are known for their ability to handle high-frequency signals and provide reliable connections even in demanding applications. The Cisco AIR-CAB005LL-R utilizes N-series connectors, making it an ideal choice for businesses that require top-tier RF performance.

Types of N-Series Connectors

N-series connectors come in different types, each designed for specific applications. The most common types include:

• Male N-connector: The male N-connector features a center pin and is used to connect to female counterparts, typically found in antennas or networking devices.
• Female N-connector: The female N-connector is designed with a receptacle for receiving the male N-connector, making it an essential part of RF cable assemblies.
• Bulkhead N-connector: Often used in installations where the cable needs to pass through a wall or enclosure, bulkhead connectors provide a secure interface for external connections.

Advantages of N-Series Connectors

The N-series connectors used in the Cisco AIR-CAB005LL-R cable offer several benefits, including:

• High Durability: These connectors are designed to be robust and reliable, ensuring long-term performance in both indoor and outdoor environments.
• Excellent Signal Integrity: N-series connectors offer low contact resistance, ensuring that signal integrity is maintained throughout the connection.
• Wide Frequency Range: Capable of supporting high-frequency signals, N-series connectors are suitable for a broad range of applications, including Wi-Fi, LTE, and satellite communications.

Cable Specifications and Compatibility

The Cisco AIR-CAB005LL-R cable is designed to meet the highest standards of performance and quality. Below are some of the key specifications and compatibility details for this cable:

• Length: 5 meters (16.4 feet) of cable, offering ample reach for most setups.
• Connector Type: N-series connectors (Male and Female) for easy installation and compatibility.
• Impedance: 50 ohms, making it suitable for a variety of RF applications.
• Frequency Range: Supports frequencies up to 6 GHz, providing versatility for different RF systems.
• Construction: Flexible and durable construction that minimizes signal loss and ensures long-lasting performance in both high and low-temperature environments.

Installation and Maintenance Tips

To ensure optimal performance of the Cisco AIR-CAB005LL-R Low Loss RF N-Series Connector Cable, it’s essential to follow best practices during installation and maintenance. Below are some helpful tips:

1. Proper Cable Handling

When handling the Cisco AIR-CAB005LL-R cable, be sure to avoid sharp bends or twists, as this can cause signal degradation or damage to the cable. Always use appropriate cable management tools to maintain the integrity of the cable.

2. Secure Connectors

Ensure that the N-series connectors are properly tightened and securely connected to the respective devices or antennas. Loose connectors can lead to signal loss or interference.

3. Regular Inspections

Periodically inspect the cable for any visible signs of wear or damage. If any issues are identified, replace the cable or connectors promptly to avoid potential performance issues.

4. Environmental Considerations

If the cable is installed in an outdoor or industrial environment, consider using weather-resistant cable coverings to protect the cable from harsh conditions like UV exposure, extreme temperatures, or moisture.
