ASR1004-10G/K9 Cisco Aggregation Services Router

Product Overview of the Cisco ASR1004-10G/K9 Router

The Cisco ASR1004-10G/K9 is a high-performance aggregation router designed for modern network demands. Built for scalability and reliability, this device ensures seamless connectivity for enterprise and service provider networks.

General Information

• Part Number: ASR1004-10G/K9
• Brand: Cisco
• Series: 1000 Series
• Model: 1004
• Product Name: 1004 Aggregation Services Router
• Type: Router

Technical Specifications

• Total Slots: 12

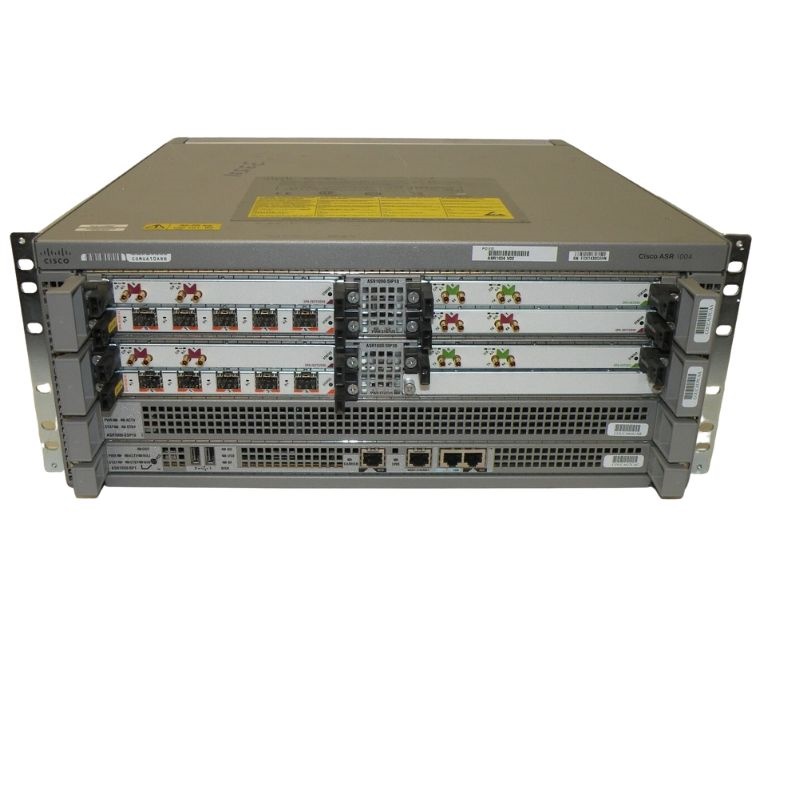

• Expansion Slot Types:
• Shared Port Adapter
• Interface Processor
• Route Processor
• Embedded Service Processor
• Router: ASR1004 Aggregation Services Router
• Embedded Services Processor: 1 x ASR1000-ESP10
• Route Processor: 1 x ASR1000-RP1
• Shared Port Adapter Interface Processor: 1 x 1XASR1000-SIP10

The Cisco ASR1004-10G/K9 Aggregation Services Router

The Cisco ASR1004-10G/K9 Aggregation Services Router is designed for high-performance network environments, providing robust and scalable solutions for service providers, enterprises, and data centers. As part of the ASR 1000 Series, it combines high throughput, flexible connectivity options, and advanced service capabilities in a compact 4-slot chassis. This router is ideal for organizations seeking to optimize network performance, reduce latency, and ensure reliability in mission-critical applications.

High-Performance Networking with Cisco ASR1004

The ASR1004-10G/K9 delivers exceptional performance with a non-blocking architecture capable of supporting multiple 10G and 1G connections simultaneously. It supports advanced routing protocols such as OSPF, BGP, and MPLS, ensuring seamless network integration. The device is engineered to handle high-speed traffic efficiently, making it suitable for Internet peering, data center interconnects, and enterprise WAN aggregation.

With hardware-accelerated forwarding, this router minimizes processing delays and maximizes throughput. Its built-in redundancy and failover capabilities guarantee network uptime, making it a reliable choice for continuous operations in enterprise and service provider networks.

Advanced Security Features

Security is a critical component of the Cisco ASR1004-10G/K9. The router includes integrated firewall capabilities, intrusion prevention, and secure VPN support to protect sensitive data during transmission. Advanced encryption standards and authentication protocols ensure that your network communications remain secure against evolving cyber threats.

Additionally, the device supports Cisco’s Embedded Services Processor (ESP) which offloads security processing from the main CPU, enhancing overall performance while maintaining robust security. This combination of high performance and security makes the ASR1004-10G/K9 suitable for multi-service environments where both speed and protection are essential.

Flexible Connectivity Options

The ASR1004-10G/K9 offers a variety of interface modules that allow for flexible deployment in diverse network topologies. Users can choose from 10G, 1G, and various Ethernet interface modules to suit their bandwidth requirements. The modular design allows for easy upgrades as network demands grow, reducing long-term infrastructure costs.

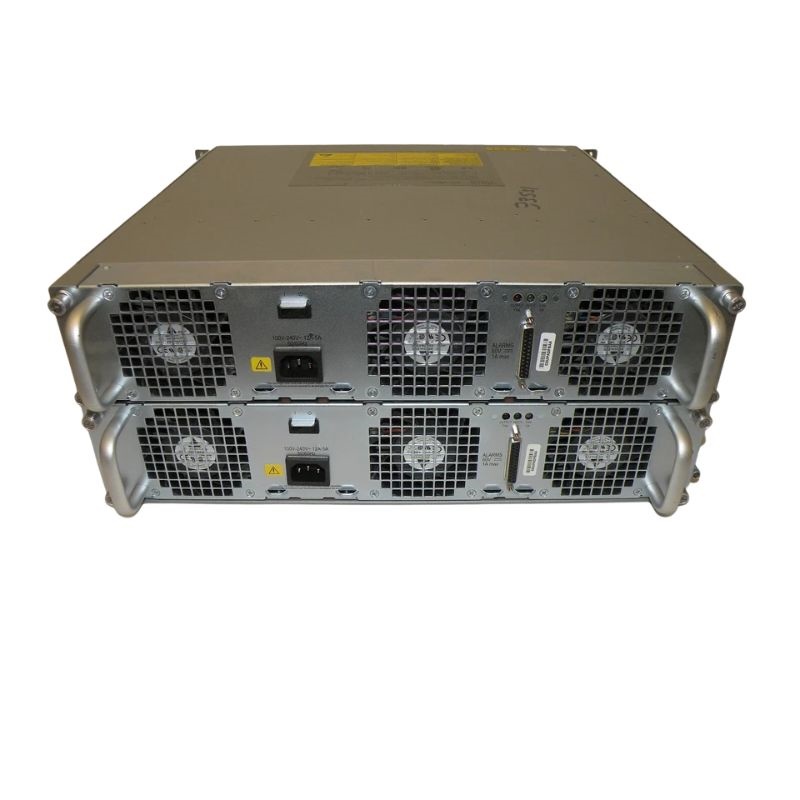

Its redundancy features, including dual power supplies and fan trays, ensure uninterrupted operation. The device also supports Cisco IOS-XE software, which provides advanced networking features, automation, and programmability for modern network management.

Scalability and Expandability

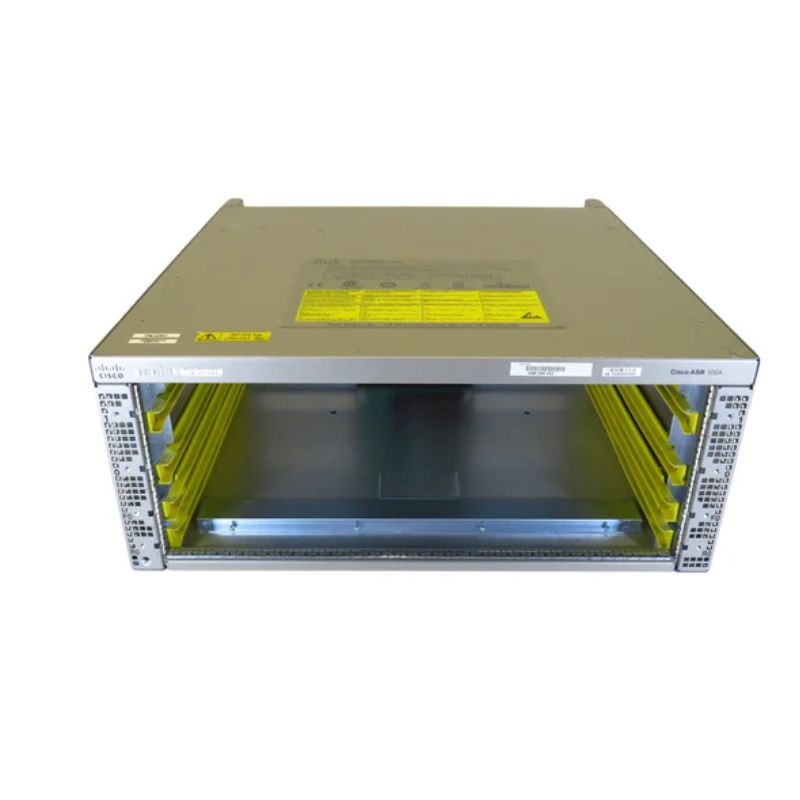

One of the key advantages of the Cisco ASR1004-10G/K9 is its scalability. The 4-slot chassis design allows network administrators to expand capacity by adding additional interface modules without downtime. This makes it ideal for growing enterprises or service providers who anticipate increasing traffic volumes.

In addition, the router supports hierarchical QoS (Quality of Service) policies, enabling fine-grained traffic management and prioritization. This ensures critical applications receive the necessary bandwidth and performance, even in congested network conditions.

Optimized Performance for Multi-Service Environments

The ASR1004-10G/K9 excels in multi-service network environments where voice, video, and data converge. Its hardware-accelerated forwarding capabilities support high-volume traffic without introducing latency. This makes it an ideal solution for converged networks, where maintaining performance across multiple services is crucial.

The router’s support for MPLS VPNs and advanced Layer 3 features allows service providers to offer secure, high-speed connectivity to customers. Enterprises can leverage these features to create resilient WAN architectures that support cloud services, data replication, and business continuity initiatives.

Energy Efficiency and Reliability

Cisco has designed the ASR1004-10G/K9 with energy efficiency in mind. Its modular architecture allows for power optimization based on installed components, reducing energy consumption and operating costs. Redundant power supplies and fans contribute to continuous operation, even in critical network scenarios.

Reliability is further enhanced through Cisco’s IOS-XE software, which supports stateful switchover and in-service software upgrades. These features allow administrators to perform maintenance and upgrades without interrupting network services, ensuring consistent uptime for essential applications.

Enterprise and Service

The ASR1004-10G/K9 is versatile and can serve multiple roles across enterprise and service provider networks. Common applications include WAN aggregation, Internet peering, data center interconnects, and high-speed enterprise access. Its combination of high throughput, advanced features, and reliability ensures it meets the demands of modern network infrastructures.

Service providers can leverage the router to deliver differentiated services such as secure VPNs, managed enterprise connectivity, and MPLS-based solutions. Enterprises can deploy the router for campus WAN aggregation, cloud connectivity, and secure inter-site communication.

Integration with Cisco Ecosystem

Integrating the ASR1004-10G/K9 with other Cisco networking solutions enhances its capabilities. It works seamlessly with Cisco Catalyst switches, Nexus data center switches, and other ASR series routers. This allows for consistent network policies, unified management, and streamlined operations across hybrid networks.

Its compatibility with Cisco DNA Center and other network automation tools enables centralized monitoring and orchestration. This integration simplifies network management and accelerates troubleshooting, ensuring that IT teams can maintain high service levels with minimal effort.

Deployment Flexibility

The ASR1004-10G/K9 is designed to adapt to a wide range of deployment scenarios. Its modular interface design allows for tailored connectivity options, while its compact 4-slot chassis saves rack space in data centers and enterprise wiring closets. Whether deployed at the edge, in a core aggregation role, or within a data center, the router delivers predictable performance and scalability.

Its combination of high-speed forwarding, robust security, and flexible management makes it suitable for multi-tenant environments, cloud service integration, and hybrid WAN deployments.
