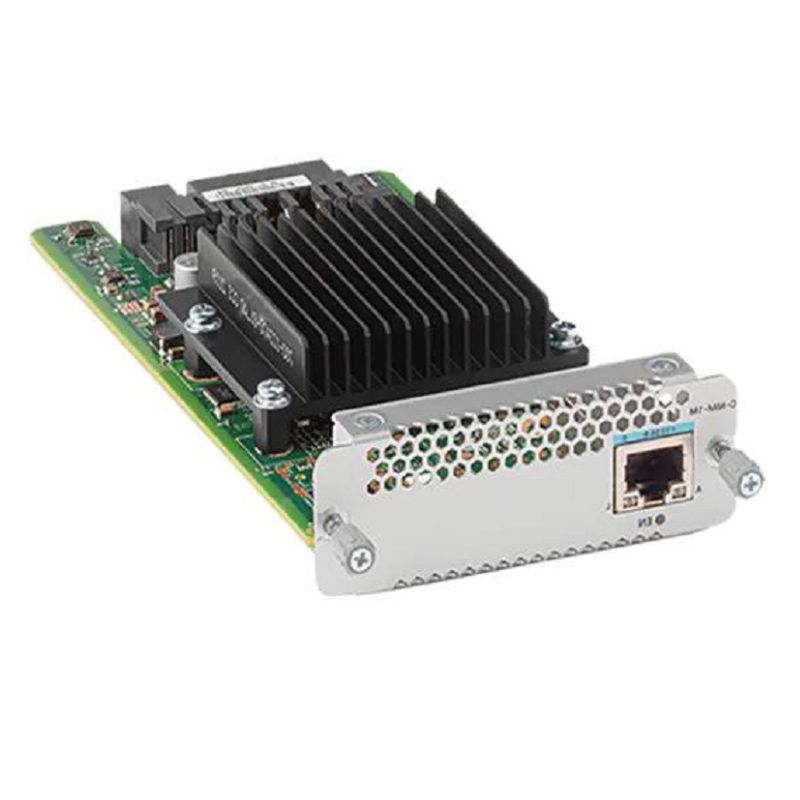

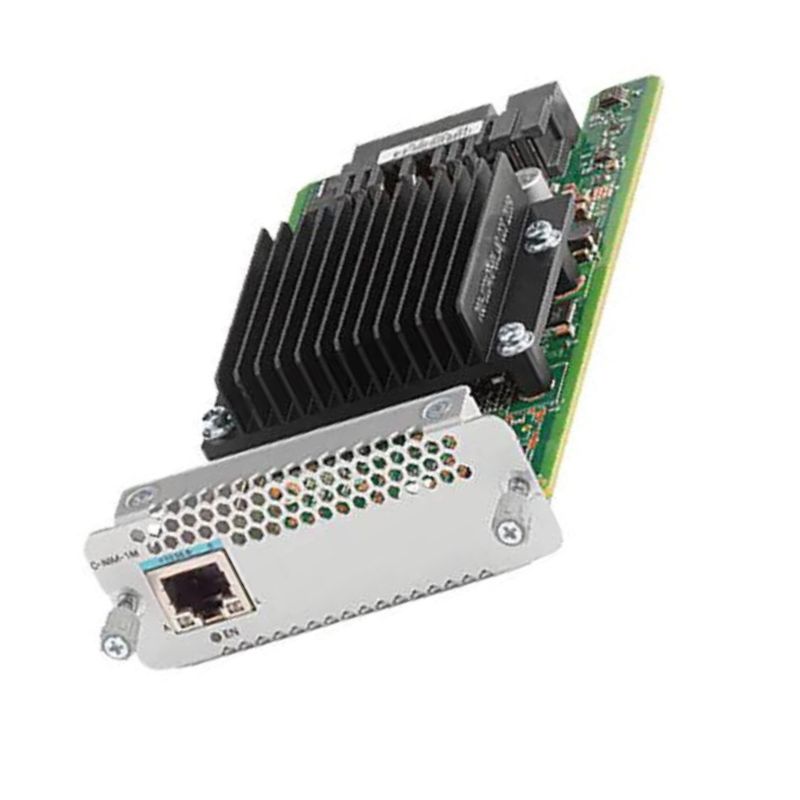

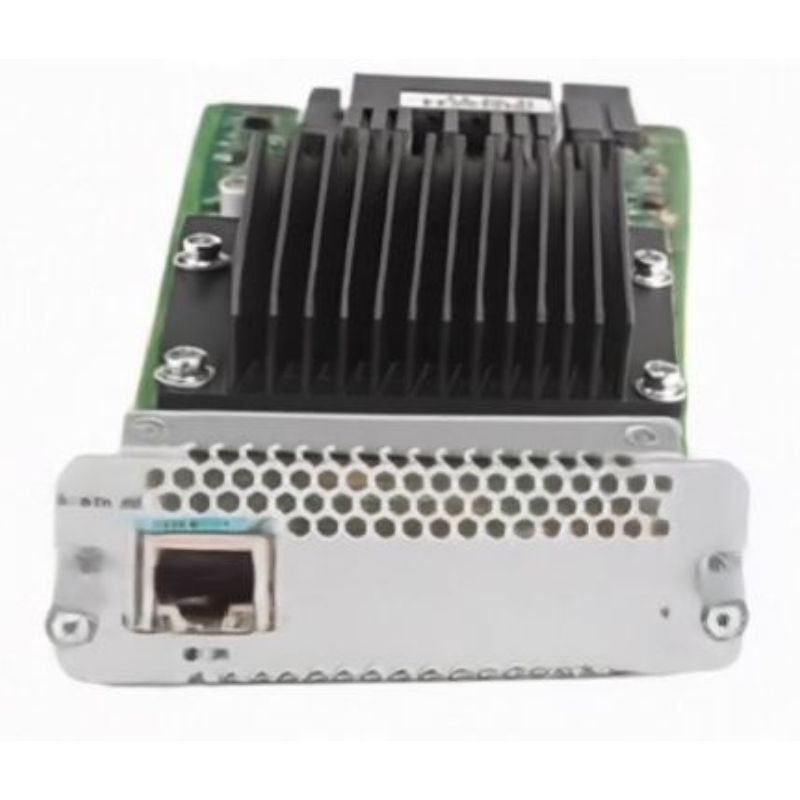

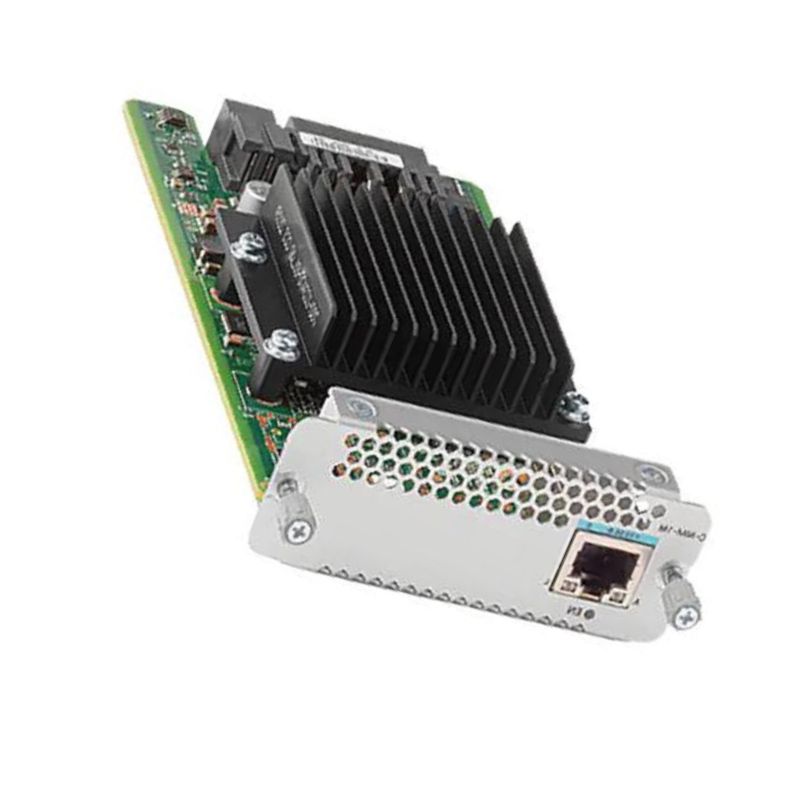

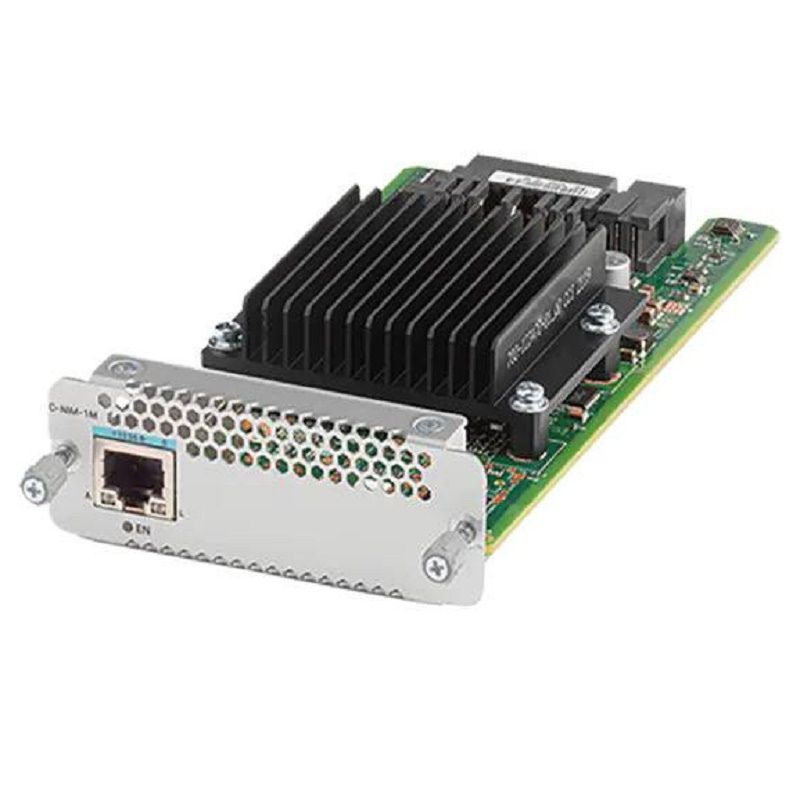

C-NIM-1M Cisco 1 Port 2.5-GBPS/1-GBPS WAN UPOE NIM

Overview of CiscoHigh-Speed WAN Expansion Module

The Cisco C-NIM-1M Network Interface Module is designed to extend routing and WAN connectivity with reliable multi-gigabit Ethernet performance. Built for data-driven enterprise environments, this plug-in expansion module delivers flexible 2.5 Gbps and 1 Gbps Ethernet support over standard twisted-pair cabling, enabling seamless integration into existing network infrastructures while preparing for higher bandwidth demands.

Main Specifications

• Manufacturer: Cisco
• Part Number: C-NIM-1M
• Product Type: Network Interface Module

Multi-Gigabit Ethernet Performance and Flexibility

• Supports 100 Mbps, 1 Gbps, and 2.5 Gbps Ethernet speeds
• Optimized for WAN and edge networking deployments
• Stable data transfer rate up to 2.5 Gbps
• Backward compatibility with legacy Ethernet devices.

Interface Specifications

• 1 x 100/1/2.5GBase-T Ethernet interface
• RJ-45 connector with UPOE+ support
• Optimized for WAN interface card (WIC) and NIM use cases

Data Link Protocol and Network Compatibility

• Data link protocol: 2.5 Gigabit Ethernet
• Connectivity technology: Wired Ethernet
• Interface type: RJ-45 for broad compatibility
• Designed for Cisco router and platform integration

Support for Multiple IEEE PoE Standards

• IEEE 802.3af compliance for standard PoE devices
• IEEE 802.3at support for PoE+ requirements
• IEEE 802.3bt compatibility for high-power UPOE+ scenarios
• Efficient power delivery without compromising network speed

Integrated LED Indicators

• Link status indicator for physical connection confirmation
• Data activity indicator for real-time traffic monitoring
• Quick visual troubleshooting at the hardware level

Operating Temperature and Humidity Range

• Minimum operating temperature: 32 °F
• Maximum operating temperature: 104 °F
• Operating humidity range: 5% to 95%

Outline of Cisco C-NIM-1M 1 Port WAN NIM

The Cisco C-NIM-1M category represents a specialized class of WAN Network Interface Modules designed to extend the connectivity and performance capabilities of Cisco Integrated Services Routers. This category focuses on high-speed, single-port WAN expansion solutions that support both 2.5-Gbps and 1-Gbps Ethernet connectivity while delivering advanced power and data integration through UPOE technology. Products in this category are engineered to meet the evolving demands of enterprise branch offices, service provider edge deployments, and distributed network environments that require scalable bandwidth, simplified infrastructure, and consistent reliability.

The Cisco C-NIM-1M WAN module category is positioned to address modern networking requirements such as higher throughput, flexible WAN design, and seamless integration with Cisco routing platforms. By enabling a single module to handle multiple speed profiles, this category reduces hardware complexity while offering forward-looking performance headroom. Organizations adopting solutions in this category benefit from a standardized approach to WAN expansion that aligns with Cisco’s long-term networking architecture and software-defined strategies.

Role of WAN NIM in Enterprise Routing

WAN Network Interface Modules serve as the physical and logical bridge between internal network infrastructure and external wide area networks. Within Cisco router ecosystems, these modules allow administrators to customize WAN connectivity according to bandwidth needs, provider requirements, and geographic constraints. The C-NIM-1M category is particularly relevant for deployments that require Ethernet-based WAN links capable of operating at multi-gigabit speeds while maintaining backward compatibility with existing gigabit infrastructure.

By integrating WAN interfaces directly into the router chassis through modular design, this category enables flexible network growth without the need to replace entire routing platforms. This approach lowers total cost of ownership while supporting incremental upgrades as bandwidth demand increases. The C-NIM-1M category exemplifies this modular philosophy by offering a compact yet powerful WAN interface solution that aligns with evolving enterprise connectivity models.

Integration with Cisco Integrated Services Routers

Solutions within the Cisco C-NIM-1M category are designed specifically for compatibility with Cisco Integrated Services Routers that support Network Interface Modules. This tight integration ensures consistent performance, unified management, and full utilization of Cisco IOS XE software capabilities. The module operates as a native extension of the router, inheriting advanced routing, security, and quality-of-service features without requiring additional external appliances.

This level of integration simplifies deployment and ongoing operations. Network administrators can configure, monitor, and troubleshoot the WAN interface using familiar Cisco command-line and graphical management tools. As a result, the category supports streamlined workflows and reduces operational overhead, especially in large-scale or multi-site environments.

High-Speed Ethernet Capabilities and Bandwidth Flexibility

The defining characteristic of the Cisco C-NIM-1M category is its support for both 2.5-Gbps and 1-Gbps Ethernet WAN connectivity. This dual-speed capability provides exceptional flexibility for organizations transitioning from traditional gigabit WAN links to higher-speed services offered by modern internet service providers. By supporting multiple speed profiles within a single module, the category enables future-ready network designs without immediate hardware replacement.

Bandwidth flexibility is critical in environments where WAN requirements may change due to application growth, cloud adoption, or increased remote connectivity. The C-NIM-1M category addresses this need by allowing the same physical interface to adapt to different service speeds, ensuring optimal utilization of available bandwidth while maintaining compatibility with existing network infrastructure.

Support for Modern WAN Architectures

Modern WAN architectures increasingly rely on Ethernet-based connectivity, software-defined WAN solutions, and cloud-centric traffic patterns. The Cisco C-NIM-1M category aligns with these trends by delivering high-throughput Ethernet WAN interfaces that integrate seamlessly with SD-WAN technologies. This enables dynamic path selection, application-aware routing, and centralized policy control across distributed networks.

By supporting higher-speed Ethernet links, this category ensures that branch offices and edge locations can fully participate in cloud services, unified communications, and data-intensive applications. The result is a more responsive and resilient WAN infrastructure that supports business-critical operations.

UPOE Technology and Power Delivery Advantages

Unified Power over Ethernet technology is a significant aspect of the Cisco C-NIM-1M category. UPOE enables the delivery of power alongside data over Ethernet cabling, reducing the need for separate power sources and simplifying network design. In WAN scenarios, this capability supports powered devices and integrated network functions that benefit from centralized power management.

The inclusion of UPOE support within the C-NIM-1M category underscores Cisco’s commitment to converged networking solutions. By combining high-speed data transmission with advanced power delivery, this category enables more efficient deployment of network services and connected devices at the WAN edge.

Operational Efficiency Through Power Integration

Power integration through UPOE enhances operational efficiency by minimizing cabling complexity and reducing the number of required power adapters. This is particularly valuable in branch and remote office environments where space and power outlets may be limited. The Cisco C-NIM-1M category supports cleaner installations and improved reliability through centralized power sourcing.

From an operational standpoint, UPOE also enables better monitoring and control of power usage. Network administrators can manage power delivery through Cisco management platforms, ensuring optimal performance and rapid response to power-related issues.

Reliability and Performance Consistency

Reliability is a core requirement for WAN connectivity, as outages or performance degradation can directly impact business continuity. The Cisco C-NIM-1M category is engineered to deliver consistent performance under demanding network conditions. High-quality components, robust design standards, and Cisco’s rigorous testing processes contribute to dependable operation across diverse deployment scenarios.

Performance consistency is further enhanced by the module’s ability to handle sustained high-throughput traffic without compromising latency or packet integrity. This makes the category suitable for applications such as voice, video, real-time collaboration, and cloud access that require predictable network behavior.

Enterprise-Grade Design and Validation

Products within this category undergo extensive validation to meet enterprise-grade reliability standards. Compatibility testing with supported routers, operating systems, and network features ensures that the module performs as expected in real-world environments. This level of assurance is critical for organizations that rely on Cisco infrastructure for mission-critical connectivity.

The enterprise-grade design philosophy also translates into long-term stability and support. The Cisco C-NIM-1M category benefits from Cisco’s lifecycle management practices, providing organizations with confidence in ongoing availability, updates, and technical assistance.

Security Enablement at the WAN Edge

WAN interfaces are a key control point for network security, as they represent the boundary between internal networks and external connections. The Cisco C-NIM-1M category supports advanced security capabilities by integrating seamlessly with the host router’s security features. This includes support for firewall policies, encryption, VPN termination, and traffic inspection.

By enabling secure WAN connectivity at higher speeds, this category ensures that enhanced bandwidth does not come at the expense of security. Organizations can enforce consistent security policies across all WAN links while accommodating increased data volumes.

Alignment with Cisco Security Architecture

The C-NIM-1M category aligns with Cisco’s broader security architecture, allowing WAN traffic to be protected using integrated threat defense and segmentation features. This alignment simplifies security management by consolidating functions within a single platform rather than relying on disparate devices.

Such integration is especially valuable in distributed environments where centralized security management and consistent policy enforcement are essential for maintaining compliance and reducing risk.

Deployment Scenarios and Use Cases

The Cisco C-NIM-1M category is suitable for a wide range of deployment scenarios, from small branch offices to large enterprise edge locations. Its combination of high-speed Ethernet, modular design, and power integration makes it adaptable to various network topologies and service provider offerings.

Common use cases include enterprise WAN upgrades, SD-WAN edge deployments, and connectivity for locations with multi-gigabit internet services. The category also supports scenarios where organizations require a gradual transition from gigabit to multi-gigabit WAN speeds without disrupting existing infrastructure.

Scalability for Growing Networks

Scalability is a critical consideration for modern networks, and the Cisco C-NIM-1M category addresses this by enabling incremental growth. Organizations can deploy the module in existing routers and upgrade WAN speeds as needed, avoiding large-scale hardware replacements. This scalable approach supports long-term network planning and budget optimization.

As application demands increase and new services are introduced, the category provides the flexibility needed to adapt without compromising performance or reliability.

Compatibility and Ecosystem Support

Compatibility within the Cisco ecosystem is a key strength of the C-NIM-1M category. Designed to work seamlessly with supported Cisco routers and software versions, the module integrates into existing network environments with minimal disruption. This compatibility ensures that organizations can leverage their current investments while enhancing WAN capabilities.

The category also benefits from Cisco’s extensive partner and support ecosystem. Documentation, best practices, and professional services are readily available to assist with planning, deployment, and optimization.

Software Integration and Feature Enablement

Software integration plays a vital role in maximizing the value of WAN modules. The Cisco C-NIM-1M category supports a wide range of software features through Cisco IOS XE, enabling advanced routing protocols, traffic management, and analytics. This deep software integration ensures that the physical capabilities of the module are fully realized within the network architecture.

Through consistent software updates and feature enhancements, the category remains aligned with evolving networking standards and customer requirements, ensuring long-term relevance and performance.
