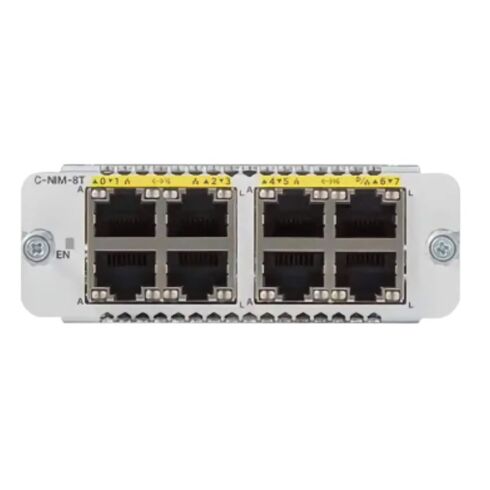

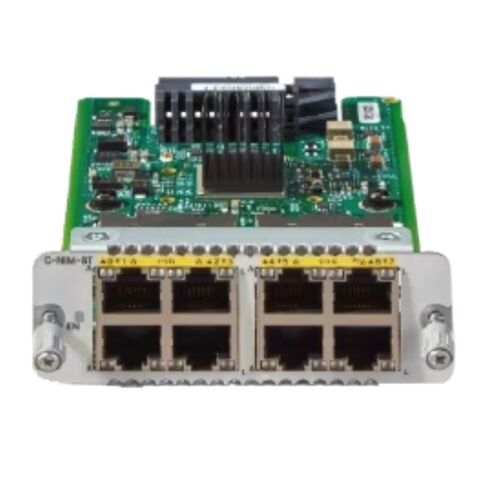

C-NIM-8T Cisco 8 Ports Layer 2/3 GE Network Interface Module.

Key Highlights of the Cisco C-NIM-8T Gigabit Switching Module

The Cisco C-NIM-8T plug-in interface module brings efficient Layer 2/3 switching capabilities to diverse enterprise and service-provider environments. Designed for fast deployment and smooth scalability, it enhances LAN/WAN connectivity with reliable 1-Gigabit performance.

Main Product Attributes

• Manufacturer: Cisco
• Model / SKU: C-NIM-8T
• Module Type: Advanced networking interface component
• Product Title: 8-Port 1G RJ45 Layer 2/3 LAN/WAN Switch NIM
• Design: Compact plug-in module for streamlined installation

Media Capabilities & Performance Overview

This module delivers dependable Gigabit Ethernet performance through flexible copper connectivity. Built for demanding workloads, it ensures consistent data flow and strong network reliability.

Technical Highlights

• Network Standard: 1000BASE-T technology
• Maximum Throughput: Up to 1 Gbit/s
• Supported Medium: Twisted-pair cabling for robust transmission

Interface Architecture

The C-NIM-8T integrates multiple Gigabit ports suited for high-density environments, enabling enterprises to expand their infrastructure efficiently.

Port Configuration

• Total Available Ports: 8
• Port Layout: 8 × RJ-45 Gigabit Ethernet (1000BASE-T LAN)

Operational Benefits

• Supports secure and stable data communication across LAN/WAN structures
• Simplifies network upgrades with plug-in design
• Optimized for high-performance business networking
• Improves throughput for multi-device connectivity

Platform Compatibility

The Cisco C-NIM-8T module is engineered to integrate smoothly with various next-gen Cisco platforms, ensuring long-term scalability.

Supported Systems

• Cisco Catalyst 8000 Edge Platforms family

Cisco C-NIM-8T Overview and Core Capabilities

The Cisco C-NIM-8T 8 Ports 1G RJ45 Layer 2/3 LAN/WAN Switch Network Interface Module is engineered for demanding data networking environments where compact form factor, reliable throughput, and flexible deployment are essential. This category focuses on the Cisco C-NIM-8T and close variants that deliver eight 1000Base-T RJ-45 ports, enabling high-performance gigabit Ethernet connectivity for routers, modular switches, and integrated service platforms. Buyers and IT architects evaluating the Cisco C-NIM-8T will find that its blend of Layer 2 switching features and Layer 3 routing support provides the versatility required for enterprise LAN aggregation, branch office connectivity, and WAN edge integration.

Form Factor, Compatibility, and Deployment Scenarios

The Cisco C-NIM-8T is designed as a Network Interface Module (NIM) that fits Cisco router chassis and modular platforms. Its form factor is optimized for space-constrained deployments while still delivering eight full gigabit RJ-45 ports. Compatibility with a range of Cisco ISR and ASR platforms makes the C-NIM-8T attractive for organizations standardizing on Cisco hardware. Typical deployment scenarios include colocating multiple network services at the branch office, providing multiple Ethernet uplinks for redundant WAN paths, and serving as an access aggregation module within campus distribution layers. Because it supports standard 1000Base-T, the module works with existing copper infrastructure and twisted-pair cabling, reducing upgrade costs when replacing older 10/100 links.

Physical Interface and Cabling Considerations

The eight RJ-45 ports on the Cisco C-NIM-8T support 1000Base-T over category-rated twisted pair cabling. This allows administrators to leverage Cat5e or higher cabling to achieve gigabit speeds. For on-site network teams, this means straightforward integration with horizontal cabling runs and existing patch panel infrastructure. The module’s RJ-45 interfaces include auto-negotiation and auto-MDIX capabilities in most Cisco releases, simplifying connectivity by eliminating the need for crossover cables and manually forcing duplex or speed settings. The design reduces deployment friction and helps ensure link reliability when connecting servers, switches, or networked appliances to the module’s ports.

Layer 2 Feature Set and Switching Behavior

At the Layer 2 level, the Cisco C-NIM-8T provides robust switching features necessary for efficient local traffic forwarding. It supports MAC address learning and forwarding, VLAN tagging and trunking, and dynamic trunk protocols as supported by the host router or switch operating system. These Layer 2 functions are crucial when the module is used to aggregate multiple access links into trunk connections toward a distribution switch or when segmenting traffic for security and performance using VLANs. The module’s hardware handling of Ethernet frames ensures low-latency forwarding and predictable packet processing for real-time applications and general data transfer workloads.

VLAN Segmentation and Security at the Edge

Deploying the C-NIM-8T in branch or campus environments enables VLAN segmentation to separate voice, data, management, and guest traffic. VLAN support is an important aspect of securing network segments and maintaining Quality of Service (QoS) boundaries. In combination with the host platform’s features, the module can participate in VLAN trunking across multiple ports, allowing administrators to design secure, multi-tenant network architectures. Security policies that restrict access between VLANs or that implement access control lists (ACLs) at the router level can be enforced while still benefiting from the module’s gigabit connectivity.

Layer 3 Functionality, Routing, and Performance

The Cisco C-NIM-8T’s value increases when the host platform leverages Layer 3 routing capabilities across its ports. With support for routed interfaces and the host system’s routing protocols, administrators can use the module to terminate routed links directly on the router chassis. This is particularly useful for branch WAN designs where multiple site-to-site links require independent subnets, or when building resilient WAN architectures with multiple uplinks and routing-based failover. The module itself forwards frames at wire speed on the physical layer while the router’s CPU or hardware forwarding plane handles routing decisions—resulting in balanced performance for inter-subnet traffic and policy-based routing configurations.

Routing Protocols, Failover, and Redundancy

When combined with Cisco IOS or other Cisco operating systems, the ports presented by the C-NIM-8T can participate in dynamic routing protocols such as OSPF, EIGRP, or BGP depending on the platform. This allows network operators to create resilient topologies with rapid convergence and to implement advanced failover mechanisms. Administrative control over IP addressing, metric manipulation, and policy routing is critical for WAN optimization and traffic steering. The capability to use multiple physical 1 Gbps interfaces simplifies the design of active/standby or active/active routing schemes where traffic can be redistributed intelligently in response to link failures or congestion.

Power, Heat Dissipation, and Environmental Profiles

Because the C-NIM-8T is installed inside Cisco modular platforms, power consumption and heat dissipation are managed by the host chassis. Nevertheless, understanding the module’s thermal contribution is necessary when planning dense installations or when placing routers into constrained rack spaces. System integrators should consult the host platform’s documentation for total power budgets and environmental tolerances. Proper rack airflow and ambient temperature control ensure that the module and its host operate within rated specifications, which protects both performance and long-term reliability in mission-critical deployments.

Operational Management and Observability

Operational visibility into the status of each port is a key management consideration. The Cisco C-NIM-8T exposes interface statistics, link state, and error counters through the host platform’s management plane. Network management systems can retrieve performance metrics via SNMP, Syslog, or NetFlow (if supported by the platform) to offer historical insights into port utilization, error trends, and traffic patterns. Effective observability enables capacity planning, rapid troubleshooting, and proactive detection of cabling or interface issues. Administrators should implement monitoring policies and thresholds to alert on abnormal behaviors such as excessive collisions, CRC errors, or persistent high utilization on specific ports.

Quality of Service and Traffic Prioritization

For organizations supporting latency-sensitive applications like VoIP, video conferencing, or real-time collaboration tools, QoS is essential. The Cisco C-NIM-8T, in conjunction with the host platform, supports class-of-service marking and queuing mechanisms to prioritize critical traffic. By defining traffic classes and applying shaping or policing at the ingress or egress points, administrators can ensure consistent performance for high-priority flows even under load. When used as part of a wider Cisco-based QoS strategy, the module helps maintain end-to-end service quality by honoring DSCP markings and applying per-interface policies that mitigate jitter and packet loss.

Use Cases for Voice, Data, and Converged Networks

The flexibility of having eight gigabit copper ports makes the C-NIM-8T suitable for voice and data convergence projects at small and medium branch offices. The module can connect IP phones, wireless access points, and desktop devices directly to the router while enforcing VLAN separation and QoS policies. For small sites, this reduces the need for additional access switches while maintaining service quality and administrative control. When a converged approach is desired, the module’s ports provide the physical connectivity and the host’s software features enable robust management of multiple service types across a single platform.
