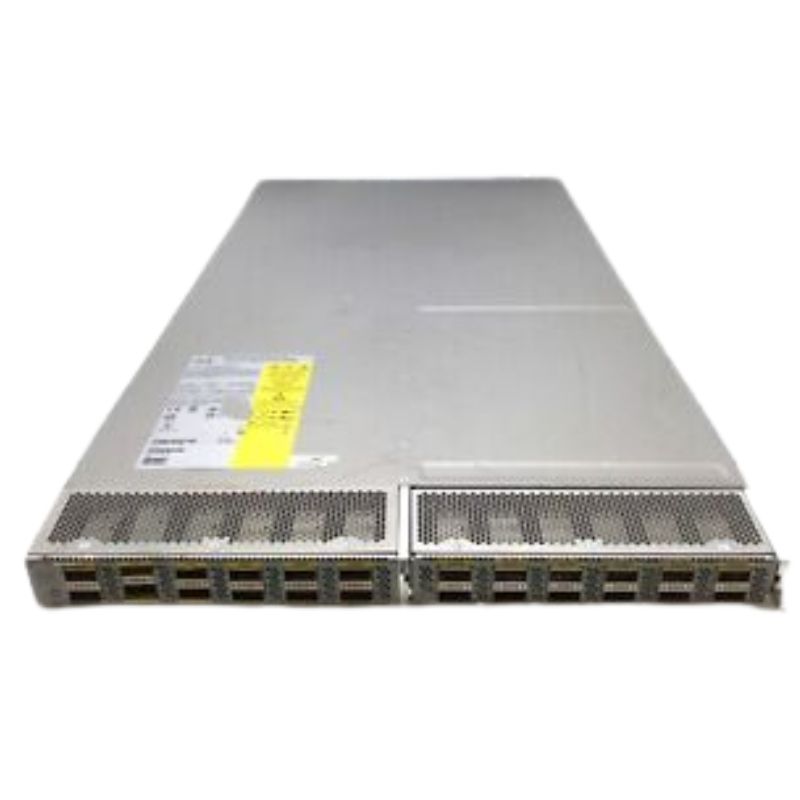

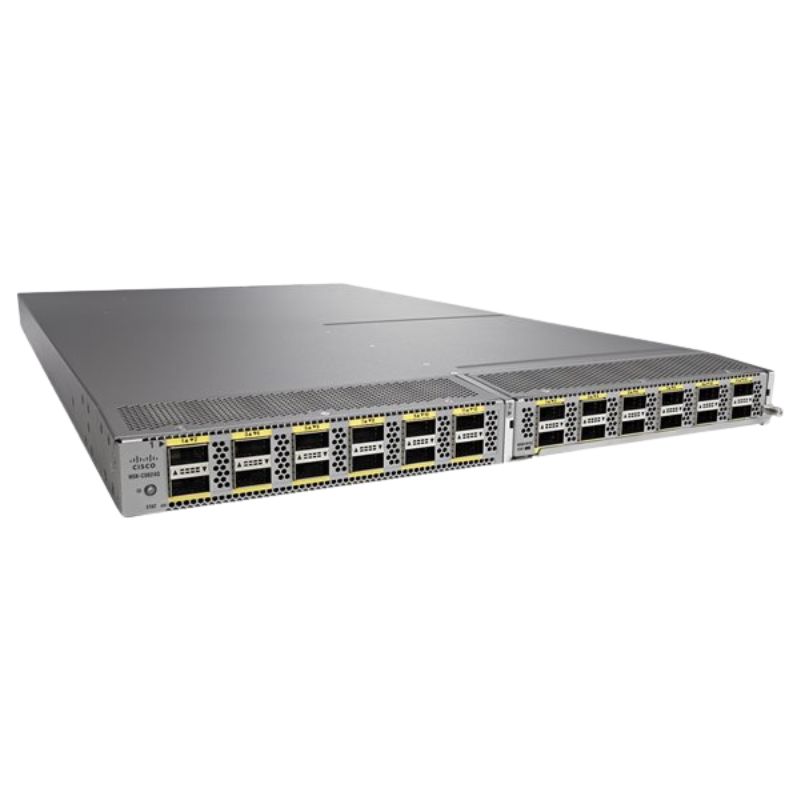

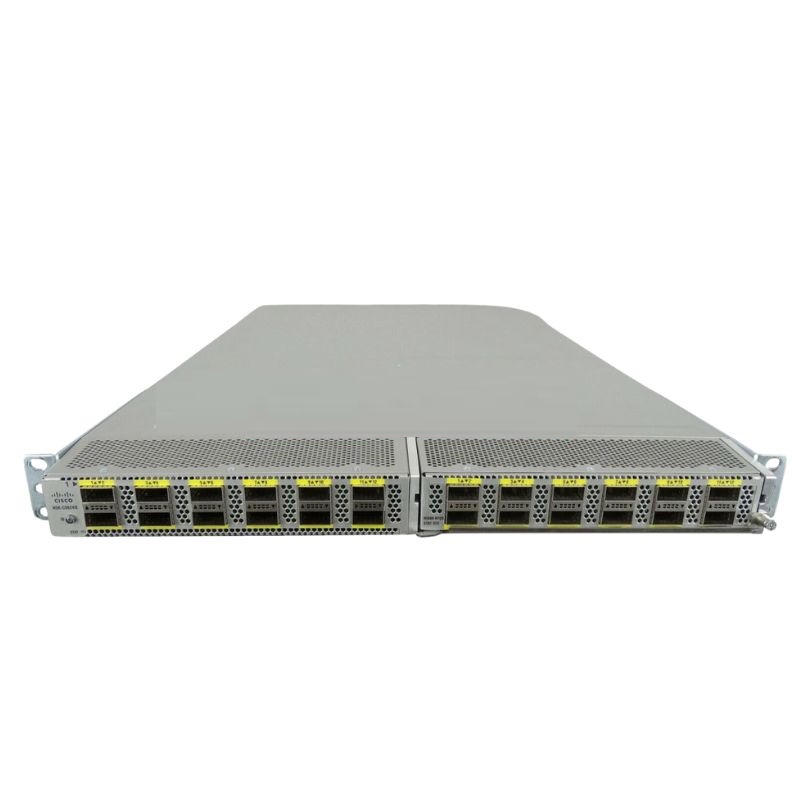

Cisco ONE Nexus 5624Q C1-N5624Q VXLAN 1RU Chassis Switch

Product Specifications

General Information

• Manufacturer: Cisco Systems, Inc.
• Part Number (SKU#): C1-N5624Q
• Brand: Cisco
• Product Line: Nexus
• Series: 5000
• Model: 5624Q
• Product Name: ONE Nexus 5624Q VXLAN 1RU Chassis, 12x40G QSFP+
• Product Type: Layer 3 Switch

Interfaces and Ports

• Uplink Port: Not available
• Modular Design: Yes, offering flexibility for future upgrades
• Stack Port: Not present
• Port and Expansion Slot Details:
  • 12 x 40 Gigabit Ethernet Expansion Slots

Performance Characteristics

Media and Technology

• Supported Media Type: Optical Fiber, ideal for high-speed, long-distance connectivity
• Ethernet Technology: 40 Gigabit Ethernet, ensuring high-bandwidth performance
• Network Technology: 40GBase-X, providing efficient and robust network infrastructure

I/O Expansion Details

Expansion Capabilities

• Total Number of Expansion Slots: 12 slots
• Expansion Slot Type: QSFP+, compatible with high-speed networking modules

Network and Management

Network Layer and Management Features

• Supported Network Layer: Layer 3, suitable for advanced routing and network management
• Manageable: Yes, offering comprehensive network management capabilities

Power Specifications

Power Supply Details

• Power Source: Standard power supply
• Redundant Power Supply: Supported, enhancing reliability and uptime

Series

Introducing the Cisco Nexus 5624Q Chassis Switch

The Cisco Nexus 5624Q Chassis Switch is a powerful and versatile networking solution that offers exceptional performance and scalability. As part of the Cisco Nexus 5600 Series, this switch is designed to meet the demanding requirements of modern data centers and cloud environments. With its advanced features and capabilities, the Cisco Nexus 5624Q is the perfect choice for organizations looking to enhance their network infrastructure.

ONE Platform for All Your Networking Needs

One of the standout features of the Cisco Nexus 5624Q is its ONE platform, which stands for Open Network Environment. This platform provides a unified and consistent approach to networking, enabling seamless integration with other Cisco products and services. With ONE, you can simplify network management, reduce operational costs, and accelerate innovation.

Streamlined Network Management

The ONE platform offers a centralized management interface that allows you to configure and monitor your entire network from a single pane of glass. This eliminates the need for multiple management tools and simplifies network operations. With a unified management interface, you can easily deploy new services, troubleshoot issues, and optimize performance, saving time and effort.

Reduced Operational Costs

By leveraging the ONE platform, you can significantly reduce your operational costs. The unified management interface streamlines network operations, eliminating the need for costly manual configurations and reducing the risk of human errors. Additionally, the ONE platform provides automated provisioning and orchestration capabilities, enabling you to scale your network quickly and efficiently without incurring additional expenses.

Accelerated Innovation

The Cisco Nexus 5624Q's ONE platform is designed to foster innovation in your network infrastructure. With its open architecture, you can easily integrate third-party applications and services, allowing you to leverage the latest technologies and industry advancements. This flexibility enables you to adapt to changing business needs and stay ahead of the competition.

Protocol

Enhanced Network Virtualization with VXLAN

The Cisco Nexus 5624Q Chassis Switch is equipped with the VXLAN (Virtual Extensible LAN) protocol, which revolutionizes network virtualization by enabling the creation of overlay networks. VXLAN provides a flexible and scalable solution for multi-tenant environments, allowing you to virtualize your network infrastructure and improve resource utilization.

Efficient Utilization of Network Resources

VXLAN enables the creation of virtual networks that can span across physical infrastructure, making it easier to allocate network resources based on demand. With VXLAN, you can leverage your existing network infrastructure more efficiently, reducing costs and maximizing resource utilization. This protocol eliminates the need for complex VLAN configurations, simplifying network management and enhancing scalability.

Seamless Network Segmentation

With VXLAN, you can easily segment your network into multiple virtual networks, each with its own unique identifier. This enables secure isolation of traffic between different tenants or applications, providing enhanced security and performance. By segmenting your network with VXLAN, you can achieve better control over your data flows and ensure optimal network performance for each segment.

Scalable Network Virtualization

VXLAN offers a scalable solution for network virtualization, allowing you to create thousands of logical networks without the limitations of traditional VLANs. This scalability is crucial for modern data centers and cloud environments, where the number of tenants and applications continues to grow. With VXLAN, you can easily scale your network infrastructure to meet the demands of your evolving business needs.

Form Factor

Space-Saving 1RU Design

The Cisco Nexus 5624Q Chassis Switch features a compact 1RU (1 Rack Unit) form factor, making it ideal for environments with limited space. Despite its small size, this switch packs a punch with its high-performance capabilities and advanced features, providing maximum functionality in a minimal footprint.

Optimized Space Utilization

The 1RU design of the Cisco Nexus 5624Q allows you to optimize your rack space efficiently. By occupying just a single rack unit, this switch leaves room for other essential network equipment and reduces the overall footprint of your data center. Whether you have a small server room or a large-scale data center, the 1RU form factor of this switch ensures efficient space utilization.

Easy Installation and Maintenance

The compact size of the Cisco Nexus 5624Q simplifies installation and maintenance. With its 1RU form factor, you can easily mount the switch in standard racks or cabinets without requiring additional space or modifications. This saves time and effort during the deployment process and makes it convenient to add or replace switches as needed.

Energy Efficiency

The 1RU design of the Cisco Nexus 5624Q contributes to its energy efficiency. With its compact size, this switch consumes less power compared to larger chassis switches. This not only reduces your energy costs but also minimizes your carbon footprint, aligning with your organization's sustainability goals.

In conclusion, the Cisco Nexus 5624Q Chassis Switch is a powerful networking solution that offers exceptional performance and scalability. The ONE platform provides a unified approach to networking, simplifying network management, reducing operational costs, and accelerating innovation. The VXLAN protocol enhances network virtualization, improving resource utilization, network segmentation, and scalability. The compact 1RU form factor optimizes space utilization, simplifies installation and maintenance, and contributes to energy efficiency. With these features and capabilities, the Cisco Nexus 5624Q is an ideal choice for organizations looking to enhance their network infrastructure.
