C1000-16T-E-2G-L Cisco Catalyst C1000-16T SFP Managed Switch

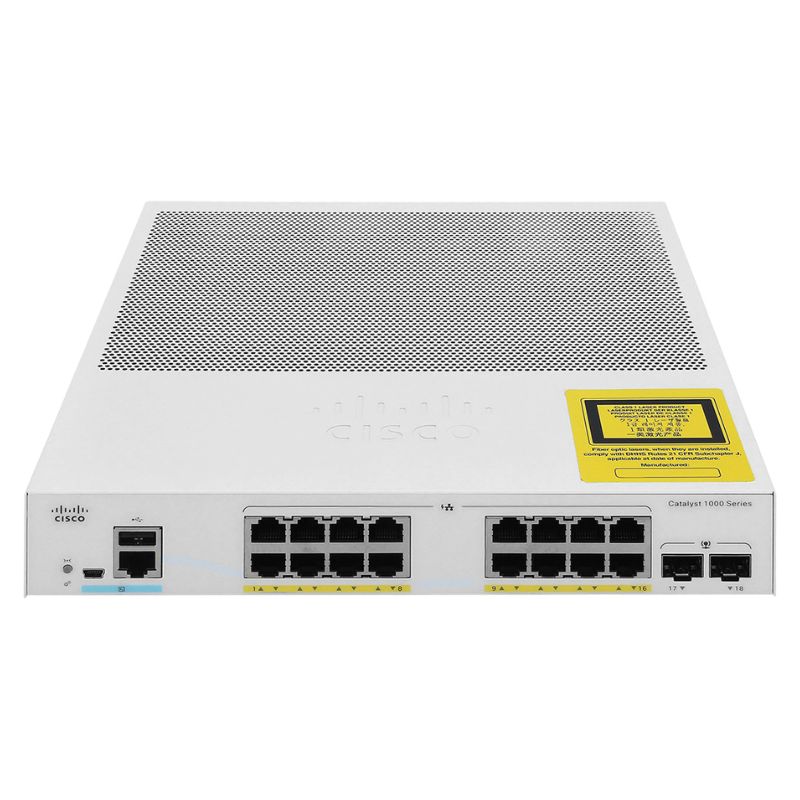

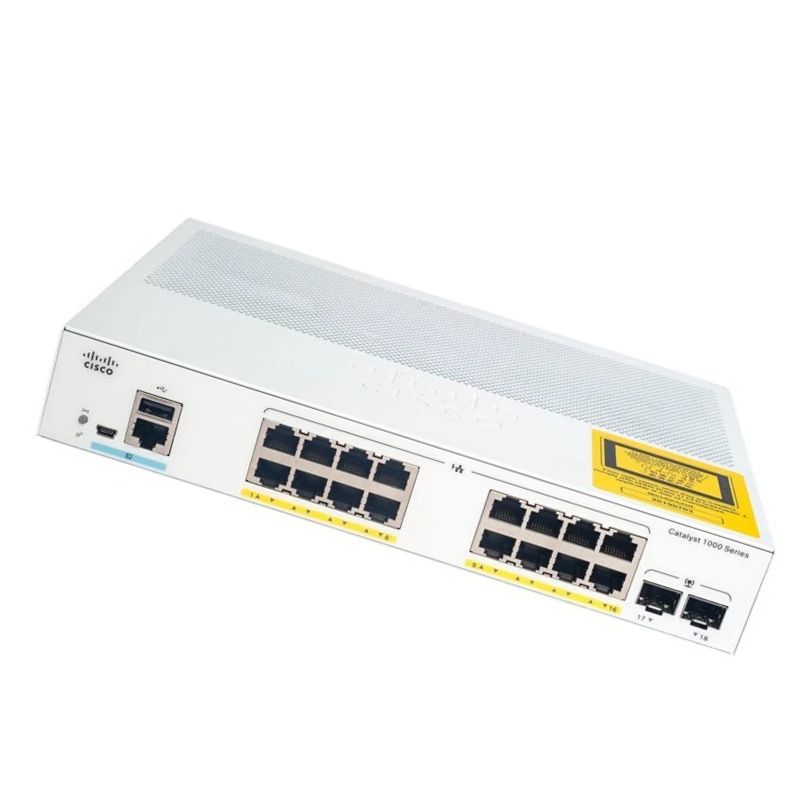

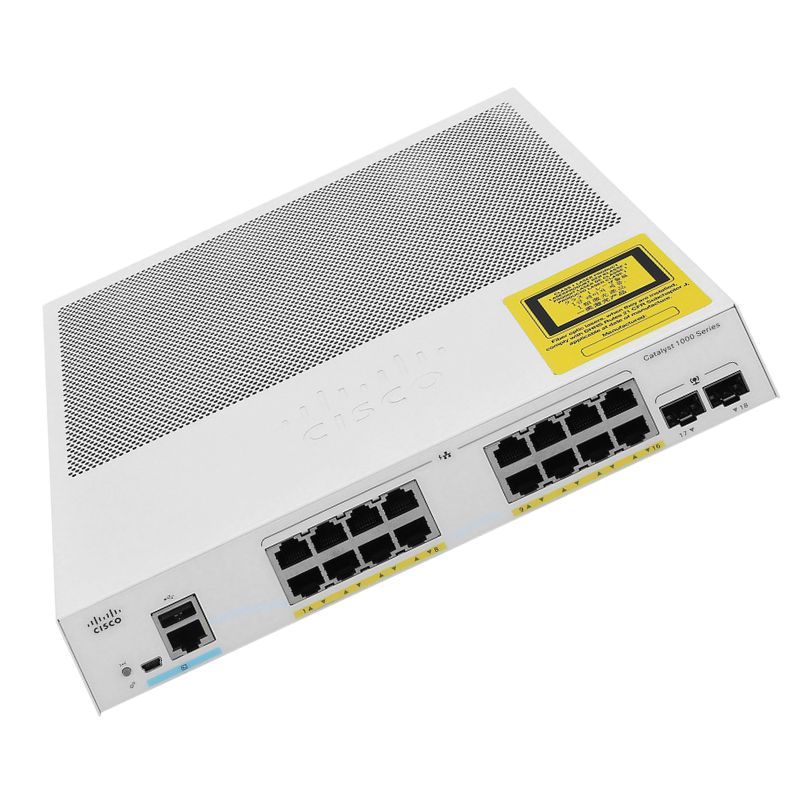

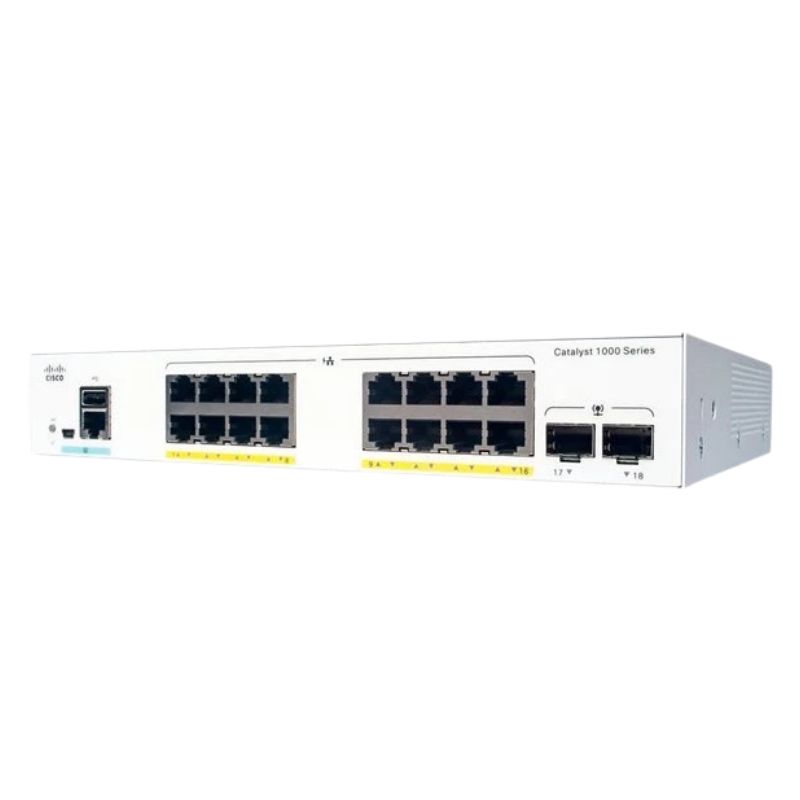

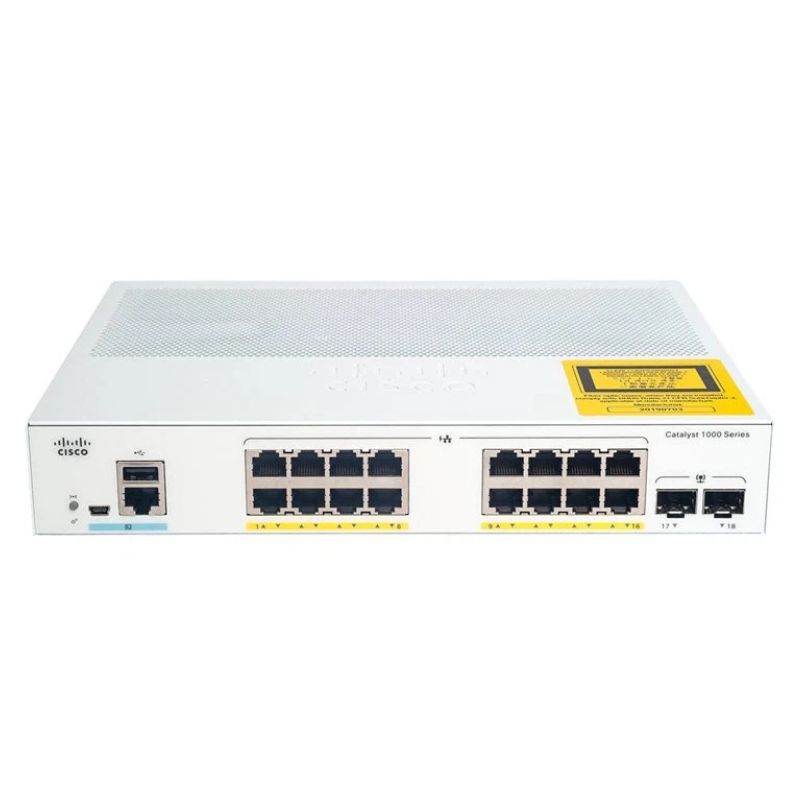

Cisco Catalyst C1000-16T-E-2G-L — 16-Port Managed Switch

The Cisco Catalyst C1000-16T-E-2G-L is a rack-mountable managed gigabit Ethernet switch designed for small-to-midsize enterprises and branch offices. Offering 16 PoE+ enabled copper ports and two SFP uplinks, this resilient network appliance delivers dependable power-over-Ethernet, flexible uplink choices and comprehensive management capabilities.

General Product Details

• Manufacturer: Cisco
• Model: C1000-16T-E-2G-L
• Device Category: Managed network switch / Ethernet switch
• Form Factor: Rack-mountable enclosure
• Network Speed: Gigabit Ethernet (10/100/1000 Mbps)

Port Layout & Connectivity

• 16 × 1000BASE-T RJ-45 ports with PoE+ capability (power provisioning for attached devices)
• 2 × 1000BASE-X SFP sockets for fiber uplinks or long-distance links
• 1 × Management RJ-45 console port
• 1 × Mini-USB Type B console
• 1 × USB Type-A for configuration and logging

Performance & Protocol

• CPU: ARM-based 800 MHz processor for efficient packet processing
• Layer 2/Layer 3 features: Basic routing and switching capabilities suitable for access-layer deployments
• Switching protocols: STP, RSTP, MSTP for loop prevention and resilient topologies
• Multicast: IGMP, MLDv2 support for IPTV and multicast applications

Management, Security & Remote Control

Administration Interfaces

• SNMP v1 / v2c / v3 for monitoring and network management
• RMON 1/2 for performance and fault monitoring
• Web-based GUI (HTTP/HTTPS) and CLI via SSH for secure configuration
• Telnet and TFTP supported for legacy environments
• Time sync via NTP for accurate logs and audits

Authentication & Access Control

• AAA integration: TACACS+ and RADIUS for centralized authentication
• ICMP and DHCP support for standard network services

Product Snapshot & Key Advantages

• Compact rack-mount chassis for space-efficient deployments
• 16 × 10/100/1000 Mbps PoE+ ports for powering IP cameras, phones and wireless access points
• 2 × Gigabit SFP fiber uplink slots for high-speed backbone connections
• Advanced management options including SNMP, SSH and web UI for centralized configuration
• Ideal for branch networks, retail, education and small enterprise installations

Power & Advanced Features

Power over Ethernet (PoE+)

• PoE+ on RJ-45 ports delivers both data and power to endpoint devices
• Reduces need for separate power injectors and simplifies deployments of VoIP phones and wireless access points

Compatibility & Integration

Works Well With

• Cisco backbone switches and routers for unified network architectures
• Standard SFP modules for fiber diversity (singlemode/multimode)
• Network management platforms that support SNMP and RMON

Cisco Catalyst C1000 Series Switches

The Cisco Catalyst C1000 Series represents a pivotal line of stackable, managed switches designed to deliver robust performance, enterprise-class features, and operational simplicity for small to medium-sized businesses, branch offices, and campus access layers. These switches are engineered to be the cornerstone of a secure, resilient, and scalable network infrastructure. Among this versatile series, the Cisco C1000-16T-E-2G-L Catalyst 1000 16-Port Switch stands out as a particularly compelling model, blending essential Layer 3 Lite features with a flexible port configuration to meet diverse connectivity demands.

This category encompasses switches that are more than mere connectivity hubs; they are intelligent platforms that enable network segmentation, enhanced security policies, and optimized application performance. The C1000 series is built with Cisco's DNA-ready architecture, ensuring seamless integration into software-defined access (SD-Access) frameworks for future-ready networks. With a focus on ease of deployment and management through intuitive web interfaces and CLI, these switches empower IT teams to build professional-grade networks without overwhelming complexity.

Deep Dive: Cisco C1000-16T-E-2G-L Model Specifications

The Cisco C1000-16T-E-2G-L is a fully managed, stackable switch that provides a balanced set of features for growing organizations. Its model designation reveals its key capabilities: '16T' indicates 16 10/100/1000BASE-T Gigabit Ethernet RJ-45 ports, 'E' signifies the Enhanced Layer 3 Lite software image, '2G' denotes the inclusion of two dedicated 1G SFP uplink ports, and 'L' designates the LAN Base feature set. This combination makes it an ideal access layer switch for connecting users, IP phones, wireless access points, and surveillance cameras while providing reliable uplinks to the network core.

Hardware Architecture and Performance

At its core, this switch is built on a non-blocking switching fabric that ensures all ports can operate at wire speed simultaneously, preventing bottlenecks in high-demand environments. The robust hardware design is complemented by advanced Quality of Service (QoS) mechanisms that classify and prioritize traffic, ensuring real-time applications like voice and video receive the low latency and jitter-free performance they require.

Switching Capacity and Forwarding Rates

The switch boasts a substantial aggregate switching capacity of 56 Gbps and a forwarding rate of 41.7 Mpps (million packets per second). This performance headroom guarantees smooth network operations even under heavy load, supporting bandwidth-intensive applications and high-density client environments without degradation in user experience.

Power and Design

Featuring a fanless design for silent operation, the C1000-16T-E-2G-L is perfect for offices, classrooms, or retail environments where noise reduction is critical. It supports Energy Efficient Ethernet (EEE), reducing power consumption during periods of low data activity, which contributes to lower operational costs and a smaller carbon footprint.

Comprehensive Feature Set for a Managed Network

As a fully managed switch, the C1000-16T-E-2G-L provides extensive control over network traffic, security, and performance. The LAN Base software image, combined with the Enhanced Layer 3 Lite license, unlocks a powerful suite of features that go beyond basic Layer 2 switching.

Layer 3 Lite Routing Capabilities

The 'E' (Enhanced) software image is a key differentiator, providing static routing and RIP (Routing Information Protocol) for IPv4 and IPv6. This allows the switch to perform inter-VLAN routing, efficiently forwarding traffic between different IP subnets or VLANs directly at the access layer. This capability reduces the load on core routers, decreases latency, and simplifies network design by collapsing the traditional distribution layer in smaller deployments.

Key Routing Protocols Supported

With support for static routing and RIPv1/v2, the switch can dynamically learn network routes or be configured with specific paths for controlled traffic flow. This makes it an excellent choice for segmented networks where departments, guest access, or IoT devices are isolated into separate VLANs for security but still require controlled communication.

Advanced Security and Access Control

Network security is paramount, and this Cisco Catalyst switch incorporates a multi-layered security approach. It offers robust features to protect against unauthorized access and network threats.

Port Security and Authentication

The switch supports IEEE 802.1X port-based authentication, which validates users and devices before granting network access. When combined with MAC Authentication Bypass (MAB) and web authentication, it provides flexible options for securing both corporate and BYOD (Bring Your Own Device) endpoints.

Access Control Lists (ACLs) and Threat Mitigation

Standard, extended, and IPv6 ACLs allow for granular control of traffic flows based on IP addresses, protocols, and ports. Features like DHCP snooping, IP Source Guard, and Dynamic ARP Inspection (DAI) work in concert to mitigate common layer 2 attacks such as ARP spoofing and DHCP starvation, creating a more resilient network infrastructure.

High Availability and Network Resilience

Business continuity depends on a reliable network. The C1000-16T-E-2G-L includes several features designed to maximize uptime and provide quick recovery from link failures.

Rapid Spanning Tree Protocol (RSTP) and Stacking

The switch supports RSTP and MSTP (Multiple Spanning Tree Protocol) to create loop-free layer 2 topologies and provide sub-second convergence in case of a link failure. While this specific model uses standalone or clustered management, the C1000 series supports Cisco FlexStack and FlexStack-Plus stacking on other models, allowing multiple physical switches to be managed as a single logical unit with a unified control plane.

Dual Redundant Uplinks

The two built-in 1G SFP uplink ports support fiber or copper transceivers, enabling long-distance connections to the network core. These uplinks can be configured for link aggregation (LACP) to increase bandwidth and redundancy, or used in a failover configuration to ensure constant network availability.

Deployment Flexibility and Use Cases

The versatility of the Cisco C1000-16T-E-2G-L makes it suitable for a wide array of deployment scenarios. Its mix of 16 copper Gigabit ports and dual SFP uplinks provides the ideal connectivity for various environments.

Ideal for Small to Midsize Business (SMB) Offices

In a typical SMB office, the switch can connect desktop computers, laptops, network printers, and IP phones. Its Layer 3 Lite functionality allows the creation of separate VLANs for data, voice, and guest traffic, improving both performance and security. The silent, fanless operation ensures it can be placed in open-plan offices or conference rooms without disruption.

Perfect for Educational Institutions and Classrooms

Schools and universities benefit from the switch's ability to handle high-density client connections in computer labs or lecture halls. The advanced QoS features prioritize educational video streams and testing software, while port security features help manage access for students and faculty across different networks.

Robust Solution for Retail and Hospitality

For retail environments, the switch can connect point-of-sale (POS) systems, inventory management terminals, digital signage, and customer Wi-Fi access points. Its reliability and security features are crucial for protecting transaction data and segmenting guest traffic from critical business operations.

Simplified Management and Programmability

Managing the Cisco C1000-16T-E-2G-L is designed to be straightforward, whether for a seasoned network engineer or a less experienced IT administrator.

Diverse Management Interfaces

The switch offers multiple management options: a familiar Cisco IOS CLI accessed via console or SSH, an intuitive web-based graphical interface (GUI), and support for SNMP for integration with network management systems like Cisco Prime or third-party platforms. This flexibility allows administrators to choose the tool that best fits their workflow.

Cisco DNA Center Integration

As a DNA-ready device, this switch can be centrally managed, automated, and secured through Cisco DNA Center. This enables zero-touch provisioning, automated software updates, and assurance capabilities that provide deep visibility into user and application experience, paving the way for intent-based networking.

REST APIs and Model-Driven Programmability

For organizations embracing automation, the switch exposes RESTful APIs and supports model-driven programmability with YANG data models. This allows IT teams to integrate switch management into larger automation scripts and DevOps pipelines, enabling consistent, error-free configuration at scale.

Strategic Importance in the Catalyst Portfolio

The Cisco Catalyst C1000 series, and specifically the 16T-E-2G-L model, occupies a strategic position within Cisco's broader switching portfolio. It serves as the entry point into the world of Cisco's enterprise-grade networking, offering a trusted, reliable, and feature-rich platform without the complexity and cost of higher-end Catalyst models like the C9000 or C9500 series.

For businesses poised for growth, investing in the C1000 series ensures a network foundation that can scale. The switch's support for advanced software images means features can often be enabled via license upgrades without a hardware swap. Furthermore, its consistency with the Cisco IOS operating system reduces training overhead and operational risk, as IT staff can apply their existing Cisco knowledge to manage and troubleshoot the network effectively.

In summary, the category of Cisco Catalyst C1000 switches, exemplified by the C1000-16T-E-2G-L model, represents an optimal blend of performance, intelligence, and value. It delivers the essential tools for building a secure, segmented, and high-performing network that supports modern business applications, all while providing a clear path for future evolution towards software-defined and intent-based networking paradigms.
