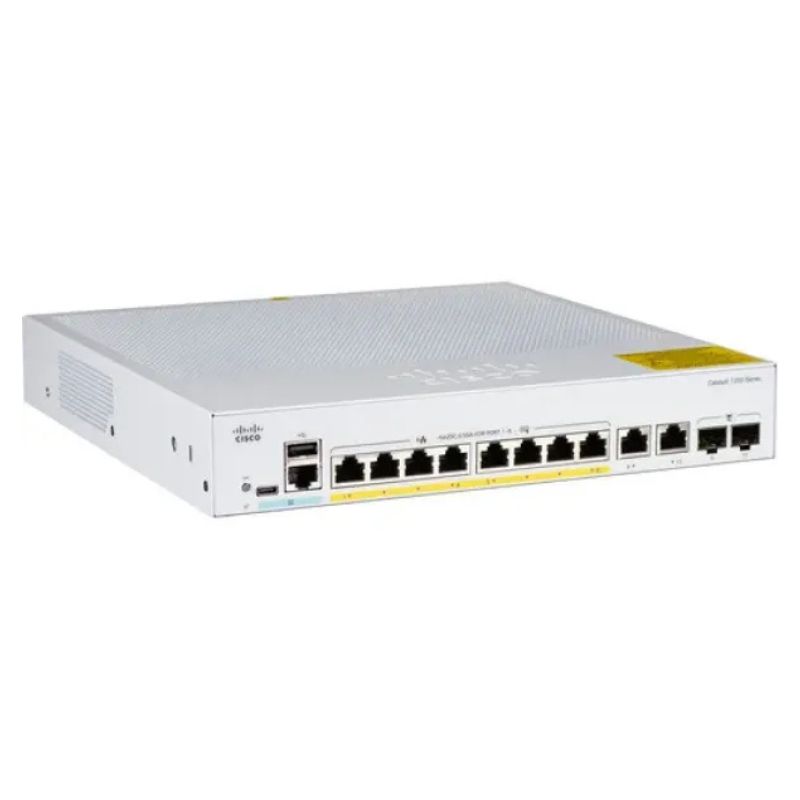

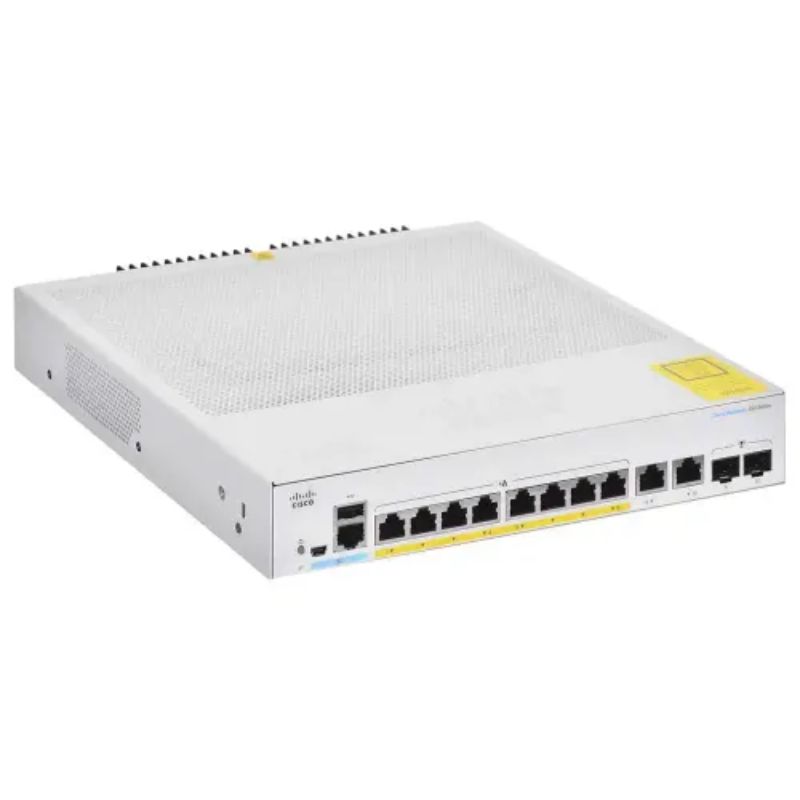

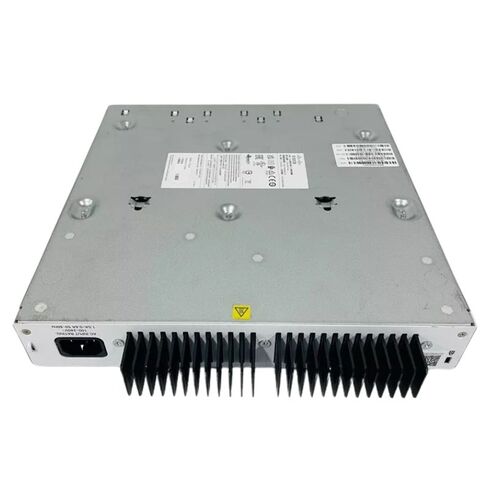

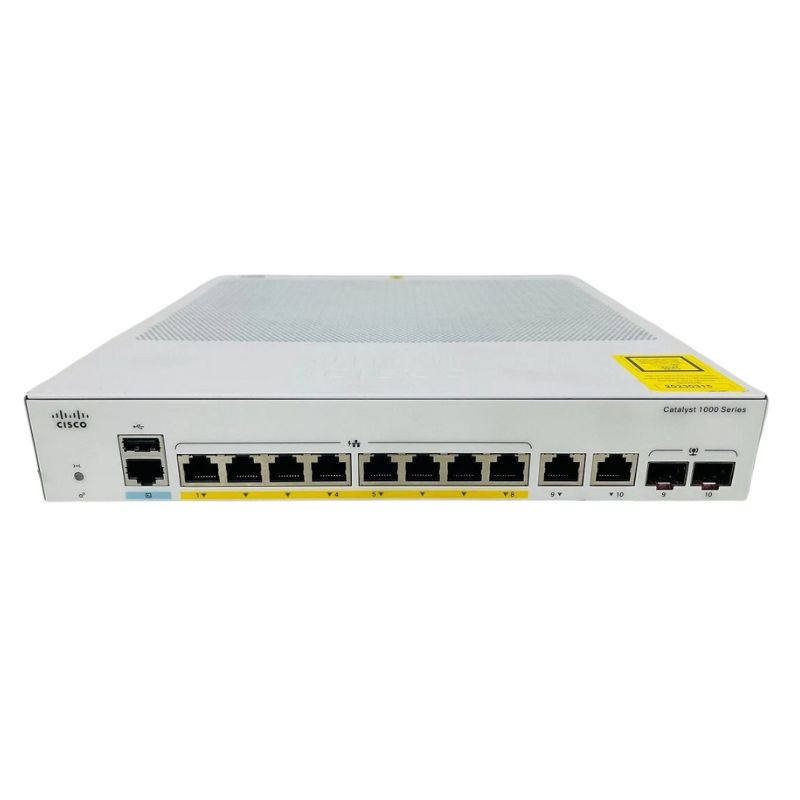

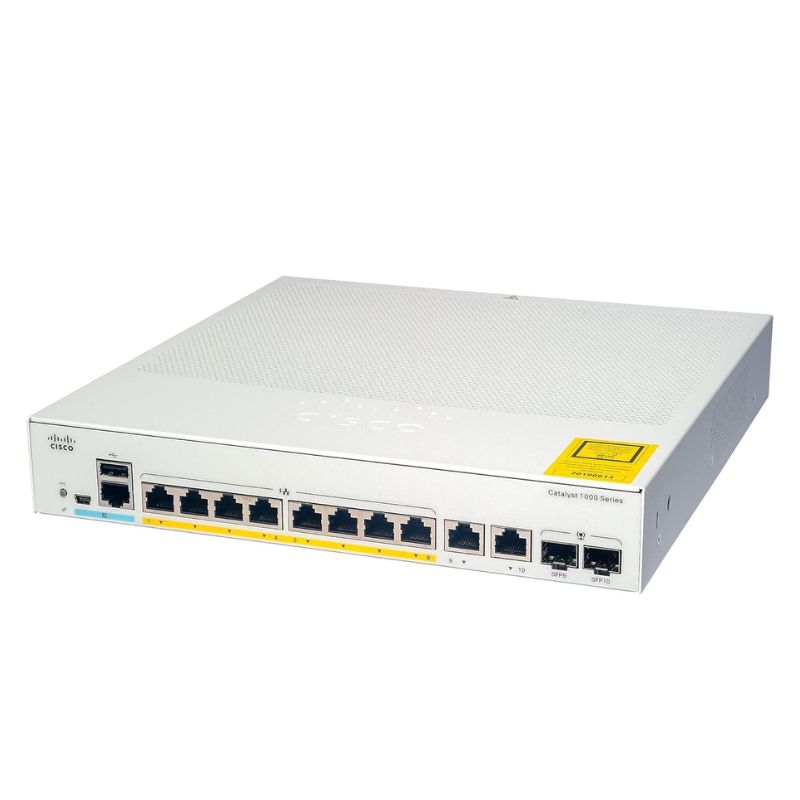

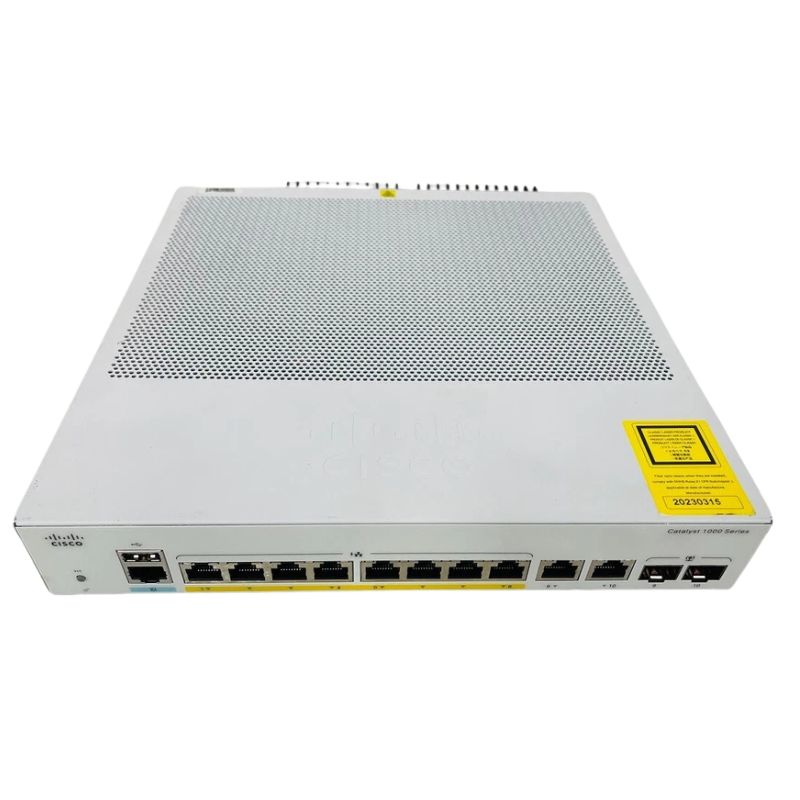

Cisco C1000-8FP-E-2G-L Catalyst 8 PoE+ Managed Switch

C1000-8FP-E-2G-L
Hover on image to enlarge

Brief Overview of C1000-8FP-E-2G-L

Catalyst 8 PoE+ Ethernet Ports Managed Switch Cisco C1000-8FP-E-2G-L. Factory-Sealed New in Original Box (FSB) with 6-Month Replacement Warranty
QR Code of Cisco C1000-8FP-E-2G-L Catalyst 8 PoE+ Managed Switch
$1,157.63
$793.68
You save: $363.95 (31%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPNC1000-8FP-E-2G-LAvailability✅ In StockProcessing TimeUsually ships same day ManufacturerCisco Product/Item ConditionFactory-Sealed New Retail in Original Box (FSB) ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30

Same product also available in:

Description

Cisco Catalyst C1000-8FP-E-2G-L Overview

Manufacturer Details

  • Brand: Cisco
  • Part Number: C1000-8FP-E-2G-L
  • Series: 1000
  • Model: C1000-8FP

Product Specifications

  • Product Name: Catalyst C1000-8FP Ethernet Switch
  • Type: Managed Ethernet Switch
  • Form Factor: Rack-Mountable
  • Subtype: Gigabit Ethernet

Port Configuration

  • Total Ports: 8 x 10/100/1000 (PoE+) + 2 x Combo Gigabit SFP (Uplink)
  • Interfaces:
    • 8 x 1000BASE-T RJ-45 PoE+ (15W)
    • 2 x 1000BASE-T / 1000BASE-X RJ-45/SFP Uplink
    • 1 x Management RJ-45
    • 1 x Mini-USB Type B
    • 1 x USB Type A

Power and Performance

  • Power Over Ethernet (PoE): PoE+
  • PoE Budget: 120W
  • Forwarding Bandwidth: 10 Gbps
  • Switching Bandwidth: 20 Gbps
  • Forwarding Rate (64-byte L3 Packets): 14.88 Mpps
Capacity Metrics
  • Unicast MAC Addresses: 15,360
  • IPv4 Unicast Direct Routes: 542
  • IPv4 Unicast Indirect Routes: 256
  • IPv6 Unicast Direct Routes: 414
  • IPv6 Unicast Indirect Routes: 128
  • IPv4 Routes (Static): 16
  • IPv6 Routes (Static): 16
  • IPv4 Routes (Multicast): 1,024
  • IPv6 Groups (Multicast): 1,024
  • IPv4/MAC Security ACLs: 600
  • IPv6 Security ACLs: 600
  • Active VLANs: 256
  • VLAN IDs: 4,094
  • STP Instances: 64
  • SPAN Sessions: 4
  • MTU-L3 Packet Size: 9,198 Bytes
  • Jumbo Frame Support: 10,240 Bytes
Routing and Management
  • Supported Routing Protocols: IGMP, MLDv2, MLD, MSTP, RSTP, STP
  • Remote Management Protocols:
    • SNMP v1, SNMP v2c, SNMP v3
    • RMON 1, RMON 2
    • Telnet, SSH, SSH-2
    • HTTP, TFTP, CLI
    • NTP, ICMP, DHCP
    • RADIUS, TACACS+
Physical Characteristics
  • Power Supply: External Power Adapter
  • Voltage Requirement: AC 120/230V (50 - 60 Hz)
  • Dimensions (W x D x H): 10.6 in x 7.3 in x 1.7 in
  • Weight: 6.98 lbs

Number Of Ports

The Cisco C1000-8FP-E-2G-L Managed Switch is equipped with 8 ports, making it an ideal choice for small to medium-sized businesses. Having a sufficient number of ports allows users to connect multiple devices simultaneously, such as computers, printers, IP phones, and access points. This feature offers numerous benefits and plays a crucial role in enhancing productivity and efficiency within an organization.

Increased Connectivity

With 8 ports, the Cisco C1000-8FP-E-2G-L Managed Switch provides users with a higher level of connectivity. This means that more devices can be connected to the network, allowing for seamless communication and collaboration among team members. Whether it's sharing files, accessing shared resources, or conducting video conferences, having ample ports ensures that everyone can stay connected without any interruptions.

Scalability

Another advantage of the Cisco C1000-8FP-E-2G-L Managed Switch's 8-port configuration is its scalability. As businesses grow, their networking needs evolve as well. Having a switch with a limited number of ports can become a bottleneck and hinder expansion. However, with 8 ports, this switch offers room for future growth and allows businesses to add more devices as needed without having to invest in additional networking infrastructure.

Simplified Network Management

Managing a network becomes much simpler when there are enough ports to accommodate all devices. The Cisco C1000-8FP-E-2G-L Managed Switch's 8-port design allows for better organization and management of network connections. With fewer devices sharing each port, it becomes easier to troubleshoot issues and perform maintenance tasks. Additionally, having dedicated ports for specific devices eliminates the need for complicated cable management strategies, reducing the risk of tangled cables and potential disruptions.

Improved Performance

The number of ports available on a switch directly impacts network performance. When multiple devices are connected to a single port, it can lead to congestion, resulting in slower data transfer speeds and increased latency. With 8 ports, the Cisco C1000-8FP-E-2G-L Managed Switch ensures that each device has its dedicated connection, minimizing congestion and maximizing network performance. This is particularly important for bandwidth-intensive applications, such as video streaming or large file transfers.

Flexibility in Network Design

Having 8 ports on the Cisco C1000-8FP-E-2G-L Managed Switch enables greater flexibility in network design. Users can conveniently segment their network into different VLANs (Virtual Local Area Networks) or create separate networks for different departments or purposes. This segmentation enhances security, as it limits access to sensitive data and resources only to authorized users. Moreover, it allows for better traffic management and prioritization, ensuring that critical applications receive the necessary bandwidth.

Power Over Ethernet Support

The Cisco C1000-8FP-E-2G-L Managed Switch features Power over Ethernet (PoE) support, which enables both data and power transmission over a single Ethernet cable. This is an essential feature for businesses looking to simplify their network infrastructure and reduce costs associated with additional power outlets and cables.

Simplified Installation

By supporting PoE, the Cisco C1000-8FP-E-2G-L Managed Switch eliminates the need for separate power adapters for connected devices. This simplifies the installation process as there is no longer a need for multiple power outlets near each device. Instead, users can easily connect their PoE-enabled devices, such as IP phones or wireless access points, directly to the switch using a single Ethernet cable and have both data and power transmitted simultaneously.

Cost Savings

Implementing PoE technology can significantly reduce infrastructure costs. With the Cisco C1000-8FP-E-2G-L Managed Switch's PoE support, businesses can avoid the expense of installing additional power outlets and wiring. This is particularly beneficial in situations where devices are located in areas where power access is limited or expensive to install. Additionally, by eliminating the need for individual power adapters, organizations can reduce energy consumption and lower their electricity bills.

Flexibility and Mobility

PoE support on the Cisco C1000-8FP-E-2G-L Managed Switch provides greater flexibility and mobility for connected devices. With traditional power sources, devices are restricted to locations near power outlets. However, with PoE, devices can be placed anywhere within the reach of an Ethernet cable, allowing for more flexible network designs and easier relocation of devices without the constraint of power availability.

Remote Power Management

One of the key advantages of PoE is the ability to remotely manage and control power to connected devices. The Cisco C1000-8FP-E-2G-L Managed Switch offers advanced power management features, allowing users to monitor and control the power consumption of individual devices. This enables organizations to optimize energy usage, identify any power-related issues, and remotely reboot or disable PoE-enabled devices if necessary.

In conclusion, the Cisco C1000-8FP-E-2G-L Managed Switch's 8-port configuration provides increased connectivity, scalability, simplified network management, improved performance, and flexibility in network design. Additionally, its Power over Ethernet support offers simplified installation, cost savings, flexibility and mobility for connected devices, and remote power management capabilities. These features make the Cisco C1000-8FP-E-2G-L Managed Switch a reliable and efficient choice for businesses seeking a robust networking solution.

Features
Product/Item Condition:
Factory-Sealed New Retail in Original Box (FSB)
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
