C1000-8P-2G-L Cisco Catalyst 8 Ports Managed Gigabit Optical Fiber Switch

The Cisco Catalyst C1000-8P-2G-L is a Layer 2/Layer 3 Lite managed switch that packs advanced functionality into a 1-Rack-Unit (1RU) compact chassis. Its defining characteristic is its eight dedicated SFP (Small Form-factor Pluggable) Gigabit Ethernet ports, complemented by two 10/100/1000BASE-T Gigabit Ethernet copper RJ-45 ports. The "L" in the model name denotes the LAN Base feature set, which provides robust layer 3 static routing and Routing Information Protocol (RIP) capabilities. This configuration makes it an ideal fiber aggregation switch or a fiber-to-the-desktop solution for specialized environments.

Primary Hardware Specifications & Design

Built with a silent, fanless operation, this switch is perfect for noise-sensitive environments. Its compact size allows for flexible mounting in tight spaces, including on walls or in small network cabinets.

Port Configuration & Uplink Strategy

The port architecture of the C1000-8P-2G-L is its most distinctive feature, dictating its ideal use cases.

Eight SFP Ports (Ports 1-8)

These ports accept industry-standard SFP (mini-GBIC) transceivers, which are sold separately. This allows network administrators to tailor the fiber connectivity based on distance and cable type:

Multimode Fiber (SX): For shorter distances within buildings or campuses (up to 550m).
Single-mode Fiber (LX/LH): For long-distance connections between buildings or across a city (up to 10km, 40km, or more with specialized SFPs).
Copper SFP (T): Provides an RJ-45 connection over Cat5e/Cat6 cable via an SFP port, offering deployment flexibility.

Two 10/100/1000BASE-T RJ-45 Ports (Ports 9-10)

These two copper Gigabit Ethernet ports serve multiple purposes:

Uplink Ports: Provide a cost-effective copper connection to an upstream router or core switch.
Management Ports: Can be used for out-of-band management or for connecting essential local devices like a management workstation or server.
Power over Ethernet (PoE) Note: It is crucial to understand that this specific model does not support PoE on any of its ports. For PoE requirements, other models in the C1000 series must be considered.

Performance and Switching Capacity

With a switching capacity of 20 Gbps (full-duplex), the switch provides non-blocking performance for all ports simultaneously. It features a forwarding rate of up to 14.88 million packets per second (Mpps), ensuring wire-speed throughput for even the most demanding applications hosted on connected devices. The hardware is also equipped with a robust MAC address table, supporting up to 16,000 entries for extensive network device learning and forwarding.

Key Features and Business Benefits of the C1000-8P-2G-L

Beyond its physical ports, the value of this Cisco Catalyst switch lies in its comprehensive software feature set, which brings enterprise-grade network control to a compact form factor.

Advanced Layer 2 and Layer 3 Lite Management

The LAN Base software enables sophisticated network segmentation, traffic control, and routing.

VLAN and Security

Supports IEEE 802.1Q VLANs (up to 1024 VLANs) for logical network segmentation, enhancing security and broadcast containment. Features like DHCP snooping, Dynamic ARP Inspection (DAI), and IP Source Guard protect against common man-in-the-middle and IP spoofing attacks.

Static Routing and RIP

Provides basic Layer 3 routing capabilities, allowing the switch to route traffic between VLANs (Inter-VLAN routing) and between directly connected IP subnets without the need for an external router for these paths. Support for Routing Information Protocol (RIP) v1/v2 enables dynamic route learning in smaller networks.

Resiliency and High Availability

Network uptime is critical. This switch includes several protocols to ensure rapid recovery from link failures.

Spanning Tree Protocol (STP)

Robust support for IEEE 802.1D STP, 802.1w Rapid STP (RSTP), and 802.1s Multiple STP (MSTP) prevents network loops and enables sub-50ms failover for critical applications.

EtherChannel and Link Aggregation

Allows the bundling of multiple physical links (including SFP ports) into a single logical EtherChannel group (up to 8 ports). This increases uplink bandwidth, provides load balancing, and ensures redundancy—if one link fails, traffic automatically shifts to the remaining links without interruption.

Quality of Service (QoS)

Ensures optimized performance for latency-sensitive applications like voice and video. The switch supports classification based on IEEE 802.1p Class of Service (CoS) and IP Differentiated Services Code Point (DSCP). It offers four hardware queues per port and weighted tail drop (WTD) scheduling to prioritize critical traffic effectively across the network.

Management and Programmability

The switch offers multiple intuitive management options to suit different IT skill levels and operational preferences.

Cisco Catalyst SmartOperations

Simplifies deployment with features like Smartport macros that auto-configure ports for specific device types (e.g., IP phone, access point, switch).

CLI, Web GUI, and DNA Center Compatibility

Can be managed via the familiar Cisco IOS Command-Line Interface (CLI) for granular control, a built-in web-based graphical interface (GUI) for easier day-to-day management, and is compatible with Cisco DNA Center for centralized, intent-based networking across larger deployments.

SNMP and Network Monitoring

Full Simple Network Management Protocol (SNMP) v1, v2c, and v3 support enables integration with popular network monitoring systems like SolarWinds, PRTG, or LibreNMS for proactive health and performance monitoring.

Ideal Use Cases and Applications

The unique port density of the C1000-8P-2G-L makes it exceptionally suited for specific networking scenarios.

Fiber-Optic Network Aggregation Point

In a distributed network where multiple fiber lines converge—such as in a campus building wiring closet or a multi-tenant unit—this switch can aggregate connections from various floors or other buildings via its eight SFP ports, then uplink to the core via its copper ports or an aggregated SFP port group.

Backbone for High-Noise-Immunity Networks

Industrial, manufacturing, or medical environments where electromagnetic interference (EMI) is a concern benefit greatly from fiber. This switch provides a managed, resilient fiber backbone that is immune to EMI, ensuring data integrity in challenging conditions.

Connecting Fiber-Based Endpoints

For networks with fiber-to-the-desk requirements or a high density of fiber-connected devices (e.g., high-performance workstations in engineering or media production, fiber-connected security cameras over long distances, specialized scientific equipment).

High-Speed Uplink for Access Layer

While it can function as an access switch, its design is optimal for providing high-bandwidth, fiber-based uplinks for a stack of other access switches that primarily serve end-users via copper connections.

Important Considerations and Configuration

To ensure a successful deployment, network planners must account for several factors specific to this model.

Transceiver and Cable Compatibility

The switch requires separately purchased Cisco-certified SFP transceivers (e.g., GLC-SX-MMD, GLC-LH-SMD) or compatible third-party optics. The appropriate LC connector fiber optic cables (multimode OM3/OM4 or single-mode OS2) must also be procured based on the chosen SFP modules and distance requirements.

Power over Ethernet (PoE) Absence

This is a critical differentiator. The C1000-8P-2G-L cannot deliver power to devices like VoIP phones, wireless access points, or IP cameras. If PoE is needed for any connected device (even via the copper ports), an alternative C1000 model with PoE support or a separate midspan PoE injector must be used.

Layer 3 "Lite" Capabilities

While it supports static routing and RIP, it does not run advanced dynamic routing protocols like OSPF or EIGRP. For complex routing environments, a full Layer 3 switch or an external router would be necessary.

Rack-Mounting and Power Supply

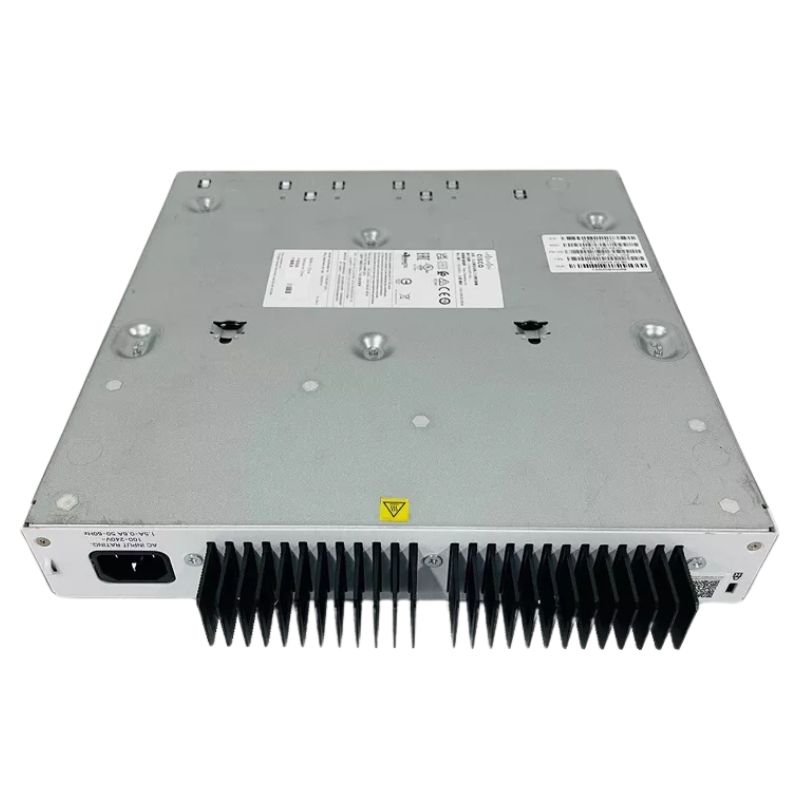

The switch includes a fixed internal power supply and comes with a rack-mount kit for standard 19-inch racks. Its fanless design eliminates a common point of failure and reduces acoustic noise to zero, but adequate ventilation should still be considered in enclosed spaces.

Comparison and Selection Guidance Within the C1000 Family

Choosing the right C1000 switch depends on the required port mix, power, and features.

C1000-8P-2G-L vs. C1000-8T-2G-L

The C1000-8T-2G-L replaces the eight SFP ports with eight 10/100/1000BASE-T RJ-45 ports, making it a standard copper access switch. It's ideal for connecting desktop computers, printers, and other copper-based devices while still using the two Gigabit ports for uplinks.

C1000-8P-2G-L vs. C1000-16P-2G-L

The C1000-16P-2G-L doubles the SFP port density to sixteen, providing even greater aggregation capacity for larger fiber deployments.

Considering PoE Models (C1000-xxP-xxG-P)

Models ending in "-P" (e.g., C1000-24-4G-P) offer PoE+ (up to 30W per port) on their RJ-45 ports. For deployments requiring both fiber connectivity and PoE, a combination of switches or a model with a mix of PoE copper ports and SFP uplinks may be necessary.

In summary, the Cisco C1000-8P-2G-L Catalyst Switch is a specialized, powerful, and silent networking tool designed for scenarios where fiber optic connectivity is paramount. Its managed feature set, reliability, and compact design make it an excellent choice for building scalable, high-performance network edges that leverage the advantages of fiber optic cabling for speed, distance, and reliability.
