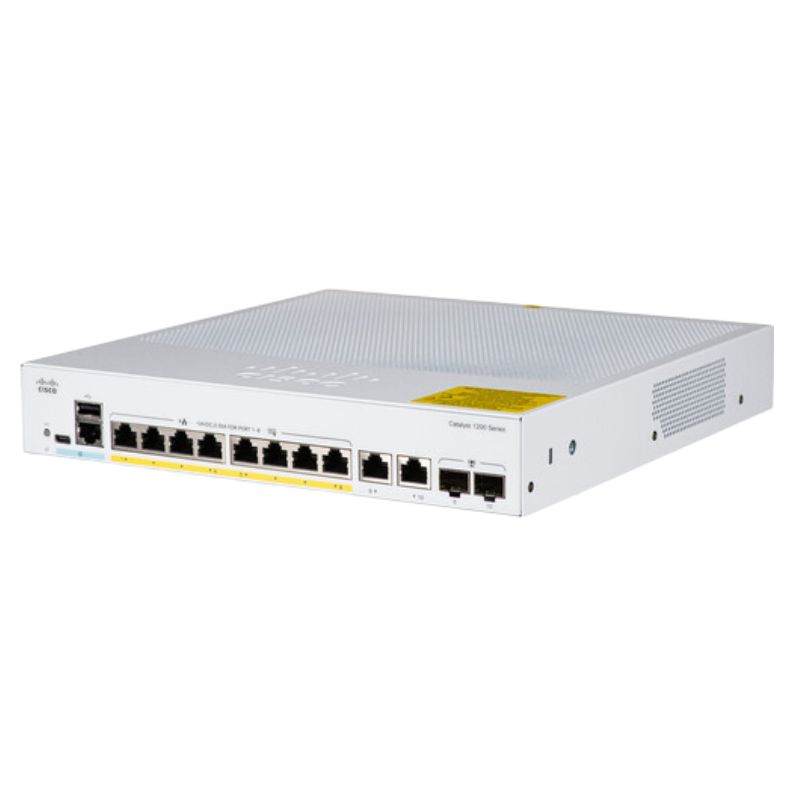

C1200-8FP-2G Cisco Catalyst Ethernet Switch 8-Port Gigabit

Main Specifications of Cisco C1200-8FP-2G Catalyst Switch

General Product Information

• Brand: Cisco
• Model / SKU: C1200-8FP-2G
• Category: Ethernet Switch
• Series: Catalyst
• Subtype: 8-Port Manageable Switch

Form Factor & Build

• Compact rack-mountable design
• Durable construction with reliable components
• Engineered for business networking environments

Technical Highlights

Performance & Hardware

• Switching Capacity: 1 Gbps data transfer rate
• Processor: ARM-based architecture
• RAM Installed: 1 GB
• Flash Storage: 512 MB
• Supported Protocols: IEEE 802.3az, IEEE 802.1ad, IEEE 802.1x
• Media Layers: Layer 2 and Layer 3
• MTBF: 1,706,649 hours

Networking & Connectivity

• Total Ports: 13 (including RJ45 and SFP slots)
• Supported Standards: 1000BASE-X, 10/100/1000BASE-T
• Expansion: 2 SFP modular slots
• Console Options: RJ-45 Console, USB Type-C
• Connectivity: Optical fiber and twisted pair

Power & Energy Efficiency

Power Supply Features

• Voltage Requirement: 100 – 240V AC, 50–60 Hz
• Device Type: Integrated power supply
• Power Consumption: Optimized for energy efficiency

Power over Ethernet (PoE) Support

• PoE Capability: Yes, with intelligent allocation
• PoE Power Budget: 120 Watts
• Ports with PoE: Multiple Gigabit Ethernet ports
• Compliance: Efficient PoE standard implementation

Advanced Features

Network & Data Management

• MAC Address Table: Supports up to 8,000 entries
• Jumbo Frame: Handles up to 9,000 bytes
• Remote Management: SNMP, HTTP, TFTP, HTTPS, DHCP
• Routing Protocols: IPv4, IPv6, Layer 3, CIDR
• Authentication: RADIUS for secure access

Ease of Use & Reliability

• Streamlined configuration and deployment
• Stable performance under high workloads
• Compact size for flexible installation
• Enhanced reliability for enterprise-class networks

Connectivity Options

Available Interfaces

• RJ45 Gigabit Ethernet
• Gigabit Ethernet combo interfaces
• USB Type-C for modern connectivity
• RJ-45 Console port for easy management

Cisco C1200-8FP-2G Catalyst Ethernet Switch: enterprise-lite performance for small and medium businesses

The Cisco C1200-8FP-2G Catalyst Ethernet Switch is a compact, managed gigabit switch engineered to deliver reliable, secure, and easy-to-manage connectivity for small and medium-sized networks. Built as part of Cisco’s Catalyst 1200 family, this model combines eight powered Ethernet access ports with two uplink-enabled SFP slots to create a flexible hybrid of copper and fiber connectivity. It is optimized for modern PoE-powered deployments such as IP telephony, wireless access points, and PoE cameras while giving administrators Layer 2 switching capabilities, essential security features, and a streamlined management experience that reduces deployment and operational complexity.

Hardware characteristics and port configuration

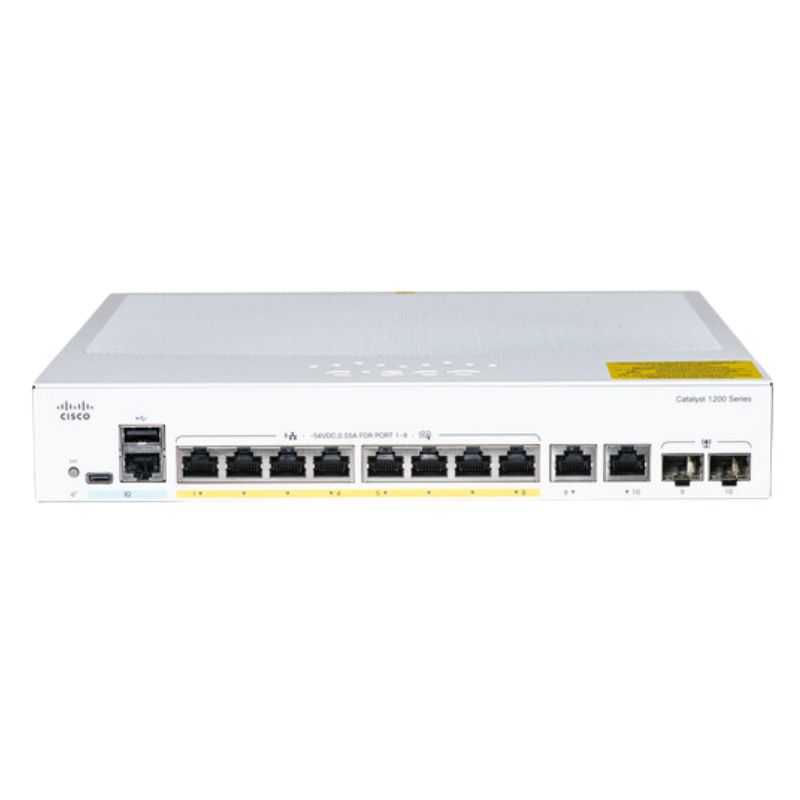

At the physical level the C1200-8FP-2G presents a total of ten network interfaces: eight fixed Gigabit Ethernet RJ-45 ports that support Power over Ethernet Plus (PoE+) and two combo Gigabit SFP/RJ-45 uplink ports that provide flexible fiber or copper uplink options. The two uplink interfaces accept SFP transceivers for 1000BASE-X fiber links, enabling resilient uplinks to distribution layers, fiber-fed trunks for remote locations, or aggregation to higher-capacity switches. The eight access ports on the front panel deliver full gigabit connectivity to edge devices and support a consolidated PoE budget designed to power connected endpoints without the need for separate power supplies. These hardware attributes make the C1200-8FP-2G an ideal candidate for branch offices, retail sites, and small on-premises networks that need a mix of copper-based endpoints and fiber uplinks.

PoE capability and power budget

Power over Ethernet capability is a defining trait of this model. The C1200-8FP-2G features PoE+ support across its access ports with a total PoE budget in the neighborhood of 120 watts. This allows network administrators to power a combination of VoIP phones, wireless access points, and surveillance cameras directly from the switch while simplifying cabling and installation logistics. The built-in power budget and PoE management allow administrators to plan and reserve power for prioritized devices, helping avoid unexpected power shortfalls in mixed-device deployments and enabling predictable rollouts of IP endpoints.

SFP uplinks and media flexibility

Two SFP-capable uplink interfaces are provided in a combo arrangement, meaning they may accept either a copper RJ-45 connection or a small form-factor pluggable module for fiber. This hybrid design offers network designers the flexibility to use short-range copper uplinks when convenient or to extend uplinks over fiber for longer distances and improved EMI immunity. Optical media support broadens the switch’s applicability to installations where centralized backbone switches, remote wiring closets, or inter-building links are present. The availability of SFP uplinks simplifies network design by allowing the same chassis to connect to both copper-based aggregation devices and fiber-based distribution switches.

Software, manageability, and deployment modes

While the hardware provides the physical foundation, the Catalyst 1200 software stack supplies the features that make the switch “managed” rather than unmanaged. The C1200 series runs Linux-based software with a focused feature set for enterprise-lite environments, providing Layer 2 switching, static Layer 3 routing, Quality of Service (QoS), access control, and traffic monitoring. Management options for the C1200-8FP-2G include an on-box web user interface, a command-line interface for administrators who prefer CLI, and Cisco’s small business management tools such as the Cisco Business mobile app and dashboard for simplified zero-touch or near-zero-touch deployment. These management paths let IT teams choose a lightweight, intuitive approach for small sites or more advanced CLI-based workflows for partners and integrators.

Simple setup for distributed and branch deployments

The switch is engineered to ease deployment by supporting common small-business workflows: plug-and-play connectivity, predefined profiles for voice and wireless, and fast provisioning when new devices come online. Bundled or complimentary support resources typically available for the Catalyst 1200 family help accelerate site activation and troubleshooting. This simplified management reduces time spent on routine tasks while maintaining sufficient configuration control to meet security and performance needs. The blend of on-box GUI and app-based management enables non-specialists to perform basic configuration tasks while giving more advanced operators CLI control when necessary.

Layer 2 switching, VLANs and traffic segmentation

As a Layer 2-capable device, the C1200-8FP-2G provides robust VLAN capabilities that allow administrators to segment voice, data, and IoT traffic for performance and security. VLAN tagging, trunking, and 802.1Q support ensure that traffic isolation is straightforward to implement. When used in conjunction with PoE-aware port configuration, the switch allows for the creation of policies that prioritize voice and video streams while keeping general-purpose data traffic separate. This traffic segmentation is critical in multi-service environments where quality and security must be enforced without a complex Layer 3 core.

Quality of Service (QoS) and performance tuning

Quality of Service is another pillar of enterprise-routing and switching, especially where VoIP and wireless backhaul are present. The C1200 series supports QoS features that enable administrators to classify, mark, and prioritize packets so that latency-sensitive services receive precedence over best-effort traffic. Bandwidth-limiting, queue management, and scheduling mechanisms can be used to fine-tune performance on a per-port basis, assuring consistent user experience for voice calls and video streaming even under contention. These capabilities help extract maximum utility from the available link and PoE resources.

Security and operational resilience

Security features on the C1200-8FP-2G include standard access control mechanisms and protections suited to small and medium environments. Port security, MAC filtering, and control plane safeguards are implemented to prevent unauthorized access and to limit the attack surface. The switch’s software also supports access control lists (ACLs), DHCP snooping, and features that help mitigate common threats on the LAN. Combined with the predictable, low-maintenance design of the hardware, these security controls contribute to reliable operation across distributed branch deployments and retail sites. For organizations that must enforce regulatory or internal compliance for networked endpoints, these capabilities make the switch a practical edge device.

Redundancy and fault tolerance

Although the C1200 class is designed primarily for small to medium deployments rather than data-center-grade redundancy, the switch offers features that contribute to overall network resilience. SFP uplinks can be configured for redundant uplink paths, and link-state detection helps to quickly reroute traffic when a primary path fails. Where multiple switches exist in a small campus or branch topology, administrators can design resilient topologies that reduce single points of failure by pairing fiber uplinks and leveraging aggregation in the distribution layer. The switch’s fanless and energy-efficient design minimizes mechanical points of failure and can contribute to quieter, lower-maintenance site installations.

Physical design and environmental considerations

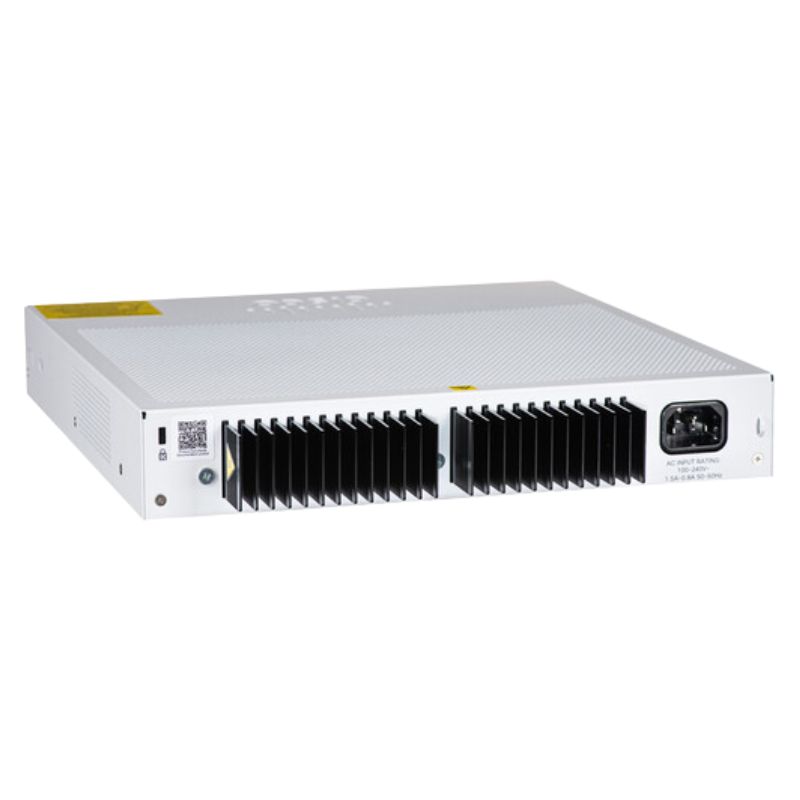

The physical form factor of the C1200-8FP-2G is compact and thoughtful for edge deployments. Many variants of the Catalyst 1200 are available in fanless models optimized for silent operation in noise-sensitive environments such as office floors, retail storefronts, or small server closets. The chassis and mounting options allow for either desktop placement or rack mounting with the appropriate brackets, which makes installation adaptable across a range of site constraints. Power consumption figures are optimized for energy efficiency while still providing the necessary PoE budget. Where facility constraints or thermal profiles are tight, the fanless design reduces noise and avoids additional cooling costs while still delivering enterprise-grade switching features.

Power and cabling planning

When planning a deployment, understanding the PoE budget and cabling design is crucial. The C1200-8FP-2G’s PoE budget should be considered against the anticipated connected device load, especially when powering multiple high-draw devices such as pan-tilt-zoom cameras or high-performance access points. A thoughtful approach to cable length, quality, and termination helps ensure that powered devices receive sufficient wattage while maintaining gigabit throughput on copper links. For longer uplink distances or EMI-sensitive installations, fiber SFP modules become a preferred option because they remove cable length limitations and electrical interference concerns.

Typical use cases and deployment scenarios

The C1200-8FP-2G excels in a variety of small- to medium-sized deployment scenarios. In branch offices it provides access-layer connectivity and PoE for endpoint devices while preserving uplink flexibility via SFP modules for fiber aggregation to the WAN. In retail environments the switch can power point-of-sale systems, security cameras, and wireless APs while maintaining clear segmentation between guest and corporate networks. In education or healthcare satellite sites the combination of VLANs, QoS, and access control enables secure and prioritized services where voice, video, and data must coexist on the same physical infrastructure. Because the device is offered at price points that are favorable to smaller organizations, it provides many of the same management and security features found in larger Catalyst platforms but in an optimized footprint for distributed sites.

Branch and retail

For branch and retail deployments, the C1200-8FP-2G can act as a one-box solution to support a dozen or more endpoints when combined with upstream aggregation. Its PoE capability removes the need for local power injectors and simplifies device provisioning, helping branches bring services live more quickly. The SFP uplinks are beneficial when connecting to a fiber-fed distribution point or when additional reach to a centralized backbone is required. The compact footprint also reduces rack space requirements, which is often a premium in retail backrooms.

Small office and home office (SOHO)

In the small office scenario, the switch provides a plug-and-play edge that supports VoIP, wireless access, and networked printers while offering the manageability features required for secure segmentation. Business owners and IT generalists can use the web-based or app-based management tools to monitor PoE consumption and apply simple policies without a steep learning curve. The blend of robust default behavior and advanced options gives these sites the operational stability they need without the overhead of enterprise-grade management ecosystems.
