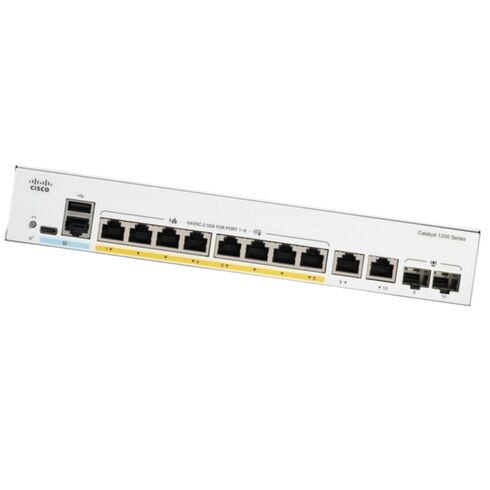

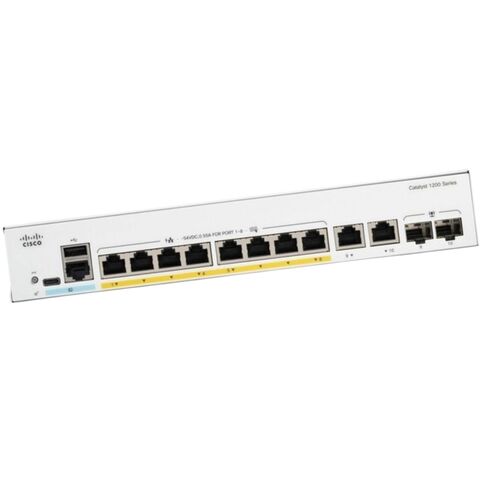

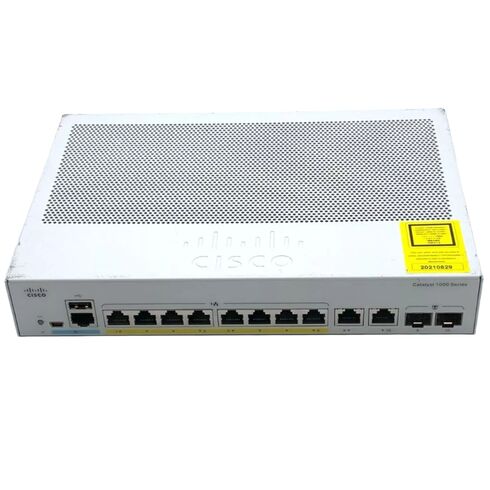

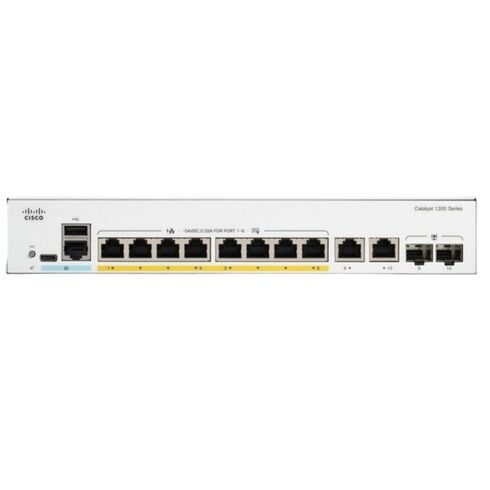

C1200-8P-E-2G Cisco Catalyst 1200 Layer 3 Manageable 8 Ports Ethernet Switch

Cisco Catalyst C1200-8P-E-2G Ethernet Switch Overview

The Cisco Catalyst C1200-8P-E-2G is a high-performance Layer 3 manageable switch designed for small to medium-sized networks. Its reliable architecture ensures seamless connectivity and efficient data management for modern enterprises.

Manufacturer and Product Details

• Brand: Cisco
• Model Number: C1200-8P-E-2G
• Device Category: Network Switch

Physical Specifications

• Mounting Style: Rack-mountable

Key Features and Performance

High-Speed Data Connectivity

• Transfer Speed: Up to 1 Gbps
• Network Protocol: Gigabit Ethernet

Processing and Memory

• CPU Type: ARM-based processor
• Installed RAM: 1 GB
• Flash Storage: 512 MB

Power and Reliability

• Power Supply: Included
• Voltage Range: 100–240V, 50–60 Hz
• Mean Time Between Failures (MTBF): 1,706,649 hours

Network Capabilities

Advanced Power Features

• PoE Support: Yes, Power over Ethernet

Data Handling and Frame Support

• MAC Address Capacity: 8,000 entries
• Jumbo Frame Capability: Up to 9,000 bytes

Connectivity and Interfaces

Ethernet and Uplink Ports

• 8x 10/100/1000 Mbps PoE+ ports
• 2x SFP+ Gigabit Ethernet combo ports

Additional Interfaces

• 1x USB Type-C port
• 1x RJ-45 console port

Cisco C1200-8P-E-2G Catalyst 1200 layer 3 Switch

Positioning: The Cisco C1200-8P-E-2G is an 8-port, Layer 3 manageable, Gigabit Ethernet switch within the Cisco Catalyst 1200 Series, purpose-built for small and medium-sized businesses that need reliable, secure, and affordable access switching with simplified operations. It integrates PoE+ capability, two combo uplinks, and fanless hardware options to deliver quiet, compact performance for branch offices, retail, hospitality, education labs, and micro-datacenter edges.

Core capabilities: As a Layer 3 managed device, the C1200-8P-E-2G provides granular control over VLANs, inter-VLAN routing, and network segmentation, while the 8 x 1GbE PoE+ ports enable power delivery to endpoints like IP phones, wireless access points, and cameras from a single, consolidated platform. With 2 x 1G combo uplinks for flexible fiber/copper connectivity, it bridges access and aggregation needs in compact footprints, balancing throughput, efficiency, and cost.

SMB-focused design: Cisco designed the Catalyst 1200 series to simplify ongoing management and deployment, including streamlined experiences through Cisco Business app and dashboard tooling. The series emphasizes reliability, security, and affordability for businesses transitioning from basic unmanaged switching to policy-driven managed networks with cloud application connectivity and evolving digital requirements.

Hardware specifications and performance profile

Port layout and uplinks: The C1200-8P-E-2G provides eight 1GbE PoE+ access ports for endpoint connectivity and two 1G combo uplinks (selectable copper or SFP) for flexible upstream connections to aggregation or router layers. This layout supports small edge clusters, AP distribution, IP telephony zones, and surveillance nodes without requiring additional power injectors or midspan devices.

PoE budget and power delivery: The unit offers a PoE budget of 67W, which is sufficient for a mix of low-power IP phones, several Wi‑Fi 6 access points, or cameras depending on per-port draw. PoE+ supports up to 30W per port (IEEE 802.3at), enabling deployment flexibility across modern endpoints while preserving a compact, efficient footprint for ceiling-mounted devices and deskside phones.

Switching capacity and forwarding rate: With a 20.0 Gbps switching capacity and a forwarding rate of 14.88 mpps (for 64-byte packets), the C1200-8P-E-2G handles typical SMB access network traffic with headroom for concurrent voice, data, and video services. This performance profile aligns with high-utilization small offices and branch networks running multiple VLANs and cloud application traffic patterns.

Thermal and acoustic characteristics: A fanless design variant minimizes noise, making the switch well-suited for open office spaces, retail counters, classrooms, and hospitality environments where acoustics matter. Fanless hardware also reduces mechanical wear points and dust ingress risks, supporting longer service lifecycles with fewer moving components.

Form factor and installation: The model is rack-mountable, enabling tidy installs in network cabinets, wall racks, or compact enclosures. Typical package weight and dimensions are suitable for express shipping and rapid field deployment, helping integrators and facilities teams roll out multiple locations with standardized equipment and predictable logistics workflows.

Series ethos: The wider Catalyst 1200 series portfolio is engineered to deliver reliable network connectivity and simple operations for SMBs, balancing security, manageability, and affordability across wired access layers that support cloud app usage, remote work enablement, and multi-site connectivity—key pillars for modern business journeys.

Layer 3 management, routing, and segmentation

Inter-VLAN routing: The C1200-8P-E-2G supports Layer 3 managed features that allow traffic routing between VLANs, enabling segmented networks for voice, guest Wi‑Fi, IoT, and corporate devices without requiring an external router for basic internal segmentation. This simplifies topology and can reduce latency between internal services while maintaining policy separation across broadcast domains.

Policy-driven segmentation: Granular control over VLAN membership, ACLs, and QoS enables administrators to prioritize traffic (e.g., voice over data), enforce access constraints, and isolate high-risk IoT devices. In SMB environments, these Layer 3 controls are crucial for reducing attack surfaces and preventing lateral movement risks, while keeping essential services performant.

Routing convergence and stability: Managed switches in the Catalyst 1200 line are built for stability and predictable behavior under typical SMB traffic patterns, integrating with standard protocols and operational workflows to ensure consistent network availability for cloud applications and collaboration tools. Simplified control surfaces reduce configuration drift across branches and offices, helping teams maintain healthy routing between segments.

Layer 2 foundation, spanning tree, and link resilience

Standards-based STP: The device supports 802.1d Spanning Tree Protocol, providing loop prevention in redundant topologies. For faster topology changes, 802.1w Rapid Spanning Tree Protocol (RSTP) is supported to speed convergence and minimize downtime during link or switch failures, which is especially important in small networks where a single loop can degrade performance quickly.

Uplink redundancy: With 2 x 1G combo uplinks, administrators can design primary/secondary paths to upstream devices, leveraging copper or fiber connections depending on distance, electromagnetic interference concerns, or existing plant. RSTP ensures rapid failover within the Layer 2 plane, containing broadcast storms and maintaining service continuity for critical endpoints like phones and cameras.

Access edge stability: Combining standards-based STP with VLAN segmentation at Layer 2 builds a robust foundation, reducing spanning tree complexity in smaller topologies while enabling consistent availability for voice, Wi‑Fi, and POS devices. This baseline helps SMBs operate hybrid cloud workflows and compliance-critical services without relying on large campus architectures.

PoE+ power strategies and endpoint planning

Endpoint mix planning: With an aggregate 67W PoE budget, planning involves mapping device power profiles (e.g., 6–9W IP phones, 12–25W Wi‑Fi 6 APs, and variable wattage IP cameras) across the eight PoE+ ports. The 30W per-port maximum supports higher-draw APs or PTZ cameras in specific ports, while remaining ports can drive phones and sensors—balancing load for overall budget integrity.

Cabling and midspan reduction: PoE+ integration reduces the need for external injectors and adapters, simplifying cabling, freeing outlets, and decreasing points of failure. Using structured cabling with category-rated runs ensures endpoints receive stable power and data over the same cable, improving aesthetic and maintenance outcomes in ceiling or wall-mounted deployments.

Operational safety and power policies: Administrators can enforce power priorities, set port-level limits, and schedule power for off-hours to conserve energy. Combined with a fanless design option, power-aware strategies reduce heat and noise in quiet spaces and help sustain longer-term hardware health with lower total cost of ownership.

Use cases in SMB and branch environments

Retail and hospitality: Connect POS terminals, IP cameras, digital signage, and guest Wi‑Fi APs on segmented VLANs. RSTP provides loop resilience, and PoE+ simplifies AP and camera installs in ceilings. Layer 3 routing enables guest isolation while maintaining secure staff networks, all in a compact, quiet form factor that fits behind counters or in small racks.

Education and labs: In classrooms or labs, the fanless profile minimizes acoustic impact. PoE+ powers APs for dense student device connectivity, while VLANs isolate testing devices from staff systems. Simple management reduces training overhead for IT generalists who handle multiple roles, aligning with SMB-focused tooling in the Catalyst 1200 series.

Branch offices and micro-sites: Eight PoE+ ports can sustain a cluster of phones, APs, and cameras for small branches, with the combo uplinks providing flexible WAN edge or aggregation paths. Layer 3 features deliver inter-VLAN routing locally for voice/data segmentation, while standards-based STP and 20 Gbps switching capacity protect against performance dips.

Management experience and operational simplicity

SMB-friendly tooling: The Catalyst 1200 series emphasizes an approachable management experience, including options through Cisco Business mobile app and dashboards. This reduces the complexity barrier for small teams, speeding provisioning and enabling visibility into port status, PoE usage, VLAN assignments, and uplink health without requiring deep CLI expertise for day-to-day tasks.

Lifecycle and support: The C1200-8P-E-2G benefits from Cisco’s established support ecosystem and a limited lifetime warranty model in the SMB category, giving buyers confidence in long-term operation. This warranty profile and brand support reduce perceived risk for IT investments in growing businesses that depend on reliable access switching.

Standardized deployments: Consistent packaging, rack-mount options, and global logistics support enable integrators to standardize rollouts across multiple sites, using the same PoE budgets, VLAN templates, and uplink strategies for predictable outcomes. These qualities help businesses scale from single offices to regional networks without rearchitecting access layers each time.

Network design patterns with the C1200-8P-E-2G

Small office blueprint

Topology: Use the eight PoE+ ports for IP phones and one or two APs, reserving remaining ports for desktops and printers. Segment with VLANs for voice, data, and guests, and implement inter-VLAN routing for policy enforcement. Dual uplinks connect to a router/firewall or an aggregation switch, with RSTP ensuring quick reconvergence on link failure.

Performance considerations: A 20 Gbps switching capacity and 14.88 mpps forwarding rate support typical office workloads, including SaaS, VoIP, and video calls. Power policies can prioritize AP and phone ports to ensure service continuity during peak usage or brownouts, while fanless design keeps the work area quiet.

Retail floor and back-office layout

Endpoint clustering: Assign cameras and APs to PoE+ ports near ceiling feeder paths; place POS devices on isolated VLANs with ACLs. Guest Wi‑Fi uses a separate VLAN routed to the internet with limited access. Combo uplinks can bridge fiber runs to a central MDF or connect copper to a local firewall appliance for redundancy.

Physical constraints: Rack-mountability and small footprint allow installation in constrained spaces, including wall-mounted mini racks. Fanless operation reduces dust-driven maintenance cycles, ideal for retail front-of-house cabinets and hospitality venues where air quality can vary.

Branch surveillance and IoT

PoE+ utilization: Plan camera power draw across the 67W budget, allocating higher-power ports to PTZ units and reserving standard ports for fixed cameras and sensors. Use VLANs and ACLs to isolate IoT from corporate data, and inter-VLAN routing to broker controlled access to NVR or cloud services as needed.

Resilience: With RSTP, redundant links to upstream NVR or core switches avoid loops. Combo uplinks support fiber runs for interference-resistant backhauls, which is useful in industrial or electrically noisy environments common to certain branch sites.

Security, policy, and compliance readiness

Segmentation for risk reduction: Layer 3 managed features support VLAN-based isolation, curbing lateral movement risks and containing potential compromises to specific segments (e.g., guest Wi‑Fi or IoT). ACLs refine traffic flows, enabling least-privilege design patterns for endpoints and services across the eight PoE+ access ports.

Secure operations for SMBs: The Catalyst 1200 series is engineered with reliability and security top of mind, enabling SMBs to maintain consistent, policy-driven controls without enterprise-level complexity. Combined with simplified dashboards, small teams can keep networks compliant with internal standards while supporting cloud application access securely.

Audit-friendly designs: VLAN templates, port labeling, and documented uplink assignments help produce auditable configurations. A limited lifetime warranty and Cisco’s support pathways add operational assurance that aligns with compliance and risk management expectations in regulated industries like retail payments and small healthcare practices.

Quality of Service and application experience

Voice and video prioritization: QoS policies ensure real-time traffic (VoIP, collaboration video) is prioritized over bulk data transfers, preserving call quality and meeting-room performance during peak hours. Mapping DSCP values and applying queue weights at the access edge provides end-to-end fidelity when paired with upstream network policies.

Wi‑Fi backhaul optimization: For AP ports, QoS can prioritize management frames and client traffic critical to authentication and roaming. With the switch’s forwarding capacity, APs serving dense client populations in small venues maintain service stability and consistent throughput, especially when uplink paths are designed with redundancy.

Scaling and multi-site standardization

Template-driven rollouts: Standardize a configuration template with VLANs for voice, data, guest, and IoT; ACL frameworks; and QoS mappings. Reuse this template across branches to speed deployment and ensure consistent policy enforcement paired with the Catalyst 1200 series’ simplified management experience.

Logistics and procurement: The availability and shipping profiles of the C1200-8P-E-2G support rapid multi-site deployments, with predictable packaging weight and dimensions aiding freight planning. Standard rack-mount kits and accessory options help create repeatable installation patterns for integrators and IT staff.

Growth paths: As sites expand, the 2 x 1G combo uplinks can feed aggregation layers or edge routers. For device-dense environments, additional C1200 series units can be added to extend PoE capacity and ports, retaining the same management and security model across locations to minimize training overhead.

Comparative insights within the Catalyst 1200 series

Portfolio alignment: The C1200-8P-E-2G occupies the compact, PoE-enabled edge tier of the 1200 series, optimized for sites needing fewer ports but high feature density and policy control. Larger 1200 models scale port counts and PoE budgets for bigger floors, while maintaining the same management principles for operational consistency across the series.

Selection guidance: Choose the 8-port model when endpoint counts are modest, ceiling APs are limited, or a single PoE switch can serve phones and cameras. Use the two combo uplinks to tie into fiber-fed aggregation or copper firewalls, balancing cost and capability while retaining headroom via 20 Gbps switching for everyday workloads.
